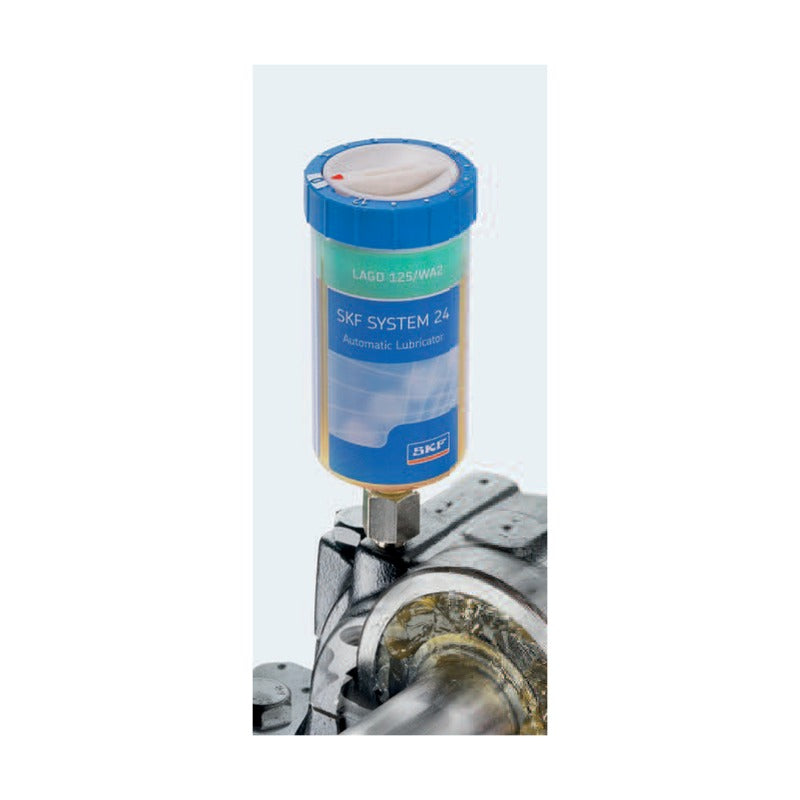

SKF LAGD Gas-driven Single Point Automatic Lubricators (60/125 ml)

SKF SYSTEM 24 LAGD gas-driven single point lubricators are supplied ready-to-use, filled with SKF greases or chain oils, with tool-free dispense rate setting from 1 to 12 months.

Key features

Flexible dispense rate 1-12 months, stoppable or adjustable
Intrinsically safe: ATEX approved for zone 0
Transparent container for visual inspection
Compact size for restricted areas
Greases and chain oils available; empty unit for oil filling

Specifications

Max. operating pressure	5 bar
Connection thread	R 1/4
Ambient temperature	-20 to +60 C
Protection class	IP 68
Drive	Gas cell (inert gas)
Source	SKF Maintenance and Lubrication Products, p. 164-165

LAGD 60/WA2		Capacity: 60 ml \| Lubricant: LGWA 2 \| Emptying time: 1-12 months
LAGD 125/WA2		Capacity: 125 ml \| Lubricant: LGWA 2 \| Emptying time: 1-12 months
LAGD 60/EM2		Capacity: 60 ml \| Lubricant: LGEM 2 \| Emptying time: 1-12 months
LAGD 125/EM2		Capacity: 125 ml \| Lubricant: LGEM 2 \| Emptying time: 1-12 months
LAGD 125/GB2		Capacity: 125 ml \| Lubricant: LGGB 2 \| Emptying time: 1-12 months
LAGD 60/HB2		Capacity: 60 ml \| Lubricant: LGHB 2 \| Emptying time: 1-12 months
LAGD 125/HB2		Capacity: 125 ml \| Lubricant: LGHB 2 \| Emptying time: 1-12 months
LAGD 60/HP2		Capacity: 60 ml \| Lubricant: LGHP 2 \| Emptying time: 1-12 months
LAGD 125/HP2		Capacity: 125 ml \| Lubricant: LGHP 2 \| Emptying time: 1-12 months
LAGD 60/FP2		Capacity: 60 ml \| Lubricant: LGFP 2 \| Emptying time: 1-12 months
LAGD 125/FP2		Capacity: 125 ml \| Lubricant: LGFP 2 \| Emptying time: 1-12 months
LAGD 125/WM2		Capacity: 125 ml \| Lubricant: LGWM 2 \| Emptying time: 1-12 months
LAGD 125/FQ2		Capacity: 125 ml \| Lubricant: LGFQ 2 \| Emptying time: 1-12 months
LAGD 60/HMT68		Capacity: 60 ml \| Lubricant: LHMT 68 oil \| Emptying time: 1-12 months
LAGD 125/HMT68		Capacity: 125 ml \| Lubricant: LHMT 68 oil \| Emptying time: 1-12 months
LAGD 125/HHT26		Capacity: 125 ml \| Lubricant: LHHT 265 oil \| Emptying time: 1-12 months
LAGD 125/FFM80		Capacity: 125 ml \| Lubricant: LFFM 80 oil \| Emptying time: 1-12 months
LAGD 125/HFP15		Capacity: 125 ml \| Lubricant: LHFP 150 oil \| Emptying time: 1-12 months
LAGD 125/FFT22		Capacity: 125 ml \| Lubricant: LFFT 220 oil \| Emptying time: 1-12 months
LAGD 60/U		Capacity: 60 ml \| Lubricant: Empty, oil filling \| Emptying time: 1-12 months
LAGD 125/U		Capacity: 125 ml \| Lubricant: Empty, oil filling \| Emptying time: 1-12 months

LubricatorsSKF

21 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF LAGD Gas-driven Single Point Automatic Lubricators (60/125 ml)

Brand SKF·Lubricators

Available part numbers (21)

LAGD 60/WA2, LAGD 125/WA2, LAGD 60/EM2, LAGD 125/EM2, LAGD 125/GB2, LAGD 60/HB2, LAGD 125/HB2, LAGD 60/HP2, LAGD 125/HP2, LAGD 60/FP2 + 11 more — see full table ↓
