SKF TIH L MB Induction Heaters for Solid Workpieces (L33MB-L77MB)

SKF TIH L MB Induction Heaters for Solid Workpieces (L33MB-L77MB)

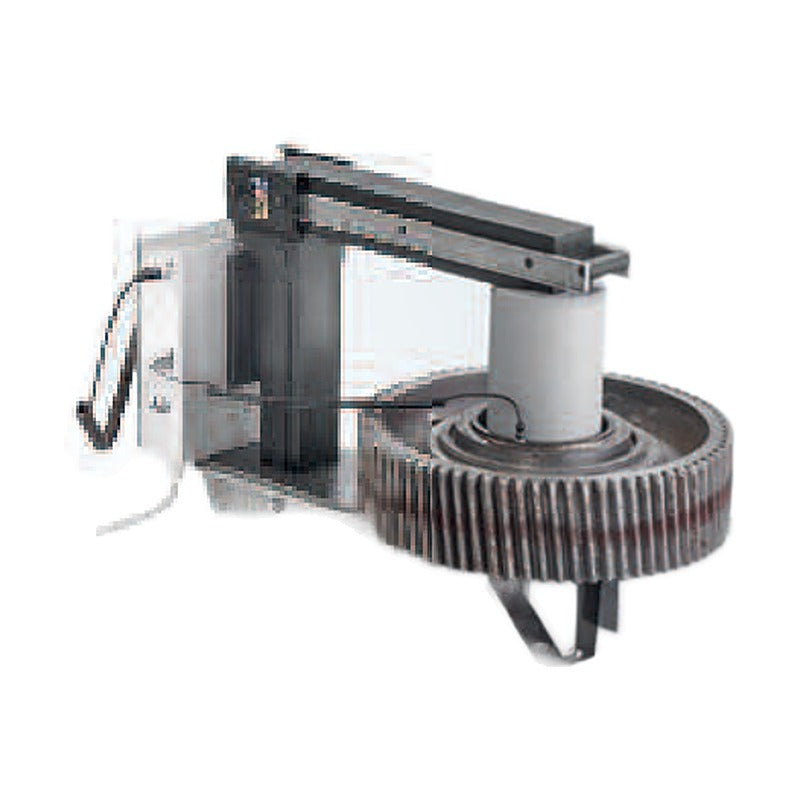

SKF TIH L MB series heaters have one central magnetic coil that localises heating in the bore of solid, non-bearing workpieces such as gears, couplings, sleeves and wheels.

Key features

  • Superior heating of solid workpieces with low energy consumption
  • Remote control with power level selection
  • Sliding yoke for quick placement of solid components
  • Automatic demagnetisation
  • Fork-lift transportable; three operating area sizes

Specifications

Temperature control 0-250 C in 1 C steps
Time control 0-120 min
Demagnetisation <2 A/cm
Source SKF Maintenance and Lubrication Products, p. 50-51
TIH L33MB/LV Max. workpiece: 350 kg | Bore range: 115-700 mm | Voltage: 200-240 V | Max. power: 15 kVA | Weight: 140 kg
TIH L33MB/MV Max. workpiece: 350 kg | Bore range: 115-700 mm | Voltage: 400-460 V | Max. power: 15 kVA | Weight: 140 kg
TIH L44MB/LV Max. workpiece: 600 kg | Bore range: 150-800 mm | Voltage: 200-240 V | Max. power: 20-24 kVA | Weight: 324 kg
TIH L44MB/MV Max. workpiece: 600 kg | Bore range: 150-800 mm | Voltage: 400-460 V | Max. power: 20-23 kVA | Weight: 324 kg
TIH L77MB/MV Max. workpiece: 600 kg | Bore range: 150-800 mm | Voltage: 400-460 V | Max. power: 20-23 kVA | Weight: 415 kg
Induction HeatersSKF
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF TIH L MB Induction Heaters for Solid Workpieces (L33MB-L77MB)

Brand SKF·Induction Heaters

Available part numbers (5)

TIH L33MB/LV, TIH L33MB/MV, TIH L44MB/LV, TIH L44MB/MV, TIH L77MB/MV

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TIH L33MB/LVMax. workpiece: 350 kg | Bore range: 115-700 mm | Voltage: 200-240 V | Max. power: 15 kVA | Weight: 140 kg
TIH L33MB/MVMax. workpiece: 350 kg | Bore range: 115-700 mm | Voltage: 400-460 V | Max. power: 15 kVA | Weight: 140 kg
TIH L44MB/LVMax. workpiece: 600 kg | Bore range: 150-800 mm | Voltage: 200-240 V | Max. power: 20-24 kVA | Weight: 324 kg
TIH L44MB/MVMax. workpiece: 600 kg | Bore range: 150-800 mm | Voltage: 400-460 V | Max. power: 20-23 kVA | Weight: 324 kg
TIH L77MB/MVMax. workpiece: 600 kg | Bore range: 150-800 mm | Voltage: 400-460 V | Max. power: 20-23 kVA | Weight: 415 kg
