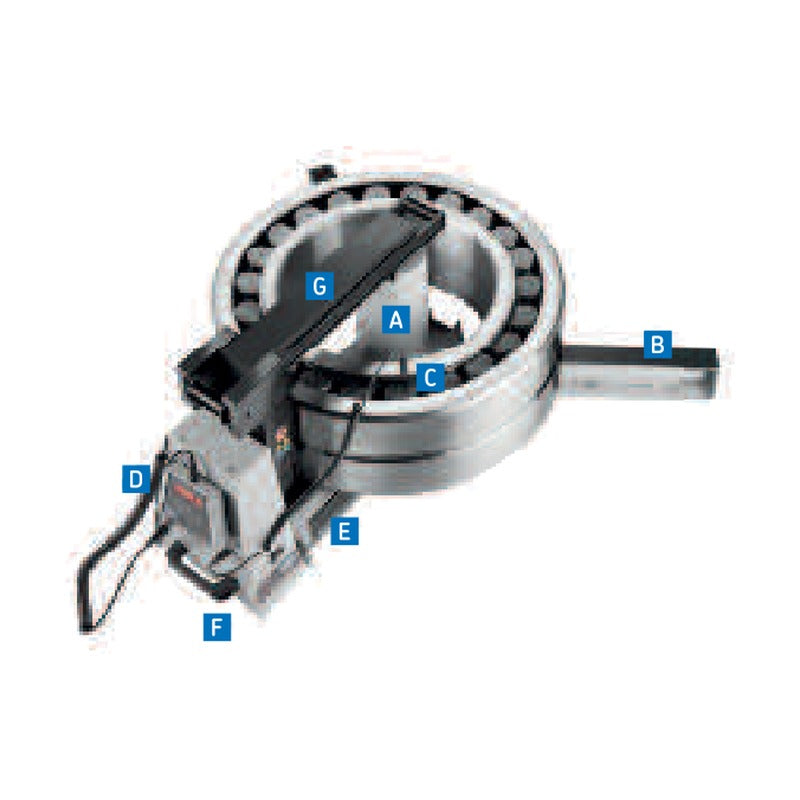

SKF TIH m Series Induction Heaters (TIH 030m, TIH 100m, TIH 220m)

SKF TIH m Series Induction Heaters (TIH 030m, TIH 100m, TIH 220m)

SKF TIH m series induction heaters heat bearings and ring-shaped components for hot mounting, with the m20 rating stating the heaviest 231-series bearing heated from 20 to 110 C in 20 minutes.

Key features

  • Induction coil outside the housing for shorter heating time and lower energy use
  • Magnetic temperature probe with 110 C preset temperature mode, plus time mode
  • Remote control panel and two-step power setting (50% / 100%)
  • Automatic demagnetisation and thermal overheating protection
  • Foldable bearing support arms; internal storage for smaller yokes

Specifications

Temperature control 20-250 C
Demagnetisation <2 A/cm
Source SKF Maintenance and Lubrication Products, p. 46-47
TIH 030m/110V Max. bearing weight: 40 kg | Bore range: 20-300 mm | Voltage: 100-120 V/50-60 Hz | Max. power: 2.0 kVA | Weight: 20.9 kg
TIH 030m/230V Max. bearing weight: 40 kg | Bore range: 20-300 mm | Voltage: 200-240 V/50-60 Hz | Max. power: 2.0 kVA | Weight: 20.9 kg
TIH 100m/230V Max. bearing weight: 120 kg | Bore range: 20-400 mm | Voltage: 200-240 V/50-60 Hz | Max. power: 3.6 kVA | Weight: 42 kg
TIH 100m/MV Max. bearing weight: 120 kg | Bore range: 20-400 mm | Voltage: 400-460 V/50-60 Hz | Max. power: 4.0-4.6 kVA | Weight: 42 kg
TIH 220m/LV Max. bearing weight: 300 kg | Bore range: 60-600 mm | Voltage: 200-240 V/50-60 Hz | Max. power: 10.0-11.5 kVA | Weight: 86 kg
TIH 220m/MV Max. bearing weight: 300 kg | Bore range: 60-600 mm | Voltage: 400-460 V/50-60 Hz | Max. power: 10.0-11.5 kVA | Weight: 86 kg
Induction HeatersSKF
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF TIH m Series Induction Heaters (TIH 030m, TIH 100m, TIH 220m)

Brand SKF·Induction Heaters

Available part numbers (6)

TIH 030m/110V, TIH 030m/230V, TIH 100m/230V, TIH 100m/MV, TIH 220m/LV, TIH 220m/MV

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TIH 030m/110VMax. bearing weight: 40 kg | Bore range: 20-300 mm | Voltage: 100-120 V/50-60 Hz | Max. power: 2.0 kVA | Weight: 20.9 kg
TIH 030m/230VMax. bearing weight: 40 kg | Bore range: 20-300 mm | Voltage: 200-240 V/50-60 Hz | Max. power: 2.0 kVA | Weight: 20.9 kg
TIH 100m/230VMax. bearing weight: 120 kg | Bore range: 20-400 mm | Voltage: 200-240 V/50-60 Hz | Max. power: 3.6 kVA | Weight: 42 kg
TIH 100m/MVMax. bearing weight: 120 kg | Bore range: 20-400 mm | Voltage: 400-460 V/50-60 Hz | Max. power: 4.0-4.6 kVA | Weight: 42 kg
TIH 220m/LVMax. bearing weight: 300 kg | Bore range: 60-600 mm | Voltage: 200-240 V/50-60 Hz | Max. power: 10.0-11.5 kVA | Weight: 86 kg
TIH 220m/MVMax. bearing weight: 300 kg | Bore range: 60-600 mm | Voltage: 400-460 V/50-60 Hz | Max. power: 10.0-11.5 kVA | Weight: 86 kg
