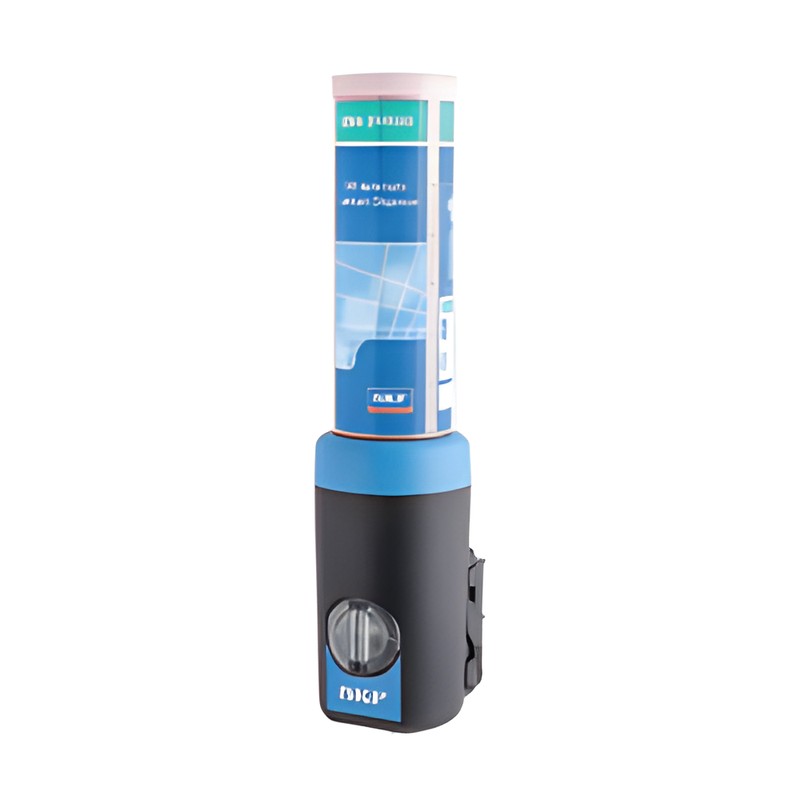

SKF TLMR 30 bar Single Point Lubricators, Sets and Cartridges

SKF TLMR 30 bar Single Point Lubricators, Sets and Cartridges

SKF TLMR automatic lubricant dispensers supply grease to a single point at up to 30 bar, allowing long feed lines to difficult-to-reach locations; TLMR 101 is battery powered, TLMR 201 runs on 12-24 V DC.

Key features

  • 30 bar maximum discharge pressure over the whole dispensing period
  • Temperature independent dispense rate; settings up to 24 months or purge
  • Non-refillable 120 and 380 ml cartridges screw in easily
  • IP 67 / IP 6k9k, wide temperature range -25 to +70 C
  • Supplied with strong mounting bracket

Specifications

Max. operating pressure 30 bar
Connection thread G 1/4 female
Ambient temperature -25 to +70 C
Source SKF Maintenance and Lubrication Products, p. 168, 169, 173
TLMR 101 Type: Lubricator pump | Power: 4 AA lithium batteries | Capacity: 120/380 ml cartridges
TLMR 201 Type: Lubricator pump | Power: 12-24 V DC (M12-A) | Capacity: 120/380 ml cartridges
TLMR 101/38WA2 Type: Complete set | Power: Batteries | Capacity: 380 ml LGWA 2
TLMR 201/38WA2 Type: Complete set | Power: 12-24 V DC | Capacity: 380 ml LGWA 2
LGWA 2/MR120B Type: TLMR 101 refill (cartridge+battery) | Grease: LGWA 2 | Capacity: 120 ml
LGWA 2/MR380B Type: TLMR 101 refill (cartridge+battery) | Grease: LGWA 2 | Capacity: 380 ml
LGEV 2/MR380B Type: TLMR 101 refill (cartridge+battery) | Grease: LGEV 2 | Capacity: 380 ml
LGHB 2/MR380B Type: TLMR 101 refill (cartridge+battery) | Grease: LGHB 2 | Capacity: 380 ml
LGHP 2/MR380B Type: TLMR 101 refill (cartridge+battery) | Grease: LGHP 2 | Capacity: 380 ml
LGFP 2/MR120B Type: TLMR 101 refill (cartridge+battery) | Grease: LGFP 2 | Capacity: 120 ml
LGFP 2/MR380B Type: TLMR 101 refill (cartridge+battery) | Grease: LGFP 2 | Capacity: 380 ml
LGWM 1/MR380B Type: TLMR 101 refill (cartridge+battery) | Grease: LGWM 1 | Capacity: 380 ml
LGWM 2/MR380B Type: TLMR 101 refill (cartridge+battery) | Grease: LGWM 2 | Capacity: 380 ml
LGEP 2/MR380B Type: TLMR 101 refill (cartridge+battery) | Grease: LGEP 2 | Capacity: 380 ml
LGMT 3/MR380B Type: TLMR 101 refill (cartridge+battery) | Grease: LGMT 3 | Capacity: 380 ml
LGWA 2/MR120 Type: TLMR 201 cartridge | Grease: LGWA 2 | Capacity: 120 ml
LGWA 2/MR380 Type: TLMR 201 cartridge | Grease: LGWA 2 | Capacity: 380 ml
LGEV 2/MR380 Type: TLMR 201 cartridge | Grease: LGEV 2 | Capacity: 380 ml
LGHB 2/MR380 Type: TLMR 201 cartridge | Grease: LGHB 2 | Capacity: 380 ml
LGHP 2/MR380 Type: TLMR 201 cartridge | Grease: LGHP 2 | Capacity: 380 ml
LGFP 2/MR120 Type: TLMR 201 cartridge | Grease: LGFP 2 | Capacity: 120 ml
LGFP 2/MR380 Type: TLMR 201 cartridge | Grease: LGFP 2 | Capacity: 380 ml
LGWM 1/MR380 Type: TLMR 201 cartridge | Grease: LGWM 1 | Capacity: 380 ml
LGWM 2/MR380 Type: TLMR 201 cartridge | Grease: LGWM 2 | Capacity: 380 ml
LGEP 2/MR380 Type: TLMR 201 cartridge | Grease: LGEP 2 | Capacity: 380 ml
LGMT 3/MR380 Type: TLMR 201 cartridge | Grease: LGMT 3 | Capacity: 380 ml
TLMR 201-1 Type: Cable plug M12 for TLMR 201 | Cable diameter: 4-6 mm
LubricatorsSKF
27 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SKF TLMR 30 bar Single Point Lubricators, Sets and Cartridges

Brand SKF·Lubricators

Available part numbers (27)

TLMR 101, TLMR 201, TLMR 101/38WA2, TLMR 201/38WA2, LGWA 2/MR120B, LGWA 2/MR380B, LGEV 2/MR380B, LGHB 2/MR380B, LGHP 2/MR380B, LGFP 2/MR120B + 17 more — see full table ↓

How to order

Send the SKF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TLMR 101Type: Lubricator pump | Power: 4 AA lithium batteries | Capacity: 120/380 ml cartridges
TLMR 201Type: Lubricator pump | Power: 12-24 V DC (M12-A) | Capacity: 120/380 ml cartridges
TLMR 101/38WA2Type: Complete set | Power: Batteries | Capacity: 380 ml LGWA 2
TLMR 201/38WA2Type: Complete set | Power: 12-24 V DC | Capacity: 380 ml LGWA 2
LGWA 2/MR120BType: TLMR 101 refill (cartridge+battery) | Grease: LGWA 2 | Capacity: 120 ml
LGWA 2/MR380BType: TLMR 101 refill (cartridge+battery) | Grease: LGWA 2 | Capacity: 380 ml
LGEV 2/MR380BType: TLMR 101 refill (cartridge+battery) | Grease: LGEV 2 | Capacity: 380 ml
LGHB 2/MR380BType: TLMR 101 refill (cartridge+battery) | Grease: LGHB 2 | Capacity: 380 ml
LGHP 2/MR380BType: TLMR 101 refill (cartridge+battery) | Grease: LGHP 2 | Capacity: 380 ml
LGFP 2/MR120BType: TLMR 101 refill (cartridge+battery) | Grease: LGFP 2 | Capacity: 120 ml
LGFP 2/MR380BType: TLMR 101 refill (cartridge+battery) | Grease: LGFP 2 | Capacity: 380 ml
LGWM 1/MR380BType: TLMR 101 refill (cartridge+battery) | Grease: LGWM 1 | Capacity: 380 ml
LGWM 2/MR380BType: TLMR 101 refill (cartridge+battery) | Grease: LGWM 2 | Capacity: 380 ml
LGEP 2/MR380BType: TLMR 101 refill (cartridge+battery) | Grease: LGEP 2 | Capacity: 380 ml
LGMT 3/MR380BType: TLMR 101 refill (cartridge+battery) | Grease: LGMT 3 | Capacity: 380 ml
LGWA 2/MR120Type: TLMR 201 cartridge | Grease: LGWA 2 | Capacity: 120 ml
LGWA 2/MR380Type: TLMR 201 cartridge | Grease: LGWA 2 | Capacity: 380 ml
LGEV 2/MR380Type: TLMR 201 cartridge | Grease: LGEV 2 | Capacity: 380 ml
LGHB 2/MR380Type: TLMR 201 cartridge | Grease: LGHB 2 | Capacity: 380 ml
LGHP 2/MR380Type: TLMR 201 cartridge | Grease: LGHP 2 | Capacity: 380 ml
LGFP 2/MR120Type: TLMR 201 cartridge | Grease: LGFP 2 | Capacity: 120 ml
LGFP 2/MR380Type: TLMR 201 cartridge | Grease: LGFP 2 | Capacity: 380 ml
LGWM 1/MR380Type: TLMR 201 cartridge | Grease: LGWM 1 | Capacity: 380 ml
LGWM 2/MR380Type: TLMR 201 cartridge | Grease: LGWM 2 | Capacity: 380 ml
LGEP 2/MR380Type: TLMR 201 cartridge | Grease: LGEP 2 | Capacity: 380 ml
LGMT 3/MR380Type: TLMR 201 cartridge | Grease: LGMT 3 | Capacity: 380 ml
TLMR 201-1Type: Cable plug M12 for TLMR 201 | Cable diameter: 4-6 mm
