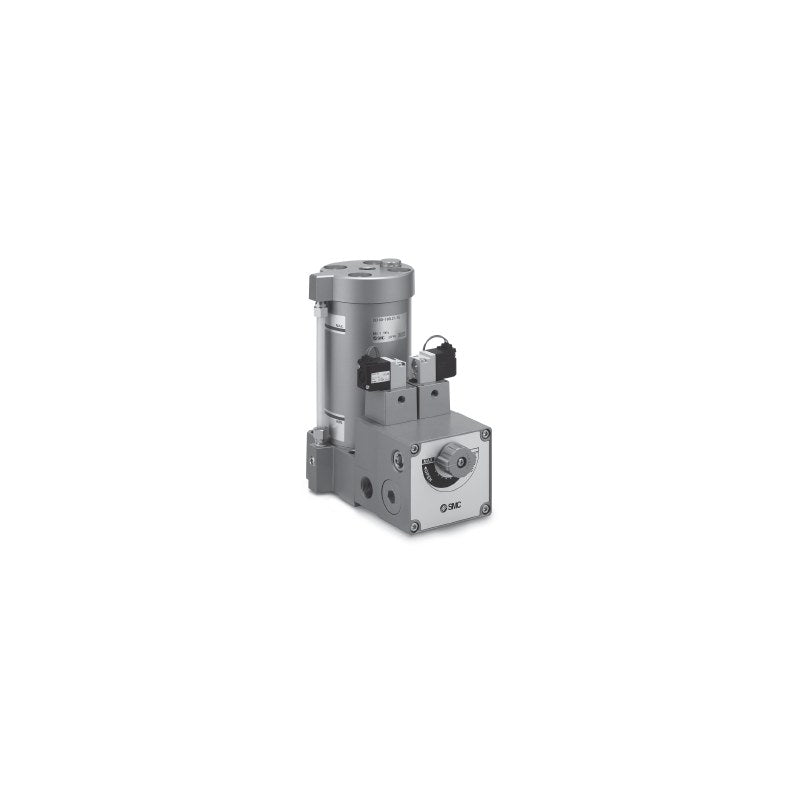

SMC CC Air-Hydro Unit (Converter + Valve Unit, ø63 to ø160)

SMC CC series air-hydro unit combining an air-hydro converter and valve unit in one body, converting air pressure into equal hydraulic pressure for smooth, constant-speed actuator drive.

Key features

Constant-speed drive at start and under load fluctuation; eliminates stick-slip at low speed
For precise constant feed, intermediate stop, skip feed and cushioned drive of rotary actuators
Converter ø63, ø100, ø160; small-flow (S) or large-flow (L) valve unit
Control valve: flow control with pressure compensation, orifice, or micro flow control (S only)
Compound valve: stop + skip, stop only or skip only; solenoid AC100V, AC200V, DC24V (grommet or DIN) or air operated
Semi-standard voltages AC110V, AC220V, DC12V, AC240V (symbols 3, 4, 6, 7) on order

Specifications

Operating pressure	0 to 0.7 MPa
Proof pressure	1.05 MPa
Ambient and fluid temperature	5 to 50°C
Fluid	Turbine oil (40 to 100 mm²/s)
Converter float and baffles	Prevent air dissolving in oil and bubble formation
Compound valve solenoid	VO307 type, external pilot 0.3 to 0.7 MPa
Source	SMC Korea catalog CC series (SMCKR_CC_CCT_CCV.pdf), p. 1260-1262 (PDF p. 6-8)

CC63-50S02-0		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: Air operated
CC63-50S02-1G		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC63-50S02-1D		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC63-50S02-2G		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC63-50S02-2D		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC63-50S02-5G		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC63-50S02-5D		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC63-50S10		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: None \| Solenoid: None
CC63-50S11-0		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: Air operated
CC63-50S11-1G		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
CC63-50S11-1D		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
CC63-50S11-2G		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
CC63-50S11-2D		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
CC63-50S11-5G		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
CC63-50S11-5D		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
CC63-50S12-0		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: Air operated
CC63-50S12-1G		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC63-50S12-1D		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC63-50S12-2G		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC63-50S12-2D		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC63-50S12-5G		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC63-50S12-5D		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC63-50S13-0		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: Air operated
CC63-50S13-1G		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V grommet
CC63-50S13-1D		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
CC63-50S13-2G		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V grommet
CC63-50S13-2D		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
CC63-50S13-5G		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V grommet
CC63-50S13-5D		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
CC63-50S20		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: None \| Solenoid: None
CC63-50S21-0		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: Air operated
CC63-50S21-1G		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
CC63-50S21-1D		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
CC63-50S21-2G		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
CC63-50S21-2D		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
CC63-50S21-5G		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
CC63-50S21-5D		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
CC63-50S22-0		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: Air operated
CC63-50S22-1G		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC63-50S22-1D		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC63-50S22-2G		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC63-50S22-2D		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC63-50S22-5G		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC63-50S22-5D		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC63-50S23-0		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: Air operated
CC63-50S23-1G		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V grommet
CC63-50S23-1D		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
CC63-50S23-2G		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V grommet
CC63-50S23-2D		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
CC63-50S23-5G		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V grommet
CC63-50S23-5D		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
CC63-50S30		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: None \| Solenoid: None
CC63-50S31-0		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: Air operated
CC63-50S31-1G		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
CC63-50S31-1D		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
CC63-50S31-2G		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
CC63-50S31-2D		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
CC63-50S31-5G		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
CC63-50S31-5D		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
CC63-50S32-0		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: Air operated
CC63-50S32-1G		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC63-50S32-1D		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC63-50S32-2G		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC63-50S32-2D		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC63-50S32-5G		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC63-50S32-5D		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC63-50S33-0		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: Air operated
CC63-50S33-1G		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V grommet
CC63-50S33-1D		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
CC63-50S33-2G		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V grommet
CC63-50S33-2D		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
CC63-50S33-5G		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V grommet
CC63-50S33-5D		Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
CC63-100S02-0		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: Air operated
CC63-100S02-1G		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC63-100S02-1D		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC63-100S02-2G		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC63-100S02-2D		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC63-100S02-5G		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC63-100S02-5D		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC63-100S10		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: None \| Solenoid: None
CC63-100S11-0		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: Air operated
CC63-100S11-1G		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
CC63-100S11-1D		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
CC63-100S11-2G		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
CC63-100S11-2D		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
CC63-100S11-5G		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
CC63-100S11-5D		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
CC63-100S12-0		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: Air operated
CC63-100S12-1G		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC63-100S12-1D		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC63-100S12-2G		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC63-100S12-2D		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC63-100S12-5G		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC63-100S12-5D		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC63-100S13-0		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: Air operated
CC63-100S13-1G		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V grommet
CC63-100S13-1D		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
CC63-100S13-2G		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V grommet
CC63-100S13-2D		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
CC63-100S13-5G		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V grommet
CC63-100S13-5D		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
CC63-100S20		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: None \| Solenoid: None
CC63-100S21-0		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: Air operated
CC63-100S21-1G		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
CC63-100S21-1D		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
CC63-100S21-2G		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
CC63-100S21-2D		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
CC63-100S21-5G		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
CC63-100S21-5D		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
CC63-100S22-0		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: Air operated
CC63-100S22-1G		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC63-100S22-1D		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC63-100S22-2G		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC63-100S22-2D		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC63-100S22-5G		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC63-100S22-5D		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC63-100S23-0		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: Air operated
CC63-100S23-1G		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V grommet
CC63-100S23-1D		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
CC63-100S23-2G		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V grommet
CC63-100S23-2D		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
CC63-100S23-5G		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V grommet
CC63-100S23-5D		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
CC63-100S30		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: None \| Solenoid: None
CC63-100S31-0		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: Air operated
CC63-100S31-1G		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
CC63-100S31-1D		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
CC63-100S31-2G		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
CC63-100S31-2D		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
CC63-100S31-5G		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
CC63-100S31-5D		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
CC63-100S32-0		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: Air operated
CC63-100S32-1G		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC63-100S32-1D		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC63-100S32-2G		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC63-100S32-2D		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC63-100S32-5G		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC63-100S32-5D		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC63-100S33-0		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: Air operated
CC63-100S33-1G		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V grommet
CC63-100S33-1D		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
CC63-100S33-2G		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V grommet
CC63-100S33-2D		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
CC63-100S33-5G		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V grommet
CC63-100S33-5D		Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
CC63-200S02-0		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: Air operated
CC63-200S02-1G		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC63-200S02-1D		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC63-200S02-2G		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC63-200S02-2D		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC63-200S02-5G		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC63-200S02-5D		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC63-200S10		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: None \| Solenoid: None
CC63-200S11-0		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: Air operated
CC63-200S11-1G		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
CC63-200S11-1D		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
CC63-200S11-2G		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
CC63-200S11-2D		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
CC63-200S11-5G		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
CC63-200S11-5D		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
CC63-200S12-0		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: Air operated
CC63-200S12-1G		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC63-200S12-1D		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC63-200S12-2G		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC63-200S12-2D		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC63-200S12-5G		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC63-200S12-5D		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC63-200S13-0		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: Air operated
CC63-200S13-1G		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V grommet
CC63-200S13-1D		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
CC63-200S13-2G		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V grommet
CC63-200S13-2D		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
CC63-200S13-5G		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V grommet
CC63-200S13-5D		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
CC63-200S20		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: None \| Solenoid: None
CC63-200S21-0		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: Air operated
CC63-200S21-1G		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
CC63-200S21-1D		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
CC63-200S21-2G		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
CC63-200S21-2D		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
CC63-200S21-5G		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
CC63-200S21-5D		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
CC63-200S22-0		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: Air operated
CC63-200S22-1G		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC63-200S22-1D		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC63-200S22-2G		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC63-200S22-2D		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC63-200S22-5G		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC63-200S22-5D		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC63-200S23-0		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: Air operated
CC63-200S23-1G		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V grommet
CC63-200S23-1D		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
CC63-200S23-2G		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V grommet
CC63-200S23-2D		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
CC63-200S23-5G		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V grommet
CC63-200S23-5D		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
CC63-200S30		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: None \| Solenoid: None
CC63-200S31-0		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: Air operated
CC63-200S31-1G		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
CC63-200S31-1D		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
CC63-200S31-2G		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
CC63-200S31-2D		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
CC63-200S31-5G		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
CC63-200S31-5D		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
CC63-200S32-0		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: Air operated
CC63-200S32-1G		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC63-200S32-1D		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC63-200S32-2G		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC63-200S32-2D		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC63-200S32-5G		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC63-200S32-5D		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC63-200S33-0		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: Air operated
CC63-200S33-1G		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V grommet
CC63-200S33-1D		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
CC63-200S33-2G		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V grommet
CC63-200S33-2D		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
CC63-200S33-5G		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V grommet
CC63-200S33-5D		Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
CC63-300S02-0		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: Air operated
CC63-300S02-1G		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC63-300S02-1D		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC63-300S02-2G		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC63-300S02-2D		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC63-300S02-5G		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC63-300S02-5D		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC63-300S10		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: None \| Solenoid: None
CC63-300S11-0		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: Air operated
CC63-300S11-1G		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
CC63-300S11-1D		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
CC63-300S11-2G		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
CC63-300S11-2D		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
CC63-300S11-5G		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
CC63-300S11-5D		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
CC63-300S12-0		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: Air operated
CC63-300S12-1G		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC63-300S12-1D		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC63-300S12-2G		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC63-300S12-2D		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC63-300S12-5G		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC63-300S12-5D		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC63-300S13-0		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: Air operated
CC63-300S13-1G		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V grommet
CC63-300S13-1D		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
CC63-300S13-2G		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V grommet
CC63-300S13-2D		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
CC63-300S13-5G		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V grommet
CC63-300S13-5D		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
CC63-300S20		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: None \| Solenoid: None
CC63-300S21-0		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: Air operated
CC63-300S21-1G		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
CC63-300S21-1D		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
CC63-300S21-2G		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
CC63-300S21-2D		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
CC63-300S21-5G		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
CC63-300S21-5D		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
CC63-300S22-0		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: Air operated
CC63-300S22-1G		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC63-300S22-1D		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC63-300S22-2G		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC63-300S22-2D		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC63-300S22-5G		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC63-300S22-5D		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC63-300S23-0		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: Air operated
CC63-300S23-1G		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V grommet
CC63-300S23-1D		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
CC63-300S23-2G		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V grommet
CC63-300S23-2D		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
CC63-300S23-5G		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V grommet
CC63-300S23-5D		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
CC63-300S30		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: None \| Solenoid: None
CC63-300S31-0		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: Air operated
CC63-300S31-1G		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
CC63-300S31-1D		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
CC63-300S31-2G		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
CC63-300S31-2D		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
CC63-300S31-5G		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
CC63-300S31-5D		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
CC63-300S32-0		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: Air operated
CC63-300S32-1G		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC63-300S32-1D		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC63-300S32-2G		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC63-300S32-2D		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC63-300S32-5G		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC63-300S32-5D		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC63-300S33-0		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: Air operated
CC63-300S33-1G		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V grommet
CC63-300S33-1D		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
CC63-300S33-2G		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V grommet
CC63-300S33-2D		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
CC63-300S33-5G		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V grommet
CC63-300S33-5D		Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
CC63-400S02-0		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: Air operated
CC63-400S02-1G		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC63-400S02-1D		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC63-400S02-2G		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC63-400S02-2D		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC63-400S02-5G		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC63-400S02-5D		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC63-400S10		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: None \| Solenoid: None
CC63-400S11-0		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: Air operated
CC63-400S11-1G		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
CC63-400S11-1D		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
CC63-400S11-2G		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
CC63-400S11-2D		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
CC63-400S11-5G		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
CC63-400S11-5D		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
CC63-400S12-0		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: Air operated
CC63-400S12-1G		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC63-400S12-1D		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC63-400S12-2G		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC63-400S12-2D		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC63-400S12-5G		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC63-400S12-5D		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC63-400S13-0		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: Air operated
CC63-400S13-1G		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V grommet
CC63-400S13-1D		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
CC63-400S13-2G		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V grommet
CC63-400S13-2D		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
CC63-400S13-5G		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V grommet
CC63-400S13-5D		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
CC63-400S20		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: None \| Solenoid: None
CC63-400S21-0		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: Air operated
CC63-400S21-1G		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
CC63-400S21-1D		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
CC63-400S21-2G		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
CC63-400S21-2D		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
CC63-400S21-5G		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
CC63-400S21-5D		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
CC63-400S22-0		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: Air operated
CC63-400S22-1G		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC63-400S22-1D		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC63-400S22-2G		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC63-400S22-2D		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC63-400S22-5G		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC63-400S22-5D		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC63-400S23-0		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: Air operated
CC63-400S23-1G		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V grommet
CC63-400S23-1D		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
CC63-400S23-2G		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V grommet
CC63-400S23-2D		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
CC63-400S23-5G		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V grommet
CC63-400S23-5D		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
CC63-400S30		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: None \| Solenoid: None
CC63-400S31-0		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: Air operated
CC63-400S31-1G		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
CC63-400S31-1D		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
CC63-400S31-2G		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
CC63-400S31-2D		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
CC63-400S31-5G		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
CC63-400S31-5D		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
CC63-400S32-0		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: Air operated
CC63-400S32-1G		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC63-400S32-1D		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC63-400S32-2G		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC63-400S32-2D		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC63-400S32-5G		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC63-400S32-5D		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC63-400S33-0		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: Air operated
CC63-400S33-1G		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V grommet
CC63-400S33-1D		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
CC63-400S33-2G		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V grommet
CC63-400S33-2D		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
CC63-400S33-5G		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V grommet
CC63-400S33-5D		Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
CC63-500S02-0		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: Air operated
CC63-500S02-1G		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC63-500S02-1D		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC63-500S02-2G		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC63-500S02-2D		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC63-500S02-5G		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC63-500S02-5D		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC63-500S10		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: None \| Solenoid: None
CC63-500S11-0		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: Air operated
CC63-500S11-1G		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
CC63-500S11-1D		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
CC63-500S11-2G		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
CC63-500S11-2D		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
CC63-500S11-5G		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
CC63-500S11-5D		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
CC63-500S12-0		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: Air operated
CC63-500S12-1G		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC63-500S12-1D		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC63-500S12-2G		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC63-500S12-2D		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC63-500S12-5G		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC63-500S12-5D		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC63-500S13-0		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: Air operated
CC63-500S13-1G		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V grommet
CC63-500S13-1D		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
CC63-500S13-2G		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V grommet
CC63-500S13-2D		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
CC63-500S13-5G		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V grommet
CC63-500S13-5D		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
CC63-500S20		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: None \| Solenoid: None
CC63-500S21-0		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: Air operated
CC63-500S21-1G		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
CC63-500S21-1D		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
CC63-500S21-2G		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
CC63-500S21-2D		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
CC63-500S21-5G		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
CC63-500S21-5D		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
CC63-500S22-0		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: Air operated
CC63-500S22-1G		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC63-500S22-1D		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC63-500S22-2G		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC63-500S22-2D		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC63-500S22-5G		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC63-500S22-5D		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC63-500S23-0		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: Air operated
CC63-500S23-1G		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V grommet
CC63-500S23-1D		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
CC63-500S23-2G		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V grommet
CC63-500S23-2D		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
CC63-500S23-5G		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V grommet
CC63-500S23-5D		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
CC63-500S30		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: None \| Solenoid: None
CC63-500S31-0		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: Air operated
CC63-500S31-1G		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
CC63-500S31-1D		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
CC63-500S31-2G		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
CC63-500S31-2D		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
CC63-500S31-5G		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
CC63-500S31-5D		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
CC63-500S32-0		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: Air operated
CC63-500S32-1G		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC63-500S32-1D		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC63-500S32-2G		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC63-500S32-2D		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC63-500S32-5G		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC63-500S32-5D		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC63-500S33-0		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: Air operated
CC63-500S33-1G		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V grommet
CC63-500S33-1D		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
CC63-500S33-2G		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V grommet
CC63-500S33-2D		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
CC63-500S33-5G		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V grommet
CC63-500S33-5D		Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
CC100-100S02-0		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: Air operated
CC100-100S02-1G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC100-100S02-1D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC100-100S02-2G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC100-100S02-2D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC100-100S02-5G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC100-100S02-5D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC100-100S10		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: None \| Solenoid: None
CC100-100S11-0		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: Air operated
CC100-100S11-1G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
CC100-100S11-1D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
CC100-100S11-2G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
CC100-100S11-2D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
CC100-100S11-5G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
CC100-100S11-5D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
CC100-100S12-0		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: Air operated
CC100-100S12-1G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC100-100S12-1D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC100-100S12-2G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC100-100S12-2D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC100-100S12-5G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC100-100S12-5D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC100-100S13-0		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: Air operated
CC100-100S13-1G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V grommet
CC100-100S13-1D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
CC100-100S13-2G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V grommet
CC100-100S13-2D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
CC100-100S13-5G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V grommet
CC100-100S13-5D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
CC100-100S20		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: None \| Solenoid: None
CC100-100S21-0		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: Air operated
CC100-100S21-1G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
CC100-100S21-1D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
CC100-100S21-2G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
CC100-100S21-2D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
CC100-100S21-5G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
CC100-100S21-5D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
CC100-100S22-0		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: Air operated
CC100-100S22-1G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC100-100S22-1D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC100-100S22-2G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC100-100S22-2D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC100-100S22-5G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC100-100S22-5D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC100-100S23-0		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: Air operated
CC100-100S23-1G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V grommet
CC100-100S23-1D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
CC100-100S23-2G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V grommet
CC100-100S23-2D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
CC100-100S23-5G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V grommet
CC100-100S23-5D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
CC100-100S30		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: None \| Solenoid: None
CC100-100S31-0		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: Air operated
CC100-100S31-1G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
CC100-100S31-1D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
CC100-100S31-2G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
CC100-100S31-2D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
CC100-100S31-5G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
CC100-100S31-5D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
CC100-100S32-0		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: Air operated
CC100-100S32-1G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC100-100S32-1D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC100-100S32-2G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC100-100S32-2D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC100-100S32-5G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC100-100S32-5D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC100-100S33-0		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: Air operated
CC100-100S33-1G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V grommet
CC100-100S33-1D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
CC100-100S33-2G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V grommet
CC100-100S33-2D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
CC100-100S33-5G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V grommet
CC100-100S33-5D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
CC100-100L02-0		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: Air operated
CC100-100L02-1G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC100-100L02-1D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC100-100L02-2G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC100-100L02-2D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC100-100L02-5G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC100-100L02-5D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC100-100L10		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: None \| Solenoid: None
CC100-100L11-0		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: Air operated
CC100-100L11-1G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
CC100-100L11-1D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
CC100-100L11-2G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
CC100-100L11-2D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
CC100-100L11-5G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
CC100-100L11-5D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
CC100-100L12-0		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: Air operated
CC100-100L12-1G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC100-100L12-1D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC100-100L12-2G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC100-100L12-2D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC100-100L12-5G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC100-100L12-5D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC100-100L13-0		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: Air operated
CC100-100L13-1G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V grommet
CC100-100L13-1D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
CC100-100L13-2G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V grommet
CC100-100L13-2D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
CC100-100L13-5G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V grommet
CC100-100L13-5D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
CC100-100L20		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: None \| Solenoid: None
CC100-100L21-0		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: Air operated
CC100-100L21-1G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
CC100-100L21-1D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
CC100-100L21-2G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
CC100-100L21-2D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
CC100-100L21-5G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
CC100-100L21-5D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
CC100-100L22-0		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: Air operated
CC100-100L22-1G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC100-100L22-1D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC100-100L22-2G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC100-100L22-2D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC100-100L22-5G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC100-100L22-5D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC100-100L23-0		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: Air operated
CC100-100L23-1G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V grommet
CC100-100L23-1D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
CC100-100L23-2G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V grommet
CC100-100L23-2D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
CC100-100L23-5G		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V grommet
CC100-100L23-5D		Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
CC100-200S02-0		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: Air operated
CC100-200S02-1G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC100-200S02-1D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC100-200S02-2G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC100-200S02-2D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC100-200S02-5G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC100-200S02-5D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC100-200S10		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: None \| Solenoid: None
CC100-200S11-0		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: Air operated
CC100-200S11-1G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
CC100-200S11-1D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
CC100-200S11-2G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
CC100-200S11-2D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
CC100-200S11-5G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
CC100-200S11-5D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
CC100-200S12-0		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: Air operated
CC100-200S12-1G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC100-200S12-1D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC100-200S12-2G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC100-200S12-2D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC100-200S12-5G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC100-200S12-5D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC100-200S13-0		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: Air operated
CC100-200S13-1G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V grommet
CC100-200S13-1D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
CC100-200S13-2G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V grommet
CC100-200S13-2D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
CC100-200S13-5G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V grommet
CC100-200S13-5D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
CC100-200S20		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: None \| Solenoid: None
CC100-200S21-0		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: Air operated
CC100-200S21-1G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
CC100-200S21-1D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
CC100-200S21-2G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
CC100-200S21-2D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
CC100-200S21-5G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
CC100-200S21-5D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
CC100-200S22-0		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: Air operated
CC100-200S22-1G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC100-200S22-1D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC100-200S22-2G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC100-200S22-2D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC100-200S22-5G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC100-200S22-5D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC100-200S23-0		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: Air operated
CC100-200S23-1G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V grommet
CC100-200S23-1D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
CC100-200S23-2G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V grommet
CC100-200S23-2D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
CC100-200S23-5G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V grommet
CC100-200S23-5D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
CC100-200S30		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: None \| Solenoid: None
CC100-200S31-0		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: Air operated
CC100-200S31-1G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
CC100-200S31-1D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
CC100-200S31-2G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
CC100-200S31-2D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
CC100-200S31-5G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
CC100-200S31-5D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
CC100-200S32-0		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: Air operated
CC100-200S32-1G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC100-200S32-1D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC100-200S32-2G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC100-200S32-2D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC100-200S32-5G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC100-200S32-5D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC100-200S33-0		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: Air operated
CC100-200S33-1G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V grommet
CC100-200S33-1D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
CC100-200S33-2G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V grommet
CC100-200S33-2D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
CC100-200S33-5G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V grommet
CC100-200S33-5D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
CC100-200L02-0		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: Air operated
CC100-200L02-1G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC100-200L02-1D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC100-200L02-2G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC100-200L02-2D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC100-200L02-5G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC100-200L02-5D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC100-200L10		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: None \| Solenoid: None
CC100-200L11-0		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: Air operated
CC100-200L11-1G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
CC100-200L11-1D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
CC100-200L11-2G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
CC100-200L11-2D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
CC100-200L11-5G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
CC100-200L11-5D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
CC100-200L12-0		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: Air operated
CC100-200L12-1G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC100-200L12-1D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC100-200L12-2G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC100-200L12-2D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC100-200L12-5G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC100-200L12-5D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC100-200L13-0		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: Air operated
CC100-200L13-1G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V grommet
CC100-200L13-1D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
CC100-200L13-2G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V grommet
CC100-200L13-2D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
CC100-200L13-5G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V grommet
CC100-200L13-5D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
CC100-200L20		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: None \| Solenoid: None
CC100-200L21-0		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: Air operated
CC100-200L21-1G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
CC100-200L21-1D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
CC100-200L21-2G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
CC100-200L21-2D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
CC100-200L21-5G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
CC100-200L21-5D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
CC100-200L22-0		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: Air operated
CC100-200L22-1G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC100-200L22-1D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC100-200L22-2G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC100-200L22-2D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC100-200L22-5G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC100-200L22-5D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC100-200L23-0		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: Air operated
CC100-200L23-1G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V grommet
CC100-200L23-1D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
CC100-200L23-2G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V grommet
CC100-200L23-2D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
CC100-200L23-5G		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V grommet
CC100-200L23-5D		Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
CC100-300S02-0		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: Air operated
CC100-300S02-1G		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC100-300S02-1D		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC100-300S02-2G		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC100-300S02-2D		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC100-300S02-5G		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC100-300S02-5D		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC100-300S10		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: None \| Solenoid: None
CC100-300S11-0		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: Air operated
CC100-300S11-1G		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
CC100-300S11-1D		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
CC100-300S11-2G		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
CC100-300S11-2D		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
CC100-300S11-5G		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
CC100-300S11-5D		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
CC100-300S12-0		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: Air operated
CC100-300S12-1G		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC100-300S12-1D		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC100-300S12-2G		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC100-300S12-2D		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC100-300S12-5G		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC100-300S12-5D		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC100-300S13-0		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: Air operated
CC100-300S13-1G		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V grommet
CC100-300S13-1D		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
CC100-300S13-2G		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V grommet
CC100-300S13-2D		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
CC100-300S13-5G		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V grommet
CC100-300S13-5D		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
CC100-300S20		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: None \| Solenoid: None
CC100-300S21-0		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: Air operated
CC100-300S21-1G		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
CC100-300S21-1D		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
CC100-300S21-2G		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
CC100-300S21-2D		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
CC100-300S21-5G		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
CC100-300S21-5D		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
CC100-300S22-0		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: Air operated
CC100-300S22-1G		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC100-300S22-1D		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC100-300S22-2G		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC100-300S22-2D		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC100-300S22-5G		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC100-300S22-5D		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC100-300S23-0		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: Air operated
CC100-300S23-1G		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V grommet
CC100-300S23-1D		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
CC100-300S23-2G		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V grommet
CC100-300S23-2D		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
CC100-300S23-5G		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V grommet
CC100-300S23-5D		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
CC100-300S30		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: None \| Solenoid: None
CC100-300S31-0		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: Air operated
CC100-300S31-1G		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
CC100-300S31-1D		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
CC100-300S31-2G		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
CC100-300S31-2D		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
CC100-300S31-5G		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
CC100-300S31-5D		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
CC100-300S32-0		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: Air operated
CC100-300S32-1G		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC100-300S32-1D		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC100-300S32-2G		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC100-300S32-2D		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC100-300S32-5G		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC100-300S32-5D		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC100-300S33-0		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: Air operated
CC100-300S33-1G		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V grommet
CC100-300S33-1D		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
CC100-300S33-2G		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V grommet
CC100-300S33-2D		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
CC100-300S33-5G		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V grommet
CC100-300S33-5D		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
CC100-300L02-0		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: Air operated
CC100-300L02-1G		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V grommet
CC100-300L02-1D		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
CC100-300L02-2G		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V grommet
CC100-300L02-2D		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
CC100-300L02-5G		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V grommet
CC100-300L02-5D		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
CC100-300L10		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: None \| Solenoid: None
CC100-300L11-0		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: Air operated
CC100-300L11-1G		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
CC100-300L11-1D		Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal

Hydraulic EquipmentSMC

770 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CC Air-Hydro Unit (Converter + Valve Unit, ø63 to ø160)

Brand SMC·Hydraulic Equipment

Available part numbers (770)

CC63-50S02-0, CC63-50S02-1G, CC63-50S02-1D, CC63-50S02-2G, CC63-50S02-2D, CC63-50S02-5G, CC63-50S02-5D, CC63-50S10, CC63-50S11-0, CC63-50S11-1G + 760 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CC63-50S02-0	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: Air operated
	CC63-50S02-1G	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC63-50S02-1D	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC63-50S02-2G	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC63-50S02-2D	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC63-50S02-5G	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC63-50S02-5D	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC63-50S10	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: None \| Solenoid: None
	CC63-50S11-0	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: Air operated
	CC63-50S11-1G	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
	CC63-50S11-1D	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
	CC63-50S11-2G	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
	CC63-50S11-2D	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
	CC63-50S11-5G	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
	CC63-50S11-5D	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
	CC63-50S12-0	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: Air operated
	CC63-50S12-1G	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC63-50S12-1D	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC63-50S12-2G	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC63-50S12-2D	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC63-50S12-5G	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC63-50S12-5D	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC63-50S13-0	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: Air operated
	CC63-50S13-1G	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V grommet
	CC63-50S13-1D	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
	CC63-50S13-2G	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V grommet
	CC63-50S13-2D	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
	CC63-50S13-5G	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V grommet
	CC63-50S13-5D	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
	CC63-50S20	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: None \| Solenoid: None
	CC63-50S21-0	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: Air operated
	CC63-50S21-1G	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
	CC63-50S21-1D	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
	CC63-50S21-2G	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
	CC63-50S21-2D	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
	CC63-50S21-5G	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
	CC63-50S21-5D	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
	CC63-50S22-0	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: Air operated
	CC63-50S22-1G	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC63-50S22-1D	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC63-50S22-2G	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC63-50S22-2D	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC63-50S22-5G	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC63-50S22-5D	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC63-50S23-0	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: Air operated
	CC63-50S23-1G	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V grommet
	CC63-50S23-1D	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
	CC63-50S23-2G	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V grommet
	CC63-50S23-2D	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
	CC63-50S23-5G	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V grommet
	CC63-50S23-5D	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
	CC63-50S30	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: None \| Solenoid: None
	CC63-50S31-0	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: Air operated
	CC63-50S31-1G	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
	CC63-50S31-1D	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
	CC63-50S31-2G	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
	CC63-50S31-2D	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
	CC63-50S31-5G	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
	CC63-50S31-5D	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
	CC63-50S32-0	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: Air operated
	CC63-50S32-1G	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC63-50S32-1D	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC63-50S32-2G	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC63-50S32-2D	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC63-50S32-5G	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC63-50S32-5D	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC63-50S33-0	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: Air operated
	CC63-50S33-1G	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V grommet
	CC63-50S33-1D	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
	CC63-50S33-2G	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V grommet
	CC63-50S33-2D	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
	CC63-50S33-5G	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V grommet
	CC63-50S33-5D	Converter: ø63 mm \| Stroke: 50 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
	CC63-100S02-0	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: Air operated
	CC63-100S02-1G	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC63-100S02-1D	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC63-100S02-2G	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC63-100S02-2D	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC63-100S02-5G	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC63-100S02-5D	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC63-100S10	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: None \| Solenoid: None
	CC63-100S11-0	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: Air operated
	CC63-100S11-1G	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
	CC63-100S11-1D	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
	CC63-100S11-2G	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
	CC63-100S11-2D	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
	CC63-100S11-5G	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
	CC63-100S11-5D	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
	CC63-100S12-0	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: Air operated
	CC63-100S12-1G	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC63-100S12-1D	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC63-100S12-2G	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC63-100S12-2D	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC63-100S12-5G	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC63-100S12-5D	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC63-100S13-0	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: Air operated
	CC63-100S13-1G	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V grommet
	CC63-100S13-1D	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
	CC63-100S13-2G	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V grommet
	CC63-100S13-2D	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
	CC63-100S13-5G	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V grommet
	CC63-100S13-5D	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
	CC63-100S20	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: None \| Solenoid: None
	CC63-100S21-0	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: Air operated
	CC63-100S21-1G	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
	CC63-100S21-1D	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
	CC63-100S21-2G	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
	CC63-100S21-2D	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
	CC63-100S21-5G	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
	CC63-100S21-5D	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
	CC63-100S22-0	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: Air operated
	CC63-100S22-1G	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC63-100S22-1D	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC63-100S22-2G	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC63-100S22-2D	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC63-100S22-5G	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC63-100S22-5D	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC63-100S23-0	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: Air operated
	CC63-100S23-1G	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V grommet
	CC63-100S23-1D	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
	CC63-100S23-2G	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V grommet
	CC63-100S23-2D	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
	CC63-100S23-5G	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V grommet
	CC63-100S23-5D	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
	CC63-100S30	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: None \| Solenoid: None
	CC63-100S31-0	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: Air operated
	CC63-100S31-1G	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
	CC63-100S31-1D	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
	CC63-100S31-2G	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
	CC63-100S31-2D	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
	CC63-100S31-5G	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
	CC63-100S31-5D	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
	CC63-100S32-0	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: Air operated
	CC63-100S32-1G	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC63-100S32-1D	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC63-100S32-2G	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC63-100S32-2D	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC63-100S32-5G	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC63-100S32-5D	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC63-100S33-0	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: Air operated
	CC63-100S33-1G	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V grommet
	CC63-100S33-1D	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
	CC63-100S33-2G	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V grommet
	CC63-100S33-2D	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
	CC63-100S33-5G	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V grommet
	CC63-100S33-5D	Converter: ø63 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
	CC63-200S02-0	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: Air operated
	CC63-200S02-1G	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC63-200S02-1D	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC63-200S02-2G	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC63-200S02-2D	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC63-200S02-5G	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC63-200S02-5D	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC63-200S10	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: None \| Solenoid: None
	CC63-200S11-0	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: Air operated
	CC63-200S11-1G	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
	CC63-200S11-1D	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
	CC63-200S11-2G	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
	CC63-200S11-2D	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
	CC63-200S11-5G	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
	CC63-200S11-5D	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
	CC63-200S12-0	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: Air operated
	CC63-200S12-1G	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC63-200S12-1D	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC63-200S12-2G	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC63-200S12-2D	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC63-200S12-5G	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC63-200S12-5D	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC63-200S13-0	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: Air operated
	CC63-200S13-1G	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V grommet
	CC63-200S13-1D	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
	CC63-200S13-2G	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V grommet
	CC63-200S13-2D	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
	CC63-200S13-5G	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V grommet
	CC63-200S13-5D	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
	CC63-200S20	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: None \| Solenoid: None
	CC63-200S21-0	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: Air operated
	CC63-200S21-1G	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
	CC63-200S21-1D	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
	CC63-200S21-2G	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
	CC63-200S21-2D	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
	CC63-200S21-5G	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
	CC63-200S21-5D	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
	CC63-200S22-0	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: Air operated
	CC63-200S22-1G	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC63-200S22-1D	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC63-200S22-2G	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC63-200S22-2D	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC63-200S22-5G	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC63-200S22-5D	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC63-200S23-0	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: Air operated
	CC63-200S23-1G	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V grommet
	CC63-200S23-1D	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
	CC63-200S23-2G	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V grommet
	CC63-200S23-2D	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
	CC63-200S23-5G	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V grommet
	CC63-200S23-5D	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
	CC63-200S30	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: None \| Solenoid: None
	CC63-200S31-0	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: Air operated
	CC63-200S31-1G	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
	CC63-200S31-1D	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
	CC63-200S31-2G	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
	CC63-200S31-2D	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
	CC63-200S31-5G	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
	CC63-200S31-5D	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
	CC63-200S32-0	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: Air operated
	CC63-200S32-1G	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC63-200S32-1D	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC63-200S32-2G	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC63-200S32-2D	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC63-200S32-5G	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC63-200S32-5D	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC63-200S33-0	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: Air operated
	CC63-200S33-1G	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V grommet
	CC63-200S33-1D	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
	CC63-200S33-2G	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V grommet
	CC63-200S33-2D	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
	CC63-200S33-5G	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V grommet
	CC63-200S33-5D	Converter: ø63 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
	CC63-300S02-0	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: Air operated
	CC63-300S02-1G	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC63-300S02-1D	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC63-300S02-2G	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC63-300S02-2D	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC63-300S02-5G	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC63-300S02-5D	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC63-300S10	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: None \| Solenoid: None
	CC63-300S11-0	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: Air operated
	CC63-300S11-1G	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
	CC63-300S11-1D	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
	CC63-300S11-2G	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
	CC63-300S11-2D	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
	CC63-300S11-5G	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
	CC63-300S11-5D	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
	CC63-300S12-0	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: Air operated
	CC63-300S12-1G	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC63-300S12-1D	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC63-300S12-2G	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC63-300S12-2D	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC63-300S12-5G	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC63-300S12-5D	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC63-300S13-0	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: Air operated
	CC63-300S13-1G	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V grommet
	CC63-300S13-1D	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
	CC63-300S13-2G	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V grommet
	CC63-300S13-2D	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
	CC63-300S13-5G	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V grommet
	CC63-300S13-5D	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
	CC63-300S20	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: None \| Solenoid: None
	CC63-300S21-0	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: Air operated
	CC63-300S21-1G	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
	CC63-300S21-1D	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
	CC63-300S21-2G	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
	CC63-300S21-2D	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
	CC63-300S21-5G	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
	CC63-300S21-5D	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
	CC63-300S22-0	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: Air operated
	CC63-300S22-1G	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC63-300S22-1D	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC63-300S22-2G	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC63-300S22-2D	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC63-300S22-5G	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC63-300S22-5D	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC63-300S23-0	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: Air operated
	CC63-300S23-1G	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V grommet
	CC63-300S23-1D	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
	CC63-300S23-2G	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V grommet
	CC63-300S23-2D	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
	CC63-300S23-5G	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V grommet
	CC63-300S23-5D	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
	CC63-300S30	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: None \| Solenoid: None
	CC63-300S31-0	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: Air operated
	CC63-300S31-1G	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
	CC63-300S31-1D	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
	CC63-300S31-2G	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
	CC63-300S31-2D	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
	CC63-300S31-5G	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
	CC63-300S31-5D	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
	CC63-300S32-0	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: Air operated
	CC63-300S32-1G	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC63-300S32-1D	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC63-300S32-2G	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC63-300S32-2D	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC63-300S32-5G	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC63-300S32-5D	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC63-300S33-0	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: Air operated
	CC63-300S33-1G	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V grommet
	CC63-300S33-1D	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
	CC63-300S33-2G	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V grommet
	CC63-300S33-2D	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
	CC63-300S33-5G	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V grommet
	CC63-300S33-5D	Converter: ø63 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
	CC63-400S02-0	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: Air operated
	CC63-400S02-1G	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC63-400S02-1D	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC63-400S02-2G	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC63-400S02-2D	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC63-400S02-5G	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC63-400S02-5D	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC63-400S10	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: None \| Solenoid: None
	CC63-400S11-0	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: Air operated
	CC63-400S11-1G	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
	CC63-400S11-1D	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
	CC63-400S11-2G	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
	CC63-400S11-2D	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
	CC63-400S11-5G	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
	CC63-400S11-5D	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
	CC63-400S12-0	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: Air operated
	CC63-400S12-1G	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC63-400S12-1D	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC63-400S12-2G	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC63-400S12-2D	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC63-400S12-5G	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC63-400S12-5D	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC63-400S13-0	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: Air operated
	CC63-400S13-1G	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V grommet
	CC63-400S13-1D	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
	CC63-400S13-2G	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V grommet
	CC63-400S13-2D	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
	CC63-400S13-5G	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V grommet
	CC63-400S13-5D	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
	CC63-400S20	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: None \| Solenoid: None
	CC63-400S21-0	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: Air operated
	CC63-400S21-1G	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
	CC63-400S21-1D	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
	CC63-400S21-2G	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
	CC63-400S21-2D	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
	CC63-400S21-5G	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
	CC63-400S21-5D	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
	CC63-400S22-0	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: Air operated
	CC63-400S22-1G	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC63-400S22-1D	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC63-400S22-2G	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC63-400S22-2D	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC63-400S22-5G	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC63-400S22-5D	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC63-400S23-0	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: Air operated
	CC63-400S23-1G	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V grommet
	CC63-400S23-1D	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
	CC63-400S23-2G	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V grommet
	CC63-400S23-2D	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
	CC63-400S23-5G	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V grommet
	CC63-400S23-5D	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
	CC63-400S30	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: None \| Solenoid: None
	CC63-400S31-0	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: Air operated
	CC63-400S31-1G	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
	CC63-400S31-1D	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
	CC63-400S31-2G	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
	CC63-400S31-2D	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
	CC63-400S31-5G	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
	CC63-400S31-5D	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
	CC63-400S32-0	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: Air operated
	CC63-400S32-1G	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC63-400S32-1D	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC63-400S32-2G	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC63-400S32-2D	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC63-400S32-5G	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC63-400S32-5D	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC63-400S33-0	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: Air operated
	CC63-400S33-1G	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V grommet
	CC63-400S33-1D	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
	CC63-400S33-2G	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V grommet
	CC63-400S33-2D	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
	CC63-400S33-5G	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V grommet
	CC63-400S33-5D	Converter: ø63 mm \| Stroke: 400 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
	CC63-500S02-0	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: Air operated
	CC63-500S02-1G	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC63-500S02-1D	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC63-500S02-2G	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC63-500S02-2D	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC63-500S02-5G	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC63-500S02-5D	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC63-500S10	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: None \| Solenoid: None
	CC63-500S11-0	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: Air operated
	CC63-500S11-1G	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
	CC63-500S11-1D	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
	CC63-500S11-2G	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
	CC63-500S11-2D	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
	CC63-500S11-5G	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
	CC63-500S11-5D	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
	CC63-500S12-0	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: Air operated
	CC63-500S12-1G	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC63-500S12-1D	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC63-500S12-2G	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC63-500S12-2D	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC63-500S12-5G	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC63-500S12-5D	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC63-500S13-0	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: Air operated
	CC63-500S13-1G	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V grommet
	CC63-500S13-1D	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
	CC63-500S13-2G	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V grommet
	CC63-500S13-2D	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
	CC63-500S13-5G	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V grommet
	CC63-500S13-5D	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
	CC63-500S20	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: None \| Solenoid: None
	CC63-500S21-0	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: Air operated
	CC63-500S21-1G	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
	CC63-500S21-1D	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
	CC63-500S21-2G	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
	CC63-500S21-2D	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
	CC63-500S21-5G	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
	CC63-500S21-5D	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
	CC63-500S22-0	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: Air operated
	CC63-500S22-1G	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC63-500S22-1D	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC63-500S22-2G	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC63-500S22-2D	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC63-500S22-5G	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC63-500S22-5D	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC63-500S23-0	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: Air operated
	CC63-500S23-1G	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V grommet
	CC63-500S23-1D	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
	CC63-500S23-2G	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V grommet
	CC63-500S23-2D	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
	CC63-500S23-5G	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V grommet
	CC63-500S23-5D	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
	CC63-500S30	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: None \| Solenoid: None
	CC63-500S31-0	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: Air operated
	CC63-500S31-1G	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
	CC63-500S31-1D	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
	CC63-500S31-2G	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
	CC63-500S31-2D	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
	CC63-500S31-5G	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
	CC63-500S31-5D	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
	CC63-500S32-0	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: Air operated
	CC63-500S32-1G	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC63-500S32-1D	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC63-500S32-2G	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC63-500S32-2D	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC63-500S32-5G	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC63-500S32-5D	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC63-500S33-0	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: Air operated
	CC63-500S33-1G	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V grommet
	CC63-500S33-1D	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
	CC63-500S33-2G	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V grommet
	CC63-500S33-2D	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
	CC63-500S33-5G	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V grommet
	CC63-500S33-5D	Converter: ø63 mm \| Stroke: 500 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
	CC100-100S02-0	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: Air operated
	CC100-100S02-1G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC100-100S02-1D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC100-100S02-2G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC100-100S02-2D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC100-100S02-5G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC100-100S02-5D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC100-100S10	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: None \| Solenoid: None
	CC100-100S11-0	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: Air operated
	CC100-100S11-1G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
	CC100-100S11-1D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
	CC100-100S11-2G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
	CC100-100S11-2D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
	CC100-100S11-5G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
	CC100-100S11-5D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
	CC100-100S12-0	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: Air operated
	CC100-100S12-1G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC100-100S12-1D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC100-100S12-2G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC100-100S12-2D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC100-100S12-5G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC100-100S12-5D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC100-100S13-0	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: Air operated
	CC100-100S13-1G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V grommet
	CC100-100S13-1D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
	CC100-100S13-2G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V grommet
	CC100-100S13-2D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
	CC100-100S13-5G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V grommet
	CC100-100S13-5D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
	CC100-100S20	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: None \| Solenoid: None
	CC100-100S21-0	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: Air operated
	CC100-100S21-1G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
	CC100-100S21-1D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
	CC100-100S21-2G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
	CC100-100S21-2D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
	CC100-100S21-5G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
	CC100-100S21-5D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
	CC100-100S22-0	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: Air operated
	CC100-100S22-1G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC100-100S22-1D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC100-100S22-2G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC100-100S22-2D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC100-100S22-5G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC100-100S22-5D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC100-100S23-0	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: Air operated
	CC100-100S23-1G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V grommet
	CC100-100S23-1D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
	CC100-100S23-2G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V grommet
	CC100-100S23-2D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
	CC100-100S23-5G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V grommet
	CC100-100S23-5D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
	CC100-100S30	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: None \| Solenoid: None
	CC100-100S31-0	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: Air operated
	CC100-100S31-1G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
	CC100-100S31-1D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
	CC100-100S31-2G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
	CC100-100S31-2D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
	CC100-100S31-5G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
	CC100-100S31-5D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
	CC100-100S32-0	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: Air operated
	CC100-100S32-1G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC100-100S32-1D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC100-100S32-2G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC100-100S32-2D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC100-100S32-5G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC100-100S32-5D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC100-100S33-0	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: Air operated
	CC100-100S33-1G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V grommet
	CC100-100S33-1D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
	CC100-100S33-2G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V grommet
	CC100-100S33-2D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
	CC100-100S33-5G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V grommet
	CC100-100S33-5D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
	CC100-100L02-0	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: Air operated
	CC100-100L02-1G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC100-100L02-1D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC100-100L02-2G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC100-100L02-2D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC100-100L02-5G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC100-100L02-5D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC100-100L10	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: None \| Solenoid: None
	CC100-100L11-0	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: Air operated
	CC100-100L11-1G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
	CC100-100L11-1D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
	CC100-100L11-2G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
	CC100-100L11-2D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
	CC100-100L11-5G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
	CC100-100L11-5D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
	CC100-100L12-0	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: Air operated
	CC100-100L12-1G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC100-100L12-1D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC100-100L12-2G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC100-100L12-2D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC100-100L12-5G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC100-100L12-5D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC100-100L13-0	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: Air operated
	CC100-100L13-1G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V grommet
	CC100-100L13-1D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
	CC100-100L13-2G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V grommet
	CC100-100L13-2D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
	CC100-100L13-5G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V grommet
	CC100-100L13-5D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
	CC100-100L20	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: None \| Solenoid: None
	CC100-100L21-0	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: Air operated
	CC100-100L21-1G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
	CC100-100L21-1D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
	CC100-100L21-2G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
	CC100-100L21-2D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
	CC100-100L21-5G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
	CC100-100L21-5D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
	CC100-100L22-0	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: Air operated
	CC100-100L22-1G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC100-100L22-1D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC100-100L22-2G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC100-100L22-2D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC100-100L22-5G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC100-100L22-5D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC100-100L23-0	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: Air operated
	CC100-100L23-1G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V grommet
	CC100-100L23-1D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
	CC100-100L23-2G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V grommet
	CC100-100L23-2D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
	CC100-100L23-5G	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V grommet
	CC100-100L23-5D	Converter: ø100 mm \| Stroke: 100 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
	CC100-200S02-0	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: Air operated
	CC100-200S02-1G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC100-200S02-1D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC100-200S02-2G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC100-200S02-2D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC100-200S02-5G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC100-200S02-5D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC100-200S10	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: None \| Solenoid: None
	CC100-200S11-0	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: Air operated
	CC100-200S11-1G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
	CC100-200S11-1D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
	CC100-200S11-2G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
	CC100-200S11-2D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
	CC100-200S11-5G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
	CC100-200S11-5D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
	CC100-200S12-0	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: Air operated
	CC100-200S12-1G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC100-200S12-1D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC100-200S12-2G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC100-200S12-2D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC100-200S12-5G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC100-200S12-5D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC100-200S13-0	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: Air operated
	CC100-200S13-1G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V grommet
	CC100-200S13-1D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
	CC100-200S13-2G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V grommet
	CC100-200S13-2D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
	CC100-200S13-5G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V grommet
	CC100-200S13-5D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
	CC100-200S20	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: None \| Solenoid: None
	CC100-200S21-0	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: Air operated
	CC100-200S21-1G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
	CC100-200S21-1D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
	CC100-200S21-2G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
	CC100-200S21-2D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
	CC100-200S21-5G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
	CC100-200S21-5D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
	CC100-200S22-0	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: Air operated
	CC100-200S22-1G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC100-200S22-1D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC100-200S22-2G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC100-200S22-2D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC100-200S22-5G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC100-200S22-5D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC100-200S23-0	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: Air operated
	CC100-200S23-1G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V grommet
	CC100-200S23-1D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
	CC100-200S23-2G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V grommet
	CC100-200S23-2D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
	CC100-200S23-5G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V grommet
	CC100-200S23-5D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
	CC100-200S30	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: None \| Solenoid: None
	CC100-200S31-0	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: Air operated
	CC100-200S31-1G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
	CC100-200S31-1D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
	CC100-200S31-2G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
	CC100-200S31-2D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
	CC100-200S31-5G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
	CC100-200S31-5D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
	CC100-200S32-0	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: Air operated
	CC100-200S32-1G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC100-200S32-1D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC100-200S32-2G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC100-200S32-2D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC100-200S32-5G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC100-200S32-5D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC100-200S33-0	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: Air operated
	CC100-200S33-1G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V grommet
	CC100-200S33-1D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
	CC100-200S33-2G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V grommet
	CC100-200S33-2D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
	CC100-200S33-5G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V grommet
	CC100-200S33-5D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
	CC100-200L02-0	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: Air operated
	CC100-200L02-1G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC100-200L02-1D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC100-200L02-2G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC100-200L02-2D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC100-200L02-5G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC100-200L02-5D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC100-200L10	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: None \| Solenoid: None
	CC100-200L11-0	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: Air operated
	CC100-200L11-1G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
	CC100-200L11-1D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
	CC100-200L11-2G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
	CC100-200L11-2D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
	CC100-200L11-5G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
	CC100-200L11-5D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
	CC100-200L12-0	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: Air operated
	CC100-200L12-1G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC100-200L12-1D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC100-200L12-2G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC100-200L12-2D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC100-200L12-5G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC100-200L12-5D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC100-200L13-0	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: Air operated
	CC100-200L13-1G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V grommet
	CC100-200L13-1D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
	CC100-200L13-2G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V grommet
	CC100-200L13-2D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
	CC100-200L13-5G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V grommet
	CC100-200L13-5D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
	CC100-200L20	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: None \| Solenoid: None
	CC100-200L21-0	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: Air operated
	CC100-200L21-1G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
	CC100-200L21-1D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
	CC100-200L21-2G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
	CC100-200L21-2D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
	CC100-200L21-5G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
	CC100-200L21-5D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
	CC100-200L22-0	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: Air operated
	CC100-200L22-1G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC100-200L22-1D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC100-200L22-2G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC100-200L22-2D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC100-200L22-5G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC100-200L22-5D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC100-200L23-0	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: Air operated
	CC100-200L23-1G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V grommet
	CC100-200L23-1D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
	CC100-200L23-2G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V grommet
	CC100-200L23-2D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
	CC100-200L23-5G	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V grommet
	CC100-200L23-5D	Converter: ø100 mm \| Stroke: 200 mm \| Valve unit: Large flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
	CC100-300S02-0	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: Air operated
	CC100-300S02-1G	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC100-300S02-1D	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC100-300S02-2G	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC100-300S02-2D	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC100-300S02-5G	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC100-300S02-5D	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC100-300S10	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: None \| Solenoid: None
	CC100-300S11-0	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: Air operated
	CC100-300S11-1G	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
	CC100-300S11-1D	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
	CC100-300S11-2G	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
	CC100-300S11-2D	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
	CC100-300S11-5G	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
	CC100-300S11-5D	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
	CC100-300S12-0	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: Air operated
	CC100-300S12-1G	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC100-300S12-1D	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC100-300S12-2G	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC100-300S12-2D	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC100-300S12-5G	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC100-300S12-5D	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC100-300S13-0	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: Air operated
	CC100-300S13-1G	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V grommet
	CC100-300S13-1D	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
	CC100-300S13-2G	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V grommet
	CC100-300S13-2D	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
	CC100-300S13-5G	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V grommet
	CC100-300S13-5D	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Flow control (press. comp.) \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
	CC100-300S20	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: None \| Solenoid: None
	CC100-300S21-0	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: Air operated
	CC100-300S21-1G	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
	CC100-300S21-1D	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
	CC100-300S21-2G	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
	CC100-300S21-2D	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
	CC100-300S21-5G	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
	CC100-300S21-5D	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
	CC100-300S22-0	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: Air operated
	CC100-300S22-1G	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC100-300S22-1D	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC100-300S22-2G	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC100-300S22-2D	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC100-300S22-5G	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC100-300S22-5D	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC100-300S23-0	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: Air operated
	CC100-300S23-1G	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V grommet
	CC100-300S23-1D	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
	CC100-300S23-2G	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V grommet
	CC100-300S23-2D	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
	CC100-300S23-5G	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V grommet
	CC100-300S23-5D	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Orifice valve \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
	CC100-300S30	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: None \| Solenoid: None
	CC100-300S31-0	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: Air operated
	CC100-300S31-1G	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
	CC100-300S31-1D	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal
	CC100-300S31-2G	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V grommet
	CC100-300S31-2D	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: AC200V DIN terminal
	CC100-300S31-5G	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V grommet
	CC100-300S31-5D	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop + skip valve \| Solenoid: DC24V DIN terminal
	CC100-300S32-0	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: Air operated
	CC100-300S32-1G	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC100-300S32-1D	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC100-300S32-2G	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC100-300S32-2D	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC100-300S32-5G	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC100-300S32-5D	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC100-300S33-0	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: Air operated
	CC100-300S33-1G	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V grommet
	CC100-300S33-1D	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC100V DIN terminal
	CC100-300S33-2G	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V grommet
	CC100-300S33-2D	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: AC200V DIN terminal
	CC100-300S33-5G	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V grommet
	CC100-300S33-5D	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Small flow \| Control valve: Micro flow control \| Compound valve: Skip valve \| Solenoid: DC24V DIN terminal
	CC100-300L02-0	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: Air operated
	CC100-300L02-1G	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V grommet
	CC100-300L02-1D	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC100V DIN terminal
	CC100-300L02-2G	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V grommet
	CC100-300L02-2D	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: AC200V DIN terminal
	CC100-300L02-5G	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V grommet
	CC100-300L02-5D	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Large flow \| Control valve: None \| Compound valve: Stop valve \| Solenoid: DC24V DIN terminal
	CC100-300L10	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: None \| Solenoid: None
	CC100-300L11-0	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: Air operated
	CC100-300L11-1G	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V grommet
	CC100-300L11-1D	Converter: ø100 mm \| Stroke: 300 mm \| Valve unit: Large flow \| Control valve: Flow control (press. comp.) \| Compound valve: Stop + skip valve \| Solenoid: AC100V DIN terminal

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Hydraulics →

Item added to your cart

SMC CC Air-Hydro Unit (Converter + Valve Unit, ø63 to ø160)
