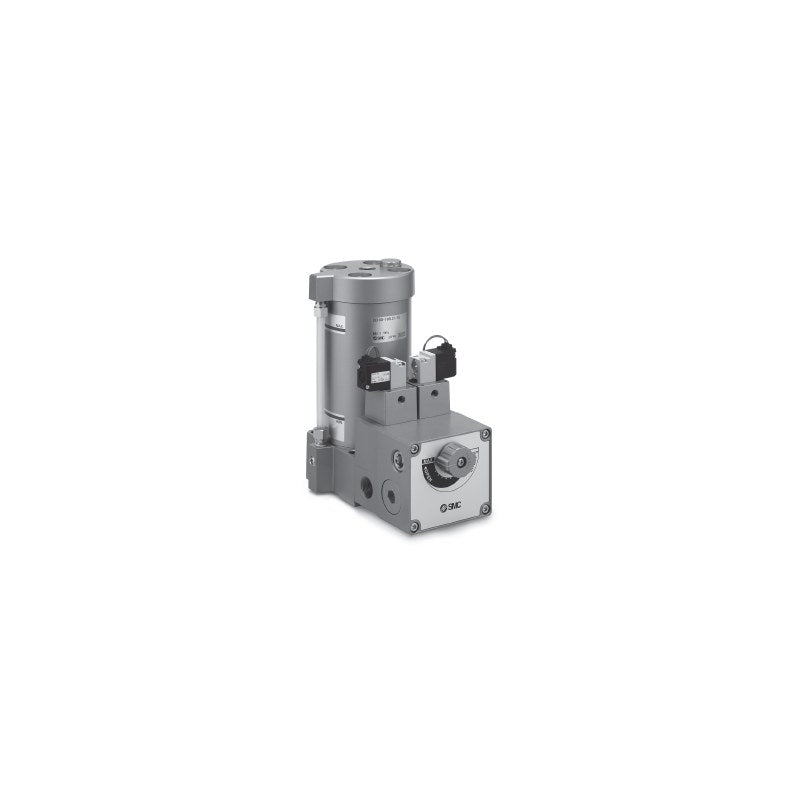

SMC CCT Air-Hydro Converter (ø40 to ø160)

SMC CCT Air-Hydro Converter (ø40 to ø160)

SMC CCT series air-hydro converter, ø40 to ø160 mm, converting air pressure to hydraulic pressure of the same value for air-hydro cylinder drive.

Key features

  • Converter sizes ø63, ø100, ø160 combine with CCVS/CCVL valve units into CC air-hydro units
  • CCT40 is a small converter for low-volume actuators, used with an individual CC valve unit or speed controllers (AS2000, AS3000, AS4000)
  • Effective oil-level strokes 50 to 800 mm; effective volume 60 to 14,640 cm³
  • Limit flow rate (at 200 mm/s oil-level speed): 15, 36, 88, 217 dm³/min for ø40, ø63, ø100, ø160
  • CE/UKCA compliant version (suffix -Q) for CCT160-400 to 800

Specifications

Operating pressure 0 to 0.7 MPa
Proof pressure 1.05 MPa
Ambient and fluid temperature 5 to 50°C
Fluid Turbine oil (40 to 100 mm²/s)
Limit flow rate ø40 15, ø63 36, ø100 88, ø160 217 dm³/min
Mounting Hexagon socket head bolts
Source SMC Korea catalog CC series (SMCKR_CC_CCT_CCV.pdf), p. 1262-1263 (PDF p. 8-9)
CCT40-50 Converter: ø40 mm | Stroke: 50 mm | Use: Individual converter only
CCT40-100 Converter: ø40 mm | Stroke: 100 mm | Use: Individual converter only
CCT40-150 Converter: ø40 mm | Stroke: 150 mm | Use: Individual converter only
CCT40-200 Converter: ø40 mm | Stroke: 200 mm | Use: Individual converter only
CCT40-300 Converter: ø40 mm | Stroke: 300 mm | Use: Individual converter only
CCT63-50 Converter: ø63 mm | Stroke: 50 mm | Use: Converter / unit base
CCT63-100 Converter: ø63 mm | Stroke: 100 mm | Use: Converter / unit base
CCT63-200 Converter: ø63 mm | Stroke: 200 mm | Use: Converter / unit base
CCT63-300 Converter: ø63 mm | Stroke: 300 mm | Use: Converter / unit base
CCT63-400 Converter: ø63 mm | Stroke: 400 mm | Use: Converter / unit base
CCT63-500 Converter: ø63 mm | Stroke: 500 mm | Use: Converter / unit base
CCT100-100 Converter: ø100 mm | Stroke: 100 mm | Use: Converter / unit base
CCT100-200 Converter: ø100 mm | Stroke: 200 mm | Use: Converter / unit base
CCT100-300 Converter: ø100 mm | Stroke: 300 mm | Use: Converter / unit base
CCT100-400 Converter: ø100 mm | Stroke: 400 mm | Use: Converter / unit base
CCT100-500 Converter: ø100 mm | Stroke: 500 mm | Use: Converter / unit base
CCT100-600 Converter: ø100 mm | Stroke: 600 mm | Use: Converter / unit base
CCT160-200 Converter: ø160 mm | Stroke: 200 mm | Use: Converter / unit base
CCT160-300 Converter: ø160 mm | Stroke: 300 mm | Use: Converter / unit base
CCT160-400 Converter: ø160 mm | Stroke: 400 mm | Use: Converter / unit base
CCT160-500 Converter: ø160 mm | Stroke: 500 mm | Use: Converter / unit base
CCT160-600 Converter: ø160 mm | Stroke: 600 mm | Use: Converter / unit base
CCT160-700 Converter: ø160 mm | Stroke: 700 mm | Use: Converter / unit base
CCT160-800 Converter: ø160 mm | Stroke: 800 mm | Use: Converter / unit base
Hydraulic EquipmentSMC
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CCT Air-Hydro Converter (ø40 to ø160)

Brand SMC·Hydraulic Equipment

Available part numbers (24)

CCT40-50, CCT40-100, CCT40-150, CCT40-200, CCT40-300, CCT63-50, CCT63-100, CCT63-200, CCT63-300, CCT63-400 + 14 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CCT40-50Converter: ø40 mm | Stroke: 50 mm | Use: Individual converter only
CCT40-100Converter: ø40 mm | Stroke: 100 mm | Use: Individual converter only
CCT40-150Converter: ø40 mm | Stroke: 150 mm | Use: Individual converter only
CCT40-200Converter: ø40 mm | Stroke: 200 mm | Use: Individual converter only
CCT40-300Converter: ø40 mm | Stroke: 300 mm | Use: Individual converter only
CCT63-50Converter: ø63 mm | Stroke: 50 mm | Use: Converter / unit base
CCT63-100Converter: ø63 mm | Stroke: 100 mm | Use: Converter / unit base
CCT63-200Converter: ø63 mm | Stroke: 200 mm | Use: Converter / unit base
CCT63-300Converter: ø63 mm | Stroke: 300 mm | Use: Converter / unit base
CCT63-400Converter: ø63 mm | Stroke: 400 mm | Use: Converter / unit base
CCT63-500Converter: ø63 mm | Stroke: 500 mm | Use: Converter / unit base
CCT100-100Converter: ø100 mm | Stroke: 100 mm | Use: Converter / unit base
CCT100-200Converter: ø100 mm | Stroke: 200 mm | Use: Converter / unit base
CCT100-300Converter: ø100 mm | Stroke: 300 mm | Use: Converter / unit base
CCT100-400Converter: ø100 mm | Stroke: 400 mm | Use: Converter / unit base
CCT100-500Converter: ø100 mm | Stroke: 500 mm | Use: Converter / unit base
CCT100-600Converter: ø100 mm | Stroke: 600 mm | Use: Converter / unit base
CCT160-200Converter: ø160 mm | Stroke: 200 mm | Use: Converter / unit base
CCT160-300Converter: ø160 mm | Stroke: 300 mm | Use: Converter / unit base
CCT160-400Converter: ø160 mm | Stroke: 400 mm | Use: Converter / unit base
CCT160-500Converter: ø160 mm | Stroke: 500 mm | Use: Converter / unit base
CCT160-600Converter: ø160 mm | Stroke: 600 mm | Use: Converter / unit base
CCT160-700Converter: ø160 mm | Stroke: 700 mm | Use: Converter / unit base
CCT160-800Converter: ø160 mm | Stroke: 800 mm | Use: Converter / unit base
