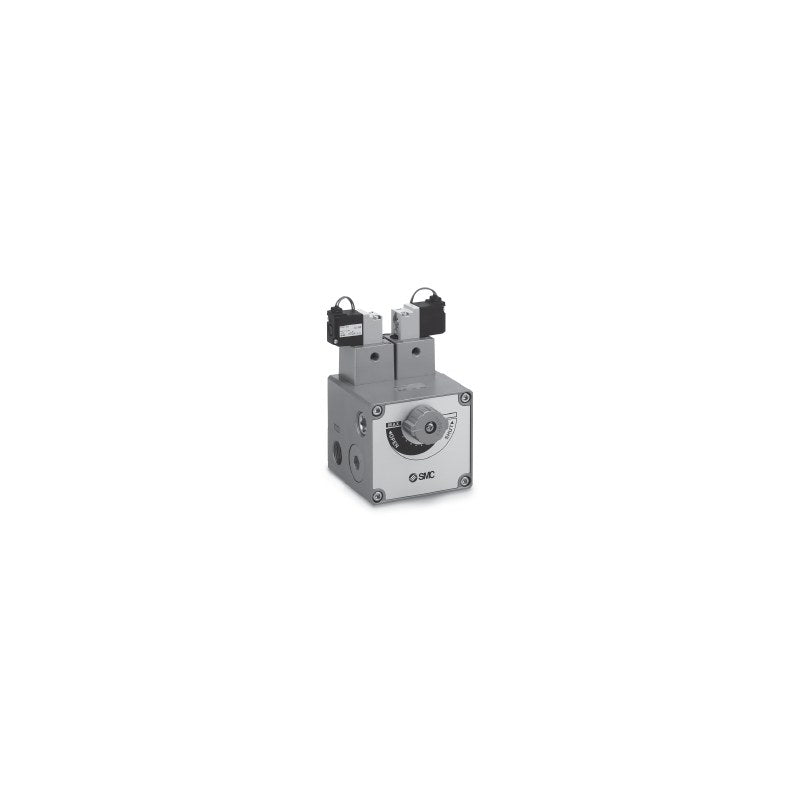

SMC CCVS/CCVL Valve Unit for Air-Hydro Systems

SMC CCVS/CCVL Valve Unit for Air-Hydro Systems

SMC CCVS (small flow) and CCVL (large flow) valve unit for air-hydro circuits, combining a control valve and a stop/skip compound valve, as an individual valve or for mounting on CCT converters.

Key features

  • Control valve: flow control with pressure compensation (±10%), orifice valve, or micro flow control (CCVS only)
  • Compound valve: stop + skip valve, stop only or skip only (N.C.), solenoid or air operated
  • Individual valve (S) or unit type for CCT63 (U1) and CCT100/160 (U2)
  • Solenoid AC100V, AC200V, DC24V with grommet or DIN terminal; semi-standard voltages on order
  • CE/UKCA compliant version (suffix -Q) available

Specifications

Operating pressure 0 to 0.7 MPa (flow control valve 0.3 to 0.7 MPa)
External pilot pressure 0.3 to 0.7 MPa
Proof pressure 1.05 MPa
Ambient and fluid temperature 5 to 50°C
Fluid Turbine oil (40 to 100 mm²/s)
Effective area (stop/skip valve) Small flow 40 mm², large flow 88 mm²
Oil connection CCVS Rc1/2, CCVL Rc3/4
Source SMC Korea catalog CC series (SMCKR_CC_CCT_CCV.pdf), p. 1264-1265 (PDF p. 10-11)
CCVS02-0-S Valve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Individual valve
CCVS02-1G-S Valve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Individual valve
CCVS02-1D-S Valve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Individual valve
CCVS02-2G-S Valve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Individual valve
CCVS02-2D-S Valve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Individual valve
CCVS02-5G-S Valve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Individual valve
CCVS02-5D-S Valve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Individual valve
CCVS10-S Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: None | Solenoid: None | Mounting: Individual valve
CCVS11-0-S Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: Air operated | Mounting: Individual valve
CCVS11-1G-S Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC100V grommet | Mounting: Individual valve
CCVS11-1D-S Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC100V DIN terminal | Mounting: Individual valve
CCVS11-2G-S Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC200V grommet | Mounting: Individual valve
CCVS11-2D-S Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC200V DIN terminal | Mounting: Individual valve
CCVS11-5G-S Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: DC24V grommet | Mounting: Individual valve
CCVS11-5D-S Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: DC24V DIN terminal | Mounting: Individual valve
CCVS12-0-S Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Individual valve
CCVS12-1G-S Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Individual valve
CCVS12-1D-S Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Individual valve
CCVS12-2G-S Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Individual valve
CCVS12-2D-S Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Individual valve
CCVS12-5G-S Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Individual valve
CCVS12-5D-S Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Individual valve
CCVS13-0-S Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: Air operated | Mounting: Individual valve
CCVS13-1G-S Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC100V grommet | Mounting: Individual valve
CCVS13-1D-S Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC100V DIN terminal | Mounting: Individual valve
CCVS13-2G-S Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC200V grommet | Mounting: Individual valve
CCVS13-2D-S Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC200V DIN terminal | Mounting: Individual valve
CCVS13-5G-S Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: DC24V grommet | Mounting: Individual valve
CCVS13-5D-S Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: DC24V DIN terminal | Mounting: Individual valve
CCVS20-S Valve unit: Small flow | Control valve: Orifice valve | Compound valve: None | Solenoid: None | Mounting: Individual valve
CCVS21-0-S Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: Air operated | Mounting: Individual valve
CCVS21-1G-S Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC100V grommet | Mounting: Individual valve
CCVS21-1D-S Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC100V DIN terminal | Mounting: Individual valve
CCVS21-2G-S Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC200V grommet | Mounting: Individual valve
CCVS21-2D-S Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC200V DIN terminal | Mounting: Individual valve
CCVS21-5G-S Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: DC24V grommet | Mounting: Individual valve
CCVS21-5D-S Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: DC24V DIN terminal | Mounting: Individual valve
CCVS22-0-S Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Individual valve
CCVS22-1G-S Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Individual valve
CCVS22-1D-S Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Individual valve
CCVS22-2G-S Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Individual valve
CCVS22-2D-S Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Individual valve
CCVS22-5G-S Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Individual valve
CCVS22-5D-S Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Individual valve
CCVS23-0-S Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: Air operated | Mounting: Individual valve
CCVS23-1G-S Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC100V grommet | Mounting: Individual valve
CCVS23-1D-S Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC100V DIN terminal | Mounting: Individual valve
CCVS23-2G-S Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC200V grommet | Mounting: Individual valve
CCVS23-2D-S Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC200V DIN terminal | Mounting: Individual valve
CCVS23-5G-S Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: DC24V grommet | Mounting: Individual valve
CCVS23-5D-S Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: DC24V DIN terminal | Mounting: Individual valve
CCVS30-S Valve unit: Small flow | Control valve: Micro flow control | Compound valve: None | Solenoid: None | Mounting: Individual valve
CCVS31-0-S Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: Air operated | Mounting: Individual valve
CCVS31-1G-S Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: AC100V grommet | Mounting: Individual valve
CCVS31-1D-S Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: AC100V DIN terminal | Mounting: Individual valve
CCVS31-2G-S Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: AC200V grommet | Mounting: Individual valve
CCVS31-2D-S Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: AC200V DIN terminal | Mounting: Individual valve
CCVS31-5G-S Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: DC24V grommet | Mounting: Individual valve
CCVS31-5D-S Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: DC24V DIN terminal | Mounting: Individual valve
CCVS32-0-S Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Individual valve
CCVS32-1G-S Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Individual valve
CCVS32-1D-S Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Individual valve
CCVS32-2G-S Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Individual valve
CCVS32-2D-S Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Individual valve
CCVS32-5G-S Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Individual valve
CCVS32-5D-S Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Individual valve
CCVS33-0-S Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: Air operated | Mounting: Individual valve
CCVS33-1G-S Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: AC100V grommet | Mounting: Individual valve
CCVS33-1D-S Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: AC100V DIN terminal | Mounting: Individual valve
CCVS33-2G-S Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: AC200V grommet | Mounting: Individual valve
CCVS33-2D-S Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: AC200V DIN terminal | Mounting: Individual valve
CCVS33-5G-S Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: DC24V grommet | Mounting: Individual valve
CCVS33-5D-S Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: DC24V DIN terminal | Mounting: Individual valve
CCVS02-0-U1 Valve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Unit for CC63 (CCT63)
CCVS02-1G-U1 Valve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Unit for CC63 (CCT63)
CCVS02-1D-U1 Valve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS02-2G-U1 Valve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Unit for CC63 (CCT63)
CCVS02-2D-U1 Valve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS02-5G-U1 Valve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Unit for CC63 (CCT63)
CCVS02-5D-U1 Valve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS10-U1 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: None | Solenoid: None | Mounting: Unit for CC63 (CCT63)
CCVS11-0-U1 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: Air operated | Mounting: Unit for CC63 (CCT63)
CCVS11-1G-U1 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC100V grommet | Mounting: Unit for CC63 (CCT63)
CCVS11-1D-U1 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS11-2G-U1 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC200V grommet | Mounting: Unit for CC63 (CCT63)
CCVS11-2D-U1 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS11-5G-U1 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: DC24V grommet | Mounting: Unit for CC63 (CCT63)
CCVS11-5D-U1 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS12-0-U1 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Unit for CC63 (CCT63)
CCVS12-1G-U1 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Unit for CC63 (CCT63)
CCVS12-1D-U1 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS12-2G-U1 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Unit for CC63 (CCT63)
CCVS12-2D-U1 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS12-5G-U1 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Unit for CC63 (CCT63)
CCVS12-5D-U1 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS13-0-U1 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: Air operated | Mounting: Unit for CC63 (CCT63)
CCVS13-1G-U1 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC100V grommet | Mounting: Unit for CC63 (CCT63)
CCVS13-1D-U1 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS13-2G-U1 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC200V grommet | Mounting: Unit for CC63 (CCT63)
CCVS13-2D-U1 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS13-5G-U1 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: DC24V grommet | Mounting: Unit for CC63 (CCT63)
CCVS13-5D-U1 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS20-U1 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: None | Solenoid: None | Mounting: Unit for CC63 (CCT63)
CCVS21-0-U1 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: Air operated | Mounting: Unit for CC63 (CCT63)
CCVS21-1G-U1 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC100V grommet | Mounting: Unit for CC63 (CCT63)
CCVS21-1D-U1 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS21-2G-U1 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC200V grommet | Mounting: Unit for CC63 (CCT63)
CCVS21-2D-U1 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS21-5G-U1 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: DC24V grommet | Mounting: Unit for CC63 (CCT63)
CCVS21-5D-U1 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS22-0-U1 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Unit for CC63 (CCT63)
CCVS22-1G-U1 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Unit for CC63 (CCT63)
CCVS22-1D-U1 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS22-2G-U1 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Unit for CC63 (CCT63)
CCVS22-2D-U1 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS22-5G-U1 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Unit for CC63 (CCT63)
CCVS22-5D-U1 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS23-0-U1 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: Air operated | Mounting: Unit for CC63 (CCT63)
CCVS23-1G-U1 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC100V grommet | Mounting: Unit for CC63 (CCT63)
CCVS23-1D-U1 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS23-2G-U1 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC200V grommet | Mounting: Unit for CC63 (CCT63)
CCVS23-2D-U1 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS23-5G-U1 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: DC24V grommet | Mounting: Unit for CC63 (CCT63)
CCVS23-5D-U1 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS30-U1 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: None | Solenoid: None | Mounting: Unit for CC63 (CCT63)
CCVS31-0-U1 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: Air operated | Mounting: Unit for CC63 (CCT63)
CCVS31-1G-U1 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: AC100V grommet | Mounting: Unit for CC63 (CCT63)
CCVS31-1D-U1 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS31-2G-U1 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: AC200V grommet | Mounting: Unit for CC63 (CCT63)
CCVS31-2D-U1 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS31-5G-U1 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: DC24V grommet | Mounting: Unit for CC63 (CCT63)
CCVS31-5D-U1 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS32-0-U1 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Unit for CC63 (CCT63)
CCVS32-1G-U1 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Unit for CC63 (CCT63)
CCVS32-1D-U1 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS32-2G-U1 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Unit for CC63 (CCT63)
CCVS32-2D-U1 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS32-5G-U1 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Unit for CC63 (CCT63)
CCVS32-5D-U1 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS33-0-U1 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: Air operated | Mounting: Unit for CC63 (CCT63)
CCVS33-1G-U1 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: AC100V grommet | Mounting: Unit for CC63 (CCT63)
CCVS33-1D-U1 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS33-2G-U1 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: AC200V grommet | Mounting: Unit for CC63 (CCT63)
CCVS33-2D-U1 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS33-5G-U1 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: DC24V grommet | Mounting: Unit for CC63 (CCT63)
CCVS33-5D-U1 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS02-0-U2 Valve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Unit for CC100/CC160
CCVS02-1G-U2 Valve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Unit for CC100/CC160
CCVS02-1D-U2 Valve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC100/CC160
CCVS02-2G-U2 Valve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Unit for CC100/CC160
CCVS02-2D-U2 Valve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC100/CC160
CCVS02-5G-U2 Valve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Unit for CC100/CC160
CCVS02-5D-U2 Valve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC100/CC160
CCVS10-U2 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: None | Solenoid: None | Mounting: Unit for CC100/CC160
CCVS11-0-U2 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: Air operated | Mounting: Unit for CC100/CC160
CCVS11-1G-U2 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC100V grommet | Mounting: Unit for CC100/CC160
CCVS11-1D-U2 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC100/CC160
CCVS11-2G-U2 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC200V grommet | Mounting: Unit for CC100/CC160
CCVS11-2D-U2 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC100/CC160
CCVS11-5G-U2 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: DC24V grommet | Mounting: Unit for CC100/CC160
CCVS11-5D-U2 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC100/CC160
CCVS12-0-U2 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Unit for CC100/CC160
CCVS12-1G-U2 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Unit for CC100/CC160
CCVS12-1D-U2 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC100/CC160
CCVS12-2G-U2 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Unit for CC100/CC160
CCVS12-2D-U2 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC100/CC160
CCVS12-5G-U2 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Unit for CC100/CC160
CCVS12-5D-U2 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC100/CC160
CCVS13-0-U2 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: Air operated | Mounting: Unit for CC100/CC160
CCVS13-1G-U2 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC100V grommet | Mounting: Unit for CC100/CC160
CCVS13-1D-U2 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC100/CC160
CCVS13-2G-U2 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC200V grommet | Mounting: Unit for CC100/CC160
CCVS13-2D-U2 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC100/CC160
CCVS13-5G-U2 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: DC24V grommet | Mounting: Unit for CC100/CC160
CCVS13-5D-U2 Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC100/CC160
CCVS20-U2 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: None | Solenoid: None | Mounting: Unit for CC100/CC160
CCVS21-0-U2 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: Air operated | Mounting: Unit for CC100/CC160
CCVS21-1G-U2 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC100V grommet | Mounting: Unit for CC100/CC160
CCVS21-1D-U2 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC100/CC160
CCVS21-2G-U2 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC200V grommet | Mounting: Unit for CC100/CC160
CCVS21-2D-U2 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC100/CC160
CCVS21-5G-U2 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: DC24V grommet | Mounting: Unit for CC100/CC160
CCVS21-5D-U2 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC100/CC160
CCVS22-0-U2 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Unit for CC100/CC160
CCVS22-1G-U2 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Unit for CC100/CC160
CCVS22-1D-U2 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC100/CC160
CCVS22-2G-U2 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Unit for CC100/CC160
CCVS22-2D-U2 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC100/CC160
CCVS22-5G-U2 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Unit for CC100/CC160
CCVS22-5D-U2 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC100/CC160
CCVS23-0-U2 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: Air operated | Mounting: Unit for CC100/CC160
CCVS23-1G-U2 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC100V grommet | Mounting: Unit for CC100/CC160
CCVS23-1D-U2 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC100/CC160
CCVS23-2G-U2 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC200V grommet | Mounting: Unit for CC100/CC160
CCVS23-2D-U2 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC100/CC160
CCVS23-5G-U2 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: DC24V grommet | Mounting: Unit for CC100/CC160
CCVS23-5D-U2 Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC100/CC160
CCVS30-U2 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: None | Solenoid: None | Mounting: Unit for CC100/CC160
CCVS31-0-U2 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: Air operated | Mounting: Unit for CC100/CC160
CCVS31-1G-U2 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: AC100V grommet | Mounting: Unit for CC100/CC160
CCVS31-1D-U2 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC100/CC160
CCVS31-2G-U2 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: AC200V grommet | Mounting: Unit for CC100/CC160
CCVS31-2D-U2 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC100/CC160
CCVS31-5G-U2 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: DC24V grommet | Mounting: Unit for CC100/CC160
CCVS31-5D-U2 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC100/CC160
CCVS32-0-U2 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Unit for CC100/CC160
CCVS32-1G-U2 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Unit for CC100/CC160
CCVS32-1D-U2 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC100/CC160
CCVS32-2G-U2 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Unit for CC100/CC160
CCVS32-2D-U2 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC100/CC160
CCVS32-5G-U2 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Unit for CC100/CC160
CCVS32-5D-U2 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC100/CC160
CCVS33-0-U2 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: Air operated | Mounting: Unit for CC100/CC160
CCVS33-1G-U2 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: AC100V grommet | Mounting: Unit for CC100/CC160
CCVS33-1D-U2 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC100/CC160
CCVS33-2G-U2 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: AC200V grommet | Mounting: Unit for CC100/CC160
CCVS33-2D-U2 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC100/CC160
CCVS33-5G-U2 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: DC24V grommet | Mounting: Unit for CC100/CC160
CCVS33-5D-U2 Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC100/CC160
CCVL02-0-S Valve unit: Large flow | Control valve: None | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Individual valve
CCVL02-1G-S Valve unit: Large flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Individual valve
CCVL02-1D-S Valve unit: Large flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Individual valve
CCVL02-2G-S Valve unit: Large flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Individual valve
CCVL02-2D-S Valve unit: Large flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Individual valve
CCVL02-5G-S Valve unit: Large flow | Control valve: None | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Individual valve
CCVL02-5D-S Valve unit: Large flow | Control valve: None | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Individual valve
CCVL10-S Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: None | Solenoid: None | Mounting: Individual valve
CCVL11-0-S Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: Air operated | Mounting: Individual valve
CCVL11-1G-S Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC100V grommet | Mounting: Individual valve
CCVL11-1D-S Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC100V DIN terminal | Mounting: Individual valve
CCVL11-2G-S Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC200V grommet | Mounting: Individual valve
CCVL11-2D-S Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC200V DIN terminal | Mounting: Individual valve
CCVL11-5G-S Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: DC24V grommet | Mounting: Individual valve
CCVL11-5D-S Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: DC24V DIN terminal | Mounting: Individual valve
CCVL12-0-S Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Individual valve
CCVL12-1G-S Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Individual valve
CCVL12-1D-S Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Individual valve
CCVL12-2G-S Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Individual valve
CCVL12-2D-S Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Individual valve
CCVL12-5G-S Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Individual valve
CCVL12-5D-S Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Individual valve
CCVL13-0-S Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: Air operated | Mounting: Individual valve
CCVL13-1G-S Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC100V grommet | Mounting: Individual valve
CCVL13-1D-S Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC100V DIN terminal | Mounting: Individual valve
CCVL13-2G-S Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC200V grommet | Mounting: Individual valve
CCVL13-2D-S Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC200V DIN terminal | Mounting: Individual valve
CCVL13-5G-S Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: DC24V grommet | Mounting: Individual valve
CCVL13-5D-S Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: DC24V DIN terminal | Mounting: Individual valve
CCVL20-S Valve unit: Large flow | Control valve: Orifice valve | Compound valve: None | Solenoid: None | Mounting: Individual valve
CCVL21-0-S Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: Air operated | Mounting: Individual valve
CCVL21-1G-S Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC100V grommet | Mounting: Individual valve
CCVL21-1D-S Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC100V DIN terminal | Mounting: Individual valve
CCVL21-2G-S Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC200V grommet | Mounting: Individual valve
CCVL21-2D-S Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC200V DIN terminal | Mounting: Individual valve
CCVL21-5G-S Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: DC24V grommet | Mounting: Individual valve
CCVL21-5D-S Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: DC24V DIN terminal | Mounting: Individual valve
CCVL22-0-S Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Individual valve
CCVL22-1G-S Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Individual valve
CCVL22-1D-S Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Individual valve
CCVL22-2G-S Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Individual valve
CCVL22-2D-S Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Individual valve
CCVL22-5G-S Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Individual valve
CCVL22-5D-S Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Individual valve
CCVL23-0-S Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: Air operated | Mounting: Individual valve
CCVL23-1G-S Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC100V grommet | Mounting: Individual valve
CCVL23-1D-S Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC100V DIN terminal | Mounting: Individual valve
CCVL23-2G-S Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC200V grommet | Mounting: Individual valve
CCVL23-2D-S Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC200V DIN terminal | Mounting: Individual valve
CCVL23-5G-S Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: DC24V grommet | Mounting: Individual valve
CCVL23-5D-S Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: DC24V DIN terminal | Mounting: Individual valve
CCVL02-0-U2 Valve unit: Large flow | Control valve: None | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Unit for CC100/CC160
CCVL02-1G-U2 Valve unit: Large flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Unit for CC100/CC160
CCVL02-1D-U2 Valve unit: Large flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC100/CC160
CCVL02-2G-U2 Valve unit: Large flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Unit for CC100/CC160
CCVL02-2D-U2 Valve unit: Large flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC100/CC160
CCVL02-5G-U2 Valve unit: Large flow | Control valve: None | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Unit for CC100/CC160
CCVL02-5D-U2 Valve unit: Large flow | Control valve: None | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC100/CC160
CCVL10-U2 Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: None | Solenoid: None | Mounting: Unit for CC100/CC160
CCVL11-0-U2 Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: Air operated | Mounting: Unit for CC100/CC160
CCVL11-1G-U2 Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC100V grommet | Mounting: Unit for CC100/CC160
CCVL11-1D-U2 Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC100/CC160
CCVL11-2G-U2 Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC200V grommet | Mounting: Unit for CC100/CC160
CCVL11-2D-U2 Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC100/CC160
CCVL11-5G-U2 Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: DC24V grommet | Mounting: Unit for CC100/CC160
CCVL11-5D-U2 Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC100/CC160
CCVL12-0-U2 Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Unit for CC100/CC160
CCVL12-1G-U2 Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Unit for CC100/CC160
CCVL12-1D-U2 Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC100/CC160
CCVL12-2G-U2 Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Unit for CC100/CC160
CCVL12-2D-U2 Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC100/CC160
CCVL12-5G-U2 Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Unit for CC100/CC160
CCVL12-5D-U2 Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC100/CC160
CCVL13-0-U2 Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: Air operated | Mounting: Unit for CC100/CC160
CCVL13-1G-U2 Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC100V grommet | Mounting: Unit for CC100/CC160
CCVL13-1D-U2 Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC100/CC160
CCVL13-2G-U2 Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC200V grommet | Mounting: Unit for CC100/CC160
CCVL13-2D-U2 Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC100/CC160
CCVL13-5G-U2 Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: DC24V grommet | Mounting: Unit for CC100/CC160
CCVL13-5D-U2 Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC100/CC160
CCVL20-U2 Valve unit: Large flow | Control valve: Orifice valve | Compound valve: None | Solenoid: None | Mounting: Unit for CC100/CC160
CCVL21-0-U2 Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: Air operated | Mounting: Unit for CC100/CC160
CCVL21-1G-U2 Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC100V grommet | Mounting: Unit for CC100/CC160
CCVL21-1D-U2 Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC100/CC160
CCVL21-2G-U2 Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC200V grommet | Mounting: Unit for CC100/CC160
CCVL21-2D-U2 Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC100/CC160
CCVL21-5G-U2 Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: DC24V grommet | Mounting: Unit for CC100/CC160
CCVL21-5D-U2 Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC100/CC160
CCVL22-0-U2 Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Unit for CC100/CC160
CCVL22-1G-U2 Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Unit for CC100/CC160
CCVL22-1D-U2 Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC100/CC160
CCVL22-2G-U2 Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Unit for CC100/CC160
CCVL22-2D-U2 Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC100/CC160
CCVL22-5G-U2 Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Unit for CC100/CC160
CCVL22-5D-U2 Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC100/CC160
CCVL23-0-U2 Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: Air operated | Mounting: Unit for CC100/CC160
CCVL23-1G-U2 Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC100V grommet | Mounting: Unit for CC100/CC160
CCVL23-1D-U2 Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC100/CC160
CCVL23-2G-U2 Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC200V grommet | Mounting: Unit for CC100/CC160
CCVL23-2D-U2 Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC100/CC160
CCVL23-5G-U2 Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: DC24V grommet | Mounting: Unit for CC100/CC160
CCVL23-5D-U2 Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC100/CC160
Hydraulic EquipmentSMC
321 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CCVS/CCVL Valve Unit for Air-Hydro Systems

Brand SMC·Hydraulic Equipment

Available part numbers (321)

CCVS02-0-S, CCVS02-1G-S, CCVS02-1D-S, CCVS02-2G-S, CCVS02-2D-S, CCVS02-5G-S, CCVS02-5D-S, CCVS10-S, CCVS11-0-S, CCVS11-1G-S + 311 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CCVS02-0-SValve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Individual valve
CCVS02-1G-SValve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Individual valve
CCVS02-1D-SValve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Individual valve
CCVS02-2G-SValve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Individual valve
CCVS02-2D-SValve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Individual valve
CCVS02-5G-SValve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Individual valve
CCVS02-5D-SValve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Individual valve
CCVS10-SValve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: None | Solenoid: None | Mounting: Individual valve
CCVS11-0-SValve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: Air operated | Mounting: Individual valve
CCVS11-1G-SValve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC100V grommet | Mounting: Individual valve
CCVS11-1D-SValve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC100V DIN terminal | Mounting: Individual valve
CCVS11-2G-SValve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC200V grommet | Mounting: Individual valve
CCVS11-2D-SValve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC200V DIN terminal | Mounting: Individual valve
CCVS11-5G-SValve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: DC24V grommet | Mounting: Individual valve
CCVS11-5D-SValve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: DC24V DIN terminal | Mounting: Individual valve
CCVS12-0-SValve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Individual valve
CCVS12-1G-SValve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Individual valve
CCVS12-1D-SValve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Individual valve
CCVS12-2G-SValve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Individual valve
CCVS12-2D-SValve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Individual valve
CCVS12-5G-SValve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Individual valve
CCVS12-5D-SValve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Individual valve
CCVS13-0-SValve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: Air operated | Mounting: Individual valve
CCVS13-1G-SValve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC100V grommet | Mounting: Individual valve
CCVS13-1D-SValve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC100V DIN terminal | Mounting: Individual valve
CCVS13-2G-SValve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC200V grommet | Mounting: Individual valve
CCVS13-2D-SValve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC200V DIN terminal | Mounting: Individual valve
CCVS13-5G-SValve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: DC24V grommet | Mounting: Individual valve
CCVS13-5D-SValve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: DC24V DIN terminal | Mounting: Individual valve
CCVS20-SValve unit: Small flow | Control valve: Orifice valve | Compound valve: None | Solenoid: None | Mounting: Individual valve
CCVS21-0-SValve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: Air operated | Mounting: Individual valve
CCVS21-1G-SValve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC100V grommet | Mounting: Individual valve
CCVS21-1D-SValve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC100V DIN terminal | Mounting: Individual valve
CCVS21-2G-SValve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC200V grommet | Mounting: Individual valve
CCVS21-2D-SValve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC200V DIN terminal | Mounting: Individual valve
CCVS21-5G-SValve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: DC24V grommet | Mounting: Individual valve
CCVS21-5D-SValve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: DC24V DIN terminal | Mounting: Individual valve
CCVS22-0-SValve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Individual valve
CCVS22-1G-SValve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Individual valve
CCVS22-1D-SValve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Individual valve
CCVS22-2G-SValve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Individual valve
CCVS22-2D-SValve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Individual valve
CCVS22-5G-SValve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Individual valve
CCVS22-5D-SValve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Individual valve
CCVS23-0-SValve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: Air operated | Mounting: Individual valve
CCVS23-1G-SValve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC100V grommet | Mounting: Individual valve
CCVS23-1D-SValve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC100V DIN terminal | Mounting: Individual valve
CCVS23-2G-SValve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC200V grommet | Mounting: Individual valve
CCVS23-2D-SValve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC200V DIN terminal | Mounting: Individual valve
CCVS23-5G-SValve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: DC24V grommet | Mounting: Individual valve
CCVS23-5D-SValve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: DC24V DIN terminal | Mounting: Individual valve
CCVS30-SValve unit: Small flow | Control valve: Micro flow control | Compound valve: None | Solenoid: None | Mounting: Individual valve
CCVS31-0-SValve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: Air operated | Mounting: Individual valve
CCVS31-1G-SValve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: AC100V grommet | Mounting: Individual valve
CCVS31-1D-SValve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: AC100V DIN terminal | Mounting: Individual valve
CCVS31-2G-SValve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: AC200V grommet | Mounting: Individual valve
CCVS31-2D-SValve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: AC200V DIN terminal | Mounting: Individual valve
CCVS31-5G-SValve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: DC24V grommet | Mounting: Individual valve
CCVS31-5D-SValve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: DC24V DIN terminal | Mounting: Individual valve
CCVS32-0-SValve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Individual valve
CCVS32-1G-SValve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Individual valve
CCVS32-1D-SValve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Individual valve
CCVS32-2G-SValve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Individual valve
CCVS32-2D-SValve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Individual valve
CCVS32-5G-SValve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Individual valve
CCVS32-5D-SValve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Individual valve
CCVS33-0-SValve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: Air operated | Mounting: Individual valve
CCVS33-1G-SValve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: AC100V grommet | Mounting: Individual valve
CCVS33-1D-SValve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: AC100V DIN terminal | Mounting: Individual valve
CCVS33-2G-SValve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: AC200V grommet | Mounting: Individual valve
CCVS33-2D-SValve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: AC200V DIN terminal | Mounting: Individual valve
CCVS33-5G-SValve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: DC24V grommet | Mounting: Individual valve
CCVS33-5D-SValve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: DC24V DIN terminal | Mounting: Individual valve
CCVS02-0-U1Valve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Unit for CC63 (CCT63)
CCVS02-1G-U1Valve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Unit for CC63 (CCT63)
CCVS02-1D-U1Valve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS02-2G-U1Valve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Unit for CC63 (CCT63)
CCVS02-2D-U1Valve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS02-5G-U1Valve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Unit for CC63 (CCT63)
CCVS02-5D-U1Valve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS10-U1Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: None | Solenoid: None | Mounting: Unit for CC63 (CCT63)
CCVS11-0-U1Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: Air operated | Mounting: Unit for CC63 (CCT63)
CCVS11-1G-U1Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC100V grommet | Mounting: Unit for CC63 (CCT63)
CCVS11-1D-U1Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS11-2G-U1Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC200V grommet | Mounting: Unit for CC63 (CCT63)
CCVS11-2D-U1Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS11-5G-U1Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: DC24V grommet | Mounting: Unit for CC63 (CCT63)
CCVS11-5D-U1Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS12-0-U1Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Unit for CC63 (CCT63)
CCVS12-1G-U1Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Unit for CC63 (CCT63)
CCVS12-1D-U1Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS12-2G-U1Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Unit for CC63 (CCT63)
CCVS12-2D-U1Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS12-5G-U1Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Unit for CC63 (CCT63)
CCVS12-5D-U1Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS13-0-U1Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: Air operated | Mounting: Unit for CC63 (CCT63)
CCVS13-1G-U1Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC100V grommet | Mounting: Unit for CC63 (CCT63)
CCVS13-1D-U1Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS13-2G-U1Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC200V grommet | Mounting: Unit for CC63 (CCT63)
CCVS13-2D-U1Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS13-5G-U1Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: DC24V grommet | Mounting: Unit for CC63 (CCT63)
CCVS13-5D-U1Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS20-U1Valve unit: Small flow | Control valve: Orifice valve | Compound valve: None | Solenoid: None | Mounting: Unit for CC63 (CCT63)
CCVS21-0-U1Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: Air operated | Mounting: Unit for CC63 (CCT63)
CCVS21-1G-U1Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC100V grommet | Mounting: Unit for CC63 (CCT63)
CCVS21-1D-U1Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS21-2G-U1Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC200V grommet | Mounting: Unit for CC63 (CCT63)
CCVS21-2D-U1Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS21-5G-U1Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: DC24V grommet | Mounting: Unit for CC63 (CCT63)
CCVS21-5D-U1Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS22-0-U1Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Unit for CC63 (CCT63)
CCVS22-1G-U1Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Unit for CC63 (CCT63)
CCVS22-1D-U1Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS22-2G-U1Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Unit for CC63 (CCT63)
CCVS22-2D-U1Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS22-5G-U1Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Unit for CC63 (CCT63)
CCVS22-5D-U1Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS23-0-U1Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: Air operated | Mounting: Unit for CC63 (CCT63)
CCVS23-1G-U1Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC100V grommet | Mounting: Unit for CC63 (CCT63)
CCVS23-1D-U1Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS23-2G-U1Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC200V grommet | Mounting: Unit for CC63 (CCT63)
CCVS23-2D-U1Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS23-5G-U1Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: DC24V grommet | Mounting: Unit for CC63 (CCT63)
CCVS23-5D-U1Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS30-U1Valve unit: Small flow | Control valve: Micro flow control | Compound valve: None | Solenoid: None | Mounting: Unit for CC63 (CCT63)
CCVS31-0-U1Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: Air operated | Mounting: Unit for CC63 (CCT63)
CCVS31-1G-U1Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: AC100V grommet | Mounting: Unit for CC63 (CCT63)
CCVS31-1D-U1Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS31-2G-U1Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: AC200V grommet | Mounting: Unit for CC63 (CCT63)
CCVS31-2D-U1Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS31-5G-U1Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: DC24V grommet | Mounting: Unit for CC63 (CCT63)
CCVS31-5D-U1Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS32-0-U1Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Unit for CC63 (CCT63)
CCVS32-1G-U1Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Unit for CC63 (CCT63)
CCVS32-1D-U1Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS32-2G-U1Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Unit for CC63 (CCT63)
CCVS32-2D-U1Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS32-5G-U1Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Unit for CC63 (CCT63)
CCVS32-5D-U1Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS33-0-U1Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: Air operated | Mounting: Unit for CC63 (CCT63)
CCVS33-1G-U1Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: AC100V grommet | Mounting: Unit for CC63 (CCT63)
CCVS33-1D-U1Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS33-2G-U1Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: AC200V grommet | Mounting: Unit for CC63 (CCT63)
CCVS33-2D-U1Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS33-5G-U1Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: DC24V grommet | Mounting: Unit for CC63 (CCT63)
CCVS33-5D-U1Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC63 (CCT63)
CCVS02-0-U2Valve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Unit for CC100/CC160
CCVS02-1G-U2Valve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Unit for CC100/CC160
CCVS02-1D-U2Valve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC100/CC160
CCVS02-2G-U2Valve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Unit for CC100/CC160
CCVS02-2D-U2Valve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC100/CC160
CCVS02-5G-U2Valve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Unit for CC100/CC160
CCVS02-5D-U2Valve unit: Small flow | Control valve: None | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC100/CC160
CCVS10-U2Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: None | Solenoid: None | Mounting: Unit for CC100/CC160
CCVS11-0-U2Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: Air operated | Mounting: Unit for CC100/CC160
CCVS11-1G-U2Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC100V grommet | Mounting: Unit for CC100/CC160
CCVS11-1D-U2Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC100/CC160
CCVS11-2G-U2Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC200V grommet | Mounting: Unit for CC100/CC160
CCVS11-2D-U2Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC100/CC160
CCVS11-5G-U2Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: DC24V grommet | Mounting: Unit for CC100/CC160
CCVS11-5D-U2Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC100/CC160
CCVS12-0-U2Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Unit for CC100/CC160
CCVS12-1G-U2Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Unit for CC100/CC160
CCVS12-1D-U2Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC100/CC160
CCVS12-2G-U2Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Unit for CC100/CC160
CCVS12-2D-U2Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC100/CC160
CCVS12-5G-U2Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Unit for CC100/CC160
CCVS12-5D-U2Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC100/CC160
CCVS13-0-U2Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: Air operated | Mounting: Unit for CC100/CC160
CCVS13-1G-U2Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC100V grommet | Mounting: Unit for CC100/CC160
CCVS13-1D-U2Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC100/CC160
CCVS13-2G-U2Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC200V grommet | Mounting: Unit for CC100/CC160
CCVS13-2D-U2Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC100/CC160
CCVS13-5G-U2Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: DC24V grommet | Mounting: Unit for CC100/CC160
CCVS13-5D-U2Valve unit: Small flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC100/CC160
CCVS20-U2Valve unit: Small flow | Control valve: Orifice valve | Compound valve: None | Solenoid: None | Mounting: Unit for CC100/CC160
CCVS21-0-U2Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: Air operated | Mounting: Unit for CC100/CC160
CCVS21-1G-U2Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC100V grommet | Mounting: Unit for CC100/CC160
CCVS21-1D-U2Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC100/CC160
CCVS21-2G-U2Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC200V grommet | Mounting: Unit for CC100/CC160
CCVS21-2D-U2Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC100/CC160
CCVS21-5G-U2Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: DC24V grommet | Mounting: Unit for CC100/CC160
CCVS21-5D-U2Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC100/CC160
CCVS22-0-U2Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Unit for CC100/CC160
CCVS22-1G-U2Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Unit for CC100/CC160
CCVS22-1D-U2Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC100/CC160
CCVS22-2G-U2Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Unit for CC100/CC160
CCVS22-2D-U2Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC100/CC160
CCVS22-5G-U2Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Unit for CC100/CC160
CCVS22-5D-U2Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC100/CC160
CCVS23-0-U2Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: Air operated | Mounting: Unit for CC100/CC160
CCVS23-1G-U2Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC100V grommet | Mounting: Unit for CC100/CC160
CCVS23-1D-U2Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC100/CC160
CCVS23-2G-U2Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC200V grommet | Mounting: Unit for CC100/CC160
CCVS23-2D-U2Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC100/CC160
CCVS23-5G-U2Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: DC24V grommet | Mounting: Unit for CC100/CC160
CCVS23-5D-U2Valve unit: Small flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC100/CC160
CCVS30-U2Valve unit: Small flow | Control valve: Micro flow control | Compound valve: None | Solenoid: None | Mounting: Unit for CC100/CC160
CCVS31-0-U2Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: Air operated | Mounting: Unit for CC100/CC160
CCVS31-1G-U2Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: AC100V grommet | Mounting: Unit for CC100/CC160
CCVS31-1D-U2Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC100/CC160
CCVS31-2G-U2Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: AC200V grommet | Mounting: Unit for CC100/CC160
CCVS31-2D-U2Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC100/CC160
CCVS31-5G-U2Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: DC24V grommet | Mounting: Unit for CC100/CC160
CCVS31-5D-U2Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop + skip valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC100/CC160
CCVS32-0-U2Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Unit for CC100/CC160
CCVS32-1G-U2Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Unit for CC100/CC160
CCVS32-1D-U2Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC100/CC160
CCVS32-2G-U2Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Unit for CC100/CC160
CCVS32-2D-U2Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC100/CC160
CCVS32-5G-U2Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Unit for CC100/CC160
CCVS32-5D-U2Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC100/CC160
CCVS33-0-U2Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: Air operated | Mounting: Unit for CC100/CC160
CCVS33-1G-U2Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: AC100V grommet | Mounting: Unit for CC100/CC160
CCVS33-1D-U2Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC100/CC160
CCVS33-2G-U2Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: AC200V grommet | Mounting: Unit for CC100/CC160
CCVS33-2D-U2Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC100/CC160
CCVS33-5G-U2Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: DC24V grommet | Mounting: Unit for CC100/CC160
CCVS33-5D-U2Valve unit: Small flow | Control valve: Micro flow control | Compound valve: Skip valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC100/CC160
CCVL02-0-SValve unit: Large flow | Control valve: None | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Individual valve
CCVL02-1G-SValve unit: Large flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Individual valve
CCVL02-1D-SValve unit: Large flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Individual valve
CCVL02-2G-SValve unit: Large flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Individual valve
CCVL02-2D-SValve unit: Large flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Individual valve
CCVL02-5G-SValve unit: Large flow | Control valve: None | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Individual valve
CCVL02-5D-SValve unit: Large flow | Control valve: None | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Individual valve
CCVL10-SValve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: None | Solenoid: None | Mounting: Individual valve
CCVL11-0-SValve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: Air operated | Mounting: Individual valve
CCVL11-1G-SValve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC100V grommet | Mounting: Individual valve
CCVL11-1D-SValve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC100V DIN terminal | Mounting: Individual valve
CCVL11-2G-SValve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC200V grommet | Mounting: Individual valve
CCVL11-2D-SValve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC200V DIN terminal | Mounting: Individual valve
CCVL11-5G-SValve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: DC24V grommet | Mounting: Individual valve
CCVL11-5D-SValve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: DC24V DIN terminal | Mounting: Individual valve
CCVL12-0-SValve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Individual valve
CCVL12-1G-SValve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Individual valve
CCVL12-1D-SValve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Individual valve
CCVL12-2G-SValve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Individual valve
CCVL12-2D-SValve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Individual valve
CCVL12-5G-SValve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Individual valve
CCVL12-5D-SValve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Individual valve
CCVL13-0-SValve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: Air operated | Mounting: Individual valve
CCVL13-1G-SValve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC100V grommet | Mounting: Individual valve
CCVL13-1D-SValve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC100V DIN terminal | Mounting: Individual valve
CCVL13-2G-SValve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC200V grommet | Mounting: Individual valve
CCVL13-2D-SValve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC200V DIN terminal | Mounting: Individual valve
CCVL13-5G-SValve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: DC24V grommet | Mounting: Individual valve
CCVL13-5D-SValve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: DC24V DIN terminal | Mounting: Individual valve
CCVL20-SValve unit: Large flow | Control valve: Orifice valve | Compound valve: None | Solenoid: None | Mounting: Individual valve
CCVL21-0-SValve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: Air operated | Mounting: Individual valve
CCVL21-1G-SValve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC100V grommet | Mounting: Individual valve
CCVL21-1D-SValve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC100V DIN terminal | Mounting: Individual valve
CCVL21-2G-SValve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC200V grommet | Mounting: Individual valve
CCVL21-2D-SValve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC200V DIN terminal | Mounting: Individual valve
CCVL21-5G-SValve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: DC24V grommet | Mounting: Individual valve
CCVL21-5D-SValve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: DC24V DIN terminal | Mounting: Individual valve
CCVL22-0-SValve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Individual valve
CCVL22-1G-SValve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Individual valve
CCVL22-1D-SValve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Individual valve
CCVL22-2G-SValve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Individual valve
CCVL22-2D-SValve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Individual valve
CCVL22-5G-SValve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Individual valve
CCVL22-5D-SValve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Individual valve
CCVL23-0-SValve unit: Large flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: Air operated | Mounting: Individual valve
CCVL23-1G-SValve unit: Large flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC100V grommet | Mounting: Individual valve
CCVL23-1D-SValve unit: Large flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC100V DIN terminal | Mounting: Individual valve
CCVL23-2G-SValve unit: Large flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC200V grommet | Mounting: Individual valve
CCVL23-2D-SValve unit: Large flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC200V DIN terminal | Mounting: Individual valve
CCVL23-5G-SValve unit: Large flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: DC24V grommet | Mounting: Individual valve
CCVL23-5D-SValve unit: Large flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: DC24V DIN terminal | Mounting: Individual valve
CCVL02-0-U2Valve unit: Large flow | Control valve: None | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Unit for CC100/CC160
CCVL02-1G-U2Valve unit: Large flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Unit for CC100/CC160
CCVL02-1D-U2Valve unit: Large flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC100/CC160
CCVL02-2G-U2Valve unit: Large flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Unit for CC100/CC160
CCVL02-2D-U2Valve unit: Large flow | Control valve: None | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC100/CC160
CCVL02-5G-U2Valve unit: Large flow | Control valve: None | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Unit for CC100/CC160
CCVL02-5D-U2Valve unit: Large flow | Control valve: None | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC100/CC160
CCVL10-U2Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: None | Solenoid: None | Mounting: Unit for CC100/CC160
CCVL11-0-U2Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: Air operated | Mounting: Unit for CC100/CC160
CCVL11-1G-U2Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC100V grommet | Mounting: Unit for CC100/CC160
CCVL11-1D-U2Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC100/CC160
CCVL11-2G-U2Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC200V grommet | Mounting: Unit for CC100/CC160
CCVL11-2D-U2Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC100/CC160
CCVL11-5G-U2Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: DC24V grommet | Mounting: Unit for CC100/CC160
CCVL11-5D-U2Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop + skip valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC100/CC160
CCVL12-0-U2Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Unit for CC100/CC160
CCVL12-1G-U2Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Unit for CC100/CC160
CCVL12-1D-U2Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC100/CC160
CCVL12-2G-U2Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Unit for CC100/CC160
CCVL12-2D-U2Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC100/CC160
CCVL12-5G-U2Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Unit for CC100/CC160
CCVL12-5D-U2Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC100/CC160
CCVL13-0-U2Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: Air operated | Mounting: Unit for CC100/CC160
CCVL13-1G-U2Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC100V grommet | Mounting: Unit for CC100/CC160
CCVL13-1D-U2Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC100/CC160
CCVL13-2G-U2Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC200V grommet | Mounting: Unit for CC100/CC160
CCVL13-2D-U2Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC100/CC160
CCVL13-5G-U2Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: DC24V grommet | Mounting: Unit for CC100/CC160
CCVL13-5D-U2Valve unit: Large flow | Control valve: Flow control (press. comp.) | Compound valve: Skip valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC100/CC160
CCVL20-U2Valve unit: Large flow | Control valve: Orifice valve | Compound valve: None | Solenoid: None | Mounting: Unit for CC100/CC160
CCVL21-0-U2Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: Air operated | Mounting: Unit for CC100/CC160
CCVL21-1G-U2Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC100V grommet | Mounting: Unit for CC100/CC160
CCVL21-1D-U2Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC100/CC160
CCVL21-2G-U2Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC200V grommet | Mounting: Unit for CC100/CC160
CCVL21-2D-U2Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC100/CC160
CCVL21-5G-U2Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: DC24V grommet | Mounting: Unit for CC100/CC160
CCVL21-5D-U2Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop + skip valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC100/CC160
CCVL22-0-U2Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: Air operated | Mounting: Unit for CC100/CC160
CCVL22-1G-U2Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC100V grommet | Mounting: Unit for CC100/CC160
CCVL22-1D-U2Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC100/CC160
CCVL22-2G-U2Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC200V grommet | Mounting: Unit for CC100/CC160
CCVL22-2D-U2Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC100/CC160
CCVL22-5G-U2Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: DC24V grommet | Mounting: Unit for CC100/CC160
CCVL22-5D-U2Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Stop valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC100/CC160
CCVL23-0-U2Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: Air operated | Mounting: Unit for CC100/CC160
CCVL23-1G-U2Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC100V grommet | Mounting: Unit for CC100/CC160
CCVL23-1D-U2Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC100V DIN terminal | Mounting: Unit for CC100/CC160
CCVL23-2G-U2Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC200V grommet | Mounting: Unit for CC100/CC160
CCVL23-2D-U2Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: AC200V DIN terminal | Mounting: Unit for CC100/CC160
CCVL23-5G-U2Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: DC24V grommet | Mounting: Unit for CC100/CC160
CCVL23-5D-U2Valve unit: Large flow | Control valve: Orifice valve | Compound valve: Skip valve | Solenoid: DC24V DIN terminal | Mounting: Unit for CC100/CC160

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Hydraulics →
