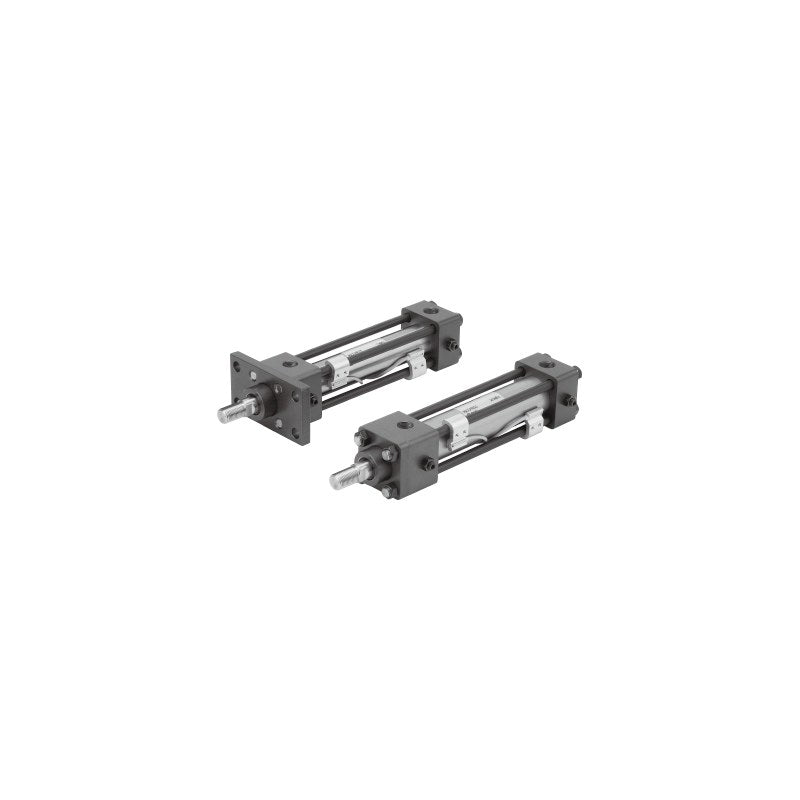

SMC CH2E JIS Hydraulic Cylinder (3.5 MPa, ø32 to ø100)

SMC CH2E series JIS-compliant hydraulic cylinder with aluminum alloy tube, 3.5 MPa nominal, double acting single rod, ø32 to ø100 mm, with or without a built-in auto switch magnet (CHD2E).

Key features

JIS-compliant tie-rod hydraulic cylinder with aluminum alloy tube, 3.5 MPa nominal pressure
Mounting: basic (B), axial-perpendicular foot (LA), axial foot (LB), rod rectangular flange (FA), head rectangular flange (FB), rod square flange (FC), head square flange (FD), single clevis (CA), double clevis (CB), center trunnion (TC)
Rod size series B listed (C series rod for ø40 to ø100 as order symbol); cushion at both ends standard (N/R/H options)
Options as order symbols: rod end nut (A), nylon tarpaulin (J) or heat-resistant tarpaulin (K) bellows, port and cushion valve position (A to H)
Built-in magnet models (CHD2E) accept tie-rod or band mounted D-M9/D-F5/D-G5/D-A5 series auto switches, ordered as a suffix
Made-to-order: rod end change (-XA), trunnion position change (-XC14), short stroke 5 to 24 mm (-X2967)

Specifications

Action	Double acting
Fluid	Hydraulic oil (general mineral, W/O, O/W)
Nominal pressure	3.5 MPa
Proof pressure	5.0 MPa
Max. allowable pressure	3.5 MPa
Min. operating pressure	0.15 MPa (head side), 0.2 MPa (rod side)
Ambient and fluid temperature	-10 to 80°C (no switch), -10 to 60°C (with switch)
Piston speed	8 to 300 mm/s
Cushion	Yes, both ends
Tube material	Aluminum alloy
Rod size series	B (listed); C on order (ø40 to ø100)
Standard stroke range	25 to 1400 (ø32 to ø50), 25 to 1500 (ø63), 25 to 1800 mm (ø80/ø100)
Source	SMC Korea catalog CH2E/CH2F/CH2G/CH2H (SMCKR_CH2E_CH2F_CH2G_CH2H.pdf), p. 358-359 (PDF p. 2-3)

CH2EB32B-25		Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2EB32B-50		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2EB32B-75		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2EB32B-100		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2EB32B-150		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2EB32B-200		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2EB32B-250		Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2EB32B-300		Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2EB32B-400		Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2EB32B-500		Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2EB40B-25		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2EB40B-50		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2EB40B-75		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2EB40B-100		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2EB40B-150		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2EB40B-200		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2EB40B-250		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2EB40B-300		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2EB40B-400		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2EB40B-500		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2EB50B-25		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2EB50B-50		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2EB50B-75		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2EB50B-100		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2EB50B-150		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2EB50B-200		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2EB50B-250		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2EB50B-300		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2EB50B-400		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2EB50B-500		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2EB63B-25		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2EB63B-50		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2EB63B-75		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2EB63B-100		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2EB63B-150		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2EB63B-200		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2EB63B-250		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2EB63B-300		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2EB63B-400		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2EB63B-500		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2EB80B-25		Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2EB80B-50		Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2EB80B-75		Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2EB80B-100		Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2EB80B-150		Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2EB80B-200		Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2EB80B-250		Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2EB80B-300		Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2EB80B-400		Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2EB80B-500		Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2EB100B-25		Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2EB100B-50		Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2EB100B-75		Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2EB100B-100		Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2EB100B-150		Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2EB100B-200		Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2EB100B-250		Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2EB100B-300		Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2EB100B-400		Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2EB100B-500		Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2ELA32B-25		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2ELA32B-50		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2ELA32B-75		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2ELA32B-100		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2ELA32B-150		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2ELA32B-200		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2ELA32B-250		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2ELA32B-300		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2ELA32B-400		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2ELA32B-500		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2ELA40B-25		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2ELA40B-50		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2ELA40B-75		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2ELA40B-100		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2ELA40B-150		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2ELA40B-200		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2ELA40B-250		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2ELA40B-300		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2ELA40B-400		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2ELA40B-500		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2ELA50B-25		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2ELA50B-50		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2ELA50B-75		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2ELA50B-100		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2ELA50B-150		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2ELA50B-200		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2ELA50B-250		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2ELA50B-300		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2ELA50B-400		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2ELA50B-500		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2ELA63B-25		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2ELA63B-50		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2ELA63B-75		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2ELA63B-100		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2ELA63B-150		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2ELA63B-200		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2ELA63B-250		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2ELA63B-300		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2ELA63B-400		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2ELA63B-500		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2ELA80B-25		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2ELA80B-50		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2ELA80B-75		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2ELA80B-100		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2ELA80B-150		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2ELA80B-200		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2ELA80B-250		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2ELA80B-300		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2ELA80B-400		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2ELA80B-500		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2ELA100B-25		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2ELA100B-50		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2ELA100B-75		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2ELA100B-100		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2ELA100B-150		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2ELA100B-200		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2ELA100B-250		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2ELA100B-300		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2ELA100B-400		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2ELA100B-500		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2ELB32B-25		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2ELB32B-50		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2ELB32B-75		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2ELB32B-100		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2ELB32B-150		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2ELB32B-200		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2ELB32B-250		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2ELB32B-300		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2ELB32B-400		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2ELB32B-500		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2ELB40B-25		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2ELB40B-50		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2ELB40B-75		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2ELB40B-100		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2ELB40B-150		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2ELB40B-200		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2ELB40B-250		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2ELB40B-300		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2ELB40B-400		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2ELB40B-500		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2ELB50B-25		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2ELB50B-50		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2ELB50B-75		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2ELB50B-100		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2ELB50B-150		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2ELB50B-200		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2ELB50B-250		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2ELB50B-300		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2ELB50B-400		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2ELB50B-500		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2ELB63B-25		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2ELB63B-50		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2ELB63B-75		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2ELB63B-100		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2ELB63B-150		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2ELB63B-200		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2ELB63B-250		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2ELB63B-300		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2ELB63B-400		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2ELB63B-500		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2ELB80B-25		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2ELB80B-50		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2ELB80B-75		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2ELB80B-100		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2ELB80B-150		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2ELB80B-200		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2ELB80B-250		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2ELB80B-300		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2ELB80B-400		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2ELB80B-500		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2ELB100B-25		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2ELB100B-50		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2ELB100B-75		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2ELB100B-100		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2ELB100B-150		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2ELB100B-200		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2ELB100B-250		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2ELB100B-300		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2ELB100B-400		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2ELB100B-500		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2EFA32B-25		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2EFA32B-50		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2EFA32B-75		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2EFA32B-100		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2EFA32B-150		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2EFA32B-200		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2EFA32B-250		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2EFA32B-300		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2EFA32B-400		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2EFA32B-500		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2EFA40B-25		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2EFA40B-50		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2EFA40B-75		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2EFA40B-100		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2EFA40B-150		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2EFA40B-200		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2EFA40B-250		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2EFA40B-300		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2EFA40B-400		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2EFA40B-500		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2EFA50B-25		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2EFA50B-50		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2EFA50B-75		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2EFA50B-100		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2EFA50B-150		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2EFA50B-200		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2EFA50B-250		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2EFA50B-300		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2EFA50B-400		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2EFA50B-500		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2EFA63B-25		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2EFA63B-50		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2EFA63B-75		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2EFA63B-100		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2EFA63B-150		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2EFA63B-200		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2EFA63B-250		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2EFA63B-300		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2EFA63B-400		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2EFA63B-500		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2EFA80B-25		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2EFA80B-50		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2EFA80B-75		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2EFA80B-100		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2EFA80B-150		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2EFA80B-200		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2EFA80B-250		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2EFA80B-300		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2EFA80B-400		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2EFA80B-500		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2EFA100B-25		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2EFA100B-50		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2EFA100B-75		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2EFA100B-100		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2EFA100B-150		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2EFA100B-200		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2EFA100B-250		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2EFA100B-300		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2EFA100B-400		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2EFA100B-500		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2EFB32B-25		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2EFB32B-50		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2EFB32B-75		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2EFB32B-100		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2EFB32B-150		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2EFB32B-200		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2EFB32B-250		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2EFB32B-300		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2EFB32B-400		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2EFB32B-500		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2EFB40B-25		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2EFB40B-50		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2EFB40B-75		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2EFB40B-100		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2EFB40B-150		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2EFB40B-200		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2EFB40B-250		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2EFB40B-300		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2EFB40B-400		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2EFB40B-500		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2EFB50B-25		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2EFB50B-50		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2EFB50B-75		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2EFB50B-100		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2EFB50B-150		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2EFB50B-200		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2EFB50B-250		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2EFB50B-300		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2EFB50B-400		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2EFB50B-500		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2EFB63B-25		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2EFB63B-50		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2EFB63B-75		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2EFB63B-100		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2EFB63B-150		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2EFB63B-200		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2EFB63B-250		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2EFB63B-300		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2EFB63B-400		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2EFB63B-500		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2EFB80B-25		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2EFB80B-50		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2EFB80B-75		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2EFB80B-100		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2EFB80B-150		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2EFB80B-200		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2EFB80B-250		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2EFB80B-300		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2EFB80B-400		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2EFB80B-500		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2EFB100B-25		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2EFB100B-50		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2EFB100B-75		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2EFB100B-100		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2EFB100B-150		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2EFB100B-200		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2EFB100B-250		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2EFB100B-300		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2EFB100B-400		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2EFB100B-500		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2EFC32B-25		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2EFC32B-50		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2EFC32B-75		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2EFC32B-100		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2EFC32B-150		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2EFC32B-200		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2EFC32B-250		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2EFC32B-300		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2EFC32B-400		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2EFC32B-500		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2EFC40B-25		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2EFC40B-50		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2EFC40B-75		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2EFC40B-100		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2EFC40B-150		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2EFC40B-200		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2EFC40B-250		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2EFC40B-300		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2EFC40B-400		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2EFC40B-500		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2EFC50B-25		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2EFC50B-50		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2EFC50B-75		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2EFC50B-100		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2EFC50B-150		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2EFC50B-200		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2EFC50B-250		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2EFC50B-300		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2EFC50B-400		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2EFC50B-500		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2EFC63B-25		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2EFC63B-50		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2EFC63B-75		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2EFC63B-100		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2EFC63B-150		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2EFC63B-200		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2EFC63B-250		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2EFC63B-300		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2EFC63B-400		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2EFC63B-500		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2EFC80B-25		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2EFC80B-50		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2EFC80B-75		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2EFC80B-100		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2EFC80B-150		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2EFC80B-200		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2EFC80B-250		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2EFC80B-300		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2EFC80B-400		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2EFC80B-500		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2EFC100B-25		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2EFC100B-50		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2EFC100B-75		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2EFC100B-100		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2EFC100B-150		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2EFC100B-200		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2EFC100B-250		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2EFC100B-300		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2EFC100B-400		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2EFC100B-500		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2EFD32B-25		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2EFD32B-50		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2EFD32B-75		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2EFD32B-100		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2EFD32B-150		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2EFD32B-200		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2EFD32B-250		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2EFD32B-300		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2EFD32B-400		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2EFD32B-500		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2EFD40B-25		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2EFD40B-50		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2EFD40B-75		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2EFD40B-100		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2EFD40B-150		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2EFD40B-200		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2EFD40B-250		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2EFD40B-300		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2EFD40B-400		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2EFD40B-500		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2EFD50B-25		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2EFD50B-50		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2EFD50B-75		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2EFD50B-100		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2EFD50B-150		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2EFD50B-200		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2EFD50B-250		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2EFD50B-300		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2EFD50B-400		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2EFD50B-500		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2EFD63B-25		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2EFD63B-50		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2EFD63B-75		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2EFD63B-100		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2EFD63B-150		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2EFD63B-200		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2EFD63B-250		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2EFD63B-300		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2EFD63B-400		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2EFD63B-500		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2EFD80B-25		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2EFD80B-50		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2EFD80B-75		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2EFD80B-100		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2EFD80B-150		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2EFD80B-200		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2EFD80B-250		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2EFD80B-300		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2EFD80B-400		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2EFD80B-500		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2EFD100B-25		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2EFD100B-50		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2EFD100B-75		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2EFD100B-100		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2EFD100B-150		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2EFD100B-200		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2EFD100B-250		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2EFD100B-300		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2EFD100B-400		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2EFD100B-500		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2ECA32B-25		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2ECA32B-50		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2ECA32B-75		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2ECA32B-100		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2ECA32B-150		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2ECA32B-200		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2ECA32B-250		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2ECA32B-300		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2ECA32B-400		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2ECA32B-500		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2ECA40B-25		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2ECA40B-50		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2ECA40B-75		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2ECA40B-100		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2ECA40B-150		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2ECA40B-200		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2ECA40B-250		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2ECA40B-300		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2ECA40B-400		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2ECA40B-500		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2ECA50B-25		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2ECA50B-50		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2ECA50B-75		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2ECA50B-100		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2ECA50B-150		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2ECA50B-200		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2ECA50B-250		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2ECA50B-300		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2ECA50B-400		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2ECA50B-500		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2ECA63B-25		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2ECA63B-50		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2ECA63B-75		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2ECA63B-100		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2ECA63B-150		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2ECA63B-200		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2ECA63B-250		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2ECA63B-300		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2ECA63B-400		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2ECA63B-500		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2ECA80B-25		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2ECA80B-50		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2ECA80B-75		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2ECA80B-100		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2ECA80B-150		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2ECA80B-200		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2ECA80B-250		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2ECA80B-300		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2ECA80B-400		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2ECA80B-500		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2ECA100B-25		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2ECA100B-50		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2ECA100B-75		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2ECA100B-100		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2ECA100B-150		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2ECA100B-200		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2ECA100B-250		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2ECA100B-300		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2ECA100B-400		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2ECA100B-500		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2ECB32B-25		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2ECB32B-50		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2ECB32B-75		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2ECB32B-100		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2ECB32B-150		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2ECB32B-200		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2ECB32B-250		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2ECB32B-300		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2ECB32B-400		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2ECB32B-500		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2ECB40B-25		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2ECB40B-50		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2ECB40B-75		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2ECB40B-100		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2ECB40B-150		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2ECB40B-200		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2ECB40B-250		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2ECB40B-300		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2ECB40B-400		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2ECB40B-500		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2ECB50B-25		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2ECB50B-50		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2ECB50B-75		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2ECB50B-100		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2ECB50B-150		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2ECB50B-200		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2ECB50B-250		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2ECB50B-300		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2ECB50B-400		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2ECB50B-500		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2ECB63B-25		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2ECB63B-50		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2ECB63B-75		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2ECB63B-100		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2ECB63B-150		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2ECB63B-200		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2ECB63B-250		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2ECB63B-300		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2ECB63B-400		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2ECB63B-500		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2ECB80B-25		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2ECB80B-50		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2ECB80B-75		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2ECB80B-100		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2ECB80B-150		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2ECB80B-200		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2ECB80B-250		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2ECB80B-300		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2ECB80B-400		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2ECB80B-500		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2ECB100B-25		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2ECB100B-50		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2ECB100B-75		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2ECB100B-100		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2ECB100B-150		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2ECB100B-200		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2ECB100B-250		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2ECB100B-300		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2ECB100B-400		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2ECB100B-500		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2ETC32B-25		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2ETC32B-50		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2ETC32B-75		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2ETC32B-100		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2ETC32B-150		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2ETC32B-200		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2ETC32B-250		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2ETC32B-300		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2ETC32B-400		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2ETC32B-500		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2ETC40B-25		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2ETC40B-50		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2ETC40B-75		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2ETC40B-100		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2ETC40B-150		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2ETC40B-200		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2ETC40B-250		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2ETC40B-300		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2ETC40B-400		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2ETC40B-500		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2ETC50B-25		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2ETC50B-50		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2ETC50B-75		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2ETC50B-100		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2ETC50B-150		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2ETC50B-200		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2ETC50B-250		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2ETC50B-300		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2ETC50B-400		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2ETC50B-500		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2ETC63B-25		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2ETC63B-50		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2ETC63B-75		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2ETC63B-100		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2ETC63B-150		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2ETC63B-200		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2ETC63B-250		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2ETC63B-300		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2ETC63B-400		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2ETC63B-500		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2ETC80B-25		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2ETC80B-50		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2ETC80B-75		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2ETC80B-100		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2ETC80B-150		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2ETC80B-200		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2ETC80B-250		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2ETC80B-300		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2ETC80B-400		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2ETC80B-500		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2ETC100B-25		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2ETC100B-50		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2ETC100B-75		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2ETC100B-100		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2ETC100B-150		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2ETC100B-200		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2ETC100B-250		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2ETC100B-300		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2ETC100B-400		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2ETC100B-500		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHD2EB32B-25		Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2EB32B-50		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2EB32B-75		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2EB32B-100		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2EB32B-150		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2EB32B-200		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2EB32B-250		Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2EB32B-300		Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2EB32B-400		Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2EB32B-500		Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2EB40B-25		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2EB40B-50		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2EB40B-75		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2EB40B-100		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2EB40B-150		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2EB40B-200		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2EB40B-250		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2EB40B-300		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2EB40B-400		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2EB40B-500		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2EB50B-25		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2EB50B-50		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2EB50B-75		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2EB50B-100		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2EB50B-150		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2EB50B-200		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2EB50B-250		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2EB50B-300		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2EB50B-400		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2EB50B-500		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2EB63B-25		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2EB63B-50		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2EB63B-75		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2EB63B-100		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2EB63B-150		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2EB63B-200		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2EB63B-250		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2EB63B-300		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2EB63B-400		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2EB63B-500		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2EB80B-25		Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2EB80B-50		Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2EB80B-75		Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2EB80B-100		Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2EB80B-150		Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2EB80B-200		Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2EB80B-250		Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2EB80B-300		Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2EB80B-400		Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2EB80B-500		Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2EB100B-25		Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2EB100B-50		Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2EB100B-75		Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2EB100B-100		Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2EB100B-150		Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2EB100B-200		Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2EB100B-250		Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2EB100B-300		Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2EB100B-400		Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2EB100B-500		Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2ELA32B-25		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2ELA32B-50		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2ELA32B-75		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2ELA32B-100		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2ELA32B-150		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2ELA32B-200		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2ELA32B-250		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2ELA32B-300		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2ELA32B-400		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2ELA32B-500		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2ELA40B-25		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2ELA40B-50		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2ELA40B-75		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2ELA40B-100		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2ELA40B-150		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2ELA40B-200		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2ELA40B-250		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2ELA40B-300		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2ELA40B-400		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2ELA40B-500		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2ELA50B-25		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2ELA50B-50		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2ELA50B-75		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2ELA50B-100		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2ELA50B-150		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2ELA50B-200		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2ELA50B-250		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2ELA50B-300		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2ELA50B-400		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2ELA50B-500		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2ELA63B-25		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2ELA63B-50		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2ELA63B-75		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2ELA63B-100		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2ELA63B-150		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2ELA63B-200		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2ELA63B-250		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2ELA63B-300		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2ELA63B-400		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2ELA63B-500		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2ELA80B-25		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2ELA80B-50		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2ELA80B-75		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2ELA80B-100		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2ELA80B-150		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2ELA80B-200		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2ELA80B-250		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2ELA80B-300		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2ELA80B-400		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2ELA80B-500		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2ELA100B-25		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2ELA100B-50		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2ELA100B-75		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2ELA100B-100		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2ELA100B-150		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2ELA100B-200		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2ELA100B-250		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2ELA100B-300		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2ELA100B-400		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2ELA100B-500		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2ELB32B-25		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2ELB32B-50		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2ELB32B-75		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2ELB32B-100		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2ELB32B-150		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2ELB32B-200		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2ELB32B-250		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2ELB32B-300		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2ELB32B-400		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2ELB32B-500		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2ELB40B-25		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2ELB40B-50		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2ELB40B-75		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2ELB40B-100		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2ELB40B-150		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2ELB40B-200		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2ELB40B-250		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2ELB40B-300		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2ELB40B-400		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2ELB40B-500		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2ELB50B-25		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2ELB50B-50		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2ELB50B-75		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2ELB50B-100		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2ELB50B-150		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2ELB50B-200		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2ELB50B-250		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2ELB50B-300		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2ELB50B-400		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2ELB50B-500		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2ELB63B-25		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2ELB63B-50		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2ELB63B-75		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2ELB63B-100		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2ELB63B-150		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2ELB63B-200		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2ELB63B-250		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2ELB63B-300		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2ELB63B-400		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2ELB63B-500		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2ELB80B-25		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2ELB80B-50		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2ELB80B-75		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2ELB80B-100		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2ELB80B-150		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2ELB80B-200		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2ELB80B-250		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2ELB80B-300		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2ELB80B-400		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2ELB80B-500		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2ELB100B-25		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2ELB100B-50		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2ELB100B-75		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2ELB100B-100		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2ELB100B-150		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2ELB100B-200		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2ELB100B-250		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2ELB100B-300		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2ELB100B-400		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2ELB100B-500		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2EFA32B-25		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2EFA32B-50		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2EFA32B-75		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2EFA32B-100		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2EFA32B-150		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2EFA32B-200		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2EFA32B-250		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2EFA32B-300		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2EFA32B-400		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2EFA32B-500		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2EFA40B-25		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2EFA40B-50		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2EFA40B-75		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2EFA40B-100		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2EFA40B-150		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2EFA40B-200		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2EFA40B-250		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2EFA40B-300		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2EFA40B-400		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2EFA40B-500		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2EFA50B-25		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2EFA50B-50		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2EFA50B-75		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2EFA50B-100		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2EFA50B-150		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2EFA50B-200		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2EFA50B-250		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2EFA50B-300		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2EFA50B-400		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2EFA50B-500		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2EFA63B-25		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2EFA63B-50		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2EFA63B-75		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2EFA63B-100		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2EFA63B-150		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2EFA63B-200		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2EFA63B-250		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2EFA63B-300		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2EFA63B-400		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2EFA63B-500		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2EFA80B-25		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2EFA80B-50		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2EFA80B-75		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2EFA80B-100		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2EFA80B-150		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2EFA80B-200		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2EFA80B-250		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2EFA80B-300		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2EFA80B-400		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2EFA80B-500		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2EFA100B-25		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2EFA100B-50		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2EFA100B-75		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2EFA100B-100		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2EFA100B-150		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2EFA100B-200		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2EFA100B-250		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2EFA100B-300		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2EFA100B-400		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2EFA100B-500		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2EFB32B-25		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2EFB32B-50		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2EFB32B-75		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2EFB32B-100		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2EFB32B-150		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2EFB32B-200		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2EFB32B-250		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2EFB32B-300		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2EFB32B-400		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2EFB32B-500		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2EFB40B-25		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2EFB40B-50		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2EFB40B-75		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2EFB40B-100		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2EFB40B-150		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2EFB40B-200		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2EFB40B-250		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2EFB40B-300		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2EFB40B-400		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2EFB40B-500		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2EFB50B-25		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2EFB50B-50		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2EFB50B-75		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2EFB50B-100		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2EFB50B-150		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2EFB50B-200		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2EFB50B-250		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2EFB50B-300		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2EFB50B-400		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2EFB50B-500		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2EFB63B-25		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2EFB63B-50		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2EFB63B-75		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2EFB63B-100		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2EFB63B-150		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2EFB63B-200		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2EFB63B-250		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2EFB63B-300		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2EFB63B-400		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2EFB63B-500		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2EFB80B-25		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2EFB80B-50		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2EFB80B-75		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2EFB80B-100		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2EFB80B-150		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2EFB80B-200		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2EFB80B-250		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2EFB80B-300		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2EFB80B-400		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2EFB80B-500		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2EFB100B-25		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2EFB100B-50		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2EFB100B-75		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2EFB100B-100		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2EFB100B-150		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2EFB100B-200		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2EFB100B-250		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2EFB100B-300		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2EFB100B-400		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2EFB100B-500		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2EFC32B-25		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2EFC32B-50		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2EFC32B-75		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2EFC32B-100		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2EFC32B-150		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2EFC32B-200		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2EFC32B-250		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2EFC32B-300		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2EFC32B-400		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2EFC32B-500		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2EFC40B-25		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2EFC40B-50		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2EFC40B-75		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2EFC40B-100		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2EFC40B-150		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2EFC40B-200		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2EFC40B-250		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2EFC40B-300		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2EFC40B-400		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2EFC40B-500		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2EFC50B-25		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2EFC50B-50		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2EFC50B-75		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2EFC50B-100		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2EFC50B-150		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2EFC50B-200		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2EFC50B-250		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2EFC50B-300		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2EFC50B-400		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2EFC50B-500		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2EFC63B-25		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2EFC63B-50		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2EFC63B-75		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2EFC63B-100		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2EFC63B-150		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2EFC63B-200		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2EFC63B-250		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2EFC63B-300		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2EFC63B-400		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2EFC63B-500		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2EFC80B-25		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2EFC80B-50		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2EFC80B-75		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2EFC80B-100		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2EFC80B-150		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2EFC80B-200		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2EFC80B-250		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2EFC80B-300		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2EFC80B-400		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2EFC80B-500		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2EFC100B-25		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2EFC100B-50		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2EFC100B-75		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2EFC100B-100		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2EFC100B-150		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2EFC100B-200		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2EFC100B-250		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2EFC100B-300		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2EFC100B-400		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2EFC100B-500		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2EFD32B-25		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2EFD32B-50		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2EFD32B-75		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2EFD32B-100		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2EFD32B-150		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2EFD32B-200		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2EFD32B-250		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2EFD32B-300		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2EFD32B-400		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2EFD32B-500		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2EFD40B-25		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2EFD40B-50		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2EFD40B-75		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2EFD40B-100		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2EFD40B-150		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2EFD40B-200		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2EFD40B-250		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2EFD40B-300		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2EFD40B-400		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2EFD40B-500		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2EFD50B-25		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2EFD50B-50		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2EFD50B-75		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2EFD50B-100		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2EFD50B-150		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2EFD50B-200		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2EFD50B-250		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2EFD50B-300		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2EFD50B-400		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2EFD50B-500		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2EFD63B-25		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2EFD63B-50		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2EFD63B-75		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2EFD63B-100		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2EFD63B-150		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2EFD63B-200		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2EFD63B-250		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2EFD63B-300		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2EFD63B-400		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2EFD63B-500		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2EFD80B-25		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2EFD80B-50		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2EFD80B-75		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2EFD80B-100		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2EFD80B-150		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2EFD80B-200		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2EFD80B-250		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2EFD80B-300		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2EFD80B-400		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2EFD80B-500		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2EFD100B-25		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2EFD100B-50		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2EFD100B-75		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2EFD100B-100		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2EFD100B-150		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2EFD100B-200		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2EFD100B-250		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2EFD100B-300		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2EFD100B-400		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2EFD100B-500		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2ECA32B-25		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2ECA32B-50		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2ECA32B-75		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2ECA32B-100		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2ECA32B-150		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2ECA32B-200		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2ECA32B-250		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2ECA32B-300		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2ECA32B-400		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2ECA32B-500		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2ECA40B-25		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2ECA40B-50		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2ECA40B-75		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2ECA40B-100		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2ECA40B-150		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2ECA40B-200		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2ECA40B-250		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2ECA40B-300		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2ECA40B-400		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2ECA40B-500		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2ECA50B-25		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2ECA50B-50		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2ECA50B-75		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2ECA50B-100		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2ECA50B-150		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2ECA50B-200		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2ECA50B-250		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2ECA50B-300		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2ECA50B-400		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2ECA50B-500		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2ECA63B-25		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2ECA63B-50		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2ECA63B-75		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2ECA63B-100		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2ECA63B-150		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2ECA63B-200		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2ECA63B-250		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2ECA63B-300		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2ECA63B-400		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2ECA63B-500		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2ECA80B-25		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2ECA80B-50		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2ECA80B-75		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2ECA80B-100		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2ECA80B-150		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2ECA80B-200		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2ECA80B-250		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2ECA80B-300		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2ECA80B-400		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2ECA80B-500		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2ECA100B-25		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2ECA100B-50		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2ECA100B-75		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2ECA100B-100		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2ECA100B-150		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2ECA100B-200		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2ECA100B-250		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2ECA100B-300		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2ECA100B-400		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2ECA100B-500		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2ECB32B-25		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2ECB32B-50		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2ECB32B-75		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2ECB32B-100		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2ECB32B-150		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2ECB32B-200		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2ECB32B-250		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2ECB32B-300		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2ECB32B-400		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2ECB32B-500		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2ECB40B-25		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2ECB40B-50		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2ECB40B-75		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2ECB40B-100		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2ECB40B-150		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2ECB40B-200		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2ECB40B-250		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2ECB40B-300		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2ECB40B-400		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2ECB40B-500		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2ECB50B-25		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2ECB50B-50		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2ECB50B-75		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2ECB50B-100		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2ECB50B-150		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2ECB50B-200		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2ECB50B-250		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2ECB50B-300		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2ECB50B-400		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2ECB50B-500		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2ECB63B-25		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2ECB63B-50		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2ECB63B-75		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2ECB63B-100		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2ECB63B-150		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2ECB63B-200		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2ECB63B-250		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2ECB63B-300		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2ECB63B-400		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2ECB63B-500		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2ECB80B-25		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2ECB80B-50		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2ECB80B-75		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2ECB80B-100		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2ECB80B-150		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2ECB80B-200		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2ECB80B-250		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2ECB80B-300		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2ECB80B-400		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2ECB80B-500		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2ECB100B-25		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2ECB100B-50		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2ECB100B-75		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2ECB100B-100		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2ECB100B-150		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2ECB100B-200		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2ECB100B-250		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2ECB100B-300		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2ECB100B-400		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2ECB100B-500		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2ETC32B-25		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2ETC32B-50		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2ETC32B-75		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2ETC32B-100		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2ETC32B-150		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2ETC32B-200		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2ETC32B-250		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2ETC32B-300		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2ETC32B-400		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2ETC32B-500		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2ETC40B-25		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2ETC40B-50		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2ETC40B-75		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2ETC40B-100		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2ETC40B-150		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2ETC40B-200		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2ETC40B-250		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2ETC40B-300		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2ETC40B-400		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2ETC40B-500		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2ETC50B-25		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2ETC50B-50		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2ETC50B-75		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2ETC50B-100		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2ETC50B-150		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2ETC50B-200		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2ETC50B-250		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2ETC50B-300		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2ETC50B-400		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2ETC50B-500		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2ETC63B-25		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2ETC63B-50		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2ETC63B-75		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2ETC63B-100		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2ETC63B-150		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2ETC63B-200		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2ETC63B-250		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2ETC63B-300		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2ETC63B-400		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2ETC63B-500		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2ETC80B-25		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2ETC80B-50		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2ETC80B-75		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2ETC80B-100		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2ETC80B-150		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2ETC80B-200		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2ETC80B-250		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2ETC80B-300		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2ETC80B-400		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2ETC80B-500		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2ETC100B-25		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2ETC100B-50		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2ETC100B-75		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2ETC100B-100		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2ETC100B-150		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2ETC100B-200		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2ETC100B-250		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2ETC100B-300		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2ETC100B-400		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2ETC100B-500		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes

Hydraulic CylindersSMC

1200 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CH2E JIS Hydraulic Cylinder (3.5 MPa, ø32 to ø100)

Brand SMC·Hydraulic Cylinders

Available part numbers (1200)

CH2EB32B-25, CH2EB32B-50, CH2EB32B-75, CH2EB32B-100, CH2EB32B-150, CH2EB32B-200, CH2EB32B-250, CH2EB32B-300, CH2EB32B-400, CH2EB32B-500 + 1190 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CH2EB32B-25	Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2EB32B-50	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2EB32B-75	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2EB32B-100	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2EB32B-150	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2EB32B-200	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2EB32B-250	Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2EB32B-300	Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2EB32B-400	Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2EB32B-500	Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2EB40B-25	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2EB40B-50	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2EB40B-75	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2EB40B-100	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2EB40B-150	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2EB40B-200	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2EB40B-250	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2EB40B-300	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2EB40B-400	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2EB40B-500	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2EB50B-25	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2EB50B-50	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2EB50B-75	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2EB50B-100	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2EB50B-150	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2EB50B-200	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2EB50B-250	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2EB50B-300	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2EB50B-400	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2EB50B-500	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2EB63B-25	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2EB63B-50	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2EB63B-75	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2EB63B-100	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2EB63B-150	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2EB63B-200	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2EB63B-250	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2EB63B-300	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2EB63B-400	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2EB63B-500	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2EB80B-25	Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2EB80B-50	Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2EB80B-75	Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2EB80B-100	Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2EB80B-150	Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2EB80B-200	Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2EB80B-250	Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2EB80B-300	Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2EB80B-400	Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2EB80B-500	Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2EB100B-25	Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2EB100B-50	Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2EB100B-75	Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2EB100B-100	Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2EB100B-150	Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2EB100B-200	Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2EB100B-250	Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2EB100B-300	Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2EB100B-400	Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2EB100B-500	Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2ELA32B-25	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2ELA32B-50	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2ELA32B-75	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2ELA32B-100	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2ELA32B-150	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2ELA32B-200	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2ELA32B-250	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2ELA32B-300	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2ELA32B-400	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2ELA32B-500	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2ELA40B-25	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2ELA40B-50	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2ELA40B-75	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2ELA40B-100	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2ELA40B-150	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2ELA40B-200	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2ELA40B-250	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2ELA40B-300	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2ELA40B-400	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2ELA40B-500	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2ELA50B-25	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2ELA50B-50	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2ELA50B-75	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2ELA50B-100	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2ELA50B-150	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2ELA50B-200	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2ELA50B-250	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2ELA50B-300	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2ELA50B-400	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2ELA50B-500	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2ELA63B-25	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2ELA63B-50	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2ELA63B-75	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2ELA63B-100	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2ELA63B-150	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2ELA63B-200	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2ELA63B-250	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2ELA63B-300	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2ELA63B-400	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2ELA63B-500	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2ELA80B-25	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2ELA80B-50	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2ELA80B-75	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2ELA80B-100	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2ELA80B-150	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2ELA80B-200	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2ELA80B-250	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2ELA80B-300	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2ELA80B-400	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2ELA80B-500	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2ELA100B-25	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2ELA100B-50	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2ELA100B-75	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2ELA100B-100	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2ELA100B-150	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2ELA100B-200	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2ELA100B-250	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2ELA100B-300	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2ELA100B-400	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2ELA100B-500	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2ELB32B-25	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2ELB32B-50	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2ELB32B-75	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2ELB32B-100	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2ELB32B-150	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2ELB32B-200	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2ELB32B-250	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2ELB32B-300	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2ELB32B-400	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2ELB32B-500	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2ELB40B-25	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2ELB40B-50	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2ELB40B-75	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2ELB40B-100	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2ELB40B-150	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2ELB40B-200	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2ELB40B-250	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2ELB40B-300	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2ELB40B-400	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2ELB40B-500	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2ELB50B-25	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2ELB50B-50	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2ELB50B-75	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2ELB50B-100	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2ELB50B-150	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2ELB50B-200	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2ELB50B-250	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2ELB50B-300	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2ELB50B-400	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2ELB50B-500	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2ELB63B-25	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2ELB63B-50	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2ELB63B-75	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2ELB63B-100	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2ELB63B-150	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2ELB63B-200	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2ELB63B-250	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2ELB63B-300	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2ELB63B-400	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2ELB63B-500	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2ELB80B-25	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2ELB80B-50	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2ELB80B-75	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2ELB80B-100	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2ELB80B-150	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2ELB80B-200	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2ELB80B-250	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2ELB80B-300	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2ELB80B-400	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2ELB80B-500	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2ELB100B-25	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2ELB100B-50	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2ELB100B-75	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2ELB100B-100	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2ELB100B-150	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2ELB100B-200	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2ELB100B-250	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2ELB100B-300	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2ELB100B-400	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2ELB100B-500	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2EFA32B-25	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2EFA32B-50	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2EFA32B-75	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2EFA32B-100	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2EFA32B-150	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2EFA32B-200	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2EFA32B-250	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2EFA32B-300	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2EFA32B-400	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2EFA32B-500	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2EFA40B-25	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2EFA40B-50	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2EFA40B-75	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2EFA40B-100	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2EFA40B-150	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2EFA40B-200	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2EFA40B-250	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2EFA40B-300	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2EFA40B-400	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2EFA40B-500	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2EFA50B-25	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2EFA50B-50	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2EFA50B-75	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2EFA50B-100	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2EFA50B-150	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2EFA50B-200	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2EFA50B-250	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2EFA50B-300	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2EFA50B-400	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2EFA50B-500	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2EFA63B-25	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2EFA63B-50	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2EFA63B-75	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2EFA63B-100	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2EFA63B-150	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2EFA63B-200	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2EFA63B-250	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2EFA63B-300	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2EFA63B-400	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2EFA63B-500	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2EFA80B-25	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2EFA80B-50	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2EFA80B-75	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2EFA80B-100	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2EFA80B-150	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2EFA80B-200	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2EFA80B-250	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2EFA80B-300	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2EFA80B-400	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2EFA80B-500	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2EFA100B-25	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2EFA100B-50	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2EFA100B-75	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2EFA100B-100	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2EFA100B-150	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2EFA100B-200	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2EFA100B-250	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2EFA100B-300	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2EFA100B-400	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2EFA100B-500	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2EFB32B-25	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2EFB32B-50	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2EFB32B-75	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2EFB32B-100	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2EFB32B-150	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2EFB32B-200	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2EFB32B-250	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2EFB32B-300	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2EFB32B-400	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2EFB32B-500	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2EFB40B-25	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2EFB40B-50	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2EFB40B-75	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2EFB40B-100	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2EFB40B-150	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2EFB40B-200	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2EFB40B-250	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2EFB40B-300	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2EFB40B-400	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2EFB40B-500	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2EFB50B-25	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2EFB50B-50	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2EFB50B-75	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2EFB50B-100	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2EFB50B-150	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2EFB50B-200	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2EFB50B-250	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2EFB50B-300	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2EFB50B-400	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2EFB50B-500	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2EFB63B-25	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2EFB63B-50	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2EFB63B-75	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2EFB63B-100	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2EFB63B-150	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2EFB63B-200	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2EFB63B-250	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2EFB63B-300	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2EFB63B-400	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2EFB63B-500	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2EFB80B-25	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2EFB80B-50	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2EFB80B-75	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2EFB80B-100	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2EFB80B-150	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2EFB80B-200	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2EFB80B-250	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2EFB80B-300	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2EFB80B-400	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2EFB80B-500	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2EFB100B-25	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2EFB100B-50	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2EFB100B-75	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2EFB100B-100	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2EFB100B-150	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2EFB100B-200	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2EFB100B-250	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2EFB100B-300	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2EFB100B-400	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2EFB100B-500	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2EFC32B-25	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2EFC32B-50	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2EFC32B-75	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2EFC32B-100	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2EFC32B-150	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2EFC32B-200	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2EFC32B-250	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2EFC32B-300	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2EFC32B-400	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2EFC32B-500	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2EFC40B-25	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2EFC40B-50	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2EFC40B-75	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2EFC40B-100	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2EFC40B-150	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2EFC40B-200	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2EFC40B-250	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2EFC40B-300	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2EFC40B-400	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2EFC40B-500	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2EFC50B-25	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2EFC50B-50	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2EFC50B-75	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2EFC50B-100	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2EFC50B-150	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2EFC50B-200	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2EFC50B-250	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2EFC50B-300	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2EFC50B-400	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2EFC50B-500	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2EFC63B-25	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2EFC63B-50	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2EFC63B-75	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2EFC63B-100	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2EFC63B-150	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2EFC63B-200	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2EFC63B-250	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2EFC63B-300	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2EFC63B-400	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2EFC63B-500	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2EFC80B-25	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2EFC80B-50	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2EFC80B-75	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2EFC80B-100	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2EFC80B-150	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2EFC80B-200	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2EFC80B-250	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2EFC80B-300	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2EFC80B-400	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2EFC80B-500	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2EFC100B-25	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2EFC100B-50	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2EFC100B-75	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2EFC100B-100	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2EFC100B-150	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2EFC100B-200	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2EFC100B-250	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2EFC100B-300	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2EFC100B-400	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2EFC100B-500	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2EFD32B-25	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2EFD32B-50	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2EFD32B-75	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2EFD32B-100	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2EFD32B-150	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2EFD32B-200	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2EFD32B-250	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2EFD32B-300	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2EFD32B-400	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2EFD32B-500	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2EFD40B-25	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2EFD40B-50	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2EFD40B-75	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2EFD40B-100	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2EFD40B-150	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2EFD40B-200	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2EFD40B-250	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2EFD40B-300	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2EFD40B-400	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2EFD40B-500	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2EFD50B-25	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2EFD50B-50	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2EFD50B-75	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2EFD50B-100	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2EFD50B-150	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2EFD50B-200	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2EFD50B-250	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2EFD50B-300	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2EFD50B-400	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2EFD50B-500	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2EFD63B-25	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2EFD63B-50	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2EFD63B-75	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2EFD63B-100	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2EFD63B-150	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2EFD63B-200	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2EFD63B-250	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2EFD63B-300	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2EFD63B-400	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2EFD63B-500	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2EFD80B-25	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2EFD80B-50	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2EFD80B-75	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2EFD80B-100	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2EFD80B-150	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2EFD80B-200	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2EFD80B-250	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2EFD80B-300	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2EFD80B-400	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2EFD80B-500	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2EFD100B-25	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2EFD100B-50	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2EFD100B-75	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2EFD100B-100	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2EFD100B-150	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2EFD100B-200	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2EFD100B-250	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2EFD100B-300	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2EFD100B-400	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2EFD100B-500	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2ECA32B-25	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2ECA32B-50	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2ECA32B-75	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2ECA32B-100	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2ECA32B-150	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2ECA32B-200	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2ECA32B-250	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2ECA32B-300	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2ECA32B-400	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2ECA32B-500	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2ECA40B-25	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2ECA40B-50	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2ECA40B-75	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2ECA40B-100	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2ECA40B-150	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2ECA40B-200	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2ECA40B-250	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2ECA40B-300	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2ECA40B-400	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2ECA40B-500	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2ECA50B-25	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2ECA50B-50	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2ECA50B-75	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2ECA50B-100	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2ECA50B-150	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2ECA50B-200	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2ECA50B-250	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2ECA50B-300	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2ECA50B-400	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2ECA50B-500	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2ECA63B-25	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2ECA63B-50	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2ECA63B-75	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2ECA63B-100	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2ECA63B-150	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2ECA63B-200	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2ECA63B-250	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2ECA63B-300	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2ECA63B-400	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2ECA63B-500	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2ECA80B-25	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2ECA80B-50	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2ECA80B-75	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2ECA80B-100	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2ECA80B-150	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2ECA80B-200	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2ECA80B-250	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2ECA80B-300	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2ECA80B-400	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2ECA80B-500	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2ECA100B-25	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2ECA100B-50	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2ECA100B-75	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2ECA100B-100	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2ECA100B-150	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2ECA100B-200	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2ECA100B-250	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2ECA100B-300	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2ECA100B-400	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2ECA100B-500	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2ECB32B-25	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2ECB32B-50	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2ECB32B-75	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2ECB32B-100	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2ECB32B-150	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2ECB32B-200	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2ECB32B-250	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2ECB32B-300	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2ECB32B-400	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2ECB32B-500	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2ECB40B-25	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2ECB40B-50	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2ECB40B-75	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2ECB40B-100	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2ECB40B-150	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2ECB40B-200	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2ECB40B-250	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2ECB40B-300	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2ECB40B-400	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2ECB40B-500	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2ECB50B-25	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2ECB50B-50	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2ECB50B-75	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2ECB50B-100	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2ECB50B-150	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2ECB50B-200	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2ECB50B-250	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2ECB50B-300	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2ECB50B-400	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2ECB50B-500	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2ECB63B-25	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2ECB63B-50	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2ECB63B-75	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2ECB63B-100	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2ECB63B-150	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2ECB63B-200	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2ECB63B-250	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2ECB63B-300	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2ECB63B-400	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2ECB63B-500	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2ECB80B-25	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2ECB80B-50	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2ECB80B-75	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2ECB80B-100	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2ECB80B-150	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2ECB80B-200	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2ECB80B-250	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2ECB80B-300	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2ECB80B-400	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2ECB80B-500	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2ECB100B-25	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2ECB100B-50	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2ECB100B-75	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2ECB100B-100	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2ECB100B-150	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2ECB100B-200	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2ECB100B-250	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2ECB100B-300	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2ECB100B-400	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2ECB100B-500	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2ETC32B-25	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2ETC32B-50	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2ETC32B-75	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2ETC32B-100	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2ETC32B-150	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2ETC32B-200	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2ETC32B-250	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2ETC32B-300	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2ETC32B-400	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2ETC32B-500	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2ETC40B-25	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2ETC40B-50	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2ETC40B-75	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2ETC40B-100	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2ETC40B-150	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2ETC40B-200	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2ETC40B-250	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2ETC40B-300	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2ETC40B-400	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2ETC40B-500	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2ETC50B-25	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2ETC50B-50	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2ETC50B-75	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2ETC50B-100	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2ETC50B-150	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2ETC50B-200	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2ETC50B-250	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2ETC50B-300	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2ETC50B-400	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2ETC50B-500	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2ETC63B-25	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2ETC63B-50	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2ETC63B-75	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2ETC63B-100	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2ETC63B-150	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2ETC63B-200	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2ETC63B-250	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2ETC63B-300	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2ETC63B-400	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2ETC63B-500	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2ETC80B-25	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2ETC80B-50	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2ETC80B-75	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2ETC80B-100	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2ETC80B-150	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2ETC80B-200	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2ETC80B-250	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2ETC80B-300	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2ETC80B-400	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2ETC80B-500	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2ETC100B-25	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2ETC100B-50	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2ETC100B-75	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2ETC100B-100	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2ETC100B-150	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2ETC100B-200	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2ETC100B-250	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2ETC100B-300	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2ETC100B-400	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2ETC100B-500	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHD2EB32B-25	Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2EB32B-50	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2EB32B-75	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2EB32B-100	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2EB32B-150	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2EB32B-200	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2EB32B-250	Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2EB32B-300	Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2EB32B-400	Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2EB32B-500	Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2EB40B-25	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2EB40B-50	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2EB40B-75	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2EB40B-100	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2EB40B-150	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2EB40B-200	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2EB40B-250	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2EB40B-300	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2EB40B-400	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2EB40B-500	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2EB50B-25	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2EB50B-50	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2EB50B-75	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2EB50B-100	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2EB50B-150	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2EB50B-200	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2EB50B-250	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2EB50B-300	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2EB50B-400	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2EB50B-500	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2EB63B-25	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2EB63B-50	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2EB63B-75	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2EB63B-100	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2EB63B-150	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2EB63B-200	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2EB63B-250	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2EB63B-300	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2EB63B-400	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2EB63B-500	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2EB80B-25	Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2EB80B-50	Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2EB80B-75	Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2EB80B-100	Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2EB80B-150	Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2EB80B-200	Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2EB80B-250	Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2EB80B-300	Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2EB80B-400	Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2EB80B-500	Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2EB100B-25	Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2EB100B-50	Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2EB100B-75	Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2EB100B-100	Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2EB100B-150	Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2EB100B-200	Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2EB100B-250	Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2EB100B-300	Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2EB100B-400	Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2EB100B-500	Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2ELA32B-25	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2ELA32B-50	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2ELA32B-75	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2ELA32B-100	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2ELA32B-150	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2ELA32B-200	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2ELA32B-250	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2ELA32B-300	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2ELA32B-400	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2ELA32B-500	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2ELA40B-25	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2ELA40B-50	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2ELA40B-75	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2ELA40B-100	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2ELA40B-150	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2ELA40B-200	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2ELA40B-250	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2ELA40B-300	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2ELA40B-400	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2ELA40B-500	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2ELA50B-25	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2ELA50B-50	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2ELA50B-75	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2ELA50B-100	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2ELA50B-150	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2ELA50B-200	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2ELA50B-250	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2ELA50B-300	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2ELA50B-400	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2ELA50B-500	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2ELA63B-25	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2ELA63B-50	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2ELA63B-75	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2ELA63B-100	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2ELA63B-150	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2ELA63B-200	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2ELA63B-250	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2ELA63B-300	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2ELA63B-400	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2ELA63B-500	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2ELA80B-25	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2ELA80B-50	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2ELA80B-75	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2ELA80B-100	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2ELA80B-150	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2ELA80B-200	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2ELA80B-250	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2ELA80B-300	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2ELA80B-400	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2ELA80B-500	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2ELA100B-25	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2ELA100B-50	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2ELA100B-75	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2ELA100B-100	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2ELA100B-150	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2ELA100B-200	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2ELA100B-250	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2ELA100B-300	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2ELA100B-400	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2ELA100B-500	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2ELB32B-25	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2ELB32B-50	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2ELB32B-75	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2ELB32B-100	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2ELB32B-150	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2ELB32B-200	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2ELB32B-250	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2ELB32B-300	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2ELB32B-400	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2ELB32B-500	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2ELB40B-25	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2ELB40B-50	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2ELB40B-75	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2ELB40B-100	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2ELB40B-150	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2ELB40B-200	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2ELB40B-250	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2ELB40B-300	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2ELB40B-400	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2ELB40B-500	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2ELB50B-25	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2ELB50B-50	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2ELB50B-75	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2ELB50B-100	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2ELB50B-150	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2ELB50B-200	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2ELB50B-250	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2ELB50B-300	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2ELB50B-400	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2ELB50B-500	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2ELB63B-25	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2ELB63B-50	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2ELB63B-75	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2ELB63B-100	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2ELB63B-150	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2ELB63B-200	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2ELB63B-250	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2ELB63B-300	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2ELB63B-400	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2ELB63B-500	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2ELB80B-25	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2ELB80B-50	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2ELB80B-75	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2ELB80B-100	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2ELB80B-150	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2ELB80B-200	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2ELB80B-250	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2ELB80B-300	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2ELB80B-400	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2ELB80B-500	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2ELB100B-25	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2ELB100B-50	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2ELB100B-75	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2ELB100B-100	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2ELB100B-150	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2ELB100B-200	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2ELB100B-250	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2ELB100B-300	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2ELB100B-400	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2ELB100B-500	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2EFA32B-25	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2EFA32B-50	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2EFA32B-75	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2EFA32B-100	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2EFA32B-150	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2EFA32B-200	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2EFA32B-250	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2EFA32B-300	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2EFA32B-400	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2EFA32B-500	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2EFA40B-25	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2EFA40B-50	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2EFA40B-75	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2EFA40B-100	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2EFA40B-150	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2EFA40B-200	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2EFA40B-250	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2EFA40B-300	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2EFA40B-400	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2EFA40B-500	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2EFA50B-25	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2EFA50B-50	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2EFA50B-75	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2EFA50B-100	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2EFA50B-150	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2EFA50B-200	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2EFA50B-250	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2EFA50B-300	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2EFA50B-400	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2EFA50B-500	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2EFA63B-25	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2EFA63B-50	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2EFA63B-75	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2EFA63B-100	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2EFA63B-150	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2EFA63B-200	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2EFA63B-250	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2EFA63B-300	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2EFA63B-400	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2EFA63B-500	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2EFA80B-25	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2EFA80B-50	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2EFA80B-75	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2EFA80B-100	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2EFA80B-150	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2EFA80B-200	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2EFA80B-250	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2EFA80B-300	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2EFA80B-400	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2EFA80B-500	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2EFA100B-25	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2EFA100B-50	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2EFA100B-75	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2EFA100B-100	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2EFA100B-150	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2EFA100B-200	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2EFA100B-250	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2EFA100B-300	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2EFA100B-400	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2EFA100B-500	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2EFB32B-25	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2EFB32B-50	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2EFB32B-75	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2EFB32B-100	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2EFB32B-150	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2EFB32B-200	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2EFB32B-250	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2EFB32B-300	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2EFB32B-400	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2EFB32B-500	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2EFB40B-25	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2EFB40B-50	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2EFB40B-75	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2EFB40B-100	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2EFB40B-150	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2EFB40B-200	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2EFB40B-250	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2EFB40B-300	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2EFB40B-400	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2EFB40B-500	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2EFB50B-25	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2EFB50B-50	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2EFB50B-75	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2EFB50B-100	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2EFB50B-150	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2EFB50B-200	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2EFB50B-250	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2EFB50B-300	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2EFB50B-400	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2EFB50B-500	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2EFB63B-25	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2EFB63B-50	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2EFB63B-75	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2EFB63B-100	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2EFB63B-150	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2EFB63B-200	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2EFB63B-250	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2EFB63B-300	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2EFB63B-400	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2EFB63B-500	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2EFB80B-25	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2EFB80B-50	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2EFB80B-75	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2EFB80B-100	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2EFB80B-150	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2EFB80B-200	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2EFB80B-250	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2EFB80B-300	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2EFB80B-400	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2EFB80B-500	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2EFB100B-25	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2EFB100B-50	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2EFB100B-75	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2EFB100B-100	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2EFB100B-150	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2EFB100B-200	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2EFB100B-250	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2EFB100B-300	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2EFB100B-400	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2EFB100B-500	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2EFC32B-25	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2EFC32B-50	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2EFC32B-75	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2EFC32B-100	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2EFC32B-150	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2EFC32B-200	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2EFC32B-250	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2EFC32B-300	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2EFC32B-400	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2EFC32B-500	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2EFC40B-25	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2EFC40B-50	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2EFC40B-75	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2EFC40B-100	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2EFC40B-150	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2EFC40B-200	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2EFC40B-250	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2EFC40B-300	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2EFC40B-400	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2EFC40B-500	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2EFC50B-25	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2EFC50B-50	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2EFC50B-75	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2EFC50B-100	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2EFC50B-150	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2EFC50B-200	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2EFC50B-250	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2EFC50B-300	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2EFC50B-400	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2EFC50B-500	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2EFC63B-25	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2EFC63B-50	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2EFC63B-75	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2EFC63B-100	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2EFC63B-150	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2EFC63B-200	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2EFC63B-250	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2EFC63B-300	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2EFC63B-400	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2EFC63B-500	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2EFC80B-25	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2EFC80B-50	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2EFC80B-75	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2EFC80B-100	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2EFC80B-150	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2EFC80B-200	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2EFC80B-250	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2EFC80B-300	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2EFC80B-400	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2EFC80B-500	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2EFC100B-25	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2EFC100B-50	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2EFC100B-75	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2EFC100B-100	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2EFC100B-150	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2EFC100B-200	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2EFC100B-250	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2EFC100B-300	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2EFC100B-400	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2EFC100B-500	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2EFD32B-25	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2EFD32B-50	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2EFD32B-75	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2EFD32B-100	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2EFD32B-150	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2EFD32B-200	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2EFD32B-250	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2EFD32B-300	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2EFD32B-400	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2EFD32B-500	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2EFD40B-25	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2EFD40B-50	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2EFD40B-75	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2EFD40B-100	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2EFD40B-150	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2EFD40B-200	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2EFD40B-250	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2EFD40B-300	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2EFD40B-400	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2EFD40B-500	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2EFD50B-25	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2EFD50B-50	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2EFD50B-75	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2EFD50B-100	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2EFD50B-150	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2EFD50B-200	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2EFD50B-250	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2EFD50B-300	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2EFD50B-400	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2EFD50B-500	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2EFD63B-25	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2EFD63B-50	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2EFD63B-75	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2EFD63B-100	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2EFD63B-150	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2EFD63B-200	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2EFD63B-250	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2EFD63B-300	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2EFD63B-400	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2EFD63B-500	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2EFD80B-25	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2EFD80B-50	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2EFD80B-75	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2EFD80B-100	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2EFD80B-150	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2EFD80B-200	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2EFD80B-250	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2EFD80B-300	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2EFD80B-400	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2EFD80B-500	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2EFD100B-25	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2EFD100B-50	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2EFD100B-75	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2EFD100B-100	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2EFD100B-150	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2EFD100B-200	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2EFD100B-250	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2EFD100B-300	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2EFD100B-400	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2EFD100B-500	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2ECA32B-25	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2ECA32B-50	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2ECA32B-75	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2ECA32B-100	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2ECA32B-150	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2ECA32B-200	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2ECA32B-250	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2ECA32B-300	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2ECA32B-400	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2ECA32B-500	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2ECA40B-25	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2ECA40B-50	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2ECA40B-75	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2ECA40B-100	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2ECA40B-150	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2ECA40B-200	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2ECA40B-250	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2ECA40B-300	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2ECA40B-400	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2ECA40B-500	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2ECA50B-25	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2ECA50B-50	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2ECA50B-75	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2ECA50B-100	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2ECA50B-150	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2ECA50B-200	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2ECA50B-250	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2ECA50B-300	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2ECA50B-400	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2ECA50B-500	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2ECA63B-25	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2ECA63B-50	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2ECA63B-75	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2ECA63B-100	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2ECA63B-150	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2ECA63B-200	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2ECA63B-250	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2ECA63B-300	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2ECA63B-400	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2ECA63B-500	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2ECA80B-25	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2ECA80B-50	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2ECA80B-75	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2ECA80B-100	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2ECA80B-150	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2ECA80B-200	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2ECA80B-250	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2ECA80B-300	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2ECA80B-400	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2ECA80B-500	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2ECA100B-25	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2ECA100B-50	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2ECA100B-75	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2ECA100B-100	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2ECA100B-150	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2ECA100B-200	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2ECA100B-250	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2ECA100B-300	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2ECA100B-400	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2ECA100B-500	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2ECB32B-25	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2ECB32B-50	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2ECB32B-75	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2ECB32B-100	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2ECB32B-150	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2ECB32B-200	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2ECB32B-250	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2ECB32B-300	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2ECB32B-400	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2ECB32B-500	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2ECB40B-25	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2ECB40B-50	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2ECB40B-75	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2ECB40B-100	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2ECB40B-150	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2ECB40B-200	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2ECB40B-250	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2ECB40B-300	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2ECB40B-400	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2ECB40B-500	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2ECB50B-25	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2ECB50B-50	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2ECB50B-75	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2ECB50B-100	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2ECB50B-150	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2ECB50B-200	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2ECB50B-250	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2ECB50B-300	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2ECB50B-400	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2ECB50B-500	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2ECB63B-25	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2ECB63B-50	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2ECB63B-75	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2ECB63B-100	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2ECB63B-150	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2ECB63B-200	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2ECB63B-250	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2ECB63B-300	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2ECB63B-400	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2ECB63B-500	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2ECB80B-25	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2ECB80B-50	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2ECB80B-75	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2ECB80B-100	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2ECB80B-150	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2ECB80B-200	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2ECB80B-250	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2ECB80B-300	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2ECB80B-400	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2ECB80B-500	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2ECB100B-25	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2ECB100B-50	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2ECB100B-75	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2ECB100B-100	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2ECB100B-150	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2ECB100B-200	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2ECB100B-250	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2ECB100B-300	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2ECB100B-400	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2ECB100B-500	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2ETC32B-25	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2ETC32B-50	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2ETC32B-75	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2ETC32B-100	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2ETC32B-150	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2ETC32B-200	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2ETC32B-250	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2ETC32B-300	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2ETC32B-400	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2ETC32B-500	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2ETC40B-25	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2ETC40B-50	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2ETC40B-75	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2ETC40B-100	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2ETC40B-150	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2ETC40B-200	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2ETC40B-250	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2ETC40B-300	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2ETC40B-400	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2ETC40B-500	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2ETC50B-25	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2ETC50B-50	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2ETC50B-75	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2ETC50B-100	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2ETC50B-150	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2ETC50B-200	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2ETC50B-250	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2ETC50B-300	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2ETC50B-400	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2ETC50B-500	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2ETC63B-25	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2ETC63B-50	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2ETC63B-75	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2ETC63B-100	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2ETC63B-150	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2ETC63B-200	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2ETC63B-250	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2ETC63B-300	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2ETC63B-400	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2ETC63B-500	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2ETC80B-25	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2ETC80B-50	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2ETC80B-75	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2ETC80B-100	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2ETC80B-150	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2ETC80B-200	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2ETC80B-250	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2ETC80B-300	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2ETC80B-400	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2ETC80B-500	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2ETC100B-25	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2ETC100B-50	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2ETC100B-75	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2ETC100B-100	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2ETC100B-150	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2ETC100B-200	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2ETC100B-250	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2ETC100B-300	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2ETC100B-400	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2ETC100B-500	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Hydraulics →

Item added to your cart

SMC CH2E JIS Hydraulic Cylinder (3.5 MPa, ø32 to ø100)
