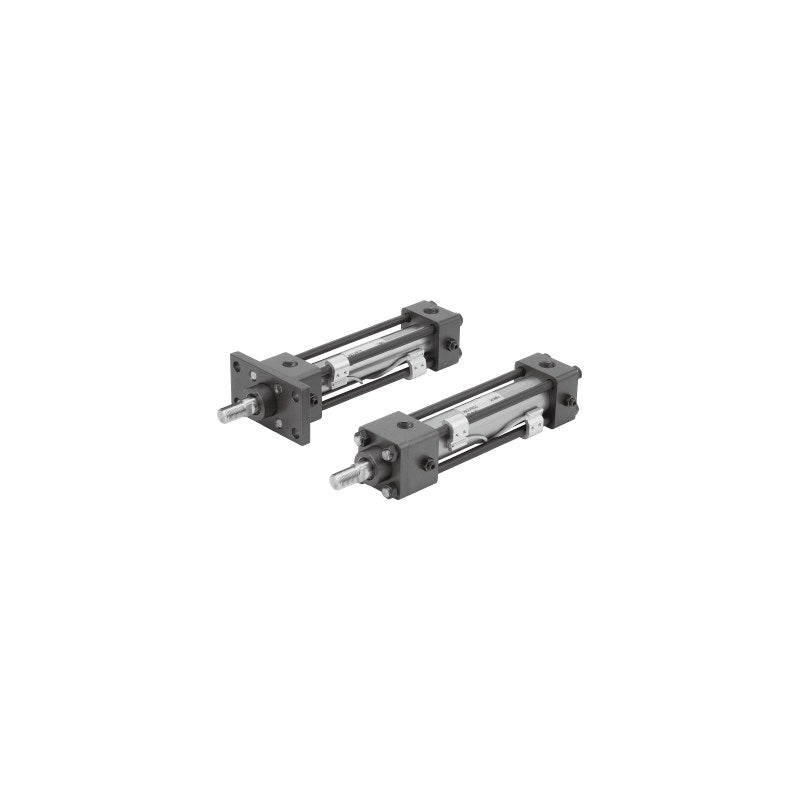

SMC CH2G JIS Hydraulic Cylinder (14 MPa, ø32 to ø100)

SMC CH2G series JIS-compliant hydraulic cylinder with steel tube, 14 MPa nominal, double acting single rod, ø32 to ø100 mm.

Key features

JIS-compliant tie-rod hydraulic cylinder with steel tube, 14 MPa nominal pressure
Mounting: basic (B), axial-perpendicular foot (LA), rod rectangular flange (FY), head rectangular flange (FZ), rod square flange (FC), head square flange (FD), single clevis (CA), double clevis (CB), center trunnion (TC)
Rod size series B listed (C series rod for ø40 to ø100 as order symbol); cushion at both ends standard (N/R/H options)
Options as order symbols: rod end nut (A), nylon tarpaulin (J) or heat-resistant tarpaulin (K) bellows, port and cushion valve position (A to H)
Not available with auto switch (no magnet version)
Made-to-order: rod end change (-XA), trunnion position change (-XC14), short stroke 5 to 24 mm (-X2967)

Specifications

Action	Double acting
Fluid	Hydraulic oil (general mineral, W/O, O/W)
Nominal pressure	14 MPa
Proof pressure	21 MPa
Max. allowable pressure	18 MPa (head), 18 MPa (rod, B rod)
Min. operating pressure	0.15 MPa (head side), 0.2 MPa (rod side)
Ambient and fluid temperature	-10 to 80°C (no switch), -10 to 60°C (with switch)
Piston speed	8 to 300 mm/s
Cushion	Yes, both ends
Tube material	Steel
Rod size series	B (listed); C on order (ø40 to ø100)
Standard stroke range	25 to 1400 (ø32 to ø50), 25 to 1500 (ø63), 25 to 1800 mm (ø80/ø100)
Source	SMC Korea catalog CH2E/CH2F/CH2G/CH2H (SMCKR_CH2E_CH2F_CH2G_CH2H.pdf), p. 358-359 (PDF p. 2-3)

CH2GB32B-25		Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm
CH2GB32B-50		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm
CH2GB32B-75		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm
CH2GB32B-100		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm
CH2GB32B-150		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm
CH2GB32B-200		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm
CH2GB32B-250		Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm
CH2GB32B-300		Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm
CH2GB32B-400		Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm
CH2GB32B-500		Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm
CH2GB40B-25		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm
CH2GB40B-50		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm
CH2GB40B-75		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm
CH2GB40B-100		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm
CH2GB40B-150		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm
CH2GB40B-200		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm
CH2GB40B-250		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm
CH2GB40B-300		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm
CH2GB40B-400		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm
CH2GB40B-500		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm
CH2GB50B-25		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm
CH2GB50B-50		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm
CH2GB50B-75		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm
CH2GB50B-100		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm
CH2GB50B-150		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm
CH2GB50B-200		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm
CH2GB50B-250		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm
CH2GB50B-300		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm
CH2GB50B-400		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm
CH2GB50B-500		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm
CH2GB63B-25		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm
CH2GB63B-50		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm
CH2GB63B-75		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm
CH2GB63B-100		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm
CH2GB63B-150		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm
CH2GB63B-200		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm
CH2GB63B-250		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm
CH2GB63B-300		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm
CH2GB63B-400		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm
CH2GB63B-500		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm
CH2GB80B-25		Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm
CH2GB80B-50		Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm
CH2GB80B-75		Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm
CH2GB80B-100		Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm
CH2GB80B-150		Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm
CH2GB80B-200		Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm
CH2GB80B-250		Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm
CH2GB80B-300		Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm
CH2GB80B-400		Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm
CH2GB80B-500		Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm
CH2GB100B-25		Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm
CH2GB100B-50		Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm
CH2GB100B-75		Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm
CH2GB100B-100		Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm
CH2GB100B-150		Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm
CH2GB100B-200		Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm
CH2GB100B-250		Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm
CH2GB100B-300		Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm
CH2GB100B-400		Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm
CH2GB100B-500		Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm
CH2GLA32B-25		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 25 mm
CH2GLA32B-50		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 50 mm
CH2GLA32B-75		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 75 mm
CH2GLA32B-100		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 100 mm
CH2GLA32B-150		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 150 mm
CH2GLA32B-200		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 200 mm
CH2GLA32B-250		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 250 mm
CH2GLA32B-300		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 300 mm
CH2GLA32B-400		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 400 mm
CH2GLA32B-500		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 500 mm
CH2GLA40B-25		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 25 mm
CH2GLA40B-50		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 50 mm
CH2GLA40B-75		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 75 mm
CH2GLA40B-100		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 100 mm
CH2GLA40B-150		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 150 mm
CH2GLA40B-200		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 200 mm
CH2GLA40B-250		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 250 mm
CH2GLA40B-300		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 300 mm
CH2GLA40B-400		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 400 mm
CH2GLA40B-500		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 500 mm
CH2GLA50B-25		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 25 mm
CH2GLA50B-50		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 50 mm
CH2GLA50B-75		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 75 mm
CH2GLA50B-100		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 100 mm
CH2GLA50B-150		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 150 mm
CH2GLA50B-200		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 200 mm
CH2GLA50B-250		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 250 mm
CH2GLA50B-300		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 300 mm
CH2GLA50B-400		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 400 mm
CH2GLA50B-500		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 500 mm
CH2GLA63B-25		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 25 mm
CH2GLA63B-50		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 50 mm
CH2GLA63B-75		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 75 mm
CH2GLA63B-100		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 100 mm
CH2GLA63B-150		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 150 mm
CH2GLA63B-200		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 200 mm
CH2GLA63B-250		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 250 mm
CH2GLA63B-300		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 300 mm
CH2GLA63B-400		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 400 mm
CH2GLA63B-500		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 500 mm
CH2GLA80B-25		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 25 mm
CH2GLA80B-50		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 50 mm
CH2GLA80B-75		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 75 mm
CH2GLA80B-100		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 100 mm
CH2GLA80B-150		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 150 mm
CH2GLA80B-200		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 200 mm
CH2GLA80B-250		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 250 mm
CH2GLA80B-300		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 300 mm
CH2GLA80B-400		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 400 mm
CH2GLA80B-500		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 500 mm
CH2GLA100B-25		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 25 mm
CH2GLA100B-50		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 50 mm
CH2GLA100B-75		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 75 mm
CH2GLA100B-100		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 100 mm
CH2GLA100B-150		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 150 mm
CH2GLA100B-200		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 200 mm
CH2GLA100B-250		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 250 mm
CH2GLA100B-300		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 300 mm
CH2GLA100B-400		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 400 mm
CH2GLA100B-500		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 500 mm
CH2GFY32B-25		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm
CH2GFY32B-50		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm
CH2GFY32B-75		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm
CH2GFY32B-100		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm
CH2GFY32B-150		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm
CH2GFY32B-200		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm
CH2GFY32B-250		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm
CH2GFY32B-300		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm
CH2GFY32B-400		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm
CH2GFY32B-500		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm
CH2GFY40B-25		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm
CH2GFY40B-50		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm
CH2GFY40B-75		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm
CH2GFY40B-100		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm
CH2GFY40B-150		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm
CH2GFY40B-200		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm
CH2GFY40B-250		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm
CH2GFY40B-300		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm
CH2GFY40B-400		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm
CH2GFY40B-500		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm
CH2GFY50B-25		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm
CH2GFY50B-50		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm
CH2GFY50B-75		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm
CH2GFY50B-100		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm
CH2GFY50B-150		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm
CH2GFY50B-200		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm
CH2GFY50B-250		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm
CH2GFY50B-300		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm
CH2GFY50B-400		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm
CH2GFY50B-500		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm
CH2GFY63B-25		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm
CH2GFY63B-50		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm
CH2GFY63B-75		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm
CH2GFY63B-100		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm
CH2GFY63B-150		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm
CH2GFY63B-200		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm
CH2GFY63B-250		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm
CH2GFY63B-300		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm
CH2GFY63B-400		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm
CH2GFY63B-500		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm
CH2GFY80B-25		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm
CH2GFY80B-50		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm
CH2GFY80B-75		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm
CH2GFY80B-100		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm
CH2GFY80B-150		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm
CH2GFY80B-200		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm
CH2GFY80B-250		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm
CH2GFY80B-300		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm
CH2GFY80B-400		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm
CH2GFY80B-500		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm
CH2GFY100B-25		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm
CH2GFY100B-50		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm
CH2GFY100B-75		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm
CH2GFY100B-100		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm
CH2GFY100B-150		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm
CH2GFY100B-200		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm
CH2GFY100B-250		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm
CH2GFY100B-300		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm
CH2GFY100B-400		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm
CH2GFY100B-500		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm
CH2GFZ32B-25		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm
CH2GFZ32B-50		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm
CH2GFZ32B-75		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm
CH2GFZ32B-100		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm
CH2GFZ32B-150		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm
CH2GFZ32B-200		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm
CH2GFZ32B-250		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm
CH2GFZ32B-300		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm
CH2GFZ32B-400		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm
CH2GFZ32B-500		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm
CH2GFZ40B-25		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm
CH2GFZ40B-50		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm
CH2GFZ40B-75		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm
CH2GFZ40B-100		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm
CH2GFZ40B-150		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm
CH2GFZ40B-200		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm
CH2GFZ40B-250		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm
CH2GFZ40B-300		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm
CH2GFZ40B-400		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm
CH2GFZ40B-500		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm
CH2GFZ50B-25		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm
CH2GFZ50B-50		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm
CH2GFZ50B-75		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm
CH2GFZ50B-100		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm
CH2GFZ50B-150		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm
CH2GFZ50B-200		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm
CH2GFZ50B-250		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm
CH2GFZ50B-300		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm
CH2GFZ50B-400		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm
CH2GFZ50B-500		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm
CH2GFZ63B-25		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm
CH2GFZ63B-50		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm
CH2GFZ63B-75		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm
CH2GFZ63B-100		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm
CH2GFZ63B-150		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm
CH2GFZ63B-200		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm
CH2GFZ63B-250		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm
CH2GFZ63B-300		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm
CH2GFZ63B-400		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm
CH2GFZ63B-500		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm
CH2GFZ80B-25		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm
CH2GFZ80B-50		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm
CH2GFZ80B-75		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm
CH2GFZ80B-100		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm
CH2GFZ80B-150		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm
CH2GFZ80B-200		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm
CH2GFZ80B-250		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm
CH2GFZ80B-300		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm
CH2GFZ80B-400		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm
CH2GFZ80B-500		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm
CH2GFZ100B-25		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm
CH2GFZ100B-50		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm
CH2GFZ100B-75		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm
CH2GFZ100B-100		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm
CH2GFZ100B-150		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm
CH2GFZ100B-200		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm
CH2GFZ100B-250		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm
CH2GFZ100B-300		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm
CH2GFZ100B-400		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm
CH2GFZ100B-500		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm
CH2GFC32B-25		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 25 mm
CH2GFC32B-50		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 50 mm
CH2GFC32B-75		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 75 mm
CH2GFC32B-100		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 100 mm
CH2GFC32B-150		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 150 mm
CH2GFC32B-200		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 200 mm
CH2GFC32B-250		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 250 mm
CH2GFC32B-300		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 300 mm
CH2GFC32B-400		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 400 mm
CH2GFC32B-500		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 500 mm
CH2GFC40B-25		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 25 mm
CH2GFC40B-50		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 50 mm
CH2GFC40B-75		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 75 mm
CH2GFC40B-100		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 100 mm
CH2GFC40B-150		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 150 mm
CH2GFC40B-200		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 200 mm
CH2GFC40B-250		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 250 mm
CH2GFC40B-300		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 300 mm
CH2GFC40B-400		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 400 mm
CH2GFC40B-500		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 500 mm
CH2GFC50B-25		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 25 mm
CH2GFC50B-50		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 50 mm
CH2GFC50B-75		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 75 mm
CH2GFC50B-100		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 100 mm
CH2GFC50B-150		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 150 mm
CH2GFC50B-200		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 200 mm
CH2GFC50B-250		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 250 mm
CH2GFC50B-300		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 300 mm
CH2GFC50B-400		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 400 mm
CH2GFC50B-500		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 500 mm
CH2GFC63B-25		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 25 mm
CH2GFC63B-50		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 50 mm
CH2GFC63B-75		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 75 mm
CH2GFC63B-100		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 100 mm
CH2GFC63B-150		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 150 mm
CH2GFC63B-200		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 200 mm
CH2GFC63B-250		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 250 mm
CH2GFC63B-300		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 300 mm
CH2GFC63B-400		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 400 mm
CH2GFC63B-500		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 500 mm
CH2GFC80B-25		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 25 mm
CH2GFC80B-50		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 50 mm
CH2GFC80B-75		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 75 mm
CH2GFC80B-100		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 100 mm
CH2GFC80B-150		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 150 mm
CH2GFC80B-200		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 200 mm
CH2GFC80B-250		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 250 mm
CH2GFC80B-300		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 300 mm
CH2GFC80B-400		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 400 mm
CH2GFC80B-500		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 500 mm
CH2GFC100B-25		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 25 mm
CH2GFC100B-50		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 50 mm
CH2GFC100B-75		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 75 mm
CH2GFC100B-100		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 100 mm
CH2GFC100B-150		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 150 mm
CH2GFC100B-200		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 200 mm
CH2GFC100B-250		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 250 mm
CH2GFC100B-300		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 300 mm
CH2GFC100B-400		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 400 mm
CH2GFC100B-500		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 500 mm
CH2GFD32B-25		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 25 mm
CH2GFD32B-50		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 50 mm
CH2GFD32B-75		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 75 mm
CH2GFD32B-100		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 100 mm
CH2GFD32B-150		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 150 mm
CH2GFD32B-200		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 200 mm
CH2GFD32B-250		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 250 mm
CH2GFD32B-300		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 300 mm
CH2GFD32B-400		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 400 mm
CH2GFD32B-500		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 500 mm
CH2GFD40B-25		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 25 mm
CH2GFD40B-50		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 50 mm
CH2GFD40B-75		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 75 mm
CH2GFD40B-100		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 100 mm
CH2GFD40B-150		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 150 mm
CH2GFD40B-200		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 200 mm
CH2GFD40B-250		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 250 mm
CH2GFD40B-300		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 300 mm
CH2GFD40B-400		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 400 mm
CH2GFD40B-500		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 500 mm
CH2GFD50B-25		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 25 mm
CH2GFD50B-50		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 50 mm
CH2GFD50B-75		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 75 mm
CH2GFD50B-100		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 100 mm
CH2GFD50B-150		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 150 mm
CH2GFD50B-200		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 200 mm
CH2GFD50B-250		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 250 mm
CH2GFD50B-300		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 300 mm
CH2GFD50B-400		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 400 mm
CH2GFD50B-500		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 500 mm
CH2GFD63B-25		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 25 mm
CH2GFD63B-50		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 50 mm
CH2GFD63B-75		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 75 mm
CH2GFD63B-100		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 100 mm
CH2GFD63B-150		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 150 mm
CH2GFD63B-200		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 200 mm
CH2GFD63B-250		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 250 mm
CH2GFD63B-300		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 300 mm
CH2GFD63B-400		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 400 mm
CH2GFD63B-500		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 500 mm
CH2GFD80B-25		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 25 mm
CH2GFD80B-50		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 50 mm
CH2GFD80B-75		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 75 mm
CH2GFD80B-100		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 100 mm
CH2GFD80B-150		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 150 mm
CH2GFD80B-200		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 200 mm
CH2GFD80B-250		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 250 mm
CH2GFD80B-300		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 300 mm
CH2GFD80B-400		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 400 mm
CH2GFD80B-500		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 500 mm
CH2GFD100B-25		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 25 mm
CH2GFD100B-50		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 50 mm
CH2GFD100B-75		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 75 mm
CH2GFD100B-100		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 100 mm
CH2GFD100B-150		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 150 mm
CH2GFD100B-200		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 200 mm
CH2GFD100B-250		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 250 mm
CH2GFD100B-300		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 300 mm
CH2GFD100B-400		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 400 mm
CH2GFD100B-500		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 500 mm
CH2GCA32B-25		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm
CH2GCA32B-50		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm
CH2GCA32B-75		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm
CH2GCA32B-100		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm
CH2GCA32B-150		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm
CH2GCA32B-200		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm
CH2GCA32B-250		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm
CH2GCA32B-300		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm
CH2GCA32B-400		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 400 mm
CH2GCA32B-500		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 500 mm
CH2GCA40B-25		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm
CH2GCA40B-50		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm
CH2GCA40B-75		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm
CH2GCA40B-100		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm
CH2GCA40B-150		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm
CH2GCA40B-200		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm
CH2GCA40B-250		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm
CH2GCA40B-300		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm
CH2GCA40B-400		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm
CH2GCA40B-500		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm
CH2GCA50B-25		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm
CH2GCA50B-50		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm
CH2GCA50B-75		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm
CH2GCA50B-100		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm
CH2GCA50B-150		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm
CH2GCA50B-200		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm
CH2GCA50B-250		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm
CH2GCA50B-300		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm
CH2GCA50B-400		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm
CH2GCA50B-500		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm
CH2GCA63B-25		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm
CH2GCA63B-50		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm
CH2GCA63B-75		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm
CH2GCA63B-100		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm
CH2GCA63B-150		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm
CH2GCA63B-200		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm
CH2GCA63B-250		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm
CH2GCA63B-300		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm
CH2GCA63B-400		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm
CH2GCA63B-500		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm
CH2GCA80B-25		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm
CH2GCA80B-50		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm
CH2GCA80B-75		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm
CH2GCA80B-100		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm
CH2GCA80B-150		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm
CH2GCA80B-200		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm
CH2GCA80B-250		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm
CH2GCA80B-300		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm
CH2GCA80B-400		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm
CH2GCA80B-500		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm
CH2GCA100B-25		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm
CH2GCA100B-50		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm
CH2GCA100B-75		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm
CH2GCA100B-100		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm
CH2GCA100B-150		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm
CH2GCA100B-200		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm
CH2GCA100B-250		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm
CH2GCA100B-300		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm
CH2GCA100B-400		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm
CH2GCA100B-500		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm
CH2GCB32B-25		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm
CH2GCB32B-50		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm
CH2GCB32B-75		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm
CH2GCB32B-100		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm
CH2GCB32B-150		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm
CH2GCB32B-200		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm
CH2GCB32B-250		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm
CH2GCB32B-300		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm
CH2GCB32B-400		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 400 mm
CH2GCB32B-500		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 500 mm
CH2GCB40B-25		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm
CH2GCB40B-50		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm
CH2GCB40B-75		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm
CH2GCB40B-100		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm
CH2GCB40B-150		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm
CH2GCB40B-200		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm
CH2GCB40B-250		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm
CH2GCB40B-300		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm
CH2GCB40B-400		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm
CH2GCB40B-500		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm
CH2GCB50B-25		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm
CH2GCB50B-50		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm
CH2GCB50B-75		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm
CH2GCB50B-100		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm
CH2GCB50B-150		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm
CH2GCB50B-200		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm
CH2GCB50B-250		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm
CH2GCB50B-300		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm
CH2GCB50B-400		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm
CH2GCB50B-500		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm
CH2GCB63B-25		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm
CH2GCB63B-50		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm
CH2GCB63B-75		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm
CH2GCB63B-100		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm
CH2GCB63B-150		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm
CH2GCB63B-200		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm
CH2GCB63B-250		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm
CH2GCB63B-300		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm
CH2GCB63B-400		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm
CH2GCB63B-500		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm
CH2GCB80B-25		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm
CH2GCB80B-50		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm
CH2GCB80B-75		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm
CH2GCB80B-100		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm
CH2GCB80B-150		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm
CH2GCB80B-200		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm
CH2GCB80B-250		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm
CH2GCB80B-300		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm
CH2GCB80B-400		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm
CH2GCB80B-500		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm
CH2GCB100B-25		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm
CH2GCB100B-50		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm
CH2GCB100B-75		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm
CH2GCB100B-100		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm
CH2GCB100B-150		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm
CH2GCB100B-200		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm
CH2GCB100B-250		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm
CH2GCB100B-300		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm
CH2GCB100B-400		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm
CH2GCB100B-500		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm
CH2GTC32B-25		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 25 mm
CH2GTC32B-50		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 50 mm
CH2GTC32B-75		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 75 mm
CH2GTC32B-100		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 100 mm
CH2GTC32B-150		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 150 mm
CH2GTC32B-200		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 200 mm
CH2GTC32B-250		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 250 mm
CH2GTC32B-300		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 300 mm
CH2GTC32B-400		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 400 mm
CH2GTC32B-500		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 500 mm
CH2GTC40B-25		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm
CH2GTC40B-50		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm
CH2GTC40B-75		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm
CH2GTC40B-100		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm
CH2GTC40B-150		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm
CH2GTC40B-200		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm
CH2GTC40B-250		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm
CH2GTC40B-300		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm
CH2GTC40B-400		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm
CH2GTC40B-500		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm
CH2GTC50B-25		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm
CH2GTC50B-50		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm
CH2GTC50B-75		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm
CH2GTC50B-100		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm
CH2GTC50B-150		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm
CH2GTC50B-200		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm
CH2GTC50B-250		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm
CH2GTC50B-300		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm
CH2GTC50B-400		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm
CH2GTC50B-500		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm
CH2GTC63B-25		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm
CH2GTC63B-50		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm
CH2GTC63B-75		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm
CH2GTC63B-100		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm
CH2GTC63B-150		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm
CH2GTC63B-200		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm
CH2GTC63B-250		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm
CH2GTC63B-300		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm
CH2GTC63B-400		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm
CH2GTC63B-500		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm
CH2GTC80B-25		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm
CH2GTC80B-50		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm
CH2GTC80B-75		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm
CH2GTC80B-100		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm
CH2GTC80B-150		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm
CH2GTC80B-200		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm
CH2GTC80B-250		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm
CH2GTC80B-300		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm
CH2GTC80B-400		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm
CH2GTC80B-500		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm
CH2GTC100B-25		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm
CH2GTC100B-50		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm
CH2GTC100B-75		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm
CH2GTC100B-100		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm
CH2GTC100B-150		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm
CH2GTC100B-200		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm
CH2GTC100B-250		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm
CH2GTC100B-300		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm
CH2GTC100B-400		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm
CH2GTC100B-500		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm

Hydraulic CylindersSMC

540 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CH2G JIS Hydraulic Cylinder (14 MPa, ø32 to ø100)

Brand SMC·Hydraulic Cylinders

Available part numbers (540)

CH2GB32B-25, CH2GB32B-50, CH2GB32B-75, CH2GB32B-100, CH2GB32B-150, CH2GB32B-200, CH2GB32B-250, CH2GB32B-300, CH2GB32B-400, CH2GB32B-500 + 530 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CH2GB32B-25	Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm
	CH2GB32B-50	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm
	CH2GB32B-75	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm
	CH2GB32B-100	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm
	CH2GB32B-150	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm
	CH2GB32B-200	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm
	CH2GB32B-250	Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm
	CH2GB32B-300	Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm
	CH2GB32B-400	Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm
	CH2GB32B-500	Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm
	CH2GB40B-25	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm
	CH2GB40B-50	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm
	CH2GB40B-75	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm
	CH2GB40B-100	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm
	CH2GB40B-150	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm
	CH2GB40B-200	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm
	CH2GB40B-250	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm
	CH2GB40B-300	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm
	CH2GB40B-400	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm
	CH2GB40B-500	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm
	CH2GB50B-25	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm
	CH2GB50B-50	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm
	CH2GB50B-75	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm
	CH2GB50B-100	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm
	CH2GB50B-150	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm
	CH2GB50B-200	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm
	CH2GB50B-250	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm
	CH2GB50B-300	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm
	CH2GB50B-400	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm
	CH2GB50B-500	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm
	CH2GB63B-25	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm
	CH2GB63B-50	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm
	CH2GB63B-75	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm
	CH2GB63B-100	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm
	CH2GB63B-150	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm
	CH2GB63B-200	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm
	CH2GB63B-250	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm
	CH2GB63B-300	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm
	CH2GB63B-400	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm
	CH2GB63B-500	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm
	CH2GB80B-25	Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm
	CH2GB80B-50	Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm
	CH2GB80B-75	Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm
	CH2GB80B-100	Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm
	CH2GB80B-150	Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm
	CH2GB80B-200	Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm
	CH2GB80B-250	Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm
	CH2GB80B-300	Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm
	CH2GB80B-400	Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm
	CH2GB80B-500	Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm
	CH2GB100B-25	Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm
	CH2GB100B-50	Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm
	CH2GB100B-75	Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm
	CH2GB100B-100	Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm
	CH2GB100B-150	Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm
	CH2GB100B-200	Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm
	CH2GB100B-250	Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm
	CH2GB100B-300	Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm
	CH2GB100B-400	Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm
	CH2GB100B-500	Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm
	CH2GLA32B-25	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 25 mm
	CH2GLA32B-50	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 50 mm
	CH2GLA32B-75	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 75 mm
	CH2GLA32B-100	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 100 mm
	CH2GLA32B-150	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 150 mm
	CH2GLA32B-200	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 200 mm
	CH2GLA32B-250	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 250 mm
	CH2GLA32B-300	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 300 mm
	CH2GLA32B-400	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 400 mm
	CH2GLA32B-500	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 500 mm
	CH2GLA40B-25	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 25 mm
	CH2GLA40B-50	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 50 mm
	CH2GLA40B-75	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 75 mm
	CH2GLA40B-100	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 100 mm
	CH2GLA40B-150	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 150 mm
	CH2GLA40B-200	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 200 mm
	CH2GLA40B-250	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 250 mm
	CH2GLA40B-300	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 300 mm
	CH2GLA40B-400	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 400 mm
	CH2GLA40B-500	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 500 mm
	CH2GLA50B-25	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 25 mm
	CH2GLA50B-50	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 50 mm
	CH2GLA50B-75	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 75 mm
	CH2GLA50B-100	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 100 mm
	CH2GLA50B-150	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 150 mm
	CH2GLA50B-200	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 200 mm
	CH2GLA50B-250	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 250 mm
	CH2GLA50B-300	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 300 mm
	CH2GLA50B-400	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 400 mm
	CH2GLA50B-500	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 500 mm
	CH2GLA63B-25	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 25 mm
	CH2GLA63B-50	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 50 mm
	CH2GLA63B-75	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 75 mm
	CH2GLA63B-100	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 100 mm
	CH2GLA63B-150	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 150 mm
	CH2GLA63B-200	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 200 mm
	CH2GLA63B-250	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 250 mm
	CH2GLA63B-300	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 300 mm
	CH2GLA63B-400	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 400 mm
	CH2GLA63B-500	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 500 mm
	CH2GLA80B-25	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 25 mm
	CH2GLA80B-50	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 50 mm
	CH2GLA80B-75	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 75 mm
	CH2GLA80B-100	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 100 mm
	CH2GLA80B-150	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 150 mm
	CH2GLA80B-200	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 200 mm
	CH2GLA80B-250	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 250 mm
	CH2GLA80B-300	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 300 mm
	CH2GLA80B-400	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 400 mm
	CH2GLA80B-500	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 500 mm
	CH2GLA100B-25	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 25 mm
	CH2GLA100B-50	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 50 mm
	CH2GLA100B-75	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 75 mm
	CH2GLA100B-100	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 100 mm
	CH2GLA100B-150	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 150 mm
	CH2GLA100B-200	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 200 mm
	CH2GLA100B-250	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 250 mm
	CH2GLA100B-300	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 300 mm
	CH2GLA100B-400	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 400 mm
	CH2GLA100B-500	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 500 mm
	CH2GFY32B-25	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm
	CH2GFY32B-50	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm
	CH2GFY32B-75	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm
	CH2GFY32B-100	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm
	CH2GFY32B-150	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm
	CH2GFY32B-200	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm
	CH2GFY32B-250	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm
	CH2GFY32B-300	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm
	CH2GFY32B-400	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm
	CH2GFY32B-500	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm
	CH2GFY40B-25	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm
	CH2GFY40B-50	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm
	CH2GFY40B-75	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm
	CH2GFY40B-100	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm
	CH2GFY40B-150	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm
	CH2GFY40B-200	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm
	CH2GFY40B-250	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm
	CH2GFY40B-300	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm
	CH2GFY40B-400	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm
	CH2GFY40B-500	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm
	CH2GFY50B-25	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm
	CH2GFY50B-50	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm
	CH2GFY50B-75	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm
	CH2GFY50B-100	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm
	CH2GFY50B-150	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm
	CH2GFY50B-200	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm
	CH2GFY50B-250	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm
	CH2GFY50B-300	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm
	CH2GFY50B-400	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm
	CH2GFY50B-500	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm
	CH2GFY63B-25	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm
	CH2GFY63B-50	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm
	CH2GFY63B-75	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm
	CH2GFY63B-100	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm
	CH2GFY63B-150	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm
	CH2GFY63B-200	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm
	CH2GFY63B-250	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm
	CH2GFY63B-300	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm
	CH2GFY63B-400	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm
	CH2GFY63B-500	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm
	CH2GFY80B-25	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm
	CH2GFY80B-50	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm
	CH2GFY80B-75	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm
	CH2GFY80B-100	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm
	CH2GFY80B-150	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm
	CH2GFY80B-200	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm
	CH2GFY80B-250	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm
	CH2GFY80B-300	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm
	CH2GFY80B-400	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm
	CH2GFY80B-500	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm
	CH2GFY100B-25	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm
	CH2GFY100B-50	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm
	CH2GFY100B-75	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm
	CH2GFY100B-100	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm
	CH2GFY100B-150	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm
	CH2GFY100B-200	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm
	CH2GFY100B-250	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm
	CH2GFY100B-300	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm
	CH2GFY100B-400	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm
	CH2GFY100B-500	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm
	CH2GFZ32B-25	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm
	CH2GFZ32B-50	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm
	CH2GFZ32B-75	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm
	CH2GFZ32B-100	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm
	CH2GFZ32B-150	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm
	CH2GFZ32B-200	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm
	CH2GFZ32B-250	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm
	CH2GFZ32B-300	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm
	CH2GFZ32B-400	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm
	CH2GFZ32B-500	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm
	CH2GFZ40B-25	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm
	CH2GFZ40B-50	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm
	CH2GFZ40B-75	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm
	CH2GFZ40B-100	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm
	CH2GFZ40B-150	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm
	CH2GFZ40B-200	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm
	CH2GFZ40B-250	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm
	CH2GFZ40B-300	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm
	CH2GFZ40B-400	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm
	CH2GFZ40B-500	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm
	CH2GFZ50B-25	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm
	CH2GFZ50B-50	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm
	CH2GFZ50B-75	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm
	CH2GFZ50B-100	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm
	CH2GFZ50B-150	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm
	CH2GFZ50B-200	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm
	CH2GFZ50B-250	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm
	CH2GFZ50B-300	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm
	CH2GFZ50B-400	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm
	CH2GFZ50B-500	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm
	CH2GFZ63B-25	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm
	CH2GFZ63B-50	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm
	CH2GFZ63B-75	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm
	CH2GFZ63B-100	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm
	CH2GFZ63B-150	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm
	CH2GFZ63B-200	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm
	CH2GFZ63B-250	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm
	CH2GFZ63B-300	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm
	CH2GFZ63B-400	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm
	CH2GFZ63B-500	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm
	CH2GFZ80B-25	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm
	CH2GFZ80B-50	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm
	CH2GFZ80B-75	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm
	CH2GFZ80B-100	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm
	CH2GFZ80B-150	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm
	CH2GFZ80B-200	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm
	CH2GFZ80B-250	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm
	CH2GFZ80B-300	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm
	CH2GFZ80B-400	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm
	CH2GFZ80B-500	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm
	CH2GFZ100B-25	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm
	CH2GFZ100B-50	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm
	CH2GFZ100B-75	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm
	CH2GFZ100B-100	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm
	CH2GFZ100B-150	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm
	CH2GFZ100B-200	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm
	CH2GFZ100B-250	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm
	CH2GFZ100B-300	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm
	CH2GFZ100B-400	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm
	CH2GFZ100B-500	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm
	CH2GFC32B-25	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 25 mm
	CH2GFC32B-50	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 50 mm
	CH2GFC32B-75	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 75 mm
	CH2GFC32B-100	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 100 mm
	CH2GFC32B-150	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 150 mm
	CH2GFC32B-200	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 200 mm
	CH2GFC32B-250	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 250 mm
	CH2GFC32B-300	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 300 mm
	CH2GFC32B-400	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 400 mm
	CH2GFC32B-500	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 500 mm
	CH2GFC40B-25	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 25 mm
	CH2GFC40B-50	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 50 mm
	CH2GFC40B-75	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 75 mm
	CH2GFC40B-100	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 100 mm
	CH2GFC40B-150	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 150 mm
	CH2GFC40B-200	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 200 mm
	CH2GFC40B-250	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 250 mm
	CH2GFC40B-300	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 300 mm
	CH2GFC40B-400	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 400 mm
	CH2GFC40B-500	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 500 mm
	CH2GFC50B-25	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 25 mm
	CH2GFC50B-50	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 50 mm
	CH2GFC50B-75	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 75 mm
	CH2GFC50B-100	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 100 mm
	CH2GFC50B-150	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 150 mm
	CH2GFC50B-200	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 200 mm
	CH2GFC50B-250	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 250 mm
	CH2GFC50B-300	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 300 mm
	CH2GFC50B-400	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 400 mm
	CH2GFC50B-500	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 500 mm
	CH2GFC63B-25	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 25 mm
	CH2GFC63B-50	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 50 mm
	CH2GFC63B-75	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 75 mm
	CH2GFC63B-100	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 100 mm
	CH2GFC63B-150	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 150 mm
	CH2GFC63B-200	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 200 mm
	CH2GFC63B-250	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 250 mm
	CH2GFC63B-300	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 300 mm
	CH2GFC63B-400	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 400 mm
	CH2GFC63B-500	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 500 mm
	CH2GFC80B-25	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 25 mm
	CH2GFC80B-50	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 50 mm
	CH2GFC80B-75	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 75 mm
	CH2GFC80B-100	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 100 mm
	CH2GFC80B-150	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 150 mm
	CH2GFC80B-200	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 200 mm
	CH2GFC80B-250	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 250 mm
	CH2GFC80B-300	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 300 mm
	CH2GFC80B-400	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 400 mm
	CH2GFC80B-500	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 500 mm
	CH2GFC100B-25	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 25 mm
	CH2GFC100B-50	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 50 mm
	CH2GFC100B-75	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 75 mm
	CH2GFC100B-100	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 100 mm
	CH2GFC100B-150	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 150 mm
	CH2GFC100B-200	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 200 mm
	CH2GFC100B-250	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 250 mm
	CH2GFC100B-300	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 300 mm
	CH2GFC100B-400	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 400 mm
	CH2GFC100B-500	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 500 mm
	CH2GFD32B-25	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 25 mm
	CH2GFD32B-50	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 50 mm
	CH2GFD32B-75	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 75 mm
	CH2GFD32B-100	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 100 mm
	CH2GFD32B-150	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 150 mm
	CH2GFD32B-200	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 200 mm
	CH2GFD32B-250	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 250 mm
	CH2GFD32B-300	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 300 mm
	CH2GFD32B-400	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 400 mm
	CH2GFD32B-500	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 500 mm
	CH2GFD40B-25	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 25 mm
	CH2GFD40B-50	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 50 mm
	CH2GFD40B-75	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 75 mm
	CH2GFD40B-100	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 100 mm
	CH2GFD40B-150	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 150 mm
	CH2GFD40B-200	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 200 mm
	CH2GFD40B-250	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 250 mm
	CH2GFD40B-300	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 300 mm
	CH2GFD40B-400	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 400 mm
	CH2GFD40B-500	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 500 mm
	CH2GFD50B-25	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 25 mm
	CH2GFD50B-50	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 50 mm
	CH2GFD50B-75	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 75 mm
	CH2GFD50B-100	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 100 mm
	CH2GFD50B-150	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 150 mm
	CH2GFD50B-200	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 200 mm
	CH2GFD50B-250	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 250 mm
	CH2GFD50B-300	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 300 mm
	CH2GFD50B-400	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 400 mm
	CH2GFD50B-500	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 500 mm
	CH2GFD63B-25	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 25 mm
	CH2GFD63B-50	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 50 mm
	CH2GFD63B-75	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 75 mm
	CH2GFD63B-100	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 100 mm
	CH2GFD63B-150	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 150 mm
	CH2GFD63B-200	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 200 mm
	CH2GFD63B-250	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 250 mm
	CH2GFD63B-300	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 300 mm
	CH2GFD63B-400	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 400 mm
	CH2GFD63B-500	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 500 mm
	CH2GFD80B-25	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 25 mm
	CH2GFD80B-50	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 50 mm
	CH2GFD80B-75	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 75 mm
	CH2GFD80B-100	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 100 mm
	CH2GFD80B-150	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 150 mm
	CH2GFD80B-200	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 200 mm
	CH2GFD80B-250	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 250 mm
	CH2GFD80B-300	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 300 mm
	CH2GFD80B-400	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 400 mm
	CH2GFD80B-500	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 500 mm
	CH2GFD100B-25	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 25 mm
	CH2GFD100B-50	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 50 mm
	CH2GFD100B-75	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 75 mm
	CH2GFD100B-100	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 100 mm
	CH2GFD100B-150	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 150 mm
	CH2GFD100B-200	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 200 mm
	CH2GFD100B-250	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 250 mm
	CH2GFD100B-300	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 300 mm
	CH2GFD100B-400	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 400 mm
	CH2GFD100B-500	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 500 mm
	CH2GCA32B-25	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm
	CH2GCA32B-50	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm
	CH2GCA32B-75	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm
	CH2GCA32B-100	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm
	CH2GCA32B-150	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm
	CH2GCA32B-200	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm
	CH2GCA32B-250	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm
	CH2GCA32B-300	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm
	CH2GCA32B-400	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 400 mm
	CH2GCA32B-500	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 500 mm
	CH2GCA40B-25	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm
	CH2GCA40B-50	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm
	CH2GCA40B-75	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm
	CH2GCA40B-100	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm
	CH2GCA40B-150	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm
	CH2GCA40B-200	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm
	CH2GCA40B-250	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm
	CH2GCA40B-300	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm
	CH2GCA40B-400	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm
	CH2GCA40B-500	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm
	CH2GCA50B-25	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm
	CH2GCA50B-50	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm
	CH2GCA50B-75	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm
	CH2GCA50B-100	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm
	CH2GCA50B-150	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm
	CH2GCA50B-200	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm
	CH2GCA50B-250	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm
	CH2GCA50B-300	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm
	CH2GCA50B-400	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm
	CH2GCA50B-500	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm
	CH2GCA63B-25	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm
	CH2GCA63B-50	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm
	CH2GCA63B-75	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm
	CH2GCA63B-100	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm
	CH2GCA63B-150	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm
	CH2GCA63B-200	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm
	CH2GCA63B-250	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm
	CH2GCA63B-300	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm
	CH2GCA63B-400	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm
	CH2GCA63B-500	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm
	CH2GCA80B-25	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm
	CH2GCA80B-50	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm
	CH2GCA80B-75	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm
	CH2GCA80B-100	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm
	CH2GCA80B-150	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm
	CH2GCA80B-200	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm
	CH2GCA80B-250	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm
	CH2GCA80B-300	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm
	CH2GCA80B-400	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm
	CH2GCA80B-500	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm
	CH2GCA100B-25	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm
	CH2GCA100B-50	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm
	CH2GCA100B-75	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm
	CH2GCA100B-100	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm
	CH2GCA100B-150	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm
	CH2GCA100B-200	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm
	CH2GCA100B-250	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm
	CH2GCA100B-300	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm
	CH2GCA100B-400	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm
	CH2GCA100B-500	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm
	CH2GCB32B-25	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm
	CH2GCB32B-50	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm
	CH2GCB32B-75	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm
	CH2GCB32B-100	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm
	CH2GCB32B-150	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm
	CH2GCB32B-200	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm
	CH2GCB32B-250	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm
	CH2GCB32B-300	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm
	CH2GCB32B-400	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 400 mm
	CH2GCB32B-500	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 500 mm
	CH2GCB40B-25	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm
	CH2GCB40B-50	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm
	CH2GCB40B-75	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm
	CH2GCB40B-100	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm
	CH2GCB40B-150	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm
	CH2GCB40B-200	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm
	CH2GCB40B-250	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm
	CH2GCB40B-300	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm
	CH2GCB40B-400	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm
	CH2GCB40B-500	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm
	CH2GCB50B-25	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm
	CH2GCB50B-50	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm
	CH2GCB50B-75	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm
	CH2GCB50B-100	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm
	CH2GCB50B-150	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm
	CH2GCB50B-200	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm
	CH2GCB50B-250	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm
	CH2GCB50B-300	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm
	CH2GCB50B-400	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm
	CH2GCB50B-500	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm
	CH2GCB63B-25	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm
	CH2GCB63B-50	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm
	CH2GCB63B-75	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm
	CH2GCB63B-100	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm
	CH2GCB63B-150	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm
	CH2GCB63B-200	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm
	CH2GCB63B-250	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm
	CH2GCB63B-300	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm
	CH2GCB63B-400	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm
	CH2GCB63B-500	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm
	CH2GCB80B-25	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm
	CH2GCB80B-50	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm
	CH2GCB80B-75	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm
	CH2GCB80B-100	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm
	CH2GCB80B-150	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm
	CH2GCB80B-200	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm
	CH2GCB80B-250	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm
	CH2GCB80B-300	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm
	CH2GCB80B-400	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm
	CH2GCB80B-500	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm
	CH2GCB100B-25	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm
	CH2GCB100B-50	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm
	CH2GCB100B-75	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm
	CH2GCB100B-100	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm
	CH2GCB100B-150	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm
	CH2GCB100B-200	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm
	CH2GCB100B-250	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm
	CH2GCB100B-300	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm
	CH2GCB100B-400	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm
	CH2GCB100B-500	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm
	CH2GTC32B-25	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 25 mm
	CH2GTC32B-50	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 50 mm
	CH2GTC32B-75	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 75 mm
	CH2GTC32B-100	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 100 mm
	CH2GTC32B-150	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 150 mm
	CH2GTC32B-200	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 200 mm
	CH2GTC32B-250	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 250 mm
	CH2GTC32B-300	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 300 mm
	CH2GTC32B-400	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 400 mm
	CH2GTC32B-500	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 500 mm
	CH2GTC40B-25	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm
	CH2GTC40B-50	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm
	CH2GTC40B-75	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm
	CH2GTC40B-100	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm
	CH2GTC40B-150	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm
	CH2GTC40B-200	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm
	CH2GTC40B-250	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm
	CH2GTC40B-300	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm
	CH2GTC40B-400	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm
	CH2GTC40B-500	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm
	CH2GTC50B-25	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm
	CH2GTC50B-50	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm
	CH2GTC50B-75	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm
	CH2GTC50B-100	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm
	CH2GTC50B-150	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm
	CH2GTC50B-200	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm
	CH2GTC50B-250	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm
	CH2GTC50B-300	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm
	CH2GTC50B-400	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm
	CH2GTC50B-500	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm
	CH2GTC63B-25	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm
	CH2GTC63B-50	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm
	CH2GTC63B-75	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm
	CH2GTC63B-100	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm
	CH2GTC63B-150	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm
	CH2GTC63B-200	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm
	CH2GTC63B-250	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm
	CH2GTC63B-300	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm
	CH2GTC63B-400	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm
	CH2GTC63B-500	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm
	CH2GTC80B-25	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm
	CH2GTC80B-50	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm
	CH2GTC80B-75	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm
	CH2GTC80B-100	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm
	CH2GTC80B-150	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm
	CH2GTC80B-200	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm
	CH2GTC80B-250	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm
	CH2GTC80B-300	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm
	CH2GTC80B-400	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm
	CH2GTC80B-500	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm
	CH2GTC100B-25	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm
	CH2GTC100B-50	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm
	CH2GTC100B-75	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm
	CH2GTC100B-100	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm
	CH2GTC100B-150	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm
	CH2GTC100B-200	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm
	CH2GTC100B-250	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm
	CH2GTC100B-300	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm
	CH2GTC100B-400	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm
	CH2GTC100B-500	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Hydraulics →

Item added to your cart

SMC CH2G JIS Hydraulic Cylinder (14 MPa, ø32 to ø100)
