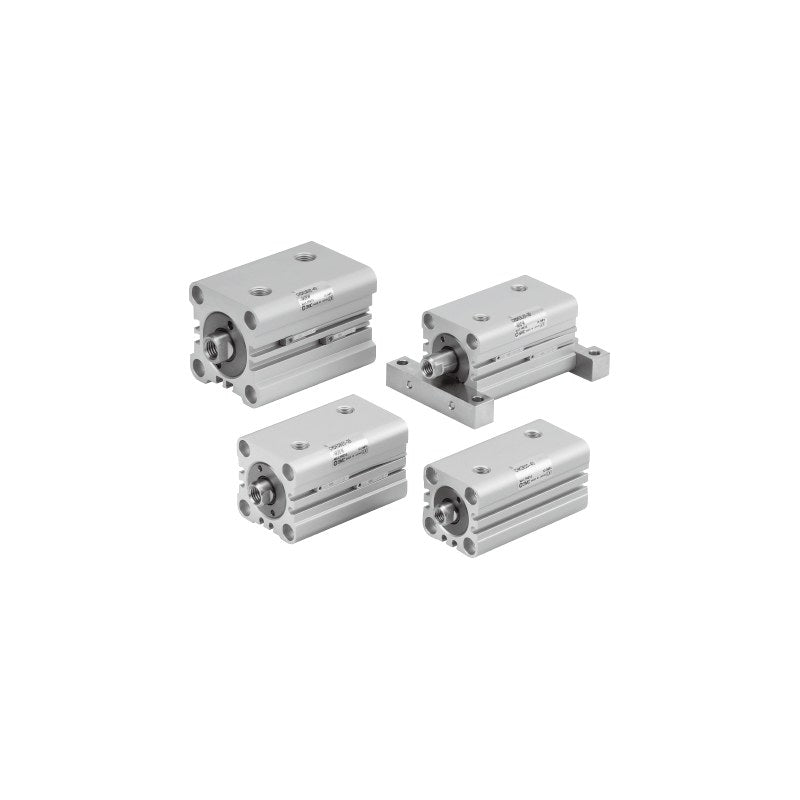

SMC CHKD JIS Thin Hydraulic Cylinder (10 MPa, ø20 to ø100)

SMC CHKD series JIS-compliant thin hydraulic cylinder, 10 MPa nominal, double acting single rod, ø20 to ø100 mm, basic or foot mounted, with or without a built-in auto switch magnet (CHDKD).

Key features

JIS-compliant compact hydraulic cylinder for 10 MPa (max. allowable 13 MPa)
Basic (through-hole) and foot mounting; foot types L/LB/LD differ by port position viewed from the rod end
Rc ports standard; NPT (TN) and male rod end thread (M) as order symbols
Built-in magnet models (CHDKD) accept D-M9/D-A9 series auto switches, ordered as a suffix
Made-to-order: rod end change (-XA), CHQHB interchangeable (-XC61), intermediate strokes with spacer (-XC63), air bleed valve (-XC64)

Specifications

Action	Double acting
Fluid	Hydraulic oil (general mineral, W/O, O/W)
Nominal pressure	10 MPa
Proof pressure	15 MPa
Max. allowable pressure	13 MPa
Min. operating pressure	0.3 MPa
Ambient and fluid temperature	-10 to 80°C (no switch), -10 to 60°C (with switch)
Piston speed	8 to 100 mm/s
Cushion	None
Mounting	Basic (B, through-hole), foot (L/LB/LD = port position)
Port thread	Rc (NPT as option TN)
Rod end thread	Female standard, male (M) option
Standard strokes	ø20: 5 to 50; ø25: 5 to 50; ø32: 5 to 75; ø40: 5 to 100; ø50: 5 to 100; ø63: 5 to 100; ø80: 5 to 100; ø100: 5 to 100 mm
Source	SMC Korea catalog CHKD/CHKG (SMCKR_CHKD_CHKG.pdf), p. 264-265 (PDF p. 2-3)

CHKDB20-5		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKDB20-10		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKDB20-15		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKDB20-20		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKDB20-25		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKDB20-30		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKDB20-35		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKDB20-40		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKDB20-45		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKDB20-50		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKDB25-5		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKDB25-10		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKDB25-15		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKDB25-20		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKDB25-25		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKDB25-30		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKDB25-35		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKDB25-40		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKDB25-45		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKDB25-50		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKDB32-5		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKDB32-10		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKDB32-15		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKDB32-20		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKDB32-25		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKDB32-30		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKDB32-35		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKDB32-40		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKDB32-45		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKDB32-50		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKDB32-75		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKDB40-5		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKDB40-10		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKDB40-15		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKDB40-20		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKDB40-25		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKDB40-30		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKDB40-35		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKDB40-40		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKDB40-45		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKDB40-50		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKDB40-75		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKDB40-100		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKDB50-5		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKDB50-10		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKDB50-15		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKDB50-20		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKDB50-25		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKDB50-30		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKDB50-35		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKDB50-40		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKDB50-45		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKDB50-50		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKDB50-75		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKDB50-100		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKDB63-5		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKDB63-10		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKDB63-15		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKDB63-20		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKDB63-25		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKDB63-30		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKDB63-35		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKDB63-40		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKDB63-45		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKDB63-50		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKDB63-75		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKDB63-100		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKDB80-5		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKDB80-10		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKDB80-15		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKDB80-20		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKDB80-25		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKDB80-30		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKDB80-35		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKDB80-40		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKDB80-45		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKDB80-50		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKDB80-75		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKDB80-100		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKDB100-5		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKDB100-10		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKDB100-15		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKDB100-20		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKDB100-25		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKDB100-30		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKDB100-35		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKDB100-40		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKDB100-45		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKDB100-50		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKDB100-75		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKDB100-100		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKDL20-5		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKDL20-10		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKDL20-15		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKDL20-20		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKDL20-25		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKDL20-30		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKDL20-35		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKDL20-40		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKDL20-45		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKDL20-50		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKDL25-5		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKDL25-10		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKDL25-15		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKDL25-20		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKDL25-25		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKDL25-30		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKDL25-35		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKDL25-40		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKDL25-45		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKDL25-50		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKDL32-5		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKDL32-10		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKDL32-15		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKDL32-20		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKDL32-25		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKDL32-30		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKDL32-35		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKDL32-40		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKDL32-45		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKDL32-50		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKDL32-75		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKDL40-5		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKDL40-10		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKDL40-15		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKDL40-20		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKDL40-25		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKDL40-30		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKDL40-35		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKDL40-40		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKDL40-45		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKDL40-50		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKDL40-75		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKDL40-100		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKDL50-5		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKDL50-10		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKDL50-15		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKDL50-20		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKDL50-25		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKDL50-30		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKDL50-35		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKDL50-40		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKDL50-45		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKDL50-50		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKDL50-75		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKDL50-100		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKDL63-5		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKDL63-10		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKDL63-15		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKDL63-20		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKDL63-25		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKDL63-30		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKDL63-35		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKDL63-40		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKDL63-45		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKDL63-50		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKDL63-75		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKDL63-100		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKDL80-5		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKDL80-10		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKDL80-15		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKDL80-20		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKDL80-25		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKDL80-30		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKDL80-35		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKDL80-40		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKDL80-45		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKDL80-50		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKDL80-75		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKDL80-100		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKDL100-5		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKDL100-10		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKDL100-15		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKDL100-20		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKDL100-25		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKDL100-30		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKDL100-35		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKDL100-40		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKDL100-45		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKDL100-50		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKDL100-75		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKDL100-100		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKDLB20-5		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKDLB20-10		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKDLB20-15		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKDLB20-20		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKDLB20-25		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKDLB20-30		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKDLB20-35		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKDLB20-40		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKDLB20-45		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKDLB20-50		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKDLB25-5		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKDLB25-10		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKDLB25-15		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKDLB25-20		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKDLB25-25		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKDLB25-30		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKDLB25-35		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKDLB25-40		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKDLB25-45		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKDLB25-50		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKDLB32-5		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKDLB32-10		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKDLB32-15		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKDLB32-20		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKDLB32-25		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKDLB32-30		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKDLB32-35		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKDLB32-40		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKDLB32-45		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKDLB32-50		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKDLB32-75		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKDLB40-5		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKDLB40-10		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKDLB40-15		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKDLB40-20		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKDLB40-25		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKDLB40-30		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKDLB40-35		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKDLB40-40		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKDLB40-45		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKDLB40-50		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKDLB40-75		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKDLB40-100		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKDLB50-5		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKDLB50-10		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKDLB50-15		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKDLB50-20		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKDLB50-25		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKDLB50-30		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKDLB50-35		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKDLB50-40		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKDLB50-45		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKDLB50-50		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKDLB50-75		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKDLB50-100		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKDLB63-5		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKDLB63-10		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKDLB63-15		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKDLB63-20		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKDLB63-25		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKDLB63-30		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKDLB63-35		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKDLB63-40		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKDLB63-45		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKDLB63-50		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKDLB63-75		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKDLB63-100		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKDLB80-5		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKDLB80-10		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKDLB80-15		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKDLB80-20		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKDLB80-25		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKDLB80-30		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKDLB80-35		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKDLB80-40		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKDLB80-45		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKDLB80-50		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKDLB80-75		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKDLB80-100		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKDLB100-5		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKDLB100-10		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKDLB100-15		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKDLB100-20		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKDLB100-25		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKDLB100-30		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKDLB100-35		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKDLB100-40		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKDLB100-45		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKDLB100-50		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKDLB100-75		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKDLB100-100		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKDLD20-5		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKDLD20-10		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKDLD20-15		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKDLD20-20		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKDLD20-25		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKDLD20-30		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKDLD20-35		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKDLD20-40		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKDLD20-45		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKDLD20-50		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKDLD25-5		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKDLD25-10		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKDLD25-15		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKDLD25-20		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKDLD25-25		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKDLD25-30		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKDLD25-35		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKDLD25-40		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKDLD25-45		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKDLD25-50		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKDLD32-5		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKDLD32-10		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKDLD32-15		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKDLD32-20		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKDLD32-25		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKDLD32-30		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKDLD32-35		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKDLD32-40		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKDLD32-45		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKDLD32-50		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKDLD32-75		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKDLD40-5		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKDLD40-10		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKDLD40-15		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKDLD40-20		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKDLD40-25		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKDLD40-30		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKDLD40-35		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKDLD40-40		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKDLD40-45		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKDLD40-50		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKDLD40-75		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKDLD40-100		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKDLD50-5		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKDLD50-10		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKDLD50-15		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKDLD50-20		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKDLD50-25		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKDLD50-30		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKDLD50-35		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKDLD50-40		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKDLD50-45		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKDLD50-50		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKDLD50-75		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKDLD50-100		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKDLD63-5		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKDLD63-10		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKDLD63-15		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKDLD63-20		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKDLD63-25		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKDLD63-30		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKDLD63-35		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKDLD63-40		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKDLD63-45		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKDLD63-50		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKDLD63-75		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKDLD63-100		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKDLD80-5		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKDLD80-10		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKDLD80-15		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKDLD80-20		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKDLD80-25		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKDLD80-30		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKDLD80-35		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKDLD80-40		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKDLD80-45		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKDLD80-50		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKDLD80-75		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKDLD80-100		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKDLD100-5		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKDLD100-10		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKDLD100-15		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKDLD100-20		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKDLD100-25		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKDLD100-30		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKDLD100-35		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKDLD100-40		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKDLD100-45		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKDLD100-50		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKDLD100-75		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKDLD100-100		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHDKDB20-5		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKDB20-10		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKDB20-15		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKDB20-20		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKDB20-25		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKDB20-30		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKDB20-35		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKDB20-40		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKDB20-45		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKDB20-50		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKDB25-5		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKDB25-10		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKDB25-15		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKDB25-20		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKDB25-25		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKDB25-30		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKDB25-35		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKDB25-40		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKDB25-45		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKDB25-50		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKDB32-5		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKDB32-10		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKDB32-15		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKDB32-20		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKDB32-25		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKDB32-30		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKDB32-35		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKDB32-40		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKDB32-45		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKDB32-50		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKDB32-75		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKDB40-5		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKDB40-10		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKDB40-15		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKDB40-20		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKDB40-25		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKDB40-30		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKDB40-35		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKDB40-40		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKDB40-45		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKDB40-50		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKDB40-75		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKDB40-100		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKDB50-5		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKDB50-10		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKDB50-15		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKDB50-20		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKDB50-25		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKDB50-30		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKDB50-35		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKDB50-40		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKDB50-45		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKDB50-50		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKDB50-75		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKDB50-100		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKDB63-5		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKDB63-10		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKDB63-15		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKDB63-20		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKDB63-25		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKDB63-30		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKDB63-35		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKDB63-40		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKDB63-45		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKDB63-50		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKDB63-75		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKDB63-100		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKDB80-5		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKDB80-10		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKDB80-15		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKDB80-20		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKDB80-25		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKDB80-30		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKDB80-35		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKDB80-40		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKDB80-45		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKDB80-50		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKDB80-75		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKDB80-100		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKDB100-5		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKDB100-10		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKDB100-15		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKDB100-20		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKDB100-25		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKDB100-30		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKDB100-35		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKDB100-40		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKDB100-45		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKDB100-50		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKDB100-75		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKDB100-100		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKDL20-5		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKDL20-10		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKDL20-15		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKDL20-20		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKDL20-25		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKDL20-30		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKDL20-35		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKDL20-40		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKDL20-45		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKDL20-50		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKDL25-5		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKDL25-10		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKDL25-15		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKDL25-20		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKDL25-25		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKDL25-30		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKDL25-35		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKDL25-40		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKDL25-45		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKDL25-50		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKDL32-5		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKDL32-10		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKDL32-15		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKDL32-20		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKDL32-25		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKDL32-30		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKDL32-35		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKDL32-40		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKDL32-45		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKDL32-50		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKDL32-75		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKDL40-5		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKDL40-10		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKDL40-15		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKDL40-20		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKDL40-25		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKDL40-30		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKDL40-35		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKDL40-40		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKDL40-45		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKDL40-50		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKDL40-75		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKDL40-100		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKDL50-5		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKDL50-10		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKDL50-15		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKDL50-20		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKDL50-25		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKDL50-30		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKDL50-35		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKDL50-40		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKDL50-45		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKDL50-50		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKDL50-75		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKDL50-100		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKDL63-5		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKDL63-10		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKDL63-15		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKDL63-20		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKDL63-25		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKDL63-30		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKDL63-35		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKDL63-40		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKDL63-45		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKDL63-50		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKDL63-75		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKDL63-100		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKDL80-5		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKDL80-10		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKDL80-15		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKDL80-20		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKDL80-25		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKDL80-30		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKDL80-35		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKDL80-40		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKDL80-45		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKDL80-50		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKDL80-75		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKDL80-100		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKDL100-5		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKDL100-10		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKDL100-15		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKDL100-20		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKDL100-25		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKDL100-30		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKDL100-35		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKDL100-40		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKDL100-45		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKDL100-50		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKDL100-75		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKDL100-100		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKDLB20-5		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKDLB20-10		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKDLB20-15		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKDLB20-20		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKDLB20-25		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKDLB20-30		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKDLB20-35		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKDLB20-40		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKDLB20-45		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKDLB20-50		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKDLB25-5		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKDLB25-10		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKDLB25-15		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKDLB25-20		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKDLB25-25		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKDLB25-30		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKDLB25-35		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKDLB25-40		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKDLB25-45		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKDLB25-50		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKDLB32-5		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKDLB32-10		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKDLB32-15		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKDLB32-20		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKDLB32-25		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKDLB32-30		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKDLB32-35		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKDLB32-40		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKDLB32-45		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKDLB32-50		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKDLB32-75		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKDLB40-5		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKDLB40-10		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKDLB40-15		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKDLB40-20		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKDLB40-25		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKDLB40-30		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKDLB40-35		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKDLB40-40		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKDLB40-45		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKDLB40-50		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKDLB40-75		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKDLB40-100		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKDLB50-5		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKDLB50-10		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKDLB50-15		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKDLB50-20		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKDLB50-25		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKDLB50-30		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKDLB50-35		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKDLB50-40		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKDLB50-45		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKDLB50-50		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKDLB50-75		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKDLB50-100		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKDLB63-5		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKDLB63-10		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKDLB63-15		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKDLB63-20		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKDLB63-25		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKDLB63-30		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKDLB63-35		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKDLB63-40		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKDLB63-45		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKDLB63-50		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKDLB63-75		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKDLB63-100		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKDLB80-5		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKDLB80-10		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKDLB80-15		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKDLB80-20		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKDLB80-25		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKDLB80-30		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKDLB80-35		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKDLB80-40		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKDLB80-45		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKDLB80-50		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKDLB80-75		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKDLB80-100		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKDLB100-5		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKDLB100-10		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKDLB100-15		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKDLB100-20		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKDLB100-25		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKDLB100-30		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKDLB100-35		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKDLB100-40		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKDLB100-45		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKDLB100-50		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKDLB100-75		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKDLB100-100		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKDLD20-5		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKDLD20-10		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKDLD20-15		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKDLD20-20		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKDLD20-25		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKDLD20-30		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKDLD20-35		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKDLD20-40		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKDLD20-45		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKDLD20-50		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKDLD25-5		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKDLD25-10		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKDLD25-15		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKDLD25-20		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKDLD25-25		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKDLD25-30		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKDLD25-35		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKDLD25-40		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKDLD25-45		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKDLD25-50		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKDLD32-5		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKDLD32-10		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKDLD32-15		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKDLD32-20		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKDLD32-25		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKDLD32-30		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKDLD32-35		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKDLD32-40		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKDLD32-45		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKDLD32-50		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKDLD32-75		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKDLD40-5		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKDLD40-10		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKDLD40-15		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKDLD40-20		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKDLD40-25		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKDLD40-30		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKDLD40-35		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKDLD40-40		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKDLD40-45		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKDLD40-50		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKDLD40-75		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKDLD40-100		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKDLD50-5		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKDLD50-10		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKDLD50-15		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKDLD50-20		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKDLD50-25		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKDLD50-30		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKDLD50-35		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKDLD50-40		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKDLD50-45		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKDLD50-50		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKDLD50-75		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKDLD50-100		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKDLD63-5		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKDLD63-10		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKDLD63-15		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKDLD63-20		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKDLD63-25		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKDLD63-30		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKDLD63-35		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKDLD63-40		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKDLD63-45		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKDLD63-50		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKDLD63-75		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKDLD63-100		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKDLD80-5		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKDLD80-10		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKDLD80-15		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKDLD80-20		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKDLD80-25		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKDLD80-30		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKDLD80-35		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKDLD80-40		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKDLD80-45		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKDLD80-50		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKDLD80-75		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKDLD80-100		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKDLD100-5		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKDLD100-10		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKDLD100-15		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKDLD100-20		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKDLD100-25		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKDLD100-30		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKDLD100-35		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKDLD100-40		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKDLD100-45		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKDLD100-50		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKDLD100-75		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKDLD100-100		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes

Hydraulic CylindersSMC

728 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CHKD JIS Thin Hydraulic Cylinder (10 MPa, ø20 to ø100)

Brand SMC·Hydraulic Cylinders

Available part numbers (728)

CHKDB20-5, CHKDB20-10, CHKDB20-15, CHKDB20-20, CHKDB20-25, CHKDB20-30, CHKDB20-35, CHKDB20-40, CHKDB20-45, CHKDB20-50 + 718 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CHKDB20-5	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKDB20-10	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKDB20-15	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKDB20-20	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKDB20-25	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKDB20-30	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKDB20-35	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKDB20-40	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKDB20-45	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKDB20-50	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKDB25-5	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKDB25-10	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKDB25-15	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKDB25-20	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKDB25-25	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKDB25-30	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKDB25-35	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKDB25-40	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKDB25-45	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKDB25-50	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKDB32-5	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKDB32-10	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKDB32-15	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKDB32-20	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKDB32-25	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKDB32-30	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKDB32-35	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKDB32-40	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKDB32-45	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKDB32-50	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKDB32-75	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKDB40-5	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKDB40-10	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKDB40-15	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKDB40-20	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKDB40-25	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKDB40-30	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKDB40-35	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKDB40-40	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKDB40-45	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKDB40-50	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKDB40-75	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKDB40-100	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKDB50-5	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKDB50-10	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKDB50-15	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKDB50-20	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKDB50-25	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKDB50-30	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKDB50-35	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKDB50-40	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKDB50-45	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKDB50-50	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKDB50-75	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKDB50-100	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKDB63-5	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKDB63-10	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKDB63-15	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKDB63-20	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKDB63-25	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKDB63-30	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKDB63-35	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKDB63-40	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKDB63-45	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKDB63-50	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKDB63-75	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKDB63-100	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKDB80-5	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKDB80-10	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKDB80-15	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKDB80-20	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKDB80-25	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKDB80-30	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKDB80-35	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKDB80-40	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKDB80-45	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKDB80-50	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKDB80-75	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKDB80-100	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKDB100-5	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKDB100-10	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKDB100-15	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKDB100-20	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKDB100-25	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKDB100-30	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKDB100-35	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKDB100-40	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKDB100-45	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKDB100-50	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKDB100-75	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKDB100-100	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKDL20-5	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKDL20-10	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKDL20-15	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKDL20-20	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKDL20-25	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKDL20-30	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKDL20-35	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKDL20-40	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKDL20-45	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKDL20-50	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKDL25-5	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKDL25-10	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKDL25-15	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKDL25-20	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKDL25-25	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKDL25-30	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKDL25-35	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKDL25-40	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKDL25-45	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKDL25-50	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKDL32-5	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKDL32-10	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKDL32-15	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKDL32-20	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKDL32-25	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKDL32-30	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKDL32-35	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKDL32-40	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKDL32-45	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKDL32-50	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKDL32-75	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKDL40-5	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKDL40-10	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKDL40-15	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKDL40-20	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKDL40-25	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKDL40-30	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKDL40-35	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKDL40-40	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKDL40-45	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKDL40-50	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKDL40-75	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKDL40-100	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKDL50-5	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKDL50-10	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKDL50-15	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKDL50-20	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKDL50-25	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKDL50-30	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKDL50-35	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKDL50-40	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKDL50-45	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKDL50-50	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKDL50-75	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKDL50-100	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKDL63-5	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKDL63-10	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKDL63-15	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKDL63-20	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKDL63-25	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKDL63-30	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKDL63-35	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKDL63-40	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKDL63-45	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKDL63-50	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKDL63-75	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKDL63-100	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKDL80-5	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKDL80-10	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKDL80-15	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKDL80-20	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKDL80-25	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKDL80-30	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKDL80-35	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKDL80-40	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKDL80-45	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKDL80-50	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKDL80-75	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKDL80-100	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKDL100-5	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKDL100-10	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKDL100-15	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKDL100-20	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKDL100-25	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKDL100-30	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKDL100-35	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKDL100-40	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKDL100-45	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKDL100-50	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKDL100-75	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKDL100-100	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKDLB20-5	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKDLB20-10	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKDLB20-15	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKDLB20-20	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKDLB20-25	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKDLB20-30	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKDLB20-35	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKDLB20-40	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKDLB20-45	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKDLB20-50	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKDLB25-5	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKDLB25-10	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKDLB25-15	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKDLB25-20	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKDLB25-25	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKDLB25-30	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKDLB25-35	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKDLB25-40	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKDLB25-45	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKDLB25-50	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKDLB32-5	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKDLB32-10	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKDLB32-15	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKDLB32-20	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKDLB32-25	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKDLB32-30	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKDLB32-35	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKDLB32-40	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKDLB32-45	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKDLB32-50	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKDLB32-75	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKDLB40-5	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKDLB40-10	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKDLB40-15	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKDLB40-20	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKDLB40-25	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKDLB40-30	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKDLB40-35	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKDLB40-40	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKDLB40-45	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKDLB40-50	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKDLB40-75	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKDLB40-100	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKDLB50-5	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKDLB50-10	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKDLB50-15	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKDLB50-20	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKDLB50-25	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKDLB50-30	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKDLB50-35	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKDLB50-40	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKDLB50-45	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKDLB50-50	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKDLB50-75	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKDLB50-100	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKDLB63-5	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKDLB63-10	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKDLB63-15	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKDLB63-20	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKDLB63-25	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKDLB63-30	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKDLB63-35	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKDLB63-40	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKDLB63-45	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKDLB63-50	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKDLB63-75	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKDLB63-100	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKDLB80-5	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKDLB80-10	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKDLB80-15	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKDLB80-20	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKDLB80-25	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKDLB80-30	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKDLB80-35	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKDLB80-40	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKDLB80-45	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKDLB80-50	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKDLB80-75	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKDLB80-100	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKDLB100-5	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKDLB100-10	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKDLB100-15	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKDLB100-20	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKDLB100-25	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKDLB100-30	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKDLB100-35	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKDLB100-40	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKDLB100-45	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKDLB100-50	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKDLB100-75	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKDLB100-100	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKDLD20-5	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKDLD20-10	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKDLD20-15	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKDLD20-20	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKDLD20-25	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKDLD20-30	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKDLD20-35	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKDLD20-40	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKDLD20-45	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKDLD20-50	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKDLD25-5	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKDLD25-10	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKDLD25-15	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKDLD25-20	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKDLD25-25	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKDLD25-30	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKDLD25-35	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKDLD25-40	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKDLD25-45	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKDLD25-50	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKDLD32-5	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKDLD32-10	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKDLD32-15	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKDLD32-20	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKDLD32-25	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKDLD32-30	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKDLD32-35	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKDLD32-40	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKDLD32-45	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKDLD32-50	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKDLD32-75	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKDLD40-5	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKDLD40-10	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKDLD40-15	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKDLD40-20	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKDLD40-25	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKDLD40-30	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKDLD40-35	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKDLD40-40	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKDLD40-45	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKDLD40-50	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKDLD40-75	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKDLD40-100	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKDLD50-5	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKDLD50-10	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKDLD50-15	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKDLD50-20	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKDLD50-25	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKDLD50-30	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKDLD50-35	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKDLD50-40	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKDLD50-45	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKDLD50-50	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKDLD50-75	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKDLD50-100	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKDLD63-5	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKDLD63-10	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKDLD63-15	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKDLD63-20	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKDLD63-25	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKDLD63-30	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKDLD63-35	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKDLD63-40	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKDLD63-45	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKDLD63-50	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKDLD63-75	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKDLD63-100	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKDLD80-5	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKDLD80-10	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKDLD80-15	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKDLD80-20	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKDLD80-25	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKDLD80-30	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKDLD80-35	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKDLD80-40	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKDLD80-45	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKDLD80-50	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKDLD80-75	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKDLD80-100	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKDLD100-5	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKDLD100-10	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKDLD100-15	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKDLD100-20	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKDLD100-25	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKDLD100-30	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKDLD100-35	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKDLD100-40	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKDLD100-45	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKDLD100-50	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKDLD100-75	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKDLD100-100	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHDKDB20-5	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKDB20-10	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKDB20-15	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKDB20-20	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKDB20-25	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKDB20-30	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKDB20-35	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKDB20-40	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKDB20-45	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKDB20-50	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKDB25-5	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKDB25-10	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKDB25-15	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKDB25-20	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKDB25-25	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKDB25-30	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKDB25-35	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKDB25-40	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKDB25-45	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKDB25-50	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKDB32-5	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKDB32-10	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKDB32-15	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKDB32-20	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKDB32-25	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKDB32-30	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKDB32-35	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKDB32-40	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKDB32-45	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKDB32-50	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKDB32-75	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKDB40-5	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKDB40-10	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKDB40-15	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKDB40-20	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKDB40-25	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKDB40-30	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKDB40-35	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKDB40-40	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKDB40-45	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKDB40-50	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKDB40-75	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKDB40-100	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKDB50-5	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKDB50-10	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKDB50-15	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKDB50-20	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKDB50-25	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKDB50-30	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKDB50-35	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKDB50-40	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKDB50-45	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKDB50-50	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKDB50-75	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKDB50-100	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKDB63-5	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKDB63-10	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKDB63-15	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKDB63-20	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKDB63-25	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKDB63-30	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKDB63-35	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKDB63-40	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKDB63-45	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKDB63-50	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKDB63-75	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKDB63-100	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKDB80-5	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKDB80-10	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKDB80-15	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKDB80-20	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKDB80-25	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKDB80-30	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKDB80-35	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKDB80-40	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKDB80-45	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKDB80-50	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKDB80-75	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKDB80-100	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKDB100-5	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKDB100-10	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKDB100-15	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKDB100-20	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKDB100-25	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKDB100-30	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKDB100-35	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKDB100-40	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKDB100-45	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKDB100-50	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKDB100-75	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKDB100-100	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKDL20-5	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKDL20-10	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKDL20-15	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKDL20-20	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKDL20-25	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKDL20-30	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKDL20-35	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKDL20-40	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKDL20-45	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKDL20-50	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKDL25-5	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKDL25-10	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKDL25-15	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKDL25-20	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKDL25-25	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKDL25-30	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKDL25-35	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKDL25-40	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKDL25-45	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKDL25-50	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKDL32-5	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKDL32-10	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKDL32-15	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKDL32-20	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKDL32-25	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKDL32-30	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKDL32-35	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKDL32-40	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKDL32-45	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKDL32-50	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKDL32-75	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKDL40-5	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKDL40-10	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKDL40-15	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKDL40-20	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKDL40-25	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKDL40-30	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKDL40-35	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKDL40-40	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKDL40-45	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKDL40-50	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKDL40-75	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKDL40-100	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKDL50-5	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKDL50-10	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKDL50-15	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKDL50-20	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKDL50-25	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKDL50-30	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKDL50-35	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKDL50-40	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKDL50-45	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKDL50-50	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKDL50-75	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKDL50-100	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKDL63-5	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKDL63-10	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKDL63-15	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKDL63-20	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKDL63-25	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKDL63-30	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKDL63-35	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKDL63-40	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKDL63-45	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKDL63-50	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKDL63-75	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKDL63-100	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKDL80-5	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKDL80-10	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKDL80-15	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKDL80-20	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKDL80-25	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKDL80-30	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKDL80-35	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKDL80-40	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKDL80-45	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKDL80-50	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKDL80-75	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKDL80-100	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKDL100-5	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKDL100-10	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKDL100-15	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKDL100-20	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKDL100-25	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKDL100-30	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKDL100-35	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKDL100-40	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKDL100-45	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKDL100-50	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKDL100-75	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKDL100-100	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKDLB20-5	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKDLB20-10	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKDLB20-15	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKDLB20-20	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKDLB20-25	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKDLB20-30	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKDLB20-35	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKDLB20-40	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKDLB20-45	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKDLB20-50	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKDLB25-5	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKDLB25-10	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKDLB25-15	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKDLB25-20	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKDLB25-25	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKDLB25-30	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKDLB25-35	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKDLB25-40	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKDLB25-45	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKDLB25-50	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKDLB32-5	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKDLB32-10	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKDLB32-15	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKDLB32-20	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKDLB32-25	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKDLB32-30	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKDLB32-35	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKDLB32-40	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKDLB32-45	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKDLB32-50	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKDLB32-75	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKDLB40-5	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKDLB40-10	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKDLB40-15	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKDLB40-20	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKDLB40-25	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKDLB40-30	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKDLB40-35	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKDLB40-40	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKDLB40-45	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKDLB40-50	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKDLB40-75	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKDLB40-100	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKDLB50-5	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKDLB50-10	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKDLB50-15	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKDLB50-20	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKDLB50-25	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKDLB50-30	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKDLB50-35	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKDLB50-40	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKDLB50-45	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKDLB50-50	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKDLB50-75	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKDLB50-100	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKDLB63-5	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKDLB63-10	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKDLB63-15	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKDLB63-20	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKDLB63-25	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKDLB63-30	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKDLB63-35	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKDLB63-40	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKDLB63-45	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKDLB63-50	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKDLB63-75	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKDLB63-100	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKDLB80-5	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKDLB80-10	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKDLB80-15	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKDLB80-20	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKDLB80-25	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKDLB80-30	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKDLB80-35	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKDLB80-40	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKDLB80-45	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKDLB80-50	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKDLB80-75	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKDLB80-100	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKDLB100-5	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKDLB100-10	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKDLB100-15	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKDLB100-20	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKDLB100-25	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKDLB100-30	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKDLB100-35	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKDLB100-40	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKDLB100-45	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKDLB100-50	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKDLB100-75	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKDLB100-100	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKDLD20-5	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKDLD20-10	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKDLD20-15	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKDLD20-20	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKDLD20-25	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKDLD20-30	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKDLD20-35	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKDLD20-40	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKDLD20-45	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKDLD20-50	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKDLD25-5	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKDLD25-10	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKDLD25-15	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKDLD25-20	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKDLD25-25	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKDLD25-30	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKDLD25-35	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKDLD25-40	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKDLD25-45	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKDLD25-50	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKDLD32-5	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKDLD32-10	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKDLD32-15	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKDLD32-20	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKDLD32-25	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKDLD32-30	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKDLD32-35	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKDLD32-40	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKDLD32-45	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKDLD32-50	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKDLD32-75	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKDLD40-5	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKDLD40-10	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKDLD40-15	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKDLD40-20	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKDLD40-25	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKDLD40-30	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKDLD40-35	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKDLD40-40	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKDLD40-45	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKDLD40-50	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKDLD40-75	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKDLD40-100	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKDLD50-5	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKDLD50-10	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKDLD50-15	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKDLD50-20	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKDLD50-25	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKDLD50-30	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKDLD50-35	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKDLD50-40	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKDLD50-45	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKDLD50-50	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKDLD50-75	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKDLD50-100	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKDLD63-5	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKDLD63-10	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKDLD63-15	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKDLD63-20	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKDLD63-25	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKDLD63-30	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKDLD63-35	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKDLD63-40	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKDLD63-45	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKDLD63-50	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKDLD63-75	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKDLD63-100	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKDLD80-5	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKDLD80-10	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKDLD80-15	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKDLD80-20	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKDLD80-25	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKDLD80-30	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKDLD80-35	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKDLD80-40	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKDLD80-45	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKDLD80-50	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKDLD80-75	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKDLD80-100	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKDLD100-5	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKDLD100-10	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKDLD100-15	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKDLD100-20	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKDLD100-25	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKDLD100-30	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKDLD100-35	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKDLD100-40	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKDLD100-45	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKDLD100-50	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKDLD100-75	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKDLD100-100	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Hydraulics →

Item added to your cart

SMC CHKD JIS Thin Hydraulic Cylinder (10 MPa, ø20 to ø100)
