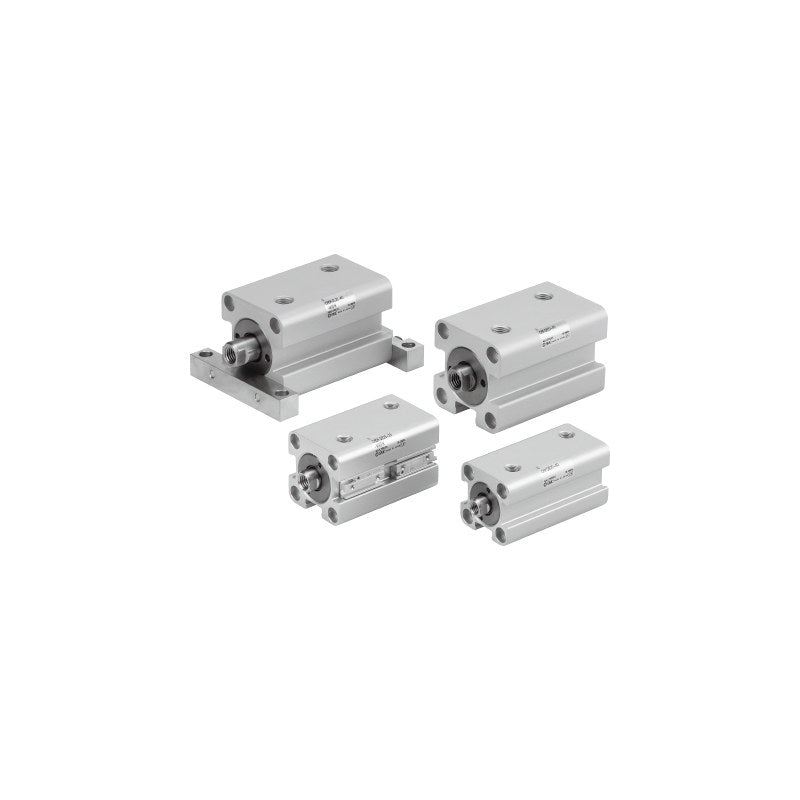

SMC CHKG Thin Hydraulic Cylinder (16 MPa, ø20 to ø100)

SMC CHKG series thin hydraulic cylinder, 16 MPa nominal, double acting single rod, ø20 to ø100 mm, basic or foot mounted, with or without a built-in auto switch magnet (CHDKG).

Key features

Compact hydraulic cylinder for 16 MPa (proof 24 MPa) with strokes up to 175 mm
Basic (through-hole) and foot mounting; foot types L/LB/LD differ by port position viewed from the rod end
Rc ports standard; NPT (TN) and male rod end thread (M) as order symbols
Built-in magnet models (CHDKG) accept D-M9/D-A9 series auto switches, ordered as a suffix
Made-to-order: rod end change (-XA), CHQHB interchangeable (-XC62), intermediate strokes with spacer (-XC63), air bleed valve (-XC64)

Specifications

Action	Double acting
Fluid	Hydraulic oil (general mineral, W/O, O/W)
Nominal pressure	16 MPa
Proof pressure	24 MPa
Max. allowable pressure	16 MPa
Min. operating pressure	0.3 MPa
Ambient and fluid temperature	-10 to 80°C (no switch), -10 to 60°C (with switch)
Piston speed	8 to 100 mm/s
Cushion	None
Mounting	Basic (B, through-hole), foot (L/LB/LD = port position)
Port thread	Rc (NPT as option TN)
Rod end thread	Female standard, male (M) option
Standard strokes	ø20: 5 to 100; ø25: 5 to 100; ø32: 5 to 125; ø40: 5 to 175; ø50: 5 to 175; ø63: 5 to 175; ø80: 5 to 175; ø100: 5 to 175 mm
Source	SMC Korea catalog CHKD/CHKG (SMCKR_CHKD_CHKG.pdf), p. 279-280 (PDF p. 17-18)

CHKGB20-5		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKGB20-10		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKGB20-15		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKGB20-20		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKGB20-25		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKGB20-30		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKGB20-35		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKGB20-40		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKGB20-45		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKGB20-50		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKGB20-75		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKGB20-100		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKGB25-5		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKGB25-10		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKGB25-15		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKGB25-20		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKGB25-25		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKGB25-30		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKGB25-35		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKGB25-40		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKGB25-45		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKGB25-50		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKGB25-75		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKGB25-100		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKGB32-5		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKGB32-10		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKGB32-15		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKGB32-20		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKGB32-25		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKGB32-30		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKGB32-35		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKGB32-40		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKGB32-45		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKGB32-50		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKGB32-75		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKGB32-100		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKGB32-125		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
CHKGB40-5		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKGB40-10		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKGB40-15		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKGB40-20		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKGB40-25		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKGB40-30		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKGB40-35		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKGB40-40		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKGB40-45		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKGB40-50		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKGB40-75		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKGB40-100		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKGB40-125		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
CHKGB40-150		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHKGB40-175		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
CHKGB50-5		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKGB50-10		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKGB50-15		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKGB50-20		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKGB50-25		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKGB50-30		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKGB50-35		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKGB50-40		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKGB50-45		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKGB50-50		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKGB50-75		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKGB50-100		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKGB50-125		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
CHKGB50-150		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHKGB50-175		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
CHKGB63-5		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKGB63-10		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKGB63-15		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKGB63-20		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKGB63-25		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKGB63-30		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKGB63-35		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKGB63-40		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKGB63-45		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKGB63-50		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKGB63-75		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKGB63-100		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKGB63-125		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
CHKGB63-150		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHKGB63-175		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
CHKGB80-5		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKGB80-10		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKGB80-15		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKGB80-20		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKGB80-25		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKGB80-30		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKGB80-35		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKGB80-40		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKGB80-45		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKGB80-50		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKGB80-75		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKGB80-100		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKGB80-125		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
CHKGB80-150		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHKGB80-175		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
CHKGB100-5		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKGB100-10		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKGB100-15		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKGB100-20		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKGB100-25		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKGB100-30		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKGB100-35		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKGB100-40		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKGB100-45		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKGB100-50		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKGB100-75		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKGB100-100		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKGB100-125		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
CHKGB100-150		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHKGB100-175		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
CHKGL20-5		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKGL20-10		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKGL20-15		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKGL20-20		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKGL20-25		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKGL20-30		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKGL20-35		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKGL20-40		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKGL20-45		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKGL20-50		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKGL20-75		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKGL20-100		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKGL25-5		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKGL25-10		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKGL25-15		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKGL25-20		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKGL25-25		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKGL25-30		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKGL25-35		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKGL25-40		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKGL25-45		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKGL25-50		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKGL25-75		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKGL25-100		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKGL32-5		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKGL32-10		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKGL32-15		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKGL32-20		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKGL32-25		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKGL32-30		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKGL32-35		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKGL32-40		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKGL32-45		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKGL32-50		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKGL32-75		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKGL32-100		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKGL32-125		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
CHKGL40-5		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKGL40-10		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKGL40-15		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKGL40-20		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKGL40-25		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKGL40-30		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKGL40-35		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKGL40-40		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKGL40-45		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKGL40-50		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKGL40-75		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKGL40-100		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKGL40-125		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
CHKGL40-150		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHKGL40-175		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
CHKGL50-5		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKGL50-10		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKGL50-15		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKGL50-20		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKGL50-25		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKGL50-30		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKGL50-35		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKGL50-40		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKGL50-45		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKGL50-50		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKGL50-75		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKGL50-100		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKGL50-125		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
CHKGL50-150		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHKGL50-175		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
CHKGL63-5		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKGL63-10		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKGL63-15		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKGL63-20		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKGL63-25		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKGL63-30		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKGL63-35		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKGL63-40		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKGL63-45		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKGL63-50		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKGL63-75		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKGL63-100		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKGL63-125		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
CHKGL63-150		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHKGL63-175		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
CHKGL80-5		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKGL80-10		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKGL80-15		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKGL80-20		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKGL80-25		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKGL80-30		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKGL80-35		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKGL80-40		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKGL80-45		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKGL80-50		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKGL80-75		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKGL80-100		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKGL80-125		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
CHKGL80-150		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHKGL80-175		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
CHKGL100-5		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKGL100-10		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKGL100-15		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKGL100-20		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKGL100-25		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKGL100-30		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKGL100-35		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKGL100-40		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKGL100-45		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKGL100-50		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKGL100-75		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKGL100-100		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKGL100-125		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
CHKGL100-150		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHKGL100-175		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
CHKGLB20-5		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKGLB20-10		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKGLB20-15		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKGLB20-20		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKGLB20-25		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKGLB20-30		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKGLB20-35		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKGLB20-40		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKGLB20-45		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKGLB20-50		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKGLB20-75		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKGLB20-100		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKGLB25-5		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKGLB25-10		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKGLB25-15		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKGLB25-20		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKGLB25-25		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKGLB25-30		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKGLB25-35		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKGLB25-40		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKGLB25-45		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKGLB25-50		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKGLB25-75		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKGLB25-100		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKGLB32-5		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKGLB32-10		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKGLB32-15		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKGLB32-20		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKGLB32-25		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKGLB32-30		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKGLB32-35		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKGLB32-40		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKGLB32-45		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKGLB32-50		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKGLB32-75		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKGLB32-100		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKGLB32-125		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
CHKGLB40-5		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKGLB40-10		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKGLB40-15		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKGLB40-20		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKGLB40-25		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKGLB40-30		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKGLB40-35		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKGLB40-40		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKGLB40-45		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKGLB40-50		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKGLB40-75		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKGLB40-100		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKGLB40-125		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
CHKGLB40-150		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHKGLB40-175		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
CHKGLB50-5		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKGLB50-10		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKGLB50-15		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKGLB50-20		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKGLB50-25		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKGLB50-30		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKGLB50-35		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKGLB50-40		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKGLB50-45		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKGLB50-50		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKGLB50-75		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKGLB50-100		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKGLB50-125		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
CHKGLB50-150		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHKGLB50-175		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
CHKGLB63-5		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKGLB63-10		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKGLB63-15		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKGLB63-20		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKGLB63-25		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKGLB63-30		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKGLB63-35		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKGLB63-40		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKGLB63-45		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKGLB63-50		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKGLB63-75		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKGLB63-100		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKGLB63-125		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
CHKGLB63-150		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHKGLB63-175		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
CHKGLB80-5		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKGLB80-10		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKGLB80-15		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKGLB80-20		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKGLB80-25		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKGLB80-30		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKGLB80-35		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKGLB80-40		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKGLB80-45		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKGLB80-50		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKGLB80-75		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKGLB80-100		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKGLB80-125		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
CHKGLB80-150		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHKGLB80-175		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
CHKGLB100-5		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKGLB100-10		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKGLB100-15		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKGLB100-20		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKGLB100-25		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKGLB100-30		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKGLB100-35		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKGLB100-40		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKGLB100-45		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKGLB100-50		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKGLB100-75		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKGLB100-100		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKGLB100-125		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
CHKGLB100-150		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHKGLB100-175		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
CHKGLD20-5		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKGLD20-10		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKGLD20-15		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKGLD20-20		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKGLD20-25		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKGLD20-30		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKGLD20-35		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKGLD20-40		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKGLD20-45		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKGLD20-50		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKGLD20-75		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKGLD20-100		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKGLD25-5		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKGLD25-10		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKGLD25-15		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKGLD25-20		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKGLD25-25		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKGLD25-30		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKGLD25-35		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKGLD25-40		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKGLD25-45		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKGLD25-50		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKGLD25-75		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKGLD25-100		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKGLD32-5		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKGLD32-10		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKGLD32-15		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKGLD32-20		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKGLD32-25		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKGLD32-30		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKGLD32-35		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKGLD32-40		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKGLD32-45		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKGLD32-50		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKGLD32-75		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKGLD32-100		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKGLD32-125		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
CHKGLD40-5		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKGLD40-10		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKGLD40-15		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKGLD40-20		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKGLD40-25		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKGLD40-30		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKGLD40-35		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKGLD40-40		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKGLD40-45		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKGLD40-50		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKGLD40-75		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKGLD40-100		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKGLD40-125		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
CHKGLD40-150		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHKGLD40-175		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
CHKGLD50-5		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKGLD50-10		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKGLD50-15		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKGLD50-20		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKGLD50-25		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKGLD50-30		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKGLD50-35		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKGLD50-40		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKGLD50-45		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKGLD50-50		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKGLD50-75		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKGLD50-100		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKGLD50-125		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
CHKGLD50-150		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHKGLD50-175		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
CHKGLD63-5		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKGLD63-10		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKGLD63-15		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKGLD63-20		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKGLD63-25		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKGLD63-30		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKGLD63-35		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKGLD63-40		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKGLD63-45		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKGLD63-50		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKGLD63-75		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKGLD63-100		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKGLD63-125		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
CHKGLD63-150		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHKGLD63-175		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
CHKGLD80-5		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKGLD80-10		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKGLD80-15		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKGLD80-20		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKGLD80-25		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKGLD80-30		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKGLD80-35		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKGLD80-40		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKGLD80-45		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKGLD80-50		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKGLD80-75		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKGLD80-100		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKGLD80-125		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
CHKGLD80-150		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHKGLD80-175		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
CHKGLD100-5		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 5 mm \| Auto switch magnet: No
CHKGLD100-10		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 10 mm \| Auto switch magnet: No
CHKGLD100-15		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 15 mm \| Auto switch magnet: No
CHKGLD100-20		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 20 mm \| Auto switch magnet: No
CHKGLD100-25		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHKGLD100-30		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 30 mm \| Auto switch magnet: No
CHKGLD100-35		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 35 mm \| Auto switch magnet: No
CHKGLD100-40		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 40 mm \| Auto switch magnet: No
CHKGLD100-45		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 45 mm \| Auto switch magnet: No
CHKGLD100-50		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHKGLD100-75		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHKGLD100-100		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHKGLD100-125		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
CHKGLD100-150		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHKGLD100-175		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
CHDKGB20-5		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKGB20-10		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKGB20-15		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKGB20-20		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKGB20-25		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKGB20-30		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKGB20-35		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKGB20-40		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKGB20-45		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKGB20-50		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKGB20-75		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKGB20-100		Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKGB25-5		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKGB25-10		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKGB25-15		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKGB25-20		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKGB25-25		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKGB25-30		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKGB25-35		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKGB25-40		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKGB25-45		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKGB25-50		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKGB25-75		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKGB25-100		Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKGB32-5		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKGB32-10		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKGB32-15		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKGB32-20		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKGB32-25		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKGB32-30		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKGB32-35		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKGB32-40		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKGB32-45		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKGB32-50		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKGB32-75		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKGB32-100		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKGB32-125		Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CHDKGB40-5		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKGB40-10		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKGB40-15		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKGB40-20		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKGB40-25		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKGB40-30		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKGB40-35		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKGB40-40		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKGB40-45		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKGB40-50		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKGB40-75		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKGB40-100		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKGB40-125		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CHDKGB40-150		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDKGB40-175		Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CHDKGB50-5		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKGB50-10		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKGB50-15		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKGB50-20		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKGB50-25		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKGB50-30		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKGB50-35		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKGB50-40		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKGB50-45		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKGB50-50		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKGB50-75		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKGB50-100		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKGB50-125		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CHDKGB50-150		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDKGB50-175		Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CHDKGB63-5		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKGB63-10		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKGB63-15		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKGB63-20		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKGB63-25		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKGB63-30		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKGB63-35		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKGB63-40		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKGB63-45		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKGB63-50		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKGB63-75		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKGB63-100		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKGB63-125		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CHDKGB63-150		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDKGB63-175		Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CHDKGB80-5		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKGB80-10		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKGB80-15		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKGB80-20		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKGB80-25		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKGB80-30		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKGB80-35		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKGB80-40		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKGB80-45		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKGB80-50		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKGB80-75		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKGB80-100		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKGB80-125		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CHDKGB80-150		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDKGB80-175		Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CHDKGB100-5		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKGB100-10		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKGB100-15		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKGB100-20		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKGB100-25		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKGB100-30		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKGB100-35		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKGB100-40		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKGB100-45		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKGB100-50		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKGB100-75		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKGB100-100		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKGB100-125		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CHDKGB100-150		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDKGB100-175		Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CHDKGL20-5		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKGL20-10		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKGL20-15		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKGL20-20		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKGL20-25		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKGL20-30		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKGL20-35		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKGL20-40		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKGL20-45		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKGL20-50		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKGL20-75		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKGL20-100		Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKGL25-5		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKGL25-10		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKGL25-15		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKGL25-20		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKGL25-25		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKGL25-30		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKGL25-35		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKGL25-40		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKGL25-45		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKGL25-50		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKGL25-75		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKGL25-100		Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKGL32-5		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKGL32-10		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKGL32-15		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKGL32-20		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKGL32-25		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKGL32-30		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKGL32-35		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKGL32-40		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKGL32-45		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKGL32-50		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKGL32-75		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKGL32-100		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKGL32-125		Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CHDKGL40-5		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKGL40-10		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKGL40-15		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKGL40-20		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKGL40-25		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKGL40-30		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKGL40-35		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKGL40-40		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKGL40-45		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKGL40-50		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKGL40-75		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKGL40-100		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKGL40-125		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CHDKGL40-150		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDKGL40-175		Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CHDKGL50-5		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKGL50-10		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKGL50-15		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKGL50-20		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKGL50-25		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKGL50-30		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKGL50-35		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKGL50-40		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKGL50-45		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKGL50-50		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKGL50-75		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKGL50-100		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKGL50-125		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CHDKGL50-150		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDKGL50-175		Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CHDKGL63-5		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKGL63-10		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKGL63-15		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKGL63-20		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKGL63-25		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKGL63-30		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKGL63-35		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKGL63-40		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKGL63-45		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKGL63-50		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKGL63-75		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKGL63-100		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKGL63-125		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CHDKGL63-150		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDKGL63-175		Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CHDKGL80-5		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKGL80-10		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKGL80-15		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKGL80-20		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKGL80-25		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKGL80-30		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKGL80-35		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKGL80-40		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKGL80-45		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKGL80-50		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKGL80-75		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKGL80-100		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKGL80-125		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CHDKGL80-150		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDKGL80-175		Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CHDKGL100-5		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKGL100-10		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKGL100-15		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKGL100-20		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKGL100-25		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKGL100-30		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKGL100-35		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKGL100-40		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKGL100-45		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKGL100-50		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKGL100-75		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKGL100-100		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKGL100-125		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CHDKGL100-150		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDKGL100-175		Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CHDKGLB20-5		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKGLB20-10		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKGLB20-15		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKGLB20-20		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKGLB20-25		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKGLB20-30		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKGLB20-35		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKGLB20-40		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKGLB20-45		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKGLB20-50		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKGLB20-75		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKGLB20-100		Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKGLB25-5		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKGLB25-10		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKGLB25-15		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKGLB25-20		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKGLB25-25		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKGLB25-30		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKGLB25-35		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKGLB25-40		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKGLB25-45		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKGLB25-50		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKGLB25-75		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKGLB25-100		Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKGLB32-5		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKGLB32-10		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKGLB32-15		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKGLB32-20		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKGLB32-25		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKGLB32-30		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKGLB32-35		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKGLB32-40		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKGLB32-45		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKGLB32-50		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKGLB32-75		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKGLB32-100		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKGLB32-125		Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CHDKGLB40-5		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKGLB40-10		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKGLB40-15		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKGLB40-20		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKGLB40-25		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKGLB40-30		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKGLB40-35		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKGLB40-40		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKGLB40-45		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKGLB40-50		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKGLB40-75		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKGLB40-100		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKGLB40-125		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CHDKGLB40-150		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDKGLB40-175		Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CHDKGLB50-5		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKGLB50-10		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKGLB50-15		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKGLB50-20		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKGLB50-25		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKGLB50-30		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKGLB50-35		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKGLB50-40		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKGLB50-45		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKGLB50-50		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKGLB50-75		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKGLB50-100		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKGLB50-125		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CHDKGLB50-150		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDKGLB50-175		Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CHDKGLB63-5		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKGLB63-10		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKGLB63-15		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKGLB63-20		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKGLB63-25		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKGLB63-30		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKGLB63-35		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKGLB63-40		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKGLB63-45		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKGLB63-50		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKGLB63-75		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKGLB63-100		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKGLB63-125		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CHDKGLB63-150		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDKGLB63-175		Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CHDKGLB80-5		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKGLB80-10		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKGLB80-15		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKGLB80-20		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKGLB80-25		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKGLB80-30		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKGLB80-35		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKGLB80-40		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKGLB80-45		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKGLB80-50		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKGLB80-75		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKGLB80-100		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKGLB80-125		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CHDKGLB80-150		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDKGLB80-175		Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CHDKGLB100-5		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKGLB100-10		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKGLB100-15		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKGLB100-20		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKGLB100-25		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKGLB100-30		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKGLB100-35		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKGLB100-40		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKGLB100-45		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKGLB100-50		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKGLB100-75		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKGLB100-100		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKGLB100-125		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CHDKGLB100-150		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDKGLB100-175		Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CHDKGLD20-5		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKGLD20-10		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKGLD20-15		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKGLD20-20		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKGLD20-25		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKGLD20-30		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKGLD20-35		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKGLD20-40		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKGLD20-45		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKGLD20-50		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKGLD20-75		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKGLD20-100		Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKGLD25-5		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKGLD25-10		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKGLD25-15		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKGLD25-20		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKGLD25-25		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKGLD25-30		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKGLD25-35		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKGLD25-40		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKGLD25-45		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKGLD25-50		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKGLD25-75		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKGLD25-100		Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKGLD32-5		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKGLD32-10		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKGLD32-15		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKGLD32-20		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKGLD32-25		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKGLD32-30		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKGLD32-35		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKGLD32-40		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKGLD32-45		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKGLD32-50		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKGLD32-75		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKGLD32-100		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKGLD32-125		Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CHDKGLD40-5		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKGLD40-10		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKGLD40-15		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKGLD40-20		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKGLD40-25		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKGLD40-30		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKGLD40-35		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKGLD40-40		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKGLD40-45		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKGLD40-50		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKGLD40-75		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKGLD40-100		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKGLD40-125		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CHDKGLD40-150		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDKGLD40-175		Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CHDKGLD50-5		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKGLD50-10		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKGLD50-15		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKGLD50-20		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKGLD50-25		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKGLD50-30		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKGLD50-35		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKGLD50-40		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKGLD50-45		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKGLD50-50		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKGLD50-75		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKGLD50-100		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKGLD50-125		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CHDKGLD50-150		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDKGLD50-175		Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CHDKGLD63-5		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKGLD63-10		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKGLD63-15		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKGLD63-20		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKGLD63-25		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKGLD63-30		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKGLD63-35		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKGLD63-40		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKGLD63-45		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKGLD63-50		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKGLD63-75		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKGLD63-100		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKGLD63-125		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CHDKGLD63-150		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDKGLD63-175		Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CHDKGLD80-5		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKGLD80-10		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKGLD80-15		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKGLD80-20		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKGLD80-25		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKGLD80-30		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKGLD80-35		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKGLD80-40		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKGLD80-45		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKGLD80-50		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKGLD80-75		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKGLD80-100		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKGLD80-125		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CHDKGLD80-150		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDKGLD80-175		Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
CHDKGLD100-5		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
CHDKGLD100-10		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
CHDKGLD100-15		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
CHDKGLD100-20		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
CHDKGLD100-25		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDKGLD100-30		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
CHDKGLD100-35		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
CHDKGLD100-40		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
CHDKGLD100-45		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
CHDKGLD100-50		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDKGLD100-75		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDKGLD100-100		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDKGLD100-125		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
CHDKGLD100-150		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDKGLD100-175		Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes

Hydraulic CylindersSMC

896 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CHKG Thin Hydraulic Cylinder (16 MPa, ø20 to ø100)

Brand SMC·Hydraulic Cylinders

Available part numbers (896)

CHKGB20-5, CHKGB20-10, CHKGB20-15, CHKGB20-20, CHKGB20-25, CHKGB20-30, CHKGB20-35, CHKGB20-40, CHKGB20-45, CHKGB20-50 + 886 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CHKGB20-5	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKGB20-10	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKGB20-15	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKGB20-20	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKGB20-25	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKGB20-30	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKGB20-35	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKGB20-40	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKGB20-45	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKGB20-50	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKGB20-75	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKGB20-100	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKGB25-5	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKGB25-10	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKGB25-15	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKGB25-20	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKGB25-25	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKGB25-30	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKGB25-35	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKGB25-40	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKGB25-45	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKGB25-50	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKGB25-75	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKGB25-100	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKGB32-5	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKGB32-10	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKGB32-15	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKGB32-20	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKGB32-25	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKGB32-30	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKGB32-35	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKGB32-40	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKGB32-45	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKGB32-50	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKGB32-75	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKGB32-100	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKGB32-125	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CHKGB40-5	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKGB40-10	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKGB40-15	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKGB40-20	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKGB40-25	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKGB40-30	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKGB40-35	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKGB40-40	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKGB40-45	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKGB40-50	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKGB40-75	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKGB40-100	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKGB40-125	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CHKGB40-150	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHKGB40-175	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CHKGB50-5	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKGB50-10	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKGB50-15	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKGB50-20	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKGB50-25	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKGB50-30	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKGB50-35	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKGB50-40	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKGB50-45	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKGB50-50	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKGB50-75	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKGB50-100	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKGB50-125	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CHKGB50-150	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHKGB50-175	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CHKGB63-5	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKGB63-10	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKGB63-15	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKGB63-20	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKGB63-25	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKGB63-30	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKGB63-35	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKGB63-40	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKGB63-45	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKGB63-50	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKGB63-75	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKGB63-100	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKGB63-125	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CHKGB63-150	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHKGB63-175	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CHKGB80-5	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKGB80-10	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKGB80-15	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKGB80-20	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKGB80-25	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKGB80-30	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKGB80-35	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKGB80-40	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKGB80-45	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKGB80-50	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKGB80-75	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKGB80-100	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKGB80-125	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CHKGB80-150	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHKGB80-175	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CHKGB100-5	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKGB100-10	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKGB100-15	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKGB100-20	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKGB100-25	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKGB100-30	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKGB100-35	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKGB100-40	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKGB100-45	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKGB100-50	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKGB100-75	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKGB100-100	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKGB100-125	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CHKGB100-150	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHKGB100-175	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CHKGL20-5	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKGL20-10	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKGL20-15	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKGL20-20	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKGL20-25	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKGL20-30	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKGL20-35	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKGL20-40	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKGL20-45	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKGL20-50	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKGL20-75	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKGL20-100	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKGL25-5	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKGL25-10	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKGL25-15	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKGL25-20	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKGL25-25	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKGL25-30	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKGL25-35	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKGL25-40	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKGL25-45	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKGL25-50	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKGL25-75	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKGL25-100	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKGL32-5	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKGL32-10	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKGL32-15	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKGL32-20	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKGL32-25	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKGL32-30	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKGL32-35	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKGL32-40	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKGL32-45	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKGL32-50	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKGL32-75	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKGL32-100	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKGL32-125	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CHKGL40-5	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKGL40-10	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKGL40-15	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKGL40-20	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKGL40-25	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKGL40-30	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKGL40-35	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKGL40-40	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKGL40-45	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKGL40-50	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKGL40-75	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKGL40-100	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKGL40-125	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CHKGL40-150	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHKGL40-175	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CHKGL50-5	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKGL50-10	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKGL50-15	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKGL50-20	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKGL50-25	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKGL50-30	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKGL50-35	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKGL50-40	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKGL50-45	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKGL50-50	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKGL50-75	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKGL50-100	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKGL50-125	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CHKGL50-150	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHKGL50-175	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CHKGL63-5	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKGL63-10	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKGL63-15	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKGL63-20	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKGL63-25	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKGL63-30	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKGL63-35	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKGL63-40	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKGL63-45	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKGL63-50	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKGL63-75	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKGL63-100	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKGL63-125	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CHKGL63-150	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHKGL63-175	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CHKGL80-5	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKGL80-10	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKGL80-15	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKGL80-20	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKGL80-25	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKGL80-30	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKGL80-35	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKGL80-40	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKGL80-45	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKGL80-50	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKGL80-75	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKGL80-100	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKGL80-125	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CHKGL80-150	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHKGL80-175	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CHKGL100-5	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKGL100-10	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKGL100-15	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKGL100-20	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKGL100-25	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKGL100-30	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKGL100-35	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKGL100-40	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKGL100-45	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKGL100-50	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKGL100-75	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKGL100-100	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKGL100-125	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CHKGL100-150	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHKGL100-175	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CHKGLB20-5	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKGLB20-10	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKGLB20-15	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKGLB20-20	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKGLB20-25	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKGLB20-30	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKGLB20-35	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKGLB20-40	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKGLB20-45	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKGLB20-50	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKGLB20-75	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKGLB20-100	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKGLB25-5	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKGLB25-10	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKGLB25-15	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKGLB25-20	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKGLB25-25	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKGLB25-30	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKGLB25-35	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKGLB25-40	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKGLB25-45	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKGLB25-50	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKGLB25-75	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKGLB25-100	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKGLB32-5	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKGLB32-10	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKGLB32-15	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKGLB32-20	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKGLB32-25	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKGLB32-30	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKGLB32-35	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKGLB32-40	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKGLB32-45	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKGLB32-50	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKGLB32-75	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKGLB32-100	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKGLB32-125	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CHKGLB40-5	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKGLB40-10	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKGLB40-15	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKGLB40-20	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKGLB40-25	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKGLB40-30	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKGLB40-35	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKGLB40-40	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKGLB40-45	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKGLB40-50	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKGLB40-75	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKGLB40-100	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKGLB40-125	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CHKGLB40-150	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHKGLB40-175	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CHKGLB50-5	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKGLB50-10	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKGLB50-15	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKGLB50-20	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKGLB50-25	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKGLB50-30	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKGLB50-35	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKGLB50-40	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKGLB50-45	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKGLB50-50	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKGLB50-75	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKGLB50-100	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKGLB50-125	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CHKGLB50-150	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHKGLB50-175	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CHKGLB63-5	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKGLB63-10	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKGLB63-15	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKGLB63-20	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKGLB63-25	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKGLB63-30	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKGLB63-35	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKGLB63-40	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKGLB63-45	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKGLB63-50	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKGLB63-75	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKGLB63-100	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKGLB63-125	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CHKGLB63-150	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHKGLB63-175	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CHKGLB80-5	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKGLB80-10	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKGLB80-15	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKGLB80-20	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKGLB80-25	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKGLB80-30	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKGLB80-35	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKGLB80-40	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKGLB80-45	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKGLB80-50	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKGLB80-75	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKGLB80-100	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKGLB80-125	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CHKGLB80-150	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHKGLB80-175	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CHKGLB100-5	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKGLB100-10	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKGLB100-15	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKGLB100-20	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKGLB100-25	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKGLB100-30	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKGLB100-35	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKGLB100-40	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKGLB100-45	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKGLB100-50	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKGLB100-75	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKGLB100-100	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKGLB100-125	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CHKGLB100-150	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHKGLB100-175	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CHKGLD20-5	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKGLD20-10	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKGLD20-15	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKGLD20-20	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKGLD20-25	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKGLD20-30	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKGLD20-35	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKGLD20-40	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKGLD20-45	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKGLD20-50	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKGLD20-75	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKGLD20-100	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKGLD25-5	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKGLD25-10	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKGLD25-15	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKGLD25-20	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKGLD25-25	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKGLD25-30	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKGLD25-35	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKGLD25-40	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKGLD25-45	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKGLD25-50	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKGLD25-75	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKGLD25-100	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKGLD32-5	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKGLD32-10	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKGLD32-15	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKGLD32-20	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKGLD32-25	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKGLD32-30	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKGLD32-35	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKGLD32-40	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKGLD32-45	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKGLD32-50	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKGLD32-75	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKGLD32-100	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKGLD32-125	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CHKGLD40-5	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKGLD40-10	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKGLD40-15	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKGLD40-20	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKGLD40-25	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKGLD40-30	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKGLD40-35	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKGLD40-40	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKGLD40-45	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKGLD40-50	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKGLD40-75	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKGLD40-100	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKGLD40-125	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CHKGLD40-150	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHKGLD40-175	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CHKGLD50-5	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKGLD50-10	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKGLD50-15	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKGLD50-20	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKGLD50-25	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKGLD50-30	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKGLD50-35	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKGLD50-40	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKGLD50-45	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKGLD50-50	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKGLD50-75	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKGLD50-100	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKGLD50-125	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CHKGLD50-150	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHKGLD50-175	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CHKGLD63-5	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKGLD63-10	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKGLD63-15	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKGLD63-20	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKGLD63-25	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKGLD63-30	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKGLD63-35	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKGLD63-40	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKGLD63-45	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKGLD63-50	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKGLD63-75	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKGLD63-100	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKGLD63-125	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CHKGLD63-150	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHKGLD63-175	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CHKGLD80-5	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKGLD80-10	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKGLD80-15	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKGLD80-20	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKGLD80-25	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKGLD80-30	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKGLD80-35	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKGLD80-40	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKGLD80-45	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKGLD80-50	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKGLD80-75	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKGLD80-100	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKGLD80-125	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CHKGLD80-150	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHKGLD80-175	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CHKGLD100-5	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 5 mm \| Auto switch magnet: No
	CHKGLD100-10	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 10 mm \| Auto switch magnet: No
	CHKGLD100-15	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 15 mm \| Auto switch magnet: No
	CHKGLD100-20	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 20 mm \| Auto switch magnet: No
	CHKGLD100-25	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHKGLD100-30	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 30 mm \| Auto switch magnet: No
	CHKGLD100-35	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 35 mm \| Auto switch magnet: No
	CHKGLD100-40	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 40 mm \| Auto switch magnet: No
	CHKGLD100-45	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 45 mm \| Auto switch magnet: No
	CHKGLD100-50	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHKGLD100-75	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHKGLD100-100	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHKGLD100-125	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: No
	CHKGLD100-150	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHKGLD100-175	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: No
	CHDKGB20-5	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKGB20-10	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKGB20-15	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKGB20-20	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKGB20-25	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKGB20-30	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKGB20-35	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKGB20-40	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKGB20-45	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKGB20-50	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKGB20-75	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKGB20-100	Mounting: Basic (through-hole) \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKGB25-5	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKGB25-10	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKGB25-15	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKGB25-20	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKGB25-25	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKGB25-30	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKGB25-35	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKGB25-40	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKGB25-45	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKGB25-50	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKGB25-75	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKGB25-100	Mounting: Basic (through-hole) \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKGB32-5	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKGB32-10	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKGB32-15	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKGB32-20	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKGB32-25	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKGB32-30	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKGB32-35	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKGB32-40	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKGB32-45	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKGB32-50	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKGB32-75	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKGB32-100	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKGB32-125	Mounting: Basic (through-hole) \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CHDKGB40-5	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKGB40-10	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKGB40-15	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKGB40-20	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKGB40-25	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKGB40-30	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKGB40-35	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKGB40-40	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKGB40-45	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKGB40-50	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKGB40-75	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKGB40-100	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKGB40-125	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CHDKGB40-150	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDKGB40-175	Mounting: Basic (through-hole) \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CHDKGB50-5	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKGB50-10	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKGB50-15	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKGB50-20	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKGB50-25	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKGB50-30	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKGB50-35	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKGB50-40	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKGB50-45	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKGB50-50	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKGB50-75	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKGB50-100	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKGB50-125	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CHDKGB50-150	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDKGB50-175	Mounting: Basic (through-hole) \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CHDKGB63-5	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKGB63-10	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKGB63-15	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKGB63-20	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKGB63-25	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKGB63-30	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKGB63-35	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKGB63-40	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKGB63-45	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKGB63-50	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKGB63-75	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKGB63-100	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKGB63-125	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CHDKGB63-150	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDKGB63-175	Mounting: Basic (through-hole) \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CHDKGB80-5	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKGB80-10	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKGB80-15	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKGB80-20	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKGB80-25	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKGB80-30	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKGB80-35	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKGB80-40	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKGB80-45	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKGB80-50	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKGB80-75	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKGB80-100	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKGB80-125	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CHDKGB80-150	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDKGB80-175	Mounting: Basic (through-hole) \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CHDKGB100-5	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKGB100-10	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKGB100-15	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKGB100-20	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKGB100-25	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKGB100-30	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKGB100-35	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKGB100-40	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKGB100-45	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKGB100-50	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKGB100-75	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKGB100-100	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKGB100-125	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CHDKGB100-150	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDKGB100-175	Mounting: Basic (through-hole) \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CHDKGL20-5	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKGL20-10	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKGL20-15	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKGL20-20	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKGL20-25	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKGL20-30	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKGL20-35	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKGL20-40	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKGL20-45	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKGL20-50	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKGL20-75	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKGL20-100	Mounting: Foot, ports top \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKGL25-5	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKGL25-10	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKGL25-15	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKGL25-20	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKGL25-25	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKGL25-30	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKGL25-35	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKGL25-40	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKGL25-45	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKGL25-50	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKGL25-75	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKGL25-100	Mounting: Foot, ports top \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKGL32-5	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKGL32-10	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKGL32-15	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKGL32-20	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKGL32-25	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKGL32-30	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKGL32-35	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKGL32-40	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKGL32-45	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKGL32-50	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKGL32-75	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKGL32-100	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKGL32-125	Mounting: Foot, ports top \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CHDKGL40-5	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKGL40-10	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKGL40-15	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKGL40-20	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKGL40-25	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKGL40-30	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKGL40-35	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKGL40-40	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKGL40-45	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKGL40-50	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKGL40-75	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKGL40-100	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKGL40-125	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CHDKGL40-150	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDKGL40-175	Mounting: Foot, ports top \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CHDKGL50-5	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKGL50-10	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKGL50-15	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKGL50-20	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKGL50-25	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKGL50-30	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKGL50-35	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKGL50-40	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKGL50-45	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKGL50-50	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKGL50-75	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKGL50-100	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKGL50-125	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CHDKGL50-150	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDKGL50-175	Mounting: Foot, ports top \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CHDKGL63-5	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKGL63-10	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKGL63-15	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKGL63-20	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKGL63-25	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKGL63-30	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKGL63-35	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKGL63-40	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKGL63-45	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKGL63-50	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKGL63-75	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKGL63-100	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKGL63-125	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CHDKGL63-150	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDKGL63-175	Mounting: Foot, ports top \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CHDKGL80-5	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKGL80-10	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKGL80-15	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKGL80-20	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKGL80-25	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKGL80-30	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKGL80-35	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKGL80-40	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKGL80-45	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKGL80-50	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKGL80-75	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKGL80-100	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKGL80-125	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CHDKGL80-150	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDKGL80-175	Mounting: Foot, ports top \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CHDKGL100-5	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKGL100-10	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKGL100-15	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKGL100-20	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKGL100-25	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKGL100-30	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKGL100-35	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKGL100-40	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKGL100-45	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKGL100-50	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKGL100-75	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKGL100-100	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKGL100-125	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CHDKGL100-150	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDKGL100-175	Mounting: Foot, ports top \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CHDKGLB20-5	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKGLB20-10	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKGLB20-15	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKGLB20-20	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKGLB20-25	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKGLB20-30	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKGLB20-35	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKGLB20-40	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKGLB20-45	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKGLB20-50	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKGLB20-75	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKGLB20-100	Mounting: Foot, ports right \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKGLB25-5	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKGLB25-10	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKGLB25-15	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKGLB25-20	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKGLB25-25	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKGLB25-30	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKGLB25-35	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKGLB25-40	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKGLB25-45	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKGLB25-50	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKGLB25-75	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKGLB25-100	Mounting: Foot, ports right \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKGLB32-5	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKGLB32-10	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKGLB32-15	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKGLB32-20	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKGLB32-25	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKGLB32-30	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKGLB32-35	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKGLB32-40	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKGLB32-45	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKGLB32-50	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKGLB32-75	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKGLB32-100	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKGLB32-125	Mounting: Foot, ports right \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CHDKGLB40-5	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKGLB40-10	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKGLB40-15	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKGLB40-20	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKGLB40-25	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKGLB40-30	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKGLB40-35	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKGLB40-40	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKGLB40-45	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKGLB40-50	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKGLB40-75	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKGLB40-100	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKGLB40-125	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CHDKGLB40-150	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDKGLB40-175	Mounting: Foot, ports right \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CHDKGLB50-5	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKGLB50-10	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKGLB50-15	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKGLB50-20	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKGLB50-25	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKGLB50-30	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKGLB50-35	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKGLB50-40	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKGLB50-45	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKGLB50-50	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKGLB50-75	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKGLB50-100	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKGLB50-125	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CHDKGLB50-150	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDKGLB50-175	Mounting: Foot, ports right \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CHDKGLB63-5	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKGLB63-10	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKGLB63-15	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKGLB63-20	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKGLB63-25	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKGLB63-30	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKGLB63-35	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKGLB63-40	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKGLB63-45	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKGLB63-50	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKGLB63-75	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKGLB63-100	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKGLB63-125	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CHDKGLB63-150	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDKGLB63-175	Mounting: Foot, ports right \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CHDKGLB80-5	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKGLB80-10	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKGLB80-15	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKGLB80-20	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKGLB80-25	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKGLB80-30	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKGLB80-35	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKGLB80-40	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKGLB80-45	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKGLB80-50	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKGLB80-75	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKGLB80-100	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKGLB80-125	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CHDKGLB80-150	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDKGLB80-175	Mounting: Foot, ports right \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CHDKGLB100-5	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKGLB100-10	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKGLB100-15	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKGLB100-20	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKGLB100-25	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKGLB100-30	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKGLB100-35	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKGLB100-40	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKGLB100-45	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKGLB100-50	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKGLB100-75	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKGLB100-100	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKGLB100-125	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CHDKGLB100-150	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDKGLB100-175	Mounting: Foot, ports right \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CHDKGLD20-5	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKGLD20-10	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKGLD20-15	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKGLD20-20	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKGLD20-25	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKGLD20-30	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKGLD20-35	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKGLD20-40	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKGLD20-45	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKGLD20-50	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKGLD20-75	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKGLD20-100	Mounting: Foot, ports left \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKGLD25-5	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKGLD25-10	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKGLD25-15	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKGLD25-20	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKGLD25-25	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKGLD25-30	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKGLD25-35	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKGLD25-40	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKGLD25-45	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKGLD25-50	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKGLD25-75	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKGLD25-100	Mounting: Foot, ports left \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKGLD32-5	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKGLD32-10	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKGLD32-15	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKGLD32-20	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKGLD32-25	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKGLD32-30	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKGLD32-35	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKGLD32-40	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKGLD32-45	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKGLD32-50	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKGLD32-75	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKGLD32-100	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKGLD32-125	Mounting: Foot, ports left \| Bore: ø32 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CHDKGLD40-5	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKGLD40-10	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKGLD40-15	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKGLD40-20	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKGLD40-25	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKGLD40-30	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKGLD40-35	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKGLD40-40	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKGLD40-45	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKGLD40-50	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKGLD40-75	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKGLD40-100	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKGLD40-125	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CHDKGLD40-150	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDKGLD40-175	Mounting: Foot, ports left \| Bore: ø40 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CHDKGLD50-5	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKGLD50-10	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKGLD50-15	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKGLD50-20	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKGLD50-25	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKGLD50-30	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKGLD50-35	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKGLD50-40	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKGLD50-45	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKGLD50-50	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKGLD50-75	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKGLD50-100	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKGLD50-125	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CHDKGLD50-150	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDKGLD50-175	Mounting: Foot, ports left \| Bore: ø50 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CHDKGLD63-5	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKGLD63-10	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKGLD63-15	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKGLD63-20	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKGLD63-25	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKGLD63-30	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKGLD63-35	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKGLD63-40	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKGLD63-45	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKGLD63-50	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKGLD63-75	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKGLD63-100	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKGLD63-125	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CHDKGLD63-150	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDKGLD63-175	Mounting: Foot, ports left \| Bore: ø63 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CHDKGLD80-5	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKGLD80-10	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKGLD80-15	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKGLD80-20	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKGLD80-25	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKGLD80-30	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKGLD80-35	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKGLD80-40	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKGLD80-45	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKGLD80-50	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKGLD80-75	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKGLD80-100	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKGLD80-125	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CHDKGLD80-150	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDKGLD80-175	Mounting: Foot, ports left \| Bore: ø80 mm \| Stroke: 175 mm \| Auto switch magnet: Yes
	CHDKGLD100-5	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	CHDKGLD100-10	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	CHDKGLD100-15	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	CHDKGLD100-20	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	CHDKGLD100-25	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDKGLD100-30	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	CHDKGLD100-35	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	CHDKGLD100-40	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	CHDKGLD100-45	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	CHDKGLD100-50	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDKGLD100-75	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDKGLD100-100	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDKGLD100-125	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 125 mm \| Auto switch magnet: Yes
	CHDKGLD100-150	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDKGLD100-175	Mounting: Foot, ports left \| Bore: ø100 mm \| Stroke: 175 mm \| Auto switch magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Hydraulics →

Item added to your cart

SMC CHKG Thin Hydraulic Cylinder (16 MPa, ø20 to ø100)
