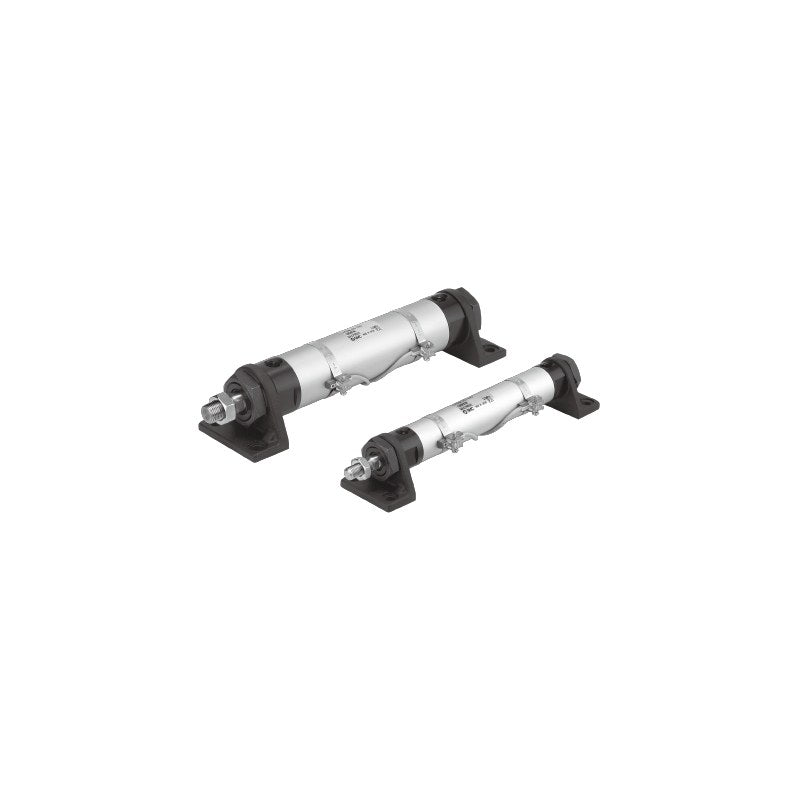

SMC CHM Round Hydraulic Cylinder (3.5 MPa, ø20 to ø40)

SMC CHM Round Hydraulic Cylinder (3.5 MPa, ø20 to ø40)

SMC CHM series round hydraulic cylinder, 3.5 MPa nominal, double acting single rod, ø20 to ø40 mm, with or without a built-in auto switch magnet (CHDM).

Key features

  • Lightweight round body for 3.5 MPa hydraulic service
  • Five mounting styles: basic, axial foot, rod flange, head flange and single clevis
  • Built-in magnet models (CHDM) accept band-mounted D-M9/D-A9/D-C7/D-H7 type auto switches, ordered as a suffix
  • Standard stroke range 25 to 800 mm for all bores
  • Mounting nuts and rod end nut included; knuckle joints, clevis bracket and pins available as options

Specifications

Action Double acting
Fluid Hydraulic oil (general mineral, W/O, O/W)
Nominal pressure 3.5 MPa
Proof pressure 5.0 MPa
Max. allowable pressure 3.5 MPa
Min. operating pressure 0.3 MPa
Ambient and fluid temperature -10 to 80°C (no switch), -10 to 60°C (with switch)
Piston speed 8 to 300 mm/s
Cushion None
Stroke tolerance +1.0/0 (to 250 st), +1.4/0 mm (250 to 800 st)
Source SMC Korea catalog CHM series (SMCKR_CHM.pdf), p. 316-317 (PDF p. 2-3)
CHMB20-25 Mounting: Basic | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: No
CHMB20-50 Mounting: Basic | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: No
CHMB20-75 Mounting: Basic | Bore: ø20 mm | Stroke: 75 mm | Auto switch magnet: No
CHMB20-100 Mounting: Basic | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: No
CHMB20-150 Mounting: Basic | Bore: ø20 mm | Stroke: 150 mm | Auto switch magnet: No
CHMB20-200 Mounting: Basic | Bore: ø20 mm | Stroke: 200 mm | Auto switch magnet: No
CHMB20-250 Mounting: Basic | Bore: ø20 mm | Stroke: 250 mm | Auto switch magnet: No
CHMB20-300 Mounting: Basic | Bore: ø20 mm | Stroke: 300 mm | Auto switch magnet: No
CHMB20-400 Mounting: Basic | Bore: ø20 mm | Stroke: 400 mm | Auto switch magnet: No
CHMB20-500 Mounting: Basic | Bore: ø20 mm | Stroke: 500 mm | Auto switch magnet: No
CHMB25-25 Mounting: Basic | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: No
CHMB25-50 Mounting: Basic | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: No
CHMB25-75 Mounting: Basic | Bore: ø25 mm | Stroke: 75 mm | Auto switch magnet: No
CHMB25-100 Mounting: Basic | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: No
CHMB25-150 Mounting: Basic | Bore: ø25 mm | Stroke: 150 mm | Auto switch magnet: No
CHMB25-200 Mounting: Basic | Bore: ø25 mm | Stroke: 200 mm | Auto switch magnet: No
CHMB25-250 Mounting: Basic | Bore: ø25 mm | Stroke: 250 mm | Auto switch magnet: No
CHMB25-300 Mounting: Basic | Bore: ø25 mm | Stroke: 300 mm | Auto switch magnet: No
CHMB25-400 Mounting: Basic | Bore: ø25 mm | Stroke: 400 mm | Auto switch magnet: No
CHMB25-500 Mounting: Basic | Bore: ø25 mm | Stroke: 500 mm | Auto switch magnet: No
CHMB32-25 Mounting: Basic | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No
CHMB32-50 Mounting: Basic | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
CHMB32-75 Mounting: Basic | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: No
CHMB32-100 Mounting: Basic | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
CHMB32-150 Mounting: Basic | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: No
CHMB32-200 Mounting: Basic | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
CHMB32-250 Mounting: Basic | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: No
CHMB32-300 Mounting: Basic | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: No
CHMB32-400 Mounting: Basic | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: No
CHMB32-500 Mounting: Basic | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: No
CHMB40-25 Mounting: Basic | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
CHMB40-50 Mounting: Basic | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
CHMB40-75 Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
CHMB40-100 Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
CHMB40-150 Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
CHMB40-200 Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
CHMB40-250 Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
CHMB40-300 Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
CHMB40-400 Mounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
CHMB40-500 Mounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
CHML20-25 Mounting: Axial foot | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: No
CHML20-50 Mounting: Axial foot | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: No
CHML20-75 Mounting: Axial foot | Bore: ø20 mm | Stroke: 75 mm | Auto switch magnet: No
CHML20-100 Mounting: Axial foot | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: No
CHML20-150 Mounting: Axial foot | Bore: ø20 mm | Stroke: 150 mm | Auto switch magnet: No
CHML20-200 Mounting: Axial foot | Bore: ø20 mm | Stroke: 200 mm | Auto switch magnet: No
CHML20-250 Mounting: Axial foot | Bore: ø20 mm | Stroke: 250 mm | Auto switch magnet: No
CHML20-300 Mounting: Axial foot | Bore: ø20 mm | Stroke: 300 mm | Auto switch magnet: No
CHML20-400 Mounting: Axial foot | Bore: ø20 mm | Stroke: 400 mm | Auto switch magnet: No
CHML20-500 Mounting: Axial foot | Bore: ø20 mm | Stroke: 500 mm | Auto switch magnet: No
CHML25-25 Mounting: Axial foot | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: No
CHML25-50 Mounting: Axial foot | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: No
CHML25-75 Mounting: Axial foot | Bore: ø25 mm | Stroke: 75 mm | Auto switch magnet: No
CHML25-100 Mounting: Axial foot | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: No
CHML25-150 Mounting: Axial foot | Bore: ø25 mm | Stroke: 150 mm | Auto switch magnet: No
CHML25-200 Mounting: Axial foot | Bore: ø25 mm | Stroke: 200 mm | Auto switch magnet: No
CHML25-250 Mounting: Axial foot | Bore: ø25 mm | Stroke: 250 mm | Auto switch magnet: No
CHML25-300 Mounting: Axial foot | Bore: ø25 mm | Stroke: 300 mm | Auto switch magnet: No
CHML25-400 Mounting: Axial foot | Bore: ø25 mm | Stroke: 400 mm | Auto switch magnet: No
CHML25-500 Mounting: Axial foot | Bore: ø25 mm | Stroke: 500 mm | Auto switch magnet: No
CHML32-25 Mounting: Axial foot | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No
CHML32-50 Mounting: Axial foot | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
CHML32-75 Mounting: Axial foot | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: No
CHML32-100 Mounting: Axial foot | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
CHML32-150 Mounting: Axial foot | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: No
CHML32-200 Mounting: Axial foot | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
CHML32-250 Mounting: Axial foot | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: No
CHML32-300 Mounting: Axial foot | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: No
CHML32-400 Mounting: Axial foot | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: No
CHML32-500 Mounting: Axial foot | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: No
CHML40-25 Mounting: Axial foot | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
CHML40-50 Mounting: Axial foot | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
CHML40-75 Mounting: Axial foot | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
CHML40-100 Mounting: Axial foot | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
CHML40-150 Mounting: Axial foot | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
CHML40-200 Mounting: Axial foot | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
CHML40-250 Mounting: Axial foot | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
CHML40-300 Mounting: Axial foot | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
CHML40-400 Mounting: Axial foot | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
CHML40-500 Mounting: Axial foot | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
CHMF20-25 Mounting: Rod flange | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: No
CHMF20-50 Mounting: Rod flange | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: No
CHMF20-75 Mounting: Rod flange | Bore: ø20 mm | Stroke: 75 mm | Auto switch magnet: No
CHMF20-100 Mounting: Rod flange | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: No
CHMF20-150 Mounting: Rod flange | Bore: ø20 mm | Stroke: 150 mm | Auto switch magnet: No
CHMF20-200 Mounting: Rod flange | Bore: ø20 mm | Stroke: 200 mm | Auto switch magnet: No
CHMF20-250 Mounting: Rod flange | Bore: ø20 mm | Stroke: 250 mm | Auto switch magnet: No
CHMF20-300 Mounting: Rod flange | Bore: ø20 mm | Stroke: 300 mm | Auto switch magnet: No
CHMF20-400 Mounting: Rod flange | Bore: ø20 mm | Stroke: 400 mm | Auto switch magnet: No
CHMF20-500 Mounting: Rod flange | Bore: ø20 mm | Stroke: 500 mm | Auto switch magnet: No
CHMF25-25 Mounting: Rod flange | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: No
CHMF25-50 Mounting: Rod flange | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: No
CHMF25-75 Mounting: Rod flange | Bore: ø25 mm | Stroke: 75 mm | Auto switch magnet: No
CHMF25-100 Mounting: Rod flange | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: No
CHMF25-150 Mounting: Rod flange | Bore: ø25 mm | Stroke: 150 mm | Auto switch magnet: No
CHMF25-200 Mounting: Rod flange | Bore: ø25 mm | Stroke: 200 mm | Auto switch magnet: No
CHMF25-250 Mounting: Rod flange | Bore: ø25 mm | Stroke: 250 mm | Auto switch magnet: No
CHMF25-300 Mounting: Rod flange | Bore: ø25 mm | Stroke: 300 mm | Auto switch magnet: No
CHMF25-400 Mounting: Rod flange | Bore: ø25 mm | Stroke: 400 mm | Auto switch magnet: No
CHMF25-500 Mounting: Rod flange | Bore: ø25 mm | Stroke: 500 mm | Auto switch magnet: No
CHMF32-25 Mounting: Rod flange | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No
CHMF32-50 Mounting: Rod flange | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
CHMF32-75 Mounting: Rod flange | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: No
CHMF32-100 Mounting: Rod flange | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
CHMF32-150 Mounting: Rod flange | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: No
CHMF32-200 Mounting: Rod flange | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
CHMF32-250 Mounting: Rod flange | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: No
CHMF32-300 Mounting: Rod flange | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: No
CHMF32-400 Mounting: Rod flange | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: No
CHMF32-500 Mounting: Rod flange | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: No
CHMF40-25 Mounting: Rod flange | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
CHMF40-50 Mounting: Rod flange | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
CHMF40-75 Mounting: Rod flange | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
CHMF40-100 Mounting: Rod flange | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
CHMF40-150 Mounting: Rod flange | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
CHMF40-200 Mounting: Rod flange | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
CHMF40-250 Mounting: Rod flange | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
CHMF40-300 Mounting: Rod flange | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
CHMF40-400 Mounting: Rod flange | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
CHMF40-500 Mounting: Rod flange | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
CHMG20-25 Mounting: Head flange | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: No
CHMG20-50 Mounting: Head flange | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: No
CHMG20-75 Mounting: Head flange | Bore: ø20 mm | Stroke: 75 mm | Auto switch magnet: No
CHMG20-100 Mounting: Head flange | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: No
CHMG20-150 Mounting: Head flange | Bore: ø20 mm | Stroke: 150 mm | Auto switch magnet: No
CHMG20-200 Mounting: Head flange | Bore: ø20 mm | Stroke: 200 mm | Auto switch magnet: No
CHMG20-250 Mounting: Head flange | Bore: ø20 mm | Stroke: 250 mm | Auto switch magnet: No
CHMG20-300 Mounting: Head flange | Bore: ø20 mm | Stroke: 300 mm | Auto switch magnet: No
CHMG20-400 Mounting: Head flange | Bore: ø20 mm | Stroke: 400 mm | Auto switch magnet: No
CHMG20-500 Mounting: Head flange | Bore: ø20 mm | Stroke: 500 mm | Auto switch magnet: No
CHMG25-25 Mounting: Head flange | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: No
CHMG25-50 Mounting: Head flange | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: No
CHMG25-75 Mounting: Head flange | Bore: ø25 mm | Stroke: 75 mm | Auto switch magnet: No
CHMG25-100 Mounting: Head flange | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: No
CHMG25-150 Mounting: Head flange | Bore: ø25 mm | Stroke: 150 mm | Auto switch magnet: No
CHMG25-200 Mounting: Head flange | Bore: ø25 mm | Stroke: 200 mm | Auto switch magnet: No
CHMG25-250 Mounting: Head flange | Bore: ø25 mm | Stroke: 250 mm | Auto switch magnet: No
CHMG25-300 Mounting: Head flange | Bore: ø25 mm | Stroke: 300 mm | Auto switch magnet: No
CHMG25-400 Mounting: Head flange | Bore: ø25 mm | Stroke: 400 mm | Auto switch magnet: No
CHMG25-500 Mounting: Head flange | Bore: ø25 mm | Stroke: 500 mm | Auto switch magnet: No
CHMG32-25 Mounting: Head flange | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No
CHMG32-50 Mounting: Head flange | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
CHMG32-75 Mounting: Head flange | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: No
CHMG32-100 Mounting: Head flange | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
CHMG32-150 Mounting: Head flange | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: No
CHMG32-200 Mounting: Head flange | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
CHMG32-250 Mounting: Head flange | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: No
CHMG32-300 Mounting: Head flange | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: No
CHMG32-400 Mounting: Head flange | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: No
CHMG32-500 Mounting: Head flange | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: No
CHMG40-25 Mounting: Head flange | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
CHMG40-50 Mounting: Head flange | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
CHMG40-75 Mounting: Head flange | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
CHMG40-100 Mounting: Head flange | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
CHMG40-150 Mounting: Head flange | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
CHMG40-200 Mounting: Head flange | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
CHMG40-250 Mounting: Head flange | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
CHMG40-300 Mounting: Head flange | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
CHMG40-400 Mounting: Head flange | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
CHMG40-500 Mounting: Head flange | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
CHMC20-25 Mounting: Single clevis | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: No
CHMC20-50 Mounting: Single clevis | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: No
CHMC20-75 Mounting: Single clevis | Bore: ø20 mm | Stroke: 75 mm | Auto switch magnet: No
CHMC20-100 Mounting: Single clevis | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: No
CHMC20-150 Mounting: Single clevis | Bore: ø20 mm | Stroke: 150 mm | Auto switch magnet: No
CHMC20-200 Mounting: Single clevis | Bore: ø20 mm | Stroke: 200 mm | Auto switch magnet: No
CHMC20-250 Mounting: Single clevis | Bore: ø20 mm | Stroke: 250 mm | Auto switch magnet: No
CHMC20-300 Mounting: Single clevis | Bore: ø20 mm | Stroke: 300 mm | Auto switch magnet: No
CHMC20-400 Mounting: Single clevis | Bore: ø20 mm | Stroke: 400 mm | Auto switch magnet: No
CHMC20-500 Mounting: Single clevis | Bore: ø20 mm | Stroke: 500 mm | Auto switch magnet: No
CHMC25-25 Mounting: Single clevis | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: No
CHMC25-50 Mounting: Single clevis | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: No
CHMC25-75 Mounting: Single clevis | Bore: ø25 mm | Stroke: 75 mm | Auto switch magnet: No
CHMC25-100 Mounting: Single clevis | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: No
CHMC25-150 Mounting: Single clevis | Bore: ø25 mm | Stroke: 150 mm | Auto switch magnet: No
CHMC25-200 Mounting: Single clevis | Bore: ø25 mm | Stroke: 200 mm | Auto switch magnet: No
CHMC25-250 Mounting: Single clevis | Bore: ø25 mm | Stroke: 250 mm | Auto switch magnet: No
CHMC25-300 Mounting: Single clevis | Bore: ø25 mm | Stroke: 300 mm | Auto switch magnet: No
CHMC25-400 Mounting: Single clevis | Bore: ø25 mm | Stroke: 400 mm | Auto switch magnet: No
CHMC25-500 Mounting: Single clevis | Bore: ø25 mm | Stroke: 500 mm | Auto switch magnet: No
CHMC32-25 Mounting: Single clevis | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No
CHMC32-50 Mounting: Single clevis | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
CHMC32-75 Mounting: Single clevis | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: No
CHMC32-100 Mounting: Single clevis | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
CHMC32-150 Mounting: Single clevis | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: No
CHMC32-200 Mounting: Single clevis | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
CHMC32-250 Mounting: Single clevis | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: No
CHMC32-300 Mounting: Single clevis | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: No
CHMC32-400 Mounting: Single clevis | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: No
CHMC32-500 Mounting: Single clevis | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: No
CHMC40-25 Mounting: Single clevis | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
CHMC40-50 Mounting: Single clevis | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
CHMC40-75 Mounting: Single clevis | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
CHMC40-100 Mounting: Single clevis | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
CHMC40-150 Mounting: Single clevis | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
CHMC40-200 Mounting: Single clevis | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
CHMC40-250 Mounting: Single clevis | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
CHMC40-300 Mounting: Single clevis | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
CHMC40-400 Mounting: Single clevis | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
CHMC40-500 Mounting: Single clevis | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
CHDMB20-25 Mounting: Basic | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDMB20-50 Mounting: Basic | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDMB20-75 Mounting: Basic | Bore: ø20 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDMB20-100 Mounting: Basic | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDMB20-150 Mounting: Basic | Bore: ø20 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDMB20-200 Mounting: Basic | Bore: ø20 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDMB20-250 Mounting: Basic | Bore: ø20 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDMB20-300 Mounting: Basic | Bore: ø20 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDMB20-400 Mounting: Basic | Bore: ø20 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDMB20-500 Mounting: Basic | Bore: ø20 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDMB25-25 Mounting: Basic | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDMB25-50 Mounting: Basic | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDMB25-75 Mounting: Basic | Bore: ø25 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDMB25-100 Mounting: Basic | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDMB25-150 Mounting: Basic | Bore: ø25 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDMB25-200 Mounting: Basic | Bore: ø25 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDMB25-250 Mounting: Basic | Bore: ø25 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDMB25-300 Mounting: Basic | Bore: ø25 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDMB25-400 Mounting: Basic | Bore: ø25 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDMB25-500 Mounting: Basic | Bore: ø25 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDMB32-25 Mounting: Basic | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDMB32-50 Mounting: Basic | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDMB32-75 Mounting: Basic | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDMB32-100 Mounting: Basic | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDMB32-150 Mounting: Basic | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDMB32-200 Mounting: Basic | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDMB32-250 Mounting: Basic | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDMB32-300 Mounting: Basic | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDMB32-400 Mounting: Basic | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDMB32-500 Mounting: Basic | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDMB40-25 Mounting: Basic | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDMB40-50 Mounting: Basic | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDMB40-75 Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDMB40-100 Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDMB40-150 Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDMB40-200 Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDMB40-250 Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDMB40-300 Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDMB40-400 Mounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDMB40-500 Mounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDML20-25 Mounting: Axial foot | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDML20-50 Mounting: Axial foot | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDML20-75 Mounting: Axial foot | Bore: ø20 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDML20-100 Mounting: Axial foot | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDML20-150 Mounting: Axial foot | Bore: ø20 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDML20-200 Mounting: Axial foot | Bore: ø20 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDML20-250 Mounting: Axial foot | Bore: ø20 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDML20-300 Mounting: Axial foot | Bore: ø20 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDML20-400 Mounting: Axial foot | Bore: ø20 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDML20-500 Mounting: Axial foot | Bore: ø20 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDML25-25 Mounting: Axial foot | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDML25-50 Mounting: Axial foot | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDML25-75 Mounting: Axial foot | Bore: ø25 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDML25-100 Mounting: Axial foot | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDML25-150 Mounting: Axial foot | Bore: ø25 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDML25-200 Mounting: Axial foot | Bore: ø25 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDML25-250 Mounting: Axial foot | Bore: ø25 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDML25-300 Mounting: Axial foot | Bore: ø25 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDML25-400 Mounting: Axial foot | Bore: ø25 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDML25-500 Mounting: Axial foot | Bore: ø25 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDML32-25 Mounting: Axial foot | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDML32-50 Mounting: Axial foot | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDML32-75 Mounting: Axial foot | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDML32-100 Mounting: Axial foot | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDML32-150 Mounting: Axial foot | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDML32-200 Mounting: Axial foot | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDML32-250 Mounting: Axial foot | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDML32-300 Mounting: Axial foot | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDML32-400 Mounting: Axial foot | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDML32-500 Mounting: Axial foot | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDML40-25 Mounting: Axial foot | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDML40-50 Mounting: Axial foot | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDML40-75 Mounting: Axial foot | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDML40-100 Mounting: Axial foot | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDML40-150 Mounting: Axial foot | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDML40-200 Mounting: Axial foot | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDML40-250 Mounting: Axial foot | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDML40-300 Mounting: Axial foot | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDML40-400 Mounting: Axial foot | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDML40-500 Mounting: Axial foot | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDMF20-25 Mounting: Rod flange | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDMF20-50 Mounting: Rod flange | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDMF20-75 Mounting: Rod flange | Bore: ø20 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDMF20-100 Mounting: Rod flange | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDMF20-150 Mounting: Rod flange | Bore: ø20 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDMF20-200 Mounting: Rod flange | Bore: ø20 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDMF20-250 Mounting: Rod flange | Bore: ø20 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDMF20-300 Mounting: Rod flange | Bore: ø20 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDMF20-400 Mounting: Rod flange | Bore: ø20 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDMF20-500 Mounting: Rod flange | Bore: ø20 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDMF25-25 Mounting: Rod flange | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDMF25-50 Mounting: Rod flange | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDMF25-75 Mounting: Rod flange | Bore: ø25 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDMF25-100 Mounting: Rod flange | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDMF25-150 Mounting: Rod flange | Bore: ø25 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDMF25-200 Mounting: Rod flange | Bore: ø25 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDMF25-250 Mounting: Rod flange | Bore: ø25 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDMF25-300 Mounting: Rod flange | Bore: ø25 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDMF25-400 Mounting: Rod flange | Bore: ø25 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDMF25-500 Mounting: Rod flange | Bore: ø25 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDMF32-25 Mounting: Rod flange | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDMF32-50 Mounting: Rod flange | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDMF32-75 Mounting: Rod flange | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDMF32-100 Mounting: Rod flange | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDMF32-150 Mounting: Rod flange | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDMF32-200 Mounting: Rod flange | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDMF32-250 Mounting: Rod flange | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDMF32-300 Mounting: Rod flange | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDMF32-400 Mounting: Rod flange | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDMF32-500 Mounting: Rod flange | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDMF40-25 Mounting: Rod flange | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDMF40-50 Mounting: Rod flange | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDMF40-75 Mounting: Rod flange | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDMF40-100 Mounting: Rod flange | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDMF40-150 Mounting: Rod flange | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDMF40-200 Mounting: Rod flange | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDMF40-250 Mounting: Rod flange | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDMF40-300 Mounting: Rod flange | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDMF40-400 Mounting: Rod flange | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDMF40-500 Mounting: Rod flange | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDMG20-25 Mounting: Head flange | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDMG20-50 Mounting: Head flange | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDMG20-75 Mounting: Head flange | Bore: ø20 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDMG20-100 Mounting: Head flange | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDMG20-150 Mounting: Head flange | Bore: ø20 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDMG20-200 Mounting: Head flange | Bore: ø20 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDMG20-250 Mounting: Head flange | Bore: ø20 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDMG20-300 Mounting: Head flange | Bore: ø20 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDMG20-400 Mounting: Head flange | Bore: ø20 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDMG20-500 Mounting: Head flange | Bore: ø20 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDMG25-25 Mounting: Head flange | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDMG25-50 Mounting: Head flange | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDMG25-75 Mounting: Head flange | Bore: ø25 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDMG25-100 Mounting: Head flange | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDMG25-150 Mounting: Head flange | Bore: ø25 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDMG25-200 Mounting: Head flange | Bore: ø25 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDMG25-250 Mounting: Head flange | Bore: ø25 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDMG25-300 Mounting: Head flange | Bore: ø25 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDMG25-400 Mounting: Head flange | Bore: ø25 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDMG25-500 Mounting: Head flange | Bore: ø25 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDMG32-25 Mounting: Head flange | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDMG32-50 Mounting: Head flange | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDMG32-75 Mounting: Head flange | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDMG32-100 Mounting: Head flange | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDMG32-150 Mounting: Head flange | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDMG32-200 Mounting: Head flange | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDMG32-250 Mounting: Head flange | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDMG32-300 Mounting: Head flange | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDMG32-400 Mounting: Head flange | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDMG32-500 Mounting: Head flange | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDMG40-25 Mounting: Head flange | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDMG40-50 Mounting: Head flange | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDMG40-75 Mounting: Head flange | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDMG40-100 Mounting: Head flange | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDMG40-150 Mounting: Head flange | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDMG40-200 Mounting: Head flange | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDMG40-250 Mounting: Head flange | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDMG40-300 Mounting: Head flange | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDMG40-400 Mounting: Head flange | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDMG40-500 Mounting: Head flange | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDMC20-25 Mounting: Single clevis | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDMC20-50 Mounting: Single clevis | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDMC20-75 Mounting: Single clevis | Bore: ø20 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDMC20-100 Mounting: Single clevis | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDMC20-150 Mounting: Single clevis | Bore: ø20 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDMC20-200 Mounting: Single clevis | Bore: ø20 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDMC20-250 Mounting: Single clevis | Bore: ø20 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDMC20-300 Mounting: Single clevis | Bore: ø20 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDMC20-400 Mounting: Single clevis | Bore: ø20 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDMC20-500 Mounting: Single clevis | Bore: ø20 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDMC25-25 Mounting: Single clevis | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDMC25-50 Mounting: Single clevis | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDMC25-75 Mounting: Single clevis | Bore: ø25 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDMC25-100 Mounting: Single clevis | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDMC25-150 Mounting: Single clevis | Bore: ø25 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDMC25-200 Mounting: Single clevis | Bore: ø25 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDMC25-250 Mounting: Single clevis | Bore: ø25 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDMC25-300 Mounting: Single clevis | Bore: ø25 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDMC25-400 Mounting: Single clevis | Bore: ø25 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDMC25-500 Mounting: Single clevis | Bore: ø25 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDMC32-25 Mounting: Single clevis | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDMC32-50 Mounting: Single clevis | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDMC32-75 Mounting: Single clevis | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDMC32-100 Mounting: Single clevis | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDMC32-150 Mounting: Single clevis | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDMC32-200 Mounting: Single clevis | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDMC32-250 Mounting: Single clevis | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDMC32-300 Mounting: Single clevis | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDMC32-400 Mounting: Single clevis | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDMC32-500 Mounting: Single clevis | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDMC40-25 Mounting: Single clevis | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDMC40-50 Mounting: Single clevis | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDMC40-75 Mounting: Single clevis | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDMC40-100 Mounting: Single clevis | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDMC40-150 Mounting: Single clevis | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDMC40-200 Mounting: Single clevis | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDMC40-250 Mounting: Single clevis | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDMC40-300 Mounting: Single clevis | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDMC40-400 Mounting: Single clevis | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDMC40-500 Mounting: Single clevis | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
Hydraulic CylindersSMC
400 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CHM Round Hydraulic Cylinder (3.5 MPa, ø20 to ø40)

Brand SMC·Hydraulic Cylinders

Available part numbers (400)

CHMB20-25, CHMB20-50, CHMB20-75, CHMB20-100, CHMB20-150, CHMB20-200, CHMB20-250, CHMB20-300, CHMB20-400, CHMB20-500 + 390 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CHMB20-25Mounting: Basic | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: No
CHMB20-50Mounting: Basic | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: No
CHMB20-75Mounting: Basic | Bore: ø20 mm | Stroke: 75 mm | Auto switch magnet: No
CHMB20-100Mounting: Basic | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: No
CHMB20-150Mounting: Basic | Bore: ø20 mm | Stroke: 150 mm | Auto switch magnet: No
CHMB20-200Mounting: Basic | Bore: ø20 mm | Stroke: 200 mm | Auto switch magnet: No
CHMB20-250Mounting: Basic | Bore: ø20 mm | Stroke: 250 mm | Auto switch magnet: No
CHMB20-300Mounting: Basic | Bore: ø20 mm | Stroke: 300 mm | Auto switch magnet: No
CHMB20-400Mounting: Basic | Bore: ø20 mm | Stroke: 400 mm | Auto switch magnet: No
CHMB20-500Mounting: Basic | Bore: ø20 mm | Stroke: 500 mm | Auto switch magnet: No
CHMB25-25Mounting: Basic | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: No
CHMB25-50Mounting: Basic | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: No
CHMB25-75Mounting: Basic | Bore: ø25 mm | Stroke: 75 mm | Auto switch magnet: No
CHMB25-100Mounting: Basic | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: No
CHMB25-150Mounting: Basic | Bore: ø25 mm | Stroke: 150 mm | Auto switch magnet: No
CHMB25-200Mounting: Basic | Bore: ø25 mm | Stroke: 200 mm | Auto switch magnet: No
CHMB25-250Mounting: Basic | Bore: ø25 mm | Stroke: 250 mm | Auto switch magnet: No
CHMB25-300Mounting: Basic | Bore: ø25 mm | Stroke: 300 mm | Auto switch magnet: No
CHMB25-400Mounting: Basic | Bore: ø25 mm | Stroke: 400 mm | Auto switch magnet: No
CHMB25-500Mounting: Basic | Bore: ø25 mm | Stroke: 500 mm | Auto switch magnet: No
CHMB32-25Mounting: Basic | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No
CHMB32-50Mounting: Basic | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
CHMB32-75Mounting: Basic | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: No
CHMB32-100Mounting: Basic | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
CHMB32-150Mounting: Basic | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: No
CHMB32-200Mounting: Basic | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
CHMB32-250Mounting: Basic | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: No
CHMB32-300Mounting: Basic | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: No
CHMB32-400Mounting: Basic | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: No
CHMB32-500Mounting: Basic | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: No
CHMB40-25Mounting: Basic | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
CHMB40-50Mounting: Basic | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
CHMB40-75Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
CHMB40-100Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
CHMB40-150Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
CHMB40-200Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
CHMB40-250Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
CHMB40-300Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
CHMB40-400Mounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
CHMB40-500Mounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
CHML20-25Mounting: Axial foot | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: No
CHML20-50Mounting: Axial foot | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: No
CHML20-75Mounting: Axial foot | Bore: ø20 mm | Stroke: 75 mm | Auto switch magnet: No
CHML20-100Mounting: Axial foot | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: No
CHML20-150Mounting: Axial foot | Bore: ø20 mm | Stroke: 150 mm | Auto switch magnet: No
CHML20-200Mounting: Axial foot | Bore: ø20 mm | Stroke: 200 mm | Auto switch magnet: No
CHML20-250Mounting: Axial foot | Bore: ø20 mm | Stroke: 250 mm | Auto switch magnet: No
CHML20-300Mounting: Axial foot | Bore: ø20 mm | Stroke: 300 mm | Auto switch magnet: No
CHML20-400Mounting: Axial foot | Bore: ø20 mm | Stroke: 400 mm | Auto switch magnet: No
CHML20-500Mounting: Axial foot | Bore: ø20 mm | Stroke: 500 mm | Auto switch magnet: No
CHML25-25Mounting: Axial foot | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: No
CHML25-50Mounting: Axial foot | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: No
CHML25-75Mounting: Axial foot | Bore: ø25 mm | Stroke: 75 mm | Auto switch magnet: No
CHML25-100Mounting: Axial foot | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: No
CHML25-150Mounting: Axial foot | Bore: ø25 mm | Stroke: 150 mm | Auto switch magnet: No
CHML25-200Mounting: Axial foot | Bore: ø25 mm | Stroke: 200 mm | Auto switch magnet: No
CHML25-250Mounting: Axial foot | Bore: ø25 mm | Stroke: 250 mm | Auto switch magnet: No
CHML25-300Mounting: Axial foot | Bore: ø25 mm | Stroke: 300 mm | Auto switch magnet: No
CHML25-400Mounting: Axial foot | Bore: ø25 mm | Stroke: 400 mm | Auto switch magnet: No
CHML25-500Mounting: Axial foot | Bore: ø25 mm | Stroke: 500 mm | Auto switch magnet: No
CHML32-25Mounting: Axial foot | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No
CHML32-50Mounting: Axial foot | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
CHML32-75Mounting: Axial foot | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: No
CHML32-100Mounting: Axial foot | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
CHML32-150Mounting: Axial foot | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: No
CHML32-200Mounting: Axial foot | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
CHML32-250Mounting: Axial foot | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: No
CHML32-300Mounting: Axial foot | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: No
CHML32-400Mounting: Axial foot | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: No
CHML32-500Mounting: Axial foot | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: No
CHML40-25Mounting: Axial foot | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
CHML40-50Mounting: Axial foot | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
CHML40-75Mounting: Axial foot | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
CHML40-100Mounting: Axial foot | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
CHML40-150Mounting: Axial foot | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
CHML40-200Mounting: Axial foot | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
CHML40-250Mounting: Axial foot | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
CHML40-300Mounting: Axial foot | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
CHML40-400Mounting: Axial foot | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
CHML40-500Mounting: Axial foot | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
CHMF20-25Mounting: Rod flange | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: No
CHMF20-50Mounting: Rod flange | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: No
CHMF20-75Mounting: Rod flange | Bore: ø20 mm | Stroke: 75 mm | Auto switch magnet: No
CHMF20-100Mounting: Rod flange | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: No
CHMF20-150Mounting: Rod flange | Bore: ø20 mm | Stroke: 150 mm | Auto switch magnet: No
CHMF20-200Mounting: Rod flange | Bore: ø20 mm | Stroke: 200 mm | Auto switch magnet: No
CHMF20-250Mounting: Rod flange | Bore: ø20 mm | Stroke: 250 mm | Auto switch magnet: No
CHMF20-300Mounting: Rod flange | Bore: ø20 mm | Stroke: 300 mm | Auto switch magnet: No
CHMF20-400Mounting: Rod flange | Bore: ø20 mm | Stroke: 400 mm | Auto switch magnet: No
CHMF20-500Mounting: Rod flange | Bore: ø20 mm | Stroke: 500 mm | Auto switch magnet: No
CHMF25-25Mounting: Rod flange | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: No
CHMF25-50Mounting: Rod flange | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: No
CHMF25-75Mounting: Rod flange | Bore: ø25 mm | Stroke: 75 mm | Auto switch magnet: No
CHMF25-100Mounting: Rod flange | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: No
CHMF25-150Mounting: Rod flange | Bore: ø25 mm | Stroke: 150 mm | Auto switch magnet: No
CHMF25-200Mounting: Rod flange | Bore: ø25 mm | Stroke: 200 mm | Auto switch magnet: No
CHMF25-250Mounting: Rod flange | Bore: ø25 mm | Stroke: 250 mm | Auto switch magnet: No
CHMF25-300Mounting: Rod flange | Bore: ø25 mm | Stroke: 300 mm | Auto switch magnet: No
CHMF25-400Mounting: Rod flange | Bore: ø25 mm | Stroke: 400 mm | Auto switch magnet: No
CHMF25-500Mounting: Rod flange | Bore: ø25 mm | Stroke: 500 mm | Auto switch magnet: No
CHMF32-25Mounting: Rod flange | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No
CHMF32-50Mounting: Rod flange | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
CHMF32-75Mounting: Rod flange | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: No
CHMF32-100Mounting: Rod flange | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
CHMF32-150Mounting: Rod flange | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: No
CHMF32-200Mounting: Rod flange | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
CHMF32-250Mounting: Rod flange | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: No
CHMF32-300Mounting: Rod flange | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: No
CHMF32-400Mounting: Rod flange | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: No
CHMF32-500Mounting: Rod flange | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: No
CHMF40-25Mounting: Rod flange | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
CHMF40-50Mounting: Rod flange | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
CHMF40-75Mounting: Rod flange | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
CHMF40-100Mounting: Rod flange | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
CHMF40-150Mounting: Rod flange | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
CHMF40-200Mounting: Rod flange | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
CHMF40-250Mounting: Rod flange | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
CHMF40-300Mounting: Rod flange | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
CHMF40-400Mounting: Rod flange | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
CHMF40-500Mounting: Rod flange | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
CHMG20-25Mounting: Head flange | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: No
CHMG20-50Mounting: Head flange | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: No
CHMG20-75Mounting: Head flange | Bore: ø20 mm | Stroke: 75 mm | Auto switch magnet: No
CHMG20-100Mounting: Head flange | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: No
CHMG20-150Mounting: Head flange | Bore: ø20 mm | Stroke: 150 mm | Auto switch magnet: No
CHMG20-200Mounting: Head flange | Bore: ø20 mm | Stroke: 200 mm | Auto switch magnet: No
CHMG20-250Mounting: Head flange | Bore: ø20 mm | Stroke: 250 mm | Auto switch magnet: No
CHMG20-300Mounting: Head flange | Bore: ø20 mm | Stroke: 300 mm | Auto switch magnet: No
CHMG20-400Mounting: Head flange | Bore: ø20 mm | Stroke: 400 mm | Auto switch magnet: No
CHMG20-500Mounting: Head flange | Bore: ø20 mm | Stroke: 500 mm | Auto switch magnet: No
CHMG25-25Mounting: Head flange | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: No
CHMG25-50Mounting: Head flange | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: No
CHMG25-75Mounting: Head flange | Bore: ø25 mm | Stroke: 75 mm | Auto switch magnet: No
CHMG25-100Mounting: Head flange | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: No
CHMG25-150Mounting: Head flange | Bore: ø25 mm | Stroke: 150 mm | Auto switch magnet: No
CHMG25-200Mounting: Head flange | Bore: ø25 mm | Stroke: 200 mm | Auto switch magnet: No
CHMG25-250Mounting: Head flange | Bore: ø25 mm | Stroke: 250 mm | Auto switch magnet: No
CHMG25-300Mounting: Head flange | Bore: ø25 mm | Stroke: 300 mm | Auto switch magnet: No
CHMG25-400Mounting: Head flange | Bore: ø25 mm | Stroke: 400 mm | Auto switch magnet: No
CHMG25-500Mounting: Head flange | Bore: ø25 mm | Stroke: 500 mm | Auto switch magnet: No
CHMG32-25Mounting: Head flange | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No
CHMG32-50Mounting: Head flange | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
CHMG32-75Mounting: Head flange | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: No
CHMG32-100Mounting: Head flange | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
CHMG32-150Mounting: Head flange | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: No
CHMG32-200Mounting: Head flange | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
CHMG32-250Mounting: Head flange | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: No
CHMG32-300Mounting: Head flange | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: No
CHMG32-400Mounting: Head flange | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: No
CHMG32-500Mounting: Head flange | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: No
CHMG40-25Mounting: Head flange | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
CHMG40-50Mounting: Head flange | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
CHMG40-75Mounting: Head flange | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
CHMG40-100Mounting: Head flange | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
CHMG40-150Mounting: Head flange | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
CHMG40-200Mounting: Head flange | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
CHMG40-250Mounting: Head flange | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
CHMG40-300Mounting: Head flange | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
CHMG40-400Mounting: Head flange | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
CHMG40-500Mounting: Head flange | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
CHMC20-25Mounting: Single clevis | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: No
CHMC20-50Mounting: Single clevis | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: No
CHMC20-75Mounting: Single clevis | Bore: ø20 mm | Stroke: 75 mm | Auto switch magnet: No
CHMC20-100Mounting: Single clevis | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: No
CHMC20-150Mounting: Single clevis | Bore: ø20 mm | Stroke: 150 mm | Auto switch magnet: No
CHMC20-200Mounting: Single clevis | Bore: ø20 mm | Stroke: 200 mm | Auto switch magnet: No
CHMC20-250Mounting: Single clevis | Bore: ø20 mm | Stroke: 250 mm | Auto switch magnet: No
CHMC20-300Mounting: Single clevis | Bore: ø20 mm | Stroke: 300 mm | Auto switch magnet: No
CHMC20-400Mounting: Single clevis | Bore: ø20 mm | Stroke: 400 mm | Auto switch magnet: No
CHMC20-500Mounting: Single clevis | Bore: ø20 mm | Stroke: 500 mm | Auto switch magnet: No
CHMC25-25Mounting: Single clevis | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: No
CHMC25-50Mounting: Single clevis | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: No
CHMC25-75Mounting: Single clevis | Bore: ø25 mm | Stroke: 75 mm | Auto switch magnet: No
CHMC25-100Mounting: Single clevis | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: No
CHMC25-150Mounting: Single clevis | Bore: ø25 mm | Stroke: 150 mm | Auto switch magnet: No
CHMC25-200Mounting: Single clevis | Bore: ø25 mm | Stroke: 200 mm | Auto switch magnet: No
CHMC25-250Mounting: Single clevis | Bore: ø25 mm | Stroke: 250 mm | Auto switch magnet: No
CHMC25-300Mounting: Single clevis | Bore: ø25 mm | Stroke: 300 mm | Auto switch magnet: No
CHMC25-400Mounting: Single clevis | Bore: ø25 mm | Stroke: 400 mm | Auto switch magnet: No
CHMC25-500Mounting: Single clevis | Bore: ø25 mm | Stroke: 500 mm | Auto switch magnet: No
CHMC32-25Mounting: Single clevis | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No
CHMC32-50Mounting: Single clevis | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
CHMC32-75Mounting: Single clevis | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: No
CHMC32-100Mounting: Single clevis | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
CHMC32-150Mounting: Single clevis | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: No
CHMC32-200Mounting: Single clevis | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: No
CHMC32-250Mounting: Single clevis | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: No
CHMC32-300Mounting: Single clevis | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: No
CHMC32-400Mounting: Single clevis | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: No
CHMC32-500Mounting: Single clevis | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: No
CHMC40-25Mounting: Single clevis | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
CHMC40-50Mounting: Single clevis | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
CHMC40-75Mounting: Single clevis | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
CHMC40-100Mounting: Single clevis | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
CHMC40-150Mounting: Single clevis | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: No
CHMC40-200Mounting: Single clevis | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: No
CHMC40-250Mounting: Single clevis | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: No
CHMC40-300Mounting: Single clevis | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: No
CHMC40-400Mounting: Single clevis | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: No
CHMC40-500Mounting: Single clevis | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: No
CHDMB20-25Mounting: Basic | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDMB20-50Mounting: Basic | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDMB20-75Mounting: Basic | Bore: ø20 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDMB20-100Mounting: Basic | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDMB20-150Mounting: Basic | Bore: ø20 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDMB20-200Mounting: Basic | Bore: ø20 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDMB20-250Mounting: Basic | Bore: ø20 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDMB20-300Mounting: Basic | Bore: ø20 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDMB20-400Mounting: Basic | Bore: ø20 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDMB20-500Mounting: Basic | Bore: ø20 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDMB25-25Mounting: Basic | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDMB25-50Mounting: Basic | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDMB25-75Mounting: Basic | Bore: ø25 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDMB25-100Mounting: Basic | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDMB25-150Mounting: Basic | Bore: ø25 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDMB25-200Mounting: Basic | Bore: ø25 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDMB25-250Mounting: Basic | Bore: ø25 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDMB25-300Mounting: Basic | Bore: ø25 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDMB25-400Mounting: Basic | Bore: ø25 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDMB25-500Mounting: Basic | Bore: ø25 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDMB32-25Mounting: Basic | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDMB32-50Mounting: Basic | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDMB32-75Mounting: Basic | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDMB32-100Mounting: Basic | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDMB32-150Mounting: Basic | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDMB32-200Mounting: Basic | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDMB32-250Mounting: Basic | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDMB32-300Mounting: Basic | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDMB32-400Mounting: Basic | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDMB32-500Mounting: Basic | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDMB40-25Mounting: Basic | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDMB40-50Mounting: Basic | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDMB40-75Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDMB40-100Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDMB40-150Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDMB40-200Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDMB40-250Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDMB40-300Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDMB40-400Mounting: Basic | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDMB40-500Mounting: Basic | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDML20-25Mounting: Axial foot | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDML20-50Mounting: Axial foot | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDML20-75Mounting: Axial foot | Bore: ø20 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDML20-100Mounting: Axial foot | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDML20-150Mounting: Axial foot | Bore: ø20 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDML20-200Mounting: Axial foot | Bore: ø20 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDML20-250Mounting: Axial foot | Bore: ø20 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDML20-300Mounting: Axial foot | Bore: ø20 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDML20-400Mounting: Axial foot | Bore: ø20 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDML20-500Mounting: Axial foot | Bore: ø20 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDML25-25Mounting: Axial foot | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDML25-50Mounting: Axial foot | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDML25-75Mounting: Axial foot | Bore: ø25 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDML25-100Mounting: Axial foot | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDML25-150Mounting: Axial foot | Bore: ø25 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDML25-200Mounting: Axial foot | Bore: ø25 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDML25-250Mounting: Axial foot | Bore: ø25 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDML25-300Mounting: Axial foot | Bore: ø25 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDML25-400Mounting: Axial foot | Bore: ø25 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDML25-500Mounting: Axial foot | Bore: ø25 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDML32-25Mounting: Axial foot | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDML32-50Mounting: Axial foot | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDML32-75Mounting: Axial foot | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDML32-100Mounting: Axial foot | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDML32-150Mounting: Axial foot | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDML32-200Mounting: Axial foot | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDML32-250Mounting: Axial foot | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDML32-300Mounting: Axial foot | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDML32-400Mounting: Axial foot | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDML32-500Mounting: Axial foot | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDML40-25Mounting: Axial foot | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDML40-50Mounting: Axial foot | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDML40-75Mounting: Axial foot | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDML40-100Mounting: Axial foot | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDML40-150Mounting: Axial foot | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDML40-200Mounting: Axial foot | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDML40-250Mounting: Axial foot | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDML40-300Mounting: Axial foot | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDML40-400Mounting: Axial foot | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDML40-500Mounting: Axial foot | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDMF20-25Mounting: Rod flange | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDMF20-50Mounting: Rod flange | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDMF20-75Mounting: Rod flange | Bore: ø20 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDMF20-100Mounting: Rod flange | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDMF20-150Mounting: Rod flange | Bore: ø20 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDMF20-200Mounting: Rod flange | Bore: ø20 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDMF20-250Mounting: Rod flange | Bore: ø20 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDMF20-300Mounting: Rod flange | Bore: ø20 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDMF20-400Mounting: Rod flange | Bore: ø20 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDMF20-500Mounting: Rod flange | Bore: ø20 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDMF25-25Mounting: Rod flange | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDMF25-50Mounting: Rod flange | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDMF25-75Mounting: Rod flange | Bore: ø25 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDMF25-100Mounting: Rod flange | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDMF25-150Mounting: Rod flange | Bore: ø25 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDMF25-200Mounting: Rod flange | Bore: ø25 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDMF25-250Mounting: Rod flange | Bore: ø25 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDMF25-300Mounting: Rod flange | Bore: ø25 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDMF25-400Mounting: Rod flange | Bore: ø25 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDMF25-500Mounting: Rod flange | Bore: ø25 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDMF32-25Mounting: Rod flange | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDMF32-50Mounting: Rod flange | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDMF32-75Mounting: Rod flange | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDMF32-100Mounting: Rod flange | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDMF32-150Mounting: Rod flange | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDMF32-200Mounting: Rod flange | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDMF32-250Mounting: Rod flange | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDMF32-300Mounting: Rod flange | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDMF32-400Mounting: Rod flange | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDMF32-500Mounting: Rod flange | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDMF40-25Mounting: Rod flange | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDMF40-50Mounting: Rod flange | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDMF40-75Mounting: Rod flange | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDMF40-100Mounting: Rod flange | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDMF40-150Mounting: Rod flange | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDMF40-200Mounting: Rod flange | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDMF40-250Mounting: Rod flange | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDMF40-300Mounting: Rod flange | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDMF40-400Mounting: Rod flange | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDMF40-500Mounting: Rod flange | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDMG20-25Mounting: Head flange | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDMG20-50Mounting: Head flange | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDMG20-75Mounting: Head flange | Bore: ø20 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDMG20-100Mounting: Head flange | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDMG20-150Mounting: Head flange | Bore: ø20 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDMG20-200Mounting: Head flange | Bore: ø20 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDMG20-250Mounting: Head flange | Bore: ø20 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDMG20-300Mounting: Head flange | Bore: ø20 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDMG20-400Mounting: Head flange | Bore: ø20 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDMG20-500Mounting: Head flange | Bore: ø20 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDMG25-25Mounting: Head flange | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDMG25-50Mounting: Head flange | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDMG25-75Mounting: Head flange | Bore: ø25 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDMG25-100Mounting: Head flange | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDMG25-150Mounting: Head flange | Bore: ø25 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDMG25-200Mounting: Head flange | Bore: ø25 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDMG25-250Mounting: Head flange | Bore: ø25 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDMG25-300Mounting: Head flange | Bore: ø25 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDMG25-400Mounting: Head flange | Bore: ø25 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDMG25-500Mounting: Head flange | Bore: ø25 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDMG32-25Mounting: Head flange | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDMG32-50Mounting: Head flange | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDMG32-75Mounting: Head flange | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDMG32-100Mounting: Head flange | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDMG32-150Mounting: Head flange | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDMG32-200Mounting: Head flange | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDMG32-250Mounting: Head flange | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDMG32-300Mounting: Head flange | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDMG32-400Mounting: Head flange | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDMG32-500Mounting: Head flange | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDMG40-25Mounting: Head flange | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDMG40-50Mounting: Head flange | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDMG40-75Mounting: Head flange | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDMG40-100Mounting: Head flange | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDMG40-150Mounting: Head flange | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDMG40-200Mounting: Head flange | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDMG40-250Mounting: Head flange | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDMG40-300Mounting: Head flange | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDMG40-400Mounting: Head flange | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDMG40-500Mounting: Head flange | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDMC20-25Mounting: Single clevis | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDMC20-50Mounting: Single clevis | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDMC20-75Mounting: Single clevis | Bore: ø20 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDMC20-100Mounting: Single clevis | Bore: ø20 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDMC20-150Mounting: Single clevis | Bore: ø20 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDMC20-200Mounting: Single clevis | Bore: ø20 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDMC20-250Mounting: Single clevis | Bore: ø20 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDMC20-300Mounting: Single clevis | Bore: ø20 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDMC20-400Mounting: Single clevis | Bore: ø20 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDMC20-500Mounting: Single clevis | Bore: ø20 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDMC25-25Mounting: Single clevis | Bore: ø25 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDMC25-50Mounting: Single clevis | Bore: ø25 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDMC25-75Mounting: Single clevis | Bore: ø25 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDMC25-100Mounting: Single clevis | Bore: ø25 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDMC25-150Mounting: Single clevis | Bore: ø25 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDMC25-200Mounting: Single clevis | Bore: ø25 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDMC25-250Mounting: Single clevis | Bore: ø25 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDMC25-300Mounting: Single clevis | Bore: ø25 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDMC25-400Mounting: Single clevis | Bore: ø25 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDMC25-500Mounting: Single clevis | Bore: ø25 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDMC32-25Mounting: Single clevis | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDMC32-50Mounting: Single clevis | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDMC32-75Mounting: Single clevis | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDMC32-100Mounting: Single clevis | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDMC32-150Mounting: Single clevis | Bore: ø32 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDMC32-200Mounting: Single clevis | Bore: ø32 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDMC32-250Mounting: Single clevis | Bore: ø32 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDMC32-300Mounting: Single clevis | Bore: ø32 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDMC32-400Mounting: Single clevis | Bore: ø32 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDMC32-500Mounting: Single clevis | Bore: ø32 mm | Stroke: 500 mm | Auto switch magnet: Yes
CHDMC40-25Mounting: Single clevis | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDMC40-50Mounting: Single clevis | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDMC40-75Mounting: Single clevis | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDMC40-100Mounting: Single clevis | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDMC40-150Mounting: Single clevis | Bore: ø40 mm | Stroke: 150 mm | Auto switch magnet: Yes
CHDMC40-200Mounting: Single clevis | Bore: ø40 mm | Stroke: 200 mm | Auto switch magnet: Yes
CHDMC40-250Mounting: Single clevis | Bore: ø40 mm | Stroke: 250 mm | Auto switch magnet: Yes
CHDMC40-300Mounting: Single clevis | Bore: ø40 mm | Stroke: 300 mm | Auto switch magnet: Yes
CHDMC40-400Mounting: Single clevis | Bore: ø40 mm | Stroke: 400 mm | Auto switch magnet: Yes
CHDMC40-500Mounting: Single clevis | Bore: ø40 mm | Stroke: 500 mm | Auto switch magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Hydraulics →
