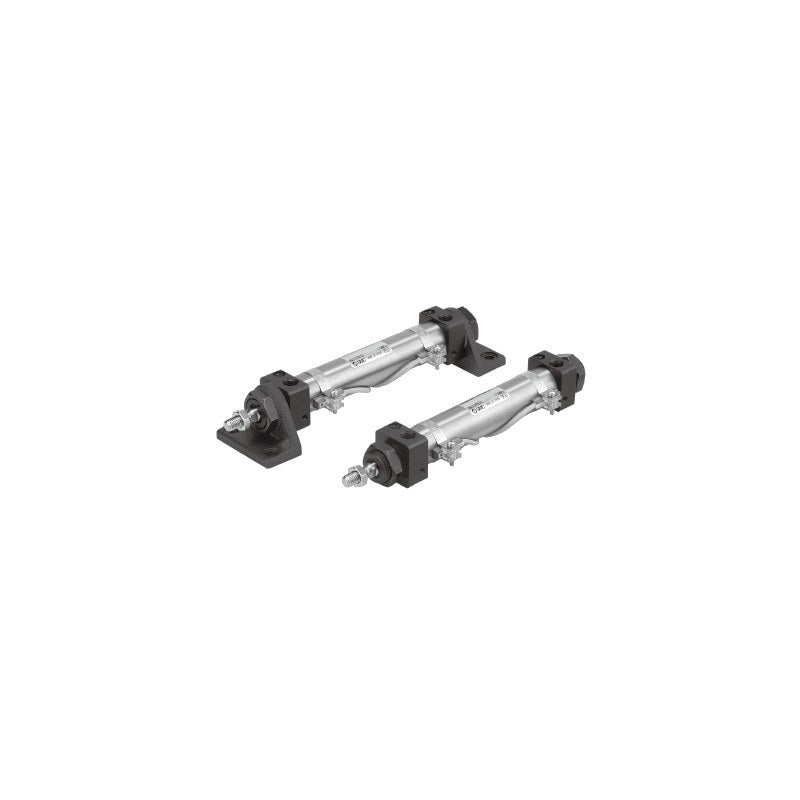

SMC CHN Small Bore Hydraulic Cylinder (7 MPa, ø20 to ø40)

SMC CHN Small Bore Hydraulic Cylinder (7 MPa, ø20 to ø40)

SMC CHN series small bore round hydraulic cylinder, 7 MPa nominal, double acting single rod, ø20 to ø40 mm, with built-in auto switch magnet as standard.

Key features

  • Compact round body for 7 MPa hydraulic service (max. allowable 9 MPa)
  • Five mounting styles: basic, axial foot, rod flange, head flange and single clevis
  • Magnet built in as standard; band-mounted D-M9/D-A9/D-C7/D-H7 type auto switches ordered as a suffix
  • Standard strokes 25 to 300 (ø20), 25 to 400 (ø25), 25 to 500 mm (ø32/ø40); long stroke to 800 mm
  • Mounting nuts and rod end nut included; knuckle joints, clevis bracket and pins available as options

Specifications

Action Double acting
Fluid Hydraulic oil (general mineral, W/O, O/W)
Nominal pressure 7 MPa
Proof pressure 10.5 MPa
Max. allowable pressure 9 MPa
Min. operating pressure 0.3 MPa
Ambient and fluid temperature -10 to 80°C (no switch), -10 to 60°C (with switch)
Piston speed 8 to 300 mm/s
Cushion None
Auto switch magnet Built-in (standard)
Stroke tolerance +1.0/0 (to 250 st), +1.4/0 mm (251 to 800 st)
Source SMC Korea catalog CHN series (SMCKR_CHN.pdf), p. 297-298 (PDF p. 3-4)
CHNB20-25 Mounting: Basic | Bore: ø20 mm | Stroke: 25 mm
CHNB20-50 Mounting: Basic | Bore: ø20 mm | Stroke: 50 mm
CHNB20-75 Mounting: Basic | Bore: ø20 mm | Stroke: 75 mm
CHNB20-100 Mounting: Basic | Bore: ø20 mm | Stroke: 100 mm
CHNB20-150 Mounting: Basic | Bore: ø20 mm | Stroke: 150 mm
CHNB20-200 Mounting: Basic | Bore: ø20 mm | Stroke: 200 mm
CHNB20-250 Mounting: Basic | Bore: ø20 mm | Stroke: 250 mm
CHNB20-300 Mounting: Basic | Bore: ø20 mm | Stroke: 300 mm
CHNB25-25 Mounting: Basic | Bore: ø25 mm | Stroke: 25 mm
CHNB25-50 Mounting: Basic | Bore: ø25 mm | Stroke: 50 mm
CHNB25-75 Mounting: Basic | Bore: ø25 mm | Stroke: 75 mm
CHNB25-100 Mounting: Basic | Bore: ø25 mm | Stroke: 100 mm
CHNB25-150 Mounting: Basic | Bore: ø25 mm | Stroke: 150 mm
CHNB25-200 Mounting: Basic | Bore: ø25 mm | Stroke: 200 mm
CHNB25-250 Mounting: Basic | Bore: ø25 mm | Stroke: 250 mm
CHNB25-300 Mounting: Basic | Bore: ø25 mm | Stroke: 300 mm
CHNB25-400 Mounting: Basic | Bore: ø25 mm | Stroke: 400 mm
CHNB32-25 Mounting: Basic | Bore: ø32 mm | Stroke: 25 mm
CHNB32-50 Mounting: Basic | Bore: ø32 mm | Stroke: 50 mm
CHNB32-75 Mounting: Basic | Bore: ø32 mm | Stroke: 75 mm
CHNB32-100 Mounting: Basic | Bore: ø32 mm | Stroke: 100 mm
CHNB32-150 Mounting: Basic | Bore: ø32 mm | Stroke: 150 mm
CHNB32-200 Mounting: Basic | Bore: ø32 mm | Stroke: 200 mm
CHNB32-250 Mounting: Basic | Bore: ø32 mm | Stroke: 250 mm
CHNB32-300 Mounting: Basic | Bore: ø32 mm | Stroke: 300 mm
CHNB32-400 Mounting: Basic | Bore: ø32 mm | Stroke: 400 mm
CHNB32-500 Mounting: Basic | Bore: ø32 mm | Stroke: 500 mm
CHNB40-25 Mounting: Basic | Bore: ø40 mm | Stroke: 25 mm
CHNB40-50 Mounting: Basic | Bore: ø40 mm | Stroke: 50 mm
CHNB40-75 Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm
CHNB40-100 Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm
CHNB40-150 Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm
CHNB40-200 Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm
CHNB40-250 Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm
CHNB40-300 Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm
CHNB40-400 Mounting: Basic | Bore: ø40 mm | Stroke: 400 mm
CHNB40-500 Mounting: Basic | Bore: ø40 mm | Stroke: 500 mm
CHNL20-25 Mounting: Axial foot | Bore: ø20 mm | Stroke: 25 mm
CHNL20-50 Mounting: Axial foot | Bore: ø20 mm | Stroke: 50 mm
CHNL20-75 Mounting: Axial foot | Bore: ø20 mm | Stroke: 75 mm
CHNL20-100 Mounting: Axial foot | Bore: ø20 mm | Stroke: 100 mm
CHNL20-150 Mounting: Axial foot | Bore: ø20 mm | Stroke: 150 mm
CHNL20-200 Mounting: Axial foot | Bore: ø20 mm | Stroke: 200 mm
CHNL20-250 Mounting: Axial foot | Bore: ø20 mm | Stroke: 250 mm
CHNL20-300 Mounting: Axial foot | Bore: ø20 mm | Stroke: 300 mm
CHNL25-25 Mounting: Axial foot | Bore: ø25 mm | Stroke: 25 mm
CHNL25-50 Mounting: Axial foot | Bore: ø25 mm | Stroke: 50 mm
CHNL25-75 Mounting: Axial foot | Bore: ø25 mm | Stroke: 75 mm
CHNL25-100 Mounting: Axial foot | Bore: ø25 mm | Stroke: 100 mm
CHNL25-150 Mounting: Axial foot | Bore: ø25 mm | Stroke: 150 mm
CHNL25-200 Mounting: Axial foot | Bore: ø25 mm | Stroke: 200 mm
CHNL25-250 Mounting: Axial foot | Bore: ø25 mm | Stroke: 250 mm
CHNL25-300 Mounting: Axial foot | Bore: ø25 mm | Stroke: 300 mm
CHNL25-400 Mounting: Axial foot | Bore: ø25 mm | Stroke: 400 mm
CHNL32-25 Mounting: Axial foot | Bore: ø32 mm | Stroke: 25 mm
CHNL32-50 Mounting: Axial foot | Bore: ø32 mm | Stroke: 50 mm
CHNL32-75 Mounting: Axial foot | Bore: ø32 mm | Stroke: 75 mm
CHNL32-100 Mounting: Axial foot | Bore: ø32 mm | Stroke: 100 mm
CHNL32-150 Mounting: Axial foot | Bore: ø32 mm | Stroke: 150 mm
CHNL32-200 Mounting: Axial foot | Bore: ø32 mm | Stroke: 200 mm
CHNL32-250 Mounting: Axial foot | Bore: ø32 mm | Stroke: 250 mm
CHNL32-300 Mounting: Axial foot | Bore: ø32 mm | Stroke: 300 mm
CHNL32-400 Mounting: Axial foot | Bore: ø32 mm | Stroke: 400 mm
CHNL32-500 Mounting: Axial foot | Bore: ø32 mm | Stroke: 500 mm
CHNL40-25 Mounting: Axial foot | Bore: ø40 mm | Stroke: 25 mm
CHNL40-50 Mounting: Axial foot | Bore: ø40 mm | Stroke: 50 mm
CHNL40-75 Mounting: Axial foot | Bore: ø40 mm | Stroke: 75 mm
CHNL40-100 Mounting: Axial foot | Bore: ø40 mm | Stroke: 100 mm
CHNL40-150 Mounting: Axial foot | Bore: ø40 mm | Stroke: 150 mm
CHNL40-200 Mounting: Axial foot | Bore: ø40 mm | Stroke: 200 mm
CHNL40-250 Mounting: Axial foot | Bore: ø40 mm | Stroke: 250 mm
CHNL40-300 Mounting: Axial foot | Bore: ø40 mm | Stroke: 300 mm
CHNL40-400 Mounting: Axial foot | Bore: ø40 mm | Stroke: 400 mm
CHNL40-500 Mounting: Axial foot | Bore: ø40 mm | Stroke: 500 mm
CHNF20-25 Mounting: Rod flange | Bore: ø20 mm | Stroke: 25 mm
CHNF20-50 Mounting: Rod flange | Bore: ø20 mm | Stroke: 50 mm
CHNF20-75 Mounting: Rod flange | Bore: ø20 mm | Stroke: 75 mm
CHNF20-100 Mounting: Rod flange | Bore: ø20 mm | Stroke: 100 mm
CHNF20-150 Mounting: Rod flange | Bore: ø20 mm | Stroke: 150 mm
CHNF20-200 Mounting: Rod flange | Bore: ø20 mm | Stroke: 200 mm
CHNF20-250 Mounting: Rod flange | Bore: ø20 mm | Stroke: 250 mm
CHNF20-300 Mounting: Rod flange | Bore: ø20 mm | Stroke: 300 mm
CHNF25-25 Mounting: Rod flange | Bore: ø25 mm | Stroke: 25 mm
CHNF25-50 Mounting: Rod flange | Bore: ø25 mm | Stroke: 50 mm
CHNF25-75 Mounting: Rod flange | Bore: ø25 mm | Stroke: 75 mm
CHNF25-100 Mounting: Rod flange | Bore: ø25 mm | Stroke: 100 mm
CHNF25-150 Mounting: Rod flange | Bore: ø25 mm | Stroke: 150 mm
CHNF25-200 Mounting: Rod flange | Bore: ø25 mm | Stroke: 200 mm
CHNF25-250 Mounting: Rod flange | Bore: ø25 mm | Stroke: 250 mm
CHNF25-300 Mounting: Rod flange | Bore: ø25 mm | Stroke: 300 mm
CHNF25-400 Mounting: Rod flange | Bore: ø25 mm | Stroke: 400 mm
CHNF32-25 Mounting: Rod flange | Bore: ø32 mm | Stroke: 25 mm
CHNF32-50 Mounting: Rod flange | Bore: ø32 mm | Stroke: 50 mm
CHNF32-75 Mounting: Rod flange | Bore: ø32 mm | Stroke: 75 mm
CHNF32-100 Mounting: Rod flange | Bore: ø32 mm | Stroke: 100 mm
CHNF32-150 Mounting: Rod flange | Bore: ø32 mm | Stroke: 150 mm
CHNF32-200 Mounting: Rod flange | Bore: ø32 mm | Stroke: 200 mm
CHNF32-250 Mounting: Rod flange | Bore: ø32 mm | Stroke: 250 mm
CHNF32-300 Mounting: Rod flange | Bore: ø32 mm | Stroke: 300 mm
CHNF32-400 Mounting: Rod flange | Bore: ø32 mm | Stroke: 400 mm
CHNF32-500 Mounting: Rod flange | Bore: ø32 mm | Stroke: 500 mm
CHNF40-25 Mounting: Rod flange | Bore: ø40 mm | Stroke: 25 mm
CHNF40-50 Mounting: Rod flange | Bore: ø40 mm | Stroke: 50 mm
CHNF40-75 Mounting: Rod flange | Bore: ø40 mm | Stroke: 75 mm
CHNF40-100 Mounting: Rod flange | Bore: ø40 mm | Stroke: 100 mm
CHNF40-150 Mounting: Rod flange | Bore: ø40 mm | Stroke: 150 mm
CHNF40-200 Mounting: Rod flange | Bore: ø40 mm | Stroke: 200 mm
CHNF40-250 Mounting: Rod flange | Bore: ø40 mm | Stroke: 250 mm
CHNF40-300 Mounting: Rod flange | Bore: ø40 mm | Stroke: 300 mm
CHNF40-400 Mounting: Rod flange | Bore: ø40 mm | Stroke: 400 mm
CHNF40-500 Mounting: Rod flange | Bore: ø40 mm | Stroke: 500 mm
CHNG20-25 Mounting: Head flange | Bore: ø20 mm | Stroke: 25 mm
CHNG20-50 Mounting: Head flange | Bore: ø20 mm | Stroke: 50 mm
CHNG20-75 Mounting: Head flange | Bore: ø20 mm | Stroke: 75 mm
CHNG20-100 Mounting: Head flange | Bore: ø20 mm | Stroke: 100 mm
CHNG20-150 Mounting: Head flange | Bore: ø20 mm | Stroke: 150 mm
CHNG20-200 Mounting: Head flange | Bore: ø20 mm | Stroke: 200 mm
CHNG20-250 Mounting: Head flange | Bore: ø20 mm | Stroke: 250 mm
CHNG20-300 Mounting: Head flange | Bore: ø20 mm | Stroke: 300 mm
CHNG25-25 Mounting: Head flange | Bore: ø25 mm | Stroke: 25 mm
CHNG25-50 Mounting: Head flange | Bore: ø25 mm | Stroke: 50 mm
CHNG25-75 Mounting: Head flange | Bore: ø25 mm | Stroke: 75 mm
CHNG25-100 Mounting: Head flange | Bore: ø25 mm | Stroke: 100 mm
CHNG25-150 Mounting: Head flange | Bore: ø25 mm | Stroke: 150 mm
CHNG25-200 Mounting: Head flange | Bore: ø25 mm | Stroke: 200 mm
CHNG25-250 Mounting: Head flange | Bore: ø25 mm | Stroke: 250 mm
CHNG25-300 Mounting: Head flange | Bore: ø25 mm | Stroke: 300 mm
CHNG25-400 Mounting: Head flange | Bore: ø25 mm | Stroke: 400 mm
CHNG32-25 Mounting: Head flange | Bore: ø32 mm | Stroke: 25 mm
CHNG32-50 Mounting: Head flange | Bore: ø32 mm | Stroke: 50 mm
CHNG32-75 Mounting: Head flange | Bore: ø32 mm | Stroke: 75 mm
CHNG32-100 Mounting: Head flange | Bore: ø32 mm | Stroke: 100 mm
CHNG32-150 Mounting: Head flange | Bore: ø32 mm | Stroke: 150 mm
CHNG32-200 Mounting: Head flange | Bore: ø32 mm | Stroke: 200 mm
CHNG32-250 Mounting: Head flange | Bore: ø32 mm | Stroke: 250 mm
CHNG32-300 Mounting: Head flange | Bore: ø32 mm | Stroke: 300 mm
CHNG32-400 Mounting: Head flange | Bore: ø32 mm | Stroke: 400 mm
CHNG32-500 Mounting: Head flange | Bore: ø32 mm | Stroke: 500 mm
CHNG40-25 Mounting: Head flange | Bore: ø40 mm | Stroke: 25 mm
CHNG40-50 Mounting: Head flange | Bore: ø40 mm | Stroke: 50 mm
CHNG40-75 Mounting: Head flange | Bore: ø40 mm | Stroke: 75 mm
CHNG40-100 Mounting: Head flange | Bore: ø40 mm | Stroke: 100 mm
CHNG40-150 Mounting: Head flange | Bore: ø40 mm | Stroke: 150 mm
CHNG40-200 Mounting: Head flange | Bore: ø40 mm | Stroke: 200 mm
CHNG40-250 Mounting: Head flange | Bore: ø40 mm | Stroke: 250 mm
CHNG40-300 Mounting: Head flange | Bore: ø40 mm | Stroke: 300 mm
CHNG40-400 Mounting: Head flange | Bore: ø40 mm | Stroke: 400 mm
CHNG40-500 Mounting: Head flange | Bore: ø40 mm | Stroke: 500 mm
CHNC20-25 Mounting: Single clevis | Bore: ø20 mm | Stroke: 25 mm
CHNC20-50 Mounting: Single clevis | Bore: ø20 mm | Stroke: 50 mm
CHNC20-75 Mounting: Single clevis | Bore: ø20 mm | Stroke: 75 mm
CHNC20-100 Mounting: Single clevis | Bore: ø20 mm | Stroke: 100 mm
CHNC20-150 Mounting: Single clevis | Bore: ø20 mm | Stroke: 150 mm
CHNC20-200 Mounting: Single clevis | Bore: ø20 mm | Stroke: 200 mm
CHNC20-250 Mounting: Single clevis | Bore: ø20 mm | Stroke: 250 mm
CHNC20-300 Mounting: Single clevis | Bore: ø20 mm | Stroke: 300 mm
CHNC25-25 Mounting: Single clevis | Bore: ø25 mm | Stroke: 25 mm
CHNC25-50 Mounting: Single clevis | Bore: ø25 mm | Stroke: 50 mm
CHNC25-75 Mounting: Single clevis | Bore: ø25 mm | Stroke: 75 mm
CHNC25-100 Mounting: Single clevis | Bore: ø25 mm | Stroke: 100 mm
CHNC25-150 Mounting: Single clevis | Bore: ø25 mm | Stroke: 150 mm
CHNC25-200 Mounting: Single clevis | Bore: ø25 mm | Stroke: 200 mm
CHNC25-250 Mounting: Single clevis | Bore: ø25 mm | Stroke: 250 mm
CHNC25-300 Mounting: Single clevis | Bore: ø25 mm | Stroke: 300 mm
CHNC25-400 Mounting: Single clevis | Bore: ø25 mm | Stroke: 400 mm
CHNC32-25 Mounting: Single clevis | Bore: ø32 mm | Stroke: 25 mm
CHNC32-50 Mounting: Single clevis | Bore: ø32 mm | Stroke: 50 mm
CHNC32-75 Mounting: Single clevis | Bore: ø32 mm | Stroke: 75 mm
CHNC32-100 Mounting: Single clevis | Bore: ø32 mm | Stroke: 100 mm
CHNC32-150 Mounting: Single clevis | Bore: ø32 mm | Stroke: 150 mm
CHNC32-200 Mounting: Single clevis | Bore: ø32 mm | Stroke: 200 mm
CHNC32-250 Mounting: Single clevis | Bore: ø32 mm | Stroke: 250 mm
CHNC32-300 Mounting: Single clevis | Bore: ø32 mm | Stroke: 300 mm
CHNC32-400 Mounting: Single clevis | Bore: ø32 mm | Stroke: 400 mm
CHNC32-500 Mounting: Single clevis | Bore: ø32 mm | Stroke: 500 mm
CHNC40-25 Mounting: Single clevis | Bore: ø40 mm | Stroke: 25 mm
CHNC40-50 Mounting: Single clevis | Bore: ø40 mm | Stroke: 50 mm
CHNC40-75 Mounting: Single clevis | Bore: ø40 mm | Stroke: 75 mm
CHNC40-100 Mounting: Single clevis | Bore: ø40 mm | Stroke: 100 mm
CHNC40-150 Mounting: Single clevis | Bore: ø40 mm | Stroke: 150 mm
CHNC40-200 Mounting: Single clevis | Bore: ø40 mm | Stroke: 200 mm
CHNC40-250 Mounting: Single clevis | Bore: ø40 mm | Stroke: 250 mm
CHNC40-300 Mounting: Single clevis | Bore: ø40 mm | Stroke: 300 mm
CHNC40-400 Mounting: Single clevis | Bore: ø40 mm | Stroke: 400 mm
CHNC40-500 Mounting: Single clevis | Bore: ø40 mm | Stroke: 500 mm
Hydraulic CylindersSMC
185 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CHN Small Bore Hydraulic Cylinder (7 MPa, ø20 to ø40)

Brand SMC·Hydraulic Cylinders

Available part numbers (185)

CHNB20-25, CHNB20-50, CHNB20-75, CHNB20-100, CHNB20-150, CHNB20-200, CHNB20-250, CHNB20-300, CHNB25-25, CHNB25-50 + 175 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CHNB20-25Mounting: Basic | Bore: ø20 mm | Stroke: 25 mm
CHNB20-50Mounting: Basic | Bore: ø20 mm | Stroke: 50 mm
CHNB20-75Mounting: Basic | Bore: ø20 mm | Stroke: 75 mm
CHNB20-100Mounting: Basic | Bore: ø20 mm | Stroke: 100 mm
CHNB20-150Mounting: Basic | Bore: ø20 mm | Stroke: 150 mm
CHNB20-200Mounting: Basic | Bore: ø20 mm | Stroke: 200 mm
CHNB20-250Mounting: Basic | Bore: ø20 mm | Stroke: 250 mm
CHNB20-300Mounting: Basic | Bore: ø20 mm | Stroke: 300 mm
CHNB25-25Mounting: Basic | Bore: ø25 mm | Stroke: 25 mm
CHNB25-50Mounting: Basic | Bore: ø25 mm | Stroke: 50 mm
CHNB25-75Mounting: Basic | Bore: ø25 mm | Stroke: 75 mm
CHNB25-100Mounting: Basic | Bore: ø25 mm | Stroke: 100 mm
CHNB25-150Mounting: Basic | Bore: ø25 mm | Stroke: 150 mm
CHNB25-200Mounting: Basic | Bore: ø25 mm | Stroke: 200 mm
CHNB25-250Mounting: Basic | Bore: ø25 mm | Stroke: 250 mm
CHNB25-300Mounting: Basic | Bore: ø25 mm | Stroke: 300 mm
CHNB25-400Mounting: Basic | Bore: ø25 mm | Stroke: 400 mm
CHNB32-25Mounting: Basic | Bore: ø32 mm | Stroke: 25 mm
CHNB32-50Mounting: Basic | Bore: ø32 mm | Stroke: 50 mm
CHNB32-75Mounting: Basic | Bore: ø32 mm | Stroke: 75 mm
CHNB32-100Mounting: Basic | Bore: ø32 mm | Stroke: 100 mm
CHNB32-150Mounting: Basic | Bore: ø32 mm | Stroke: 150 mm
CHNB32-200Mounting: Basic | Bore: ø32 mm | Stroke: 200 mm
CHNB32-250Mounting: Basic | Bore: ø32 mm | Stroke: 250 mm
CHNB32-300Mounting: Basic | Bore: ø32 mm | Stroke: 300 mm
CHNB32-400Mounting: Basic | Bore: ø32 mm | Stroke: 400 mm
CHNB32-500Mounting: Basic | Bore: ø32 mm | Stroke: 500 mm
CHNB40-25Mounting: Basic | Bore: ø40 mm | Stroke: 25 mm
CHNB40-50Mounting: Basic | Bore: ø40 mm | Stroke: 50 mm
CHNB40-75Mounting: Basic | Bore: ø40 mm | Stroke: 75 mm
CHNB40-100Mounting: Basic | Bore: ø40 mm | Stroke: 100 mm
CHNB40-150Mounting: Basic | Bore: ø40 mm | Stroke: 150 mm
CHNB40-200Mounting: Basic | Bore: ø40 mm | Stroke: 200 mm
CHNB40-250Mounting: Basic | Bore: ø40 mm | Stroke: 250 mm
CHNB40-300Mounting: Basic | Bore: ø40 mm | Stroke: 300 mm
CHNB40-400Mounting: Basic | Bore: ø40 mm | Stroke: 400 mm
CHNB40-500Mounting: Basic | Bore: ø40 mm | Stroke: 500 mm
CHNL20-25Mounting: Axial foot | Bore: ø20 mm | Stroke: 25 mm
CHNL20-50Mounting: Axial foot | Bore: ø20 mm | Stroke: 50 mm
CHNL20-75Mounting: Axial foot | Bore: ø20 mm | Stroke: 75 mm
CHNL20-100Mounting: Axial foot | Bore: ø20 mm | Stroke: 100 mm
CHNL20-150Mounting: Axial foot | Bore: ø20 mm | Stroke: 150 mm
CHNL20-200Mounting: Axial foot | Bore: ø20 mm | Stroke: 200 mm
CHNL20-250Mounting: Axial foot | Bore: ø20 mm | Stroke: 250 mm
CHNL20-300Mounting: Axial foot | Bore: ø20 mm | Stroke: 300 mm
CHNL25-25Mounting: Axial foot | Bore: ø25 mm | Stroke: 25 mm
CHNL25-50Mounting: Axial foot | Bore: ø25 mm | Stroke: 50 mm
CHNL25-75Mounting: Axial foot | Bore: ø25 mm | Stroke: 75 mm
CHNL25-100Mounting: Axial foot | Bore: ø25 mm | Stroke: 100 mm
CHNL25-150Mounting: Axial foot | Bore: ø25 mm | Stroke: 150 mm
CHNL25-200Mounting: Axial foot | Bore: ø25 mm | Stroke: 200 mm
CHNL25-250Mounting: Axial foot | Bore: ø25 mm | Stroke: 250 mm
CHNL25-300Mounting: Axial foot | Bore: ø25 mm | Stroke: 300 mm
CHNL25-400Mounting: Axial foot | Bore: ø25 mm | Stroke: 400 mm
CHNL32-25Mounting: Axial foot | Bore: ø32 mm | Stroke: 25 mm
CHNL32-50Mounting: Axial foot | Bore: ø32 mm | Stroke: 50 mm
CHNL32-75Mounting: Axial foot | Bore: ø32 mm | Stroke: 75 mm
CHNL32-100Mounting: Axial foot | Bore: ø32 mm | Stroke: 100 mm
CHNL32-150Mounting: Axial foot | Bore: ø32 mm | Stroke: 150 mm
CHNL32-200Mounting: Axial foot | Bore: ø32 mm | Stroke: 200 mm
CHNL32-250Mounting: Axial foot | Bore: ø32 mm | Stroke: 250 mm
CHNL32-300Mounting: Axial foot | Bore: ø32 mm | Stroke: 300 mm
CHNL32-400Mounting: Axial foot | Bore: ø32 mm | Stroke: 400 mm
CHNL32-500Mounting: Axial foot | Bore: ø32 mm | Stroke: 500 mm
CHNL40-25Mounting: Axial foot | Bore: ø40 mm | Stroke: 25 mm
CHNL40-50Mounting: Axial foot | Bore: ø40 mm | Stroke: 50 mm
CHNL40-75Mounting: Axial foot | Bore: ø40 mm | Stroke: 75 mm
CHNL40-100Mounting: Axial foot | Bore: ø40 mm | Stroke: 100 mm
CHNL40-150Mounting: Axial foot | Bore: ø40 mm | Stroke: 150 mm
CHNL40-200Mounting: Axial foot | Bore: ø40 mm | Stroke: 200 mm
CHNL40-250Mounting: Axial foot | Bore: ø40 mm | Stroke: 250 mm
CHNL40-300Mounting: Axial foot | Bore: ø40 mm | Stroke: 300 mm
CHNL40-400Mounting: Axial foot | Bore: ø40 mm | Stroke: 400 mm
CHNL40-500Mounting: Axial foot | Bore: ø40 mm | Stroke: 500 mm
CHNF20-25Mounting: Rod flange | Bore: ø20 mm | Stroke: 25 mm
CHNF20-50Mounting: Rod flange | Bore: ø20 mm | Stroke: 50 mm
CHNF20-75Mounting: Rod flange | Bore: ø20 mm | Stroke: 75 mm
CHNF20-100Mounting: Rod flange | Bore: ø20 mm | Stroke: 100 mm
CHNF20-150Mounting: Rod flange | Bore: ø20 mm | Stroke: 150 mm
CHNF20-200Mounting: Rod flange | Bore: ø20 mm | Stroke: 200 mm
CHNF20-250Mounting: Rod flange | Bore: ø20 mm | Stroke: 250 mm
CHNF20-300Mounting: Rod flange | Bore: ø20 mm | Stroke: 300 mm
CHNF25-25Mounting: Rod flange | Bore: ø25 mm | Stroke: 25 mm
CHNF25-50Mounting: Rod flange | Bore: ø25 mm | Stroke: 50 mm
CHNF25-75Mounting: Rod flange | Bore: ø25 mm | Stroke: 75 mm
CHNF25-100Mounting: Rod flange | Bore: ø25 mm | Stroke: 100 mm
CHNF25-150Mounting: Rod flange | Bore: ø25 mm | Stroke: 150 mm
CHNF25-200Mounting: Rod flange | Bore: ø25 mm | Stroke: 200 mm
CHNF25-250Mounting: Rod flange | Bore: ø25 mm | Stroke: 250 mm
CHNF25-300Mounting: Rod flange | Bore: ø25 mm | Stroke: 300 mm
CHNF25-400Mounting: Rod flange | Bore: ø25 mm | Stroke: 400 mm
CHNF32-25Mounting: Rod flange | Bore: ø32 mm | Stroke: 25 mm
CHNF32-50Mounting: Rod flange | Bore: ø32 mm | Stroke: 50 mm
CHNF32-75Mounting: Rod flange | Bore: ø32 mm | Stroke: 75 mm
CHNF32-100Mounting: Rod flange | Bore: ø32 mm | Stroke: 100 mm
CHNF32-150Mounting: Rod flange | Bore: ø32 mm | Stroke: 150 mm
CHNF32-200Mounting: Rod flange | Bore: ø32 mm | Stroke: 200 mm
CHNF32-250Mounting: Rod flange | Bore: ø32 mm | Stroke: 250 mm
CHNF32-300Mounting: Rod flange | Bore: ø32 mm | Stroke: 300 mm
CHNF32-400Mounting: Rod flange | Bore: ø32 mm | Stroke: 400 mm
CHNF32-500Mounting: Rod flange | Bore: ø32 mm | Stroke: 500 mm
CHNF40-25Mounting: Rod flange | Bore: ø40 mm | Stroke: 25 mm
CHNF40-50Mounting: Rod flange | Bore: ø40 mm | Stroke: 50 mm
CHNF40-75Mounting: Rod flange | Bore: ø40 mm | Stroke: 75 mm
CHNF40-100Mounting: Rod flange | Bore: ø40 mm | Stroke: 100 mm
CHNF40-150Mounting: Rod flange | Bore: ø40 mm | Stroke: 150 mm
CHNF40-200Mounting: Rod flange | Bore: ø40 mm | Stroke: 200 mm
CHNF40-250Mounting: Rod flange | Bore: ø40 mm | Stroke: 250 mm
CHNF40-300Mounting: Rod flange | Bore: ø40 mm | Stroke: 300 mm
CHNF40-400Mounting: Rod flange | Bore: ø40 mm | Stroke: 400 mm
CHNF40-500Mounting: Rod flange | Bore: ø40 mm | Stroke: 500 mm
CHNG20-25Mounting: Head flange | Bore: ø20 mm | Stroke: 25 mm
CHNG20-50Mounting: Head flange | Bore: ø20 mm | Stroke: 50 mm
CHNG20-75Mounting: Head flange | Bore: ø20 mm | Stroke: 75 mm
CHNG20-100Mounting: Head flange | Bore: ø20 mm | Stroke: 100 mm
CHNG20-150Mounting: Head flange | Bore: ø20 mm | Stroke: 150 mm
CHNG20-200Mounting: Head flange | Bore: ø20 mm | Stroke: 200 mm
CHNG20-250Mounting: Head flange | Bore: ø20 mm | Stroke: 250 mm
CHNG20-300Mounting: Head flange | Bore: ø20 mm | Stroke: 300 mm
CHNG25-25Mounting: Head flange | Bore: ø25 mm | Stroke: 25 mm
CHNG25-50Mounting: Head flange | Bore: ø25 mm | Stroke: 50 mm
CHNG25-75Mounting: Head flange | Bore: ø25 mm | Stroke: 75 mm
CHNG25-100Mounting: Head flange | Bore: ø25 mm | Stroke: 100 mm
CHNG25-150Mounting: Head flange | Bore: ø25 mm | Stroke: 150 mm
CHNG25-200Mounting: Head flange | Bore: ø25 mm | Stroke: 200 mm
CHNG25-250Mounting: Head flange | Bore: ø25 mm | Stroke: 250 mm
CHNG25-300Mounting: Head flange | Bore: ø25 mm | Stroke: 300 mm
CHNG25-400Mounting: Head flange | Bore: ø25 mm | Stroke: 400 mm
CHNG32-25Mounting: Head flange | Bore: ø32 mm | Stroke: 25 mm
CHNG32-50Mounting: Head flange | Bore: ø32 mm | Stroke: 50 mm
CHNG32-75Mounting: Head flange | Bore: ø32 mm | Stroke: 75 mm
CHNG32-100Mounting: Head flange | Bore: ø32 mm | Stroke: 100 mm
CHNG32-150Mounting: Head flange | Bore: ø32 mm | Stroke: 150 mm
CHNG32-200Mounting: Head flange | Bore: ø32 mm | Stroke: 200 mm
CHNG32-250Mounting: Head flange | Bore: ø32 mm | Stroke: 250 mm
CHNG32-300Mounting: Head flange | Bore: ø32 mm | Stroke: 300 mm
CHNG32-400Mounting: Head flange | Bore: ø32 mm | Stroke: 400 mm
CHNG32-500Mounting: Head flange | Bore: ø32 mm | Stroke: 500 mm
CHNG40-25Mounting: Head flange | Bore: ø40 mm | Stroke: 25 mm
CHNG40-50Mounting: Head flange | Bore: ø40 mm | Stroke: 50 mm
CHNG40-75Mounting: Head flange | Bore: ø40 mm | Stroke: 75 mm
CHNG40-100Mounting: Head flange | Bore: ø40 mm | Stroke: 100 mm
CHNG40-150Mounting: Head flange | Bore: ø40 mm | Stroke: 150 mm
CHNG40-200Mounting: Head flange | Bore: ø40 mm | Stroke: 200 mm
CHNG40-250Mounting: Head flange | Bore: ø40 mm | Stroke: 250 mm
CHNG40-300Mounting: Head flange | Bore: ø40 mm | Stroke: 300 mm
CHNG40-400Mounting: Head flange | Bore: ø40 mm | Stroke: 400 mm
CHNG40-500Mounting: Head flange | Bore: ø40 mm | Stroke: 500 mm
CHNC20-25Mounting: Single clevis | Bore: ø20 mm | Stroke: 25 mm
CHNC20-50Mounting: Single clevis | Bore: ø20 mm | Stroke: 50 mm
CHNC20-75Mounting: Single clevis | Bore: ø20 mm | Stroke: 75 mm
CHNC20-100Mounting: Single clevis | Bore: ø20 mm | Stroke: 100 mm
CHNC20-150Mounting: Single clevis | Bore: ø20 mm | Stroke: 150 mm
CHNC20-200Mounting: Single clevis | Bore: ø20 mm | Stroke: 200 mm
CHNC20-250Mounting: Single clevis | Bore: ø20 mm | Stroke: 250 mm
CHNC20-300Mounting: Single clevis | Bore: ø20 mm | Stroke: 300 mm
CHNC25-25Mounting: Single clevis | Bore: ø25 mm | Stroke: 25 mm
CHNC25-50Mounting: Single clevis | Bore: ø25 mm | Stroke: 50 mm
CHNC25-75Mounting: Single clevis | Bore: ø25 mm | Stroke: 75 mm
CHNC25-100Mounting: Single clevis | Bore: ø25 mm | Stroke: 100 mm
CHNC25-150Mounting: Single clevis | Bore: ø25 mm | Stroke: 150 mm
CHNC25-200Mounting: Single clevis | Bore: ø25 mm | Stroke: 200 mm
CHNC25-250Mounting: Single clevis | Bore: ø25 mm | Stroke: 250 mm
CHNC25-300Mounting: Single clevis | Bore: ø25 mm | Stroke: 300 mm
CHNC25-400Mounting: Single clevis | Bore: ø25 mm | Stroke: 400 mm
CHNC32-25Mounting: Single clevis | Bore: ø32 mm | Stroke: 25 mm
CHNC32-50Mounting: Single clevis | Bore: ø32 mm | Stroke: 50 mm
CHNC32-75Mounting: Single clevis | Bore: ø32 mm | Stroke: 75 mm
CHNC32-100Mounting: Single clevis | Bore: ø32 mm | Stroke: 100 mm
CHNC32-150Mounting: Single clevis | Bore: ø32 mm | Stroke: 150 mm
CHNC32-200Mounting: Single clevis | Bore: ø32 mm | Stroke: 200 mm
CHNC32-250Mounting: Single clevis | Bore: ø32 mm | Stroke: 250 mm
CHNC32-300Mounting: Single clevis | Bore: ø32 mm | Stroke: 300 mm
CHNC32-400Mounting: Single clevis | Bore: ø32 mm | Stroke: 400 mm
CHNC32-500Mounting: Single clevis | Bore: ø32 mm | Stroke: 500 mm
CHNC40-25Mounting: Single clevis | Bore: ø40 mm | Stroke: 25 mm
CHNC40-50Mounting: Single clevis | Bore: ø40 mm | Stroke: 50 mm
CHNC40-75Mounting: Single clevis | Bore: ø40 mm | Stroke: 75 mm
CHNC40-100Mounting: Single clevis | Bore: ø40 mm | Stroke: 100 mm
CHNC40-150Mounting: Single clevis | Bore: ø40 mm | Stroke: 150 mm
CHNC40-200Mounting: Single clevis | Bore: ø40 mm | Stroke: 200 mm
CHNC40-250Mounting: Single clevis | Bore: ø40 mm | Stroke: 250 mm
CHNC40-300Mounting: Single clevis | Bore: ø40 mm | Stroke: 300 mm
CHNC40-400Mounting: Single clevis | Bore: ø40 mm | Stroke: 400 mm
CHNC40-500Mounting: Single clevis | Bore: ø40 mm | Stroke: 500 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Hydraulics →
