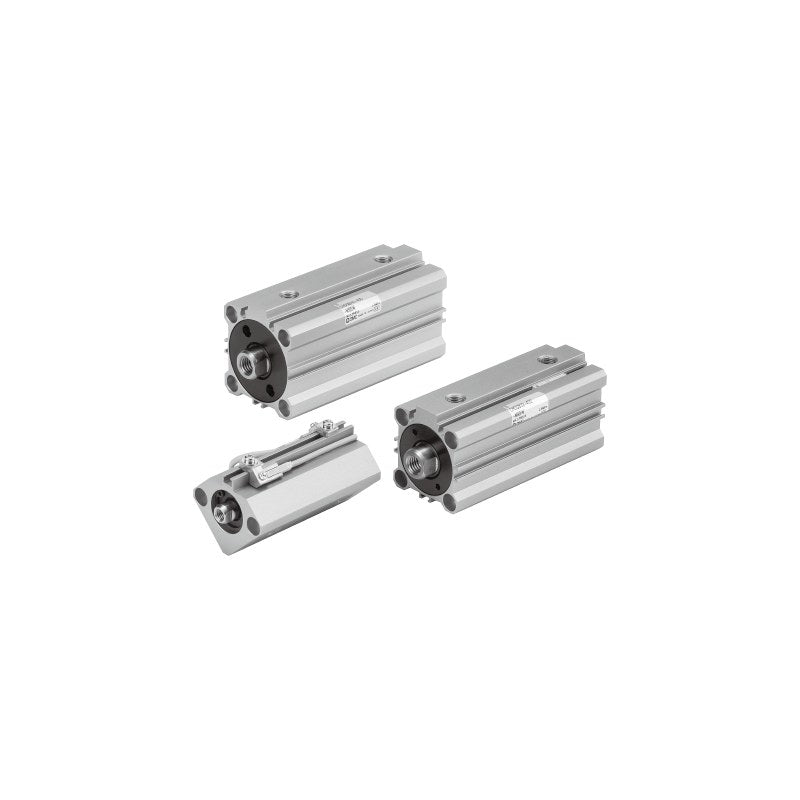

SMC CHQ Thin Hydraulic Cylinder (3.5 MPa, ø20 to ø100)

SMC CHQ Thin Hydraulic Cylinder (3.5 MPa, ø20 to ø100)

SMC CHQB / CHQWB series compact thin hydraulic cylinder, 3.5 MPa nominal, double acting with single or double rod, ø20 to ø100 mm, with or without a built-in auto switch magnet (CHDQ).

Key features

  • Short, compact body for 3.5 MPa hydraulic service; basic type with through-holes for direct mounting
  • Single rod (CHQB) and double rod (CHQWB) versions in seven bores from ø20 to ø100
  • Rod end female thread standard; male thread (M) supplied as an order symbol with rod end nut
  • Built-in magnet models (CHDQ) accept D-M9/D-A9 series auto switches, ordered as a suffix
  • Made-to-order intermediate stroke with dedicated body (-XB10) available

Specifications

Action Double acting
Fluid Hydraulic oil (general mineral, W/O, O/W)
Nominal pressure 3.5 MPa
Proof pressure 5.0 MPa
Max. allowable pressure 3.5 MPa
Min. operating pressure 0.3 MPa
Ambient and fluid temperature -10 to 80°C (no switch), -10 to 60°C (with switch)
Piston speed 8 to 100 mm/s
Cushion None
Mounting Basic (through-hole)
Stroke tolerance +1.0/0 mm
Standard strokes ø20: 5 to 50; ø32: 5 to 100; ø40: 5 to 100; ø50: 10 to 100; ø63: 10 to 100; ø80: 10 to 100; ø100: 10 to 100 mm
Source SMC Korea catalog CHQ series (SMCKR_CHQ.pdf), p. 242-243, 250-251 (PDF p. 2-3, 10-11)
CHQB20-5D Rod: Single rod | Bore: ø20 mm | Stroke: 5 mm | Auto switch magnet: No
CHQB20-10D Rod: Single rod | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: No
CHQB20-15D Rod: Single rod | Bore: ø20 mm | Stroke: 15 mm | Auto switch magnet: No
CHQB20-20D Rod: Single rod | Bore: ø20 mm | Stroke: 20 mm | Auto switch magnet: No
CHQB20-25D Rod: Single rod | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: No
CHQB20-30D Rod: Single rod | Bore: ø20 mm | Stroke: 30 mm | Auto switch magnet: No
CHQB20-35D Rod: Single rod | Bore: ø20 mm | Stroke: 35 mm | Auto switch magnet: No
CHQB20-40D Rod: Single rod | Bore: ø20 mm | Stroke: 40 mm | Auto switch magnet: No
CHQB20-45D Rod: Single rod | Bore: ø20 mm | Stroke: 45 mm | Auto switch magnet: No
CHQB20-50D Rod: Single rod | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: No
CHQB32-5D Rod: Single rod | Bore: ø32 mm | Stroke: 5 mm | Auto switch magnet: No
CHQB32-10D Rod: Single rod | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: No
CHQB32-15D Rod: Single rod | Bore: ø32 mm | Stroke: 15 mm | Auto switch magnet: No
CHQB32-20D Rod: Single rod | Bore: ø32 mm | Stroke: 20 mm | Auto switch magnet: No
CHQB32-25D Rod: Single rod | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No
CHQB32-30D Rod: Single rod | Bore: ø32 mm | Stroke: 30 mm | Auto switch magnet: No
CHQB32-35D Rod: Single rod | Bore: ø32 mm | Stroke: 35 mm | Auto switch magnet: No
CHQB32-40D Rod: Single rod | Bore: ø32 mm | Stroke: 40 mm | Auto switch magnet: No
CHQB32-45D Rod: Single rod | Bore: ø32 mm | Stroke: 45 mm | Auto switch magnet: No
CHQB32-50D Rod: Single rod | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
CHQB32-75D Rod: Single rod | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: No
CHQB32-100D Rod: Single rod | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
CHQB40-5D Rod: Single rod | Bore: ø40 mm | Stroke: 5 mm | Auto switch magnet: No
CHQB40-10D Rod: Single rod | Bore: ø40 mm | Stroke: 10 mm | Auto switch magnet: No
CHQB40-15D Rod: Single rod | Bore: ø40 mm | Stroke: 15 mm | Auto switch magnet: No
CHQB40-20D Rod: Single rod | Bore: ø40 mm | Stroke: 20 mm | Auto switch magnet: No
CHQB40-25D Rod: Single rod | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
CHQB40-30D Rod: Single rod | Bore: ø40 mm | Stroke: 30 mm | Auto switch magnet: No
CHQB40-35D Rod: Single rod | Bore: ø40 mm | Stroke: 35 mm | Auto switch magnet: No
CHQB40-40D Rod: Single rod | Bore: ø40 mm | Stroke: 40 mm | Auto switch magnet: No
CHQB40-45D Rod: Single rod | Bore: ø40 mm | Stroke: 45 mm | Auto switch magnet: No
CHQB40-50D Rod: Single rod | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
CHQB40-75D Rod: Single rod | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
CHQB40-100D Rod: Single rod | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
CHQB50-10D Rod: Single rod | Bore: ø50 mm | Stroke: 10 mm | Auto switch magnet: No
CHQB50-15D Rod: Single rod | Bore: ø50 mm | Stroke: 15 mm | Auto switch magnet: No
CHQB50-20D Rod: Single rod | Bore: ø50 mm | Stroke: 20 mm | Auto switch magnet: No
CHQB50-25D Rod: Single rod | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: No
CHQB50-30D Rod: Single rod | Bore: ø50 mm | Stroke: 30 mm | Auto switch magnet: No
CHQB50-35D Rod: Single rod | Bore: ø50 mm | Stroke: 35 mm | Auto switch magnet: No
CHQB50-40D Rod: Single rod | Bore: ø50 mm | Stroke: 40 mm | Auto switch magnet: No
CHQB50-45D Rod: Single rod | Bore: ø50 mm | Stroke: 45 mm | Auto switch magnet: No
CHQB50-50D Rod: Single rod | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
CHQB50-75D Rod: Single rod | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
CHQB50-100D Rod: Single rod | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
CHQB63-10D Rod: Single rod | Bore: ø63 mm | Stroke: 10 mm | Auto switch magnet: No
CHQB63-15D Rod: Single rod | Bore: ø63 mm | Stroke: 15 mm | Auto switch magnet: No
CHQB63-20D Rod: Single rod | Bore: ø63 mm | Stroke: 20 mm | Auto switch magnet: No
CHQB63-25D Rod: Single rod | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: No
CHQB63-30D Rod: Single rod | Bore: ø63 mm | Stroke: 30 mm | Auto switch magnet: No
CHQB63-35D Rod: Single rod | Bore: ø63 mm | Stroke: 35 mm | Auto switch magnet: No
CHQB63-40D Rod: Single rod | Bore: ø63 mm | Stroke: 40 mm | Auto switch magnet: No
CHQB63-45D Rod: Single rod | Bore: ø63 mm | Stroke: 45 mm | Auto switch magnet: No
CHQB63-50D Rod: Single rod | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
CHQB63-75D Rod: Single rod | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
CHQB63-100D Rod: Single rod | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
CHQB80-10D Rod: Single rod | Bore: ø80 mm | Stroke: 10 mm | Auto switch magnet: No
CHQB80-15D Rod: Single rod | Bore: ø80 mm | Stroke: 15 mm | Auto switch magnet: No
CHQB80-20D Rod: Single rod | Bore: ø80 mm | Stroke: 20 mm | Auto switch magnet: No
CHQB80-25D Rod: Single rod | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: No
CHQB80-30D Rod: Single rod | Bore: ø80 mm | Stroke: 30 mm | Auto switch magnet: No
CHQB80-35D Rod: Single rod | Bore: ø80 mm | Stroke: 35 mm | Auto switch magnet: No
CHQB80-40D Rod: Single rod | Bore: ø80 mm | Stroke: 40 mm | Auto switch magnet: No
CHQB80-45D Rod: Single rod | Bore: ø80 mm | Stroke: 45 mm | Auto switch magnet: No
CHQB80-50D Rod: Single rod | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: No
CHQB80-75D Rod: Single rod | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: No
CHQB80-100D Rod: Single rod | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: No
CHQB100-10D Rod: Single rod | Bore: ø100 mm | Stroke: 10 mm | Auto switch magnet: No
CHQB100-15D Rod: Single rod | Bore: ø100 mm | Stroke: 15 mm | Auto switch magnet: No
CHQB100-20D Rod: Single rod | Bore: ø100 mm | Stroke: 20 mm | Auto switch magnet: No
CHQB100-25D Rod: Single rod | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: No
CHQB100-30D Rod: Single rod | Bore: ø100 mm | Stroke: 30 mm | Auto switch magnet: No
CHQB100-35D Rod: Single rod | Bore: ø100 mm | Stroke: 35 mm | Auto switch magnet: No
CHQB100-40D Rod: Single rod | Bore: ø100 mm | Stroke: 40 mm | Auto switch magnet: No
CHQB100-45D Rod: Single rod | Bore: ø100 mm | Stroke: 45 mm | Auto switch magnet: No
CHQB100-50D Rod: Single rod | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: No
CHQB100-75D Rod: Single rod | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: No
CHQB100-100D Rod: Single rod | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: No
CHDQB20-5D Rod: Single rod | Bore: ø20 mm | Stroke: 5 mm | Auto switch magnet: Yes
CHDQB20-10D Rod: Single rod | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: Yes
CHDQB20-15D Rod: Single rod | Bore: ø20 mm | Stroke: 15 mm | Auto switch magnet: Yes
CHDQB20-20D Rod: Single rod | Bore: ø20 mm | Stroke: 20 mm | Auto switch magnet: Yes
CHDQB20-25D Rod: Single rod | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDQB20-30D Rod: Single rod | Bore: ø20 mm | Stroke: 30 mm | Auto switch magnet: Yes
CHDQB20-35D Rod: Single rod | Bore: ø20 mm | Stroke: 35 mm | Auto switch magnet: Yes
CHDQB20-40D Rod: Single rod | Bore: ø20 mm | Stroke: 40 mm | Auto switch magnet: Yes
CHDQB20-45D Rod: Single rod | Bore: ø20 mm | Stroke: 45 mm | Auto switch magnet: Yes
CHDQB20-50D Rod: Single rod | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDQB32-5D Rod: Single rod | Bore: ø32 mm | Stroke: 5 mm | Auto switch magnet: Yes
CHDQB32-10D Rod: Single rod | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: Yes
CHDQB32-15D Rod: Single rod | Bore: ø32 mm | Stroke: 15 mm | Auto switch magnet: Yes
CHDQB32-20D Rod: Single rod | Bore: ø32 mm | Stroke: 20 mm | Auto switch magnet: Yes
CHDQB32-25D Rod: Single rod | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDQB32-30D Rod: Single rod | Bore: ø32 mm | Stroke: 30 mm | Auto switch magnet: Yes
CHDQB32-35D Rod: Single rod | Bore: ø32 mm | Stroke: 35 mm | Auto switch magnet: Yes
CHDQB32-40D Rod: Single rod | Bore: ø32 mm | Stroke: 40 mm | Auto switch magnet: Yes
CHDQB32-45D Rod: Single rod | Bore: ø32 mm | Stroke: 45 mm | Auto switch magnet: Yes
CHDQB32-50D Rod: Single rod | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDQB32-75D Rod: Single rod | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDQB32-100D Rod: Single rod | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDQB40-5D Rod: Single rod | Bore: ø40 mm | Stroke: 5 mm | Auto switch magnet: Yes
CHDQB40-10D Rod: Single rod | Bore: ø40 mm | Stroke: 10 mm | Auto switch magnet: Yes
CHDQB40-15D Rod: Single rod | Bore: ø40 mm | Stroke: 15 mm | Auto switch magnet: Yes
CHDQB40-20D Rod: Single rod | Bore: ø40 mm | Stroke: 20 mm | Auto switch magnet: Yes
CHDQB40-25D Rod: Single rod | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDQB40-30D Rod: Single rod | Bore: ø40 mm | Stroke: 30 mm | Auto switch magnet: Yes
CHDQB40-35D Rod: Single rod | Bore: ø40 mm | Stroke: 35 mm | Auto switch magnet: Yes
CHDQB40-40D Rod: Single rod | Bore: ø40 mm | Stroke: 40 mm | Auto switch magnet: Yes
CHDQB40-45D Rod: Single rod | Bore: ø40 mm | Stroke: 45 mm | Auto switch magnet: Yes
CHDQB40-50D Rod: Single rod | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDQB40-75D Rod: Single rod | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDQB40-100D Rod: Single rod | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDQB50-10D Rod: Single rod | Bore: ø50 mm | Stroke: 10 mm | Auto switch magnet: Yes
CHDQB50-15D Rod: Single rod | Bore: ø50 mm | Stroke: 15 mm | Auto switch magnet: Yes
CHDQB50-20D Rod: Single rod | Bore: ø50 mm | Stroke: 20 mm | Auto switch magnet: Yes
CHDQB50-25D Rod: Single rod | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDQB50-30D Rod: Single rod | Bore: ø50 mm | Stroke: 30 mm | Auto switch magnet: Yes
CHDQB50-35D Rod: Single rod | Bore: ø50 mm | Stroke: 35 mm | Auto switch magnet: Yes
CHDQB50-40D Rod: Single rod | Bore: ø50 mm | Stroke: 40 mm | Auto switch magnet: Yes
CHDQB50-45D Rod: Single rod | Bore: ø50 mm | Stroke: 45 mm | Auto switch magnet: Yes
CHDQB50-50D Rod: Single rod | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDQB50-75D Rod: Single rod | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDQB50-100D Rod: Single rod | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDQB63-10D Rod: Single rod | Bore: ø63 mm | Stroke: 10 mm | Auto switch magnet: Yes
CHDQB63-15D Rod: Single rod | Bore: ø63 mm | Stroke: 15 mm | Auto switch magnet: Yes
CHDQB63-20D Rod: Single rod | Bore: ø63 mm | Stroke: 20 mm | Auto switch magnet: Yes
CHDQB63-25D Rod: Single rod | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDQB63-30D Rod: Single rod | Bore: ø63 mm | Stroke: 30 mm | Auto switch magnet: Yes
CHDQB63-35D Rod: Single rod | Bore: ø63 mm | Stroke: 35 mm | Auto switch magnet: Yes
CHDQB63-40D Rod: Single rod | Bore: ø63 mm | Stroke: 40 mm | Auto switch magnet: Yes
CHDQB63-45D Rod: Single rod | Bore: ø63 mm | Stroke: 45 mm | Auto switch magnet: Yes
CHDQB63-50D Rod: Single rod | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDQB63-75D Rod: Single rod | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDQB63-100D Rod: Single rod | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDQB80-10D Rod: Single rod | Bore: ø80 mm | Stroke: 10 mm | Auto switch magnet: Yes
CHDQB80-15D Rod: Single rod | Bore: ø80 mm | Stroke: 15 mm | Auto switch magnet: Yes
CHDQB80-20D Rod: Single rod | Bore: ø80 mm | Stroke: 20 mm | Auto switch magnet: Yes
CHDQB80-25D Rod: Single rod | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDQB80-30D Rod: Single rod | Bore: ø80 mm | Stroke: 30 mm | Auto switch magnet: Yes
CHDQB80-35D Rod: Single rod | Bore: ø80 mm | Stroke: 35 mm | Auto switch magnet: Yes
CHDQB80-40D Rod: Single rod | Bore: ø80 mm | Stroke: 40 mm | Auto switch magnet: Yes
CHDQB80-45D Rod: Single rod | Bore: ø80 mm | Stroke: 45 mm | Auto switch magnet: Yes
CHDQB80-50D Rod: Single rod | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDQB80-75D Rod: Single rod | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDQB80-100D Rod: Single rod | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDQB100-10D Rod: Single rod | Bore: ø100 mm | Stroke: 10 mm | Auto switch magnet: Yes
CHDQB100-15D Rod: Single rod | Bore: ø100 mm | Stroke: 15 mm | Auto switch magnet: Yes
CHDQB100-20D Rod: Single rod | Bore: ø100 mm | Stroke: 20 mm | Auto switch magnet: Yes
CHDQB100-25D Rod: Single rod | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDQB100-30D Rod: Single rod | Bore: ø100 mm | Stroke: 30 mm | Auto switch magnet: Yes
CHDQB100-35D Rod: Single rod | Bore: ø100 mm | Stroke: 35 mm | Auto switch magnet: Yes
CHDQB100-40D Rod: Single rod | Bore: ø100 mm | Stroke: 40 mm | Auto switch magnet: Yes
CHDQB100-45D Rod: Single rod | Bore: ø100 mm | Stroke: 45 mm | Auto switch magnet: Yes
CHDQB100-50D Rod: Single rod | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDQB100-75D Rod: Single rod | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDQB100-100D Rod: Single rod | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHQWB20-5D Rod: Double rod | Bore: ø20 mm | Stroke: 5 mm | Auto switch magnet: No
CHQWB20-10D Rod: Double rod | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: No
CHQWB20-15D Rod: Double rod | Bore: ø20 mm | Stroke: 15 mm | Auto switch magnet: No
CHQWB20-20D Rod: Double rod | Bore: ø20 mm | Stroke: 20 mm | Auto switch magnet: No
CHQWB20-25D Rod: Double rod | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: No
CHQWB20-30D Rod: Double rod | Bore: ø20 mm | Stroke: 30 mm | Auto switch magnet: No
CHQWB20-35D Rod: Double rod | Bore: ø20 mm | Stroke: 35 mm | Auto switch magnet: No
CHQWB20-40D Rod: Double rod | Bore: ø20 mm | Stroke: 40 mm | Auto switch magnet: No
CHQWB20-45D Rod: Double rod | Bore: ø20 mm | Stroke: 45 mm | Auto switch magnet: No
CHQWB20-50D Rod: Double rod | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: No
CHQWB32-5D Rod: Double rod | Bore: ø32 mm | Stroke: 5 mm | Auto switch magnet: No
CHQWB32-10D Rod: Double rod | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: No
CHQWB32-15D Rod: Double rod | Bore: ø32 mm | Stroke: 15 mm | Auto switch magnet: No
CHQWB32-20D Rod: Double rod | Bore: ø32 mm | Stroke: 20 mm | Auto switch magnet: No
CHQWB32-25D Rod: Double rod | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No
CHQWB32-30D Rod: Double rod | Bore: ø32 mm | Stroke: 30 mm | Auto switch magnet: No
CHQWB32-35D Rod: Double rod | Bore: ø32 mm | Stroke: 35 mm | Auto switch magnet: No
CHQWB32-40D Rod: Double rod | Bore: ø32 mm | Stroke: 40 mm | Auto switch magnet: No
CHQWB32-45D Rod: Double rod | Bore: ø32 mm | Stroke: 45 mm | Auto switch magnet: No
CHQWB32-50D Rod: Double rod | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
CHQWB32-75D Rod: Double rod | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: No
CHQWB32-100D Rod: Double rod | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
CHQWB40-5D Rod: Double rod | Bore: ø40 mm | Stroke: 5 mm | Auto switch magnet: No
CHQWB40-10D Rod: Double rod | Bore: ø40 mm | Stroke: 10 mm | Auto switch magnet: No
CHQWB40-15D Rod: Double rod | Bore: ø40 mm | Stroke: 15 mm | Auto switch magnet: No
CHQWB40-20D Rod: Double rod | Bore: ø40 mm | Stroke: 20 mm | Auto switch magnet: No
CHQWB40-25D Rod: Double rod | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
CHQWB40-30D Rod: Double rod | Bore: ø40 mm | Stroke: 30 mm | Auto switch magnet: No
CHQWB40-35D Rod: Double rod | Bore: ø40 mm | Stroke: 35 mm | Auto switch magnet: No
CHQWB40-40D Rod: Double rod | Bore: ø40 mm | Stroke: 40 mm | Auto switch magnet: No
CHQWB40-45D Rod: Double rod | Bore: ø40 mm | Stroke: 45 mm | Auto switch magnet: No
CHQWB40-50D Rod: Double rod | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
CHQWB40-75D Rod: Double rod | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
CHQWB40-100D Rod: Double rod | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
CHQWB50-10D Rod: Double rod | Bore: ø50 mm | Stroke: 10 mm | Auto switch magnet: No
CHQWB50-15D Rod: Double rod | Bore: ø50 mm | Stroke: 15 mm | Auto switch magnet: No
CHQWB50-20D Rod: Double rod | Bore: ø50 mm | Stroke: 20 mm | Auto switch magnet: No
CHQWB50-25D Rod: Double rod | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: No
CHQWB50-30D Rod: Double rod | Bore: ø50 mm | Stroke: 30 mm | Auto switch magnet: No
CHQWB50-35D Rod: Double rod | Bore: ø50 mm | Stroke: 35 mm | Auto switch magnet: No
CHQWB50-40D Rod: Double rod | Bore: ø50 mm | Stroke: 40 mm | Auto switch magnet: No
CHQWB50-45D Rod: Double rod | Bore: ø50 mm | Stroke: 45 mm | Auto switch magnet: No
CHQWB50-50D Rod: Double rod | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
CHQWB50-75D Rod: Double rod | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
CHQWB50-100D Rod: Double rod | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
CHQWB63-10D Rod: Double rod | Bore: ø63 mm | Stroke: 10 mm | Auto switch magnet: No
CHQWB63-15D Rod: Double rod | Bore: ø63 mm | Stroke: 15 mm | Auto switch magnet: No
CHQWB63-20D Rod: Double rod | Bore: ø63 mm | Stroke: 20 mm | Auto switch magnet: No
CHQWB63-25D Rod: Double rod | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: No
CHQWB63-30D Rod: Double rod | Bore: ø63 mm | Stroke: 30 mm | Auto switch magnet: No
CHQWB63-35D Rod: Double rod | Bore: ø63 mm | Stroke: 35 mm | Auto switch magnet: No
CHQWB63-40D Rod: Double rod | Bore: ø63 mm | Stroke: 40 mm | Auto switch magnet: No
CHQWB63-45D Rod: Double rod | Bore: ø63 mm | Stroke: 45 mm | Auto switch magnet: No
CHQWB63-50D Rod: Double rod | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
CHQWB63-75D Rod: Double rod | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
CHQWB63-100D Rod: Double rod | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
CHQWB80-10D Rod: Double rod | Bore: ø80 mm | Stroke: 10 mm | Auto switch magnet: No
CHQWB80-15D Rod: Double rod | Bore: ø80 mm | Stroke: 15 mm | Auto switch magnet: No
CHQWB80-20D Rod: Double rod | Bore: ø80 mm | Stroke: 20 mm | Auto switch magnet: No
CHQWB80-25D Rod: Double rod | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: No
CHQWB80-30D Rod: Double rod | Bore: ø80 mm | Stroke: 30 mm | Auto switch magnet: No
CHQWB80-35D Rod: Double rod | Bore: ø80 mm | Stroke: 35 mm | Auto switch magnet: No
CHQWB80-40D Rod: Double rod | Bore: ø80 mm | Stroke: 40 mm | Auto switch magnet: No
CHQWB80-45D Rod: Double rod | Bore: ø80 mm | Stroke: 45 mm | Auto switch magnet: No
CHQWB80-50D Rod: Double rod | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: No
CHQWB80-75D Rod: Double rod | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: No
CHQWB80-100D Rod: Double rod | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: No
CHQWB100-10D Rod: Double rod | Bore: ø100 mm | Stroke: 10 mm | Auto switch magnet: No
CHQWB100-15D Rod: Double rod | Bore: ø100 mm | Stroke: 15 mm | Auto switch magnet: No
CHQWB100-20D Rod: Double rod | Bore: ø100 mm | Stroke: 20 mm | Auto switch magnet: No
CHQWB100-25D Rod: Double rod | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: No
CHQWB100-30D Rod: Double rod | Bore: ø100 mm | Stroke: 30 mm | Auto switch magnet: No
CHQWB100-35D Rod: Double rod | Bore: ø100 mm | Stroke: 35 mm | Auto switch magnet: No
CHQWB100-40D Rod: Double rod | Bore: ø100 mm | Stroke: 40 mm | Auto switch magnet: No
CHQWB100-45D Rod: Double rod | Bore: ø100 mm | Stroke: 45 mm | Auto switch magnet: No
CHQWB100-50D Rod: Double rod | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: No
CHQWB100-75D Rod: Double rod | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: No
CHQWB100-100D Rod: Double rod | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: No
CHDQWB20-5D Rod: Double rod | Bore: ø20 mm | Stroke: 5 mm | Auto switch magnet: Yes
CHDQWB20-10D Rod: Double rod | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: Yes
CHDQWB20-15D Rod: Double rod | Bore: ø20 mm | Stroke: 15 mm | Auto switch magnet: Yes
CHDQWB20-20D Rod: Double rod | Bore: ø20 mm | Stroke: 20 mm | Auto switch magnet: Yes
CHDQWB20-25D Rod: Double rod | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDQWB20-30D Rod: Double rod | Bore: ø20 mm | Stroke: 30 mm | Auto switch magnet: Yes
CHDQWB20-35D Rod: Double rod | Bore: ø20 mm | Stroke: 35 mm | Auto switch magnet: Yes
CHDQWB20-40D Rod: Double rod | Bore: ø20 mm | Stroke: 40 mm | Auto switch magnet: Yes
CHDQWB20-45D Rod: Double rod | Bore: ø20 mm | Stroke: 45 mm | Auto switch magnet: Yes
CHDQWB20-50D Rod: Double rod | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDQWB32-5D Rod: Double rod | Bore: ø32 mm | Stroke: 5 mm | Auto switch magnet: Yes
CHDQWB32-10D Rod: Double rod | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: Yes
CHDQWB32-15D Rod: Double rod | Bore: ø32 mm | Stroke: 15 mm | Auto switch magnet: Yes
CHDQWB32-20D Rod: Double rod | Bore: ø32 mm | Stroke: 20 mm | Auto switch magnet: Yes
CHDQWB32-25D Rod: Double rod | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDQWB32-30D Rod: Double rod | Bore: ø32 mm | Stroke: 30 mm | Auto switch magnet: Yes
CHDQWB32-35D Rod: Double rod | Bore: ø32 mm | Stroke: 35 mm | Auto switch magnet: Yes
CHDQWB32-40D Rod: Double rod | Bore: ø32 mm | Stroke: 40 mm | Auto switch magnet: Yes
CHDQWB32-45D Rod: Double rod | Bore: ø32 mm | Stroke: 45 mm | Auto switch magnet: Yes
CHDQWB32-50D Rod: Double rod | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDQWB32-75D Rod: Double rod | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDQWB32-100D Rod: Double rod | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDQWB40-5D Rod: Double rod | Bore: ø40 mm | Stroke: 5 mm | Auto switch magnet: Yes
CHDQWB40-10D Rod: Double rod | Bore: ø40 mm | Stroke: 10 mm | Auto switch magnet: Yes
CHDQWB40-15D Rod: Double rod | Bore: ø40 mm | Stroke: 15 mm | Auto switch magnet: Yes
CHDQWB40-20D Rod: Double rod | Bore: ø40 mm | Stroke: 20 mm | Auto switch magnet: Yes
CHDQWB40-25D Rod: Double rod | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDQWB40-30D Rod: Double rod | Bore: ø40 mm | Stroke: 30 mm | Auto switch magnet: Yes
CHDQWB40-35D Rod: Double rod | Bore: ø40 mm | Stroke: 35 mm | Auto switch magnet: Yes
CHDQWB40-40D Rod: Double rod | Bore: ø40 mm | Stroke: 40 mm | Auto switch magnet: Yes
CHDQWB40-45D Rod: Double rod | Bore: ø40 mm | Stroke: 45 mm | Auto switch magnet: Yes
CHDQWB40-50D Rod: Double rod | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDQWB40-75D Rod: Double rod | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDQWB40-100D Rod: Double rod | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDQWB50-10D Rod: Double rod | Bore: ø50 mm | Stroke: 10 mm | Auto switch magnet: Yes
CHDQWB50-15D Rod: Double rod | Bore: ø50 mm | Stroke: 15 mm | Auto switch magnet: Yes
CHDQWB50-20D Rod: Double rod | Bore: ø50 mm | Stroke: 20 mm | Auto switch magnet: Yes
CHDQWB50-25D Rod: Double rod | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDQWB50-30D Rod: Double rod | Bore: ø50 mm | Stroke: 30 mm | Auto switch magnet: Yes
CHDQWB50-35D Rod: Double rod | Bore: ø50 mm | Stroke: 35 mm | Auto switch magnet: Yes
CHDQWB50-40D Rod: Double rod | Bore: ø50 mm | Stroke: 40 mm | Auto switch magnet: Yes
CHDQWB50-45D Rod: Double rod | Bore: ø50 mm | Stroke: 45 mm | Auto switch magnet: Yes
CHDQWB50-50D Rod: Double rod | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDQWB50-75D Rod: Double rod | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDQWB50-100D Rod: Double rod | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDQWB63-10D Rod: Double rod | Bore: ø63 mm | Stroke: 10 mm | Auto switch magnet: Yes
CHDQWB63-15D Rod: Double rod | Bore: ø63 mm | Stroke: 15 mm | Auto switch magnet: Yes
CHDQWB63-20D Rod: Double rod | Bore: ø63 mm | Stroke: 20 mm | Auto switch magnet: Yes
CHDQWB63-25D Rod: Double rod | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDQWB63-30D Rod: Double rod | Bore: ø63 mm | Stroke: 30 mm | Auto switch magnet: Yes
CHDQWB63-35D Rod: Double rod | Bore: ø63 mm | Stroke: 35 mm | Auto switch magnet: Yes
CHDQWB63-40D Rod: Double rod | Bore: ø63 mm | Stroke: 40 mm | Auto switch magnet: Yes
CHDQWB63-45D Rod: Double rod | Bore: ø63 mm | Stroke: 45 mm | Auto switch magnet: Yes
CHDQWB63-50D Rod: Double rod | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDQWB63-75D Rod: Double rod | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDQWB63-100D Rod: Double rod | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDQWB80-10D Rod: Double rod | Bore: ø80 mm | Stroke: 10 mm | Auto switch magnet: Yes
CHDQWB80-15D Rod: Double rod | Bore: ø80 mm | Stroke: 15 mm | Auto switch magnet: Yes
CHDQWB80-20D Rod: Double rod | Bore: ø80 mm | Stroke: 20 mm | Auto switch magnet: Yes
CHDQWB80-25D Rod: Double rod | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDQWB80-30D Rod: Double rod | Bore: ø80 mm | Stroke: 30 mm | Auto switch magnet: Yes
CHDQWB80-35D Rod: Double rod | Bore: ø80 mm | Stroke: 35 mm | Auto switch magnet: Yes
CHDQWB80-40D Rod: Double rod | Bore: ø80 mm | Stroke: 40 mm | Auto switch magnet: Yes
CHDQWB80-45D Rod: Double rod | Bore: ø80 mm | Stroke: 45 mm | Auto switch magnet: Yes
CHDQWB80-50D Rod: Double rod | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDQWB80-75D Rod: Double rod | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDQWB80-100D Rod: Double rod | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDQWB100-10D Rod: Double rod | Bore: ø100 mm | Stroke: 10 mm | Auto switch magnet: Yes
CHDQWB100-15D Rod: Double rod | Bore: ø100 mm | Stroke: 15 mm | Auto switch magnet: Yes
CHDQWB100-20D Rod: Double rod | Bore: ø100 mm | Stroke: 20 mm | Auto switch magnet: Yes
CHDQWB100-25D Rod: Double rod | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDQWB100-30D Rod: Double rod | Bore: ø100 mm | Stroke: 30 mm | Auto switch magnet: Yes
CHDQWB100-35D Rod: Double rod | Bore: ø100 mm | Stroke: 35 mm | Auto switch magnet: Yes
CHDQWB100-40D Rod: Double rod | Bore: ø100 mm | Stroke: 40 mm | Auto switch magnet: Yes
CHDQWB100-45D Rod: Double rod | Bore: ø100 mm | Stroke: 45 mm | Auto switch magnet: Yes
CHDQWB100-50D Rod: Double rod | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDQWB100-75D Rod: Double rod | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDQWB100-100D Rod: Double rod | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: Yes
Hydraulic CylindersSMC
312 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CHQ Thin Hydraulic Cylinder (3.5 MPa, ø20 to ø100)

Brand SMC·Hydraulic Cylinders

Available part numbers (312)

CHQB20-5D, CHQB20-10D, CHQB20-15D, CHQB20-20D, CHQB20-25D, CHQB20-30D, CHQB20-35D, CHQB20-40D, CHQB20-45D, CHQB20-50D + 302 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CHQB20-5DRod: Single rod | Bore: ø20 mm | Stroke: 5 mm | Auto switch magnet: No
CHQB20-10DRod: Single rod | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: No
CHQB20-15DRod: Single rod | Bore: ø20 mm | Stroke: 15 mm | Auto switch magnet: No
CHQB20-20DRod: Single rod | Bore: ø20 mm | Stroke: 20 mm | Auto switch magnet: No
CHQB20-25DRod: Single rod | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: No
CHQB20-30DRod: Single rod | Bore: ø20 mm | Stroke: 30 mm | Auto switch magnet: No
CHQB20-35DRod: Single rod | Bore: ø20 mm | Stroke: 35 mm | Auto switch magnet: No
CHQB20-40DRod: Single rod | Bore: ø20 mm | Stroke: 40 mm | Auto switch magnet: No
CHQB20-45DRod: Single rod | Bore: ø20 mm | Stroke: 45 mm | Auto switch magnet: No
CHQB20-50DRod: Single rod | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: No
CHQB32-5DRod: Single rod | Bore: ø32 mm | Stroke: 5 mm | Auto switch magnet: No
CHQB32-10DRod: Single rod | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: No
CHQB32-15DRod: Single rod | Bore: ø32 mm | Stroke: 15 mm | Auto switch magnet: No
CHQB32-20DRod: Single rod | Bore: ø32 mm | Stroke: 20 mm | Auto switch magnet: No
CHQB32-25DRod: Single rod | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No
CHQB32-30DRod: Single rod | Bore: ø32 mm | Stroke: 30 mm | Auto switch magnet: No
CHQB32-35DRod: Single rod | Bore: ø32 mm | Stroke: 35 mm | Auto switch magnet: No
CHQB32-40DRod: Single rod | Bore: ø32 mm | Stroke: 40 mm | Auto switch magnet: No
CHQB32-45DRod: Single rod | Bore: ø32 mm | Stroke: 45 mm | Auto switch magnet: No
CHQB32-50DRod: Single rod | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
CHQB32-75DRod: Single rod | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: No
CHQB32-100DRod: Single rod | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
CHQB40-5DRod: Single rod | Bore: ø40 mm | Stroke: 5 mm | Auto switch magnet: No
CHQB40-10DRod: Single rod | Bore: ø40 mm | Stroke: 10 mm | Auto switch magnet: No
CHQB40-15DRod: Single rod | Bore: ø40 mm | Stroke: 15 mm | Auto switch magnet: No
CHQB40-20DRod: Single rod | Bore: ø40 mm | Stroke: 20 mm | Auto switch magnet: No
CHQB40-25DRod: Single rod | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
CHQB40-30DRod: Single rod | Bore: ø40 mm | Stroke: 30 mm | Auto switch magnet: No
CHQB40-35DRod: Single rod | Bore: ø40 mm | Stroke: 35 mm | Auto switch magnet: No
CHQB40-40DRod: Single rod | Bore: ø40 mm | Stroke: 40 mm | Auto switch magnet: No
CHQB40-45DRod: Single rod | Bore: ø40 mm | Stroke: 45 mm | Auto switch magnet: No
CHQB40-50DRod: Single rod | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
CHQB40-75DRod: Single rod | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
CHQB40-100DRod: Single rod | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
CHQB50-10DRod: Single rod | Bore: ø50 mm | Stroke: 10 mm | Auto switch magnet: No
CHQB50-15DRod: Single rod | Bore: ø50 mm | Stroke: 15 mm | Auto switch magnet: No
CHQB50-20DRod: Single rod | Bore: ø50 mm | Stroke: 20 mm | Auto switch magnet: No
CHQB50-25DRod: Single rod | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: No
CHQB50-30DRod: Single rod | Bore: ø50 mm | Stroke: 30 mm | Auto switch magnet: No
CHQB50-35DRod: Single rod | Bore: ø50 mm | Stroke: 35 mm | Auto switch magnet: No
CHQB50-40DRod: Single rod | Bore: ø50 mm | Stroke: 40 mm | Auto switch magnet: No
CHQB50-45DRod: Single rod | Bore: ø50 mm | Stroke: 45 mm | Auto switch magnet: No
CHQB50-50DRod: Single rod | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
CHQB50-75DRod: Single rod | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
CHQB50-100DRod: Single rod | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
CHQB63-10DRod: Single rod | Bore: ø63 mm | Stroke: 10 mm | Auto switch magnet: No
CHQB63-15DRod: Single rod | Bore: ø63 mm | Stroke: 15 mm | Auto switch magnet: No
CHQB63-20DRod: Single rod | Bore: ø63 mm | Stroke: 20 mm | Auto switch magnet: No
CHQB63-25DRod: Single rod | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: No
CHQB63-30DRod: Single rod | Bore: ø63 mm | Stroke: 30 mm | Auto switch magnet: No
CHQB63-35DRod: Single rod | Bore: ø63 mm | Stroke: 35 mm | Auto switch magnet: No
CHQB63-40DRod: Single rod | Bore: ø63 mm | Stroke: 40 mm | Auto switch magnet: No
CHQB63-45DRod: Single rod | Bore: ø63 mm | Stroke: 45 mm | Auto switch magnet: No
CHQB63-50DRod: Single rod | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
CHQB63-75DRod: Single rod | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
CHQB63-100DRod: Single rod | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
CHQB80-10DRod: Single rod | Bore: ø80 mm | Stroke: 10 mm | Auto switch magnet: No
CHQB80-15DRod: Single rod | Bore: ø80 mm | Stroke: 15 mm | Auto switch magnet: No
CHQB80-20DRod: Single rod | Bore: ø80 mm | Stroke: 20 mm | Auto switch magnet: No
CHQB80-25DRod: Single rod | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: No
CHQB80-30DRod: Single rod | Bore: ø80 mm | Stroke: 30 mm | Auto switch magnet: No
CHQB80-35DRod: Single rod | Bore: ø80 mm | Stroke: 35 mm | Auto switch magnet: No
CHQB80-40DRod: Single rod | Bore: ø80 mm | Stroke: 40 mm | Auto switch magnet: No
CHQB80-45DRod: Single rod | Bore: ø80 mm | Stroke: 45 mm | Auto switch magnet: No
CHQB80-50DRod: Single rod | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: No
CHQB80-75DRod: Single rod | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: No
CHQB80-100DRod: Single rod | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: No
CHQB100-10DRod: Single rod | Bore: ø100 mm | Stroke: 10 mm | Auto switch magnet: No
CHQB100-15DRod: Single rod | Bore: ø100 mm | Stroke: 15 mm | Auto switch magnet: No
CHQB100-20DRod: Single rod | Bore: ø100 mm | Stroke: 20 mm | Auto switch magnet: No
CHQB100-25DRod: Single rod | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: No
CHQB100-30DRod: Single rod | Bore: ø100 mm | Stroke: 30 mm | Auto switch magnet: No
CHQB100-35DRod: Single rod | Bore: ø100 mm | Stroke: 35 mm | Auto switch magnet: No
CHQB100-40DRod: Single rod | Bore: ø100 mm | Stroke: 40 mm | Auto switch magnet: No
CHQB100-45DRod: Single rod | Bore: ø100 mm | Stroke: 45 mm | Auto switch magnet: No
CHQB100-50DRod: Single rod | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: No
CHQB100-75DRod: Single rod | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: No
CHQB100-100DRod: Single rod | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: No
CHDQB20-5DRod: Single rod | Bore: ø20 mm | Stroke: 5 mm | Auto switch magnet: Yes
CHDQB20-10DRod: Single rod | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: Yes
CHDQB20-15DRod: Single rod | Bore: ø20 mm | Stroke: 15 mm | Auto switch magnet: Yes
CHDQB20-20DRod: Single rod | Bore: ø20 mm | Stroke: 20 mm | Auto switch magnet: Yes
CHDQB20-25DRod: Single rod | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDQB20-30DRod: Single rod | Bore: ø20 mm | Stroke: 30 mm | Auto switch magnet: Yes
CHDQB20-35DRod: Single rod | Bore: ø20 mm | Stroke: 35 mm | Auto switch magnet: Yes
CHDQB20-40DRod: Single rod | Bore: ø20 mm | Stroke: 40 mm | Auto switch magnet: Yes
CHDQB20-45DRod: Single rod | Bore: ø20 mm | Stroke: 45 mm | Auto switch magnet: Yes
CHDQB20-50DRod: Single rod | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDQB32-5DRod: Single rod | Bore: ø32 mm | Stroke: 5 mm | Auto switch magnet: Yes
CHDQB32-10DRod: Single rod | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: Yes
CHDQB32-15DRod: Single rod | Bore: ø32 mm | Stroke: 15 mm | Auto switch magnet: Yes
CHDQB32-20DRod: Single rod | Bore: ø32 mm | Stroke: 20 mm | Auto switch magnet: Yes
CHDQB32-25DRod: Single rod | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDQB32-30DRod: Single rod | Bore: ø32 mm | Stroke: 30 mm | Auto switch magnet: Yes
CHDQB32-35DRod: Single rod | Bore: ø32 mm | Stroke: 35 mm | Auto switch magnet: Yes
CHDQB32-40DRod: Single rod | Bore: ø32 mm | Stroke: 40 mm | Auto switch magnet: Yes
CHDQB32-45DRod: Single rod | Bore: ø32 mm | Stroke: 45 mm | Auto switch magnet: Yes
CHDQB32-50DRod: Single rod | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDQB32-75DRod: Single rod | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDQB32-100DRod: Single rod | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDQB40-5DRod: Single rod | Bore: ø40 mm | Stroke: 5 mm | Auto switch magnet: Yes
CHDQB40-10DRod: Single rod | Bore: ø40 mm | Stroke: 10 mm | Auto switch magnet: Yes
CHDQB40-15DRod: Single rod | Bore: ø40 mm | Stroke: 15 mm | Auto switch magnet: Yes
CHDQB40-20DRod: Single rod | Bore: ø40 mm | Stroke: 20 mm | Auto switch magnet: Yes
CHDQB40-25DRod: Single rod | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDQB40-30DRod: Single rod | Bore: ø40 mm | Stroke: 30 mm | Auto switch magnet: Yes
CHDQB40-35DRod: Single rod | Bore: ø40 mm | Stroke: 35 mm | Auto switch magnet: Yes
CHDQB40-40DRod: Single rod | Bore: ø40 mm | Stroke: 40 mm | Auto switch magnet: Yes
CHDQB40-45DRod: Single rod | Bore: ø40 mm | Stroke: 45 mm | Auto switch magnet: Yes
CHDQB40-50DRod: Single rod | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDQB40-75DRod: Single rod | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDQB40-100DRod: Single rod | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDQB50-10DRod: Single rod | Bore: ø50 mm | Stroke: 10 mm | Auto switch magnet: Yes
CHDQB50-15DRod: Single rod | Bore: ø50 mm | Stroke: 15 mm | Auto switch magnet: Yes
CHDQB50-20DRod: Single rod | Bore: ø50 mm | Stroke: 20 mm | Auto switch magnet: Yes
CHDQB50-25DRod: Single rod | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDQB50-30DRod: Single rod | Bore: ø50 mm | Stroke: 30 mm | Auto switch magnet: Yes
CHDQB50-35DRod: Single rod | Bore: ø50 mm | Stroke: 35 mm | Auto switch magnet: Yes
CHDQB50-40DRod: Single rod | Bore: ø50 mm | Stroke: 40 mm | Auto switch magnet: Yes
CHDQB50-45DRod: Single rod | Bore: ø50 mm | Stroke: 45 mm | Auto switch magnet: Yes
CHDQB50-50DRod: Single rod | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDQB50-75DRod: Single rod | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDQB50-100DRod: Single rod | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDQB63-10DRod: Single rod | Bore: ø63 mm | Stroke: 10 mm | Auto switch magnet: Yes
CHDQB63-15DRod: Single rod | Bore: ø63 mm | Stroke: 15 mm | Auto switch magnet: Yes
CHDQB63-20DRod: Single rod | Bore: ø63 mm | Stroke: 20 mm | Auto switch magnet: Yes
CHDQB63-25DRod: Single rod | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDQB63-30DRod: Single rod | Bore: ø63 mm | Stroke: 30 mm | Auto switch magnet: Yes
CHDQB63-35DRod: Single rod | Bore: ø63 mm | Stroke: 35 mm | Auto switch magnet: Yes
CHDQB63-40DRod: Single rod | Bore: ø63 mm | Stroke: 40 mm | Auto switch magnet: Yes
CHDQB63-45DRod: Single rod | Bore: ø63 mm | Stroke: 45 mm | Auto switch magnet: Yes
CHDQB63-50DRod: Single rod | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDQB63-75DRod: Single rod | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDQB63-100DRod: Single rod | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDQB80-10DRod: Single rod | Bore: ø80 mm | Stroke: 10 mm | Auto switch magnet: Yes
CHDQB80-15DRod: Single rod | Bore: ø80 mm | Stroke: 15 mm | Auto switch magnet: Yes
CHDQB80-20DRod: Single rod | Bore: ø80 mm | Stroke: 20 mm | Auto switch magnet: Yes
CHDQB80-25DRod: Single rod | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDQB80-30DRod: Single rod | Bore: ø80 mm | Stroke: 30 mm | Auto switch magnet: Yes
CHDQB80-35DRod: Single rod | Bore: ø80 mm | Stroke: 35 mm | Auto switch magnet: Yes
CHDQB80-40DRod: Single rod | Bore: ø80 mm | Stroke: 40 mm | Auto switch magnet: Yes
CHDQB80-45DRod: Single rod | Bore: ø80 mm | Stroke: 45 mm | Auto switch magnet: Yes
CHDQB80-50DRod: Single rod | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDQB80-75DRod: Single rod | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDQB80-100DRod: Single rod | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDQB100-10DRod: Single rod | Bore: ø100 mm | Stroke: 10 mm | Auto switch magnet: Yes
CHDQB100-15DRod: Single rod | Bore: ø100 mm | Stroke: 15 mm | Auto switch magnet: Yes
CHDQB100-20DRod: Single rod | Bore: ø100 mm | Stroke: 20 mm | Auto switch magnet: Yes
CHDQB100-25DRod: Single rod | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDQB100-30DRod: Single rod | Bore: ø100 mm | Stroke: 30 mm | Auto switch magnet: Yes
CHDQB100-35DRod: Single rod | Bore: ø100 mm | Stroke: 35 mm | Auto switch magnet: Yes
CHDQB100-40DRod: Single rod | Bore: ø100 mm | Stroke: 40 mm | Auto switch magnet: Yes
CHDQB100-45DRod: Single rod | Bore: ø100 mm | Stroke: 45 mm | Auto switch magnet: Yes
CHDQB100-50DRod: Single rod | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDQB100-75DRod: Single rod | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDQB100-100DRod: Single rod | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHQWB20-5DRod: Double rod | Bore: ø20 mm | Stroke: 5 mm | Auto switch magnet: No
CHQWB20-10DRod: Double rod | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: No
CHQWB20-15DRod: Double rod | Bore: ø20 mm | Stroke: 15 mm | Auto switch magnet: No
CHQWB20-20DRod: Double rod | Bore: ø20 mm | Stroke: 20 mm | Auto switch magnet: No
CHQWB20-25DRod: Double rod | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: No
CHQWB20-30DRod: Double rod | Bore: ø20 mm | Stroke: 30 mm | Auto switch magnet: No
CHQWB20-35DRod: Double rod | Bore: ø20 mm | Stroke: 35 mm | Auto switch magnet: No
CHQWB20-40DRod: Double rod | Bore: ø20 mm | Stroke: 40 mm | Auto switch magnet: No
CHQWB20-45DRod: Double rod | Bore: ø20 mm | Stroke: 45 mm | Auto switch magnet: No
CHQWB20-50DRod: Double rod | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: No
CHQWB32-5DRod: Double rod | Bore: ø32 mm | Stroke: 5 mm | Auto switch magnet: No
CHQWB32-10DRod: Double rod | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: No
CHQWB32-15DRod: Double rod | Bore: ø32 mm | Stroke: 15 mm | Auto switch magnet: No
CHQWB32-20DRod: Double rod | Bore: ø32 mm | Stroke: 20 mm | Auto switch magnet: No
CHQWB32-25DRod: Double rod | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: No
CHQWB32-30DRod: Double rod | Bore: ø32 mm | Stroke: 30 mm | Auto switch magnet: No
CHQWB32-35DRod: Double rod | Bore: ø32 mm | Stroke: 35 mm | Auto switch magnet: No
CHQWB32-40DRod: Double rod | Bore: ø32 mm | Stroke: 40 mm | Auto switch magnet: No
CHQWB32-45DRod: Double rod | Bore: ø32 mm | Stroke: 45 mm | Auto switch magnet: No
CHQWB32-50DRod: Double rod | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: No
CHQWB32-75DRod: Double rod | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: No
CHQWB32-100DRod: Double rod | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: No
CHQWB40-5DRod: Double rod | Bore: ø40 mm | Stroke: 5 mm | Auto switch magnet: No
CHQWB40-10DRod: Double rod | Bore: ø40 mm | Stroke: 10 mm | Auto switch magnet: No
CHQWB40-15DRod: Double rod | Bore: ø40 mm | Stroke: 15 mm | Auto switch magnet: No
CHQWB40-20DRod: Double rod | Bore: ø40 mm | Stroke: 20 mm | Auto switch magnet: No
CHQWB40-25DRod: Double rod | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: No
CHQWB40-30DRod: Double rod | Bore: ø40 mm | Stroke: 30 mm | Auto switch magnet: No
CHQWB40-35DRod: Double rod | Bore: ø40 mm | Stroke: 35 mm | Auto switch magnet: No
CHQWB40-40DRod: Double rod | Bore: ø40 mm | Stroke: 40 mm | Auto switch magnet: No
CHQWB40-45DRod: Double rod | Bore: ø40 mm | Stroke: 45 mm | Auto switch magnet: No
CHQWB40-50DRod: Double rod | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: No
CHQWB40-75DRod: Double rod | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: No
CHQWB40-100DRod: Double rod | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: No
CHQWB50-10DRod: Double rod | Bore: ø50 mm | Stroke: 10 mm | Auto switch magnet: No
CHQWB50-15DRod: Double rod | Bore: ø50 mm | Stroke: 15 mm | Auto switch magnet: No
CHQWB50-20DRod: Double rod | Bore: ø50 mm | Stroke: 20 mm | Auto switch magnet: No
CHQWB50-25DRod: Double rod | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: No
CHQWB50-30DRod: Double rod | Bore: ø50 mm | Stroke: 30 mm | Auto switch magnet: No
CHQWB50-35DRod: Double rod | Bore: ø50 mm | Stroke: 35 mm | Auto switch magnet: No
CHQWB50-40DRod: Double rod | Bore: ø50 mm | Stroke: 40 mm | Auto switch magnet: No
CHQWB50-45DRod: Double rod | Bore: ø50 mm | Stroke: 45 mm | Auto switch magnet: No
CHQWB50-50DRod: Double rod | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: No
CHQWB50-75DRod: Double rod | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: No
CHQWB50-100DRod: Double rod | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: No
CHQWB63-10DRod: Double rod | Bore: ø63 mm | Stroke: 10 mm | Auto switch magnet: No
CHQWB63-15DRod: Double rod | Bore: ø63 mm | Stroke: 15 mm | Auto switch magnet: No
CHQWB63-20DRod: Double rod | Bore: ø63 mm | Stroke: 20 mm | Auto switch magnet: No
CHQWB63-25DRod: Double rod | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: No
CHQWB63-30DRod: Double rod | Bore: ø63 mm | Stroke: 30 mm | Auto switch magnet: No
CHQWB63-35DRod: Double rod | Bore: ø63 mm | Stroke: 35 mm | Auto switch magnet: No
CHQWB63-40DRod: Double rod | Bore: ø63 mm | Stroke: 40 mm | Auto switch magnet: No
CHQWB63-45DRod: Double rod | Bore: ø63 mm | Stroke: 45 mm | Auto switch magnet: No
CHQWB63-50DRod: Double rod | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: No
CHQWB63-75DRod: Double rod | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: No
CHQWB63-100DRod: Double rod | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: No
CHQWB80-10DRod: Double rod | Bore: ø80 mm | Stroke: 10 mm | Auto switch magnet: No
CHQWB80-15DRod: Double rod | Bore: ø80 mm | Stroke: 15 mm | Auto switch magnet: No
CHQWB80-20DRod: Double rod | Bore: ø80 mm | Stroke: 20 mm | Auto switch magnet: No
CHQWB80-25DRod: Double rod | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: No
CHQWB80-30DRod: Double rod | Bore: ø80 mm | Stroke: 30 mm | Auto switch magnet: No
CHQWB80-35DRod: Double rod | Bore: ø80 mm | Stroke: 35 mm | Auto switch magnet: No
CHQWB80-40DRod: Double rod | Bore: ø80 mm | Stroke: 40 mm | Auto switch magnet: No
CHQWB80-45DRod: Double rod | Bore: ø80 mm | Stroke: 45 mm | Auto switch magnet: No
CHQWB80-50DRod: Double rod | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: No
CHQWB80-75DRod: Double rod | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: No
CHQWB80-100DRod: Double rod | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: No
CHQWB100-10DRod: Double rod | Bore: ø100 mm | Stroke: 10 mm | Auto switch magnet: No
CHQWB100-15DRod: Double rod | Bore: ø100 mm | Stroke: 15 mm | Auto switch magnet: No
CHQWB100-20DRod: Double rod | Bore: ø100 mm | Stroke: 20 mm | Auto switch magnet: No
CHQWB100-25DRod: Double rod | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: No
CHQWB100-30DRod: Double rod | Bore: ø100 mm | Stroke: 30 mm | Auto switch magnet: No
CHQWB100-35DRod: Double rod | Bore: ø100 mm | Stroke: 35 mm | Auto switch magnet: No
CHQWB100-40DRod: Double rod | Bore: ø100 mm | Stroke: 40 mm | Auto switch magnet: No
CHQWB100-45DRod: Double rod | Bore: ø100 mm | Stroke: 45 mm | Auto switch magnet: No
CHQWB100-50DRod: Double rod | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: No
CHQWB100-75DRod: Double rod | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: No
CHQWB100-100DRod: Double rod | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: No
CHDQWB20-5DRod: Double rod | Bore: ø20 mm | Stroke: 5 mm | Auto switch magnet: Yes
CHDQWB20-10DRod: Double rod | Bore: ø20 mm | Stroke: 10 mm | Auto switch magnet: Yes
CHDQWB20-15DRod: Double rod | Bore: ø20 mm | Stroke: 15 mm | Auto switch magnet: Yes
CHDQWB20-20DRod: Double rod | Bore: ø20 mm | Stroke: 20 mm | Auto switch magnet: Yes
CHDQWB20-25DRod: Double rod | Bore: ø20 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDQWB20-30DRod: Double rod | Bore: ø20 mm | Stroke: 30 mm | Auto switch magnet: Yes
CHDQWB20-35DRod: Double rod | Bore: ø20 mm | Stroke: 35 mm | Auto switch magnet: Yes
CHDQWB20-40DRod: Double rod | Bore: ø20 mm | Stroke: 40 mm | Auto switch magnet: Yes
CHDQWB20-45DRod: Double rod | Bore: ø20 mm | Stroke: 45 mm | Auto switch magnet: Yes
CHDQWB20-50DRod: Double rod | Bore: ø20 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDQWB32-5DRod: Double rod | Bore: ø32 mm | Stroke: 5 mm | Auto switch magnet: Yes
CHDQWB32-10DRod: Double rod | Bore: ø32 mm | Stroke: 10 mm | Auto switch magnet: Yes
CHDQWB32-15DRod: Double rod | Bore: ø32 mm | Stroke: 15 mm | Auto switch magnet: Yes
CHDQWB32-20DRod: Double rod | Bore: ø32 mm | Stroke: 20 mm | Auto switch magnet: Yes
CHDQWB32-25DRod: Double rod | Bore: ø32 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDQWB32-30DRod: Double rod | Bore: ø32 mm | Stroke: 30 mm | Auto switch magnet: Yes
CHDQWB32-35DRod: Double rod | Bore: ø32 mm | Stroke: 35 mm | Auto switch magnet: Yes
CHDQWB32-40DRod: Double rod | Bore: ø32 mm | Stroke: 40 mm | Auto switch magnet: Yes
CHDQWB32-45DRod: Double rod | Bore: ø32 mm | Stroke: 45 mm | Auto switch magnet: Yes
CHDQWB32-50DRod: Double rod | Bore: ø32 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDQWB32-75DRod: Double rod | Bore: ø32 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDQWB32-100DRod: Double rod | Bore: ø32 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDQWB40-5DRod: Double rod | Bore: ø40 mm | Stroke: 5 mm | Auto switch magnet: Yes
CHDQWB40-10DRod: Double rod | Bore: ø40 mm | Stroke: 10 mm | Auto switch magnet: Yes
CHDQWB40-15DRod: Double rod | Bore: ø40 mm | Stroke: 15 mm | Auto switch magnet: Yes
CHDQWB40-20DRod: Double rod | Bore: ø40 mm | Stroke: 20 mm | Auto switch magnet: Yes
CHDQWB40-25DRod: Double rod | Bore: ø40 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDQWB40-30DRod: Double rod | Bore: ø40 mm | Stroke: 30 mm | Auto switch magnet: Yes
CHDQWB40-35DRod: Double rod | Bore: ø40 mm | Stroke: 35 mm | Auto switch magnet: Yes
CHDQWB40-40DRod: Double rod | Bore: ø40 mm | Stroke: 40 mm | Auto switch magnet: Yes
CHDQWB40-45DRod: Double rod | Bore: ø40 mm | Stroke: 45 mm | Auto switch magnet: Yes
CHDQWB40-50DRod: Double rod | Bore: ø40 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDQWB40-75DRod: Double rod | Bore: ø40 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDQWB40-100DRod: Double rod | Bore: ø40 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDQWB50-10DRod: Double rod | Bore: ø50 mm | Stroke: 10 mm | Auto switch magnet: Yes
CHDQWB50-15DRod: Double rod | Bore: ø50 mm | Stroke: 15 mm | Auto switch magnet: Yes
CHDQWB50-20DRod: Double rod | Bore: ø50 mm | Stroke: 20 mm | Auto switch magnet: Yes
CHDQWB50-25DRod: Double rod | Bore: ø50 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDQWB50-30DRod: Double rod | Bore: ø50 mm | Stroke: 30 mm | Auto switch magnet: Yes
CHDQWB50-35DRod: Double rod | Bore: ø50 mm | Stroke: 35 mm | Auto switch magnet: Yes
CHDQWB50-40DRod: Double rod | Bore: ø50 mm | Stroke: 40 mm | Auto switch magnet: Yes
CHDQWB50-45DRod: Double rod | Bore: ø50 mm | Stroke: 45 mm | Auto switch magnet: Yes
CHDQWB50-50DRod: Double rod | Bore: ø50 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDQWB50-75DRod: Double rod | Bore: ø50 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDQWB50-100DRod: Double rod | Bore: ø50 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDQWB63-10DRod: Double rod | Bore: ø63 mm | Stroke: 10 mm | Auto switch magnet: Yes
CHDQWB63-15DRod: Double rod | Bore: ø63 mm | Stroke: 15 mm | Auto switch magnet: Yes
CHDQWB63-20DRod: Double rod | Bore: ø63 mm | Stroke: 20 mm | Auto switch magnet: Yes
CHDQWB63-25DRod: Double rod | Bore: ø63 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDQWB63-30DRod: Double rod | Bore: ø63 mm | Stroke: 30 mm | Auto switch magnet: Yes
CHDQWB63-35DRod: Double rod | Bore: ø63 mm | Stroke: 35 mm | Auto switch magnet: Yes
CHDQWB63-40DRod: Double rod | Bore: ø63 mm | Stroke: 40 mm | Auto switch magnet: Yes
CHDQWB63-45DRod: Double rod | Bore: ø63 mm | Stroke: 45 mm | Auto switch magnet: Yes
CHDQWB63-50DRod: Double rod | Bore: ø63 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDQWB63-75DRod: Double rod | Bore: ø63 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDQWB63-100DRod: Double rod | Bore: ø63 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDQWB80-10DRod: Double rod | Bore: ø80 mm | Stroke: 10 mm | Auto switch magnet: Yes
CHDQWB80-15DRod: Double rod | Bore: ø80 mm | Stroke: 15 mm | Auto switch magnet: Yes
CHDQWB80-20DRod: Double rod | Bore: ø80 mm | Stroke: 20 mm | Auto switch magnet: Yes
CHDQWB80-25DRod: Double rod | Bore: ø80 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDQWB80-30DRod: Double rod | Bore: ø80 mm | Stroke: 30 mm | Auto switch magnet: Yes
CHDQWB80-35DRod: Double rod | Bore: ø80 mm | Stroke: 35 mm | Auto switch magnet: Yes
CHDQWB80-40DRod: Double rod | Bore: ø80 mm | Stroke: 40 mm | Auto switch magnet: Yes
CHDQWB80-45DRod: Double rod | Bore: ø80 mm | Stroke: 45 mm | Auto switch magnet: Yes
CHDQWB80-50DRod: Double rod | Bore: ø80 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDQWB80-75DRod: Double rod | Bore: ø80 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDQWB80-100DRod: Double rod | Bore: ø80 mm | Stroke: 100 mm | Auto switch magnet: Yes
CHDQWB100-10DRod: Double rod | Bore: ø100 mm | Stroke: 10 mm | Auto switch magnet: Yes
CHDQWB100-15DRod: Double rod | Bore: ø100 mm | Stroke: 15 mm | Auto switch magnet: Yes
CHDQWB100-20DRod: Double rod | Bore: ø100 mm | Stroke: 20 mm | Auto switch magnet: Yes
CHDQWB100-25DRod: Double rod | Bore: ø100 mm | Stroke: 25 mm | Auto switch magnet: Yes
CHDQWB100-30DRod: Double rod | Bore: ø100 mm | Stroke: 30 mm | Auto switch magnet: Yes
CHDQWB100-35DRod: Double rod | Bore: ø100 mm | Stroke: 35 mm | Auto switch magnet: Yes
CHDQWB100-40DRod: Double rod | Bore: ø100 mm | Stroke: 40 mm | Auto switch magnet: Yes
CHDQWB100-45DRod: Double rod | Bore: ø100 mm | Stroke: 45 mm | Auto switch magnet: Yes
CHDQWB100-50DRod: Double rod | Bore: ø100 mm | Stroke: 50 mm | Auto switch magnet: Yes
CHDQWB100-75DRod: Double rod | Bore: ø100 mm | Stroke: 75 mm | Auto switch magnet: Yes
CHDQWB100-100DRod: Double rod | Bore: ø100 mm | Stroke: 100 mm | Auto switch magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Hydraulics →
