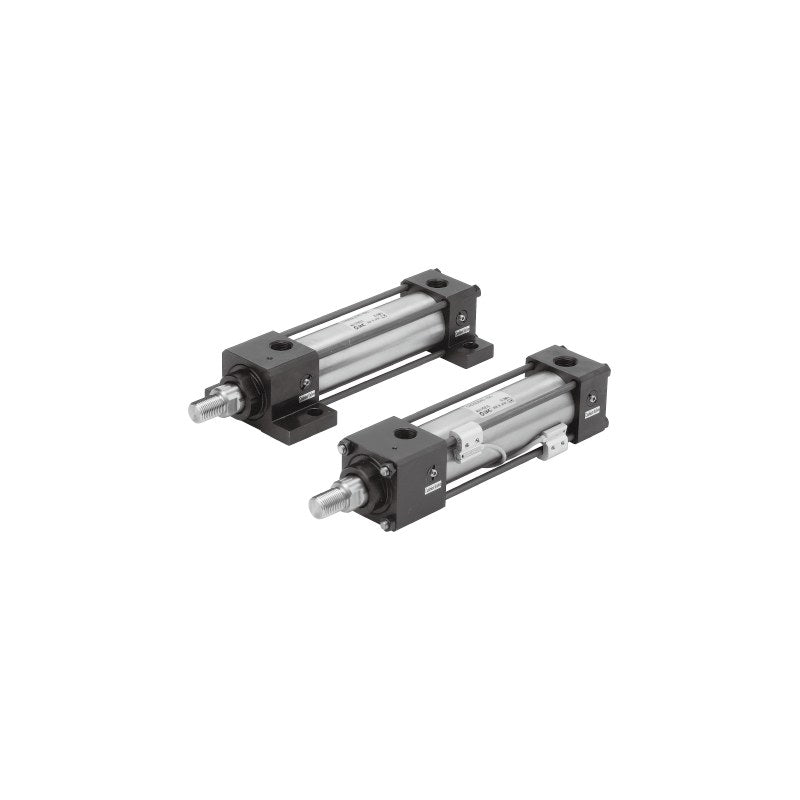

SMC CHSD ISO Hydraulic Cylinder (10 MPa, ø40 to ø100)

SMC CHSD series ISO-compliant tie-rod hydraulic cylinder, 10 MPa nominal, double acting single rod, ø40 to ø100 mm, with or without a built-in auto switch magnet (CHDSD).

Key features

ISO-compliant mounting dimensions for 10 MPa (max. 12 MPa) hydraulic systems
Six mounting styles: basic, foot, rod/head rectangular flange, double clevis and rod trunnion
Cushion packing at both ends standard; no cushion (N), rod-end only (R) or head-end only (H) as order symbols
Rc ports standard (NPT TN, G TF); port and cushion valve position selectable (A to E)
Built-in magnet models (CHDSD) accept D-M9/D-Z7/D-A5 series auto switches, ordered as a suffix
Standard stroke range 25 to 800 mm (ø100 to 1000 mm)

Specifications

Action	Double acting
Fluid	Hydraulic oil (general mineral, W/O, O/W)
Nominal pressure	10 MPa
Proof pressure	15 MPa
Max. allowable pressure	12 MPa
Min. operating pressure	0.25 MPa (rod side), 0.15 MPa (head side)
Ambient and fluid temperature	-10 to 80°C (no switch), -10 to 60°C (with switch)
Piston speed	8 to 300 mm/s
Cushion	Yes (cushion packing)
Rod end	Without rod end nut (A = with nut)
Cushion type	Cushion packing, both ends (N/R/H options)
Port thread	Rc (NPT TN, G TF options)
Thread tolerance	JIS 6g/6H
Source	SMC Korea catalog CHSD/CHSG (SMCKR_CHSD_CHSG.pdf), p. 333-334 (PDF p. 3-4)

CHSDB40-25		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSDB40-50		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSDB40-75		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSDB40-100		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSDB40-150		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSDB40-200		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSDB40-250		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSDB40-300		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSDB40-400		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSDB40-500		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSDB50-25		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSDB50-50		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSDB50-75		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSDB50-100		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSDB50-150		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSDB50-200		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSDB50-250		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSDB50-300		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSDB50-400		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSDB50-500		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSDB63-25		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSDB63-50		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSDB63-75		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSDB63-100		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSDB63-150		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSDB63-200		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSDB63-250		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSDB63-300		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSDB63-400		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSDB63-500		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSDB80-25		Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSDB80-50		Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSDB80-75		Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSDB80-100		Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSDB80-150		Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSDB80-200		Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSDB80-250		Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSDB80-300		Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSDB80-400		Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSDB80-500		Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSDB100-25		Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSDB100-50		Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSDB100-75		Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSDB100-100		Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSDB100-150		Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSDB100-200		Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSDB100-250		Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSDB100-300		Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSDB100-400		Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSDB100-500		Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSDLA40-25		Mounting: Foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSDLA40-50		Mounting: Foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSDLA40-75		Mounting: Foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSDLA40-100		Mounting: Foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSDLA40-150		Mounting: Foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSDLA40-200		Mounting: Foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSDLA40-250		Mounting: Foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSDLA40-300		Mounting: Foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSDLA40-400		Mounting: Foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSDLA40-500		Mounting: Foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSDLA50-25		Mounting: Foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSDLA50-50		Mounting: Foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSDLA50-75		Mounting: Foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSDLA50-100		Mounting: Foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSDLA50-150		Mounting: Foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSDLA50-200		Mounting: Foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSDLA50-250		Mounting: Foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSDLA50-300		Mounting: Foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSDLA50-400		Mounting: Foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSDLA50-500		Mounting: Foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSDLA63-25		Mounting: Foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSDLA63-50		Mounting: Foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSDLA63-75		Mounting: Foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSDLA63-100		Mounting: Foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSDLA63-150		Mounting: Foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSDLA63-200		Mounting: Foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSDLA63-250		Mounting: Foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSDLA63-300		Mounting: Foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSDLA63-400		Mounting: Foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSDLA63-500		Mounting: Foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSDLA80-25		Mounting: Foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSDLA80-50		Mounting: Foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSDLA80-75		Mounting: Foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSDLA80-100		Mounting: Foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSDLA80-150		Mounting: Foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSDLA80-200		Mounting: Foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSDLA80-250		Mounting: Foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSDLA80-300		Mounting: Foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSDLA80-400		Mounting: Foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSDLA80-500		Mounting: Foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSDLA100-25		Mounting: Foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSDLA100-50		Mounting: Foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSDLA100-75		Mounting: Foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSDLA100-100		Mounting: Foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSDLA100-150		Mounting: Foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSDLA100-200		Mounting: Foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSDLA100-250		Mounting: Foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSDLA100-300		Mounting: Foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSDLA100-400		Mounting: Foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSDLA100-500		Mounting: Foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSDFY40-25		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSDFY40-50		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSDFY40-75		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSDFY40-100		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSDFY40-150		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSDFY40-200		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSDFY40-250		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSDFY40-300		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSDFY40-400		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSDFY40-500		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSDFY50-25		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSDFY50-50		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSDFY50-75		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSDFY50-100		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSDFY50-150		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSDFY50-200		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSDFY50-250		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSDFY50-300		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSDFY50-400		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSDFY50-500		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSDFY63-25		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSDFY63-50		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSDFY63-75		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSDFY63-100		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSDFY63-150		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSDFY63-200		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSDFY63-250		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSDFY63-300		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSDFY63-400		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSDFY63-500		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSDFY80-25		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSDFY80-50		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSDFY80-75		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSDFY80-100		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSDFY80-150		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSDFY80-200		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSDFY80-250		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSDFY80-300		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSDFY80-400		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSDFY80-500		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSDFY100-25		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSDFY100-50		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSDFY100-75		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSDFY100-100		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSDFY100-150		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSDFY100-200		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSDFY100-250		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSDFY100-300		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSDFY100-400		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSDFY100-500		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSDFZ40-25		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSDFZ40-50		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSDFZ40-75		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSDFZ40-100		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSDFZ40-150		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSDFZ40-200		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSDFZ40-250		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSDFZ40-300		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSDFZ40-400		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSDFZ40-500		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSDFZ50-25		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSDFZ50-50		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSDFZ50-75		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSDFZ50-100		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSDFZ50-150		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSDFZ50-200		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSDFZ50-250		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSDFZ50-300		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSDFZ50-400		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSDFZ50-500		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSDFZ63-25		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSDFZ63-50		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSDFZ63-75		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSDFZ63-100		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSDFZ63-150		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSDFZ63-200		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSDFZ63-250		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSDFZ63-300		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSDFZ63-400		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSDFZ63-500		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSDFZ80-25		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSDFZ80-50		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSDFZ80-75		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSDFZ80-100		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSDFZ80-150		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSDFZ80-200		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSDFZ80-250		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSDFZ80-300		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSDFZ80-400		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSDFZ80-500		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSDFZ100-25		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSDFZ100-50		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSDFZ100-75		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSDFZ100-100		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSDFZ100-150		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSDFZ100-200		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSDFZ100-250		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSDFZ100-300		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSDFZ100-400		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSDFZ100-500		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSDCB40-25		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSDCB40-50		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSDCB40-75		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSDCB40-100		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSDCB40-150		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSDCB40-200		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSDCB40-250		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSDCB40-300		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSDCB40-400		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSDCB40-500		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSDCB50-25		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSDCB50-50		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSDCB50-75		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSDCB50-100		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSDCB50-150		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSDCB50-200		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSDCB50-250		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSDCB50-300		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSDCB50-400		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSDCB50-500		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSDCB63-25		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSDCB63-50		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSDCB63-75		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSDCB63-100		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSDCB63-150		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSDCB63-200		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSDCB63-250		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSDCB63-300		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSDCB63-400		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSDCB63-500		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSDCB80-25		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSDCB80-50		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSDCB80-75		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSDCB80-100		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSDCB80-150		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSDCB80-200		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSDCB80-250		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSDCB80-300		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSDCB80-400		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSDCB80-500		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSDCB100-25		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSDCB100-50		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSDCB100-75		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSDCB100-100		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSDCB100-150		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSDCB100-200		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSDCB100-250		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSDCB100-300		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSDCB100-400		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSDCB100-500		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSDTA40-25		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSDTA40-50		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSDTA40-75		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSDTA40-100		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSDTA40-150		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSDTA40-200		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSDTA40-250		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSDTA40-300		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSDTA40-400		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSDTA40-500		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSDTA50-25		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSDTA50-50		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSDTA50-75		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSDTA50-100		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSDTA50-150		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSDTA50-200		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSDTA50-250		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSDTA50-300		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSDTA50-400		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSDTA50-500		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSDTA63-25		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSDTA63-50		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSDTA63-75		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSDTA63-100		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSDTA63-150		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSDTA63-200		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSDTA63-250		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSDTA63-300		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSDTA63-400		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSDTA63-500		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSDTA80-25		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSDTA80-50		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSDTA80-75		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSDTA80-100		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSDTA80-150		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSDTA80-200		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSDTA80-250		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSDTA80-300		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSDTA80-400		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSDTA80-500		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSDTA100-25		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSDTA100-50		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSDTA100-75		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSDTA100-100		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSDTA100-150		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSDTA100-200		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSDTA100-250		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSDTA100-300		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSDTA100-400		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSDTA100-500		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHDSDB40-25		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSDB40-50		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSDB40-75		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSDB40-100		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSDB40-150		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSDB40-200		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSDB40-250		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSDB40-300		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSDB40-400		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSDB40-500		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSDB50-25		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSDB50-50		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSDB50-75		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSDB50-100		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSDB50-150		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSDB50-200		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSDB50-250		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSDB50-300		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSDB50-400		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSDB50-500		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSDB63-25		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSDB63-50		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSDB63-75		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSDB63-100		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSDB63-150		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSDB63-200		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSDB63-250		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSDB63-300		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSDB63-400		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSDB63-500		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSDB80-25		Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSDB80-50		Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSDB80-75		Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSDB80-100		Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSDB80-150		Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSDB80-200		Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSDB80-250		Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSDB80-300		Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSDB80-400		Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSDB80-500		Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSDB100-25		Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSDB100-50		Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSDB100-75		Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSDB100-100		Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSDB100-150		Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSDB100-200		Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSDB100-250		Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSDB100-300		Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSDB100-400		Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSDB100-500		Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSDLA40-25		Mounting: Foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSDLA40-50		Mounting: Foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSDLA40-75		Mounting: Foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSDLA40-100		Mounting: Foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSDLA40-150		Mounting: Foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSDLA40-200		Mounting: Foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSDLA40-250		Mounting: Foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSDLA40-300		Mounting: Foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSDLA40-400		Mounting: Foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSDLA40-500		Mounting: Foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSDLA50-25		Mounting: Foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSDLA50-50		Mounting: Foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSDLA50-75		Mounting: Foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSDLA50-100		Mounting: Foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSDLA50-150		Mounting: Foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSDLA50-200		Mounting: Foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSDLA50-250		Mounting: Foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSDLA50-300		Mounting: Foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSDLA50-400		Mounting: Foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSDLA50-500		Mounting: Foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSDLA63-25		Mounting: Foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSDLA63-50		Mounting: Foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSDLA63-75		Mounting: Foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSDLA63-100		Mounting: Foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSDLA63-150		Mounting: Foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSDLA63-200		Mounting: Foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSDLA63-250		Mounting: Foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSDLA63-300		Mounting: Foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSDLA63-400		Mounting: Foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSDLA63-500		Mounting: Foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSDLA80-25		Mounting: Foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSDLA80-50		Mounting: Foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSDLA80-75		Mounting: Foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSDLA80-100		Mounting: Foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSDLA80-150		Mounting: Foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSDLA80-200		Mounting: Foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSDLA80-250		Mounting: Foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSDLA80-300		Mounting: Foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSDLA80-400		Mounting: Foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSDLA80-500		Mounting: Foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSDLA100-25		Mounting: Foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSDLA100-50		Mounting: Foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSDLA100-75		Mounting: Foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSDLA100-100		Mounting: Foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSDLA100-150		Mounting: Foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSDLA100-200		Mounting: Foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSDLA100-250		Mounting: Foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSDLA100-300		Mounting: Foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSDLA100-400		Mounting: Foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSDLA100-500		Mounting: Foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSDFY40-25		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSDFY40-50		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSDFY40-75		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSDFY40-100		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSDFY40-150		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSDFY40-200		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSDFY40-250		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSDFY40-300		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSDFY40-400		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSDFY40-500		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSDFY50-25		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSDFY50-50		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSDFY50-75		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSDFY50-100		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSDFY50-150		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSDFY50-200		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSDFY50-250		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSDFY50-300		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSDFY50-400		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSDFY50-500		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSDFY63-25		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSDFY63-50		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSDFY63-75		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSDFY63-100		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSDFY63-150		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSDFY63-200		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSDFY63-250		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSDFY63-300		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSDFY63-400		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSDFY63-500		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSDFY80-25		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSDFY80-50		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSDFY80-75		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSDFY80-100		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSDFY80-150		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSDFY80-200		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSDFY80-250		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSDFY80-300		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSDFY80-400		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSDFY80-500		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSDFY100-25		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSDFY100-50		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSDFY100-75		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSDFY100-100		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSDFY100-150		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSDFY100-200		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSDFY100-250		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSDFY100-300		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSDFY100-400		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSDFY100-500		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSDFZ40-25		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSDFZ40-50		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSDFZ40-75		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSDFZ40-100		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSDFZ40-150		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSDFZ40-200		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSDFZ40-250		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSDFZ40-300		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSDFZ40-400		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSDFZ40-500		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSDFZ50-25		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSDFZ50-50		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSDFZ50-75		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSDFZ50-100		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSDFZ50-150		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSDFZ50-200		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSDFZ50-250		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSDFZ50-300		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSDFZ50-400		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSDFZ50-500		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSDFZ63-25		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSDFZ63-50		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSDFZ63-75		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSDFZ63-100		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSDFZ63-150		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSDFZ63-200		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSDFZ63-250		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSDFZ63-300		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSDFZ63-400		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSDFZ63-500		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSDFZ80-25		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSDFZ80-50		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSDFZ80-75		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSDFZ80-100		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSDFZ80-150		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSDFZ80-200		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSDFZ80-250		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSDFZ80-300		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSDFZ80-400		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSDFZ80-500		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSDFZ100-25		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSDFZ100-50		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSDFZ100-75		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSDFZ100-100		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSDFZ100-150		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSDFZ100-200		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSDFZ100-250		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSDFZ100-300		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSDFZ100-400		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSDFZ100-500		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSDCB40-25		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSDCB40-50		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSDCB40-75		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSDCB40-100		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSDCB40-150		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSDCB40-200		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSDCB40-250		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSDCB40-300		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSDCB40-400		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSDCB40-500		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSDCB50-25		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSDCB50-50		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSDCB50-75		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSDCB50-100		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSDCB50-150		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSDCB50-200		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSDCB50-250		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSDCB50-300		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSDCB50-400		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSDCB50-500		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSDCB63-25		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSDCB63-50		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSDCB63-75		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSDCB63-100		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSDCB63-150		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSDCB63-200		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSDCB63-250		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSDCB63-300		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSDCB63-400		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSDCB63-500		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSDCB80-25		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSDCB80-50		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSDCB80-75		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSDCB80-100		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSDCB80-150		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSDCB80-200		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSDCB80-250		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSDCB80-300		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSDCB80-400		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSDCB80-500		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSDCB100-25		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSDCB100-50		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSDCB100-75		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSDCB100-100		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSDCB100-150		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSDCB100-200		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSDCB100-250		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSDCB100-300		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSDCB100-400		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSDCB100-500		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSDTA40-25		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSDTA40-50		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSDTA40-75		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSDTA40-100		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSDTA40-150		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSDTA40-200		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSDTA40-250		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSDTA40-300		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSDTA40-400		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSDTA40-500		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSDTA50-25		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSDTA50-50		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSDTA50-75		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSDTA50-100		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSDTA50-150		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSDTA50-200		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSDTA50-250		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSDTA50-300		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSDTA50-400		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSDTA50-500		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSDTA63-25		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSDTA63-50		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSDTA63-75		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSDTA63-100		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSDTA63-150		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSDTA63-200		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSDTA63-250		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSDTA63-300		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSDTA63-400		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSDTA63-500		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSDTA80-25		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSDTA80-50		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSDTA80-75		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSDTA80-100		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSDTA80-150		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSDTA80-200		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSDTA80-250		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSDTA80-300		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSDTA80-400		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSDTA80-500		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSDTA100-25		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSDTA100-50		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSDTA100-75		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSDTA100-100		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSDTA100-150		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSDTA100-200		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSDTA100-250		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSDTA100-300		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSDTA100-400		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSDTA100-500		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes

Hydraulic CylindersSMC

600 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CHSD ISO Hydraulic Cylinder (10 MPa, ø40 to ø100)

Brand SMC·Hydraulic Cylinders

Available part numbers (600)

CHSDB40-25, CHSDB40-50, CHSDB40-75, CHSDB40-100, CHSDB40-150, CHSDB40-200, CHSDB40-250, CHSDB40-300, CHSDB40-400, CHSDB40-500 + 590 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CHSDB40-25	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSDB40-50	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSDB40-75	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSDB40-100	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSDB40-150	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSDB40-200	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSDB40-250	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSDB40-300	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSDB40-400	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSDB40-500	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSDB50-25	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSDB50-50	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSDB50-75	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSDB50-100	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSDB50-150	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSDB50-200	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSDB50-250	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSDB50-300	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSDB50-400	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSDB50-500	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSDB63-25	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSDB63-50	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSDB63-75	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSDB63-100	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSDB63-150	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSDB63-200	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSDB63-250	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSDB63-300	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSDB63-400	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSDB63-500	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSDB80-25	Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSDB80-50	Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSDB80-75	Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSDB80-100	Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSDB80-150	Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSDB80-200	Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSDB80-250	Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSDB80-300	Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSDB80-400	Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSDB80-500	Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSDB100-25	Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSDB100-50	Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSDB100-75	Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSDB100-100	Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSDB100-150	Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSDB100-200	Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSDB100-250	Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSDB100-300	Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSDB100-400	Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSDB100-500	Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSDLA40-25	Mounting: Foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSDLA40-50	Mounting: Foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSDLA40-75	Mounting: Foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSDLA40-100	Mounting: Foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSDLA40-150	Mounting: Foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSDLA40-200	Mounting: Foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSDLA40-250	Mounting: Foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSDLA40-300	Mounting: Foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSDLA40-400	Mounting: Foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSDLA40-500	Mounting: Foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSDLA50-25	Mounting: Foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSDLA50-50	Mounting: Foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSDLA50-75	Mounting: Foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSDLA50-100	Mounting: Foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSDLA50-150	Mounting: Foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSDLA50-200	Mounting: Foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSDLA50-250	Mounting: Foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSDLA50-300	Mounting: Foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSDLA50-400	Mounting: Foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSDLA50-500	Mounting: Foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSDLA63-25	Mounting: Foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSDLA63-50	Mounting: Foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSDLA63-75	Mounting: Foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSDLA63-100	Mounting: Foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSDLA63-150	Mounting: Foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSDLA63-200	Mounting: Foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSDLA63-250	Mounting: Foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSDLA63-300	Mounting: Foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSDLA63-400	Mounting: Foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSDLA63-500	Mounting: Foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSDLA80-25	Mounting: Foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSDLA80-50	Mounting: Foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSDLA80-75	Mounting: Foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSDLA80-100	Mounting: Foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSDLA80-150	Mounting: Foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSDLA80-200	Mounting: Foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSDLA80-250	Mounting: Foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSDLA80-300	Mounting: Foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSDLA80-400	Mounting: Foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSDLA80-500	Mounting: Foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSDLA100-25	Mounting: Foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSDLA100-50	Mounting: Foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSDLA100-75	Mounting: Foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSDLA100-100	Mounting: Foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSDLA100-150	Mounting: Foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSDLA100-200	Mounting: Foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSDLA100-250	Mounting: Foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSDLA100-300	Mounting: Foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSDLA100-400	Mounting: Foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSDLA100-500	Mounting: Foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSDFY40-25	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSDFY40-50	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSDFY40-75	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSDFY40-100	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSDFY40-150	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSDFY40-200	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSDFY40-250	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSDFY40-300	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSDFY40-400	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSDFY40-500	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSDFY50-25	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSDFY50-50	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSDFY50-75	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSDFY50-100	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSDFY50-150	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSDFY50-200	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSDFY50-250	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSDFY50-300	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSDFY50-400	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSDFY50-500	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSDFY63-25	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSDFY63-50	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSDFY63-75	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSDFY63-100	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSDFY63-150	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSDFY63-200	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSDFY63-250	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSDFY63-300	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSDFY63-400	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSDFY63-500	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSDFY80-25	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSDFY80-50	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSDFY80-75	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSDFY80-100	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSDFY80-150	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSDFY80-200	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSDFY80-250	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSDFY80-300	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSDFY80-400	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSDFY80-500	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSDFY100-25	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSDFY100-50	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSDFY100-75	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSDFY100-100	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSDFY100-150	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSDFY100-200	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSDFY100-250	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSDFY100-300	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSDFY100-400	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSDFY100-500	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSDFZ40-25	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSDFZ40-50	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSDFZ40-75	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSDFZ40-100	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSDFZ40-150	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSDFZ40-200	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSDFZ40-250	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSDFZ40-300	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSDFZ40-400	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSDFZ40-500	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSDFZ50-25	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSDFZ50-50	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSDFZ50-75	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSDFZ50-100	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSDFZ50-150	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSDFZ50-200	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSDFZ50-250	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSDFZ50-300	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSDFZ50-400	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSDFZ50-500	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSDFZ63-25	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSDFZ63-50	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSDFZ63-75	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSDFZ63-100	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSDFZ63-150	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSDFZ63-200	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSDFZ63-250	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSDFZ63-300	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSDFZ63-400	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSDFZ63-500	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSDFZ80-25	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSDFZ80-50	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSDFZ80-75	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSDFZ80-100	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSDFZ80-150	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSDFZ80-200	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSDFZ80-250	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSDFZ80-300	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSDFZ80-400	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSDFZ80-500	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSDFZ100-25	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSDFZ100-50	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSDFZ100-75	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSDFZ100-100	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSDFZ100-150	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSDFZ100-200	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSDFZ100-250	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSDFZ100-300	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSDFZ100-400	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSDFZ100-500	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSDCB40-25	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSDCB40-50	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSDCB40-75	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSDCB40-100	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSDCB40-150	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSDCB40-200	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSDCB40-250	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSDCB40-300	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSDCB40-400	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSDCB40-500	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSDCB50-25	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSDCB50-50	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSDCB50-75	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSDCB50-100	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSDCB50-150	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSDCB50-200	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSDCB50-250	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSDCB50-300	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSDCB50-400	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSDCB50-500	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSDCB63-25	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSDCB63-50	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSDCB63-75	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSDCB63-100	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSDCB63-150	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSDCB63-200	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSDCB63-250	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSDCB63-300	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSDCB63-400	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSDCB63-500	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSDCB80-25	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSDCB80-50	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSDCB80-75	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSDCB80-100	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSDCB80-150	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSDCB80-200	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSDCB80-250	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSDCB80-300	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSDCB80-400	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSDCB80-500	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSDCB100-25	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSDCB100-50	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSDCB100-75	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSDCB100-100	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSDCB100-150	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSDCB100-200	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSDCB100-250	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSDCB100-300	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSDCB100-400	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSDCB100-500	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSDTA40-25	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSDTA40-50	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSDTA40-75	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSDTA40-100	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSDTA40-150	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSDTA40-200	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSDTA40-250	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSDTA40-300	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSDTA40-400	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSDTA40-500	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSDTA50-25	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSDTA50-50	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSDTA50-75	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSDTA50-100	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSDTA50-150	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSDTA50-200	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSDTA50-250	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSDTA50-300	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSDTA50-400	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSDTA50-500	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSDTA63-25	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSDTA63-50	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSDTA63-75	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSDTA63-100	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSDTA63-150	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSDTA63-200	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSDTA63-250	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSDTA63-300	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSDTA63-400	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSDTA63-500	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSDTA80-25	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSDTA80-50	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSDTA80-75	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSDTA80-100	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSDTA80-150	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSDTA80-200	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSDTA80-250	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSDTA80-300	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSDTA80-400	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSDTA80-500	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSDTA100-25	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSDTA100-50	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSDTA100-75	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSDTA100-100	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSDTA100-150	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSDTA100-200	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSDTA100-250	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSDTA100-300	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSDTA100-400	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSDTA100-500	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHDSDB40-25	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSDB40-50	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSDB40-75	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSDB40-100	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSDB40-150	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSDB40-200	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSDB40-250	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSDB40-300	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSDB40-400	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSDB40-500	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSDB50-25	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSDB50-50	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSDB50-75	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSDB50-100	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSDB50-150	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSDB50-200	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSDB50-250	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSDB50-300	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSDB50-400	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSDB50-500	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSDB63-25	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSDB63-50	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSDB63-75	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSDB63-100	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSDB63-150	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSDB63-200	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSDB63-250	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSDB63-300	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSDB63-400	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSDB63-500	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSDB80-25	Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSDB80-50	Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSDB80-75	Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSDB80-100	Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSDB80-150	Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSDB80-200	Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSDB80-250	Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSDB80-300	Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSDB80-400	Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSDB80-500	Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSDB100-25	Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSDB100-50	Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSDB100-75	Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSDB100-100	Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSDB100-150	Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSDB100-200	Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSDB100-250	Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSDB100-300	Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSDB100-400	Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSDB100-500	Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSDLA40-25	Mounting: Foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSDLA40-50	Mounting: Foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSDLA40-75	Mounting: Foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSDLA40-100	Mounting: Foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSDLA40-150	Mounting: Foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSDLA40-200	Mounting: Foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSDLA40-250	Mounting: Foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSDLA40-300	Mounting: Foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSDLA40-400	Mounting: Foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSDLA40-500	Mounting: Foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSDLA50-25	Mounting: Foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSDLA50-50	Mounting: Foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSDLA50-75	Mounting: Foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSDLA50-100	Mounting: Foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSDLA50-150	Mounting: Foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSDLA50-200	Mounting: Foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSDLA50-250	Mounting: Foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSDLA50-300	Mounting: Foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSDLA50-400	Mounting: Foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSDLA50-500	Mounting: Foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSDLA63-25	Mounting: Foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSDLA63-50	Mounting: Foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSDLA63-75	Mounting: Foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSDLA63-100	Mounting: Foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSDLA63-150	Mounting: Foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSDLA63-200	Mounting: Foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSDLA63-250	Mounting: Foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSDLA63-300	Mounting: Foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSDLA63-400	Mounting: Foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSDLA63-500	Mounting: Foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSDLA80-25	Mounting: Foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSDLA80-50	Mounting: Foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSDLA80-75	Mounting: Foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSDLA80-100	Mounting: Foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSDLA80-150	Mounting: Foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSDLA80-200	Mounting: Foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSDLA80-250	Mounting: Foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSDLA80-300	Mounting: Foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSDLA80-400	Mounting: Foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSDLA80-500	Mounting: Foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSDLA100-25	Mounting: Foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSDLA100-50	Mounting: Foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSDLA100-75	Mounting: Foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSDLA100-100	Mounting: Foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSDLA100-150	Mounting: Foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSDLA100-200	Mounting: Foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSDLA100-250	Mounting: Foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSDLA100-300	Mounting: Foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSDLA100-400	Mounting: Foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSDLA100-500	Mounting: Foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSDFY40-25	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSDFY40-50	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSDFY40-75	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSDFY40-100	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSDFY40-150	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSDFY40-200	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSDFY40-250	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSDFY40-300	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSDFY40-400	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSDFY40-500	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSDFY50-25	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSDFY50-50	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSDFY50-75	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSDFY50-100	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSDFY50-150	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSDFY50-200	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSDFY50-250	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSDFY50-300	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSDFY50-400	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSDFY50-500	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSDFY63-25	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSDFY63-50	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSDFY63-75	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSDFY63-100	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSDFY63-150	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSDFY63-200	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSDFY63-250	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSDFY63-300	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSDFY63-400	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSDFY63-500	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSDFY80-25	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSDFY80-50	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSDFY80-75	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSDFY80-100	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSDFY80-150	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSDFY80-200	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSDFY80-250	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSDFY80-300	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSDFY80-400	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSDFY80-500	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSDFY100-25	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSDFY100-50	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSDFY100-75	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSDFY100-100	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSDFY100-150	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSDFY100-200	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSDFY100-250	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSDFY100-300	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSDFY100-400	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSDFY100-500	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSDFZ40-25	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSDFZ40-50	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSDFZ40-75	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSDFZ40-100	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSDFZ40-150	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSDFZ40-200	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSDFZ40-250	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSDFZ40-300	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSDFZ40-400	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSDFZ40-500	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSDFZ50-25	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSDFZ50-50	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSDFZ50-75	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSDFZ50-100	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSDFZ50-150	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSDFZ50-200	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSDFZ50-250	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSDFZ50-300	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSDFZ50-400	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSDFZ50-500	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSDFZ63-25	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSDFZ63-50	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSDFZ63-75	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSDFZ63-100	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSDFZ63-150	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSDFZ63-200	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSDFZ63-250	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSDFZ63-300	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSDFZ63-400	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSDFZ63-500	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSDFZ80-25	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSDFZ80-50	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSDFZ80-75	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSDFZ80-100	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSDFZ80-150	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSDFZ80-200	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSDFZ80-250	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSDFZ80-300	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSDFZ80-400	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSDFZ80-500	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSDFZ100-25	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSDFZ100-50	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSDFZ100-75	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSDFZ100-100	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSDFZ100-150	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSDFZ100-200	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSDFZ100-250	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSDFZ100-300	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSDFZ100-400	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSDFZ100-500	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSDCB40-25	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSDCB40-50	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSDCB40-75	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSDCB40-100	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSDCB40-150	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSDCB40-200	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSDCB40-250	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSDCB40-300	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSDCB40-400	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSDCB40-500	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSDCB50-25	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSDCB50-50	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSDCB50-75	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSDCB50-100	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSDCB50-150	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSDCB50-200	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSDCB50-250	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSDCB50-300	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSDCB50-400	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSDCB50-500	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSDCB63-25	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSDCB63-50	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSDCB63-75	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSDCB63-100	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSDCB63-150	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSDCB63-200	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSDCB63-250	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSDCB63-300	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSDCB63-400	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSDCB63-500	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSDCB80-25	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSDCB80-50	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSDCB80-75	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSDCB80-100	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSDCB80-150	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSDCB80-200	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSDCB80-250	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSDCB80-300	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSDCB80-400	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSDCB80-500	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSDCB100-25	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSDCB100-50	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSDCB100-75	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSDCB100-100	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSDCB100-150	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSDCB100-200	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSDCB100-250	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSDCB100-300	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSDCB100-400	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSDCB100-500	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSDTA40-25	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSDTA40-50	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSDTA40-75	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSDTA40-100	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSDTA40-150	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSDTA40-200	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSDTA40-250	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSDTA40-300	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSDTA40-400	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSDTA40-500	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSDTA50-25	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSDTA50-50	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSDTA50-75	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSDTA50-100	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSDTA50-150	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSDTA50-200	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSDTA50-250	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSDTA50-300	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSDTA50-400	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSDTA50-500	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSDTA63-25	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSDTA63-50	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSDTA63-75	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSDTA63-100	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSDTA63-150	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSDTA63-200	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSDTA63-250	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSDTA63-300	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSDTA63-400	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSDTA63-500	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSDTA80-25	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSDTA80-50	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSDTA80-75	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSDTA80-100	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSDTA80-150	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSDTA80-200	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSDTA80-250	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSDTA80-300	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSDTA80-400	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSDTA80-500	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSDTA100-25	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSDTA100-50	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSDTA100-75	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSDTA100-100	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSDTA100-150	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSDTA100-200	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSDTA100-250	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSDTA100-300	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSDTA100-400	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSDTA100-500	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Hydraulics →

Item added to your cart

SMC CHSD ISO Hydraulic Cylinder (10 MPa, ø40 to ø100)
