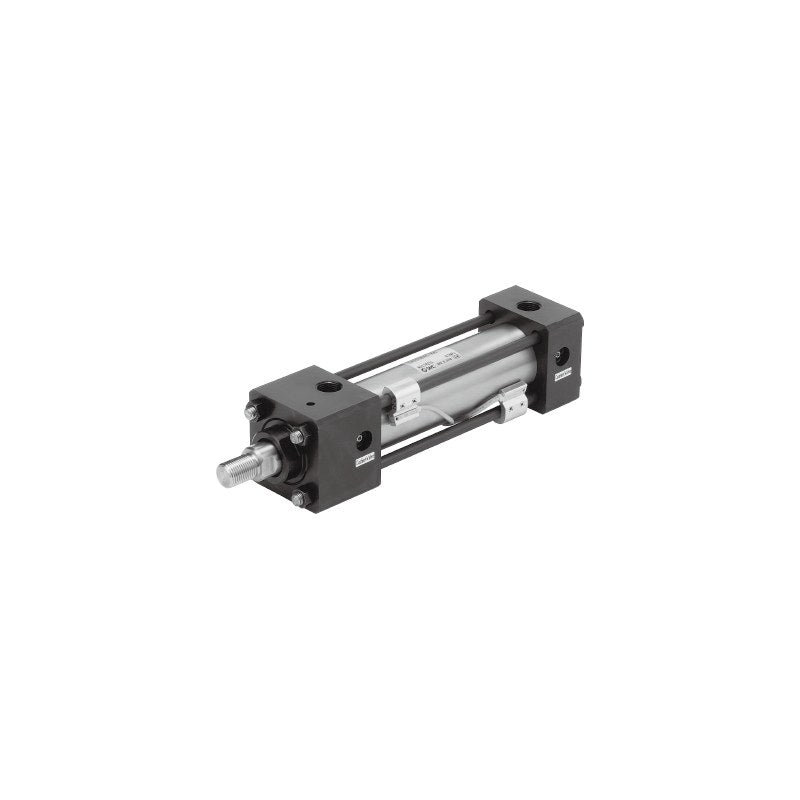

SMC CHSG ISO Hydraulic Cylinder (16 MPa, ø32 to ø100)

SMC CHSG series ISO-compliant tie-rod hydraulic cylinder, 16 MPa nominal, double acting single rod, ø32 to ø100 mm, with or without a built-in auto switch magnet (CHDSG).

Key features

ISO-compliant mounting dimensions for 16 MPa (max. 20 MPa) hydraulic systems
Eight mounting styles: basic, foot, rod/head rectangular flange, single/double clevis, rod and center trunnion
Cushion packing at both ends standard; no cushion (N), rod-end only (R) or head-end only (H) as order symbols
Rc ports standard (NPT TN, G TF); port and cushion valve position selectable (A to E)
Built-in magnet models (CHDSG) accept D-M9/D-F5/D-Z7/D-A5 series auto switches, ordered as a suffix
Standard stroke range 25 to 800 mm (ø100 to 1000 mm)

Specifications

Action	Double acting
Fluid	Hydraulic oil (general mineral, W/O, O/W)
Nominal pressure	16 MPa
Proof pressure	24 MPa
Max. allowable pressure	20 MPa
Min. operating pressure	0.25 MPa (rod side), 0.15 MPa (head side)
Ambient and fluid temperature	-10 to 80°C (no switch), -10 to 60°C (with switch)
Piston speed	8 to 300 mm/s
Cushion	Yes (cushion packing)
Rod end	Without rod end nut (A = with nut)
Cushion type	Cushion packing, both ends (N/R/H options)
Port thread	Rc (NPT TN, G TF options)
Thread tolerance	JIS 6g/6H
Source	SMC Korea catalog CHSD/CHSG (SMCKR_CHSD_CHSG.pdf), p. 344-345 (PDF p. 14-15)

CHSGB32-25		Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGB32-50		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGB32-75		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGB32-100		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGB32-150		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGB32-200		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGB32-250		Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGB32-300		Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGB32-400		Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGB32-500		Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGB40-25		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGB40-50		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGB40-75		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGB40-100		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGB40-150		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGB40-200		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGB40-250		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGB40-300		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGB40-400		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGB40-500		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGB50-25		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGB50-50		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGB50-75		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGB50-100		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGB50-150		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGB50-200		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGB50-250		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGB50-300		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGB50-400		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGB50-500		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGB63-25		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGB63-50		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGB63-75		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGB63-100		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGB63-150		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGB63-200		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGB63-250		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGB63-300		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGB63-400		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGB63-500		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGB80-25		Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGB80-50		Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGB80-75		Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGB80-100		Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGB80-150		Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGB80-200		Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGB80-250		Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGB80-300		Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGB80-400		Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGB80-500		Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGB100-25		Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGB100-50		Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGB100-75		Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGB100-100		Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGB100-150		Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGB100-200		Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGB100-250		Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGB100-300		Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGB100-400		Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGB100-500		Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGLA32-25		Mounting: Foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGLA32-50		Mounting: Foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGLA32-75		Mounting: Foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGLA32-100		Mounting: Foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGLA32-150		Mounting: Foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGLA32-200		Mounting: Foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGLA32-250		Mounting: Foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGLA32-300		Mounting: Foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGLA32-400		Mounting: Foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGLA32-500		Mounting: Foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGLA40-25		Mounting: Foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGLA40-50		Mounting: Foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGLA40-75		Mounting: Foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGLA40-100		Mounting: Foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGLA40-150		Mounting: Foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGLA40-200		Mounting: Foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGLA40-250		Mounting: Foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGLA40-300		Mounting: Foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGLA40-400		Mounting: Foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGLA40-500		Mounting: Foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGLA50-25		Mounting: Foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGLA50-50		Mounting: Foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGLA50-75		Mounting: Foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGLA50-100		Mounting: Foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGLA50-150		Mounting: Foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGLA50-200		Mounting: Foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGLA50-250		Mounting: Foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGLA50-300		Mounting: Foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGLA50-400		Mounting: Foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGLA50-500		Mounting: Foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGLA63-25		Mounting: Foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGLA63-50		Mounting: Foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGLA63-75		Mounting: Foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGLA63-100		Mounting: Foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGLA63-150		Mounting: Foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGLA63-200		Mounting: Foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGLA63-250		Mounting: Foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGLA63-300		Mounting: Foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGLA63-400		Mounting: Foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGLA63-500		Mounting: Foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGLA80-25		Mounting: Foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGLA80-50		Mounting: Foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGLA80-75		Mounting: Foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGLA80-100		Mounting: Foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGLA80-150		Mounting: Foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGLA80-200		Mounting: Foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGLA80-250		Mounting: Foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGLA80-300		Mounting: Foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGLA80-400		Mounting: Foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGLA80-500		Mounting: Foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGLA100-25		Mounting: Foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGLA100-50		Mounting: Foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGLA100-75		Mounting: Foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGLA100-100		Mounting: Foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGLA100-150		Mounting: Foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGLA100-200		Mounting: Foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGLA100-250		Mounting: Foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGLA100-300		Mounting: Foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGLA100-400		Mounting: Foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGLA100-500		Mounting: Foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGFY32-25		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGFY32-50		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGFY32-75		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGFY32-100		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGFY32-150		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGFY32-200		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGFY32-250		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGFY32-300		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGFY32-400		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGFY32-500		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGFY40-25		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGFY40-50		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGFY40-75		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGFY40-100		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGFY40-150		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGFY40-200		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGFY40-250		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGFY40-300		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGFY40-400		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGFY40-500		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGFY50-25		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGFY50-50		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGFY50-75		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGFY50-100		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGFY50-150		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGFY50-200		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGFY50-250		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGFY50-300		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGFY50-400		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGFY50-500		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGFY63-25		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGFY63-50		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGFY63-75		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGFY63-100		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGFY63-150		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGFY63-200		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGFY63-250		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGFY63-300		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGFY63-400		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGFY63-500		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGFY80-25		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGFY80-50		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGFY80-75		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGFY80-100		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGFY80-150		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGFY80-200		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGFY80-250		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGFY80-300		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGFY80-400		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGFY80-500		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGFY100-25		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGFY100-50		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGFY100-75		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGFY100-100		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGFY100-150		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGFY100-200		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGFY100-250		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGFY100-300		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGFY100-400		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGFY100-500		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGFZ32-25		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGFZ32-50		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGFZ32-75		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGFZ32-100		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGFZ32-150		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGFZ32-200		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGFZ32-250		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGFZ32-300		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGFZ32-400		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGFZ32-500		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGFZ40-25		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGFZ40-50		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGFZ40-75		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGFZ40-100		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGFZ40-150		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGFZ40-200		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGFZ40-250		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGFZ40-300		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGFZ40-400		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGFZ40-500		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGFZ50-25		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGFZ50-50		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGFZ50-75		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGFZ50-100		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGFZ50-150		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGFZ50-200		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGFZ50-250		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGFZ50-300		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGFZ50-400		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGFZ50-500		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGFZ63-25		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGFZ63-50		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGFZ63-75		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGFZ63-100		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGFZ63-150		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGFZ63-200		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGFZ63-250		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGFZ63-300		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGFZ63-400		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGFZ63-500		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGFZ80-25		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGFZ80-50		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGFZ80-75		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGFZ80-100		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGFZ80-150		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGFZ80-200		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGFZ80-250		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGFZ80-300		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGFZ80-400		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGFZ80-500		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGFZ100-25		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGFZ100-50		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGFZ100-75		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGFZ100-100		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGFZ100-150		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGFZ100-200		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGFZ100-250		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGFZ100-300		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGFZ100-400		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGFZ100-500		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGCA32-25		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGCA32-50		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGCA32-75		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGCA32-100		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGCA32-150		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGCA32-200		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGCA32-250		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGCA32-300		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGCA32-400		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGCA32-500		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGCA40-25		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGCA40-50		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGCA40-75		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGCA40-100		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGCA40-150		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGCA40-200		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGCA40-250		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGCA40-300		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGCA40-400		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGCA40-500		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGCA50-25		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGCA50-50		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGCA50-75		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGCA50-100		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGCA50-150		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGCA50-200		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGCA50-250		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGCA50-300		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGCA50-400		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGCA50-500		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGCA63-25		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGCA63-50		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGCA63-75		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGCA63-100		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGCA63-150		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGCA63-200		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGCA63-250		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGCA63-300		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGCA63-400		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGCA63-500		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGCA80-25		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGCA80-50		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGCA80-75		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGCA80-100		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGCA80-150		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGCA80-200		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGCA80-250		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGCA80-300		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGCA80-400		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGCA80-500		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGCA100-25		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGCA100-50		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGCA100-75		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGCA100-100		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGCA100-150		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGCA100-200		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGCA100-250		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGCA100-300		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGCA100-400		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGCA100-500		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGCB32-25		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGCB32-50		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGCB32-75		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGCB32-100		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGCB32-150		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGCB32-200		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGCB32-250		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGCB32-300		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGCB32-400		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGCB32-500		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGCB40-25		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGCB40-50		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGCB40-75		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGCB40-100		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGCB40-150		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGCB40-200		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGCB40-250		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGCB40-300		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGCB40-400		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGCB40-500		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGCB50-25		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGCB50-50		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGCB50-75		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGCB50-100		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGCB50-150		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGCB50-200		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGCB50-250		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGCB50-300		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGCB50-400		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGCB50-500		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGCB63-25		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGCB63-50		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGCB63-75		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGCB63-100		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGCB63-150		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGCB63-200		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGCB63-250		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGCB63-300		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGCB63-400		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGCB63-500		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGCB80-25		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGCB80-50		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGCB80-75		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGCB80-100		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGCB80-150		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGCB80-200		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGCB80-250		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGCB80-300		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGCB80-400		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGCB80-500		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGCB100-25		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGCB100-50		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGCB100-75		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGCB100-100		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGCB100-150		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGCB100-200		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGCB100-250		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGCB100-300		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGCB100-400		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGCB100-500		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGTA32-25		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGTA32-50		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGTA32-75		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGTA32-100		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGTA32-150		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGTA32-200		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGTA32-250		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGTA32-300		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGTA32-400		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGTA32-500		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGTA40-25		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGTA40-50		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGTA40-75		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGTA40-100		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGTA40-150		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGTA40-200		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGTA40-250		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGTA40-300		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGTA40-400		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGTA40-500		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGTA50-25		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGTA50-50		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGTA50-75		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGTA50-100		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGTA50-150		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGTA50-200		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGTA50-250		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGTA50-300		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGTA50-400		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGTA50-500		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGTA63-25		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGTA63-50		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGTA63-75		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGTA63-100		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGTA63-150		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGTA63-200		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGTA63-250		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGTA63-300		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGTA63-400		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGTA63-500		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGTA80-25		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGTA80-50		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGTA80-75		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGTA80-100		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGTA80-150		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGTA80-200		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGTA80-250		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGTA80-300		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGTA80-400		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGTA80-500		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGTA100-25		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGTA100-50		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGTA100-75		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGTA100-100		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGTA100-150		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGTA100-200		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGTA100-250		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGTA100-300		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGTA100-400		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGTA100-500		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGTC32-25		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGTC32-50		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGTC32-75		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGTC32-100		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGTC32-150		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGTC32-200		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGTC32-250		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGTC32-300		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGTC32-400		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGTC32-500		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGTC40-25		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGTC40-50		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGTC40-75		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGTC40-100		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGTC40-150		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGTC40-200		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGTC40-250		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGTC40-300		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGTC40-400		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGTC40-500		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGTC50-25		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGTC50-50		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGTC50-75		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGTC50-100		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGTC50-150		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGTC50-200		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGTC50-250		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGTC50-300		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGTC50-400		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGTC50-500		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGTC63-25		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGTC63-50		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGTC63-75		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGTC63-100		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGTC63-150		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGTC63-200		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGTC63-250		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGTC63-300		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGTC63-400		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGTC63-500		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGTC80-25		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGTC80-50		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGTC80-75		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGTC80-100		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGTC80-150		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGTC80-200		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGTC80-250		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGTC80-300		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGTC80-400		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGTC80-500		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHSGTC100-25		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHSGTC100-50		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHSGTC100-75		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHSGTC100-100		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHSGTC100-150		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHSGTC100-200		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHSGTC100-250		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHSGTC100-300		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHSGTC100-400		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHSGTC100-500		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHDSGB32-25		Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGB32-50		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGB32-75		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGB32-100		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGB32-150		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGB32-200		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGB32-250		Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGB32-300		Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGB32-400		Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGB32-500		Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGB40-25		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGB40-50		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGB40-75		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGB40-100		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGB40-150		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGB40-200		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGB40-250		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGB40-300		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGB40-400		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGB40-500		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGB50-25		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGB50-50		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGB50-75		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGB50-100		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGB50-150		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGB50-200		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGB50-250		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGB50-300		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGB50-400		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGB50-500		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGB63-25		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGB63-50		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGB63-75		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGB63-100		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGB63-150		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGB63-200		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGB63-250		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGB63-300		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGB63-400		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGB63-500		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGB80-25		Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGB80-50		Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGB80-75		Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGB80-100		Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGB80-150		Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGB80-200		Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGB80-250		Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGB80-300		Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGB80-400		Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGB80-500		Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGB100-25		Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGB100-50		Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGB100-75		Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGB100-100		Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGB100-150		Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGB100-200		Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGB100-250		Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGB100-300		Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGB100-400		Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGB100-500		Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGLA32-25		Mounting: Foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGLA32-50		Mounting: Foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGLA32-75		Mounting: Foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGLA32-100		Mounting: Foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGLA32-150		Mounting: Foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGLA32-200		Mounting: Foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGLA32-250		Mounting: Foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGLA32-300		Mounting: Foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGLA32-400		Mounting: Foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGLA32-500		Mounting: Foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGLA40-25		Mounting: Foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGLA40-50		Mounting: Foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGLA40-75		Mounting: Foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGLA40-100		Mounting: Foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGLA40-150		Mounting: Foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGLA40-200		Mounting: Foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGLA40-250		Mounting: Foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGLA40-300		Mounting: Foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGLA40-400		Mounting: Foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGLA40-500		Mounting: Foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGLA50-25		Mounting: Foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGLA50-50		Mounting: Foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGLA50-75		Mounting: Foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGLA50-100		Mounting: Foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGLA50-150		Mounting: Foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGLA50-200		Mounting: Foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGLA50-250		Mounting: Foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGLA50-300		Mounting: Foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGLA50-400		Mounting: Foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGLA50-500		Mounting: Foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGLA63-25		Mounting: Foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGLA63-50		Mounting: Foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGLA63-75		Mounting: Foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGLA63-100		Mounting: Foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGLA63-150		Mounting: Foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGLA63-200		Mounting: Foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGLA63-250		Mounting: Foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGLA63-300		Mounting: Foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGLA63-400		Mounting: Foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGLA63-500		Mounting: Foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGLA80-25		Mounting: Foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGLA80-50		Mounting: Foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGLA80-75		Mounting: Foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGLA80-100		Mounting: Foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGLA80-150		Mounting: Foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGLA80-200		Mounting: Foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGLA80-250		Mounting: Foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGLA80-300		Mounting: Foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGLA80-400		Mounting: Foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGLA80-500		Mounting: Foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGLA100-25		Mounting: Foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGLA100-50		Mounting: Foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGLA100-75		Mounting: Foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGLA100-100		Mounting: Foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGLA100-150		Mounting: Foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGLA100-200		Mounting: Foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGLA100-250		Mounting: Foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGLA100-300		Mounting: Foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGLA100-400		Mounting: Foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGLA100-500		Mounting: Foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGFY32-25		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGFY32-50		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGFY32-75		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGFY32-100		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGFY32-150		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGFY32-200		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGFY32-250		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGFY32-300		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGFY32-400		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGFY32-500		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGFY40-25		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGFY40-50		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGFY40-75		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGFY40-100		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGFY40-150		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGFY40-200		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGFY40-250		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGFY40-300		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGFY40-400		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGFY40-500		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGFY50-25		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGFY50-50		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGFY50-75		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGFY50-100		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGFY50-150		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGFY50-200		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGFY50-250		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGFY50-300		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGFY50-400		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGFY50-500		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGFY63-25		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGFY63-50		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGFY63-75		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGFY63-100		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGFY63-150		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGFY63-200		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGFY63-250		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGFY63-300		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGFY63-400		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGFY63-500		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGFY80-25		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGFY80-50		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGFY80-75		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGFY80-100		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGFY80-150		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGFY80-200		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGFY80-250		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGFY80-300		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGFY80-400		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGFY80-500		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGFY100-25		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGFY100-50		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGFY100-75		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGFY100-100		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGFY100-150		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGFY100-200		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGFY100-250		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGFY100-300		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGFY100-400		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGFY100-500		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGFZ32-25		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGFZ32-50		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGFZ32-75		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGFZ32-100		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGFZ32-150		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGFZ32-200		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGFZ32-250		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGFZ32-300		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGFZ32-400		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGFZ32-500		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGFZ40-25		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGFZ40-50		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGFZ40-75		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGFZ40-100		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGFZ40-150		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGFZ40-200		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGFZ40-250		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGFZ40-300		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGFZ40-400		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGFZ40-500		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGFZ50-25		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGFZ50-50		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGFZ50-75		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGFZ50-100		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGFZ50-150		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGFZ50-200		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGFZ50-250		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGFZ50-300		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGFZ50-400		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGFZ50-500		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGFZ63-25		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGFZ63-50		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGFZ63-75		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGFZ63-100		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGFZ63-150		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGFZ63-200		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGFZ63-250		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGFZ63-300		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGFZ63-400		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGFZ63-500		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGFZ80-25		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGFZ80-50		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGFZ80-75		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGFZ80-100		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGFZ80-150		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGFZ80-200		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGFZ80-250		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGFZ80-300		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGFZ80-400		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGFZ80-500		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGFZ100-25		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGFZ100-50		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGFZ100-75		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGFZ100-100		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGFZ100-150		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGFZ100-200		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGFZ100-250		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGFZ100-300		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGFZ100-400		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGFZ100-500		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGCA32-25		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGCA32-50		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGCA32-75		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGCA32-100		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGCA32-150		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGCA32-200		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGCA32-250		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGCA32-300		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGCA32-400		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGCA32-500		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGCA40-25		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGCA40-50		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGCA40-75		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGCA40-100		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGCA40-150		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGCA40-200		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGCA40-250		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGCA40-300		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGCA40-400		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGCA40-500		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGCA50-25		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGCA50-50		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGCA50-75		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGCA50-100		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGCA50-150		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGCA50-200		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGCA50-250		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGCA50-300		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGCA50-400		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGCA50-500		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGCA63-25		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGCA63-50		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGCA63-75		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGCA63-100		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGCA63-150		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGCA63-200		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGCA63-250		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGCA63-300		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGCA63-400		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGCA63-500		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGCA80-25		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGCA80-50		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGCA80-75		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGCA80-100		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGCA80-150		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGCA80-200		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGCA80-250		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGCA80-300		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGCA80-400		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGCA80-500		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGCA100-25		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGCA100-50		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGCA100-75		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGCA100-100		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGCA100-150		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGCA100-200		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGCA100-250		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGCA100-300		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGCA100-400		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGCA100-500		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGCB32-25		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGCB32-50		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGCB32-75		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGCB32-100		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGCB32-150		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGCB32-200		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGCB32-250		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGCB32-300		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGCB32-400		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGCB32-500		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGCB40-25		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGCB40-50		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGCB40-75		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGCB40-100		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGCB40-150		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGCB40-200		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGCB40-250		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGCB40-300		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGCB40-400		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGCB40-500		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGCB50-25		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGCB50-50		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGCB50-75		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGCB50-100		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGCB50-150		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGCB50-200		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGCB50-250		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGCB50-300		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGCB50-400		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGCB50-500		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGCB63-25		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGCB63-50		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGCB63-75		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGCB63-100		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGCB63-150		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGCB63-200		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGCB63-250		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGCB63-300		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGCB63-400		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGCB63-500		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGCB80-25		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGCB80-50		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGCB80-75		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGCB80-100		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGCB80-150		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGCB80-200		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGCB80-250		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGCB80-300		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGCB80-400		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGCB80-500		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGCB100-25		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGCB100-50		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGCB100-75		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGCB100-100		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGCB100-150		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGCB100-200		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGCB100-250		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGCB100-300		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGCB100-400		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGCB100-500		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGTA32-25		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGTA32-50		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGTA32-75		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGTA32-100		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGTA32-150		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGTA32-200		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGTA32-250		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGTA32-300		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGTA32-400		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGTA32-500		Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGTA40-25		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGTA40-50		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGTA40-75		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGTA40-100		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGTA40-150		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGTA40-200		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGTA40-250		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGTA40-300		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGTA40-400		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGTA40-500		Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGTA50-25		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGTA50-50		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGTA50-75		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGTA50-100		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGTA50-150		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGTA50-200		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGTA50-250		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGTA50-300		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGTA50-400		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGTA50-500		Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGTA63-25		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGTA63-50		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGTA63-75		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGTA63-100		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGTA63-150		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGTA63-200		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGTA63-250		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGTA63-300		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGTA63-400		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGTA63-500		Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGTA80-25		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGTA80-50		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGTA80-75		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGTA80-100		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGTA80-150		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGTA80-200		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGTA80-250		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGTA80-300		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGTA80-400		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGTA80-500		Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGTA100-25		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGTA100-50		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGTA100-75		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGTA100-100		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGTA100-150		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGTA100-200		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGTA100-250		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGTA100-300		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGTA100-400		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGTA100-500		Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGTC32-25		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGTC32-50		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGTC32-75		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGTC32-100		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGTC32-150		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGTC32-200		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGTC32-250		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGTC32-300		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGTC32-400		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGTC32-500		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGTC40-25		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGTC40-50		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGTC40-75		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGTC40-100		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGTC40-150		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGTC40-200		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGTC40-250		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGTC40-300		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGTC40-400		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGTC40-500		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGTC50-25		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGTC50-50		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGTC50-75		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGTC50-100		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGTC50-150		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGTC50-200		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGTC50-250		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGTC50-300		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGTC50-400		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGTC50-500		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGTC63-25		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGTC63-50		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGTC63-75		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGTC63-100		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGTC63-150		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGTC63-200		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGTC63-250		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGTC63-300		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGTC63-400		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGTC63-500		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGTC80-25		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGTC80-50		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGTC80-75		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGTC80-100		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGTC80-150		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGTC80-200		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGTC80-250		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGTC80-300		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGTC80-400		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGTC80-500		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDSGTC100-25		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDSGTC100-50		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDSGTC100-75		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDSGTC100-100		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDSGTC100-150		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDSGTC100-200		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDSGTC100-250		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDSGTC100-300		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDSGTC100-400		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDSGTC100-500		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes

Hydraulic CylindersSMC

960 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CHSG ISO Hydraulic Cylinder (16 MPa, ø32 to ø100)

Brand SMC·Hydraulic Cylinders

Available part numbers (960)

CHSGB32-25, CHSGB32-50, CHSGB32-75, CHSGB32-100, CHSGB32-150, CHSGB32-200, CHSGB32-250, CHSGB32-300, CHSGB32-400, CHSGB32-500 + 950 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CHSGB32-25	Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGB32-50	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGB32-75	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGB32-100	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGB32-150	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGB32-200	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGB32-250	Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGB32-300	Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGB32-400	Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGB32-500	Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGB40-25	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGB40-50	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGB40-75	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGB40-100	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGB40-150	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGB40-200	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGB40-250	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGB40-300	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGB40-400	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGB40-500	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGB50-25	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGB50-50	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGB50-75	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGB50-100	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGB50-150	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGB50-200	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGB50-250	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGB50-300	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGB50-400	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGB50-500	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGB63-25	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGB63-50	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGB63-75	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGB63-100	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGB63-150	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGB63-200	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGB63-250	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGB63-300	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGB63-400	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGB63-500	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGB80-25	Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGB80-50	Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGB80-75	Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGB80-100	Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGB80-150	Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGB80-200	Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGB80-250	Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGB80-300	Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGB80-400	Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGB80-500	Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGB100-25	Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGB100-50	Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGB100-75	Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGB100-100	Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGB100-150	Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGB100-200	Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGB100-250	Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGB100-300	Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGB100-400	Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGB100-500	Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGLA32-25	Mounting: Foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGLA32-50	Mounting: Foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGLA32-75	Mounting: Foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGLA32-100	Mounting: Foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGLA32-150	Mounting: Foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGLA32-200	Mounting: Foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGLA32-250	Mounting: Foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGLA32-300	Mounting: Foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGLA32-400	Mounting: Foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGLA32-500	Mounting: Foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGLA40-25	Mounting: Foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGLA40-50	Mounting: Foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGLA40-75	Mounting: Foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGLA40-100	Mounting: Foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGLA40-150	Mounting: Foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGLA40-200	Mounting: Foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGLA40-250	Mounting: Foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGLA40-300	Mounting: Foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGLA40-400	Mounting: Foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGLA40-500	Mounting: Foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGLA50-25	Mounting: Foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGLA50-50	Mounting: Foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGLA50-75	Mounting: Foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGLA50-100	Mounting: Foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGLA50-150	Mounting: Foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGLA50-200	Mounting: Foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGLA50-250	Mounting: Foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGLA50-300	Mounting: Foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGLA50-400	Mounting: Foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGLA50-500	Mounting: Foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGLA63-25	Mounting: Foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGLA63-50	Mounting: Foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGLA63-75	Mounting: Foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGLA63-100	Mounting: Foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGLA63-150	Mounting: Foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGLA63-200	Mounting: Foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGLA63-250	Mounting: Foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGLA63-300	Mounting: Foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGLA63-400	Mounting: Foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGLA63-500	Mounting: Foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGLA80-25	Mounting: Foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGLA80-50	Mounting: Foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGLA80-75	Mounting: Foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGLA80-100	Mounting: Foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGLA80-150	Mounting: Foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGLA80-200	Mounting: Foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGLA80-250	Mounting: Foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGLA80-300	Mounting: Foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGLA80-400	Mounting: Foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGLA80-500	Mounting: Foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGLA100-25	Mounting: Foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGLA100-50	Mounting: Foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGLA100-75	Mounting: Foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGLA100-100	Mounting: Foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGLA100-150	Mounting: Foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGLA100-200	Mounting: Foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGLA100-250	Mounting: Foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGLA100-300	Mounting: Foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGLA100-400	Mounting: Foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGLA100-500	Mounting: Foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGFY32-25	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGFY32-50	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGFY32-75	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGFY32-100	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGFY32-150	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGFY32-200	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGFY32-250	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGFY32-300	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGFY32-400	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGFY32-500	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGFY40-25	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGFY40-50	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGFY40-75	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGFY40-100	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGFY40-150	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGFY40-200	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGFY40-250	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGFY40-300	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGFY40-400	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGFY40-500	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGFY50-25	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGFY50-50	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGFY50-75	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGFY50-100	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGFY50-150	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGFY50-200	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGFY50-250	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGFY50-300	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGFY50-400	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGFY50-500	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGFY63-25	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGFY63-50	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGFY63-75	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGFY63-100	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGFY63-150	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGFY63-200	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGFY63-250	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGFY63-300	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGFY63-400	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGFY63-500	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGFY80-25	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGFY80-50	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGFY80-75	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGFY80-100	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGFY80-150	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGFY80-200	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGFY80-250	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGFY80-300	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGFY80-400	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGFY80-500	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGFY100-25	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGFY100-50	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGFY100-75	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGFY100-100	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGFY100-150	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGFY100-200	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGFY100-250	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGFY100-300	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGFY100-400	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGFY100-500	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGFZ32-25	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGFZ32-50	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGFZ32-75	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGFZ32-100	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGFZ32-150	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGFZ32-200	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGFZ32-250	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGFZ32-300	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGFZ32-400	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGFZ32-500	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGFZ40-25	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGFZ40-50	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGFZ40-75	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGFZ40-100	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGFZ40-150	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGFZ40-200	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGFZ40-250	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGFZ40-300	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGFZ40-400	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGFZ40-500	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGFZ50-25	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGFZ50-50	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGFZ50-75	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGFZ50-100	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGFZ50-150	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGFZ50-200	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGFZ50-250	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGFZ50-300	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGFZ50-400	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGFZ50-500	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGFZ63-25	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGFZ63-50	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGFZ63-75	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGFZ63-100	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGFZ63-150	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGFZ63-200	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGFZ63-250	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGFZ63-300	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGFZ63-400	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGFZ63-500	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGFZ80-25	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGFZ80-50	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGFZ80-75	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGFZ80-100	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGFZ80-150	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGFZ80-200	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGFZ80-250	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGFZ80-300	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGFZ80-400	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGFZ80-500	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGFZ100-25	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGFZ100-50	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGFZ100-75	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGFZ100-100	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGFZ100-150	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGFZ100-200	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGFZ100-250	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGFZ100-300	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGFZ100-400	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGFZ100-500	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGCA32-25	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGCA32-50	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGCA32-75	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGCA32-100	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGCA32-150	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGCA32-200	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGCA32-250	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGCA32-300	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGCA32-400	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGCA32-500	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGCA40-25	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGCA40-50	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGCA40-75	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGCA40-100	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGCA40-150	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGCA40-200	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGCA40-250	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGCA40-300	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGCA40-400	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGCA40-500	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGCA50-25	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGCA50-50	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGCA50-75	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGCA50-100	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGCA50-150	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGCA50-200	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGCA50-250	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGCA50-300	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGCA50-400	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGCA50-500	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGCA63-25	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGCA63-50	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGCA63-75	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGCA63-100	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGCA63-150	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGCA63-200	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGCA63-250	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGCA63-300	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGCA63-400	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGCA63-500	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGCA80-25	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGCA80-50	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGCA80-75	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGCA80-100	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGCA80-150	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGCA80-200	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGCA80-250	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGCA80-300	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGCA80-400	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGCA80-500	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGCA100-25	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGCA100-50	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGCA100-75	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGCA100-100	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGCA100-150	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGCA100-200	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGCA100-250	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGCA100-300	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGCA100-400	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGCA100-500	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGCB32-25	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGCB32-50	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGCB32-75	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGCB32-100	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGCB32-150	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGCB32-200	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGCB32-250	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGCB32-300	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGCB32-400	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGCB32-500	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGCB40-25	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGCB40-50	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGCB40-75	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGCB40-100	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGCB40-150	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGCB40-200	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGCB40-250	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGCB40-300	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGCB40-400	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGCB40-500	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGCB50-25	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGCB50-50	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGCB50-75	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGCB50-100	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGCB50-150	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGCB50-200	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGCB50-250	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGCB50-300	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGCB50-400	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGCB50-500	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGCB63-25	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGCB63-50	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGCB63-75	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGCB63-100	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGCB63-150	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGCB63-200	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGCB63-250	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGCB63-300	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGCB63-400	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGCB63-500	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGCB80-25	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGCB80-50	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGCB80-75	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGCB80-100	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGCB80-150	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGCB80-200	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGCB80-250	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGCB80-300	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGCB80-400	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGCB80-500	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGCB100-25	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGCB100-50	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGCB100-75	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGCB100-100	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGCB100-150	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGCB100-200	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGCB100-250	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGCB100-300	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGCB100-400	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGCB100-500	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGTA32-25	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGTA32-50	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGTA32-75	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGTA32-100	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGTA32-150	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGTA32-200	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGTA32-250	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGTA32-300	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGTA32-400	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGTA32-500	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGTA40-25	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGTA40-50	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGTA40-75	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGTA40-100	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGTA40-150	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGTA40-200	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGTA40-250	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGTA40-300	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGTA40-400	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGTA40-500	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGTA50-25	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGTA50-50	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGTA50-75	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGTA50-100	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGTA50-150	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGTA50-200	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGTA50-250	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGTA50-300	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGTA50-400	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGTA50-500	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGTA63-25	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGTA63-50	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGTA63-75	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGTA63-100	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGTA63-150	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGTA63-200	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGTA63-250	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGTA63-300	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGTA63-400	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGTA63-500	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGTA80-25	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGTA80-50	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGTA80-75	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGTA80-100	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGTA80-150	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGTA80-200	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGTA80-250	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGTA80-300	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGTA80-400	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGTA80-500	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGTA100-25	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGTA100-50	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGTA100-75	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGTA100-100	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGTA100-150	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGTA100-200	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGTA100-250	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGTA100-300	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGTA100-400	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGTA100-500	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGTC32-25	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGTC32-50	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGTC32-75	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGTC32-100	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGTC32-150	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGTC32-200	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGTC32-250	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGTC32-300	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGTC32-400	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGTC32-500	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGTC40-25	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGTC40-50	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGTC40-75	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGTC40-100	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGTC40-150	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGTC40-200	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGTC40-250	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGTC40-300	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGTC40-400	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGTC40-500	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGTC50-25	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGTC50-50	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGTC50-75	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGTC50-100	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGTC50-150	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGTC50-200	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGTC50-250	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGTC50-300	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGTC50-400	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGTC50-500	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGTC63-25	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGTC63-50	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGTC63-75	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGTC63-100	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGTC63-150	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGTC63-200	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGTC63-250	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGTC63-300	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGTC63-400	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGTC63-500	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGTC80-25	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGTC80-50	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGTC80-75	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGTC80-100	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGTC80-150	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGTC80-200	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGTC80-250	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGTC80-300	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGTC80-400	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGTC80-500	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHSGTC100-25	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHSGTC100-50	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHSGTC100-75	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHSGTC100-100	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHSGTC100-150	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHSGTC100-200	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHSGTC100-250	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHSGTC100-300	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHSGTC100-400	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHSGTC100-500	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHDSGB32-25	Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGB32-50	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGB32-75	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGB32-100	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGB32-150	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGB32-200	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGB32-250	Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGB32-300	Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGB32-400	Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGB32-500	Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGB40-25	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGB40-50	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGB40-75	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGB40-100	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGB40-150	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGB40-200	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGB40-250	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGB40-300	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGB40-400	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGB40-500	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGB50-25	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGB50-50	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGB50-75	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGB50-100	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGB50-150	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGB50-200	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGB50-250	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGB50-300	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGB50-400	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGB50-500	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGB63-25	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGB63-50	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGB63-75	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGB63-100	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGB63-150	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGB63-200	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGB63-250	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGB63-300	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGB63-400	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGB63-500	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGB80-25	Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGB80-50	Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGB80-75	Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGB80-100	Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGB80-150	Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGB80-200	Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGB80-250	Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGB80-300	Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGB80-400	Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGB80-500	Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGB100-25	Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGB100-50	Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGB100-75	Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGB100-100	Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGB100-150	Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGB100-200	Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGB100-250	Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGB100-300	Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGB100-400	Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGB100-500	Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGLA32-25	Mounting: Foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGLA32-50	Mounting: Foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGLA32-75	Mounting: Foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGLA32-100	Mounting: Foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGLA32-150	Mounting: Foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGLA32-200	Mounting: Foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGLA32-250	Mounting: Foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGLA32-300	Mounting: Foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGLA32-400	Mounting: Foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGLA32-500	Mounting: Foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGLA40-25	Mounting: Foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGLA40-50	Mounting: Foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGLA40-75	Mounting: Foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGLA40-100	Mounting: Foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGLA40-150	Mounting: Foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGLA40-200	Mounting: Foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGLA40-250	Mounting: Foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGLA40-300	Mounting: Foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGLA40-400	Mounting: Foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGLA40-500	Mounting: Foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGLA50-25	Mounting: Foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGLA50-50	Mounting: Foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGLA50-75	Mounting: Foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGLA50-100	Mounting: Foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGLA50-150	Mounting: Foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGLA50-200	Mounting: Foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGLA50-250	Mounting: Foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGLA50-300	Mounting: Foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGLA50-400	Mounting: Foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGLA50-500	Mounting: Foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGLA63-25	Mounting: Foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGLA63-50	Mounting: Foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGLA63-75	Mounting: Foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGLA63-100	Mounting: Foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGLA63-150	Mounting: Foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGLA63-200	Mounting: Foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGLA63-250	Mounting: Foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGLA63-300	Mounting: Foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGLA63-400	Mounting: Foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGLA63-500	Mounting: Foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGLA80-25	Mounting: Foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGLA80-50	Mounting: Foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGLA80-75	Mounting: Foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGLA80-100	Mounting: Foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGLA80-150	Mounting: Foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGLA80-200	Mounting: Foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGLA80-250	Mounting: Foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGLA80-300	Mounting: Foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGLA80-400	Mounting: Foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGLA80-500	Mounting: Foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGLA100-25	Mounting: Foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGLA100-50	Mounting: Foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGLA100-75	Mounting: Foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGLA100-100	Mounting: Foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGLA100-150	Mounting: Foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGLA100-200	Mounting: Foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGLA100-250	Mounting: Foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGLA100-300	Mounting: Foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGLA100-400	Mounting: Foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGLA100-500	Mounting: Foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGFY32-25	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGFY32-50	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGFY32-75	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGFY32-100	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGFY32-150	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGFY32-200	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGFY32-250	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGFY32-300	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGFY32-400	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGFY32-500	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGFY40-25	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGFY40-50	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGFY40-75	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGFY40-100	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGFY40-150	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGFY40-200	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGFY40-250	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGFY40-300	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGFY40-400	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGFY40-500	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGFY50-25	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGFY50-50	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGFY50-75	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGFY50-100	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGFY50-150	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGFY50-200	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGFY50-250	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGFY50-300	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGFY50-400	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGFY50-500	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGFY63-25	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGFY63-50	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGFY63-75	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGFY63-100	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGFY63-150	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGFY63-200	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGFY63-250	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGFY63-300	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGFY63-400	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGFY63-500	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGFY80-25	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGFY80-50	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGFY80-75	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGFY80-100	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGFY80-150	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGFY80-200	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGFY80-250	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGFY80-300	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGFY80-400	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGFY80-500	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGFY100-25	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGFY100-50	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGFY100-75	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGFY100-100	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGFY100-150	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGFY100-200	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGFY100-250	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGFY100-300	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGFY100-400	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGFY100-500	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGFZ32-25	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGFZ32-50	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGFZ32-75	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGFZ32-100	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGFZ32-150	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGFZ32-200	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGFZ32-250	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGFZ32-300	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGFZ32-400	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGFZ32-500	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGFZ40-25	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGFZ40-50	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGFZ40-75	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGFZ40-100	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGFZ40-150	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGFZ40-200	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGFZ40-250	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGFZ40-300	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGFZ40-400	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGFZ40-500	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGFZ50-25	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGFZ50-50	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGFZ50-75	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGFZ50-100	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGFZ50-150	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGFZ50-200	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGFZ50-250	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGFZ50-300	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGFZ50-400	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGFZ50-500	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGFZ63-25	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGFZ63-50	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGFZ63-75	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGFZ63-100	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGFZ63-150	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGFZ63-200	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGFZ63-250	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGFZ63-300	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGFZ63-400	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGFZ63-500	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGFZ80-25	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGFZ80-50	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGFZ80-75	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGFZ80-100	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGFZ80-150	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGFZ80-200	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGFZ80-250	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGFZ80-300	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGFZ80-400	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGFZ80-500	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGFZ100-25	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGFZ100-50	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGFZ100-75	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGFZ100-100	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGFZ100-150	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGFZ100-200	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGFZ100-250	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGFZ100-300	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGFZ100-400	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGFZ100-500	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGCA32-25	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGCA32-50	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGCA32-75	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGCA32-100	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGCA32-150	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGCA32-200	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGCA32-250	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGCA32-300	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGCA32-400	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGCA32-500	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGCA40-25	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGCA40-50	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGCA40-75	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGCA40-100	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGCA40-150	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGCA40-200	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGCA40-250	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGCA40-300	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGCA40-400	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGCA40-500	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGCA50-25	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGCA50-50	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGCA50-75	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGCA50-100	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGCA50-150	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGCA50-200	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGCA50-250	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGCA50-300	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGCA50-400	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGCA50-500	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGCA63-25	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGCA63-50	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGCA63-75	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGCA63-100	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGCA63-150	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGCA63-200	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGCA63-250	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGCA63-300	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGCA63-400	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGCA63-500	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGCA80-25	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGCA80-50	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGCA80-75	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGCA80-100	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGCA80-150	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGCA80-200	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGCA80-250	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGCA80-300	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGCA80-400	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGCA80-500	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGCA100-25	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGCA100-50	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGCA100-75	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGCA100-100	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGCA100-150	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGCA100-200	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGCA100-250	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGCA100-300	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGCA100-400	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGCA100-500	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGCB32-25	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGCB32-50	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGCB32-75	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGCB32-100	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGCB32-150	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGCB32-200	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGCB32-250	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGCB32-300	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGCB32-400	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGCB32-500	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGCB40-25	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGCB40-50	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGCB40-75	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGCB40-100	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGCB40-150	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGCB40-200	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGCB40-250	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGCB40-300	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGCB40-400	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGCB40-500	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGCB50-25	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGCB50-50	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGCB50-75	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGCB50-100	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGCB50-150	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGCB50-200	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGCB50-250	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGCB50-300	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGCB50-400	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGCB50-500	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGCB63-25	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGCB63-50	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGCB63-75	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGCB63-100	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGCB63-150	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGCB63-200	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGCB63-250	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGCB63-300	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGCB63-400	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGCB63-500	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGCB80-25	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGCB80-50	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGCB80-75	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGCB80-100	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGCB80-150	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGCB80-200	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGCB80-250	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGCB80-300	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGCB80-400	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGCB80-500	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGCB100-25	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGCB100-50	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGCB100-75	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGCB100-100	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGCB100-150	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGCB100-200	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGCB100-250	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGCB100-300	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGCB100-400	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGCB100-500	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGTA32-25	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGTA32-50	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGTA32-75	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGTA32-100	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGTA32-150	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGTA32-200	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGTA32-250	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGTA32-300	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGTA32-400	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGTA32-500	Mounting: Rod trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGTA40-25	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGTA40-50	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGTA40-75	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGTA40-100	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGTA40-150	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGTA40-200	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGTA40-250	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGTA40-300	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGTA40-400	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGTA40-500	Mounting: Rod trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGTA50-25	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGTA50-50	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGTA50-75	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGTA50-100	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGTA50-150	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGTA50-200	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGTA50-250	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGTA50-300	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGTA50-400	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGTA50-500	Mounting: Rod trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGTA63-25	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGTA63-50	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGTA63-75	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGTA63-100	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGTA63-150	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGTA63-200	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGTA63-250	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGTA63-300	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGTA63-400	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGTA63-500	Mounting: Rod trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGTA80-25	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGTA80-50	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGTA80-75	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGTA80-100	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGTA80-150	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGTA80-200	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGTA80-250	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGTA80-300	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGTA80-400	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGTA80-500	Mounting: Rod trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGTA100-25	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGTA100-50	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGTA100-75	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGTA100-100	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGTA100-150	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGTA100-200	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGTA100-250	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGTA100-300	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGTA100-400	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGTA100-500	Mounting: Rod trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGTC32-25	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGTC32-50	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGTC32-75	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGTC32-100	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGTC32-150	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGTC32-200	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGTC32-250	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGTC32-300	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGTC32-400	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGTC32-500	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGTC40-25	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGTC40-50	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGTC40-75	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGTC40-100	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGTC40-150	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGTC40-200	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGTC40-250	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGTC40-300	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGTC40-400	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGTC40-500	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGTC50-25	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGTC50-50	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGTC50-75	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGTC50-100	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGTC50-150	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGTC50-200	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGTC50-250	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGTC50-300	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGTC50-400	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGTC50-500	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGTC63-25	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGTC63-50	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGTC63-75	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGTC63-100	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGTC63-150	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGTC63-200	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGTC63-250	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGTC63-300	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGTC63-400	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGTC63-500	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGTC80-25	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGTC80-50	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGTC80-75	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGTC80-100	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGTC80-150	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGTC80-200	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGTC80-250	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGTC80-300	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGTC80-400	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGTC80-500	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDSGTC100-25	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDSGTC100-50	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDSGTC100-75	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDSGTC100-100	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDSGTC100-150	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDSGTC100-200	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDSGTC100-250	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDSGTC100-300	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDSGTC100-400	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDSGTC100-500	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Hydraulics →

Item added to your cart

SMC CHSG ISO Hydraulic Cylinder (16 MPa, ø32 to ø100)
