SMC EBKX/ESKA Sintered Metal Elements with Fitting (M3 to R1/2)

SMC EBKX/ESKA Sintered Metal Elements with Fitting (M3 to R1/2)

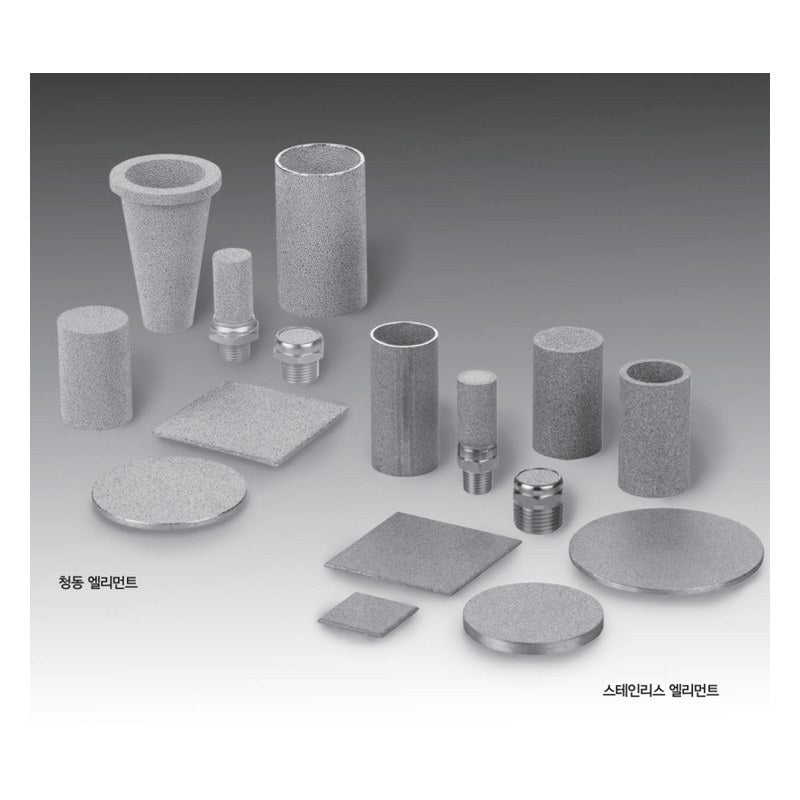

SMC EBKX (bronze) and ESKA (stainless) standard sintered metal filter elements with threaded fitting, M3 to R1/2, for filtering, silencing and flow diffusion.

Key features

  • Standard sintered metal elements with integral threaded fitting from M3 to R1/2
  • Bronze (CAC403 equivalent) EBKX or stainless (SUS316L equivalent) ESKA
  • Nominal filtration 2 to 120 um; washable and reusable
  • Construction by co-sintering, caulking or welding depending on model
  • Custom shapes (discs, tubes, cups, plates, flange cones EBD/EBS/EBP/EBW/EBF, ESD/ESS...) available to order

Specifications

Bronze temperature range -160 to 200°C
Stainless temperature range -250 to 550°C
Filtration code 002, 005, 010, 020, 040, 070, 100, 120 (um)
Installation M3 hand tighten + 1/4 turn; M5 + 1/6 turn with spanner on hex
Example code EBKX-J2001-002, ESKA-Z2701-002
Source SMC Korea catalog EB/ES (SMCKR_EB_ES.pdf), p. 1223-1238
EBKX-X9007-002 Material: Sintered bronze (EBKX) | Thread: M3 | Model: X9007 | Filtration: 2 um
EBKX-X9007-005 Material: Sintered bronze (EBKX) | Thread: M3 | Model: X9007 | Filtration: 5 um
EBKX-X9007-010 Material: Sintered bronze (EBKX) | Thread: M3 | Model: X9007 | Filtration: 10 um
EBKX-X9007-020 Material: Sintered bronze (EBKX) | Thread: M3 | Model: X9007 | Filtration: 20 um
EBKX-X9007-040 Material: Sintered bronze (EBKX) | Thread: M3 | Model: X9007 | Filtration: 40 um
EBKX-X9007-070 Material: Sintered bronze (EBKX) | Thread: M3 | Model: X9007 | Filtration: 70 um
EBKX-X9007-100 Material: Sintered bronze (EBKX) | Thread: M3 | Model: X9007 | Filtration: 100 um
EBKX-X9007-120 Material: Sintered bronze (EBKX) | Thread: M3 | Model: X9007 | Filtration: 120 um
EBKX-X9008-002 Material: Sintered bronze (EBKX) | Thread: M5 | Model: X9008 | Filtration: 2 um
EBKX-X9008-005 Material: Sintered bronze (EBKX) | Thread: M5 | Model: X9008 | Filtration: 5 um
EBKX-X9008-010 Material: Sintered bronze (EBKX) | Thread: M5 | Model: X9008 | Filtration: 10 um
EBKX-X9008-020 Material: Sintered bronze (EBKX) | Thread: M5 | Model: X9008 | Filtration: 20 um
EBKX-X9008-040 Material: Sintered bronze (EBKX) | Thread: M5 | Model: X9008 | Filtration: 40 um
EBKX-X9008-070 Material: Sintered bronze (EBKX) | Thread: M5 | Model: X9008 | Filtration: 70 um
EBKX-X9008-100 Material: Sintered bronze (EBKX) | Thread: M5 | Model: X9008 | Filtration: 100 um
EBKX-X9008-120 Material: Sintered bronze (EBKX) | Thread: M5 | Model: X9008 | Filtration: 120 um
EBKX-L7004-002 Material: Sintered bronze (EBKX) | Thread: R1/8 | Model: L7004 | Filtration: 2 um
EBKX-L7004-005 Material: Sintered bronze (EBKX) | Thread: R1/8 | Model: L7004 | Filtration: 5 um
EBKX-L7004-010 Material: Sintered bronze (EBKX) | Thread: R1/8 | Model: L7004 | Filtration: 10 um
EBKX-L7004-020 Material: Sintered bronze (EBKX) | Thread: R1/8 | Model: L7004 | Filtration: 20 um
EBKX-L7004-040 Material: Sintered bronze (EBKX) | Thread: R1/8 | Model: L7004 | Filtration: 40 um
EBKX-L7004-070 Material: Sintered bronze (EBKX) | Thread: R1/8 | Model: L7004 | Filtration: 70 um
EBKX-L7004-100 Material: Sintered bronze (EBKX) | Thread: R1/8 | Model: L7004 | Filtration: 100 um
EBKX-L7004-120 Material: Sintered bronze (EBKX) | Thread: R1/8 | Model: L7004 | Filtration: 120 um
EBKX-J2001-002 Material: Sintered bronze (EBKX) | Thread: R1/4 | Model: J2001 | Filtration: 2 um
EBKX-J2001-005 Material: Sintered bronze (EBKX) | Thread: R1/4 | Model: J2001 | Filtration: 5 um
EBKX-J2001-010 Material: Sintered bronze (EBKX) | Thread: R1/4 | Model: J2001 | Filtration: 10 um
EBKX-J2001-020 Material: Sintered bronze (EBKX) | Thread: R1/4 | Model: J2001 | Filtration: 20 um
EBKX-J2001-040 Material: Sintered bronze (EBKX) | Thread: R1/4 | Model: J2001 | Filtration: 40 um
EBKX-J2001-070 Material: Sintered bronze (EBKX) | Thread: R1/4 | Model: J2001 | Filtration: 70 um
EBKX-J2001-100 Material: Sintered bronze (EBKX) | Thread: R1/4 | Model: J2001 | Filtration: 100 um
EBKX-J2001-120 Material: Sintered bronze (EBKX) | Thread: R1/4 | Model: J2001 | Filtration: 120 um
EBKX-L7005-002 Material: Sintered bronze (EBKX) | Thread: R1/4 | Model: L7005 | Filtration: 2 um
EBKX-L7005-005 Material: Sintered bronze (EBKX) | Thread: R1/4 | Model: L7005 | Filtration: 5 um
EBKX-L7005-010 Material: Sintered bronze (EBKX) | Thread: R1/4 | Model: L7005 | Filtration: 10 um
EBKX-L7005-020 Material: Sintered bronze (EBKX) | Thread: R1/4 | Model: L7005 | Filtration: 20 um
EBKX-L7005-040 Material: Sintered bronze (EBKX) | Thread: R1/4 | Model: L7005 | Filtration: 40 um
EBKX-L7005-070 Material: Sintered bronze (EBKX) | Thread: R1/4 | Model: L7005 | Filtration: 70 um
EBKX-L7005-100 Material: Sintered bronze (EBKX) | Thread: R1/4 | Model: L7005 | Filtration: 100 um
EBKX-L7005-120 Material: Sintered bronze (EBKX) | Thread: R1/4 | Model: L7005 | Filtration: 120 um
EBKX-J2002-002 Material: Sintered bronze (EBKX) | Thread: R3/8 | Model: J2002 | Filtration: 2 um
EBKX-J2002-005 Material: Sintered bronze (EBKX) | Thread: R3/8 | Model: J2002 | Filtration: 5 um
EBKX-J2002-010 Material: Sintered bronze (EBKX) | Thread: R3/8 | Model: J2002 | Filtration: 10 um
EBKX-J2002-020 Material: Sintered bronze (EBKX) | Thread: R3/8 | Model: J2002 | Filtration: 20 um
EBKX-J2002-040 Material: Sintered bronze (EBKX) | Thread: R3/8 | Model: J2002 | Filtration: 40 um
EBKX-J2002-070 Material: Sintered bronze (EBKX) | Thread: R3/8 | Model: J2002 | Filtration: 70 um
EBKX-J2002-100 Material: Sintered bronze (EBKX) | Thread: R3/8 | Model: J2002 | Filtration: 100 um
EBKX-J2002-120 Material: Sintered bronze (EBKX) | Thread: R3/8 | Model: J2002 | Filtration: 120 um
EBKX-L7006-002 Material: Sintered bronze (EBKX) | Thread: R3/8 | Model: L7006 | Filtration: 2 um
EBKX-L7006-005 Material: Sintered bronze (EBKX) | Thread: R3/8 | Model: L7006 | Filtration: 5 um
EBKX-L7006-010 Material: Sintered bronze (EBKX) | Thread: R3/8 | Model: L7006 | Filtration: 10 um
EBKX-L7006-020 Material: Sintered bronze (EBKX) | Thread: R3/8 | Model: L7006 | Filtration: 20 um
EBKX-L7006-040 Material: Sintered bronze (EBKX) | Thread: R3/8 | Model: L7006 | Filtration: 40 um
EBKX-L7006-070 Material: Sintered bronze (EBKX) | Thread: R3/8 | Model: L7006 | Filtration: 70 um
EBKX-L7006-100 Material: Sintered bronze (EBKX) | Thread: R3/8 | Model: L7006 | Filtration: 100 um
EBKX-L7006-120 Material: Sintered bronze (EBKX) | Thread: R3/8 | Model: L7006 | Filtration: 120 um
EBKX-J2003-002 Material: Sintered bronze (EBKX) | Thread: R1/2 | Model: J2003 | Filtration: 2 um
EBKX-J2003-005 Material: Sintered bronze (EBKX) | Thread: R1/2 | Model: J2003 | Filtration: 5 um
EBKX-J2003-010 Material: Sintered bronze (EBKX) | Thread: R1/2 | Model: J2003 | Filtration: 10 um
EBKX-J2003-020 Material: Sintered bronze (EBKX) | Thread: R1/2 | Model: J2003 | Filtration: 20 um
EBKX-J2003-040 Material: Sintered bronze (EBKX) | Thread: R1/2 | Model: J2003 | Filtration: 40 um
EBKX-J2003-070 Material: Sintered bronze (EBKX) | Thread: R1/2 | Model: J2003 | Filtration: 70 um
EBKX-J2003-100 Material: Sintered bronze (EBKX) | Thread: R1/2 | Model: J2003 | Filtration: 100 um
EBKX-J2003-120 Material: Sintered bronze (EBKX) | Thread: R1/2 | Model: J2003 | Filtration: 120 um
EBKX-L7007-002 Material: Sintered bronze (EBKX) | Thread: R1/2 | Model: L7007 | Filtration: 2 um
EBKX-L7007-005 Material: Sintered bronze (EBKX) | Thread: R1/2 | Model: L7007 | Filtration: 5 um
EBKX-L7007-010 Material: Sintered bronze (EBKX) | Thread: R1/2 | Model: L7007 | Filtration: 10 um
EBKX-L7007-020 Material: Sintered bronze (EBKX) | Thread: R1/2 | Model: L7007 | Filtration: 20 um
EBKX-L7007-040 Material: Sintered bronze (EBKX) | Thread: R1/2 | Model: L7007 | Filtration: 40 um
EBKX-L7007-070 Material: Sintered bronze (EBKX) | Thread: R1/2 | Model: L7007 | Filtration: 70 um
EBKX-L7007-100 Material: Sintered bronze (EBKX) | Thread: R1/2 | Model: L7007 | Filtration: 100 um
EBKX-L7007-120 Material: Sintered bronze (EBKX) | Thread: R1/2 | Model: L7007 | Filtration: 120 um
ESKA-Z2701-002 Material: Sintered stainless (ESKA) | Thread: M3 | Model: Z2701 | Filtration: 2 um
ESKA-Z2701-005 Material: Sintered stainless (ESKA) | Thread: M3 | Model: Z2701 | Filtration: 5 um
ESKA-Z2701-010 Material: Sintered stainless (ESKA) | Thread: M3 | Model: Z2701 | Filtration: 10 um
ESKA-Z2701-020 Material: Sintered stainless (ESKA) | Thread: M3 | Model: Z2701 | Filtration: 20 um
ESKA-Z2701-040 Material: Sintered stainless (ESKA) | Thread: M3 | Model: Z2701 | Filtration: 40 um
ESKA-Z2701-070 Material: Sintered stainless (ESKA) | Thread: M3 | Model: Z2701 | Filtration: 70 um
ESKA-Z2701-100 Material: Sintered stainless (ESKA) | Thread: M3 | Model: Z2701 | Filtration: 100 um
ESKA-Z2701-120 Material: Sintered stainless (ESKA) | Thread: M3 | Model: Z2701 | Filtration: 120 um
ESKA-Z2711-002 Material: Sintered stainless (ESKA) | Thread: M3 | Model: Z2711 | Filtration: 2 um
ESKA-Z2711-005 Material: Sintered stainless (ESKA) | Thread: M3 | Model: Z2711 | Filtration: 5 um
ESKA-Z2711-010 Material: Sintered stainless (ESKA) | Thread: M3 | Model: Z2711 | Filtration: 10 um
ESKA-Z2711-020 Material: Sintered stainless (ESKA) | Thread: M3 | Model: Z2711 | Filtration: 20 um
ESKA-Z2711-040 Material: Sintered stainless (ESKA) | Thread: M3 | Model: Z2711 | Filtration: 40 um
ESKA-Z2711-070 Material: Sintered stainless (ESKA) | Thread: M3 | Model: Z2711 | Filtration: 70 um
ESKA-Z2711-100 Material: Sintered stainless (ESKA) | Thread: M3 | Model: Z2711 | Filtration: 100 um
ESKA-Z2711-120 Material: Sintered stainless (ESKA) | Thread: M3 | Model: Z2711 | Filtration: 120 um
ESKA-Z2702-002 Material: Sintered stainless (ESKA) | Thread: M5 | Model: Z2702 | Filtration: 2 um
ESKA-Z2702-005 Material: Sintered stainless (ESKA) | Thread: M5 | Model: Z2702 | Filtration: 5 um
ESKA-Z2702-010 Material: Sintered stainless (ESKA) | Thread: M5 | Model: Z2702 | Filtration: 10 um
ESKA-Z2702-020 Material: Sintered stainless (ESKA) | Thread: M5 | Model: Z2702 | Filtration: 20 um
ESKA-Z2702-040 Material: Sintered stainless (ESKA) | Thread: M5 | Model: Z2702 | Filtration: 40 um
ESKA-Z2702-070 Material: Sintered stainless (ESKA) | Thread: M5 | Model: Z2702 | Filtration: 70 um
ESKA-Z2702-100 Material: Sintered stainless (ESKA) | Thread: M5 | Model: Z2702 | Filtration: 100 um
ESKA-Z2702-120 Material: Sintered stainless (ESKA) | Thread: M5 | Model: Z2702 | Filtration: 120 um
ESKA-Z2712-002 Material: Sintered stainless (ESKA) | Thread: M5 | Model: Z2712 | Filtration: 2 um
ESKA-Z2712-005 Material: Sintered stainless (ESKA) | Thread: M5 | Model: Z2712 | Filtration: 5 um
ESKA-Z2712-010 Material: Sintered stainless (ESKA) | Thread: M5 | Model: Z2712 | Filtration: 10 um
ESKA-Z2712-020 Material: Sintered stainless (ESKA) | Thread: M5 | Model: Z2712 | Filtration: 20 um
ESKA-Z2712-040 Material: Sintered stainless (ESKA) | Thread: M5 | Model: Z2712 | Filtration: 40 um
ESKA-Z2712-070 Material: Sintered stainless (ESKA) | Thread: M5 | Model: Z2712 | Filtration: 70 um
ESKA-Z2712-100 Material: Sintered stainless (ESKA) | Thread: M5 | Model: Z2712 | Filtration: 100 um
ESKA-Z2712-120 Material: Sintered stainless (ESKA) | Thread: M5 | Model: Z2712 | Filtration: 120 um
ESKA-Z2801-002 Material: Sintered stainless (ESKA) | Thread: R1/8 | Model: Z2801 | Filtration: 2 um
ESKA-Z2801-005 Material: Sintered stainless (ESKA) | Thread: R1/8 | Model: Z2801 | Filtration: 5 um
ESKA-Z2801-010 Material: Sintered stainless (ESKA) | Thread: R1/8 | Model: Z2801 | Filtration: 10 um
ESKA-Z2801-020 Material: Sintered stainless (ESKA) | Thread: R1/8 | Model: Z2801 | Filtration: 20 um
ESKA-Z2801-040 Material: Sintered stainless (ESKA) | Thread: R1/8 | Model: Z2801 | Filtration: 40 um
ESKA-Z2801-070 Material: Sintered stainless (ESKA) | Thread: R1/8 | Model: Z2801 | Filtration: 70 um
ESKA-Z2801-100 Material: Sintered stainless (ESKA) | Thread: R1/8 | Model: Z2801 | Filtration: 100 um
ESKA-Z2801-120 Material: Sintered stainless (ESKA) | Thread: R1/8 | Model: Z2801 | Filtration: 120 um
ESKA-Z2811-002 Material: Sintered stainless (ESKA) | Thread: R1/8 | Model: Z2811 | Filtration: 2 um
ESKA-Z2811-005 Material: Sintered stainless (ESKA) | Thread: R1/8 | Model: Z2811 | Filtration: 5 um
ESKA-Z2811-010 Material: Sintered stainless (ESKA) | Thread: R1/8 | Model: Z2811 | Filtration: 10 um
ESKA-Z2811-020 Material: Sintered stainless (ESKA) | Thread: R1/8 | Model: Z2811 | Filtration: 20 um
ESKA-Z2811-040 Material: Sintered stainless (ESKA) | Thread: R1/8 | Model: Z2811 | Filtration: 40 um
ESKA-Z2811-070 Material: Sintered stainless (ESKA) | Thread: R1/8 | Model: Z2811 | Filtration: 70 um
ESKA-Z2811-100 Material: Sintered stainless (ESKA) | Thread: R1/8 | Model: Z2811 | Filtration: 100 um
ESKA-Z2811-120 Material: Sintered stainless (ESKA) | Thread: R1/8 | Model: Z2811 | Filtration: 120 um
ESKA-Z2802-002 Material: Sintered stainless (ESKA) | Thread: R1/4 | Model: Z2802 | Filtration: 2 um
ESKA-Z2802-005 Material: Sintered stainless (ESKA) | Thread: R1/4 | Model: Z2802 | Filtration: 5 um
ESKA-Z2802-010 Material: Sintered stainless (ESKA) | Thread: R1/4 | Model: Z2802 | Filtration: 10 um
ESKA-Z2802-020 Material: Sintered stainless (ESKA) | Thread: R1/4 | Model: Z2802 | Filtration: 20 um
ESKA-Z2802-040 Material: Sintered stainless (ESKA) | Thread: R1/4 | Model: Z2802 | Filtration: 40 um
ESKA-Z2802-070 Material: Sintered stainless (ESKA) | Thread: R1/4 | Model: Z2802 | Filtration: 70 um
ESKA-Z2802-100 Material: Sintered stainless (ESKA) | Thread: R1/4 | Model: Z2802 | Filtration: 100 um
ESKA-Z2802-120 Material: Sintered stainless (ESKA) | Thread: R1/4 | Model: Z2802 | Filtration: 120 um
ESKA-Z2812-002 Material: Sintered stainless (ESKA) | Thread: R1/4 | Model: Z2812 | Filtration: 2 um
ESKA-Z2812-005 Material: Sintered stainless (ESKA) | Thread: R1/4 | Model: Z2812 | Filtration: 5 um
ESKA-Z2812-010 Material: Sintered stainless (ESKA) | Thread: R1/4 | Model: Z2812 | Filtration: 10 um
ESKA-Z2812-020 Material: Sintered stainless (ESKA) | Thread: R1/4 | Model: Z2812 | Filtration: 20 um
ESKA-Z2812-040 Material: Sintered stainless (ESKA) | Thread: R1/4 | Model: Z2812 | Filtration: 40 um
ESKA-Z2812-070 Material: Sintered stainless (ESKA) | Thread: R1/4 | Model: Z2812 | Filtration: 70 um
ESKA-Z2812-100 Material: Sintered stainless (ESKA) | Thread: R1/4 | Model: Z2812 | Filtration: 100 um
ESKA-Z2812-120 Material: Sintered stainless (ESKA) | Thread: R1/4 | Model: Z2812 | Filtration: 120 um
ESKA-Z2803-002 Material: Sintered stainless (ESKA) | Thread: R3/8 | Model: Z2803 | Filtration: 2 um
ESKA-Z2803-005 Material: Sintered stainless (ESKA) | Thread: R3/8 | Model: Z2803 | Filtration: 5 um
ESKA-Z2803-010 Material: Sintered stainless (ESKA) | Thread: R3/8 | Model: Z2803 | Filtration: 10 um
ESKA-Z2803-020 Material: Sintered stainless (ESKA) | Thread: R3/8 | Model: Z2803 | Filtration: 20 um
ESKA-Z2803-040 Material: Sintered stainless (ESKA) | Thread: R3/8 | Model: Z2803 | Filtration: 40 um
ESKA-Z2803-070 Material: Sintered stainless (ESKA) | Thread: R3/8 | Model: Z2803 | Filtration: 70 um
ESKA-Z2803-100 Material: Sintered stainless (ESKA) | Thread: R3/8 | Model: Z2803 | Filtration: 100 um
ESKA-Z2803-120 Material: Sintered stainless (ESKA) | Thread: R3/8 | Model: Z2803 | Filtration: 120 um
ESKA-Z2813-002 Material: Sintered stainless (ESKA) | Thread: R3/8 | Model: Z2813 | Filtration: 2 um
ESKA-Z2813-005 Material: Sintered stainless (ESKA) | Thread: R3/8 | Model: Z2813 | Filtration: 5 um
ESKA-Z2813-010 Material: Sintered stainless (ESKA) | Thread: R3/8 | Model: Z2813 | Filtration: 10 um
ESKA-Z2813-020 Material: Sintered stainless (ESKA) | Thread: R3/8 | Model: Z2813 | Filtration: 20 um
ESKA-Z2813-040 Material: Sintered stainless (ESKA) | Thread: R3/8 | Model: Z2813 | Filtration: 40 um
ESKA-Z2813-070 Material: Sintered stainless (ESKA) | Thread: R3/8 | Model: Z2813 | Filtration: 70 um
ESKA-Z2813-100 Material: Sintered stainless (ESKA) | Thread: R3/8 | Model: Z2813 | Filtration: 100 um
ESKA-Z2813-120 Material: Sintered stainless (ESKA) | Thread: R3/8 | Model: Z2813 | Filtration: 120 um
ESKA-Z2804-002 Material: Sintered stainless (ESKA) | Thread: R1/2 | Model: Z2804 | Filtration: 2 um
ESKA-Z2804-005 Material: Sintered stainless (ESKA) | Thread: R1/2 | Model: Z2804 | Filtration: 5 um
ESKA-Z2804-010 Material: Sintered stainless (ESKA) | Thread: R1/2 | Model: Z2804 | Filtration: 10 um
ESKA-Z2804-020 Material: Sintered stainless (ESKA) | Thread: R1/2 | Model: Z2804 | Filtration: 20 um
ESKA-Z2804-040 Material: Sintered stainless (ESKA) | Thread: R1/2 | Model: Z2804 | Filtration: 40 um
ESKA-Z2804-070 Material: Sintered stainless (ESKA) | Thread: R1/2 | Model: Z2804 | Filtration: 70 um
ESKA-Z2804-100 Material: Sintered stainless (ESKA) | Thread: R1/2 | Model: Z2804 | Filtration: 100 um
ESKA-Z2804-120 Material: Sintered stainless (ESKA) | Thread: R1/2 | Model: Z2804 | Filtration: 120 um
ESKA-Z2814-002 Material: Sintered stainless (ESKA) | Thread: R1/2 | Model: Z2814 | Filtration: 2 um
ESKA-Z2814-005 Material: Sintered stainless (ESKA) | Thread: R1/2 | Model: Z2814 | Filtration: 5 um
ESKA-Z2814-010 Material: Sintered stainless (ESKA) | Thread: R1/2 | Model: Z2814 | Filtration: 10 um
ESKA-Z2814-020 Material: Sintered stainless (ESKA) | Thread: R1/2 | Model: Z2814 | Filtration: 20 um
ESKA-Z2814-040 Material: Sintered stainless (ESKA) | Thread: R1/2 | Model: Z2814 | Filtration: 40 um
ESKA-Z2814-070 Material: Sintered stainless (ESKA) | Thread: R1/2 | Model: Z2814 | Filtration: 70 um
ESKA-Z2814-100 Material: Sintered stainless (ESKA) | Thread: R1/2 | Model: Z2814 | Filtration: 100 um
ESKA-Z2814-120 Material: Sintered stainless (ESKA) | Thread: R1/2 | Model: Z2814 | Filtration: 120 um
Industrial FiltersSMC
168 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC EBKX/ESKA Sintered Metal Elements with Fitting (M3 to R1/2)

Brand SMC·Industrial Filters

Available part numbers (168)

EBKX-X9007-002, EBKX-X9007-005, EBKX-X9007-010, EBKX-X9007-020, EBKX-X9007-040, EBKX-X9007-070, EBKX-X9007-100, EBKX-X9007-120, EBKX-X9008-002, EBKX-X9008-005 + 158 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EBKX-X9007-002Material: Sintered bronze (EBKX) | Thread: M3 | Model: X9007 | Filtration: 2 um
EBKX-X9007-005Material: Sintered bronze (EBKX) | Thread: M3 | Model: X9007 | Filtration: 5 um
EBKX-X9007-010Material: Sintered bronze (EBKX) | Thread: M3 | Model: X9007 | Filtration: 10 um
EBKX-X9007-020Material: Sintered bronze (EBKX) | Thread: M3 | Model: X9007 | Filtration: 20 um
EBKX-X9007-040Material: Sintered bronze (EBKX) | Thread: M3 | Model: X9007 | Filtration: 40 um
EBKX-X9007-070Material: Sintered bronze (EBKX) | Thread: M3 | Model: X9007 | Filtration: 70 um
EBKX-X9007-100Material: Sintered bronze (EBKX) | Thread: M3 | Model: X9007 | Filtration: 100 um
EBKX-X9007-120Material: Sintered bronze (EBKX) | Thread: M3 | Model: X9007 | Filtration: 120 um
EBKX-X9008-002Material: Sintered bronze (EBKX) | Thread: M5 | Model: X9008 | Filtration: 2 um
EBKX-X9008-005Material: Sintered bronze (EBKX) | Thread: M5 | Model: X9008 | Filtration: 5 um
EBKX-X9008-010Material: Sintered bronze (EBKX) | Thread: M5 | Model: X9008 | Filtration: 10 um
EBKX-X9008-020Material: Sintered bronze (EBKX) | Thread: M5 | Model: X9008 | Filtration: 20 um
EBKX-X9008-040Material: Sintered bronze (EBKX) | Thread: M5 | Model: X9008 | Filtration: 40 um
EBKX-X9008-070Material: Sintered bronze (EBKX) | Thread: M5 | Model: X9008 | Filtration: 70 um
EBKX-X9008-100Material: Sintered bronze (EBKX) | Thread: M5 | Model: X9008 | Filtration: 100 um
EBKX-X9008-120Material: Sintered bronze (EBKX) | Thread: M5 | Model: X9008 | Filtration: 120 um
EBKX-L7004-002Material: Sintered bronze (EBKX) | Thread: R1/8 | Model: L7004 | Filtration: 2 um
EBKX-L7004-005Material: Sintered bronze (EBKX) | Thread: R1/8 | Model: L7004 | Filtration: 5 um
EBKX-L7004-010Material: Sintered bronze (EBKX) | Thread: R1/8 | Model: L7004 | Filtration: 10 um
EBKX-L7004-020Material: Sintered bronze (EBKX) | Thread: R1/8 | Model: L7004 | Filtration: 20 um
EBKX-L7004-040Material: Sintered bronze (EBKX) | Thread: R1/8 | Model: L7004 | Filtration: 40 um
EBKX-L7004-070Material: Sintered bronze (EBKX) | Thread: R1/8 | Model: L7004 | Filtration: 70 um
EBKX-L7004-100Material: Sintered bronze (EBKX) | Thread: R1/8 | Model: L7004 | Filtration: 100 um
EBKX-L7004-120Material: Sintered bronze (EBKX) | Thread: R1/8 | Model: L7004 | Filtration: 120 um
EBKX-J2001-002Material: Sintered bronze (EBKX) | Thread: R1/4 | Model: J2001 | Filtration: 2 um
EBKX-J2001-005Material: Sintered bronze (EBKX) | Thread: R1/4 | Model: J2001 | Filtration: 5 um
EBKX-J2001-010Material: Sintered bronze (EBKX) | Thread: R1/4 | Model: J2001 | Filtration: 10 um
EBKX-J2001-020Material: Sintered bronze (EBKX) | Thread: R1/4 | Model: J2001 | Filtration: 20 um
EBKX-J2001-040Material: Sintered bronze (EBKX) | Thread: R1/4 | Model: J2001 | Filtration: 40 um
EBKX-J2001-070Material: Sintered bronze (EBKX) | Thread: R1/4 | Model: J2001 | Filtration: 70 um
EBKX-J2001-100Material: Sintered bronze (EBKX) | Thread: R1/4 | Model: J2001 | Filtration: 100 um
EBKX-J2001-120Material: Sintered bronze (EBKX) | Thread: R1/4 | Model: J2001 | Filtration: 120 um
EBKX-L7005-002Material: Sintered bronze (EBKX) | Thread: R1/4 | Model: L7005 | Filtration: 2 um
EBKX-L7005-005Material: Sintered bronze (EBKX) | Thread: R1/4 | Model: L7005 | Filtration: 5 um
EBKX-L7005-010Material: Sintered bronze (EBKX) | Thread: R1/4 | Model: L7005 | Filtration: 10 um
EBKX-L7005-020Material: Sintered bronze (EBKX) | Thread: R1/4 | Model: L7005 | Filtration: 20 um
EBKX-L7005-040Material: Sintered bronze (EBKX) | Thread: R1/4 | Model: L7005 | Filtration: 40 um
EBKX-L7005-070Material: Sintered bronze (EBKX) | Thread: R1/4 | Model: L7005 | Filtration: 70 um
EBKX-L7005-100Material: Sintered bronze (EBKX) | Thread: R1/4 | Model: L7005 | Filtration: 100 um
EBKX-L7005-120Material: Sintered bronze (EBKX) | Thread: R1/4 | Model: L7005 | Filtration: 120 um
EBKX-J2002-002Material: Sintered bronze (EBKX) | Thread: R3/8 | Model: J2002 | Filtration: 2 um
EBKX-J2002-005Material: Sintered bronze (EBKX) | Thread: R3/8 | Model: J2002 | Filtration: 5 um
EBKX-J2002-010Material: Sintered bronze (EBKX) | Thread: R3/8 | Model: J2002 | Filtration: 10 um
EBKX-J2002-020Material: Sintered bronze (EBKX) | Thread: R3/8 | Model: J2002 | Filtration: 20 um
EBKX-J2002-040Material: Sintered bronze (EBKX) | Thread: R3/8 | Model: J2002 | Filtration: 40 um
EBKX-J2002-070Material: Sintered bronze (EBKX) | Thread: R3/8 | Model: J2002 | Filtration: 70 um
EBKX-J2002-100Material: Sintered bronze (EBKX) | Thread: R3/8 | Model: J2002 | Filtration: 100 um
EBKX-J2002-120Material: Sintered bronze (EBKX) | Thread: R3/8 | Model: J2002 | Filtration: 120 um
EBKX-L7006-002Material: Sintered bronze (EBKX) | Thread: R3/8 | Model: L7006 | Filtration: 2 um
EBKX-L7006-005Material: Sintered bronze (EBKX) | Thread: R3/8 | Model: L7006 | Filtration: 5 um
EBKX-L7006-010Material: Sintered bronze (EBKX) | Thread: R3/8 | Model: L7006 | Filtration: 10 um
EBKX-L7006-020Material: Sintered bronze (EBKX) | Thread: R3/8 | Model: L7006 | Filtration: 20 um
EBKX-L7006-040Material: Sintered bronze (EBKX) | Thread: R3/8 | Model: L7006 | Filtration: 40 um
EBKX-L7006-070Material: Sintered bronze (EBKX) | Thread: R3/8 | Model: L7006 | Filtration: 70 um
EBKX-L7006-100Material: Sintered bronze (EBKX) | Thread: R3/8 | Model: L7006 | Filtration: 100 um
EBKX-L7006-120Material: Sintered bronze (EBKX) | Thread: R3/8 | Model: L7006 | Filtration: 120 um
EBKX-J2003-002Material: Sintered bronze (EBKX) | Thread: R1/2 | Model: J2003 | Filtration: 2 um
EBKX-J2003-005Material: Sintered bronze (EBKX) | Thread: R1/2 | Model: J2003 | Filtration: 5 um
EBKX-J2003-010Material: Sintered bronze (EBKX) | Thread: R1/2 | Model: J2003 | Filtration: 10 um
EBKX-J2003-020Material: Sintered bronze (EBKX) | Thread: R1/2 | Model: J2003 | Filtration: 20 um
EBKX-J2003-040Material: Sintered bronze (EBKX) | Thread: R1/2 | Model: J2003 | Filtration: 40 um
EBKX-J2003-070Material: Sintered bronze (EBKX) | Thread: R1/2 | Model: J2003 | Filtration: 70 um
EBKX-J2003-100Material: Sintered bronze (EBKX) | Thread: R1/2 | Model: J2003 | Filtration: 100 um
EBKX-J2003-120Material: Sintered bronze (EBKX) | Thread: R1/2 | Model: J2003 | Filtration: 120 um
EBKX-L7007-002Material: Sintered bronze (EBKX) | Thread: R1/2 | Model: L7007 | Filtration: 2 um
EBKX-L7007-005Material: Sintered bronze (EBKX) | Thread: R1/2 | Model: L7007 | Filtration: 5 um
EBKX-L7007-010Material: Sintered bronze (EBKX) | Thread: R1/2 | Model: L7007 | Filtration: 10 um
EBKX-L7007-020Material: Sintered bronze (EBKX) | Thread: R1/2 | Model: L7007 | Filtration: 20 um
EBKX-L7007-040Material: Sintered bronze (EBKX) | Thread: R1/2 | Model: L7007 | Filtration: 40 um
EBKX-L7007-070Material: Sintered bronze (EBKX) | Thread: R1/2 | Model: L7007 | Filtration: 70 um
EBKX-L7007-100Material: Sintered bronze (EBKX) | Thread: R1/2 | Model: L7007 | Filtration: 100 um
EBKX-L7007-120Material: Sintered bronze (EBKX) | Thread: R1/2 | Model: L7007 | Filtration: 120 um
ESKA-Z2701-002Material: Sintered stainless (ESKA) | Thread: M3 | Model: Z2701 | Filtration: 2 um
ESKA-Z2701-005Material: Sintered stainless (ESKA) | Thread: M3 | Model: Z2701 | Filtration: 5 um
ESKA-Z2701-010Material: Sintered stainless (ESKA) | Thread: M3 | Model: Z2701 | Filtration: 10 um
ESKA-Z2701-020Material: Sintered stainless (ESKA) | Thread: M3 | Model: Z2701 | Filtration: 20 um
ESKA-Z2701-040Material: Sintered stainless (ESKA) | Thread: M3 | Model: Z2701 | Filtration: 40 um
ESKA-Z2701-070Material: Sintered stainless (ESKA) | Thread: M3 | Model: Z2701 | Filtration: 70 um
ESKA-Z2701-100Material: Sintered stainless (ESKA) | Thread: M3 | Model: Z2701 | Filtration: 100 um
ESKA-Z2701-120Material: Sintered stainless (ESKA) | Thread: M3 | Model: Z2701 | Filtration: 120 um
ESKA-Z2711-002Material: Sintered stainless (ESKA) | Thread: M3 | Model: Z2711 | Filtration: 2 um
ESKA-Z2711-005Material: Sintered stainless (ESKA) | Thread: M3 | Model: Z2711 | Filtration: 5 um
ESKA-Z2711-010Material: Sintered stainless (ESKA) | Thread: M3 | Model: Z2711 | Filtration: 10 um
ESKA-Z2711-020Material: Sintered stainless (ESKA) | Thread: M3 | Model: Z2711 | Filtration: 20 um
ESKA-Z2711-040Material: Sintered stainless (ESKA) | Thread: M3 | Model: Z2711 | Filtration: 40 um
ESKA-Z2711-070Material: Sintered stainless (ESKA) | Thread: M3 | Model: Z2711 | Filtration: 70 um
ESKA-Z2711-100Material: Sintered stainless (ESKA) | Thread: M3 | Model: Z2711 | Filtration: 100 um
ESKA-Z2711-120Material: Sintered stainless (ESKA) | Thread: M3 | Model: Z2711 | Filtration: 120 um
ESKA-Z2702-002Material: Sintered stainless (ESKA) | Thread: M5 | Model: Z2702 | Filtration: 2 um
ESKA-Z2702-005Material: Sintered stainless (ESKA) | Thread: M5 | Model: Z2702 | Filtration: 5 um
ESKA-Z2702-010Material: Sintered stainless (ESKA) | Thread: M5 | Model: Z2702 | Filtration: 10 um
ESKA-Z2702-020Material: Sintered stainless (ESKA) | Thread: M5 | Model: Z2702 | Filtration: 20 um
ESKA-Z2702-040Material: Sintered stainless (ESKA) | Thread: M5 | Model: Z2702 | Filtration: 40 um
ESKA-Z2702-070Material: Sintered stainless (ESKA) | Thread: M5 | Model: Z2702 | Filtration: 70 um
ESKA-Z2702-100Material: Sintered stainless (ESKA) | Thread: M5 | Model: Z2702 | Filtration: 100 um
ESKA-Z2702-120Material: Sintered stainless (ESKA) | Thread: M5 | Model: Z2702 | Filtration: 120 um
ESKA-Z2712-002Material: Sintered stainless (ESKA) | Thread: M5 | Model: Z2712 | Filtration: 2 um
ESKA-Z2712-005Material: Sintered stainless (ESKA) | Thread: M5 | Model: Z2712 | Filtration: 5 um
ESKA-Z2712-010Material: Sintered stainless (ESKA) | Thread: M5 | Model: Z2712 | Filtration: 10 um
ESKA-Z2712-020Material: Sintered stainless (ESKA) | Thread: M5 | Model: Z2712 | Filtration: 20 um
ESKA-Z2712-040Material: Sintered stainless (ESKA) | Thread: M5 | Model: Z2712 | Filtration: 40 um
ESKA-Z2712-070Material: Sintered stainless (ESKA) | Thread: M5 | Model: Z2712 | Filtration: 70 um
ESKA-Z2712-100Material: Sintered stainless (ESKA) | Thread: M5 | Model: Z2712 | Filtration: 100 um
ESKA-Z2712-120Material: Sintered stainless (ESKA) | Thread: M5 | Model: Z2712 | Filtration: 120 um
ESKA-Z2801-002Material: Sintered stainless (ESKA) | Thread: R1/8 | Model: Z2801 | Filtration: 2 um
ESKA-Z2801-005Material: Sintered stainless (ESKA) | Thread: R1/8 | Model: Z2801 | Filtration: 5 um
ESKA-Z2801-010Material: Sintered stainless (ESKA) | Thread: R1/8 | Model: Z2801 | Filtration: 10 um
ESKA-Z2801-020Material: Sintered stainless (ESKA) | Thread: R1/8 | Model: Z2801 | Filtration: 20 um
ESKA-Z2801-040Material: Sintered stainless (ESKA) | Thread: R1/8 | Model: Z2801 | Filtration: 40 um
ESKA-Z2801-070Material: Sintered stainless (ESKA) | Thread: R1/8 | Model: Z2801 | Filtration: 70 um
ESKA-Z2801-100Material: Sintered stainless (ESKA) | Thread: R1/8 | Model: Z2801 | Filtration: 100 um
ESKA-Z2801-120Material: Sintered stainless (ESKA) | Thread: R1/8 | Model: Z2801 | Filtration: 120 um
ESKA-Z2811-002Material: Sintered stainless (ESKA) | Thread: R1/8 | Model: Z2811 | Filtration: 2 um
ESKA-Z2811-005Material: Sintered stainless (ESKA) | Thread: R1/8 | Model: Z2811 | Filtration: 5 um
ESKA-Z2811-010Material: Sintered stainless (ESKA) | Thread: R1/8 | Model: Z2811 | Filtration: 10 um
ESKA-Z2811-020Material: Sintered stainless (ESKA) | Thread: R1/8 | Model: Z2811 | Filtration: 20 um
ESKA-Z2811-040Material: Sintered stainless (ESKA) | Thread: R1/8 | Model: Z2811 | Filtration: 40 um
ESKA-Z2811-070Material: Sintered stainless (ESKA) | Thread: R1/8 | Model: Z2811 | Filtration: 70 um
ESKA-Z2811-100Material: Sintered stainless (ESKA) | Thread: R1/8 | Model: Z2811 | Filtration: 100 um
ESKA-Z2811-120Material: Sintered stainless (ESKA) | Thread: R1/8 | Model: Z2811 | Filtration: 120 um
ESKA-Z2802-002Material: Sintered stainless (ESKA) | Thread: R1/4 | Model: Z2802 | Filtration: 2 um
ESKA-Z2802-005Material: Sintered stainless (ESKA) | Thread: R1/4 | Model: Z2802 | Filtration: 5 um
ESKA-Z2802-010Material: Sintered stainless (ESKA) | Thread: R1/4 | Model: Z2802 | Filtration: 10 um
ESKA-Z2802-020Material: Sintered stainless (ESKA) | Thread: R1/4 | Model: Z2802 | Filtration: 20 um
ESKA-Z2802-040Material: Sintered stainless (ESKA) | Thread: R1/4 | Model: Z2802 | Filtration: 40 um
ESKA-Z2802-070Material: Sintered stainless (ESKA) | Thread: R1/4 | Model: Z2802 | Filtration: 70 um
ESKA-Z2802-100Material: Sintered stainless (ESKA) | Thread: R1/4 | Model: Z2802 | Filtration: 100 um
ESKA-Z2802-120Material: Sintered stainless (ESKA) | Thread: R1/4 | Model: Z2802 | Filtration: 120 um
ESKA-Z2812-002Material: Sintered stainless (ESKA) | Thread: R1/4 | Model: Z2812 | Filtration: 2 um
ESKA-Z2812-005Material: Sintered stainless (ESKA) | Thread: R1/4 | Model: Z2812 | Filtration: 5 um
ESKA-Z2812-010Material: Sintered stainless (ESKA) | Thread: R1/4 | Model: Z2812 | Filtration: 10 um
ESKA-Z2812-020Material: Sintered stainless (ESKA) | Thread: R1/4 | Model: Z2812 | Filtration: 20 um
ESKA-Z2812-040Material: Sintered stainless (ESKA) | Thread: R1/4 | Model: Z2812 | Filtration: 40 um
ESKA-Z2812-070Material: Sintered stainless (ESKA) | Thread: R1/4 | Model: Z2812 | Filtration: 70 um
ESKA-Z2812-100Material: Sintered stainless (ESKA) | Thread: R1/4 | Model: Z2812 | Filtration: 100 um
ESKA-Z2812-120Material: Sintered stainless (ESKA) | Thread: R1/4 | Model: Z2812 | Filtration: 120 um
ESKA-Z2803-002Material: Sintered stainless (ESKA) | Thread: R3/8 | Model: Z2803 | Filtration: 2 um
ESKA-Z2803-005Material: Sintered stainless (ESKA) | Thread: R3/8 | Model: Z2803 | Filtration: 5 um
ESKA-Z2803-010Material: Sintered stainless (ESKA) | Thread: R3/8 | Model: Z2803 | Filtration: 10 um
ESKA-Z2803-020Material: Sintered stainless (ESKA) | Thread: R3/8 | Model: Z2803 | Filtration: 20 um
ESKA-Z2803-040Material: Sintered stainless (ESKA) | Thread: R3/8 | Model: Z2803 | Filtration: 40 um
ESKA-Z2803-070Material: Sintered stainless (ESKA) | Thread: R3/8 | Model: Z2803 | Filtration: 70 um
ESKA-Z2803-100Material: Sintered stainless (ESKA) | Thread: R3/8 | Model: Z2803 | Filtration: 100 um
ESKA-Z2803-120Material: Sintered stainless (ESKA) | Thread: R3/8 | Model: Z2803 | Filtration: 120 um
ESKA-Z2813-002Material: Sintered stainless (ESKA) | Thread: R3/8 | Model: Z2813 | Filtration: 2 um
ESKA-Z2813-005Material: Sintered stainless (ESKA) | Thread: R3/8 | Model: Z2813 | Filtration: 5 um
ESKA-Z2813-010Material: Sintered stainless (ESKA) | Thread: R3/8 | Model: Z2813 | Filtration: 10 um
ESKA-Z2813-020Material: Sintered stainless (ESKA) | Thread: R3/8 | Model: Z2813 | Filtration: 20 um
ESKA-Z2813-040Material: Sintered stainless (ESKA) | Thread: R3/8 | Model: Z2813 | Filtration: 40 um
ESKA-Z2813-070Material: Sintered stainless (ESKA) | Thread: R3/8 | Model: Z2813 | Filtration: 70 um
ESKA-Z2813-100Material: Sintered stainless (ESKA) | Thread: R3/8 | Model: Z2813 | Filtration: 100 um
ESKA-Z2813-120Material: Sintered stainless (ESKA) | Thread: R3/8 | Model: Z2813 | Filtration: 120 um
ESKA-Z2804-002Material: Sintered stainless (ESKA) | Thread: R1/2 | Model: Z2804 | Filtration: 2 um
ESKA-Z2804-005Material: Sintered stainless (ESKA) | Thread: R1/2 | Model: Z2804 | Filtration: 5 um
ESKA-Z2804-010Material: Sintered stainless (ESKA) | Thread: R1/2 | Model: Z2804 | Filtration: 10 um
ESKA-Z2804-020Material: Sintered stainless (ESKA) | Thread: R1/2 | Model: Z2804 | Filtration: 20 um
ESKA-Z2804-040Material: Sintered stainless (ESKA) | Thread: R1/2 | Model: Z2804 | Filtration: 40 um
ESKA-Z2804-070Material: Sintered stainless (ESKA) | Thread: R1/2 | Model: Z2804 | Filtration: 70 um
ESKA-Z2804-100Material: Sintered stainless (ESKA) | Thread: R1/2 | Model: Z2804 | Filtration: 100 um
ESKA-Z2804-120Material: Sintered stainless (ESKA) | Thread: R1/2 | Model: Z2804 | Filtration: 120 um
ESKA-Z2814-002Material: Sintered stainless (ESKA) | Thread: R1/2 | Model: Z2814 | Filtration: 2 um
ESKA-Z2814-005Material: Sintered stainless (ESKA) | Thread: R1/2 | Model: Z2814 | Filtration: 5 um
ESKA-Z2814-010Material: Sintered stainless (ESKA) | Thread: R1/2 | Model: Z2814 | Filtration: 10 um
ESKA-Z2814-020Material: Sintered stainless (ESKA) | Thread: R1/2 | Model: Z2814 | Filtration: 20 um
ESKA-Z2814-040Material: Sintered stainless (ESKA) | Thread: R1/2 | Model: Z2814 | Filtration: 40 um
ESKA-Z2814-070Material: Sintered stainless (ESKA) | Thread: R1/2 | Model: Z2814 | Filtration: 70 um
ESKA-Z2814-100Material: Sintered stainless (ESKA) | Thread: R1/2 | Model: Z2814 | Filtration: 100 um
ESKA-Z2814-120Material: Sintered stainless (ESKA) | Thread: R1/2 | Model: Z2814 | Filtration: 120 um

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Hydraulics →
