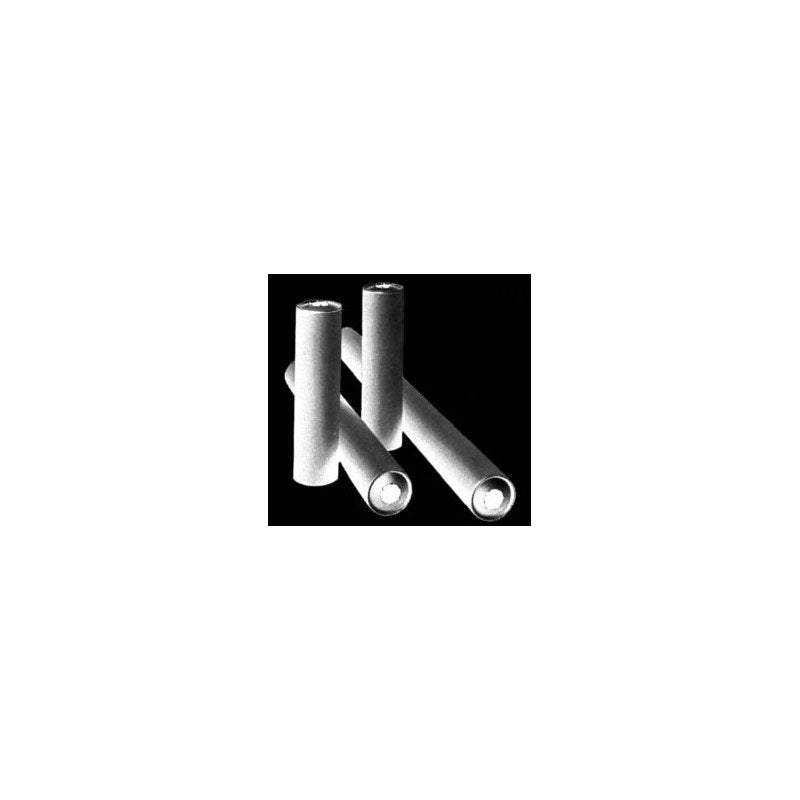

SMC Industrial Filter Elements for FG Vessels (EB, ES, EH, EP, EM)

SMC Industrial Filter Elements for FG Vessels (EB, ES, EH, EP, EM)

SMC ø65 replacement filter elements for FG series industrial filter vessels (FGD, FGE, FGG, FGA, FGC) and FQ1: sintered metal, fiber honeycomb, paper and micro mesh types.

Key features

  • Sintered bronze (EB) and SUS316 (ES) elements, 1 to 120 um, washable and reusable; ES resists acids and alkalis
  • Fiber honeycomb elements: cotton (EH), polypropylene (EHM), glass fiber (EHK), 0.5 to 100 um, disposable
  • Pleated paper elements (EP) 5, 10, 20 um for hydraulic, lube and fuel oils
  • Pleated stainless micro mesh elements EM100 (SUS304) and EM500 (SUS316), 5 to 105 um, washable
  • Packing materials non-asbestos (A), PTFE (T), NBR (N) or FKM (V) set the temperature range

Specifications

Element diameter ø65
Sintered metal collapse / change pressure 0.7 MPa / 0.1 MPa
Fiber collapse / change pressure 0.2 MPa / 0.1 MPa
Paper collapse / change pressure 0.6 MPa / 0.1 MPa
Micro mesh collapse / change pressure 0.7 MPa / 0.1 MPa
Packing temperature range A 0-150°C, T 0-120°C, N 0-80°C, V 0-120°C
Note EB: packing A not available; EM100: A and T not available
Source SMC Korea catalog FG (SMCKR_FGA-B-C-D-E-G.pdf), p. 41-42 (PDF p. 23-24)
EB100-001T Element: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 1 um | Packing: PTFE
EB100-001N Element: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 1 um | Packing: NBR
EB100-001V Element: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 1 um | Packing: FKM
ES100-001A Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 1 um | Packing: Non-asbestos
ES100-001T Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 1 um | Packing: PTFE
ES100-001N Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 1 um | Packing: NBR
ES100-001V Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 1 um | Packing: FKM
EB100-002T Element: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 2 um | Packing: PTFE
EB100-002N Element: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 2 um | Packing: NBR
EB100-002V Element: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 2 um | Packing: FKM
ES100-002A Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 2 um | Packing: Non-asbestos
ES100-002T Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 2 um | Packing: PTFE
ES100-002N Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 2 um | Packing: NBR
ES100-002V Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 2 um | Packing: FKM
EB100-005T Element: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 5 um | Packing: PTFE
EB100-005N Element: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 5 um | Packing: NBR
EB100-005V Element: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 5 um | Packing: FKM
ES100-005A Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 5 um | Packing: Non-asbestos
ES100-005T Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 5 um | Packing: PTFE
ES100-005N Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 5 um | Packing: NBR
ES100-005V Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 5 um | Packing: FKM
EB100-010T Element: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 10 um | Packing: PTFE
EB100-010N Element: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 10 um | Packing: NBR
EB100-010V Element: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 10 um | Packing: FKM
ES100-010A Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 10 um | Packing: Non-asbestos
ES100-010T Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 10 um | Packing: PTFE
ES100-010N Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 10 um | Packing: NBR
ES100-010V Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 10 um | Packing: FKM
EB100-020T Element: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 20 um | Packing: PTFE
EB100-020N Element: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 20 um | Packing: NBR
EB100-020V Element: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 20 um | Packing: FKM
ES100-020A Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 20 um | Packing: Non-asbestos
ES100-020T Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 20 um | Packing: PTFE
ES100-020N Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 20 um | Packing: NBR
ES100-020V Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 20 um | Packing: FKM
EB100-040T Element: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 40 um | Packing: PTFE
EB100-040N Element: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 40 um | Packing: NBR
EB100-040V Element: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 40 um | Packing: FKM
ES100-040A Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 40 um | Packing: Non-asbestos
ES100-040T Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 40 um | Packing: PTFE
ES100-040N Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 40 um | Packing: NBR
ES100-040V Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 40 um | Packing: FKM
EB100-070T Element: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 70 um | Packing: PTFE
EB100-070N Element: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 70 um | Packing: NBR
EB100-070V Element: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 70 um | Packing: FKM
ES100-070A Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 70 um | Packing: Non-asbestos
ES100-070T Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 70 um | Packing: PTFE
ES100-070N Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 70 um | Packing: NBR
ES100-070V Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 70 um | Packing: FKM
EB100-100T Element: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 100 um | Packing: PTFE
EB100-100N Element: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 100 um | Packing: NBR
EB100-100V Element: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 100 um | Packing: FKM
ES100-100A Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 100 um | Packing: Non-asbestos
ES100-100T Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 100 um | Packing: PTFE
ES100-100N Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 100 um | Packing: NBR
ES100-100V Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 100 um | Packing: FKM
EB100-120T Element: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 120 um | Packing: PTFE
EB100-120N Element: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 120 um | Packing: NBR
EB100-120V Element: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 120 um | Packing: FKM
ES100-120A Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 120 um | Packing: Non-asbestos
ES100-120T Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 120 um | Packing: PTFE
ES100-120N Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 120 um | Packing: NBR
ES100-120V Element: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 120 um | Packing: FKM
EB200-001T Element: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 1 um | Packing: PTFE
EB200-001N Element: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 1 um | Packing: NBR
EB200-001V Element: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 1 um | Packing: FKM
ES200-001A Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 1 um | Packing: Non-asbestos
ES200-001T Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 1 um | Packing: PTFE
ES200-001N Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 1 um | Packing: NBR
ES200-001V Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 1 um | Packing: FKM
EB200-002T Element: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 2 um | Packing: PTFE
EB200-002N Element: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 2 um | Packing: NBR
EB200-002V Element: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 2 um | Packing: FKM
ES200-002A Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 2 um | Packing: Non-asbestos
ES200-002T Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 2 um | Packing: PTFE
ES200-002N Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 2 um | Packing: NBR
ES200-002V Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 2 um | Packing: FKM
EB200-005T Element: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 5 um | Packing: PTFE
EB200-005N Element: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 5 um | Packing: NBR
EB200-005V Element: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 5 um | Packing: FKM
ES200-005A Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 5 um | Packing: Non-asbestos
ES200-005T Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 5 um | Packing: PTFE
ES200-005N Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 5 um | Packing: NBR
ES200-005V Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 5 um | Packing: FKM
EB200-010T Element: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 10 um | Packing: PTFE
EB200-010N Element: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 10 um | Packing: NBR
EB200-010V Element: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 10 um | Packing: FKM
ES200-010A Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 10 um | Packing: Non-asbestos
ES200-010T Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 10 um | Packing: PTFE
ES200-010N Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 10 um | Packing: NBR
ES200-010V Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 10 um | Packing: FKM
EB200-020T Element: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 20 um | Packing: PTFE
EB200-020N Element: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 20 um | Packing: NBR
EB200-020V Element: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 20 um | Packing: FKM
ES200-020A Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 20 um | Packing: Non-asbestos
ES200-020T Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 20 um | Packing: PTFE
ES200-020N Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 20 um | Packing: NBR
ES200-020V Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 20 um | Packing: FKM
EB200-040T Element: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 40 um | Packing: PTFE
EB200-040N Element: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 40 um | Packing: NBR
EB200-040V Element: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 40 um | Packing: FKM
ES200-040A Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 40 um | Packing: Non-asbestos
ES200-040T Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 40 um | Packing: PTFE
ES200-040N Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 40 um | Packing: NBR
ES200-040V Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 40 um | Packing: FKM
EB200-070T Element: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 70 um | Packing: PTFE
EB200-070N Element: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 70 um | Packing: NBR
EB200-070V Element: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 70 um | Packing: FKM
ES200-070A Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 70 um | Packing: Non-asbestos
ES200-070T Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 70 um | Packing: PTFE
ES200-070N Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 70 um | Packing: NBR
ES200-070V Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 70 um | Packing: FKM
EB200-100T Element: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 100 um | Packing: PTFE
EB200-100N Element: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 100 um | Packing: NBR
EB200-100V Element: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 100 um | Packing: FKM
ES200-100A Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 100 um | Packing: Non-asbestos
ES200-100T Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 100 um | Packing: PTFE
ES200-100N Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 100 um | Packing: NBR
ES200-100V Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 100 um | Packing: FKM
EB200-120T Element: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 120 um | Packing: PTFE
EB200-120N Element: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 120 um | Packing: NBR
EB200-120V Element: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 120 um | Packing: FKM
ES200-120A Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 120 um | Packing: Non-asbestos
ES200-120T Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 120 um | Packing: PTFE
ES200-120N Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 120 um | Packing: NBR
ES200-120V Element: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 120 um | Packing: FKM
EB300-001T Element: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 1 um | Packing: PTFE
EB300-001N Element: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 1 um | Packing: NBR
EB300-001V Element: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 1 um | Packing: FKM
ES300-001A Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 1 um | Packing: Non-asbestos
ES300-001T Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 1 um | Packing: PTFE
ES300-001N Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 1 um | Packing: NBR
ES300-001V Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 1 um | Packing: FKM
EB300-002T Element: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 2 um | Packing: PTFE
EB300-002N Element: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 2 um | Packing: NBR
EB300-002V Element: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 2 um | Packing: FKM
ES300-002A Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 2 um | Packing: Non-asbestos
ES300-002T Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 2 um | Packing: PTFE
ES300-002N Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 2 um | Packing: NBR
ES300-002V Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 2 um | Packing: FKM
EB300-005T Element: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 5 um | Packing: PTFE
EB300-005N Element: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 5 um | Packing: NBR
EB300-005V Element: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 5 um | Packing: FKM
ES300-005A Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 5 um | Packing: Non-asbestos
ES300-005T Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 5 um | Packing: PTFE
ES300-005N Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 5 um | Packing: NBR
ES300-005V Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 5 um | Packing: FKM
EB300-010T Element: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 10 um | Packing: PTFE
EB300-010N Element: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 10 um | Packing: NBR
EB300-010V Element: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 10 um | Packing: FKM
ES300-010A Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 10 um | Packing: Non-asbestos
ES300-010T Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 10 um | Packing: PTFE
ES300-010N Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 10 um | Packing: NBR
ES300-010V Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 10 um | Packing: FKM
EB300-020T Element: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 20 um | Packing: PTFE
EB300-020N Element: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 20 um | Packing: NBR
EB300-020V Element: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 20 um | Packing: FKM
ES300-020A Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 20 um | Packing: Non-asbestos
ES300-020T Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 20 um | Packing: PTFE
ES300-020N Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 20 um | Packing: NBR
ES300-020V Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 20 um | Packing: FKM
EB300-040T Element: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 40 um | Packing: PTFE
EB300-040N Element: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 40 um | Packing: NBR
EB300-040V Element: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 40 um | Packing: FKM
ES300-040A Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 40 um | Packing: Non-asbestos
ES300-040T Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 40 um | Packing: PTFE
ES300-040N Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 40 um | Packing: NBR
ES300-040V Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 40 um | Packing: FKM
EB300-070T Element: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 70 um | Packing: PTFE
EB300-070N Element: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 70 um | Packing: NBR
EB300-070V Element: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 70 um | Packing: FKM
ES300-070A Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 70 um | Packing: Non-asbestos
ES300-070T Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 70 um | Packing: PTFE
ES300-070N Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 70 um | Packing: NBR
ES300-070V Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 70 um | Packing: FKM
EB300-100T Element: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 100 um | Packing: PTFE
EB300-100N Element: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 100 um | Packing: NBR
EB300-100V Element: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 100 um | Packing: FKM
ES300-100A Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 100 um | Packing: Non-asbestos
ES300-100T Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 100 um | Packing: PTFE
ES300-100N Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 100 um | Packing: NBR
ES300-100V Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 100 um | Packing: FKM
EB300-120T Element: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 120 um | Packing: PTFE
EB300-120N Element: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 120 um | Packing: NBR
EB300-120V Element: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 120 um | Packing: FKM
ES300-120A Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 120 um | Packing: Non-asbestos
ES300-120T Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 120 um | Packing: PTFE
ES300-120N Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 120 um | Packing: NBR
ES300-120V Element: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 120 um | Packing: FKM
EB400-001T Element: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 1 um | Packing: PTFE
EB400-001N Element: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 1 um | Packing: NBR
EB400-001V Element: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 1 um | Packing: FKM
ES400-001A Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 1 um | Packing: Non-asbestos
ES400-001T Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 1 um | Packing: PTFE
ES400-001N Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 1 um | Packing: NBR
ES400-001V Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 1 um | Packing: FKM
EB400-002T Element: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 2 um | Packing: PTFE
EB400-002N Element: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 2 um | Packing: NBR
EB400-002V Element: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 2 um | Packing: FKM
ES400-002A Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 2 um | Packing: Non-asbestos
ES400-002T Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 2 um | Packing: PTFE
ES400-002N Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 2 um | Packing: NBR
ES400-002V Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 2 um | Packing: FKM
EB400-005T Element: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 5 um | Packing: PTFE
EB400-005N Element: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 5 um | Packing: NBR
EB400-005V Element: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 5 um | Packing: FKM
ES400-005A Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 5 um | Packing: Non-asbestos
ES400-005T Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 5 um | Packing: PTFE
ES400-005N Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 5 um | Packing: NBR
ES400-005V Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 5 um | Packing: FKM
EB400-010T Element: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 10 um | Packing: PTFE
EB400-010N Element: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 10 um | Packing: NBR
EB400-010V Element: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 10 um | Packing: FKM
ES400-010A Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 10 um | Packing: Non-asbestos
ES400-010T Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 10 um | Packing: PTFE
ES400-010N Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 10 um | Packing: NBR
ES400-010V Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 10 um | Packing: FKM
EB400-020T Element: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 20 um | Packing: PTFE
EB400-020N Element: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 20 um | Packing: NBR
EB400-020V Element: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 20 um | Packing: FKM
ES400-020A Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 20 um | Packing: Non-asbestos
ES400-020T Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 20 um | Packing: PTFE
ES400-020N Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 20 um | Packing: NBR
ES400-020V Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 20 um | Packing: FKM
EB400-040T Element: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 40 um | Packing: PTFE
EB400-040N Element: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 40 um | Packing: NBR
EB400-040V Element: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 40 um | Packing: FKM
ES400-040A Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 40 um | Packing: Non-asbestos
ES400-040T Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 40 um | Packing: PTFE
ES400-040N Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 40 um | Packing: NBR
ES400-040V Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 40 um | Packing: FKM
EB400-070T Element: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 70 um | Packing: PTFE
EB400-070N Element: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 70 um | Packing: NBR
EB400-070V Element: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 70 um | Packing: FKM
ES400-070A Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 70 um | Packing: Non-asbestos
ES400-070T Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 70 um | Packing: PTFE
ES400-070N Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 70 um | Packing: NBR
ES400-070V Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 70 um | Packing: FKM
EB400-100T Element: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 100 um | Packing: PTFE
EB400-100N Element: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 100 um | Packing: NBR
EB400-100V Element: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 100 um | Packing: FKM
ES400-100A Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 100 um | Packing: Non-asbestos
ES400-100T Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 100 um | Packing: PTFE
ES400-100N Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 100 um | Packing: NBR
ES400-100V Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 100 um | Packing: FKM
EB400-120T Element: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 120 um | Packing: PTFE
EB400-120N Element: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 120 um | Packing: NBR
EB400-120V Element: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 120 um | Packing: FKM
ES400-120A Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 120 um | Packing: Non-asbestos
ES400-120T Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 120 um | Packing: PTFE
ES400-120N Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 120 um | Packing: NBR
ES400-120V Element: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 120 um | Packing: FKM
EH10G Element: Fiber, cotton (EH) | Size: ø65 x L250 | Filtration: 0.5 um | Packing: None
EHM10A Element: Fiber, polypropylene (EHM) | Size: ø65 x L250 | Filtration: 0.5 um | Packing: None
EH39R10GV Element: Fiber, cotton (EH) | Size: ø65 x L250 | Filtration: 1 um | Packing: None
EHM39R10AY Element: Fiber, polypropylene (EHM) | Size: ø65 x L250 | Filtration: 1 um | Packing: None
EHK27R10S Element: Fiber, glass (EHK) | Size: ø65 x L250 | Filtration: 1 um | Packing: None
EH23R10GV Element: Fiber, cotton (EH) | Size: ø65 x L250 | Filtration: 5 um | Packing: None
EHM23R10AY Element: Fiber, polypropylene (EHM) | Size: ø65 x L250 | Filtration: 5 um | Packing: None
EHK19R10S Element: Fiber, glass (EHK) | Size: ø65 x L250 | Filtration: 5 um | Packing: None
EH19R10GV Element: Fiber, cotton (EH) | Size: ø65 x L250 | Filtration: 10 um | Packing: None
EHM19R10AY Element: Fiber, polypropylene (EHM) | Size: ø65 x L250 | Filtration: 10 um | Packing: None
EHK15R10S Element: Fiber, glass (EHK) | Size: ø65 x L250 | Filtration: 10 um | Packing: None
EH15R10G Element: Fiber, cotton (EH) | Size: ø65 x L250 | Filtration: 20 um | Packing: None
EHM15R10A Element: Fiber, polypropylene (EHM) | Size: ø65 x L250 | Filtration: 20 um | Packing: None
EHK10R10S Element: Fiber, glass (EHK) | Size: ø65 x L250 | Filtration: 20 um | Packing: None
EH11R10G Element: Fiber, cotton (EH) | Size: ø65 x L250 | Filtration: 50 um | Packing: None
EHM11R10A Element: Fiber, polypropylene (EHM) | Size: ø65 x L250 | Filtration: 50 um | Packing: None
EH10R10G Element: Fiber, cotton (EH) | Size: ø65 x L250 | Filtration: 75 um | Packing: None
EHM10R10A Element: Fiber, polypropylene (EHM) | Size: ø65 x L250 | Filtration: 75 um | Packing: None
EH8R10G Element: Fiber, cotton (EH) | Size: ø65 x L250 | Filtration: 100 um | Packing: None
EHM8R10A Element: Fiber, polypropylene (EHM) | Size: ø65 x L250 | Filtration: 100 um | Packing: None
EP100-005N Element: Paper (EP) | Size: ø65 x L250 | Filtration: 5 um | Packing: NBR
EP100-005V Element: Paper (EP) | Size: ø65 x L250 | Filtration: 5 um | Packing: FKM
EP100-010N Element: Paper (EP) | Size: ø65 x L250 | Filtration: 10 um | Packing: NBR
EP100-010V Element: Paper (EP) | Size: ø65 x L250 | Filtration: 10 um | Packing: FKM
EP100-020N Element: Paper (EP) | Size: ø65 x L250 | Filtration: 20 um | Packing: NBR
EP100-020V Element: Paper (EP) | Size: ø65 x L250 | Filtration: 20 um | Packing: FKM
EP200-005N Element: Paper (EP) | Size: ø65 x L500 | Filtration: 5 um | Packing: NBR
EP200-005V Element: Paper (EP) | Size: ø65 x L500 | Filtration: 5 um | Packing: FKM
EP200-010N Element: Paper (EP) | Size: ø65 x L500 | Filtration: 10 um | Packing: NBR
EP200-010V Element: Paper (EP) | Size: ø65 x L500 | Filtration: 10 um | Packing: FKM
EP200-020N Element: Paper (EP) | Size: ø65 x L500 | Filtration: 20 um | Packing: NBR
EP200-020V Element: Paper (EP) | Size: ø65 x L500 | Filtration: 20 um | Packing: FKM
EP300-005N Element: Paper (EP) | Size: ø65 x L750 | Filtration: 5 um | Packing: NBR
EP300-005V Element: Paper (EP) | Size: ø65 x L750 | Filtration: 5 um | Packing: FKM
EP300-010N Element: Paper (EP) | Size: ø65 x L750 | Filtration: 10 um | Packing: NBR
EP300-010V Element: Paper (EP) | Size: ø65 x L750 | Filtration: 10 um | Packing: FKM
EP300-020N Element: Paper (EP) | Size: ø65 x L750 | Filtration: 20 um | Packing: NBR
EP300-020V Element: Paper (EP) | Size: ø65 x L750 | Filtration: 20 um | Packing: FKM
EP400-005N Element: Paper (EP) | Size: ø65 x L1000 | Filtration: 5 um | Packing: NBR
EP400-005V Element: Paper (EP) | Size: ø65 x L1000 | Filtration: 5 um | Packing: FKM
EP400-010N Element: Paper (EP) | Size: ø65 x L1000 | Filtration: 10 um | Packing: NBR
EP400-010V Element: Paper (EP) | Size: ø65 x L1000 | Filtration: 10 um | Packing: FKM
EP400-020N Element: Paper (EP) | Size: ø65 x L1000 | Filtration: 20 um | Packing: NBR
EP400-020V Element: Paper (EP) | Size: ø65 x L1000 | Filtration: 20 um | Packing: FKM
EM100-005N Element: Micro mesh SUS304 (EM100) | Size: ø65 x L250 | Filtration: 5 um | Packing: NBR
EM100-005V Element: Micro mesh SUS304 (EM100) | Size: ø65 x L250 | Filtration: 5 um | Packing: FKM
EM500-005A Element: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 5 um | Packing: Non-asbestos
EM500-005T Element: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 5 um | Packing: PTFE
EM500-005N Element: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 5 um | Packing: NBR
EM500-005V Element: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 5 um | Packing: FKM
EM100-010N Element: Micro mesh SUS304 (EM100) | Size: ø65 x L250 | Filtration: 10 um | Packing: NBR
EM100-010V Element: Micro mesh SUS304 (EM100) | Size: ø65 x L250 | Filtration: 10 um | Packing: FKM
EM500-010A Element: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 10 um | Packing: Non-asbestos
EM500-010T Element: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 10 um | Packing: PTFE
EM500-010N Element: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 10 um | Packing: NBR
EM500-010V Element: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 10 um | Packing: FKM
EM100-020N Element: Micro mesh SUS304 (EM100) | Size: ø65 x L250 | Filtration: 20 um | Packing: NBR
EM100-020V Element: Micro mesh SUS304 (EM100) | Size: ø65 x L250 | Filtration: 20 um | Packing: FKM
EM500-020A Element: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 20 um | Packing: Non-asbestos
EM500-020T Element: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 20 um | Packing: PTFE
EM500-020N Element: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 20 um | Packing: NBR
EM500-020V Element: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 20 um | Packing: FKM
EM100-040N Element: Micro mesh SUS304 (EM100) | Size: ø65 x L250 | Filtration: 40 um | Packing: NBR
EM100-040V Element: Micro mesh SUS304 (EM100) | Size: ø65 x L250 | Filtration: 40 um | Packing: FKM
EM500-040A Element: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 40 um | Packing: Non-asbestos
EM500-040T Element: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 40 um | Packing: PTFE
EM500-040N Element: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 40 um | Packing: NBR
EM500-040V Element: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 40 um | Packing: FKM
EM100-074N Element: Micro mesh SUS304 (EM100) | Size: ø65 x L250 | Filtration: 74 um | Packing: NBR
EM100-074V Element: Micro mesh SUS304 (EM100) | Size: ø65 x L250 | Filtration: 74 um | Packing: FKM
EM500-074A Element: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 74 um | Packing: Non-asbestos
EM500-074T Element: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 74 um | Packing: PTFE
EM500-074N Element: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 74 um | Packing: NBR
EM500-074V Element: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 74 um | Packing: FKM
EM100-105N Element: Micro mesh SUS304 (EM100) | Size: ø65 x L250 | Filtration: 105 um | Packing: NBR
EM100-105V Element: Micro mesh SUS304 (EM100) | Size: ø65 x L250 | Filtration: 105 um | Packing: FKM
EM500-105A Element: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 105 um | Packing: Non-asbestos
EM500-105T Element: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 105 um | Packing: PTFE
EM500-105N Element: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 105 um | Packing: NBR
EM500-105V Element: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 105 um | Packing: FKM
Industrial FiltersSMC
332 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC Industrial Filter Elements for FG Vessels (EB, ES, EH, EP, EM)

Brand SMC·Industrial Filters

Available part numbers (332)

EB100-001T, EB100-001N, EB100-001V, ES100-001A, ES100-001T, ES100-001N, ES100-001V, EB100-002T, EB100-002N, EB100-002V + 322 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
EB100-001TElement: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 1 um | Packing: PTFE
EB100-001NElement: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 1 um | Packing: NBR
EB100-001VElement: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 1 um | Packing: FKM
ES100-001AElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 1 um | Packing: Non-asbestos
ES100-001TElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 1 um | Packing: PTFE
ES100-001NElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 1 um | Packing: NBR
ES100-001VElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 1 um | Packing: FKM
EB100-002TElement: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 2 um | Packing: PTFE
EB100-002NElement: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 2 um | Packing: NBR
EB100-002VElement: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 2 um | Packing: FKM
ES100-002AElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 2 um | Packing: Non-asbestos
ES100-002TElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 2 um | Packing: PTFE
ES100-002NElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 2 um | Packing: NBR
ES100-002VElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 2 um | Packing: FKM
EB100-005TElement: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 5 um | Packing: PTFE
EB100-005NElement: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 5 um | Packing: NBR
EB100-005VElement: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 5 um | Packing: FKM
ES100-005AElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 5 um | Packing: Non-asbestos
ES100-005TElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 5 um | Packing: PTFE
ES100-005NElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 5 um | Packing: NBR
ES100-005VElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 5 um | Packing: FKM
EB100-010TElement: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 10 um | Packing: PTFE
EB100-010NElement: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 10 um | Packing: NBR
EB100-010VElement: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 10 um | Packing: FKM
ES100-010AElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 10 um | Packing: Non-asbestos
ES100-010TElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 10 um | Packing: PTFE
ES100-010NElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 10 um | Packing: NBR
ES100-010VElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 10 um | Packing: FKM
EB100-020TElement: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 20 um | Packing: PTFE
EB100-020NElement: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 20 um | Packing: NBR
EB100-020VElement: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 20 um | Packing: FKM
ES100-020AElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 20 um | Packing: Non-asbestos
ES100-020TElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 20 um | Packing: PTFE
ES100-020NElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 20 um | Packing: NBR
ES100-020VElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 20 um | Packing: FKM
EB100-040TElement: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 40 um | Packing: PTFE
EB100-040NElement: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 40 um | Packing: NBR
EB100-040VElement: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 40 um | Packing: FKM
ES100-040AElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 40 um | Packing: Non-asbestos
ES100-040TElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 40 um | Packing: PTFE
ES100-040NElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 40 um | Packing: NBR
ES100-040VElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 40 um | Packing: FKM
EB100-070TElement: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 70 um | Packing: PTFE
EB100-070NElement: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 70 um | Packing: NBR
EB100-070VElement: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 70 um | Packing: FKM
ES100-070AElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 70 um | Packing: Non-asbestos
ES100-070TElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 70 um | Packing: PTFE
ES100-070NElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 70 um | Packing: NBR
ES100-070VElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 70 um | Packing: FKM
EB100-100TElement: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 100 um | Packing: PTFE
EB100-100NElement: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 100 um | Packing: NBR
EB100-100VElement: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 100 um | Packing: FKM
ES100-100AElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 100 um | Packing: Non-asbestos
ES100-100TElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 100 um | Packing: PTFE
ES100-100NElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 100 um | Packing: NBR
ES100-100VElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 100 um | Packing: FKM
EB100-120TElement: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 120 um | Packing: PTFE
EB100-120NElement: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 120 um | Packing: NBR
EB100-120VElement: Sintered bronze (EB) | Size: ø65 x L250 | Filtration: 120 um | Packing: FKM
ES100-120AElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 120 um | Packing: Non-asbestos
ES100-120TElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 120 um | Packing: PTFE
ES100-120NElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 120 um | Packing: NBR
ES100-120VElement: Sintered SUS316 (ES) | Size: ø65 x L250 | Filtration: 120 um | Packing: FKM
EB200-001TElement: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 1 um | Packing: PTFE
EB200-001NElement: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 1 um | Packing: NBR
EB200-001VElement: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 1 um | Packing: FKM
ES200-001AElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 1 um | Packing: Non-asbestos
ES200-001TElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 1 um | Packing: PTFE
ES200-001NElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 1 um | Packing: NBR
ES200-001VElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 1 um | Packing: FKM
EB200-002TElement: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 2 um | Packing: PTFE
EB200-002NElement: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 2 um | Packing: NBR
EB200-002VElement: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 2 um | Packing: FKM
ES200-002AElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 2 um | Packing: Non-asbestos
ES200-002TElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 2 um | Packing: PTFE
ES200-002NElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 2 um | Packing: NBR
ES200-002VElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 2 um | Packing: FKM
EB200-005TElement: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 5 um | Packing: PTFE
EB200-005NElement: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 5 um | Packing: NBR
EB200-005VElement: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 5 um | Packing: FKM
ES200-005AElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 5 um | Packing: Non-asbestos
ES200-005TElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 5 um | Packing: PTFE
ES200-005NElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 5 um | Packing: NBR
ES200-005VElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 5 um | Packing: FKM
EB200-010TElement: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 10 um | Packing: PTFE
EB200-010NElement: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 10 um | Packing: NBR
EB200-010VElement: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 10 um | Packing: FKM
ES200-010AElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 10 um | Packing: Non-asbestos
ES200-010TElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 10 um | Packing: PTFE
ES200-010NElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 10 um | Packing: NBR
ES200-010VElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 10 um | Packing: FKM
EB200-020TElement: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 20 um | Packing: PTFE
EB200-020NElement: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 20 um | Packing: NBR
EB200-020VElement: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 20 um | Packing: FKM
ES200-020AElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 20 um | Packing: Non-asbestos
ES200-020TElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 20 um | Packing: PTFE
ES200-020NElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 20 um | Packing: NBR
ES200-020VElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 20 um | Packing: FKM
EB200-040TElement: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 40 um | Packing: PTFE
EB200-040NElement: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 40 um | Packing: NBR
EB200-040VElement: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 40 um | Packing: FKM
ES200-040AElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 40 um | Packing: Non-asbestos
ES200-040TElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 40 um | Packing: PTFE
ES200-040NElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 40 um | Packing: NBR
ES200-040VElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 40 um | Packing: FKM
EB200-070TElement: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 70 um | Packing: PTFE
EB200-070NElement: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 70 um | Packing: NBR
EB200-070VElement: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 70 um | Packing: FKM
ES200-070AElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 70 um | Packing: Non-asbestos
ES200-070TElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 70 um | Packing: PTFE
ES200-070NElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 70 um | Packing: NBR
ES200-070VElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 70 um | Packing: FKM
EB200-100TElement: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 100 um | Packing: PTFE
EB200-100NElement: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 100 um | Packing: NBR
EB200-100VElement: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 100 um | Packing: FKM
ES200-100AElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 100 um | Packing: Non-asbestos
ES200-100TElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 100 um | Packing: PTFE
ES200-100NElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 100 um | Packing: NBR
ES200-100VElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 100 um | Packing: FKM
EB200-120TElement: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 120 um | Packing: PTFE
EB200-120NElement: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 120 um | Packing: NBR
EB200-120VElement: Sintered bronze (EB) | Size: ø65 x L500 | Filtration: 120 um | Packing: FKM
ES200-120AElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 120 um | Packing: Non-asbestos
ES200-120TElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 120 um | Packing: PTFE
ES200-120NElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 120 um | Packing: NBR
ES200-120VElement: Sintered SUS316 (ES) | Size: ø65 x L500 | Filtration: 120 um | Packing: FKM
EB300-001TElement: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 1 um | Packing: PTFE
EB300-001NElement: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 1 um | Packing: NBR
EB300-001VElement: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 1 um | Packing: FKM
ES300-001AElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 1 um | Packing: Non-asbestos
ES300-001TElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 1 um | Packing: PTFE
ES300-001NElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 1 um | Packing: NBR
ES300-001VElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 1 um | Packing: FKM
EB300-002TElement: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 2 um | Packing: PTFE
EB300-002NElement: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 2 um | Packing: NBR
EB300-002VElement: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 2 um | Packing: FKM
ES300-002AElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 2 um | Packing: Non-asbestos
ES300-002TElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 2 um | Packing: PTFE
ES300-002NElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 2 um | Packing: NBR
ES300-002VElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 2 um | Packing: FKM
EB300-005TElement: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 5 um | Packing: PTFE
EB300-005NElement: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 5 um | Packing: NBR
EB300-005VElement: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 5 um | Packing: FKM
ES300-005AElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 5 um | Packing: Non-asbestos
ES300-005TElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 5 um | Packing: PTFE
ES300-005NElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 5 um | Packing: NBR
ES300-005VElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 5 um | Packing: FKM
EB300-010TElement: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 10 um | Packing: PTFE
EB300-010NElement: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 10 um | Packing: NBR
EB300-010VElement: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 10 um | Packing: FKM
ES300-010AElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 10 um | Packing: Non-asbestos
ES300-010TElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 10 um | Packing: PTFE
ES300-010NElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 10 um | Packing: NBR
ES300-010VElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 10 um | Packing: FKM
EB300-020TElement: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 20 um | Packing: PTFE
EB300-020NElement: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 20 um | Packing: NBR
EB300-020VElement: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 20 um | Packing: FKM
ES300-020AElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 20 um | Packing: Non-asbestos
ES300-020TElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 20 um | Packing: PTFE
ES300-020NElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 20 um | Packing: NBR
ES300-020VElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 20 um | Packing: FKM
EB300-040TElement: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 40 um | Packing: PTFE
EB300-040NElement: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 40 um | Packing: NBR
EB300-040VElement: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 40 um | Packing: FKM
ES300-040AElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 40 um | Packing: Non-asbestos
ES300-040TElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 40 um | Packing: PTFE
ES300-040NElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 40 um | Packing: NBR
ES300-040VElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 40 um | Packing: FKM
EB300-070TElement: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 70 um | Packing: PTFE
EB300-070NElement: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 70 um | Packing: NBR
EB300-070VElement: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 70 um | Packing: FKM
ES300-070AElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 70 um | Packing: Non-asbestos
ES300-070TElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 70 um | Packing: PTFE
ES300-070NElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 70 um | Packing: NBR
ES300-070VElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 70 um | Packing: FKM
EB300-100TElement: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 100 um | Packing: PTFE
EB300-100NElement: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 100 um | Packing: NBR
EB300-100VElement: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 100 um | Packing: FKM
ES300-100AElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 100 um | Packing: Non-asbestos
ES300-100TElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 100 um | Packing: PTFE
ES300-100NElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 100 um | Packing: NBR
ES300-100VElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 100 um | Packing: FKM
EB300-120TElement: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 120 um | Packing: PTFE
EB300-120NElement: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 120 um | Packing: NBR
EB300-120VElement: Sintered bronze (EB) | Size: ø65 x L750 | Filtration: 120 um | Packing: FKM
ES300-120AElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 120 um | Packing: Non-asbestos
ES300-120TElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 120 um | Packing: PTFE
ES300-120NElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 120 um | Packing: NBR
ES300-120VElement: Sintered SUS316 (ES) | Size: ø65 x L750 | Filtration: 120 um | Packing: FKM
EB400-001TElement: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 1 um | Packing: PTFE
EB400-001NElement: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 1 um | Packing: NBR
EB400-001VElement: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 1 um | Packing: FKM
ES400-001AElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 1 um | Packing: Non-asbestos
ES400-001TElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 1 um | Packing: PTFE
ES400-001NElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 1 um | Packing: NBR
ES400-001VElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 1 um | Packing: FKM
EB400-002TElement: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 2 um | Packing: PTFE
EB400-002NElement: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 2 um | Packing: NBR
EB400-002VElement: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 2 um | Packing: FKM
ES400-002AElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 2 um | Packing: Non-asbestos
ES400-002TElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 2 um | Packing: PTFE
ES400-002NElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 2 um | Packing: NBR
ES400-002VElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 2 um | Packing: FKM
EB400-005TElement: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 5 um | Packing: PTFE
EB400-005NElement: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 5 um | Packing: NBR
EB400-005VElement: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 5 um | Packing: FKM
ES400-005AElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 5 um | Packing: Non-asbestos
ES400-005TElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 5 um | Packing: PTFE
ES400-005NElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 5 um | Packing: NBR
ES400-005VElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 5 um | Packing: FKM
EB400-010TElement: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 10 um | Packing: PTFE
EB400-010NElement: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 10 um | Packing: NBR
EB400-010VElement: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 10 um | Packing: FKM
ES400-010AElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 10 um | Packing: Non-asbestos
ES400-010TElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 10 um | Packing: PTFE
ES400-010NElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 10 um | Packing: NBR
ES400-010VElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 10 um | Packing: FKM
EB400-020TElement: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 20 um | Packing: PTFE
EB400-020NElement: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 20 um | Packing: NBR
EB400-020VElement: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 20 um | Packing: FKM
ES400-020AElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 20 um | Packing: Non-asbestos
ES400-020TElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 20 um | Packing: PTFE
ES400-020NElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 20 um | Packing: NBR
ES400-020VElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 20 um | Packing: FKM
EB400-040TElement: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 40 um | Packing: PTFE
EB400-040NElement: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 40 um | Packing: NBR
EB400-040VElement: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 40 um | Packing: FKM
ES400-040AElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 40 um | Packing: Non-asbestos
ES400-040TElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 40 um | Packing: PTFE
ES400-040NElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 40 um | Packing: NBR
ES400-040VElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 40 um | Packing: FKM
EB400-070TElement: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 70 um | Packing: PTFE
EB400-070NElement: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 70 um | Packing: NBR
EB400-070VElement: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 70 um | Packing: FKM
ES400-070AElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 70 um | Packing: Non-asbestos
ES400-070TElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 70 um | Packing: PTFE
ES400-070NElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 70 um | Packing: NBR
ES400-070VElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 70 um | Packing: FKM
EB400-100TElement: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 100 um | Packing: PTFE
EB400-100NElement: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 100 um | Packing: NBR
EB400-100VElement: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 100 um | Packing: FKM
ES400-100AElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 100 um | Packing: Non-asbestos
ES400-100TElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 100 um | Packing: PTFE
ES400-100NElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 100 um | Packing: NBR
ES400-100VElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 100 um | Packing: FKM
EB400-120TElement: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 120 um | Packing: PTFE
EB400-120NElement: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 120 um | Packing: NBR
EB400-120VElement: Sintered bronze (EB) | Size: ø65 x L1000 | Filtration: 120 um | Packing: FKM
ES400-120AElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 120 um | Packing: Non-asbestos
ES400-120TElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 120 um | Packing: PTFE
ES400-120NElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 120 um | Packing: NBR
ES400-120VElement: Sintered SUS316 (ES) | Size: ø65 x L1000 | Filtration: 120 um | Packing: FKM
EH10GElement: Fiber, cotton (EH) | Size: ø65 x L250 | Filtration: 0.5 um | Packing: None
EHM10AElement: Fiber, polypropylene (EHM) | Size: ø65 x L250 | Filtration: 0.5 um | Packing: None
EH39R10GVElement: Fiber, cotton (EH) | Size: ø65 x L250 | Filtration: 1 um | Packing: None
EHM39R10AYElement: Fiber, polypropylene (EHM) | Size: ø65 x L250 | Filtration: 1 um | Packing: None
EHK27R10SElement: Fiber, glass (EHK) | Size: ø65 x L250 | Filtration: 1 um | Packing: None
EH23R10GVElement: Fiber, cotton (EH) | Size: ø65 x L250 | Filtration: 5 um | Packing: None
EHM23R10AYElement: Fiber, polypropylene (EHM) | Size: ø65 x L250 | Filtration: 5 um | Packing: None
EHK19R10SElement: Fiber, glass (EHK) | Size: ø65 x L250 | Filtration: 5 um | Packing: None
EH19R10GVElement: Fiber, cotton (EH) | Size: ø65 x L250 | Filtration: 10 um | Packing: None
EHM19R10AYElement: Fiber, polypropylene (EHM) | Size: ø65 x L250 | Filtration: 10 um | Packing: None
EHK15R10SElement: Fiber, glass (EHK) | Size: ø65 x L250 | Filtration: 10 um | Packing: None
EH15R10GElement: Fiber, cotton (EH) | Size: ø65 x L250 | Filtration: 20 um | Packing: None
EHM15R10AElement: Fiber, polypropylene (EHM) | Size: ø65 x L250 | Filtration: 20 um | Packing: None
EHK10R10SElement: Fiber, glass (EHK) | Size: ø65 x L250 | Filtration: 20 um | Packing: None
EH11R10GElement: Fiber, cotton (EH) | Size: ø65 x L250 | Filtration: 50 um | Packing: None
EHM11R10AElement: Fiber, polypropylene (EHM) | Size: ø65 x L250 | Filtration: 50 um | Packing: None
EH10R10GElement: Fiber, cotton (EH) | Size: ø65 x L250 | Filtration: 75 um | Packing: None
EHM10R10AElement: Fiber, polypropylene (EHM) | Size: ø65 x L250 | Filtration: 75 um | Packing: None
EH8R10GElement: Fiber, cotton (EH) | Size: ø65 x L250 | Filtration: 100 um | Packing: None
EHM8R10AElement: Fiber, polypropylene (EHM) | Size: ø65 x L250 | Filtration: 100 um | Packing: None
EP100-005NElement: Paper (EP) | Size: ø65 x L250 | Filtration: 5 um | Packing: NBR
EP100-005VElement: Paper (EP) | Size: ø65 x L250 | Filtration: 5 um | Packing: FKM
EP100-010NElement: Paper (EP) | Size: ø65 x L250 | Filtration: 10 um | Packing: NBR
EP100-010VElement: Paper (EP) | Size: ø65 x L250 | Filtration: 10 um | Packing: FKM
EP100-020NElement: Paper (EP) | Size: ø65 x L250 | Filtration: 20 um | Packing: NBR
EP100-020VElement: Paper (EP) | Size: ø65 x L250 | Filtration: 20 um | Packing: FKM
EP200-005NElement: Paper (EP) | Size: ø65 x L500 | Filtration: 5 um | Packing: NBR
EP200-005VElement: Paper (EP) | Size: ø65 x L500 | Filtration: 5 um | Packing: FKM
EP200-010NElement: Paper (EP) | Size: ø65 x L500 | Filtration: 10 um | Packing: NBR
EP200-010VElement: Paper (EP) | Size: ø65 x L500 | Filtration: 10 um | Packing: FKM
EP200-020NElement: Paper (EP) | Size: ø65 x L500 | Filtration: 20 um | Packing: NBR
EP200-020VElement: Paper (EP) | Size: ø65 x L500 | Filtration: 20 um | Packing: FKM
EP300-005NElement: Paper (EP) | Size: ø65 x L750 | Filtration: 5 um | Packing: NBR
EP300-005VElement: Paper (EP) | Size: ø65 x L750 | Filtration: 5 um | Packing: FKM
EP300-010NElement: Paper (EP) | Size: ø65 x L750 | Filtration: 10 um | Packing: NBR
EP300-010VElement: Paper (EP) | Size: ø65 x L750 | Filtration: 10 um | Packing: FKM
EP300-020NElement: Paper (EP) | Size: ø65 x L750 | Filtration: 20 um | Packing: NBR
EP300-020VElement: Paper (EP) | Size: ø65 x L750 | Filtration: 20 um | Packing: FKM
EP400-005NElement: Paper (EP) | Size: ø65 x L1000 | Filtration: 5 um | Packing: NBR
EP400-005VElement: Paper (EP) | Size: ø65 x L1000 | Filtration: 5 um | Packing: FKM
EP400-010NElement: Paper (EP) | Size: ø65 x L1000 | Filtration: 10 um | Packing: NBR
EP400-010VElement: Paper (EP) | Size: ø65 x L1000 | Filtration: 10 um | Packing: FKM
EP400-020NElement: Paper (EP) | Size: ø65 x L1000 | Filtration: 20 um | Packing: NBR
EP400-020VElement: Paper (EP) | Size: ø65 x L1000 | Filtration: 20 um | Packing: FKM
EM100-005NElement: Micro mesh SUS304 (EM100) | Size: ø65 x L250 | Filtration: 5 um | Packing: NBR
EM100-005VElement: Micro mesh SUS304 (EM100) | Size: ø65 x L250 | Filtration: 5 um | Packing: FKM
EM500-005AElement: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 5 um | Packing: Non-asbestos
EM500-005TElement: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 5 um | Packing: PTFE
EM500-005NElement: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 5 um | Packing: NBR
EM500-005VElement: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 5 um | Packing: FKM
EM100-010NElement: Micro mesh SUS304 (EM100) | Size: ø65 x L250 | Filtration: 10 um | Packing: NBR
EM100-010VElement: Micro mesh SUS304 (EM100) | Size: ø65 x L250 | Filtration: 10 um | Packing: FKM
EM500-010AElement: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 10 um | Packing: Non-asbestos
EM500-010TElement: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 10 um | Packing: PTFE
EM500-010NElement: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 10 um | Packing: NBR
EM500-010VElement: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 10 um | Packing: FKM
EM100-020NElement: Micro mesh SUS304 (EM100) | Size: ø65 x L250 | Filtration: 20 um | Packing: NBR
EM100-020VElement: Micro mesh SUS304 (EM100) | Size: ø65 x L250 | Filtration: 20 um | Packing: FKM
EM500-020AElement: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 20 um | Packing: Non-asbestos
EM500-020TElement: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 20 um | Packing: PTFE
EM500-020NElement: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 20 um | Packing: NBR
EM500-020VElement: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 20 um | Packing: FKM
EM100-040NElement: Micro mesh SUS304 (EM100) | Size: ø65 x L250 | Filtration: 40 um | Packing: NBR
EM100-040VElement: Micro mesh SUS304 (EM100) | Size: ø65 x L250 | Filtration: 40 um | Packing: FKM
EM500-040AElement: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 40 um | Packing: Non-asbestos
EM500-040TElement: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 40 um | Packing: PTFE
EM500-040NElement: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 40 um | Packing: NBR
EM500-040VElement: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 40 um | Packing: FKM
EM100-074NElement: Micro mesh SUS304 (EM100) | Size: ø65 x L250 | Filtration: 74 um | Packing: NBR
EM100-074VElement: Micro mesh SUS304 (EM100) | Size: ø65 x L250 | Filtration: 74 um | Packing: FKM
EM500-074AElement: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 74 um | Packing: Non-asbestos
EM500-074TElement: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 74 um | Packing: PTFE
EM500-074NElement: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 74 um | Packing: NBR
EM500-074VElement: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 74 um | Packing: FKM
EM100-105NElement: Micro mesh SUS304 (EM100) | Size: ø65 x L250 | Filtration: 105 um | Packing: NBR
EM100-105VElement: Micro mesh SUS304 (EM100) | Size: ø65 x L250 | Filtration: 105 um | Packing: FKM
EM500-105AElement: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 105 um | Packing: Non-asbestos
EM500-105TElement: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 105 um | Packing: PTFE
EM500-105NElement: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 105 um | Packing: NBR
EM500-105VElement: Micro mesh SUS316 (EM500) | Size: ø65 x L250 | Filtration: 105 um | Packing: FKM

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Hydraulics →
