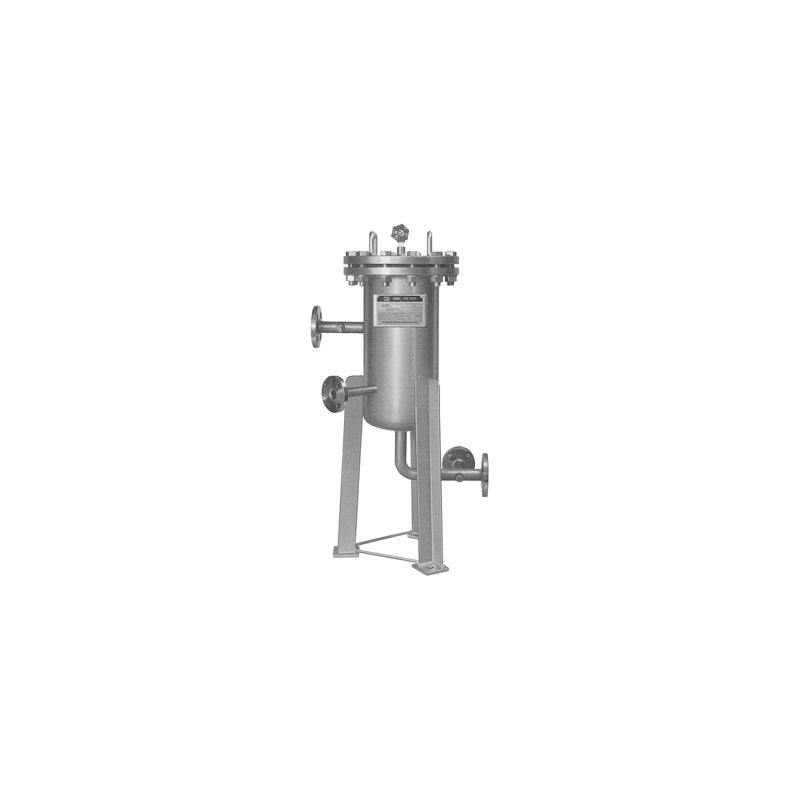

SMC FGA Industrial Filter Vessel (Made to Order, Large Flow)

SMC FGA Industrial Filter Vessel (Made to Order, Large Flow)

SMC FGA series made-to-order stand-type industrial filter vessel for large-flow filtration up to approx. 3200 L/min, holding 4 to 37 ø65 elements, with JIS 10K FF flanges.

Key features

  • Accepts sintered metal, paper, fiber or micro mesh elements chosen for the filtration duty
  • Stand-type structure minimises loss of filtrate
  • Easy maintenance and element replacement; air vent, drain and backwash ports
  • Wetted parts SS400 (FGAC) or SUS304 (FGAS); non-asbestos gasket
  • Complete filter code adds element class, filtration and packing symbols (see FG element listing)

Specifications

Max. operating pressure 1 MPa
Operating temperature 0 to 80°C
Connection JIS 10K FF flange, 25 to 150 (1B to 6B)
Max. flow Approx. 3200 L/min
Element size ø65 x L250 to L1000 (fiber / mesh L250 stacked)
Delivery Made to order
Note Gas use under pressure-vessel class 2 rules is a special order
Source SMC Korea catalog FG (SMCKR_FGA-B-C-D-E-G.pdf), p. 35-37 (PDF p. 17-19)
FGAC04A-10 Wetted material: SS400 | Element count: 4 | Element length: L250 | Port: 25A (1B) JIS 10K FF
FGAC04A-14 Wetted material: SS400 | Element count: 4 | Element length: L250 | Port: 40A (1 1/2B) JIS 10K FF
FGAC04A-20 Wetted material: SS400 | Element count: 4 | Element length: L250 | Port: 50A (2B) JIS 10K FF
FGAC04B-10 Wetted material: SS400 | Element count: 4 | Element length: L500 | Port: 25A (1B) JIS 10K FF
FGAC04B-14 Wetted material: SS400 | Element count: 4 | Element length: L500 | Port: 40A (1 1/2B) JIS 10K FF
FGAC04B-20 Wetted material: SS400 | Element count: 4 | Element length: L500 | Port: 50A (2B) JIS 10K FF
FGAC04C-10 Wetted material: SS400 | Element count: 4 | Element length: L750 | Port: 25A (1B) JIS 10K FF
FGAC04C-14 Wetted material: SS400 | Element count: 4 | Element length: L750 | Port: 40A (1 1/2B) JIS 10K FF
FGAC04C-20 Wetted material: SS400 | Element count: 4 | Element length: L750 | Port: 50A (2B) JIS 10K FF
FGAC04D-10 Wetted material: SS400 | Element count: 4 | Element length: L1000 | Port: 25A (1B) JIS 10K FF
FGAC04D-14 Wetted material: SS400 | Element count: 4 | Element length: L1000 | Port: 40A (1 1/2B) JIS 10K FF
FGAC04D-20 Wetted material: SS400 | Element count: 4 | Element length: L1000 | Port: 50A (2B) JIS 10K FF
FGAC07B-10 Wetted material: SS400 | Element count: 7 | Element length: L500 | Port: 25A (1B) JIS 10K FF
FGAC07B-14 Wetted material: SS400 | Element count: 7 | Element length: L500 | Port: 40A (1 1/2B) JIS 10K FF
FGAC07B-20 Wetted material: SS400 | Element count: 7 | Element length: L500 | Port: 50A (2B) JIS 10K FF
FGAC07C-10 Wetted material: SS400 | Element count: 7 | Element length: L750 | Port: 25A (1B) JIS 10K FF
FGAC07C-14 Wetted material: SS400 | Element count: 7 | Element length: L750 | Port: 40A (1 1/2B) JIS 10K FF
FGAC07C-20 Wetted material: SS400 | Element count: 7 | Element length: L750 | Port: 50A (2B) JIS 10K FF
FGAC07D-10 Wetted material: SS400 | Element count: 7 | Element length: L1000 | Port: 25A (1B) JIS 10K FF
FGAC07D-14 Wetted material: SS400 | Element count: 7 | Element length: L1000 | Port: 40A (1 1/2B) JIS 10K FF
FGAC07D-20 Wetted material: SS400 | Element count: 7 | Element length: L1000 | Port: 50A (2B) JIS 10K FF
FGAC09B-14 Wetted material: SS400 | Element count: 9 | Element length: L500 | Port: 40A (1 1/2B) JIS 10K FF
FGAC09B-20 Wetted material: SS400 | Element count: 9 | Element length: L500 | Port: 50A (2B) JIS 10K FF
FGAC09B-24 Wetted material: SS400 | Element count: 9 | Element length: L500 | Port: 65A (2 1/2B) JIS 10K FF
FGAC09C-14 Wetted material: SS400 | Element count: 9 | Element length: L750 | Port: 40A (1 1/2B) JIS 10K FF
FGAC09C-20 Wetted material: SS400 | Element count: 9 | Element length: L750 | Port: 50A (2B) JIS 10K FF
FGAC09C-24 Wetted material: SS400 | Element count: 9 | Element length: L750 | Port: 65A (2 1/2B) JIS 10K FF
FGAC09D-14 Wetted material: SS400 | Element count: 9 | Element length: L1000 | Port: 40A (1 1/2B) JIS 10K FF
FGAC09D-20 Wetted material: SS400 | Element count: 9 | Element length: L1000 | Port: 50A (2B) JIS 10K FF
FGAC09D-24 Wetted material: SS400 | Element count: 9 | Element length: L1000 | Port: 65A (2 1/2B) JIS 10K FF
FGAC18B-24 Wetted material: SS400 | Element count: 18 | Element length: L500 | Port: 65A (2 1/2B) JIS 10K FF
FGAC18B-30 Wetted material: SS400 | Element count: 18 | Element length: L500 | Port: 80A (3B) JIS 10K FF
FGAC18B-40 Wetted material: SS400 | Element count: 18 | Element length: L500 | Port: 100A (4B) JIS 10K FF
FGAC18C-24 Wetted material: SS400 | Element count: 18 | Element length: L750 | Port: 65A (2 1/2B) JIS 10K FF
FGAC18C-30 Wetted material: SS400 | Element count: 18 | Element length: L750 | Port: 80A (3B) JIS 10K FF
FGAC18C-40 Wetted material: SS400 | Element count: 18 | Element length: L750 | Port: 100A (4B) JIS 10K FF
FGAC18D-24 Wetted material: SS400 | Element count: 18 | Element length: L1000 | Port: 65A (2 1/2B) JIS 10K FF
FGAC18D-30 Wetted material: SS400 | Element count: 18 | Element length: L1000 | Port: 80A (3B) JIS 10K FF
FGAC18D-40 Wetted material: SS400 | Element count: 18 | Element length: L1000 | Port: 100A (4B) JIS 10K FF
FGAC22B-24 Wetted material: SS400 | Element count: 22 | Element length: L500 | Port: 65A (2 1/2B) JIS 10K FF
FGAC22B-30 Wetted material: SS400 | Element count: 22 | Element length: L500 | Port: 80A (3B) JIS 10K FF
FGAC22B-40 Wetted material: SS400 | Element count: 22 | Element length: L500 | Port: 100A (4B) JIS 10K FF
FGAC22C-24 Wetted material: SS400 | Element count: 22 | Element length: L750 | Port: 65A (2 1/2B) JIS 10K FF
FGAC22C-30 Wetted material: SS400 | Element count: 22 | Element length: L750 | Port: 80A (3B) JIS 10K FF
FGAC22C-40 Wetted material: SS400 | Element count: 22 | Element length: L750 | Port: 100A (4B) JIS 10K FF
FGAC22D-24 Wetted material: SS400 | Element count: 22 | Element length: L1000 | Port: 65A (2 1/2B) JIS 10K FF
FGAC22D-30 Wetted material: SS400 | Element count: 22 | Element length: L1000 | Port: 80A (3B) JIS 10K FF
FGAC22D-40 Wetted material: SS400 | Element count: 22 | Element length: L1000 | Port: 100A (4B) JIS 10K FF
FGAC29B-30 Wetted material: SS400 | Element count: 29 | Element length: L500 | Port: 80A (3B) JIS 10K FF
FGAC29B-40 Wetted material: SS400 | Element count: 29 | Element length: L500 | Port: 100A (4B) JIS 10K FF
FGAC29B-60 Wetted material: SS400 | Element count: 29 | Element length: L500 | Port: 150A (6B) JIS 10K FF
FGAC29C-30 Wetted material: SS400 | Element count: 29 | Element length: L750 | Port: 80A (3B) JIS 10K FF
FGAC29C-40 Wetted material: SS400 | Element count: 29 | Element length: L750 | Port: 100A (4B) JIS 10K FF
FGAC29C-60 Wetted material: SS400 | Element count: 29 | Element length: L750 | Port: 150A (6B) JIS 10K FF
FGAC29D-30 Wetted material: SS400 | Element count: 29 | Element length: L1000 | Port: 80A (3B) JIS 10K FF
FGAC29D-40 Wetted material: SS400 | Element count: 29 | Element length: L1000 | Port: 100A (4B) JIS 10K FF
FGAC29D-60 Wetted material: SS400 | Element count: 29 | Element length: L1000 | Port: 150A (6B) JIS 10K FF
FGAC34C-30 Wetted material: SS400 | Element count: 34 | Element length: L750 | Port: 80A (3B) JIS 10K FF
FGAC34C-40 Wetted material: SS400 | Element count: 34 | Element length: L750 | Port: 100A (4B) JIS 10K FF
FGAC34C-60 Wetted material: SS400 | Element count: 34 | Element length: L750 | Port: 150A (6B) JIS 10K FF
FGAC34D-30 Wetted material: SS400 | Element count: 34 | Element length: L1000 | Port: 80A (3B) JIS 10K FF
FGAC34D-40 Wetted material: SS400 | Element count: 34 | Element length: L1000 | Port: 100A (4B) JIS 10K FF
FGAC34D-60 Wetted material: SS400 | Element count: 34 | Element length: L1000 | Port: 150A (6B) JIS 10K FF
FGAC37C-30 Wetted material: SS400 | Element count: 37 | Element length: L750 | Port: 80A (3B) JIS 10K FF
FGAC37C-40 Wetted material: SS400 | Element count: 37 | Element length: L750 | Port: 100A (4B) JIS 10K FF
FGAC37C-60 Wetted material: SS400 | Element count: 37 | Element length: L750 | Port: 150A (6B) JIS 10K FF
FGAC37D-30 Wetted material: SS400 | Element count: 37 | Element length: L1000 | Port: 80A (3B) JIS 10K FF
FGAC37D-40 Wetted material: SS400 | Element count: 37 | Element length: L1000 | Port: 100A (4B) JIS 10K FF
FGAC37D-60 Wetted material: SS400 | Element count: 37 | Element length: L1000 | Port: 150A (6B) JIS 10K FF
FGAS04A-10 Wetted material: SUS304 | Element count: 4 | Element length: L250 | Port: 25A (1B) JIS 10K FF
FGAS04A-14 Wetted material: SUS304 | Element count: 4 | Element length: L250 | Port: 40A (1 1/2B) JIS 10K FF
FGAS04A-20 Wetted material: SUS304 | Element count: 4 | Element length: L250 | Port: 50A (2B) JIS 10K FF
FGAS04B-10 Wetted material: SUS304 | Element count: 4 | Element length: L500 | Port: 25A (1B) JIS 10K FF
FGAS04B-14 Wetted material: SUS304 | Element count: 4 | Element length: L500 | Port: 40A (1 1/2B) JIS 10K FF
FGAS04B-20 Wetted material: SUS304 | Element count: 4 | Element length: L500 | Port: 50A (2B) JIS 10K FF
FGAS04C-10 Wetted material: SUS304 | Element count: 4 | Element length: L750 | Port: 25A (1B) JIS 10K FF
FGAS04C-14 Wetted material: SUS304 | Element count: 4 | Element length: L750 | Port: 40A (1 1/2B) JIS 10K FF
FGAS04C-20 Wetted material: SUS304 | Element count: 4 | Element length: L750 | Port: 50A (2B) JIS 10K FF
FGAS04D-10 Wetted material: SUS304 | Element count: 4 | Element length: L1000 | Port: 25A (1B) JIS 10K FF
FGAS04D-14 Wetted material: SUS304 | Element count: 4 | Element length: L1000 | Port: 40A (1 1/2B) JIS 10K FF
FGAS04D-20 Wetted material: SUS304 | Element count: 4 | Element length: L1000 | Port: 50A (2B) JIS 10K FF
FGAS07B-10 Wetted material: SUS304 | Element count: 7 | Element length: L500 | Port: 25A (1B) JIS 10K FF
FGAS07B-14 Wetted material: SUS304 | Element count: 7 | Element length: L500 | Port: 40A (1 1/2B) JIS 10K FF
FGAS07B-20 Wetted material: SUS304 | Element count: 7 | Element length: L500 | Port: 50A (2B) JIS 10K FF
FGAS07C-10 Wetted material: SUS304 | Element count: 7 | Element length: L750 | Port: 25A (1B) JIS 10K FF
FGAS07C-14 Wetted material: SUS304 | Element count: 7 | Element length: L750 | Port: 40A (1 1/2B) JIS 10K FF
FGAS07C-20 Wetted material: SUS304 | Element count: 7 | Element length: L750 | Port: 50A (2B) JIS 10K FF
FGAS07D-10 Wetted material: SUS304 | Element count: 7 | Element length: L1000 | Port: 25A (1B) JIS 10K FF
FGAS07D-14 Wetted material: SUS304 | Element count: 7 | Element length: L1000 | Port: 40A (1 1/2B) JIS 10K FF
FGAS07D-20 Wetted material: SUS304 | Element count: 7 | Element length: L1000 | Port: 50A (2B) JIS 10K FF
FGAS09B-14 Wetted material: SUS304 | Element count: 9 | Element length: L500 | Port: 40A (1 1/2B) JIS 10K FF
FGAS09B-20 Wetted material: SUS304 | Element count: 9 | Element length: L500 | Port: 50A (2B) JIS 10K FF
FGAS09B-24 Wetted material: SUS304 | Element count: 9 | Element length: L500 | Port: 65A (2 1/2B) JIS 10K FF
FGAS09C-14 Wetted material: SUS304 | Element count: 9 | Element length: L750 | Port: 40A (1 1/2B) JIS 10K FF
FGAS09C-20 Wetted material: SUS304 | Element count: 9 | Element length: L750 | Port: 50A (2B) JIS 10K FF
FGAS09C-24 Wetted material: SUS304 | Element count: 9 | Element length: L750 | Port: 65A (2 1/2B) JIS 10K FF
FGAS09D-14 Wetted material: SUS304 | Element count: 9 | Element length: L1000 | Port: 40A (1 1/2B) JIS 10K FF
FGAS09D-20 Wetted material: SUS304 | Element count: 9 | Element length: L1000 | Port: 50A (2B) JIS 10K FF
FGAS09D-24 Wetted material: SUS304 | Element count: 9 | Element length: L1000 | Port: 65A (2 1/2B) JIS 10K FF
FGAS18B-24 Wetted material: SUS304 | Element count: 18 | Element length: L500 | Port: 65A (2 1/2B) JIS 10K FF
FGAS18B-30 Wetted material: SUS304 | Element count: 18 | Element length: L500 | Port: 80A (3B) JIS 10K FF
FGAS18B-40 Wetted material: SUS304 | Element count: 18 | Element length: L500 | Port: 100A (4B) JIS 10K FF
FGAS18C-24 Wetted material: SUS304 | Element count: 18 | Element length: L750 | Port: 65A (2 1/2B) JIS 10K FF
FGAS18C-30 Wetted material: SUS304 | Element count: 18 | Element length: L750 | Port: 80A (3B) JIS 10K FF
FGAS18C-40 Wetted material: SUS304 | Element count: 18 | Element length: L750 | Port: 100A (4B) JIS 10K FF
FGAS18D-24 Wetted material: SUS304 | Element count: 18 | Element length: L1000 | Port: 65A (2 1/2B) JIS 10K FF
FGAS18D-30 Wetted material: SUS304 | Element count: 18 | Element length: L1000 | Port: 80A (3B) JIS 10K FF
FGAS18D-40 Wetted material: SUS304 | Element count: 18 | Element length: L1000 | Port: 100A (4B) JIS 10K FF
FGAS22B-24 Wetted material: SUS304 | Element count: 22 | Element length: L500 | Port: 65A (2 1/2B) JIS 10K FF
FGAS22B-30 Wetted material: SUS304 | Element count: 22 | Element length: L500 | Port: 80A (3B) JIS 10K FF
FGAS22B-40 Wetted material: SUS304 | Element count: 22 | Element length: L500 | Port: 100A (4B) JIS 10K FF
FGAS22C-24 Wetted material: SUS304 | Element count: 22 | Element length: L750 | Port: 65A (2 1/2B) JIS 10K FF
FGAS22C-30 Wetted material: SUS304 | Element count: 22 | Element length: L750 | Port: 80A (3B) JIS 10K FF
FGAS22C-40 Wetted material: SUS304 | Element count: 22 | Element length: L750 | Port: 100A (4B) JIS 10K FF
FGAS22D-24 Wetted material: SUS304 | Element count: 22 | Element length: L1000 | Port: 65A (2 1/2B) JIS 10K FF
FGAS22D-30 Wetted material: SUS304 | Element count: 22 | Element length: L1000 | Port: 80A (3B) JIS 10K FF
FGAS22D-40 Wetted material: SUS304 | Element count: 22 | Element length: L1000 | Port: 100A (4B) JIS 10K FF
FGAS29B-30 Wetted material: SUS304 | Element count: 29 | Element length: L500 | Port: 80A (3B) JIS 10K FF
FGAS29B-40 Wetted material: SUS304 | Element count: 29 | Element length: L500 | Port: 100A (4B) JIS 10K FF
FGAS29B-60 Wetted material: SUS304 | Element count: 29 | Element length: L500 | Port: 150A (6B) JIS 10K FF
FGAS29C-30 Wetted material: SUS304 | Element count: 29 | Element length: L750 | Port: 80A (3B) JIS 10K FF
FGAS29C-40 Wetted material: SUS304 | Element count: 29 | Element length: L750 | Port: 100A (4B) JIS 10K FF
FGAS29C-60 Wetted material: SUS304 | Element count: 29 | Element length: L750 | Port: 150A (6B) JIS 10K FF
FGAS29D-30 Wetted material: SUS304 | Element count: 29 | Element length: L1000 | Port: 80A (3B) JIS 10K FF
FGAS29D-40 Wetted material: SUS304 | Element count: 29 | Element length: L1000 | Port: 100A (4B) JIS 10K FF
FGAS29D-60 Wetted material: SUS304 | Element count: 29 | Element length: L1000 | Port: 150A (6B) JIS 10K FF
FGAS34C-30 Wetted material: SUS304 | Element count: 34 | Element length: L750 | Port: 80A (3B) JIS 10K FF
FGAS34C-40 Wetted material: SUS304 | Element count: 34 | Element length: L750 | Port: 100A (4B) JIS 10K FF
FGAS34C-60 Wetted material: SUS304 | Element count: 34 | Element length: L750 | Port: 150A (6B) JIS 10K FF
FGAS34D-30 Wetted material: SUS304 | Element count: 34 | Element length: L1000 | Port: 80A (3B) JIS 10K FF
FGAS34D-40 Wetted material: SUS304 | Element count: 34 | Element length: L1000 | Port: 100A (4B) JIS 10K FF
FGAS34D-60 Wetted material: SUS304 | Element count: 34 | Element length: L1000 | Port: 150A (6B) JIS 10K FF
FGAS37C-30 Wetted material: SUS304 | Element count: 37 | Element length: L750 | Port: 80A (3B) JIS 10K FF
FGAS37C-40 Wetted material: SUS304 | Element count: 37 | Element length: L750 | Port: 100A (4B) JIS 10K FF
FGAS37C-60 Wetted material: SUS304 | Element count: 37 | Element length: L750 | Port: 150A (6B) JIS 10K FF
FGAS37D-30 Wetted material: SUS304 | Element count: 37 | Element length: L1000 | Port: 80A (3B) JIS 10K FF
FGAS37D-40 Wetted material: SUS304 | Element count: 37 | Element length: L1000 | Port: 100A (4B) JIS 10K FF
FGAS37D-60 Wetted material: SUS304 | Element count: 37 | Element length: L1000 | Port: 150A (6B) JIS 10K FF
Industrial FiltersSMC
138 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC FGA Industrial Filter Vessel (Made to Order, Large Flow)

Brand SMC·Industrial Filters

Available part numbers (138)

FGAC04A-10, FGAC04A-14, FGAC04A-20, FGAC04B-10, FGAC04B-14, FGAC04B-20, FGAC04C-10, FGAC04C-14, FGAC04C-20, FGAC04D-10 + 128 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FGAC04A-10Wetted material: SS400 | Element count: 4 | Element length: L250 | Port: 25A (1B) JIS 10K FF
FGAC04A-14Wetted material: SS400 | Element count: 4 | Element length: L250 | Port: 40A (1 1/2B) JIS 10K FF
FGAC04A-20Wetted material: SS400 | Element count: 4 | Element length: L250 | Port: 50A (2B) JIS 10K FF
FGAC04B-10Wetted material: SS400 | Element count: 4 | Element length: L500 | Port: 25A (1B) JIS 10K FF
FGAC04B-14Wetted material: SS400 | Element count: 4 | Element length: L500 | Port: 40A (1 1/2B) JIS 10K FF
FGAC04B-20Wetted material: SS400 | Element count: 4 | Element length: L500 | Port: 50A (2B) JIS 10K FF
FGAC04C-10Wetted material: SS400 | Element count: 4 | Element length: L750 | Port: 25A (1B) JIS 10K FF
FGAC04C-14Wetted material: SS400 | Element count: 4 | Element length: L750 | Port: 40A (1 1/2B) JIS 10K FF
FGAC04C-20Wetted material: SS400 | Element count: 4 | Element length: L750 | Port: 50A (2B) JIS 10K FF
FGAC04D-10Wetted material: SS400 | Element count: 4 | Element length: L1000 | Port: 25A (1B) JIS 10K FF
FGAC04D-14Wetted material: SS400 | Element count: 4 | Element length: L1000 | Port: 40A (1 1/2B) JIS 10K FF
FGAC04D-20Wetted material: SS400 | Element count: 4 | Element length: L1000 | Port: 50A (2B) JIS 10K FF
FGAC07B-10Wetted material: SS400 | Element count: 7 | Element length: L500 | Port: 25A (1B) JIS 10K FF
FGAC07B-14Wetted material: SS400 | Element count: 7 | Element length: L500 | Port: 40A (1 1/2B) JIS 10K FF
FGAC07B-20Wetted material: SS400 | Element count: 7 | Element length: L500 | Port: 50A (2B) JIS 10K FF
FGAC07C-10Wetted material: SS400 | Element count: 7 | Element length: L750 | Port: 25A (1B) JIS 10K FF
FGAC07C-14Wetted material: SS400 | Element count: 7 | Element length: L750 | Port: 40A (1 1/2B) JIS 10K FF
FGAC07C-20Wetted material: SS400 | Element count: 7 | Element length: L750 | Port: 50A (2B) JIS 10K FF
FGAC07D-10Wetted material: SS400 | Element count: 7 | Element length: L1000 | Port: 25A (1B) JIS 10K FF
FGAC07D-14Wetted material: SS400 | Element count: 7 | Element length: L1000 | Port: 40A (1 1/2B) JIS 10K FF
FGAC07D-20Wetted material: SS400 | Element count: 7 | Element length: L1000 | Port: 50A (2B) JIS 10K FF
FGAC09B-14Wetted material: SS400 | Element count: 9 | Element length: L500 | Port: 40A (1 1/2B) JIS 10K FF
FGAC09B-20Wetted material: SS400 | Element count: 9 | Element length: L500 | Port: 50A (2B) JIS 10K FF
FGAC09B-24Wetted material: SS400 | Element count: 9 | Element length: L500 | Port: 65A (2 1/2B) JIS 10K FF
FGAC09C-14Wetted material: SS400 | Element count: 9 | Element length: L750 | Port: 40A (1 1/2B) JIS 10K FF
FGAC09C-20Wetted material: SS400 | Element count: 9 | Element length: L750 | Port: 50A (2B) JIS 10K FF
FGAC09C-24Wetted material: SS400 | Element count: 9 | Element length: L750 | Port: 65A (2 1/2B) JIS 10K FF
FGAC09D-14Wetted material: SS400 | Element count: 9 | Element length: L1000 | Port: 40A (1 1/2B) JIS 10K FF
FGAC09D-20Wetted material: SS400 | Element count: 9 | Element length: L1000 | Port: 50A (2B) JIS 10K FF
FGAC09D-24Wetted material: SS400 | Element count: 9 | Element length: L1000 | Port: 65A (2 1/2B) JIS 10K FF
FGAC18B-24Wetted material: SS400 | Element count: 18 | Element length: L500 | Port: 65A (2 1/2B) JIS 10K FF
FGAC18B-30Wetted material: SS400 | Element count: 18 | Element length: L500 | Port: 80A (3B) JIS 10K FF
FGAC18B-40Wetted material: SS400 | Element count: 18 | Element length: L500 | Port: 100A (4B) JIS 10K FF
FGAC18C-24Wetted material: SS400 | Element count: 18 | Element length: L750 | Port: 65A (2 1/2B) JIS 10K FF
FGAC18C-30Wetted material: SS400 | Element count: 18 | Element length: L750 | Port: 80A (3B) JIS 10K FF
FGAC18C-40Wetted material: SS400 | Element count: 18 | Element length: L750 | Port: 100A (4B) JIS 10K FF
FGAC18D-24Wetted material: SS400 | Element count: 18 | Element length: L1000 | Port: 65A (2 1/2B) JIS 10K FF
FGAC18D-30Wetted material: SS400 | Element count: 18 | Element length: L1000 | Port: 80A (3B) JIS 10K FF
FGAC18D-40Wetted material: SS400 | Element count: 18 | Element length: L1000 | Port: 100A (4B) JIS 10K FF
FGAC22B-24Wetted material: SS400 | Element count: 22 | Element length: L500 | Port: 65A (2 1/2B) JIS 10K FF
FGAC22B-30Wetted material: SS400 | Element count: 22 | Element length: L500 | Port: 80A (3B) JIS 10K FF
FGAC22B-40Wetted material: SS400 | Element count: 22 | Element length: L500 | Port: 100A (4B) JIS 10K FF
FGAC22C-24Wetted material: SS400 | Element count: 22 | Element length: L750 | Port: 65A (2 1/2B) JIS 10K FF
FGAC22C-30Wetted material: SS400 | Element count: 22 | Element length: L750 | Port: 80A (3B) JIS 10K FF
FGAC22C-40Wetted material: SS400 | Element count: 22 | Element length: L750 | Port: 100A (4B) JIS 10K FF
FGAC22D-24Wetted material: SS400 | Element count: 22 | Element length: L1000 | Port: 65A (2 1/2B) JIS 10K FF
FGAC22D-30Wetted material: SS400 | Element count: 22 | Element length: L1000 | Port: 80A (3B) JIS 10K FF
FGAC22D-40Wetted material: SS400 | Element count: 22 | Element length: L1000 | Port: 100A (4B) JIS 10K FF
FGAC29B-30Wetted material: SS400 | Element count: 29 | Element length: L500 | Port: 80A (3B) JIS 10K FF
FGAC29B-40Wetted material: SS400 | Element count: 29 | Element length: L500 | Port: 100A (4B) JIS 10K FF
FGAC29B-60Wetted material: SS400 | Element count: 29 | Element length: L500 | Port: 150A (6B) JIS 10K FF
FGAC29C-30Wetted material: SS400 | Element count: 29 | Element length: L750 | Port: 80A (3B) JIS 10K FF
FGAC29C-40Wetted material: SS400 | Element count: 29 | Element length: L750 | Port: 100A (4B) JIS 10K FF
FGAC29C-60Wetted material: SS400 | Element count: 29 | Element length: L750 | Port: 150A (6B) JIS 10K FF
FGAC29D-30Wetted material: SS400 | Element count: 29 | Element length: L1000 | Port: 80A (3B) JIS 10K FF
FGAC29D-40Wetted material: SS400 | Element count: 29 | Element length: L1000 | Port: 100A (4B) JIS 10K FF
FGAC29D-60Wetted material: SS400 | Element count: 29 | Element length: L1000 | Port: 150A (6B) JIS 10K FF
FGAC34C-30Wetted material: SS400 | Element count: 34 | Element length: L750 | Port: 80A (3B) JIS 10K FF
FGAC34C-40Wetted material: SS400 | Element count: 34 | Element length: L750 | Port: 100A (4B) JIS 10K FF
FGAC34C-60Wetted material: SS400 | Element count: 34 | Element length: L750 | Port: 150A (6B) JIS 10K FF
FGAC34D-30Wetted material: SS400 | Element count: 34 | Element length: L1000 | Port: 80A (3B) JIS 10K FF
FGAC34D-40Wetted material: SS400 | Element count: 34 | Element length: L1000 | Port: 100A (4B) JIS 10K FF
FGAC34D-60Wetted material: SS400 | Element count: 34 | Element length: L1000 | Port: 150A (6B) JIS 10K FF
FGAC37C-30Wetted material: SS400 | Element count: 37 | Element length: L750 | Port: 80A (3B) JIS 10K FF
FGAC37C-40Wetted material: SS400 | Element count: 37 | Element length: L750 | Port: 100A (4B) JIS 10K FF
FGAC37C-60Wetted material: SS400 | Element count: 37 | Element length: L750 | Port: 150A (6B) JIS 10K FF
FGAC37D-30Wetted material: SS400 | Element count: 37 | Element length: L1000 | Port: 80A (3B) JIS 10K FF
FGAC37D-40Wetted material: SS400 | Element count: 37 | Element length: L1000 | Port: 100A (4B) JIS 10K FF
FGAC37D-60Wetted material: SS400 | Element count: 37 | Element length: L1000 | Port: 150A (6B) JIS 10K FF
FGAS04A-10Wetted material: SUS304 | Element count: 4 | Element length: L250 | Port: 25A (1B) JIS 10K FF
FGAS04A-14Wetted material: SUS304 | Element count: 4 | Element length: L250 | Port: 40A (1 1/2B) JIS 10K FF
FGAS04A-20Wetted material: SUS304 | Element count: 4 | Element length: L250 | Port: 50A (2B) JIS 10K FF
FGAS04B-10Wetted material: SUS304 | Element count: 4 | Element length: L500 | Port: 25A (1B) JIS 10K FF
FGAS04B-14Wetted material: SUS304 | Element count: 4 | Element length: L500 | Port: 40A (1 1/2B) JIS 10K FF
FGAS04B-20Wetted material: SUS304 | Element count: 4 | Element length: L500 | Port: 50A (2B) JIS 10K FF
FGAS04C-10Wetted material: SUS304 | Element count: 4 | Element length: L750 | Port: 25A (1B) JIS 10K FF
FGAS04C-14Wetted material: SUS304 | Element count: 4 | Element length: L750 | Port: 40A (1 1/2B) JIS 10K FF
FGAS04C-20Wetted material: SUS304 | Element count: 4 | Element length: L750 | Port: 50A (2B) JIS 10K FF
FGAS04D-10Wetted material: SUS304 | Element count: 4 | Element length: L1000 | Port: 25A (1B) JIS 10K FF
FGAS04D-14Wetted material: SUS304 | Element count: 4 | Element length: L1000 | Port: 40A (1 1/2B) JIS 10K FF
FGAS04D-20Wetted material: SUS304 | Element count: 4 | Element length: L1000 | Port: 50A (2B) JIS 10K FF
FGAS07B-10Wetted material: SUS304 | Element count: 7 | Element length: L500 | Port: 25A (1B) JIS 10K FF
FGAS07B-14Wetted material: SUS304 | Element count: 7 | Element length: L500 | Port: 40A (1 1/2B) JIS 10K FF
FGAS07B-20Wetted material: SUS304 | Element count: 7 | Element length: L500 | Port: 50A (2B) JIS 10K FF
FGAS07C-10Wetted material: SUS304 | Element count: 7 | Element length: L750 | Port: 25A (1B) JIS 10K FF
FGAS07C-14Wetted material: SUS304 | Element count: 7 | Element length: L750 | Port: 40A (1 1/2B) JIS 10K FF
FGAS07C-20Wetted material: SUS304 | Element count: 7 | Element length: L750 | Port: 50A (2B) JIS 10K FF
FGAS07D-10Wetted material: SUS304 | Element count: 7 | Element length: L1000 | Port: 25A (1B) JIS 10K FF
FGAS07D-14Wetted material: SUS304 | Element count: 7 | Element length: L1000 | Port: 40A (1 1/2B) JIS 10K FF
FGAS07D-20Wetted material: SUS304 | Element count: 7 | Element length: L1000 | Port: 50A (2B) JIS 10K FF
FGAS09B-14Wetted material: SUS304 | Element count: 9 | Element length: L500 | Port: 40A (1 1/2B) JIS 10K FF
FGAS09B-20Wetted material: SUS304 | Element count: 9 | Element length: L500 | Port: 50A (2B) JIS 10K FF
FGAS09B-24Wetted material: SUS304 | Element count: 9 | Element length: L500 | Port: 65A (2 1/2B) JIS 10K FF
FGAS09C-14Wetted material: SUS304 | Element count: 9 | Element length: L750 | Port: 40A (1 1/2B) JIS 10K FF
FGAS09C-20Wetted material: SUS304 | Element count: 9 | Element length: L750 | Port: 50A (2B) JIS 10K FF
FGAS09C-24Wetted material: SUS304 | Element count: 9 | Element length: L750 | Port: 65A (2 1/2B) JIS 10K FF
FGAS09D-14Wetted material: SUS304 | Element count: 9 | Element length: L1000 | Port: 40A (1 1/2B) JIS 10K FF
FGAS09D-20Wetted material: SUS304 | Element count: 9 | Element length: L1000 | Port: 50A (2B) JIS 10K FF
FGAS09D-24Wetted material: SUS304 | Element count: 9 | Element length: L1000 | Port: 65A (2 1/2B) JIS 10K FF
FGAS18B-24Wetted material: SUS304 | Element count: 18 | Element length: L500 | Port: 65A (2 1/2B) JIS 10K FF
FGAS18B-30Wetted material: SUS304 | Element count: 18 | Element length: L500 | Port: 80A (3B) JIS 10K FF
FGAS18B-40Wetted material: SUS304 | Element count: 18 | Element length: L500 | Port: 100A (4B) JIS 10K FF
FGAS18C-24Wetted material: SUS304 | Element count: 18 | Element length: L750 | Port: 65A (2 1/2B) JIS 10K FF
FGAS18C-30Wetted material: SUS304 | Element count: 18 | Element length: L750 | Port: 80A (3B) JIS 10K FF
FGAS18C-40Wetted material: SUS304 | Element count: 18 | Element length: L750 | Port: 100A (4B) JIS 10K FF
FGAS18D-24Wetted material: SUS304 | Element count: 18 | Element length: L1000 | Port: 65A (2 1/2B) JIS 10K FF
FGAS18D-30Wetted material: SUS304 | Element count: 18 | Element length: L1000 | Port: 80A (3B) JIS 10K FF
FGAS18D-40Wetted material: SUS304 | Element count: 18 | Element length: L1000 | Port: 100A (4B) JIS 10K FF
FGAS22B-24Wetted material: SUS304 | Element count: 22 | Element length: L500 | Port: 65A (2 1/2B) JIS 10K FF
FGAS22B-30Wetted material: SUS304 | Element count: 22 | Element length: L500 | Port: 80A (3B) JIS 10K FF
FGAS22B-40Wetted material: SUS304 | Element count: 22 | Element length: L500 | Port: 100A (4B) JIS 10K FF
FGAS22C-24Wetted material: SUS304 | Element count: 22 | Element length: L750 | Port: 65A (2 1/2B) JIS 10K FF
FGAS22C-30Wetted material: SUS304 | Element count: 22 | Element length: L750 | Port: 80A (3B) JIS 10K FF
FGAS22C-40Wetted material: SUS304 | Element count: 22 | Element length: L750 | Port: 100A (4B) JIS 10K FF
FGAS22D-24Wetted material: SUS304 | Element count: 22 | Element length: L1000 | Port: 65A (2 1/2B) JIS 10K FF
FGAS22D-30Wetted material: SUS304 | Element count: 22 | Element length: L1000 | Port: 80A (3B) JIS 10K FF
FGAS22D-40Wetted material: SUS304 | Element count: 22 | Element length: L1000 | Port: 100A (4B) JIS 10K FF
FGAS29B-30Wetted material: SUS304 | Element count: 29 | Element length: L500 | Port: 80A (3B) JIS 10K FF
FGAS29B-40Wetted material: SUS304 | Element count: 29 | Element length: L500 | Port: 100A (4B) JIS 10K FF
FGAS29B-60Wetted material: SUS304 | Element count: 29 | Element length: L500 | Port: 150A (6B) JIS 10K FF
FGAS29C-30Wetted material: SUS304 | Element count: 29 | Element length: L750 | Port: 80A (3B) JIS 10K FF
FGAS29C-40Wetted material: SUS304 | Element count: 29 | Element length: L750 | Port: 100A (4B) JIS 10K FF
FGAS29C-60Wetted material: SUS304 | Element count: 29 | Element length: L750 | Port: 150A (6B) JIS 10K FF
FGAS29D-30Wetted material: SUS304 | Element count: 29 | Element length: L1000 | Port: 80A (3B) JIS 10K FF
FGAS29D-40Wetted material: SUS304 | Element count: 29 | Element length: L1000 | Port: 100A (4B) JIS 10K FF
FGAS29D-60Wetted material: SUS304 | Element count: 29 | Element length: L1000 | Port: 150A (6B) JIS 10K FF
FGAS34C-30Wetted material: SUS304 | Element count: 34 | Element length: L750 | Port: 80A (3B) JIS 10K FF
FGAS34C-40Wetted material: SUS304 | Element count: 34 | Element length: L750 | Port: 100A (4B) JIS 10K FF
FGAS34C-60Wetted material: SUS304 | Element count: 34 | Element length: L750 | Port: 150A (6B) JIS 10K FF
FGAS34D-30Wetted material: SUS304 | Element count: 34 | Element length: L1000 | Port: 80A (3B) JIS 10K FF
FGAS34D-40Wetted material: SUS304 | Element count: 34 | Element length: L1000 | Port: 100A (4B) JIS 10K FF
FGAS34D-60Wetted material: SUS304 | Element count: 34 | Element length: L1000 | Port: 150A (6B) JIS 10K FF
FGAS37C-30Wetted material: SUS304 | Element count: 37 | Element length: L750 | Port: 80A (3B) JIS 10K FF
FGAS37C-40Wetted material: SUS304 | Element count: 37 | Element length: L750 | Port: 100A (4B) JIS 10K FF
FGAS37C-60Wetted material: SUS304 | Element count: 37 | Element length: L750 | Port: 150A (6B) JIS 10K FF
FGAS37D-30Wetted material: SUS304 | Element count: 37 | Element length: L1000 | Port: 80A (3B) JIS 10K FF
FGAS37D-40Wetted material: SUS304 | Element count: 37 | Element length: L1000 | Port: 100A (4B) JIS 10K FF
FGAS37D-60Wetted material: SUS304 | Element count: 37 | Element length: L1000 | Port: 150A (6B) JIS 10K FF

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Hydraulics →
