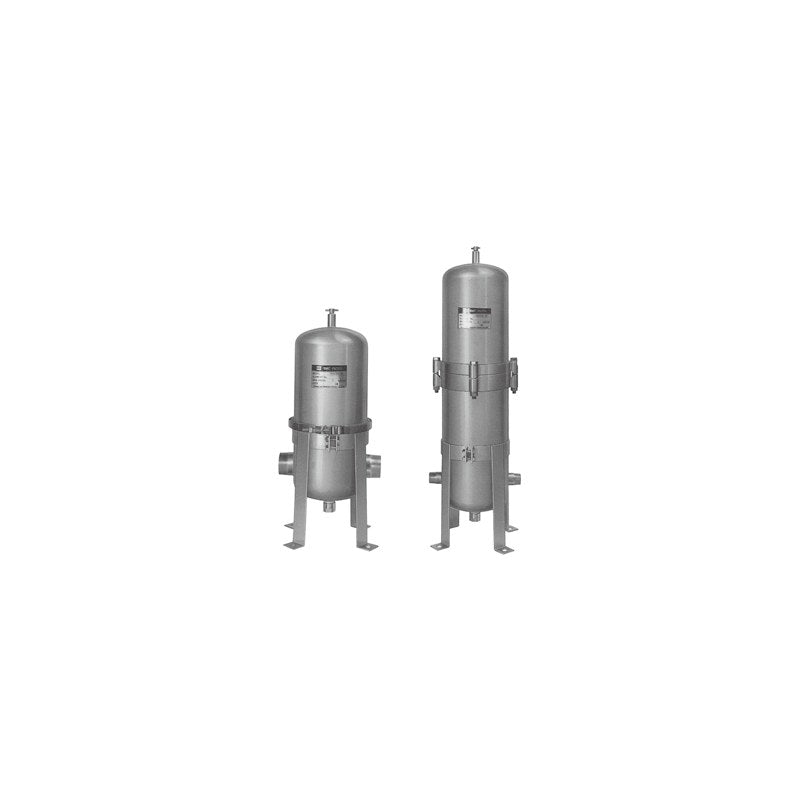

SMC FGC High Pressure Industrial Filter Vessel (Made to Order)

SMC FGC High Pressure Industrial Filter Vessel (Made to Order)

SMC FGC series made-to-order stand-type filter vessel for small-flow, high-pressure fluid filtration (1, 2 or 4 MPa, up to approx. 80 L/min).

Key features

  • For high-pressure fluid filtration at 1, 2 or 4 MPa
  • Accepts sintered metal, paper, fiber or micro mesh ø65 elements
  • Stand-type structure minimises filtrate loss; easy element replacement
  • Flanges: JIS 10K FF (FGC1), JPI 300Lb RF (FGC2), JPI 600Lb RF (FGC4)
  • Complete filter code adds element class, filtration and packing symbols (see FG element listing)

Specifications

Max. temperature 80°C
Max. flow Approx. 80 L/min
Gasket Non-asbestos
Gas service FGC1 only
Element size ø65 x L250 or L500
Delivery Made to order
Note Not subject to the High Pressure Gas Safety Act
Source SMC Korea catalog FG (SMCKR_FGA-B-C-D-E-G.pdf), p. 38-40 (PDF p. 20-22)
FGC1CA-04 Pressure / flange: 1 MPa, JIS 10K FF | Wetted material: SGP | Element length: L250 | Port: 15A (1/2B)
FGC1CA-06 Pressure / flange: 1 MPa, JIS 10K FF | Wetted material: SGP | Element length: L250 | Port: 20A (3/4B)
FGC1CA-10 Pressure / flange: 1 MPa, JIS 10K FF | Wetted material: SGP | Element length: L250 | Port: 25A (1B)
FGC1CB-04 Pressure / flange: 1 MPa, JIS 10K FF | Wetted material: SGP | Element length: L500 (L250 x 2) | Port: 15A (1/2B)
FGC1CB-06 Pressure / flange: 1 MPa, JIS 10K FF | Wetted material: SGP | Element length: L500 (L250 x 2) | Port: 20A (3/4B)
FGC1CB-10 Pressure / flange: 1 MPa, JIS 10K FF | Wetted material: SGP | Element length: L500 (L250 x 2) | Port: 25A (1B)
FGC1SA-04 Pressure / flange: 1 MPa, JIS 10K FF | Wetted material: SUS304 | Element length: L250 | Port: 15A (1/2B)
FGC1SA-06 Pressure / flange: 1 MPa, JIS 10K FF | Wetted material: SUS304 | Element length: L250 | Port: 20A (3/4B)
FGC1SA-10 Pressure / flange: 1 MPa, JIS 10K FF | Wetted material: SUS304 | Element length: L250 | Port: 25A (1B)
FGC1SB-04 Pressure / flange: 1 MPa, JIS 10K FF | Wetted material: SUS304 | Element length: L500 (L250 x 2) | Port: 15A (1/2B)
FGC1SB-06 Pressure / flange: 1 MPa, JIS 10K FF | Wetted material: SUS304 | Element length: L500 (L250 x 2) | Port: 20A (3/4B)
FGC1SB-10 Pressure / flange: 1 MPa, JIS 10K FF | Wetted material: SUS304 | Element length: L500 (L250 x 2) | Port: 25A (1B)
FGC2CA-04 Pressure / flange: 2 MPa, JPI 300Lb RF | Wetted material: SGP | Element length: L250 | Port: 15A (1/2B)
FGC2CA-06 Pressure / flange: 2 MPa, JPI 300Lb RF | Wetted material: SGP | Element length: L250 | Port: 20A (3/4B)
FGC2CA-10 Pressure / flange: 2 MPa, JPI 300Lb RF | Wetted material: SGP | Element length: L250 | Port: 25A (1B)
FGC2CB-04 Pressure / flange: 2 MPa, JPI 300Lb RF | Wetted material: SGP | Element length: L500 (L250 x 2) | Port: 15A (1/2B)
FGC2CB-06 Pressure / flange: 2 MPa, JPI 300Lb RF | Wetted material: SGP | Element length: L500 (L250 x 2) | Port: 20A (3/4B)
FGC2CB-10 Pressure / flange: 2 MPa, JPI 300Lb RF | Wetted material: SGP | Element length: L500 (L250 x 2) | Port: 25A (1B)
FGC2SA-04 Pressure / flange: 2 MPa, JPI 300Lb RF | Wetted material: SUS304 | Element length: L250 | Port: 15A (1/2B)
FGC2SA-06 Pressure / flange: 2 MPa, JPI 300Lb RF | Wetted material: SUS304 | Element length: L250 | Port: 20A (3/4B)
FGC2SA-10 Pressure / flange: 2 MPa, JPI 300Lb RF | Wetted material: SUS304 | Element length: L250 | Port: 25A (1B)
FGC2SB-04 Pressure / flange: 2 MPa, JPI 300Lb RF | Wetted material: SUS304 | Element length: L500 (L250 x 2) | Port: 15A (1/2B)
FGC2SB-06 Pressure / flange: 2 MPa, JPI 300Lb RF | Wetted material: SUS304 | Element length: L500 (L250 x 2) | Port: 20A (3/4B)
FGC2SB-10 Pressure / flange: 2 MPa, JPI 300Lb RF | Wetted material: SUS304 | Element length: L500 (L250 x 2) | Port: 25A (1B)
FGC4CA-04 Pressure / flange: 4 MPa, JPI 600Lb RF | Wetted material: SGP | Element length: L250 | Port: 15A (1/2B)
FGC4CA-06 Pressure / flange: 4 MPa, JPI 600Lb RF | Wetted material: SGP | Element length: L250 | Port: 20A (3/4B)
FGC4CA-10 Pressure / flange: 4 MPa, JPI 600Lb RF | Wetted material: SGP | Element length: L250 | Port: 25A (1B)
FGC4CB-04 Pressure / flange: 4 MPa, JPI 600Lb RF | Wetted material: SGP | Element length: L500 (L250 x 2) | Port: 15A (1/2B)
FGC4CB-06 Pressure / flange: 4 MPa, JPI 600Lb RF | Wetted material: SGP | Element length: L500 (L250 x 2) | Port: 20A (3/4B)
FGC4CB-10 Pressure / flange: 4 MPa, JPI 600Lb RF | Wetted material: SGP | Element length: L500 (L250 x 2) | Port: 25A (1B)
FGC4SA-04 Pressure / flange: 4 MPa, JPI 600Lb RF | Wetted material: SUS304 | Element length: L250 | Port: 15A (1/2B)
FGC4SA-06 Pressure / flange: 4 MPa, JPI 600Lb RF | Wetted material: SUS304 | Element length: L250 | Port: 20A (3/4B)
FGC4SA-10 Pressure / flange: 4 MPa, JPI 600Lb RF | Wetted material: SUS304 | Element length: L250 | Port: 25A (1B)
FGC4SB-04 Pressure / flange: 4 MPa, JPI 600Lb RF | Wetted material: SUS304 | Element length: L500 (L250 x 2) | Port: 15A (1/2B)
FGC4SB-06 Pressure / flange: 4 MPa, JPI 600Lb RF | Wetted material: SUS304 | Element length: L500 (L250 x 2) | Port: 20A (3/4B)
FGC4SB-10 Pressure / flange: 4 MPa, JPI 600Lb RF | Wetted material: SUS304 | Element length: L500 (L250 x 2) | Port: 25A (1B)
Industrial FiltersSMC
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC FGC High Pressure Industrial Filter Vessel (Made to Order)

Brand SMC·Industrial Filters

Available part numbers (36)

FGC1CA-04, FGC1CA-06, FGC1CA-10, FGC1CB-04, FGC1CB-06, FGC1CB-10, FGC1SA-04, FGC1SA-06, FGC1SA-10, FGC1SB-04 + 26 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FGC1CA-04Pressure / flange: 1 MPa, JIS 10K FF | Wetted material: SGP | Element length: L250 | Port: 15A (1/2B)
FGC1CA-06Pressure / flange: 1 MPa, JIS 10K FF | Wetted material: SGP | Element length: L250 | Port: 20A (3/4B)
FGC1CA-10Pressure / flange: 1 MPa, JIS 10K FF | Wetted material: SGP | Element length: L250 | Port: 25A (1B)
FGC1CB-04Pressure / flange: 1 MPa, JIS 10K FF | Wetted material: SGP | Element length: L500 (L250 x 2) | Port: 15A (1/2B)
FGC1CB-06Pressure / flange: 1 MPa, JIS 10K FF | Wetted material: SGP | Element length: L500 (L250 x 2) | Port: 20A (3/4B)
FGC1CB-10Pressure / flange: 1 MPa, JIS 10K FF | Wetted material: SGP | Element length: L500 (L250 x 2) | Port: 25A (1B)
FGC1SA-04Pressure / flange: 1 MPa, JIS 10K FF | Wetted material: SUS304 | Element length: L250 | Port: 15A (1/2B)
FGC1SA-06Pressure / flange: 1 MPa, JIS 10K FF | Wetted material: SUS304 | Element length: L250 | Port: 20A (3/4B)
FGC1SA-10Pressure / flange: 1 MPa, JIS 10K FF | Wetted material: SUS304 | Element length: L250 | Port: 25A (1B)
FGC1SB-04Pressure / flange: 1 MPa, JIS 10K FF | Wetted material: SUS304 | Element length: L500 (L250 x 2) | Port: 15A (1/2B)
FGC1SB-06Pressure / flange: 1 MPa, JIS 10K FF | Wetted material: SUS304 | Element length: L500 (L250 x 2) | Port: 20A (3/4B)
FGC1SB-10Pressure / flange: 1 MPa, JIS 10K FF | Wetted material: SUS304 | Element length: L500 (L250 x 2) | Port: 25A (1B)
FGC2CA-04Pressure / flange: 2 MPa, JPI 300Lb RF | Wetted material: SGP | Element length: L250 | Port: 15A (1/2B)
FGC2CA-06Pressure / flange: 2 MPa, JPI 300Lb RF | Wetted material: SGP | Element length: L250 | Port: 20A (3/4B)
FGC2CA-10Pressure / flange: 2 MPa, JPI 300Lb RF | Wetted material: SGP | Element length: L250 | Port: 25A (1B)
FGC2CB-04Pressure / flange: 2 MPa, JPI 300Lb RF | Wetted material: SGP | Element length: L500 (L250 x 2) | Port: 15A (1/2B)
FGC2CB-06Pressure / flange: 2 MPa, JPI 300Lb RF | Wetted material: SGP | Element length: L500 (L250 x 2) | Port: 20A (3/4B)
FGC2CB-10Pressure / flange: 2 MPa, JPI 300Lb RF | Wetted material: SGP | Element length: L500 (L250 x 2) | Port: 25A (1B)
FGC2SA-04Pressure / flange: 2 MPa, JPI 300Lb RF | Wetted material: SUS304 | Element length: L250 | Port: 15A (1/2B)
FGC2SA-06Pressure / flange: 2 MPa, JPI 300Lb RF | Wetted material: SUS304 | Element length: L250 | Port: 20A (3/4B)
FGC2SA-10Pressure / flange: 2 MPa, JPI 300Lb RF | Wetted material: SUS304 | Element length: L250 | Port: 25A (1B)
FGC2SB-04Pressure / flange: 2 MPa, JPI 300Lb RF | Wetted material: SUS304 | Element length: L500 (L250 x 2) | Port: 15A (1/2B)
FGC2SB-06Pressure / flange: 2 MPa, JPI 300Lb RF | Wetted material: SUS304 | Element length: L500 (L250 x 2) | Port: 20A (3/4B)
FGC2SB-10Pressure / flange: 2 MPa, JPI 300Lb RF | Wetted material: SUS304 | Element length: L500 (L250 x 2) | Port: 25A (1B)
FGC4CA-04Pressure / flange: 4 MPa, JPI 600Lb RF | Wetted material: SGP | Element length: L250 | Port: 15A (1/2B)
FGC4CA-06Pressure / flange: 4 MPa, JPI 600Lb RF | Wetted material: SGP | Element length: L250 | Port: 20A (3/4B)
FGC4CA-10Pressure / flange: 4 MPa, JPI 600Lb RF | Wetted material: SGP | Element length: L250 | Port: 25A (1B)
FGC4CB-04Pressure / flange: 4 MPa, JPI 600Lb RF | Wetted material: SGP | Element length: L500 (L250 x 2) | Port: 15A (1/2B)
FGC4CB-06Pressure / flange: 4 MPa, JPI 600Lb RF | Wetted material: SGP | Element length: L500 (L250 x 2) | Port: 20A (3/4B)
FGC4CB-10Pressure / flange: 4 MPa, JPI 600Lb RF | Wetted material: SGP | Element length: L500 (L250 x 2) | Port: 25A (1B)
FGC4SA-04Pressure / flange: 4 MPa, JPI 600Lb RF | Wetted material: SUS304 | Element length: L250 | Port: 15A (1/2B)
FGC4SA-06Pressure / flange: 4 MPa, JPI 600Lb RF | Wetted material: SUS304 | Element length: L250 | Port: 20A (3/4B)
FGC4SA-10Pressure / flange: 4 MPa, JPI 600Lb RF | Wetted material: SUS304 | Element length: L250 | Port: 25A (1B)
FGC4SB-04Pressure / flange: 4 MPa, JPI 600Lb RF | Wetted material: SUS304 | Element length: L500 (L250 x 2) | Port: 15A (1/2B)
FGC4SB-06Pressure / flange: 4 MPa, JPI 600Lb RF | Wetted material: SUS304 | Element length: L500 (L250 x 2) | Port: 20A (3/4B)
FGC4SB-10Pressure / flange: 4 MPa, JPI 600Lb RF | Wetted material: SUS304 | Element length: L500 (L250 x 2) | Port: 25A (1B)
