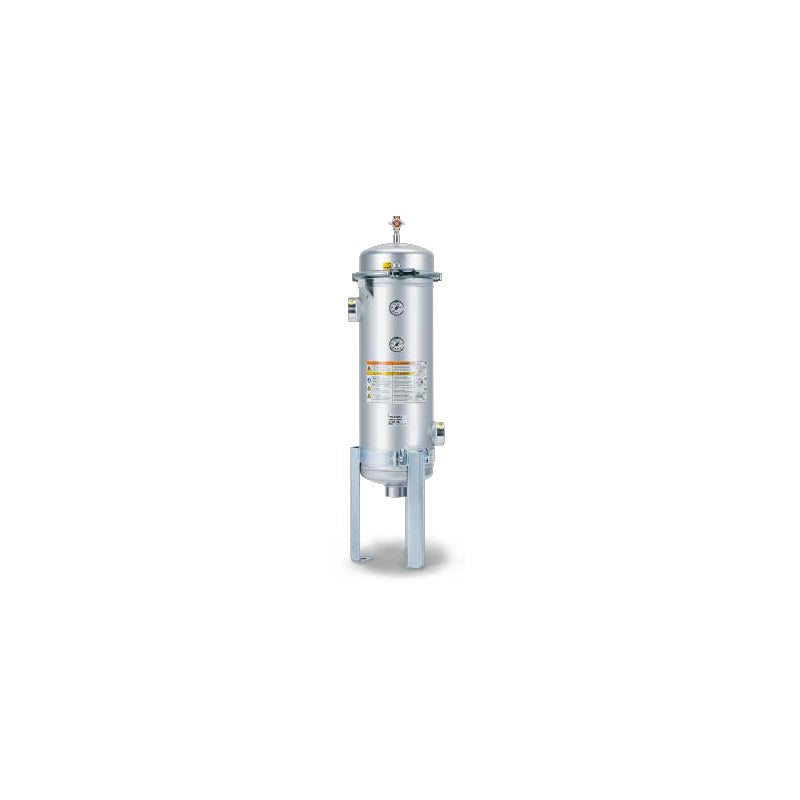

SMC FGF Bag Filter (1, 3 and 5 Bag Vessels, Bag Elements)

SMC FGF Bag Filter (1, 3 and 5 Bag Vessels, Bag Elements)

SMC FGF series bag filter for large-flow liquid filtration of coolants, cleaning fluids, cutting oil and industrial water, with polyester bag elements.

Key features

  • Large-flow filtration: approx. 400 L/min (FGF1), 1200 L/min (FGF3), 2000 L/min (FGF5)
  • Band (V-band) lid with lock mechanism; FGF1 lighter than previous model (13 kg, 32% reduction)
  • Body can be lifted off the legs for easier drain and OUT piping work
  • Polyester bag elements 5, 10, 25, 50, 100 um; replacement bags EJ501S (L440) and EJ601S (L770)
  • Options: pressure gauge (G, FGF1), flange connection (F, FGF3/5), foundation bolts (L)

Specifications

Max. operating pressure 0.5 MPa
Max. temperature 80°C
Fluid Water-based coolant, weak alkaline cleaner, industrial water, oil coolant
Element material Polyester
Element change pressure 0.1 MPa
FGF3 / FGF5 Made to order
Options (not listed) -G gauge, F flange, L foundation bolts
Source SMC Korea catalog FGF (SMCKR_FGF.pdf), p. 43-60 (PDF p. 5-11)
FGFS1A-20-E005B Body: Stainless steel, NBR | Bags: 1 x ø190 x L440 | Port: Rc2 | Filtration: 5 um
FGFS1A-20-E010B Body: Stainless steel, NBR | Bags: 1 x ø190 x L440 | Port: Rc2 | Filtration: 10 um
FGFS1A-20-E025B Body: Stainless steel, NBR | Bags: 1 x ø190 x L440 | Port: Rc2 | Filtration: 25 um
FGFS1A-20-E050B Body: Stainless steel, NBR | Bags: 1 x ø190 x L440 | Port: Rc2 | Filtration: 50 um
FGFS1A-20-E100B Body: Stainless steel, NBR | Bags: 1 x ø190 x L440 | Port: Rc2 | Filtration: 100 um
FGFS1B-20-E005B Body: Stainless steel, NBR | Bags: 1 x ø190 x L770 | Port: Rc2 | Filtration: 5 um
FGFS1B-20-E010B Body: Stainless steel, NBR | Bags: 1 x ø190 x L770 | Port: Rc2 | Filtration: 10 um
FGFS1B-20-E025B Body: Stainless steel, NBR | Bags: 1 x ø190 x L770 | Port: Rc2 | Filtration: 25 um
FGFS1B-20-E050B Body: Stainless steel, NBR | Bags: 1 x ø190 x L770 | Port: Rc2 | Filtration: 50 um
FGFS1B-20-E100B Body: Stainless steel, NBR | Bags: 1 x ø190 x L770 | Port: Rc2 | Filtration: 100 um
FGFL1A-20-E005B Body: Stainless steel, FKM | Bags: 1 x ø190 x L440 | Port: Rc2 | Filtration: 5 um
FGFL1A-20-E010B Body: Stainless steel, FKM | Bags: 1 x ø190 x L440 | Port: Rc2 | Filtration: 10 um
FGFL1A-20-E025B Body: Stainless steel, FKM | Bags: 1 x ø190 x L440 | Port: Rc2 | Filtration: 25 um
FGFL1A-20-E050B Body: Stainless steel, FKM | Bags: 1 x ø190 x L440 | Port: Rc2 | Filtration: 50 um
FGFL1A-20-E100B Body: Stainless steel, FKM | Bags: 1 x ø190 x L440 | Port: Rc2 | Filtration: 100 um
FGFL1B-20-E005B Body: Stainless steel, FKM | Bags: 1 x ø190 x L770 | Port: Rc2 | Filtration: 5 um
FGFL1B-20-E010B Body: Stainless steel, FKM | Bags: 1 x ø190 x L770 | Port: Rc2 | Filtration: 10 um
FGFL1B-20-E025B Body: Stainless steel, FKM | Bags: 1 x ø190 x L770 | Port: Rc2 | Filtration: 25 um
FGFL1B-20-E050B Body: Stainless steel, FKM | Bags: 1 x ø190 x L770 | Port: Rc2 | Filtration: 50 um
FGFL1B-20-E100B Body: Stainless steel, FKM | Bags: 1 x ø190 x L770 | Port: Rc2 | Filtration: 100 um
FGFS3A-40-E005 Body: Stainless steel, NBR | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 5 um
FGFS3A-40-E010 Body: Stainless steel, NBR | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 10 um
FGFS3A-40-E025 Body: Stainless steel, NBR | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 25 um
FGFS3A-40-E050 Body: Stainless steel, NBR | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 50 um
FGFS3A-40-E100 Body: Stainless steel, NBR | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 100 um
FGFS3B-40-E005 Body: Stainless steel, NBR | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 5 um
FGFS3B-40-E010 Body: Stainless steel, NBR | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 10 um
FGFS3B-40-E025 Body: Stainless steel, NBR | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 25 um
FGFS3B-40-E050 Body: Stainless steel, NBR | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 50 um
FGFS3B-40-E100 Body: Stainless steel, NBR | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 100 um
FGFS5A-60-E005 Body: Stainless steel, NBR | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 5 um
FGFS5A-60-E010 Body: Stainless steel, NBR | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 10 um
FGFS5A-60-E025 Body: Stainless steel, NBR | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 25 um
FGFS5A-60-E050 Body: Stainless steel, NBR | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 50 um
FGFS5A-60-E100 Body: Stainless steel, NBR | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 100 um
FGFS5B-60-E005 Body: Stainless steel, NBR | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 5 um
FGFS5B-60-E010 Body: Stainless steel, NBR | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 10 um
FGFS5B-60-E025 Body: Stainless steel, NBR | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 25 um
FGFS5B-60-E050 Body: Stainless steel, NBR | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 50 um
FGFS5B-60-E100 Body: Stainless steel, NBR | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 100 um
FGFC3A-40-E005 Body: Carbon steel, NBR | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 5 um
FGFC3A-40-E010 Body: Carbon steel, NBR | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 10 um
FGFC3A-40-E025 Body: Carbon steel, NBR | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 25 um
FGFC3A-40-E050 Body: Carbon steel, NBR | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 50 um
FGFC3A-40-E100 Body: Carbon steel, NBR | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 100 um
FGFC3B-40-E005 Body: Carbon steel, NBR | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 5 um
FGFC3B-40-E010 Body: Carbon steel, NBR | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 10 um
FGFC3B-40-E025 Body: Carbon steel, NBR | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 25 um
FGFC3B-40-E050 Body: Carbon steel, NBR | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 50 um
FGFC3B-40-E100 Body: Carbon steel, NBR | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 100 um
FGFC5A-60-E005 Body: Carbon steel, NBR | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 5 um
FGFC5A-60-E010 Body: Carbon steel, NBR | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 10 um
FGFC5A-60-E025 Body: Carbon steel, NBR | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 25 um
FGFC5A-60-E050 Body: Carbon steel, NBR | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 50 um
FGFC5A-60-E100 Body: Carbon steel, NBR | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 100 um
FGFC5B-60-E005 Body: Carbon steel, NBR | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 5 um
FGFC5B-60-E010 Body: Carbon steel, NBR | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 10 um
FGFC5B-60-E025 Body: Carbon steel, NBR | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 25 um
FGFC5B-60-E050 Body: Carbon steel, NBR | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 50 um
FGFC5B-60-E100 Body: Carbon steel, NBR | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 100 um
FGFL3A-40-E005 Body: Stainless steel, FKM | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 5 um
FGFL3A-40-E010 Body: Stainless steel, FKM | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 10 um
FGFL3A-40-E025 Body: Stainless steel, FKM | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 25 um
FGFL3A-40-E050 Body: Stainless steel, FKM | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 50 um
FGFL3A-40-E100 Body: Stainless steel, FKM | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 100 um
FGFL3B-40-E005 Body: Stainless steel, FKM | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 5 um
FGFL3B-40-E010 Body: Stainless steel, FKM | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 10 um
FGFL3B-40-E025 Body: Stainless steel, FKM | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 25 um
FGFL3B-40-E050 Body: Stainless steel, FKM | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 50 um
FGFL3B-40-E100 Body: Stainless steel, FKM | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 100 um
FGFL5A-60-E005 Body: Stainless steel, FKM | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 5 um
FGFL5A-60-E010 Body: Stainless steel, FKM | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 10 um
FGFL5A-60-E025 Body: Stainless steel, FKM | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 25 um
FGFL5A-60-E050 Body: Stainless steel, FKM | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 50 um
FGFL5A-60-E100 Body: Stainless steel, FKM | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 100 um
FGFL5B-60-E005 Body: Stainless steel, FKM | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 5 um
FGFL5B-60-E010 Body: Stainless steel, FKM | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 10 um
FGFL5B-60-E025 Body: Stainless steel, FKM | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 25 um
FGFL5B-60-E050 Body: Stainless steel, FKM | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 50 um
FGFL5B-60-E100 Body: Stainless steel, FKM | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 100 um
FGFR3A-40-E005 Body: Carbon steel, FKM | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 5 um
FGFR3A-40-E010 Body: Carbon steel, FKM | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 10 um
FGFR3A-40-E025 Body: Carbon steel, FKM | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 25 um
FGFR3A-40-E050 Body: Carbon steel, FKM | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 50 um
FGFR3A-40-E100 Body: Carbon steel, FKM | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 100 um
FGFR3B-40-E005 Body: Carbon steel, FKM | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 5 um
FGFR3B-40-E010 Body: Carbon steel, FKM | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 10 um
FGFR3B-40-E025 Body: Carbon steel, FKM | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 25 um
FGFR3B-40-E050 Body: Carbon steel, FKM | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 50 um
FGFR3B-40-E100 Body: Carbon steel, FKM | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 100 um
FGFR5A-60-E005 Body: Carbon steel, FKM | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 5 um
FGFR5A-60-E010 Body: Carbon steel, FKM | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 10 um
FGFR5A-60-E025 Body: Carbon steel, FKM | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 25 um
FGFR5A-60-E050 Body: Carbon steel, FKM | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 50 um
FGFR5A-60-E100 Body: Carbon steel, FKM | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 100 um
FGFR5B-60-E005 Body: Carbon steel, FKM | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 5 um
FGFR5B-60-E010 Body: Carbon steel, FKM | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 10 um
FGFR5B-60-E025 Body: Carbon steel, FKM | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 25 um
FGFR5B-60-E050 Body: Carbon steel, FKM | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 50 um
FGFR5B-60-E100 Body: Carbon steel, FKM | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 100 um
EJ501S-005 Body: Replacement bag element | Bags: 1 x ø190 x L440 | Port: n/a | Filtration: 5 um
EJ501S-010 Body: Replacement bag element | Bags: 1 x ø190 x L440 | Port: n/a | Filtration: 10 um
EJ501S-025 Body: Replacement bag element | Bags: 1 x ø190 x L440 | Port: n/a | Filtration: 25 um
EJ501S-050 Body: Replacement bag element | Bags: 1 x ø190 x L440 | Port: n/a | Filtration: 50 um
EJ501S-100 Body: Replacement bag element | Bags: 1 x ø190 x L440 | Port: n/a | Filtration: 100 um
EJ601S-005 Body: Replacement bag element | Bags: 1 x ø190 x L770 | Port: n/a | Filtration: 5 um
EJ601S-010 Body: Replacement bag element | Bags: 1 x ø190 x L770 | Port: n/a | Filtration: 10 um
EJ601S-025 Body: Replacement bag element | Bags: 1 x ø190 x L770 | Port: n/a | Filtration: 25 um
EJ601S-050 Body: Replacement bag element | Bags: 1 x ø190 x L770 | Port: n/a | Filtration: 50 um
EJ601S-100 Body: Replacement bag element | Bags: 1 x ø190 x L770 | Port: n/a | Filtration: 100 um
Industrial FiltersSMC
110 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC FGF Bag Filter (1, 3 and 5 Bag Vessels, Bag Elements)

Brand SMC·Industrial Filters

Available part numbers (110)

FGFS1A-20-E005B, FGFS1A-20-E010B, FGFS1A-20-E025B, FGFS1A-20-E050B, FGFS1A-20-E100B, FGFS1B-20-E005B, FGFS1B-20-E010B, FGFS1B-20-E025B, FGFS1B-20-E050B, FGFS1B-20-E100B + 100 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FGFS1A-20-E005BBody: Stainless steel, NBR | Bags: 1 x ø190 x L440 | Port: Rc2 | Filtration: 5 um
FGFS1A-20-E010BBody: Stainless steel, NBR | Bags: 1 x ø190 x L440 | Port: Rc2 | Filtration: 10 um
FGFS1A-20-E025BBody: Stainless steel, NBR | Bags: 1 x ø190 x L440 | Port: Rc2 | Filtration: 25 um
FGFS1A-20-E050BBody: Stainless steel, NBR | Bags: 1 x ø190 x L440 | Port: Rc2 | Filtration: 50 um
FGFS1A-20-E100BBody: Stainless steel, NBR | Bags: 1 x ø190 x L440 | Port: Rc2 | Filtration: 100 um
FGFS1B-20-E005BBody: Stainless steel, NBR | Bags: 1 x ø190 x L770 | Port: Rc2 | Filtration: 5 um
FGFS1B-20-E010BBody: Stainless steel, NBR | Bags: 1 x ø190 x L770 | Port: Rc2 | Filtration: 10 um
FGFS1B-20-E025BBody: Stainless steel, NBR | Bags: 1 x ø190 x L770 | Port: Rc2 | Filtration: 25 um
FGFS1B-20-E050BBody: Stainless steel, NBR | Bags: 1 x ø190 x L770 | Port: Rc2 | Filtration: 50 um
FGFS1B-20-E100BBody: Stainless steel, NBR | Bags: 1 x ø190 x L770 | Port: Rc2 | Filtration: 100 um
FGFL1A-20-E005BBody: Stainless steel, FKM | Bags: 1 x ø190 x L440 | Port: Rc2 | Filtration: 5 um
FGFL1A-20-E010BBody: Stainless steel, FKM | Bags: 1 x ø190 x L440 | Port: Rc2 | Filtration: 10 um
FGFL1A-20-E025BBody: Stainless steel, FKM | Bags: 1 x ø190 x L440 | Port: Rc2 | Filtration: 25 um
FGFL1A-20-E050BBody: Stainless steel, FKM | Bags: 1 x ø190 x L440 | Port: Rc2 | Filtration: 50 um
FGFL1A-20-E100BBody: Stainless steel, FKM | Bags: 1 x ø190 x L440 | Port: Rc2 | Filtration: 100 um
FGFL1B-20-E005BBody: Stainless steel, FKM | Bags: 1 x ø190 x L770 | Port: Rc2 | Filtration: 5 um
FGFL1B-20-E010BBody: Stainless steel, FKM | Bags: 1 x ø190 x L770 | Port: Rc2 | Filtration: 10 um
FGFL1B-20-E025BBody: Stainless steel, FKM | Bags: 1 x ø190 x L770 | Port: Rc2 | Filtration: 25 um
FGFL1B-20-E050BBody: Stainless steel, FKM | Bags: 1 x ø190 x L770 | Port: Rc2 | Filtration: 50 um
FGFL1B-20-E100BBody: Stainless steel, FKM | Bags: 1 x ø190 x L770 | Port: Rc2 | Filtration: 100 um
FGFS3A-40-E005Body: Stainless steel, NBR | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 5 um
FGFS3A-40-E010Body: Stainless steel, NBR | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 10 um
FGFS3A-40-E025Body: Stainless steel, NBR | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 25 um
FGFS3A-40-E050Body: Stainless steel, NBR | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 50 um
FGFS3A-40-E100Body: Stainless steel, NBR | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 100 um
FGFS3B-40-E005Body: Stainless steel, NBR | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 5 um
FGFS3B-40-E010Body: Stainless steel, NBR | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 10 um
FGFS3B-40-E025Body: Stainless steel, NBR | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 25 um
FGFS3B-40-E050Body: Stainless steel, NBR | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 50 um
FGFS3B-40-E100Body: Stainless steel, NBR | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 100 um
FGFS5A-60-E005Body: Stainless steel, NBR | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 5 um
FGFS5A-60-E010Body: Stainless steel, NBR | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 10 um
FGFS5A-60-E025Body: Stainless steel, NBR | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 25 um
FGFS5A-60-E050Body: Stainless steel, NBR | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 50 um
FGFS5A-60-E100Body: Stainless steel, NBR | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 100 um
FGFS5B-60-E005Body: Stainless steel, NBR | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 5 um
FGFS5B-60-E010Body: Stainless steel, NBR | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 10 um
FGFS5B-60-E025Body: Stainless steel, NBR | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 25 um
FGFS5B-60-E050Body: Stainless steel, NBR | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 50 um
FGFS5B-60-E100Body: Stainless steel, NBR | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 100 um
FGFC3A-40-E005Body: Carbon steel, NBR | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 5 um
FGFC3A-40-E010Body: Carbon steel, NBR | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 10 um
FGFC3A-40-E025Body: Carbon steel, NBR | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 25 um
FGFC3A-40-E050Body: Carbon steel, NBR | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 50 um
FGFC3A-40-E100Body: Carbon steel, NBR | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 100 um
FGFC3B-40-E005Body: Carbon steel, NBR | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 5 um
FGFC3B-40-E010Body: Carbon steel, NBR | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 10 um
FGFC3B-40-E025Body: Carbon steel, NBR | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 25 um
FGFC3B-40-E050Body: Carbon steel, NBR | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 50 um
FGFC3B-40-E100Body: Carbon steel, NBR | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 100 um
FGFC5A-60-E005Body: Carbon steel, NBR | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 5 um
FGFC5A-60-E010Body: Carbon steel, NBR | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 10 um
FGFC5A-60-E025Body: Carbon steel, NBR | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 25 um
FGFC5A-60-E050Body: Carbon steel, NBR | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 50 um
FGFC5A-60-E100Body: Carbon steel, NBR | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 100 um
FGFC5B-60-E005Body: Carbon steel, NBR | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 5 um
FGFC5B-60-E010Body: Carbon steel, NBR | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 10 um
FGFC5B-60-E025Body: Carbon steel, NBR | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 25 um
FGFC5B-60-E050Body: Carbon steel, NBR | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 50 um
FGFC5B-60-E100Body: Carbon steel, NBR | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 100 um
FGFL3A-40-E005Body: Stainless steel, FKM | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 5 um
FGFL3A-40-E010Body: Stainless steel, FKM | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 10 um
FGFL3A-40-E025Body: Stainless steel, FKM | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 25 um
FGFL3A-40-E050Body: Stainless steel, FKM | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 50 um
FGFL3A-40-E100Body: Stainless steel, FKM | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 100 um
FGFL3B-40-E005Body: Stainless steel, FKM | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 5 um
FGFL3B-40-E010Body: Stainless steel, FKM | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 10 um
FGFL3B-40-E025Body: Stainless steel, FKM | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 25 um
FGFL3B-40-E050Body: Stainless steel, FKM | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 50 um
FGFL3B-40-E100Body: Stainless steel, FKM | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 100 um
FGFL5A-60-E005Body: Stainless steel, FKM | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 5 um
FGFL5A-60-E010Body: Stainless steel, FKM | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 10 um
FGFL5A-60-E025Body: Stainless steel, FKM | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 25 um
FGFL5A-60-E050Body: Stainless steel, FKM | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 50 um
FGFL5A-60-E100Body: Stainless steel, FKM | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 100 um
FGFL5B-60-E005Body: Stainless steel, FKM | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 5 um
FGFL5B-60-E010Body: Stainless steel, FKM | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 10 um
FGFL5B-60-E025Body: Stainless steel, FKM | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 25 um
FGFL5B-60-E050Body: Stainless steel, FKM | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 50 um
FGFL5B-60-E100Body: Stainless steel, FKM | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 100 um
FGFR3A-40-E005Body: Carbon steel, FKM | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 5 um
FGFR3A-40-E010Body: Carbon steel, FKM | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 10 um
FGFR3A-40-E025Body: Carbon steel, FKM | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 25 um
FGFR3A-40-E050Body: Carbon steel, FKM | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 50 um
FGFR3A-40-E100Body: Carbon steel, FKM | Bags: 3 x ø190 x L440 | Port: 4B JIS 10K FF | Filtration: 100 um
FGFR3B-40-E005Body: Carbon steel, FKM | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 5 um
FGFR3B-40-E010Body: Carbon steel, FKM | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 10 um
FGFR3B-40-E025Body: Carbon steel, FKM | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 25 um
FGFR3B-40-E050Body: Carbon steel, FKM | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 50 um
FGFR3B-40-E100Body: Carbon steel, FKM | Bags: 3 x ø190 x L770 | Port: 4B JIS 10K FF | Filtration: 100 um
FGFR5A-60-E005Body: Carbon steel, FKM | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 5 um
FGFR5A-60-E010Body: Carbon steel, FKM | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 10 um
FGFR5A-60-E025Body: Carbon steel, FKM | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 25 um
FGFR5A-60-E050Body: Carbon steel, FKM | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 50 um
FGFR5A-60-E100Body: Carbon steel, FKM | Bags: 5 x ø190 x L440 | Port: 6B JIS 10K FF | Filtration: 100 um
FGFR5B-60-E005Body: Carbon steel, FKM | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 5 um
FGFR5B-60-E010Body: Carbon steel, FKM | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 10 um
FGFR5B-60-E025Body: Carbon steel, FKM | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 25 um
FGFR5B-60-E050Body: Carbon steel, FKM | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 50 um
FGFR5B-60-E100Body: Carbon steel, FKM | Bags: 5 x ø190 x L770 | Port: 6B JIS 10K FF | Filtration: 100 um
EJ501S-005Body: Replacement bag element | Bags: 1 x ø190 x L440 | Port: n/a | Filtration: 5 um
EJ501S-010Body: Replacement bag element | Bags: 1 x ø190 x L440 | Port: n/a | Filtration: 10 um
EJ501S-025Body: Replacement bag element | Bags: 1 x ø190 x L440 | Port: n/a | Filtration: 25 um
EJ501S-050Body: Replacement bag element | Bags: 1 x ø190 x L440 | Port: n/a | Filtration: 50 um
EJ501S-100Body: Replacement bag element | Bags: 1 x ø190 x L440 | Port: n/a | Filtration: 100 um
EJ601S-005Body: Replacement bag element | Bags: 1 x ø190 x L770 | Port: n/a | Filtration: 5 um
EJ601S-010Body: Replacement bag element | Bags: 1 x ø190 x L770 | Port: n/a | Filtration: 10 um
EJ601S-025Body: Replacement bag element | Bags: 1 x ø190 x L770 | Port: n/a | Filtration: 25 um
EJ601S-050Body: Replacement bag element | Bags: 1 x ø190 x L770 | Port: n/a | Filtration: 50 um
EJ601S-100Body: Replacement bag element | Bags: 1 x ø190 x L770 | Port: n/a | Filtration: 100 um

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Hydraulics →
