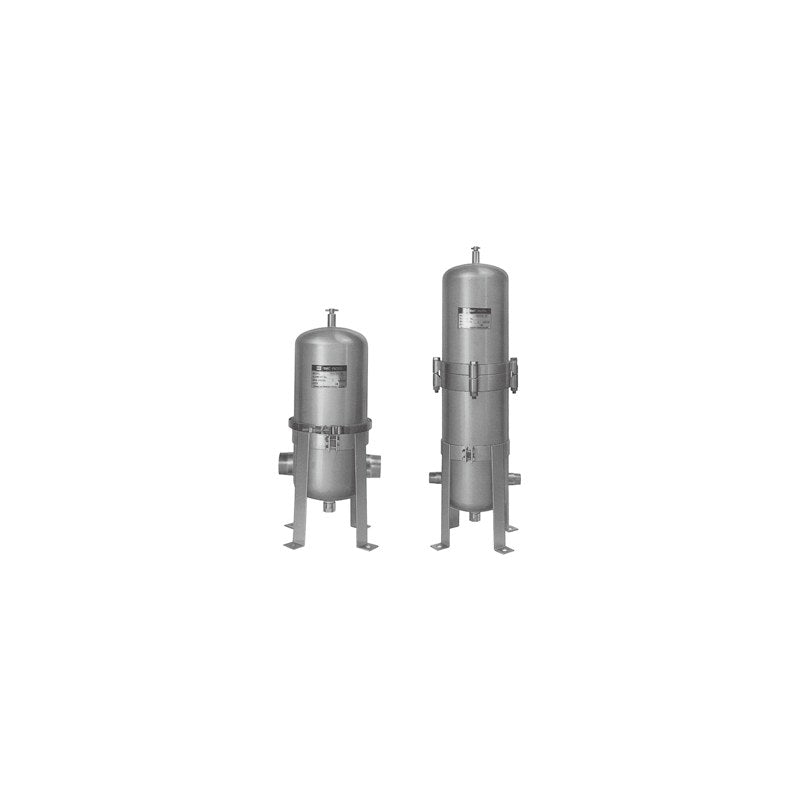

SMC FGG Industrial Filter (Large Flow, Rc2)

SMC FGG Industrial Filter (Large Flow, Rc2)

SMC FGG series stainless industrial filter for large-flow, low-pressure liquid filtration (up to approx. 350 L/min), with V-band cover and Rc2 ports.

Key features

  • Suited to large-flow, low-pressure filtration of industrial water, coolants and cleaning fluids
  • V-band cover for easy element replacement, with built-in cover anti-fly-off mechanism
  • Holds 14 to 28 standard ø65 x L250 elements (or 7 long sintered/paper elements)
  • Vessel accepts sintered metal, fiber (honeycomb), paper or micro mesh elements; vessel-only order: omit element symbols
  • Option: pressure gauges G1 (brass wetted) or G2 (stainless wetted)

Specifications

Body material SUS304; legs SS400
Port Rc2
Max. operating pressure 0.7 MPa
Operating temperature 0 to 80°C (60°C with pressure gauge)
Max. flow Approx. 350 L/min
Fluid Liquids only (not for gas)
Element packing Listed codes NBR (N); A non-asbestos, T PTFE, V FKM per combination table; fiber: none
Options (not listed) -G1 / -G2 pressure gauges
Source SMC Korea catalog FG (SMCKR_FGA-B-C-D-E-G.pdf), p. 32-34 (PDF p. 14-16)
FGGSB-20-B001NA Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 1 um
FGGSB-20-B002NA Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 2 um
FGGSB-20-B005NA Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 5 um
FGGSB-20-B010NA Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 10 um
FGGSB-20-B020NA Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 20 um
FGGSB-20-B040NA Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 40 um
FGGSB-20-B070NA Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 70 um
FGGSB-20-B100NA Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 100 um
FGGSB-20-B120NA Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 120 um
FGGSB-20-S001NA Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 1 um
FGGSB-20-S002NA Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 2 um
FGGSB-20-S005NA Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 5 um
FGGSB-20-S010NA Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 10 um
FGGSB-20-S020NA Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 20 um
FGGSB-20-S040NA Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 40 um
FGGSB-20-S070NA Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 70 um
FGGSB-20-S100NA Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 100 um
FGGSB-20-S120NA Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 120 um
FGGSB-20-TX50A Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, polypropylene | Filtration: 0.5 um
FGGSB-20-T001A Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, polypropylene | Filtration: 1 um
FGGSB-20-T005A Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, polypropylene | Filtration: 5 um
FGGSB-20-T010A Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, polypropylene | Filtration: 10 um
FGGSB-20-T020A Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, polypropylene | Filtration: 20 um
FGGSB-20-T050A Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, polypropylene | Filtration: 50 um
FGGSB-20-T075A Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, polypropylene | Filtration: 75 um
FGGSB-20-T100A Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, polypropylene | Filtration: 100 um
FGGSB-20-G001A Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, glass | Filtration: 1 um
FGGSB-20-G005A Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, glass | Filtration: 5 um
FGGSB-20-G010A Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, glass | Filtration: 10 um
FGGSB-20-G020A Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, glass | Filtration: 20 um
FGGSB-20-HX50A Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, cotton | Filtration: 0.5 um
FGGSB-20-H001A Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, cotton | Filtration: 1 um
FGGSB-20-H005A Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, cotton | Filtration: 5 um
FGGSB-20-H010A Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, cotton | Filtration: 10 um
FGGSB-20-H020A Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, cotton | Filtration: 20 um
FGGSB-20-H050A Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, cotton | Filtration: 50 um
FGGSB-20-H075A Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, cotton | Filtration: 75 um
FGGSB-20-H100A Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, cotton | Filtration: 100 um
FGGSB-20-P005NA Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Paper (NBR packing) | Filtration: 5 um
FGGSB-20-P010NA Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Paper (NBR packing) | Filtration: 10 um
FGGSB-20-P020NA Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Paper (NBR packing) | Filtration: 20 um
FGGSB-20-M005NA Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 5 um
FGGSB-20-M010NA Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 10 um
FGGSB-20-M020NA Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 20 um
FGGSB-20-M040NA Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 40 um
FGGSB-20-M074NA Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 74 um
FGGSB-20-M105NA Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 105 um
FGGSB-20-L005NA Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 5 um
FGGSB-20-L010NA Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 10 um
FGGSB-20-L020NA Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 20 um
FGGSB-20-L040NA Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 40 um
FGGSB-20-L074NA Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 74 um
FGGSB-20-L105NA Body: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 105 um
FGGSC-20-B001NA Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 1 um
FGGSC-20-B002NA Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 2 um
FGGSC-20-B005NA Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 5 um
FGGSC-20-B010NA Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 10 um
FGGSC-20-B020NA Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 20 um
FGGSC-20-B040NA Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 40 um
FGGSC-20-B070NA Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 70 um
FGGSC-20-B100NA Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 100 um
FGGSC-20-B120NA Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 120 um
FGGSC-20-S001NA Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 1 um
FGGSC-20-S002NA Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 2 um
FGGSC-20-S005NA Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 5 um
FGGSC-20-S010NA Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 10 um
FGGSC-20-S020NA Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 20 um
FGGSC-20-S040NA Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 40 um
FGGSC-20-S070NA Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 70 um
FGGSC-20-S100NA Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 100 um
FGGSC-20-S120NA Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 120 um
FGGSC-20-TX50A Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, polypropylene | Filtration: 0.5 um
FGGSC-20-T001A Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, polypropylene | Filtration: 1 um
FGGSC-20-T005A Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, polypropylene | Filtration: 5 um
FGGSC-20-T010A Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, polypropylene | Filtration: 10 um
FGGSC-20-T020A Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, polypropylene | Filtration: 20 um
FGGSC-20-T050A Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, polypropylene | Filtration: 50 um
FGGSC-20-T075A Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, polypropylene | Filtration: 75 um
FGGSC-20-T100A Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, polypropylene | Filtration: 100 um
FGGSC-20-G001A Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, glass | Filtration: 1 um
FGGSC-20-G005A Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, glass | Filtration: 5 um
FGGSC-20-G010A Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, glass | Filtration: 10 um
FGGSC-20-G020A Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, glass | Filtration: 20 um
FGGSC-20-HX50A Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, cotton | Filtration: 0.5 um
FGGSC-20-H001A Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, cotton | Filtration: 1 um
FGGSC-20-H005A Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, cotton | Filtration: 5 um
FGGSC-20-H010A Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, cotton | Filtration: 10 um
FGGSC-20-H020A Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, cotton | Filtration: 20 um
FGGSC-20-H050A Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, cotton | Filtration: 50 um
FGGSC-20-H075A Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, cotton | Filtration: 75 um
FGGSC-20-H100A Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, cotton | Filtration: 100 um
FGGSC-20-P005NA Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Paper (NBR packing) | Filtration: 5 um
FGGSC-20-P010NA Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Paper (NBR packing) | Filtration: 10 um
FGGSC-20-P020NA Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Paper (NBR packing) | Filtration: 20 um
FGGSC-20-M005NA Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 5 um
FGGSC-20-M010NA Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 10 um
FGGSC-20-M020NA Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 20 um
FGGSC-20-M040NA Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 40 um
FGGSC-20-M074NA Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 74 um
FGGSC-20-M105NA Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 105 um
FGGSC-20-L005NA Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 5 um
FGGSC-20-L010NA Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 10 um
FGGSC-20-L020NA Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 20 um
FGGSC-20-L040NA Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 40 um
FGGSC-20-L074NA Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 74 um
FGGSC-20-L105NA Body: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 105 um
FGGSD-20-B001NA Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 1 um
FGGSD-20-B002NA Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 2 um
FGGSD-20-B005NA Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 5 um
FGGSD-20-B010NA Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 10 um
FGGSD-20-B020NA Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 20 um
FGGSD-20-B040NA Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 40 um
FGGSD-20-B070NA Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 70 um
FGGSD-20-B100NA Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 100 um
FGGSD-20-B120NA Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 120 um
FGGSD-20-S001NA Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 1 um
FGGSD-20-S002NA Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 2 um
FGGSD-20-S005NA Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 5 um
FGGSD-20-S010NA Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 10 um
FGGSD-20-S020NA Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 20 um
FGGSD-20-S040NA Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 40 um
FGGSD-20-S070NA Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 70 um
FGGSD-20-S100NA Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 100 um
FGGSD-20-S120NA Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 120 um
FGGSD-20-TX50A Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, polypropylene | Filtration: 0.5 um
FGGSD-20-T001A Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, polypropylene | Filtration: 1 um
FGGSD-20-T005A Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, polypropylene | Filtration: 5 um
FGGSD-20-T010A Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, polypropylene | Filtration: 10 um
FGGSD-20-T020A Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, polypropylene | Filtration: 20 um
FGGSD-20-T050A Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, polypropylene | Filtration: 50 um
FGGSD-20-T075A Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, polypropylene | Filtration: 75 um
FGGSD-20-T100A Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, polypropylene | Filtration: 100 um
FGGSD-20-G001A Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, glass | Filtration: 1 um
FGGSD-20-G005A Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, glass | Filtration: 5 um
FGGSD-20-G010A Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, glass | Filtration: 10 um
FGGSD-20-G020A Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, glass | Filtration: 20 um
FGGSD-20-HX50A Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, cotton | Filtration: 0.5 um
FGGSD-20-H001A Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, cotton | Filtration: 1 um
FGGSD-20-H005A Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, cotton | Filtration: 5 um
FGGSD-20-H010A Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, cotton | Filtration: 10 um
FGGSD-20-H020A Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, cotton | Filtration: 20 um
FGGSD-20-H050A Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, cotton | Filtration: 50 um
FGGSD-20-H075A Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, cotton | Filtration: 75 um
FGGSD-20-H100A Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, cotton | Filtration: 100 um
FGGSD-20-P005NA Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Paper (NBR packing) | Filtration: 5 um
FGGSD-20-P010NA Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Paper (NBR packing) | Filtration: 10 um
FGGSD-20-P020NA Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Paper (NBR packing) | Filtration: 20 um
FGGSD-20-M005NA Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 5 um
FGGSD-20-M010NA Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 10 um
FGGSD-20-M020NA Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 20 um
FGGSD-20-M040NA Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 40 um
FGGSD-20-M074NA Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 74 um
FGGSD-20-M105NA Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 105 um
FGGSD-20-L005NA Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 5 um
FGGSD-20-L010NA Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 10 um
FGGSD-20-L020NA Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 20 um
FGGSD-20-L040NA Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 40 um
FGGSD-20-L074NA Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 74 um
FGGSD-20-L105NA Body: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 105 um
FGGLB-20-B001NA Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 1 um
FGGLB-20-B002NA Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 2 um
FGGLB-20-B005NA Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 5 um
FGGLB-20-B010NA Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 10 um
FGGLB-20-B020NA Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 20 um
FGGLB-20-B040NA Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 40 um
FGGLB-20-B070NA Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 70 um
FGGLB-20-B100NA Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 100 um
FGGLB-20-B120NA Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 120 um
FGGLB-20-S001NA Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 1 um
FGGLB-20-S002NA Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 2 um
FGGLB-20-S005NA Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 5 um
FGGLB-20-S010NA Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 10 um
FGGLB-20-S020NA Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 20 um
FGGLB-20-S040NA Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 40 um
FGGLB-20-S070NA Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 70 um
FGGLB-20-S100NA Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 100 um
FGGLB-20-S120NA Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 120 um
FGGLB-20-TX50A Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, polypropylene | Filtration: 0.5 um
FGGLB-20-T001A Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, polypropylene | Filtration: 1 um
FGGLB-20-T005A Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, polypropylene | Filtration: 5 um
FGGLB-20-T010A Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, polypropylene | Filtration: 10 um
FGGLB-20-T020A Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, polypropylene | Filtration: 20 um
FGGLB-20-T050A Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, polypropylene | Filtration: 50 um
FGGLB-20-T075A Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, polypropylene | Filtration: 75 um
FGGLB-20-T100A Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, polypropylene | Filtration: 100 um
FGGLB-20-G001A Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, glass | Filtration: 1 um
FGGLB-20-G005A Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, glass | Filtration: 5 um
FGGLB-20-G010A Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, glass | Filtration: 10 um
FGGLB-20-G020A Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, glass | Filtration: 20 um
FGGLB-20-HX50A Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, cotton | Filtration: 0.5 um
FGGLB-20-H001A Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, cotton | Filtration: 1 um
FGGLB-20-H005A Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, cotton | Filtration: 5 um
FGGLB-20-H010A Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, cotton | Filtration: 10 um
FGGLB-20-H020A Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, cotton | Filtration: 20 um
FGGLB-20-H050A Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, cotton | Filtration: 50 um
FGGLB-20-H075A Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, cotton | Filtration: 75 um
FGGLB-20-H100A Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, cotton | Filtration: 100 um
FGGLB-20-P005NA Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Paper (NBR packing) | Filtration: 5 um
FGGLB-20-P010NA Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Paper (NBR packing) | Filtration: 10 um
FGGLB-20-P020NA Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Paper (NBR packing) | Filtration: 20 um
FGGLB-20-M005NA Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 5 um
FGGLB-20-M010NA Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 10 um
FGGLB-20-M020NA Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 20 um
FGGLB-20-M040NA Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 40 um
FGGLB-20-M074NA Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 74 um
FGGLB-20-M105NA Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 105 um
FGGLB-20-L005NA Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 5 um
FGGLB-20-L010NA Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 10 um
FGGLB-20-L020NA Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 20 um
FGGLB-20-L040NA Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 40 um
FGGLB-20-L074NA Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 74 um
FGGLB-20-L105NA Body: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 105 um
FGGLC-20-B001NA Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 1 um
FGGLC-20-B002NA Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 2 um
FGGLC-20-B005NA Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 5 um
FGGLC-20-B010NA Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 10 um
FGGLC-20-B020NA Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 20 um
FGGLC-20-B040NA Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 40 um
FGGLC-20-B070NA Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 70 um
FGGLC-20-B100NA Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 100 um
FGGLC-20-B120NA Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 120 um
FGGLC-20-S001NA Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 1 um
FGGLC-20-S002NA Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 2 um
FGGLC-20-S005NA Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 5 um
FGGLC-20-S010NA Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 10 um
FGGLC-20-S020NA Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 20 um
FGGLC-20-S040NA Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 40 um
FGGLC-20-S070NA Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 70 um
FGGLC-20-S100NA Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 100 um
FGGLC-20-S120NA Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 120 um
FGGLC-20-TX50A Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, polypropylene | Filtration: 0.5 um
FGGLC-20-T001A Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, polypropylene | Filtration: 1 um
FGGLC-20-T005A Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, polypropylene | Filtration: 5 um
FGGLC-20-T010A Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, polypropylene | Filtration: 10 um
FGGLC-20-T020A Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, polypropylene | Filtration: 20 um
FGGLC-20-T050A Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, polypropylene | Filtration: 50 um
FGGLC-20-T075A Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, polypropylene | Filtration: 75 um
FGGLC-20-T100A Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, polypropylene | Filtration: 100 um
FGGLC-20-G001A Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, glass | Filtration: 1 um
FGGLC-20-G005A Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, glass | Filtration: 5 um
FGGLC-20-G010A Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, glass | Filtration: 10 um
FGGLC-20-G020A Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, glass | Filtration: 20 um
FGGLC-20-HX50A Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, cotton | Filtration: 0.5 um
FGGLC-20-H001A Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, cotton | Filtration: 1 um
FGGLC-20-H005A Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, cotton | Filtration: 5 um
FGGLC-20-H010A Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, cotton | Filtration: 10 um
FGGLC-20-H020A Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, cotton | Filtration: 20 um
FGGLC-20-H050A Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, cotton | Filtration: 50 um
FGGLC-20-H075A Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, cotton | Filtration: 75 um
FGGLC-20-H100A Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, cotton | Filtration: 100 um
FGGLC-20-P005NA Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Paper (NBR packing) | Filtration: 5 um
FGGLC-20-P010NA Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Paper (NBR packing) | Filtration: 10 um
FGGLC-20-P020NA Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Paper (NBR packing) | Filtration: 20 um
FGGLC-20-M005NA Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 5 um
FGGLC-20-M010NA Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 10 um
FGGLC-20-M020NA Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 20 um
FGGLC-20-M040NA Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 40 um
FGGLC-20-M074NA Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 74 um
FGGLC-20-M105NA Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 105 um
FGGLC-20-L005NA Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 5 um
FGGLC-20-L010NA Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 10 um
FGGLC-20-L020NA Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 20 um
FGGLC-20-L040NA Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 40 um
FGGLC-20-L074NA Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 74 um
FGGLC-20-L105NA Body: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 105 um
FGGLD-20-B001NA Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 1 um
FGGLD-20-B002NA Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 2 um
FGGLD-20-B005NA Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 5 um
FGGLD-20-B010NA Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 10 um
FGGLD-20-B020NA Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 20 um
FGGLD-20-B040NA Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 40 um
FGGLD-20-B070NA Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 70 um
FGGLD-20-B100NA Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 100 um
FGGLD-20-B120NA Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 120 um
FGGLD-20-S001NA Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 1 um
FGGLD-20-S002NA Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 2 um
FGGLD-20-S005NA Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 5 um
FGGLD-20-S010NA Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 10 um
FGGLD-20-S020NA Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 20 um
FGGLD-20-S040NA Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 40 um
FGGLD-20-S070NA Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 70 um
FGGLD-20-S100NA Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 100 um
FGGLD-20-S120NA Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 120 um
FGGLD-20-TX50A Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, polypropylene | Filtration: 0.5 um
FGGLD-20-T001A Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, polypropylene | Filtration: 1 um
FGGLD-20-T005A Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, polypropylene | Filtration: 5 um
FGGLD-20-T010A Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, polypropylene | Filtration: 10 um
FGGLD-20-T020A Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, polypropylene | Filtration: 20 um
FGGLD-20-T050A Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, polypropylene | Filtration: 50 um
FGGLD-20-T075A Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, polypropylene | Filtration: 75 um
FGGLD-20-T100A Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, polypropylene | Filtration: 100 um
FGGLD-20-G001A Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, glass | Filtration: 1 um
FGGLD-20-G005A Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, glass | Filtration: 5 um
FGGLD-20-G010A Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, glass | Filtration: 10 um
FGGLD-20-G020A Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, glass | Filtration: 20 um
FGGLD-20-HX50A Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, cotton | Filtration: 0.5 um
FGGLD-20-H001A Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, cotton | Filtration: 1 um
FGGLD-20-H005A Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, cotton | Filtration: 5 um
FGGLD-20-H010A Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, cotton | Filtration: 10 um
FGGLD-20-H020A Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, cotton | Filtration: 20 um
FGGLD-20-H050A Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, cotton | Filtration: 50 um
FGGLD-20-H075A Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, cotton | Filtration: 75 um
FGGLD-20-H100A Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, cotton | Filtration: 100 um
FGGLD-20-P005NA Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Paper (NBR packing) | Filtration: 5 um
FGGLD-20-P010NA Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Paper (NBR packing) | Filtration: 10 um
FGGLD-20-P020NA Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Paper (NBR packing) | Filtration: 20 um
FGGLD-20-M005NA Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 5 um
FGGLD-20-M010NA Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 10 um
FGGLD-20-M020NA Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 20 um
FGGLD-20-M040NA Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 40 um
FGGLD-20-M074NA Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 74 um
FGGLD-20-M105NA Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 105 um
FGGLD-20-L005NA Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 5 um
FGGLD-20-L010NA Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 10 um
FGGLD-20-L020NA Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 20 um
FGGLD-20-L040NA Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 40 um
FGGLD-20-L074NA Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 74 um
FGGLD-20-L105NA Body: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 105 um
Industrial FiltersSMC
318 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC FGG Industrial Filter (Large Flow, Rc2)

Brand SMC·Industrial Filters

Available part numbers (318)

FGGSB-20-B001NA, FGGSB-20-B002NA, FGGSB-20-B005NA, FGGSB-20-B010NA, FGGSB-20-B020NA, FGGSB-20-B040NA, FGGSB-20-B070NA, FGGSB-20-B100NA, FGGSB-20-B120NA, FGGSB-20-S001NA + 308 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FGGSB-20-B001NABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 1 um
FGGSB-20-B002NABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 2 um
FGGSB-20-B005NABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 5 um
FGGSB-20-B010NABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 10 um
FGGSB-20-B020NABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 20 um
FGGSB-20-B040NABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 40 um
FGGSB-20-B070NABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 70 um
FGGSB-20-B100NABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 100 um
FGGSB-20-B120NABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 120 um
FGGSB-20-S001NABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 1 um
FGGSB-20-S002NABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 2 um
FGGSB-20-S005NABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 5 um
FGGSB-20-S010NABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 10 um
FGGSB-20-S020NABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 20 um
FGGSB-20-S040NABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 40 um
FGGSB-20-S070NABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 70 um
FGGSB-20-S100NABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 100 um
FGGSB-20-S120NABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 120 um
FGGSB-20-TX50ABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, polypropylene | Filtration: 0.5 um
FGGSB-20-T001ABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, polypropylene | Filtration: 1 um
FGGSB-20-T005ABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, polypropylene | Filtration: 5 um
FGGSB-20-T010ABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, polypropylene | Filtration: 10 um
FGGSB-20-T020ABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, polypropylene | Filtration: 20 um
FGGSB-20-T050ABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, polypropylene | Filtration: 50 um
FGGSB-20-T075ABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, polypropylene | Filtration: 75 um
FGGSB-20-T100ABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, polypropylene | Filtration: 100 um
FGGSB-20-G001ABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, glass | Filtration: 1 um
FGGSB-20-G005ABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, glass | Filtration: 5 um
FGGSB-20-G010ABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, glass | Filtration: 10 um
FGGSB-20-G020ABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, glass | Filtration: 20 um
FGGSB-20-HX50ABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, cotton | Filtration: 0.5 um
FGGSB-20-H001ABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, cotton | Filtration: 1 um
FGGSB-20-H005ABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, cotton | Filtration: 5 um
FGGSB-20-H010ABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, cotton | Filtration: 10 um
FGGSB-20-H020ABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, cotton | Filtration: 20 um
FGGSB-20-H050ABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, cotton | Filtration: 50 um
FGGSB-20-H075ABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, cotton | Filtration: 75 um
FGGSB-20-H100ABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Fiber, cotton | Filtration: 100 um
FGGSB-20-P005NABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Paper (NBR packing) | Filtration: 5 um
FGGSB-20-P010NABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Paper (NBR packing) | Filtration: 10 um
FGGSB-20-P020NABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Paper (NBR packing) | Filtration: 20 um
FGGSB-20-M005NABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 5 um
FGGSB-20-M010NABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 10 um
FGGSB-20-M020NABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 20 um
FGGSB-20-M040NABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 40 um
FGGSB-20-M074NABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 74 um
FGGSB-20-M105NABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 105 um
FGGSB-20-L005NABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 5 um
FGGSB-20-L010NABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 10 um
FGGSB-20-L020NABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 20 um
FGGSB-20-L040NABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 40 um
FGGSB-20-L074NABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 74 um
FGGSB-20-L105NABody: SUS304, NBR | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 105 um
FGGSC-20-B001NABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 1 um
FGGSC-20-B002NABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 2 um
FGGSC-20-B005NABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 5 um
FGGSC-20-B010NABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 10 um
FGGSC-20-B020NABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 20 um
FGGSC-20-B040NABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 40 um
FGGSC-20-B070NABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 70 um
FGGSC-20-B100NABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 100 um
FGGSC-20-B120NABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 120 um
FGGSC-20-S001NABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 1 um
FGGSC-20-S002NABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 2 um
FGGSC-20-S005NABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 5 um
FGGSC-20-S010NABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 10 um
FGGSC-20-S020NABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 20 um
FGGSC-20-S040NABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 40 um
FGGSC-20-S070NABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 70 um
FGGSC-20-S100NABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 100 um
FGGSC-20-S120NABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 120 um
FGGSC-20-TX50ABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, polypropylene | Filtration: 0.5 um
FGGSC-20-T001ABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, polypropylene | Filtration: 1 um
FGGSC-20-T005ABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, polypropylene | Filtration: 5 um
FGGSC-20-T010ABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, polypropylene | Filtration: 10 um
FGGSC-20-T020ABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, polypropylene | Filtration: 20 um
FGGSC-20-T050ABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, polypropylene | Filtration: 50 um
FGGSC-20-T075ABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, polypropylene | Filtration: 75 um
FGGSC-20-T100ABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, polypropylene | Filtration: 100 um
FGGSC-20-G001ABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, glass | Filtration: 1 um
FGGSC-20-G005ABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, glass | Filtration: 5 um
FGGSC-20-G010ABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, glass | Filtration: 10 um
FGGSC-20-G020ABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, glass | Filtration: 20 um
FGGSC-20-HX50ABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, cotton | Filtration: 0.5 um
FGGSC-20-H001ABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, cotton | Filtration: 1 um
FGGSC-20-H005ABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, cotton | Filtration: 5 um
FGGSC-20-H010ABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, cotton | Filtration: 10 um
FGGSC-20-H020ABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, cotton | Filtration: 20 um
FGGSC-20-H050ABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, cotton | Filtration: 50 um
FGGSC-20-H075ABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, cotton | Filtration: 75 um
FGGSC-20-H100ABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Fiber, cotton | Filtration: 100 um
FGGSC-20-P005NABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Paper (NBR packing) | Filtration: 5 um
FGGSC-20-P010NABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Paper (NBR packing) | Filtration: 10 um
FGGSC-20-P020NABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Paper (NBR packing) | Filtration: 20 um
FGGSC-20-M005NABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 5 um
FGGSC-20-M010NABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 10 um
FGGSC-20-M020NABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 20 um
FGGSC-20-M040NABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 40 um
FGGSC-20-M074NABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 74 um
FGGSC-20-M105NABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 105 um
FGGSC-20-L005NABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 5 um
FGGSC-20-L010NABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 10 um
FGGSC-20-L020NABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 20 um
FGGSC-20-L040NABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 40 um
FGGSC-20-L074NABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 74 um
FGGSC-20-L105NABody: SUS304, NBR | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 105 um
FGGSD-20-B001NABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 1 um
FGGSD-20-B002NABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 2 um
FGGSD-20-B005NABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 5 um
FGGSD-20-B010NABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 10 um
FGGSD-20-B020NABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 20 um
FGGSD-20-B040NABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 40 um
FGGSD-20-B070NABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 70 um
FGGSD-20-B100NABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 100 um
FGGSD-20-B120NABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 120 um
FGGSD-20-S001NABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 1 um
FGGSD-20-S002NABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 2 um
FGGSD-20-S005NABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 5 um
FGGSD-20-S010NABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 10 um
FGGSD-20-S020NABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 20 um
FGGSD-20-S040NABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 40 um
FGGSD-20-S070NABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 70 um
FGGSD-20-S100NABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 100 um
FGGSD-20-S120NABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 120 um
FGGSD-20-TX50ABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, polypropylene | Filtration: 0.5 um
FGGSD-20-T001ABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, polypropylene | Filtration: 1 um
FGGSD-20-T005ABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, polypropylene | Filtration: 5 um
FGGSD-20-T010ABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, polypropylene | Filtration: 10 um
FGGSD-20-T020ABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, polypropylene | Filtration: 20 um
FGGSD-20-T050ABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, polypropylene | Filtration: 50 um
FGGSD-20-T075ABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, polypropylene | Filtration: 75 um
FGGSD-20-T100ABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, polypropylene | Filtration: 100 um
FGGSD-20-G001ABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, glass | Filtration: 1 um
FGGSD-20-G005ABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, glass | Filtration: 5 um
FGGSD-20-G010ABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, glass | Filtration: 10 um
FGGSD-20-G020ABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, glass | Filtration: 20 um
FGGSD-20-HX50ABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, cotton | Filtration: 0.5 um
FGGSD-20-H001ABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, cotton | Filtration: 1 um
FGGSD-20-H005ABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, cotton | Filtration: 5 um
FGGSD-20-H010ABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, cotton | Filtration: 10 um
FGGSD-20-H020ABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, cotton | Filtration: 20 um
FGGSD-20-H050ABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, cotton | Filtration: 50 um
FGGSD-20-H075ABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, cotton | Filtration: 75 um
FGGSD-20-H100ABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Fiber, cotton | Filtration: 100 um
FGGSD-20-P005NABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Paper (NBR packing) | Filtration: 5 um
FGGSD-20-P010NABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Paper (NBR packing) | Filtration: 10 um
FGGSD-20-P020NABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Paper (NBR packing) | Filtration: 20 um
FGGSD-20-M005NABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 5 um
FGGSD-20-M010NABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 10 um
FGGSD-20-M020NABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 20 um
FGGSD-20-M040NABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 40 um
FGGSD-20-M074NABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 74 um
FGGSD-20-M105NABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 105 um
FGGSD-20-L005NABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 5 um
FGGSD-20-L010NABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 10 um
FGGSD-20-L020NABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 20 um
FGGSD-20-L040NABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 40 um
FGGSD-20-L074NABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 74 um
FGGSD-20-L105NABody: SUS304, NBR | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 105 um
FGGLB-20-B001NABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 1 um
FGGLB-20-B002NABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 2 um
FGGLB-20-B005NABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 5 um
FGGLB-20-B010NABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 10 um
FGGLB-20-B020NABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 20 um
FGGLB-20-B040NABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 40 um
FGGLB-20-B070NABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 70 um
FGGLB-20-B100NABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 100 um
FGGLB-20-B120NABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered bronze (NBR packing) | Filtration: 120 um
FGGLB-20-S001NABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 1 um
FGGLB-20-S002NABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 2 um
FGGLB-20-S005NABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 5 um
FGGLB-20-S010NABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 10 um
FGGLB-20-S020NABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 20 um
FGGLB-20-S040NABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 40 um
FGGLB-20-S070NABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 70 um
FGGLB-20-S100NABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 100 um
FGGLB-20-S120NABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Sintered stainless (NBR packing) | Filtration: 120 um
FGGLB-20-TX50ABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, polypropylene | Filtration: 0.5 um
FGGLB-20-T001ABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, polypropylene | Filtration: 1 um
FGGLB-20-T005ABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, polypropylene | Filtration: 5 um
FGGLB-20-T010ABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, polypropylene | Filtration: 10 um
FGGLB-20-T020ABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, polypropylene | Filtration: 20 um
FGGLB-20-T050ABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, polypropylene | Filtration: 50 um
FGGLB-20-T075ABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, polypropylene | Filtration: 75 um
FGGLB-20-T100ABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, polypropylene | Filtration: 100 um
FGGLB-20-G001ABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, glass | Filtration: 1 um
FGGLB-20-G005ABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, glass | Filtration: 5 um
FGGLB-20-G010ABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, glass | Filtration: 10 um
FGGLB-20-G020ABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, glass | Filtration: 20 um
FGGLB-20-HX50ABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, cotton | Filtration: 0.5 um
FGGLB-20-H001ABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, cotton | Filtration: 1 um
FGGLB-20-H005ABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, cotton | Filtration: 5 um
FGGLB-20-H010ABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, cotton | Filtration: 10 um
FGGLB-20-H020ABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, cotton | Filtration: 20 um
FGGLB-20-H050ABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, cotton | Filtration: 50 um
FGGLB-20-H075ABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, cotton | Filtration: 75 um
FGGLB-20-H100ABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Fiber, cotton | Filtration: 100 um
FGGLB-20-P005NABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Paper (NBR packing) | Filtration: 5 um
FGGLB-20-P010NABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Paper (NBR packing) | Filtration: 10 um
FGGLB-20-P020NABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Paper (NBR packing) | Filtration: 20 um
FGGLB-20-M005NABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 5 um
FGGLB-20-M010NABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 10 um
FGGLB-20-M020NABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 20 um
FGGLB-20-M040NABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 40 um
FGGLB-20-M074NABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 74 um
FGGLB-20-M105NABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 105 um
FGGLB-20-L005NABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 5 um
FGGLB-20-L010NABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 10 um
FGGLB-20-L020NABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 20 um
FGGLB-20-L040NABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 40 um
FGGLB-20-L074NABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 74 um
FGGLB-20-L105NABody: SUS304, FKM | Elements: 14 x L250 (7 x L500) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 105 um
FGGLC-20-B001NABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 1 um
FGGLC-20-B002NABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 2 um
FGGLC-20-B005NABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 5 um
FGGLC-20-B010NABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 10 um
FGGLC-20-B020NABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 20 um
FGGLC-20-B040NABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 40 um
FGGLC-20-B070NABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 70 um
FGGLC-20-B100NABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 100 um
FGGLC-20-B120NABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered bronze (NBR packing) | Filtration: 120 um
FGGLC-20-S001NABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 1 um
FGGLC-20-S002NABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 2 um
FGGLC-20-S005NABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 5 um
FGGLC-20-S010NABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 10 um
FGGLC-20-S020NABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 20 um
FGGLC-20-S040NABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 40 um
FGGLC-20-S070NABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 70 um
FGGLC-20-S100NABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 100 um
FGGLC-20-S120NABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Sintered stainless (NBR packing) | Filtration: 120 um
FGGLC-20-TX50ABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, polypropylene | Filtration: 0.5 um
FGGLC-20-T001ABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, polypropylene | Filtration: 1 um
FGGLC-20-T005ABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, polypropylene | Filtration: 5 um
FGGLC-20-T010ABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, polypropylene | Filtration: 10 um
FGGLC-20-T020ABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, polypropylene | Filtration: 20 um
FGGLC-20-T050ABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, polypropylene | Filtration: 50 um
FGGLC-20-T075ABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, polypropylene | Filtration: 75 um
FGGLC-20-T100ABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, polypropylene | Filtration: 100 um
FGGLC-20-G001ABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, glass | Filtration: 1 um
FGGLC-20-G005ABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, glass | Filtration: 5 um
FGGLC-20-G010ABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, glass | Filtration: 10 um
FGGLC-20-G020ABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, glass | Filtration: 20 um
FGGLC-20-HX50ABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, cotton | Filtration: 0.5 um
FGGLC-20-H001ABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, cotton | Filtration: 1 um
FGGLC-20-H005ABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, cotton | Filtration: 5 um
FGGLC-20-H010ABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, cotton | Filtration: 10 um
FGGLC-20-H020ABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, cotton | Filtration: 20 um
FGGLC-20-H050ABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, cotton | Filtration: 50 um
FGGLC-20-H075ABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, cotton | Filtration: 75 um
FGGLC-20-H100ABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Fiber, cotton | Filtration: 100 um
FGGLC-20-P005NABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Paper (NBR packing) | Filtration: 5 um
FGGLC-20-P010NABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Paper (NBR packing) | Filtration: 10 um
FGGLC-20-P020NABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Paper (NBR packing) | Filtration: 20 um
FGGLC-20-M005NABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 5 um
FGGLC-20-M010NABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 10 um
FGGLC-20-M020NABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 20 um
FGGLC-20-M040NABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 40 um
FGGLC-20-M074NABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 74 um
FGGLC-20-M105NABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 105 um
FGGLC-20-L005NABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 5 um
FGGLC-20-L010NABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 10 um
FGGLC-20-L020NABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 20 um
FGGLC-20-L040NABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 40 um
FGGLC-20-L074NABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 74 um
FGGLC-20-L105NABody: SUS304, FKM | Elements: 21 x L250 (7 x L750) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 105 um
FGGLD-20-B001NABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 1 um
FGGLD-20-B002NABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 2 um
FGGLD-20-B005NABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 5 um
FGGLD-20-B010NABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 10 um
FGGLD-20-B020NABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 20 um
FGGLD-20-B040NABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 40 um
FGGLD-20-B070NABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 70 um
FGGLD-20-B100NABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 100 um
FGGLD-20-B120NABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered bronze (NBR packing) | Filtration: 120 um
FGGLD-20-S001NABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 1 um
FGGLD-20-S002NABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 2 um
FGGLD-20-S005NABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 5 um
FGGLD-20-S010NABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 10 um
FGGLD-20-S020NABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 20 um
FGGLD-20-S040NABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 40 um
FGGLD-20-S070NABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 70 um
FGGLD-20-S100NABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 100 um
FGGLD-20-S120NABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Sintered stainless (NBR packing) | Filtration: 120 um
FGGLD-20-TX50ABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, polypropylene | Filtration: 0.5 um
FGGLD-20-T001ABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, polypropylene | Filtration: 1 um
FGGLD-20-T005ABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, polypropylene | Filtration: 5 um
FGGLD-20-T010ABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, polypropylene | Filtration: 10 um
FGGLD-20-T020ABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, polypropylene | Filtration: 20 um
FGGLD-20-T050ABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, polypropylene | Filtration: 50 um
FGGLD-20-T075ABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, polypropylene | Filtration: 75 um
FGGLD-20-T100ABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, polypropylene | Filtration: 100 um
FGGLD-20-G001ABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, glass | Filtration: 1 um
FGGLD-20-G005ABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, glass | Filtration: 5 um
FGGLD-20-G010ABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, glass | Filtration: 10 um
FGGLD-20-G020ABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, glass | Filtration: 20 um
FGGLD-20-HX50ABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, cotton | Filtration: 0.5 um
FGGLD-20-H001ABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, cotton | Filtration: 1 um
FGGLD-20-H005ABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, cotton | Filtration: 5 um
FGGLD-20-H010ABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, cotton | Filtration: 10 um
FGGLD-20-H020ABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, cotton | Filtration: 20 um
FGGLD-20-H050ABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, cotton | Filtration: 50 um
FGGLD-20-H075ABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, cotton | Filtration: 75 um
FGGLD-20-H100ABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Fiber, cotton | Filtration: 100 um
FGGLD-20-P005NABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Paper (NBR packing) | Filtration: 5 um
FGGLD-20-P010NABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Paper (NBR packing) | Filtration: 10 um
FGGLD-20-P020NABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Paper (NBR packing) | Filtration: 20 um
FGGLD-20-M005NABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 5 um
FGGLD-20-M010NABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 10 um
FGGLD-20-M020NABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 20 um
FGGLD-20-M040NABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 40 um
FGGLD-20-M074NABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 74 um
FGGLD-20-M105NABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS304 (NBR packing) | Filtration: 105 um
FGGLD-20-L005NABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 5 um
FGGLD-20-L010NABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 10 um
FGGLD-20-L020NABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 20 um
FGGLD-20-L040NABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 40 um
FGGLD-20-L074NABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 74 um
FGGLD-20-L105NABody: SUS304, FKM | Elements: 28 x L250 (7 x L1000) | Element: Micro mesh SUS316 (NBR packing) | Filtration: 105 um

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Hydraulics →
