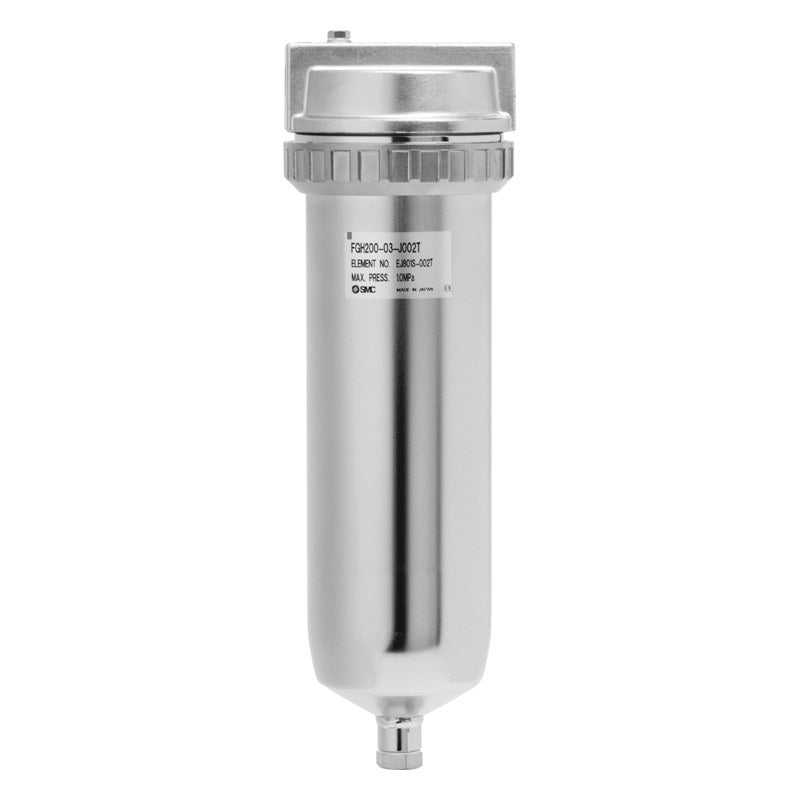

SMC FGH High Precision Liquid Filter (HEPO II / Membrane)

SMC FGH High Precision Liquid Filter (HEPO II / Membrane)

SMC FGH series high-precision liquid filter with SUS316 housing, using HEPO II (2 to 13 um, 99% efficiency) or membrane (0.2 / 0.4 um, 99.9%) elements.

Key features

  • HEPO II elements 2, 4, 6, 13 um at 99% filtration efficiency; binder-free polyester media with negligible fibre release
  • Membrane elements 0.2 and 0.4 um at 99.9% efficiency (FGH200 / FGH300); pre-flushed with ultrapure water
  • Wetted parts SUS316 (electropolished) and PTFE; clamp-ring design prevents internal particle generation
  • Simple case structure prevents liquid retention; every unit integrity tested
  • Replacement elements EJ701S/801S/901S (HEPO II) and ED801S/901S (membrane), PTFE packing

Specifications

Max. operating pressure 1 MPa
Max. temperature 80°C (below boiling point)
Housing SUS316 (electropolished)
Packing PTFE
Port Rc3/8, 1/2, 3/4, 1
Mass 2.6 / 3.2 / 4.3 kg (FGH100/200/300)
Element change pressure 0.1 MPa
Element collapse pressure 0.5 MPa at 20°C, 0.125 MPa at 80°C
Source SMC Korea catalog FGH (SMCKR_FGH.pdf), p. 61-73
FGH100-03-J002T Body / element length: L117 (FGH100) | Port: Rc3/8 | Element: 2 um HEPO II
FGH100-03-J004T Body / element length: L117 (FGH100) | Port: Rc3/8 | Element: 4 um HEPO II
FGH100-03-J006T Body / element length: L117 (FGH100) | Port: Rc3/8 | Element: 6 um HEPO II
FGH100-03-J013T Body / element length: L117 (FGH100) | Port: Rc3/8 | Element: 13 um HEPO II
FGH100-04-J002T Body / element length: L117 (FGH100) | Port: Rc1/2 | Element: 2 um HEPO II
FGH100-04-J004T Body / element length: L117 (FGH100) | Port: Rc1/2 | Element: 4 um HEPO II
FGH100-04-J006T Body / element length: L117 (FGH100) | Port: Rc1/2 | Element: 6 um HEPO II
FGH100-04-J013T Body / element length: L117 (FGH100) | Port: Rc1/2 | Element: 13 um HEPO II
FGH100-06-J002T Body / element length: L117 (FGH100) | Port: Rc3/4 | Element: 2 um HEPO II
FGH100-06-J004T Body / element length: L117 (FGH100) | Port: Rc3/4 | Element: 4 um HEPO II
FGH100-06-J006T Body / element length: L117 (FGH100) | Port: Rc3/4 | Element: 6 um HEPO II
FGH100-06-J013T Body / element length: L117 (FGH100) | Port: Rc3/4 | Element: 13 um HEPO II
FGH100-10-J002T Body / element length: L117 (FGH100) | Port: Rc1 1/4 | Element: 2 um HEPO II
FGH100-10-J004T Body / element length: L117 (FGH100) | Port: Rc1 1/4 | Element: 4 um HEPO II
FGH100-10-J006T Body / element length: L117 (FGH100) | Port: Rc1 1/4 | Element: 6 um HEPO II
FGH100-10-J013T Body / element length: L117 (FGH100) | Port: Rc1 1/4 | Element: 13 um HEPO II
FGH200-03-J002T Body / element length: L246 (FGH200) | Port: Rc3/8 | Element: 2 um HEPO II
FGH200-03-J004T Body / element length: L246 (FGH200) | Port: Rc3/8 | Element: 4 um HEPO II
FGH200-03-J006T Body / element length: L246 (FGH200) | Port: Rc3/8 | Element: 6 um HEPO II
FGH200-03-J013T Body / element length: L246 (FGH200) | Port: Rc3/8 | Element: 13 um HEPO II
FGH200-03-DX20T Body / element length: L246 (FGH200) | Port: Rc3/8 | Element: 0.2 um membrane
FGH200-03-DX40T Body / element length: L246 (FGH200) | Port: Rc3/8 | Element: 0.4 um membrane
FGH200-04-J002T Body / element length: L246 (FGH200) | Port: Rc1/2 | Element: 2 um HEPO II
FGH200-04-J004T Body / element length: L246 (FGH200) | Port: Rc1/2 | Element: 4 um HEPO II
FGH200-04-J006T Body / element length: L246 (FGH200) | Port: Rc1/2 | Element: 6 um HEPO II
FGH200-04-J013T Body / element length: L246 (FGH200) | Port: Rc1/2 | Element: 13 um HEPO II
FGH200-04-DX20T Body / element length: L246 (FGH200) | Port: Rc1/2 | Element: 0.2 um membrane
FGH200-04-DX40T Body / element length: L246 (FGH200) | Port: Rc1/2 | Element: 0.4 um membrane
FGH200-06-J002T Body / element length: L246 (FGH200) | Port: Rc3/4 | Element: 2 um HEPO II
FGH200-06-J004T Body / element length: L246 (FGH200) | Port: Rc3/4 | Element: 4 um HEPO II
FGH200-06-J006T Body / element length: L246 (FGH200) | Port: Rc3/4 | Element: 6 um HEPO II
FGH200-06-J013T Body / element length: L246 (FGH200) | Port: Rc3/4 | Element: 13 um HEPO II
FGH200-06-DX20T Body / element length: L246 (FGH200) | Port: Rc3/4 | Element: 0.2 um membrane
FGH200-06-DX40T Body / element length: L246 (FGH200) | Port: Rc3/4 | Element: 0.4 um membrane
FGH200-10-J002T Body / element length: L246 (FGH200) | Port: Rc1 1/4 | Element: 2 um HEPO II
FGH200-10-J004T Body / element length: L246 (FGH200) | Port: Rc1 1/4 | Element: 4 um HEPO II
FGH200-10-J006T Body / element length: L246 (FGH200) | Port: Rc1 1/4 | Element: 6 um HEPO II
FGH200-10-J013T Body / element length: L246 (FGH200) | Port: Rc1 1/4 | Element: 13 um HEPO II
FGH200-10-DX20T Body / element length: L246 (FGH200) | Port: Rc1 1/4 | Element: 0.2 um membrane
FGH200-10-DX40T Body / element length: L246 (FGH200) | Port: Rc1 1/4 | Element: 0.4 um membrane
FGH300-03-J002T Body / element length: L496 (FGH300) | Port: Rc3/8 | Element: 2 um HEPO II
FGH300-03-J004T Body / element length: L496 (FGH300) | Port: Rc3/8 | Element: 4 um HEPO II
FGH300-03-J006T Body / element length: L496 (FGH300) | Port: Rc3/8 | Element: 6 um HEPO II
FGH300-03-J013T Body / element length: L496 (FGH300) | Port: Rc3/8 | Element: 13 um HEPO II
FGH300-03-DX20T Body / element length: L496 (FGH300) | Port: Rc3/8 | Element: 0.2 um membrane
FGH300-03-DX40T Body / element length: L496 (FGH300) | Port: Rc3/8 | Element: 0.4 um membrane
FGH300-04-J002T Body / element length: L496 (FGH300) | Port: Rc1/2 | Element: 2 um HEPO II
FGH300-04-J004T Body / element length: L496 (FGH300) | Port: Rc1/2 | Element: 4 um HEPO II
FGH300-04-J006T Body / element length: L496 (FGH300) | Port: Rc1/2 | Element: 6 um HEPO II
FGH300-04-J013T Body / element length: L496 (FGH300) | Port: Rc1/2 | Element: 13 um HEPO II
FGH300-04-DX20T Body / element length: L496 (FGH300) | Port: Rc1/2 | Element: 0.2 um membrane
FGH300-04-DX40T Body / element length: L496 (FGH300) | Port: Rc1/2 | Element: 0.4 um membrane
FGH300-06-J002T Body / element length: L496 (FGH300) | Port: Rc3/4 | Element: 2 um HEPO II
FGH300-06-J004T Body / element length: L496 (FGH300) | Port: Rc3/4 | Element: 4 um HEPO II
FGH300-06-J006T Body / element length: L496 (FGH300) | Port: Rc3/4 | Element: 6 um HEPO II
FGH300-06-J013T Body / element length: L496 (FGH300) | Port: Rc3/4 | Element: 13 um HEPO II
FGH300-06-DX20T Body / element length: L496 (FGH300) | Port: Rc3/4 | Element: 0.2 um membrane
FGH300-06-DX40T Body / element length: L496 (FGH300) | Port: Rc3/4 | Element: 0.4 um membrane
FGH300-10-J002T Body / element length: L496 (FGH300) | Port: Rc1 1/4 | Element: 2 um HEPO II
FGH300-10-J004T Body / element length: L496 (FGH300) | Port: Rc1 1/4 | Element: 4 um HEPO II
FGH300-10-J006T Body / element length: L496 (FGH300) | Port: Rc1 1/4 | Element: 6 um HEPO II
FGH300-10-J013T Body / element length: L496 (FGH300) | Port: Rc1 1/4 | Element: 13 um HEPO II
FGH300-10-DX20T Body / element length: L496 (FGH300) | Port: Rc1 1/4 | Element: 0.2 um membrane
FGH300-10-DX40T Body / element length: L496 (FGH300) | Port: Rc1 1/4 | Element: 0.4 um membrane
EJ701S-002T Body / element length: L117 (FGH100) | Port: Replacement element | Element: 2 um HEPO II
EJ701S-004T Body / element length: L117 (FGH100) | Port: Replacement element | Element: 4 um HEPO II
EJ701S-006T Body / element length: L117 (FGH100) | Port: Replacement element | Element: 6 um HEPO II
EJ701S-013T Body / element length: L117 (FGH100) | Port: Replacement element | Element: 13 um HEPO II
EJ801S-002T Body / element length: L246 (FGH200) | Port: Replacement element | Element: 2 um HEPO II
EJ801S-004T Body / element length: L246 (FGH200) | Port: Replacement element | Element: 4 um HEPO II
EJ801S-006T Body / element length: L246 (FGH200) | Port: Replacement element | Element: 6 um HEPO II
EJ801S-013T Body / element length: L246 (FGH200) | Port: Replacement element | Element: 13 um HEPO II
ED801S-X20T Body / element length: L246 (FGH200) | Port: Replacement element | Element: 0.2 um membrane
ED801S-X40T Body / element length: L246 (FGH200) | Port: Replacement element | Element: 0.4 um membrane
EJ901S-002T Body / element length: L496 (FGH300) | Port: Replacement element | Element: 2 um HEPO II
EJ901S-004T Body / element length: L496 (FGH300) | Port: Replacement element | Element: 4 um HEPO II
EJ901S-006T Body / element length: L496 (FGH300) | Port: Replacement element | Element: 6 um HEPO II
EJ901S-013T Body / element length: L496 (FGH300) | Port: Replacement element | Element: 13 um HEPO II
ED901S-X20T Body / element length: L496 (FGH300) | Port: Replacement element | Element: 0.2 um membrane
ED901S-X40T Body / element length: L496 (FGH300) | Port: Replacement element | Element: 0.4 um membrane
Industrial FiltersSMC
80 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC FGH High Precision Liquid Filter (HEPO II / Membrane)

Brand SMC·Industrial Filters

Available part numbers (80)

FGH100-03-J002T, FGH100-03-J004T, FGH100-03-J006T, FGH100-03-J013T, FGH100-04-J002T, FGH100-04-J004T, FGH100-04-J006T, FGH100-04-J013T, FGH100-06-J002T, FGH100-06-J004T + 70 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
