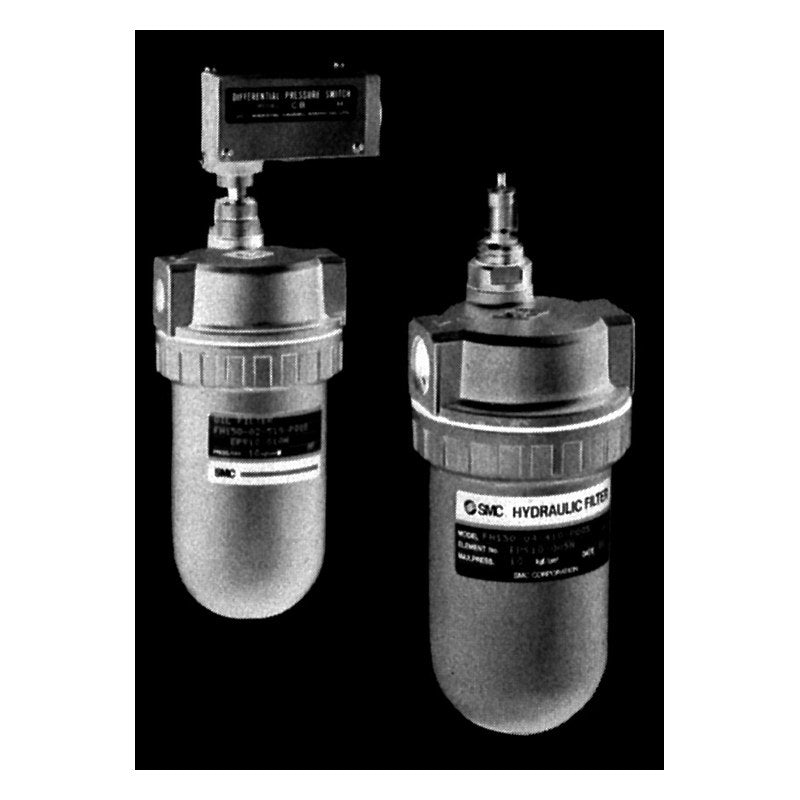

SMC FH150 Hydraulic Oil Filter (Rc1/4 to Rc1/2)

SMC FH150 Hydraulic Oil Filter (Rc1/4 to Rc1/2)

SMC FH150 series compact oil filter for low-flow hydraulic lines up to 1 MPa, with insert-type paper element and Rc1/4 to Rc1/2 ports.

Key features

  • Aluminium alloy cover keeps the filter compact and lightweight
  • Insert-type element for easy removal and maintenance
  • Optional differential pressure indicator (reset type) or switch (NC/NO, visual check)
  • Paper element 5, 10, 20 um (water-glycol / emulsion: 10 um only)
  • Bracket (suffix B) available

Specifications

Fluid Hydraulic oil
Max. operating pressure 1 MPa
Max. temperature 80°C
Cover / case Aluminium die-cast / steel plate
Relief valve None
Element collapse pressure 0.6 MPa
Indicator operating pressure 0.13 MPa
Rated flow 5 / 10 / 20 L/min
Replacement element EP910-005N/010N/020N
Options (not listed) Suffix B: bracket; X0: non-standard filtration
Source SMC Korea catalog FH150 (SMCKR_FH150.pdf), p. 1541-1544
FH150-02-010-P005 Port: Rc1/4 | Indicator: None | Fluid: Petroleum-based | Filtration: 5 um paper
FH150-02-010-P010 Port: Rc1/4 | Indicator: None | Fluid: Petroleum-based | Filtration: 10 um paper
FH150-02-010-P020 Port: Rc1/4 | Indicator: None | Fluid: Petroleum-based | Filtration: 20 um paper
FH150-02-011-P010 Port: Rc1/4 | Indicator: None | Fluid: Water-glycol / emulsion | Filtration: 10 um paper
FH150-02-012-P005 Port: Rc1/4 | Indicator: None | Fluid: Phosphate ester | Filtration: 5 um paper
FH150-02-012-P010 Port: Rc1/4 | Indicator: None | Fluid: Phosphate ester | Filtration: 10 um paper
FH150-02-012-P020 Port: Rc1/4 | Indicator: None | Fluid: Phosphate ester | Filtration: 20 um paper
FH150-02-410-P005 Port: Rc1/4 | Indicator: Differential pressure indicator | Fluid: Petroleum-based | Filtration: 5 um paper
FH150-02-410-P010 Port: Rc1/4 | Indicator: Differential pressure indicator | Fluid: Petroleum-based | Filtration: 10 um paper
FH150-02-410-P020 Port: Rc1/4 | Indicator: Differential pressure indicator | Fluid: Petroleum-based | Filtration: 20 um paper
FH150-02-411-P010 Port: Rc1/4 | Indicator: Differential pressure indicator | Fluid: Water-glycol / emulsion | Filtration: 10 um paper
FH150-02-412-P005 Port: Rc1/4 | Indicator: Differential pressure indicator | Fluid: Phosphate ester | Filtration: 5 um paper
FH150-02-412-P010 Port: Rc1/4 | Indicator: Differential pressure indicator | Fluid: Phosphate ester | Filtration: 10 um paper
FH150-02-412-P020 Port: Rc1/4 | Indicator: Differential pressure indicator | Fluid: Phosphate ester | Filtration: 20 um paper
FH150-02-510-P005 Port: Rc1/4 | Indicator: Diff. pressure switch (NC/NO) | Fluid: Petroleum-based | Filtration: 5 um paper
FH150-02-510-P010 Port: Rc1/4 | Indicator: Diff. pressure switch (NC/NO) | Fluid: Petroleum-based | Filtration: 10 um paper
FH150-02-510-P020 Port: Rc1/4 | Indicator: Diff. pressure switch (NC/NO) | Fluid: Petroleum-based | Filtration: 20 um paper
FH150-02-511-P010 Port: Rc1/4 | Indicator: Diff. pressure switch (NC/NO) | Fluid: Water-glycol / emulsion | Filtration: 10 um paper
FH150-02-512-P005 Port: Rc1/4 | Indicator: Diff. pressure switch (NC/NO) | Fluid: Phosphate ester | Filtration: 5 um paper
FH150-02-512-P010 Port: Rc1/4 | Indicator: Diff. pressure switch (NC/NO) | Fluid: Phosphate ester | Filtration: 10 um paper
FH150-02-512-P020 Port: Rc1/4 | Indicator: Diff. pressure switch (NC/NO) | Fluid: Phosphate ester | Filtration: 20 um paper
FH150-03-010-P005 Port: Rc3/8 | Indicator: None | Fluid: Petroleum-based | Filtration: 5 um paper
FH150-03-010-P010 Port: Rc3/8 | Indicator: None | Fluid: Petroleum-based | Filtration: 10 um paper
FH150-03-010-P020 Port: Rc3/8 | Indicator: None | Fluid: Petroleum-based | Filtration: 20 um paper
FH150-03-011-P010 Port: Rc3/8 | Indicator: None | Fluid: Water-glycol / emulsion | Filtration: 10 um paper
FH150-03-012-P005 Port: Rc3/8 | Indicator: None | Fluid: Phosphate ester | Filtration: 5 um paper
FH150-03-012-P010 Port: Rc3/8 | Indicator: None | Fluid: Phosphate ester | Filtration: 10 um paper
FH150-03-012-P020 Port: Rc3/8 | Indicator: None | Fluid: Phosphate ester | Filtration: 20 um paper
FH150-03-410-P005 Port: Rc3/8 | Indicator: Differential pressure indicator | Fluid: Petroleum-based | Filtration: 5 um paper
FH150-03-410-P010 Port: Rc3/8 | Indicator: Differential pressure indicator | Fluid: Petroleum-based | Filtration: 10 um paper
FH150-03-410-P020 Port: Rc3/8 | Indicator: Differential pressure indicator | Fluid: Petroleum-based | Filtration: 20 um paper
FH150-03-411-P010 Port: Rc3/8 | Indicator: Differential pressure indicator | Fluid: Water-glycol / emulsion | Filtration: 10 um paper
FH150-03-412-P005 Port: Rc3/8 | Indicator: Differential pressure indicator | Fluid: Phosphate ester | Filtration: 5 um paper
FH150-03-412-P010 Port: Rc3/8 | Indicator: Differential pressure indicator | Fluid: Phosphate ester | Filtration: 10 um paper
FH150-03-412-P020 Port: Rc3/8 | Indicator: Differential pressure indicator | Fluid: Phosphate ester | Filtration: 20 um paper
FH150-03-510-P005 Port: Rc3/8 | Indicator: Diff. pressure switch (NC/NO) | Fluid: Petroleum-based | Filtration: 5 um paper
FH150-03-510-P010 Port: Rc3/8 | Indicator: Diff. pressure switch (NC/NO) | Fluid: Petroleum-based | Filtration: 10 um paper
FH150-03-510-P020 Port: Rc3/8 | Indicator: Diff. pressure switch (NC/NO) | Fluid: Petroleum-based | Filtration: 20 um paper
FH150-03-511-P010 Port: Rc3/8 | Indicator: Diff. pressure switch (NC/NO) | Fluid: Water-glycol / emulsion | Filtration: 10 um paper
FH150-03-512-P005 Port: Rc3/8 | Indicator: Diff. pressure switch (NC/NO) | Fluid: Phosphate ester | Filtration: 5 um paper
FH150-03-512-P010 Port: Rc3/8 | Indicator: Diff. pressure switch (NC/NO) | Fluid: Phosphate ester | Filtration: 10 um paper
FH150-03-512-P020 Port: Rc3/8 | Indicator: Diff. pressure switch (NC/NO) | Fluid: Phosphate ester | Filtration: 20 um paper
FH150-04-010-P005 Port: Rc1/2 | Indicator: None | Fluid: Petroleum-based | Filtration: 5 um paper
FH150-04-010-P010 Port: Rc1/2 | Indicator: None | Fluid: Petroleum-based | Filtration: 10 um paper
FH150-04-010-P020 Port: Rc1/2 | Indicator: None | Fluid: Petroleum-based | Filtration: 20 um paper
FH150-04-011-P010 Port: Rc1/2 | Indicator: None | Fluid: Water-glycol / emulsion | Filtration: 10 um paper
FH150-04-012-P005 Port: Rc1/2 | Indicator: None | Fluid: Phosphate ester | Filtration: 5 um paper
FH150-04-012-P010 Port: Rc1/2 | Indicator: None | Fluid: Phosphate ester | Filtration: 10 um paper
FH150-04-012-P020 Port: Rc1/2 | Indicator: None | Fluid: Phosphate ester | Filtration: 20 um paper
FH150-04-410-P005 Port: Rc1/2 | Indicator: Differential pressure indicator | Fluid: Petroleum-based | Filtration: 5 um paper
FH150-04-410-P010 Port: Rc1/2 | Indicator: Differential pressure indicator | Fluid: Petroleum-based | Filtration: 10 um paper
FH150-04-410-P020 Port: Rc1/2 | Indicator: Differential pressure indicator | Fluid: Petroleum-based | Filtration: 20 um paper
FH150-04-411-P010 Port: Rc1/2 | Indicator: Differential pressure indicator | Fluid: Water-glycol / emulsion | Filtration: 10 um paper
FH150-04-412-P005 Port: Rc1/2 | Indicator: Differential pressure indicator | Fluid: Phosphate ester | Filtration: 5 um paper
FH150-04-412-P010 Port: Rc1/2 | Indicator: Differential pressure indicator | Fluid: Phosphate ester | Filtration: 10 um paper
FH150-04-412-P020 Port: Rc1/2 | Indicator: Differential pressure indicator | Fluid: Phosphate ester | Filtration: 20 um paper
FH150-04-510-P005 Port: Rc1/2 | Indicator: Diff. pressure switch (NC/NO) | Fluid: Petroleum-based | Filtration: 5 um paper
FH150-04-510-P010 Port: Rc1/2 | Indicator: Diff. pressure switch (NC/NO) | Fluid: Petroleum-based | Filtration: 10 um paper
FH150-04-510-P020 Port: Rc1/2 | Indicator: Diff. pressure switch (NC/NO) | Fluid: Petroleum-based | Filtration: 20 um paper
FH150-04-511-P010 Port: Rc1/2 | Indicator: Diff. pressure switch (NC/NO) | Fluid: Water-glycol / emulsion | Filtration: 10 um paper
FH150-04-512-P005 Port: Rc1/2 | Indicator: Diff. pressure switch (NC/NO) | Fluid: Phosphate ester | Filtration: 5 um paper
FH150-04-512-P010 Port: Rc1/2 | Indicator: Diff. pressure switch (NC/NO) | Fluid: Phosphate ester | Filtration: 10 um paper
FH150-04-512-P020 Port: Rc1/2 | Indicator: Diff. pressure switch (NC/NO) | Fluid: Phosphate ester | Filtration: 20 um paper
Industrial FiltersSMC
63 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC FH150 Hydraulic Oil Filter (Rc1/4 to Rc1/2)

Brand SMC·Industrial Filters

Available part numbers (63)

FH150-02-010-P005, FH150-02-010-P010, FH150-02-010-P020, FH150-02-011-P010, FH150-02-012-P005, FH150-02-012-P010, FH150-02-012-P020, FH150-02-410-P005, FH150-02-410-P010, FH150-02-410-P020 + 53 more — see full table ↓
