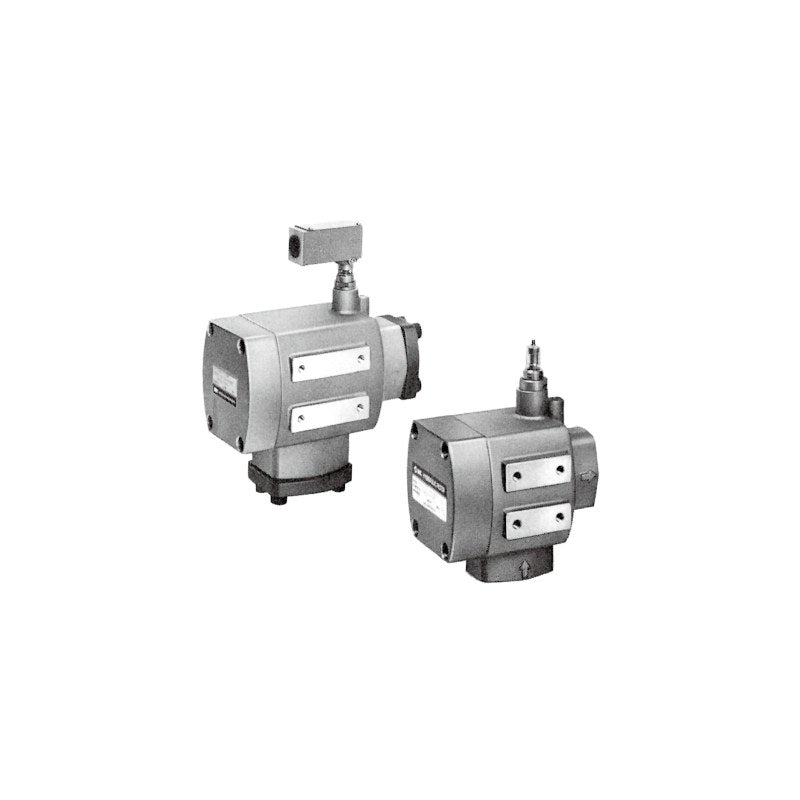

SMC FH99 Suction Filter with Case (1/2B to 4B)

SMC FH99 series in-line suction filter with case for hydraulic pump suction lines, with an inlet larger than the outlet to prevent pump cavitation.

Key features

Aluminium alloy housing: compact and lightweight
Inlet bore larger than outlet bore prevents pump cavitation
Element removed by taking off the cover only, without disturbing the piping
No mounting direction; FH990 (04 to 16) accepts threaded or flange connection, FH991 (20 to 32) flange only
Optional differential pressure indicator (2-stage, reset type) or switch (NC/NO); mating flange option suffix F

Specifications

Fluid	Hydraulic oil
Operating pressure	Negative pressure (suction)
Max. temperature	80°C
Cover / case	Aluminium casting
Element	Micro mesh, 74/105/149 um
Element collapse pressure	0.2 MPa
Indicator operating pressure	24.0 kPa
Relief valve cracking pressure	33.3 kPa
Rated flow	20 to 900 L/min
Thread / flange	JIS B 0203 taper female thread; SMC-specific flange
Options (not listed)	Suffix F: with mating flange
Source	SMC Korea catalog FH99 (SMCKR_FH99.pdf), p. 502-505

FH990-04-000-M074		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-04-000-M105		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-04-000-M149		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-04-001-M074		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-04-001-M105		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-04-001-M149		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-04-002-M074		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-04-002-M105		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-04-002-M149		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH990-04-010-M074		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-04-010-M105		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-04-010-M149		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-04-011-M074		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-04-011-M105		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-04-011-M149		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-04-012-M074		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-04-012-M105		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-04-012-M149		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH990-04-400-M074		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-04-400-M105		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-04-400-M149		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-04-401-M074		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-04-401-M105		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-04-401-M149		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-04-402-M074		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-04-402-M105		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-04-402-M149		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH990-04-410-M074		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-04-410-M105		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-04-410-M149		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-04-411-M074		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-04-411-M105		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-04-411-M149		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-04-412-M074		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-04-412-M105		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-04-412-M149		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH990-04-500-M074		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-04-500-M105		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-04-500-M149		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-04-501-M074		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-04-501-M105		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-04-501-M149		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-04-502-M074		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-04-502-M105		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-04-502-M149		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH990-04-510-M074		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-04-510-M105		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-04-510-M149		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-04-511-M074		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-04-511-M105		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-04-511-M149		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-04-512-M074		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-04-512-M105		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-04-512-M149		Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH990-06-000-M074		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-06-000-M105		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-06-000-M149		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-06-001-M074		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-06-001-M105		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-06-001-M149		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-06-002-M074		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-06-002-M105		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-06-002-M149		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH990-06-010-M074		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-06-010-M105		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-06-010-M149		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-06-011-M074		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-06-011-M105		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-06-011-M149		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-06-012-M074		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-06-012-M105		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-06-012-M149		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH990-06-400-M074		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-06-400-M105		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-06-400-M149		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-06-401-M074		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-06-401-M105		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-06-401-M149		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-06-402-M074		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-06-402-M105		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-06-402-M149		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH990-06-410-M074		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-06-410-M105		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-06-410-M149		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-06-411-M074		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-06-411-M105		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-06-411-M149		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-06-412-M074		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-06-412-M105		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-06-412-M149		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH990-06-500-M074		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-06-500-M105		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-06-500-M149		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-06-501-M074		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-06-501-M105		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-06-501-M149		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-06-502-M074		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-06-502-M105		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-06-502-M149		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH990-06-510-M074		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-06-510-M105		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-06-510-M149		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-06-511-M074		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-06-511-M105		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-06-511-M149		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-06-512-M074		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-06-512-M105		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-06-512-M149		Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH990-08-000-M074		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-08-000-M105		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-08-000-M149		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-08-001-M074		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-08-001-M105		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-08-001-M149		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-08-002-M074		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-08-002-M105		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-08-002-M149		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH990-08-010-M074		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-08-010-M105		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-08-010-M149		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-08-011-M074		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-08-011-M105		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-08-011-M149		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-08-012-M074		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-08-012-M105		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-08-012-M149		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH990-08-400-M074		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-08-400-M105		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-08-400-M149		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-08-401-M074		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-08-401-M105		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-08-401-M149		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-08-402-M074		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-08-402-M105		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-08-402-M149		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH990-08-410-M074		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-08-410-M105		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-08-410-M149		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-08-411-M074		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-08-411-M105		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-08-411-M149		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-08-412-M074		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-08-412-M105		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-08-412-M149		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH990-08-500-M074		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-08-500-M105		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-08-500-M149		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-08-501-M074		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-08-501-M105		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-08-501-M149		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-08-502-M074		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-08-502-M105		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-08-502-M149		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH990-08-510-M074		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-08-510-M105		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-08-510-M149		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-08-511-M074		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-08-511-M105		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-08-511-M149		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-08-512-M074		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-08-512-M105		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-08-512-M149		Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH990-10-000-M074		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-10-000-M105		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-10-000-M149		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-10-001-M074		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-10-001-M105		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-10-001-M149		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-10-002-M074		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-10-002-M105		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-10-002-M149		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH990-10-010-M074		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-10-010-M105		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-10-010-M149		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-10-011-M074		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-10-011-M105		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-10-011-M149		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-10-012-M074		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-10-012-M105		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-10-012-M149		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH990-10-400-M074		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-10-400-M105		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-10-400-M149		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-10-401-M074		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-10-401-M105		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-10-401-M149		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-10-402-M074		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-10-402-M105		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-10-402-M149		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH990-10-410-M074		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-10-410-M105		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-10-410-M149		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-10-411-M074		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-10-411-M105		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-10-411-M149		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-10-412-M074		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-10-412-M105		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-10-412-M149		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH990-10-500-M074		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-10-500-M105		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-10-500-M149		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-10-501-M074		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-10-501-M105		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-10-501-M149		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-10-502-M074		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-10-502-M105		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-10-502-M149		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH990-10-510-M074		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-10-510-M105		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-10-510-M149		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-10-511-M074		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-10-511-M105		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-10-511-M149		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-10-512-M074		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-10-512-M105		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-10-512-M149		Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH990-12-000-M074		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-12-000-M105		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-12-000-M149		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-12-001-M074		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-12-001-M105		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-12-001-M149		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-12-002-M074		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-12-002-M105		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-12-002-M149		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH990-12-010-M074		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-12-010-M105		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-12-010-M149		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-12-011-M074		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-12-011-M105		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-12-011-M149		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-12-012-M074		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-12-012-M105		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-12-012-M149		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH990-12-400-M074		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-12-400-M105		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-12-400-M149		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-12-401-M074		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-12-401-M105		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-12-401-M149		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-12-402-M074		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-12-402-M105		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-12-402-M149		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH990-12-410-M074		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-12-410-M105		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-12-410-M149		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-12-411-M074		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-12-411-M105		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-12-411-M149		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-12-412-M074		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-12-412-M105		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-12-412-M149		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH990-12-500-M074		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-12-500-M105		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-12-500-M149		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-12-501-M074		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-12-501-M105		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-12-501-M149		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-12-502-M074		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-12-502-M105		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-12-502-M149		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH990-12-510-M074		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-12-510-M105		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-12-510-M149		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-12-511-M074		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-12-511-M105		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-12-511-M149		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-12-512-M074		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-12-512-M105		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-12-512-M149		Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH990-16-000-M074		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-16-000-M105		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-16-000-M149		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-16-001-M074		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-16-001-M105		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-16-001-M149		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-16-002-M074		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-16-002-M105		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-16-002-M149		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH990-16-010-M074		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-16-010-M105		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-16-010-M149		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-16-011-M074		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-16-011-M105		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-16-011-M149		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-16-012-M074		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-16-012-M105		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-16-012-M149		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH990-16-400-M074		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-16-400-M105		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-16-400-M149		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-16-401-M074		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-16-401-M105		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-16-401-M149		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-16-402-M074		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-16-402-M105		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-16-402-M149		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH990-16-410-M074		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-16-410-M105		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-16-410-M149		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-16-411-M074		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-16-411-M105		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-16-411-M149		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-16-412-M074		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-16-412-M105		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-16-412-M149		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH990-16-500-M074		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-16-500-M105		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-16-500-M149		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-16-501-M074		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-16-501-M105		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-16-501-M149		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-16-502-M074		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-16-502-M105		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-16-502-M149		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH990-16-510-M074		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH990-16-510-M105		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH990-16-510-M149		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH990-16-511-M074		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH990-16-511-M105		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH990-16-511-M149		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH990-16-512-M074		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH990-16-512-M105		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH990-16-512-M149		Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH991-20-000-M074		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH991-20-000-M105		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH991-20-000-M149		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH991-20-001-M074		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH991-20-001-M105		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH991-20-001-M149		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH991-20-002-M074		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH991-20-002-M105		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH991-20-002-M149		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH991-20-010-M074		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH991-20-010-M105		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH991-20-010-M149		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH991-20-011-M074		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH991-20-011-M105		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH991-20-011-M149		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH991-20-012-M074		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH991-20-012-M105		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH991-20-012-M149		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH991-20-400-M074		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH991-20-400-M105		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH991-20-400-M149		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH991-20-401-M074		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH991-20-401-M105		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH991-20-401-M149		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH991-20-402-M074		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH991-20-402-M105		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH991-20-402-M149		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH991-20-410-M074		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH991-20-410-M105		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH991-20-410-M149		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH991-20-411-M074		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH991-20-411-M105		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH991-20-411-M149		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH991-20-412-M074		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH991-20-412-M105		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH991-20-412-M149		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH991-20-500-M074		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH991-20-500-M105		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH991-20-500-M149		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH991-20-501-M074		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH991-20-501-M105		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH991-20-501-M149		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH991-20-502-M074		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH991-20-502-M105		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH991-20-502-M149		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH991-20-510-M074		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH991-20-510-M105		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH991-20-510-M149		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH991-20-511-M074		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH991-20-511-M105		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH991-20-511-M149		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH991-20-512-M074		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH991-20-512-M105		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH991-20-512-M149		Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH991-24-000-M074		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH991-24-000-M105		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH991-24-000-M149		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH991-24-001-M074		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH991-24-001-M105		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH991-24-001-M149		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH991-24-002-M074		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH991-24-002-M105		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH991-24-002-M149		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH991-24-010-M074		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH991-24-010-M105		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH991-24-010-M149		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH991-24-011-M074		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH991-24-011-M105		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH991-24-011-M149		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH991-24-012-M074		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH991-24-012-M105		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH991-24-012-M149		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH991-24-400-M074		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH991-24-400-M105		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH991-24-400-M149		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH991-24-401-M074		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH991-24-401-M105		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH991-24-401-M149		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH991-24-402-M074		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH991-24-402-M105		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH991-24-402-M149		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH991-24-410-M074		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH991-24-410-M105		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH991-24-410-M149		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH991-24-411-M074		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH991-24-411-M105		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH991-24-411-M149		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH991-24-412-M074		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH991-24-412-M105		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH991-24-412-M149		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH991-24-500-M074		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH991-24-500-M105		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH991-24-500-M149		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH991-24-501-M074		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH991-24-501-M105		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH991-24-501-M149		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH991-24-502-M074		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH991-24-502-M105		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH991-24-502-M149		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH991-24-510-M074		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH991-24-510-M105		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH991-24-510-M149		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH991-24-511-M074		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH991-24-511-M105		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH991-24-511-M149		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH991-24-512-M074		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH991-24-512-M105		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH991-24-512-M149		Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH991-28-000-M074		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH991-28-000-M105		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH991-28-000-M149		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH991-28-001-M074		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH991-28-001-M105		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH991-28-001-M149		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH991-28-002-M074		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH991-28-002-M105		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH991-28-002-M149		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH991-28-010-M074		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH991-28-010-M105		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH991-28-010-M149		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH991-28-011-M074		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH991-28-011-M105		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH991-28-011-M149		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH991-28-012-M074		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH991-28-012-M105		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH991-28-012-M149		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH991-28-400-M074		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH991-28-400-M105		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH991-28-400-M149		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH991-28-401-M074		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH991-28-401-M105		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH991-28-401-M149		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH991-28-402-M074		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH991-28-402-M105		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH991-28-402-M149		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH991-28-410-M074		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH991-28-410-M105		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH991-28-410-M149		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH991-28-411-M074		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH991-28-411-M105		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH991-28-411-M149		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH991-28-412-M074		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH991-28-412-M105		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH991-28-412-M149		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH991-28-500-M074		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH991-28-500-M105		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH991-28-500-M149		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH991-28-501-M074		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH991-28-501-M105		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH991-28-501-M149		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH991-28-502-M074		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH991-28-502-M105		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH991-28-502-M149		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH991-28-510-M074		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH991-28-510-M105		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH991-28-510-M149		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH991-28-511-M074		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH991-28-511-M105		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH991-28-511-M149		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH991-28-512-M074		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH991-28-512-M105		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH991-28-512-M149		Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH991-32-000-M074		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH991-32-000-M105		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH991-32-000-M149		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH991-32-001-M074		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH991-32-001-M105		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH991-32-001-M149		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH991-32-002-M074		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH991-32-002-M105		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH991-32-002-M149		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH991-32-010-M074		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH991-32-010-M105		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH991-32-010-M149		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH991-32-011-M074		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH991-32-011-M105		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH991-32-011-M149		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH991-32-012-M074		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH991-32-012-M105		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH991-32-012-M149		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH991-32-400-M074		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH991-32-400-M105		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH991-32-400-M149		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH991-32-401-M074		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH991-32-401-M105		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH991-32-401-M149		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH991-32-402-M074		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH991-32-402-M105		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH991-32-402-M149		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH991-32-410-M074		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH991-32-410-M105		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH991-32-410-M149		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH991-32-411-M074		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH991-32-411-M105		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH991-32-411-M149		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH991-32-412-M074		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH991-32-412-M105		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH991-32-412-M149		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH991-32-500-M074		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH991-32-500-M105		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH991-32-500-M149		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH991-32-501-M074		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH991-32-501-M105		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH991-32-501-M149		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH991-32-502-M074		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH991-32-502-M105		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH991-32-502-M149		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
FH991-32-510-M074		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
FH991-32-510-M105		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
FH991-32-510-M149		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
FH991-32-511-M074		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
FH991-32-511-M105		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
FH991-32-511-M149		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
FH991-32-512-M074		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
FH991-32-512-M105		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
FH991-32-512-M149		Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)

Industrial FiltersSMC

540 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC FH99 Suction Filter with Case (1/2B to 4B)

Brand SMC·Industrial Filters

Available part numbers (540)

FH990-04-000-M074, FH990-04-000-M105, FH990-04-000-M149, FH990-04-001-M074, FH990-04-001-M105, FH990-04-001-M149, FH990-04-002-M074, FH990-04-002-M105, FH990-04-002-M149, FH990-04-010-M074 + 530 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	FH990-04-000-M074	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-04-000-M105	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-04-000-M149	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-04-001-M074	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-04-001-M105	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-04-001-M149	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-04-002-M074	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-04-002-M105	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-04-002-M149	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH990-04-010-M074	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-04-010-M105	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-04-010-M149	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-04-011-M074	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-04-011-M105	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-04-011-M149	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-04-012-M074	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-04-012-M105	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-04-012-M149	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH990-04-400-M074	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-04-400-M105	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-04-400-M149	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-04-401-M074	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-04-401-M105	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-04-401-M149	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-04-402-M074	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-04-402-M105	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-04-402-M149	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH990-04-410-M074	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-04-410-M105	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-04-410-M149	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-04-411-M074	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-04-411-M105	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-04-411-M149	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-04-412-M074	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-04-412-M105	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-04-412-M149	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH990-04-500-M074	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-04-500-M105	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-04-500-M149	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-04-501-M074	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-04-501-M105	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-04-501-M149	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-04-502-M074	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-04-502-M105	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-04-502-M149	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH990-04-510-M074	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-04-510-M105	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-04-510-M149	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-04-511-M074	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-04-511-M105	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-04-511-M149	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-04-512-M074	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-04-512-M105	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-04-512-M149	Port: OUT 1/2B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH990-06-000-M074	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-06-000-M105	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-06-000-M149	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-06-001-M074	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-06-001-M105	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-06-001-M149	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-06-002-M074	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-06-002-M105	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-06-002-M149	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH990-06-010-M074	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-06-010-M105	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-06-010-M149	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-06-011-M074	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-06-011-M105	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-06-011-M149	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-06-012-M074	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-06-012-M105	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-06-012-M149	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH990-06-400-M074	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-06-400-M105	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-06-400-M149	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-06-401-M074	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-06-401-M105	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-06-401-M149	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-06-402-M074	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-06-402-M105	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-06-402-M149	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH990-06-410-M074	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-06-410-M105	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-06-410-M149	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-06-411-M074	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-06-411-M105	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-06-411-M149	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-06-412-M074	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-06-412-M105	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-06-412-M149	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH990-06-500-M074	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-06-500-M105	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-06-500-M149	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-06-501-M074	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-06-501-M105	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-06-501-M149	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-06-502-M074	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-06-502-M105	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-06-502-M149	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH990-06-510-M074	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-06-510-M105	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-06-510-M149	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-06-511-M074	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-06-511-M105	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-06-511-M149	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-06-512-M074	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-06-512-M105	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-06-512-M149	Port: OUT 3/4B / IN 1B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH990-08-000-M074	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-08-000-M105	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-08-000-M149	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-08-001-M074	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-08-001-M105	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-08-001-M149	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-08-002-M074	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-08-002-M105	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-08-002-M149	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH990-08-010-M074	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-08-010-M105	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-08-010-M149	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-08-011-M074	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-08-011-M105	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-08-011-M149	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-08-012-M074	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-08-012-M105	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-08-012-M149	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH990-08-400-M074	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-08-400-M105	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-08-400-M149	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-08-401-M074	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-08-401-M105	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-08-401-M149	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-08-402-M074	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-08-402-M105	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-08-402-M149	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH990-08-410-M074	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-08-410-M105	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-08-410-M149	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-08-411-M074	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-08-411-M105	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-08-411-M149	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-08-412-M074	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-08-412-M105	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-08-412-M149	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH990-08-500-M074	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-08-500-M105	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-08-500-M149	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-08-501-M074	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-08-501-M105	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-08-501-M149	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-08-502-M074	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-08-502-M105	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-08-502-M149	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH990-08-510-M074	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-08-510-M105	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-08-510-M149	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-08-511-M074	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-08-511-M105	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-08-511-M149	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-08-512-M074	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-08-512-M105	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-08-512-M149	Port: OUT 1B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH990-10-000-M074	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-10-000-M105	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-10-000-M149	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-10-001-M074	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-10-001-M105	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-10-001-M149	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-10-002-M074	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-10-002-M105	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-10-002-M149	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH990-10-010-M074	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-10-010-M105	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-10-010-M149	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-10-011-M074	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-10-011-M105	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-10-011-M149	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-10-012-M074	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-10-012-M105	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-10-012-M149	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH990-10-400-M074	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-10-400-M105	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-10-400-M149	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-10-401-M074	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-10-401-M105	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-10-401-M149	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-10-402-M074	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-10-402-M105	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-10-402-M149	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH990-10-410-M074	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-10-410-M105	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-10-410-M149	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-10-411-M074	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-10-411-M105	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-10-411-M149	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-10-412-M074	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-10-412-M105	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-10-412-M149	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH990-10-500-M074	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-10-500-M105	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-10-500-M149	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-10-501-M074	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-10-501-M105	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-10-501-M149	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-10-502-M074	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-10-502-M105	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-10-502-M149	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH990-10-510-M074	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-10-510-M105	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-10-510-M149	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-10-511-M074	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-10-511-M105	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-10-511-M149	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-10-512-M074	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-10-512-M105	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-10-512-M149	Port: OUT 1 1/4B / IN 1 1/2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH990-12-000-M074	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-12-000-M105	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-12-000-M149	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-12-001-M074	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-12-001-M105	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-12-001-M149	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-12-002-M074	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-12-002-M105	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-12-002-M149	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH990-12-010-M074	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-12-010-M105	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-12-010-M149	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-12-011-M074	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-12-011-M105	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-12-011-M149	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-12-012-M074	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-12-012-M105	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-12-012-M149	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH990-12-400-M074	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-12-400-M105	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-12-400-M149	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-12-401-M074	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-12-401-M105	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-12-401-M149	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-12-402-M074	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-12-402-M105	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-12-402-M149	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH990-12-410-M074	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-12-410-M105	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-12-410-M149	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-12-411-M074	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-12-411-M105	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-12-411-M149	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-12-412-M074	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-12-412-M105	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-12-412-M149	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH990-12-500-M074	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-12-500-M105	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-12-500-M149	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-12-501-M074	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-12-501-M105	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-12-501-M149	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-12-502-M074	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-12-502-M105	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-12-502-M149	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH990-12-510-M074	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-12-510-M105	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-12-510-M149	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-12-511-M074	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-12-511-M105	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-12-511-M149	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-12-512-M074	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-12-512-M105	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-12-512-M149	Port: OUT 1 1/2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH990-16-000-M074	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-16-000-M105	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-16-000-M149	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-16-001-M074	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-16-001-M105	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-16-001-M149	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-16-002-M074	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-16-002-M105	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-16-002-M149	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH990-16-010-M074	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-16-010-M105	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-16-010-M149	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-16-011-M074	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-16-011-M105	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-16-011-M149	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-16-012-M074	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-16-012-M105	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-16-012-M149	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH990-16-400-M074	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-16-400-M105	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-16-400-M149	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-16-401-M074	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-16-401-M105	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-16-401-M149	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-16-402-M074	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-16-402-M105	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-16-402-M149	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH990-16-410-M074	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-16-410-M105	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-16-410-M149	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-16-411-M074	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-16-411-M105	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-16-411-M149	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-16-412-M074	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-16-412-M105	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-16-412-M149	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH990-16-500-M074	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-16-500-M105	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-16-500-M149	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-16-501-M074	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-16-501-M105	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-16-501-M149	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-16-502-M074	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-16-502-M105	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-16-502-M149	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH990-16-510-M074	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH990-16-510-M105	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH990-16-510-M149	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH990-16-511-M074	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH990-16-511-M105	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH990-16-511-M149	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH990-16-512-M074	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH990-16-512-M105	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH990-16-512-M149	Port: OUT 2B / IN 2B \| Connection: L-type thread/flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH991-20-000-M074	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH991-20-000-M105	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH991-20-000-M149	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH991-20-001-M074	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH991-20-001-M105	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH991-20-001-M149	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH991-20-002-M074	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH991-20-002-M105	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH991-20-002-M149	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH991-20-010-M074	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH991-20-010-M105	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH991-20-010-M149	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH991-20-011-M074	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH991-20-011-M105	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH991-20-011-M149	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH991-20-012-M074	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH991-20-012-M105	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH991-20-012-M149	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH991-20-400-M074	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH991-20-400-M105	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH991-20-400-M149	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH991-20-401-M074	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH991-20-401-M105	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH991-20-401-M149	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH991-20-402-M074	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH991-20-402-M105	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH991-20-402-M149	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH991-20-410-M074	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH991-20-410-M105	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH991-20-410-M149	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH991-20-411-M074	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH991-20-411-M105	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH991-20-411-M149	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH991-20-412-M074	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH991-20-412-M105	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH991-20-412-M149	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH991-20-500-M074	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH991-20-500-M105	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH991-20-500-M149	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH991-20-501-M074	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH991-20-501-M105	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH991-20-501-M149	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH991-20-502-M074	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH991-20-502-M105	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH991-20-502-M149	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH991-20-510-M074	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH991-20-510-M105	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH991-20-510-M149	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH991-20-511-M074	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH991-20-511-M105	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH991-20-511-M149	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH991-20-512-M074	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH991-20-512-M105	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH991-20-512-M149	Port: OUT 2 1/2B / IN 2 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH991-24-000-M074	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH991-24-000-M105	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH991-24-000-M149	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH991-24-001-M074	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH991-24-001-M105	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH991-24-001-M149	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH991-24-002-M074	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH991-24-002-M105	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH991-24-002-M149	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH991-24-010-M074	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH991-24-010-M105	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH991-24-010-M149	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH991-24-011-M074	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH991-24-011-M105	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH991-24-011-M149	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH991-24-012-M074	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH991-24-012-M105	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH991-24-012-M149	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH991-24-400-M074	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH991-24-400-M105	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH991-24-400-M149	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH991-24-401-M074	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH991-24-401-M105	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH991-24-401-M149	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH991-24-402-M074	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH991-24-402-M105	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH991-24-402-M149	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH991-24-410-M074	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH991-24-410-M105	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH991-24-410-M149	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH991-24-411-M074	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH991-24-411-M105	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH991-24-411-M149	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH991-24-412-M074	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH991-24-412-M105	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH991-24-412-M149	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH991-24-500-M074	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH991-24-500-M105	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH991-24-500-M149	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH991-24-501-M074	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH991-24-501-M105	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH991-24-501-M149	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH991-24-502-M074	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH991-24-502-M105	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH991-24-502-M149	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH991-24-510-M074	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH991-24-510-M105	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH991-24-510-M149	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH991-24-511-M074	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH991-24-511-M105	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH991-24-511-M149	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH991-24-512-M074	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH991-24-512-M105	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH991-24-512-M149	Port: OUT 3B / IN 3B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH991-28-000-M074	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH991-28-000-M105	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH991-28-000-M149	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH991-28-001-M074	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH991-28-001-M105	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH991-28-001-M149	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH991-28-002-M074	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH991-28-002-M105	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH991-28-002-M149	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH991-28-010-M074	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH991-28-010-M105	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH991-28-010-M149	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH991-28-011-M074	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH991-28-011-M105	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH991-28-011-M149	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH991-28-012-M074	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH991-28-012-M105	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH991-28-012-M149	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH991-28-400-M074	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH991-28-400-M105	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH991-28-400-M149	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH991-28-401-M074	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH991-28-401-M105	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH991-28-401-M149	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH991-28-402-M074	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH991-28-402-M105	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH991-28-402-M149	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH991-28-410-M074	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH991-28-410-M105	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH991-28-410-M149	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH991-28-411-M074	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH991-28-411-M105	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH991-28-411-M149	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH991-28-412-M074	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH991-28-412-M105	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH991-28-412-M149	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH991-28-500-M074	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH991-28-500-M105	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH991-28-500-M149	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH991-28-501-M074	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH991-28-501-M105	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH991-28-501-M149	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH991-28-502-M074	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH991-28-502-M105	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH991-28-502-M149	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH991-28-510-M074	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH991-28-510-M105	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH991-28-510-M149	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH991-28-511-M074	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH991-28-511-M105	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH991-28-511-M149	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH991-28-512-M074	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH991-28-512-M105	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH991-28-512-M149	Port: OUT 3 1/2B / IN 3 1/2B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH991-32-000-M074	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH991-32-000-M105	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH991-32-000-M149	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH991-32-001-M074	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH991-32-001-M105	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH991-32-001-M149	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH991-32-002-M074	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH991-32-002-M105	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH991-32-002-M149	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH991-32-010-M074	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH991-32-010-M105	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH991-32-010-M149	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH991-32-011-M074	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH991-32-011-M105	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH991-32-011-M149	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH991-32-012-M074	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH991-32-012-M105	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH991-32-012-M149	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: None \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH991-32-400-M074	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH991-32-400-M105	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH991-32-400-M149	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH991-32-401-M074	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH991-32-401-M105	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH991-32-401-M149	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH991-32-402-M074	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH991-32-402-M105	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH991-32-402-M149	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH991-32-410-M074	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH991-32-410-M105	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH991-32-410-M149	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH991-32-411-M074	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH991-32-411-M105	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH991-32-411-M149	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH991-32-412-M074	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH991-32-412-M105	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH991-32-412-M149	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Differential pressure indicator \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH991-32-500-M074	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH991-32-500-M105	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH991-32-500-M149	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH991-32-501-M074	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH991-32-501-M105	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH991-32-501-M149	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH991-32-502-M074	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH991-32-502-M105	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH991-32-502-M149	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: With relief valve \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)
	FH991-32-510-M074	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 74 um (200 mesh)
	FH991-32-510-M105	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 105 um (150 mesh)
	FH991-32-510-M149	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Petroleum-based \| Filtration: 149 um (100 mesh)
	FH991-32-511-M074	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 74 um (200 mesh)
	FH991-32-511-M105	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 105 um (150 mesh)
	FH991-32-511-M149	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Water-glycol / emulsion \| Filtration: 149 um (100 mesh)
	FH991-32-512-M074	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 74 um (200 mesh)
	FH991-32-512-M105	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 105 um (150 mesh)
	FH991-32-512-M149	Port: OUT 4B / IN 4B \| Connection: L-type flange \| Indicator: Diff. pressure switch (NC/NO) \| Relief valve: None \| Fluid: Phosphate ester \| Filtration: 149 um (100 mesh)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Hydraulics →

Item added to your cart

SMC FH99 Suction Filter with Case (1/2B to 4B)
