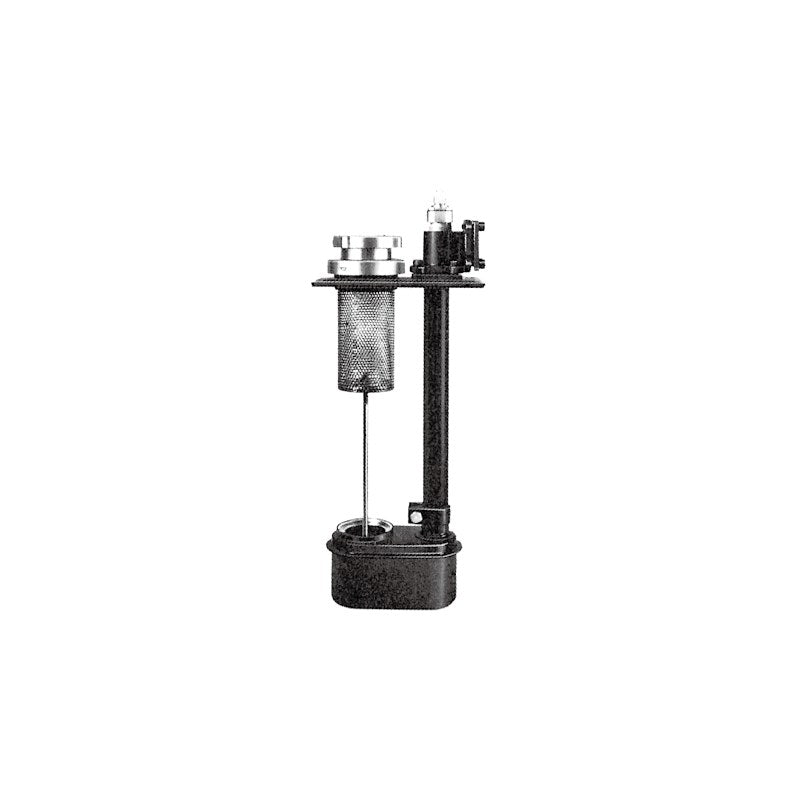

SMC FHG Suction Guard (Made to Order, 1 1/4B to 3B)

SMC FHG series suction guard (bore groups B and C, 1 1/4B to 3B), a made-to-order tank-top unit combining filler strainer, suction filter and air breather for hydraulic tanks.

Key features

Combines filler-port strainer, suction filter and air breather in one tank-top unit
All collected dirt is removed with the element, so it never drops back into the tank; no flushing oil change needed
Tool-free insert element; no air entrainment in the suction line
Six standardized connection types (mating flange, female thread, L-block and S-block); female thread for 1/2B to 2B only
Flange-to-suction length T selectable (standard T, adjustable on site); optional indicator, pressure switch, cap instead of breather (suffix C)

Specifications

Fluid	Hydraulic oil
Operating pressure	Negative pressure (suction)
Max. temperature	80°C
Flange / case / suction pipe	Steel plate
Element	Micro mesh, 74/105/149 um
Element collapse pressure	0.2 MPa
Indicator operating pressure	24.0 kPa
Air breather filtration	40 um
Filler strainer	Approx. 10 mesh
Differential indicator	Listed codes: none (0); indicator 1 / switch 5 need connection 2 to 5
Delivery	Made to order
Rated flow	90 to 450 L/min
Source	SMC Korea catalog FHG (SMCKR_FHG.pdf), p. 506-509

FHG90B1-M074-10-00		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG90B1-M074-10-01		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG90B1-M074-10-02		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG90B1-M074-10-03		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG90B1-M074-10-04		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG90B1-M074-10-05		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG90B1-M105-10-00		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG90B1-M105-10-01		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG90B1-M105-10-02		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG90B1-M105-10-03		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG90B1-M105-10-04		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG90B1-M105-10-05		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG90B1-M149-10-00		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG90B1-M149-10-01		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG90B1-M149-10-02		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG90B1-M149-10-03		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG90B1-M149-10-04		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG90B1-M149-10-05		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG90B2-M074-10-00		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG90B2-M074-10-01		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG90B2-M074-10-02		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG90B2-M074-10-03		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG90B2-M074-10-04		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG90B2-M074-10-05		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG90B2-M105-10-00		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG90B2-M105-10-01		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG90B2-M105-10-02		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG90B2-M105-10-03		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG90B2-M105-10-04		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG90B2-M105-10-05		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG90B2-M149-10-00		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG90B2-M149-10-01		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG90B2-M149-10-02		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG90B2-M149-10-03		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG90B2-M149-10-04		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG90B2-M149-10-05		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG90B3-M074-10-00		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG90B3-M074-10-01		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG90B3-M074-10-02		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG90B3-M074-10-03		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG90B3-M074-10-04		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG90B3-M074-10-05		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG90B3-M105-10-00		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG90B3-M105-10-01		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG90B3-M105-10-02		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG90B3-M105-10-03		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG90B3-M105-10-04		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG90B3-M105-10-05		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG90B3-M149-10-00		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG90B3-M149-10-01		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG90B3-M149-10-02		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG90B3-M149-10-03		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG90B3-M149-10-04		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG90B3-M149-10-05		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG90B4-M074-10-00		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG90B4-M074-10-01		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG90B4-M074-10-02		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG90B4-M074-10-03		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG90B4-M074-10-04		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG90B4-M074-10-05		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG90B4-M105-10-00		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG90B4-M105-10-01		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG90B4-M105-10-02		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG90B4-M105-10-03		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG90B4-M105-10-04		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG90B4-M105-10-05		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG90B4-M149-10-00		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG90B4-M149-10-01		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG90B4-M149-10-02		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG90B4-M149-10-03		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG90B4-M149-10-04		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG90B4-M149-10-05		Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG90B1-M074-12-00		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG90B1-M074-12-01		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG90B1-M074-12-02		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG90B1-M074-12-03		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG90B1-M074-12-04		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG90B1-M074-12-05		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG90B1-M105-12-00		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG90B1-M105-12-01		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG90B1-M105-12-02		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG90B1-M105-12-03		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG90B1-M105-12-04		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG90B1-M105-12-05		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG90B1-M149-12-00		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG90B1-M149-12-01		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG90B1-M149-12-02		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG90B1-M149-12-03		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG90B1-M149-12-04		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG90B1-M149-12-05		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG90B2-M074-12-00		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG90B2-M074-12-01		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG90B2-M074-12-02		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG90B2-M074-12-03		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG90B2-M074-12-04		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG90B2-M074-12-05		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG90B2-M105-12-00		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG90B2-M105-12-01		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG90B2-M105-12-02		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG90B2-M105-12-03		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG90B2-M105-12-04		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG90B2-M105-12-05		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG90B2-M149-12-00		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG90B2-M149-12-01		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG90B2-M149-12-02		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG90B2-M149-12-03		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG90B2-M149-12-04		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG90B2-M149-12-05		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG90B3-M074-12-00		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG90B3-M074-12-01		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG90B3-M074-12-02		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG90B3-M074-12-03		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG90B3-M074-12-04		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG90B3-M074-12-05		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG90B3-M105-12-00		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG90B3-M105-12-01		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG90B3-M105-12-02		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG90B3-M105-12-03		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG90B3-M105-12-04		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG90B3-M105-12-05		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG90B3-M149-12-00		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG90B3-M149-12-01		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG90B3-M149-12-02		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG90B3-M149-12-03		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG90B3-M149-12-04		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG90B3-M149-12-05		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG90B4-M074-12-00		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG90B4-M074-12-01		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG90B4-M074-12-02		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG90B4-M074-12-03		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG90B4-M074-12-04		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG90B4-M074-12-05		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG90B4-M105-12-00		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG90B4-M105-12-01		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG90B4-M105-12-02		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG90B4-M105-12-03		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG90B4-M105-12-04		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG90B4-M105-12-05		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG90B4-M149-12-00		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG90B4-M149-12-01		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG90B4-M149-12-02		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG90B4-M149-12-03		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG90B4-M149-12-04		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG90B4-M149-12-05		Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG90B1-M074-16-00		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG90B1-M074-16-01		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG90B1-M074-16-02		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG90B1-M074-16-03		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG90B1-M074-16-04		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG90B1-M074-16-05		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG90B1-M105-16-00		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG90B1-M105-16-01		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG90B1-M105-16-02		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG90B1-M105-16-03		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG90B1-M105-16-04		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG90B1-M105-16-05		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG90B1-M149-16-00		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG90B1-M149-16-01		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG90B1-M149-16-02		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG90B1-M149-16-03		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG90B1-M149-16-04		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG90B1-M149-16-05		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG90B2-M074-16-00		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG90B2-M074-16-01		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG90B2-M074-16-02		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG90B2-M074-16-03		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG90B2-M074-16-04		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG90B2-M074-16-05		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG90B2-M105-16-00		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG90B2-M105-16-01		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG90B2-M105-16-02		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG90B2-M105-16-03		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG90B2-M105-16-04		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG90B2-M105-16-05		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG90B2-M149-16-00		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG90B2-M149-16-01		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG90B2-M149-16-02		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG90B2-M149-16-03		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG90B2-M149-16-04		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG90B2-M149-16-05		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG90B3-M074-16-00		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG90B3-M074-16-01		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG90B3-M074-16-02		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG90B3-M074-16-03		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG90B3-M074-16-04		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG90B3-M074-16-05		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG90B3-M105-16-00		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG90B3-M105-16-01		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG90B3-M105-16-02		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG90B3-M105-16-03		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG90B3-M105-16-04		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG90B3-M105-16-05		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG90B3-M149-16-00		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG90B3-M149-16-01		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG90B3-M149-16-02		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG90B3-M149-16-03		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG90B3-M149-16-04		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG90B3-M149-16-05		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG90B4-M074-16-00		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG90B4-M074-16-01		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG90B4-M074-16-02		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG90B4-M074-16-03		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG90B4-M074-16-04		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG90B4-M074-16-05		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG90B4-M105-16-00		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG90B4-M105-16-01		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG90B4-M105-16-02		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG90B4-M105-16-03		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG90B4-M105-16-04		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG90B4-M105-16-05		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG90B4-M149-16-00		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG90B4-M149-16-01		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG90B4-M149-16-02		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG90B4-M149-16-03		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG90B4-M149-16-04		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG90B4-M149-16-05		Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG90C1-M074-20-00		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG90C1-M074-20-02		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG90C1-M074-20-04		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG90C1-M105-20-00		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG90C1-M105-20-02		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG90C1-M105-20-04		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG90C1-M149-20-00		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG90C1-M149-20-02		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG90C1-M149-20-04		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG90C2-M074-20-00		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG90C2-M074-20-02		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG90C2-M074-20-04		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG90C2-M105-20-00		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG90C2-M105-20-02		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG90C2-M105-20-04		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG90C2-M149-20-00		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG90C2-M149-20-02		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG90C2-M149-20-04		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG90C3-M074-20-00		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG90C3-M074-20-02		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG90C3-M074-20-04		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG90C3-M105-20-00		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG90C3-M105-20-02		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG90C3-M105-20-04		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG90C3-M149-20-00		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG90C3-M149-20-02		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG90C3-M149-20-04		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG90C4-M074-20-00		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG90C4-M074-20-02		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG90C4-M074-20-04		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG90C4-M105-20-00		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG90C4-M105-20-02		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG90C4-M105-20-04		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG90C4-M149-20-00		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG90C4-M149-20-02		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG90C4-M149-20-04		Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG90C1-M074-24-00		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG90C1-M074-24-02		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG90C1-M074-24-04		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG90C1-M105-24-00		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG90C1-M105-24-02		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG90C1-M105-24-04		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG90C1-M149-24-00		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG90C1-M149-24-02		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG90C1-M149-24-04		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG90C2-M074-24-00		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG90C2-M074-24-02		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG90C2-M074-24-04		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG90C2-M105-24-00		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG90C2-M105-24-02		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG90C2-M105-24-04		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG90C2-M149-24-00		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG90C2-M149-24-02		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG90C2-M149-24-04		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG90C3-M074-24-00		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG90C3-M074-24-02		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG90C3-M074-24-04		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG90C3-M105-24-00		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG90C3-M105-24-02		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG90C3-M105-24-04		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG90C3-M149-24-00		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG90C3-M149-24-02		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG90C3-M149-24-04		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG90C4-M074-24-00		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG90C4-M074-24-02		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG90C4-M074-24-04		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG90C4-M105-24-00		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG90C4-M105-24-02		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG90C4-M105-24-04		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG90C4-M149-24-00		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG90C4-M149-24-02		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG90C4-M149-24-04		Fluid: Petroleum-based \| Port: 3B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG91B1-M074-10-00		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG91B1-M074-10-01		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG91B1-M074-10-02		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG91B1-M074-10-03		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG91B1-M074-10-04		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG91B1-M074-10-05		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG91B1-M105-10-00		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG91B1-M105-10-01		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG91B1-M105-10-02		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG91B1-M105-10-03		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG91B1-M105-10-04		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG91B1-M105-10-05		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG91B1-M149-10-00		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG91B1-M149-10-01		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG91B1-M149-10-02		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG91B1-M149-10-03		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG91B1-M149-10-04		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG91B1-M149-10-05		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG91B2-M074-10-00		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG91B2-M074-10-01		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG91B2-M074-10-02		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG91B2-M074-10-03		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG91B2-M074-10-04		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG91B2-M074-10-05		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG91B2-M105-10-00		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG91B2-M105-10-01		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG91B2-M105-10-02		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG91B2-M105-10-03		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG91B2-M105-10-04		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG91B2-M105-10-05		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG91B2-M149-10-00		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG91B2-M149-10-01		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG91B2-M149-10-02		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG91B2-M149-10-03		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG91B2-M149-10-04		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG91B2-M149-10-05		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG91B3-M074-10-00		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG91B3-M074-10-01		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG91B3-M074-10-02		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG91B3-M074-10-03		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG91B3-M074-10-04		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG91B3-M074-10-05		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG91B3-M105-10-00		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG91B3-M105-10-01		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG91B3-M105-10-02		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG91B3-M105-10-03		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG91B3-M105-10-04		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG91B3-M105-10-05		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG91B3-M149-10-00		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG91B3-M149-10-01		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG91B3-M149-10-02		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG91B3-M149-10-03		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG91B3-M149-10-04		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG91B3-M149-10-05		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG91B4-M074-10-00		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG91B4-M074-10-01		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG91B4-M074-10-02		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG91B4-M074-10-03		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG91B4-M074-10-04		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG91B4-M074-10-05		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG91B4-M105-10-00		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG91B4-M105-10-01		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG91B4-M105-10-02		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG91B4-M105-10-03		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG91B4-M105-10-04		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG91B4-M105-10-05		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG91B4-M149-10-00		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG91B4-M149-10-01		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG91B4-M149-10-02		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG91B4-M149-10-03		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG91B4-M149-10-04		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG91B4-M149-10-05		Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG91B1-M074-12-00		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG91B1-M074-12-01		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG91B1-M074-12-02		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG91B1-M074-12-03		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG91B1-M074-12-04		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG91B1-M074-12-05		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG91B1-M105-12-00		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG91B1-M105-12-01		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG91B1-M105-12-02		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG91B1-M105-12-03		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG91B1-M105-12-04		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG91B1-M105-12-05		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG91B1-M149-12-00		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG91B1-M149-12-01		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG91B1-M149-12-02		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG91B1-M149-12-03		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG91B1-M149-12-04		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG91B1-M149-12-05		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG91B2-M074-12-00		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG91B2-M074-12-01		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG91B2-M074-12-02		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG91B2-M074-12-03		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG91B2-M074-12-04		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG91B2-M074-12-05		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG91B2-M105-12-00		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG91B2-M105-12-01		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG91B2-M105-12-02		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG91B2-M105-12-03		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG91B2-M105-12-04		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG91B2-M105-12-05		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG91B2-M149-12-00		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG91B2-M149-12-01		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG91B2-M149-12-02		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG91B2-M149-12-03		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG91B2-M149-12-04		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG91B2-M149-12-05		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG91B3-M074-12-00		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG91B3-M074-12-01		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG91B3-M074-12-02		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG91B3-M074-12-03		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG91B3-M074-12-04		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG91B3-M074-12-05		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG91B3-M105-12-00		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG91B3-M105-12-01		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG91B3-M105-12-02		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG91B3-M105-12-03		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG91B3-M105-12-04		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG91B3-M105-12-05		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG91B3-M149-12-00		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG91B3-M149-12-01		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG91B3-M149-12-02		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG91B3-M149-12-03		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG91B3-M149-12-04		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG91B3-M149-12-05		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG91B4-M074-12-00		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG91B4-M074-12-01		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG91B4-M074-12-02		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG91B4-M074-12-03		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG91B4-M074-12-04		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG91B4-M074-12-05		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG91B4-M105-12-00		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG91B4-M105-12-01		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG91B4-M105-12-02		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG91B4-M105-12-03		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG91B4-M105-12-04		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG91B4-M105-12-05		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG91B4-M149-12-00		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG91B4-M149-12-01		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG91B4-M149-12-02		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG91B4-M149-12-03		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG91B4-M149-12-04		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG91B4-M149-12-05		Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG91B1-M074-16-00		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG91B1-M074-16-01		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG91B1-M074-16-02		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG91B1-M074-16-03		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG91B1-M074-16-04		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG91B1-M074-16-05		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG91B1-M105-16-00		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG91B1-M105-16-01		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG91B1-M105-16-02		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG91B1-M105-16-03		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG91B1-M105-16-04		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG91B1-M105-16-05		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG91B1-M149-16-00		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG91B1-M149-16-01		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG91B1-M149-16-02		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG91B1-M149-16-03		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG91B1-M149-16-04		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG91B1-M149-16-05		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG91B2-M074-16-00		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG91B2-M074-16-01		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG91B2-M074-16-02		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG91B2-M074-16-03		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG91B2-M074-16-04		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG91B2-M074-16-05		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG91B2-M105-16-00		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG91B2-M105-16-01		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG91B2-M105-16-02		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG91B2-M105-16-03		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG91B2-M105-16-04		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG91B2-M105-16-05		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG91B2-M149-16-00		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG91B2-M149-16-01		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG91B2-M149-16-02		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG91B2-M149-16-03		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG91B2-M149-16-04		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG91B2-M149-16-05		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG91B3-M074-16-00		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG91B3-M074-16-01		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG91B3-M074-16-02		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG91B3-M074-16-03		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG91B3-M074-16-04		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG91B3-M074-16-05		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG91B3-M105-16-00		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG91B3-M105-16-01		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG91B3-M105-16-02		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG91B3-M105-16-03		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG91B3-M105-16-04		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG91B3-M105-16-05		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG91B3-M149-16-00		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG91B3-M149-16-01		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG91B3-M149-16-02		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG91B3-M149-16-03		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG91B3-M149-16-04		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG91B3-M149-16-05		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG91B4-M074-16-00		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG91B4-M074-16-01		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG91B4-M074-16-02		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG91B4-M074-16-03		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG91B4-M074-16-04		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG91B4-M074-16-05		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG91B4-M105-16-00		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG91B4-M105-16-01		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG91B4-M105-16-02		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG91B4-M105-16-03		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG91B4-M105-16-04		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG91B4-M105-16-05		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG91B4-M149-16-00		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG91B4-M149-16-01		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG91B4-M149-16-02		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG91B4-M149-16-03		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG91B4-M149-16-04		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG91B4-M149-16-05		Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG91C1-M074-20-00		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG91C1-M074-20-02		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG91C1-M074-20-04		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG91C1-M105-20-00		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG91C1-M105-20-02		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG91C1-M105-20-04		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG91C1-M149-20-00		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG91C1-M149-20-02		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG91C1-M149-20-04		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG91C2-M074-20-00		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG91C2-M074-20-02		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG91C2-M074-20-04		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG91C2-M105-20-00		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG91C2-M105-20-02		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG91C2-M105-20-04		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG91C2-M149-20-00		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG91C2-M149-20-02		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG91C2-M149-20-04		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG91C3-M074-20-00		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG91C3-M074-20-02		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG91C3-M074-20-04		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG91C3-M105-20-00		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG91C3-M105-20-02		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG91C3-M105-20-04		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG91C3-M149-20-00		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG91C3-M149-20-02		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG91C3-M149-20-04		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG91C4-M074-20-00		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG91C4-M074-20-02		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG91C4-M074-20-04		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG91C4-M105-20-00		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG91C4-M105-20-02		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG91C4-M105-20-04		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG91C4-M149-20-00		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG91C4-M149-20-02		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG91C4-M149-20-04		Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG91C1-M074-24-00		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG91C1-M074-24-02		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG91C1-M074-24-04		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG91C1-M105-24-00		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG91C1-M105-24-02		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG91C1-M105-24-04		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG91C1-M149-24-00		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG91C1-M149-24-02		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG91C1-M149-24-04		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG91C2-M074-24-00		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG91C2-M074-24-02		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG91C2-M074-24-04		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG91C2-M105-24-00		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG91C2-M105-24-02		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG91C2-M105-24-04		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG91C2-M149-24-00		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG91C2-M149-24-02		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG91C2-M149-24-04		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG91C3-M074-24-00		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG91C3-M074-24-02		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG91C3-M074-24-04		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG91C3-M105-24-00		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG91C3-M105-24-02		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG91C3-M105-24-04		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG91C3-M149-24-00		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG91C3-M149-24-02		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG91C3-M149-24-04		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG91C4-M074-24-00		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG91C4-M074-24-02		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG91C4-M074-24-04		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG91C4-M105-24-00		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG91C4-M105-24-02		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG91C4-M105-24-04		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG91C4-M149-24-00		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG91C4-M149-24-02		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG91C4-M149-24-04		Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG92B1-M074-10-00		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG92B1-M074-10-01		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG92B1-M074-10-02		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG92B1-M074-10-03		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG92B1-M074-10-04		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG92B1-M074-10-05		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG92B1-M105-10-00		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG92B1-M105-10-01		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG92B1-M105-10-02		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG92B1-M105-10-03		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG92B1-M105-10-04		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG92B1-M105-10-05		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG92B1-M149-10-00		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG92B1-M149-10-01		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG92B1-M149-10-02		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG92B1-M149-10-03		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG92B1-M149-10-04		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG92B1-M149-10-05		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG92B2-M074-10-00		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG92B2-M074-10-01		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG92B2-M074-10-02		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG92B2-M074-10-03		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG92B2-M074-10-04		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG92B2-M074-10-05		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG92B2-M105-10-00		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG92B2-M105-10-01		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG92B2-M105-10-02		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG92B2-M105-10-03		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG92B2-M105-10-04		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG92B2-M105-10-05		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG92B2-M149-10-00		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG92B2-M149-10-01		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG92B2-M149-10-02		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG92B2-M149-10-03		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG92B2-M149-10-04		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG92B2-M149-10-05		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG92B3-M074-10-00		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG92B3-M074-10-01		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG92B3-M074-10-02		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG92B3-M074-10-03		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG92B3-M074-10-04		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG92B3-M074-10-05		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG92B3-M105-10-00		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG92B3-M105-10-01		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG92B3-M105-10-02		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG92B3-M105-10-03		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG92B3-M105-10-04		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG92B3-M105-10-05		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG92B3-M149-10-00		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG92B3-M149-10-01		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG92B3-M149-10-02		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG92B3-M149-10-03		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG92B3-M149-10-04		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG92B3-M149-10-05		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG92B4-M074-10-00		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG92B4-M074-10-01		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG92B4-M074-10-02		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG92B4-M074-10-03		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG92B4-M074-10-04		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG92B4-M074-10-05		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG92B4-M105-10-00		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG92B4-M105-10-01		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG92B4-M105-10-02		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG92B4-M105-10-03		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG92B4-M105-10-04		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG92B4-M105-10-05		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG92B4-M149-10-00		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG92B4-M149-10-01		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG92B4-M149-10-02		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG92B4-M149-10-03		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG92B4-M149-10-04		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG92B4-M149-10-05		Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG92B1-M074-12-00		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG92B1-M074-12-01		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG92B1-M074-12-02		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG92B1-M074-12-03		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG92B1-M074-12-04		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG92B1-M074-12-05		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG92B1-M105-12-00		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG92B1-M105-12-01		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG92B1-M105-12-02		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG92B1-M105-12-03		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG92B1-M105-12-04		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG92B1-M105-12-05		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG92B1-M149-12-00		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG92B1-M149-12-01		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG92B1-M149-12-02		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG92B1-M149-12-03		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG92B1-M149-12-04		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG92B1-M149-12-05		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG92B2-M074-12-00		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG92B2-M074-12-01		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG92B2-M074-12-02		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG92B2-M074-12-03		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG92B2-M074-12-04		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG92B2-M074-12-05		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG92B2-M105-12-00		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG92B2-M105-12-01		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG92B2-M105-12-02		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG92B2-M105-12-03		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG92B2-M105-12-04		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG92B2-M105-12-05		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG92B2-M149-12-00		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG92B2-M149-12-01		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG92B2-M149-12-02		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG92B2-M149-12-03		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG92B2-M149-12-04		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG92B2-M149-12-05		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG92B3-M074-12-00		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG92B3-M074-12-01		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG92B3-M074-12-02		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG92B3-M074-12-03		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG92B3-M074-12-04		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG92B3-M074-12-05		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG92B3-M105-12-00		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG92B3-M105-12-01		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG92B3-M105-12-02		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG92B3-M105-12-03		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG92B3-M105-12-04		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG92B3-M105-12-05		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG92B3-M149-12-00		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG92B3-M149-12-01		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG92B3-M149-12-02		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG92B3-M149-12-03		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG92B3-M149-12-04		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG92B3-M149-12-05		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG92B4-M074-12-00		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG92B4-M074-12-01		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG92B4-M074-12-02		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG92B4-M074-12-03		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG92B4-M074-12-04		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG92B4-M074-12-05		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG92B4-M105-12-00		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG92B4-M105-12-01		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG92B4-M105-12-02		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG92B4-M105-12-03		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG92B4-M105-12-04		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG92B4-M105-12-05		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG92B4-M149-12-00		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG92B4-M149-12-01		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG92B4-M149-12-02		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG92B4-M149-12-03		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG92B4-M149-12-04		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG92B4-M149-12-05		Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG92B1-M074-16-00		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG92B1-M074-16-01		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG92B1-M074-16-02		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG92B1-M074-16-03		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG92B1-M074-16-04		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG92B1-M074-16-05		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG92B1-M105-16-00		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG92B1-M105-16-01		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG92B1-M105-16-02		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG92B1-M105-16-03		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG92B1-M105-16-04		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG92B1-M105-16-05		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG92B1-M149-16-00		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG92B1-M149-16-01		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG92B1-M149-16-02		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG92B1-M149-16-03		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG92B1-M149-16-04		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG92B1-M149-16-05		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG92B2-M074-16-00		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG92B2-M074-16-01		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG92B2-M074-16-02		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG92B2-M074-16-03		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG92B2-M074-16-04		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG92B2-M074-16-05		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG92B2-M105-16-00		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG92B2-M105-16-01		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG92B2-M105-16-02		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG92B2-M105-16-03		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG92B2-M105-16-04		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG92B2-M105-16-05		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG92B2-M149-16-00		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG92B2-M149-16-01		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG92B2-M149-16-02		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG92B2-M149-16-03		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG92B2-M149-16-04		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG92B2-M149-16-05		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG92B3-M074-16-00		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG92B3-M074-16-01		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG92B3-M074-16-02		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG92B3-M074-16-03		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG92B3-M074-16-04		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG92B3-M074-16-05		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG92B3-M105-16-00		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG92B3-M105-16-01		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG92B3-M105-16-02		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG92B3-M105-16-03		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG92B3-M105-16-04		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG92B3-M105-16-05		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG92B3-M149-16-00		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG92B3-M149-16-01		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG92B3-M149-16-02		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG92B3-M149-16-03		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG92B3-M149-16-04		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG92B3-M149-16-05		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG92B4-M074-16-00		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG92B4-M074-16-01		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
FHG92B4-M074-16-02		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG92B4-M074-16-03		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
FHG92B4-M074-16-04		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG92B4-M074-16-05		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
FHG92B4-M105-16-00		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG92B4-M105-16-01		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
FHG92B4-M105-16-02		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG92B4-M105-16-03		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
FHG92B4-M105-16-04		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG92B4-M105-16-05		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
FHG92B4-M149-16-00		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG92B4-M149-16-01		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
FHG92B4-M149-16-02		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG92B4-M149-16-03		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
FHG92B4-M149-16-04		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG92B4-M149-16-05		Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
FHG92C1-M074-20-00		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG92C1-M074-20-02		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG92C1-M074-20-04		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG92C1-M105-20-00		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG92C1-M105-20-02		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG92C1-M105-20-04		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG92C1-M149-20-00		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG92C1-M149-20-02		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG92C1-M149-20-04		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG92C2-M074-20-00		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG92C2-M074-20-02		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG92C2-M074-20-04		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG92C2-M105-20-00		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG92C2-M105-20-02		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG92C2-M105-20-04		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG92C2-M149-20-00		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG92C2-M149-20-02		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG92C2-M149-20-04		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG92C3-M074-20-00		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG92C3-M074-20-02		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG92C3-M074-20-04		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG92C3-M105-20-00		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG92C3-M105-20-02		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG92C3-M105-20-04		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG92C3-M149-20-00		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG92C3-M149-20-02		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG92C3-M149-20-04		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG92C4-M074-20-00		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG92C4-M074-20-02		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG92C4-M074-20-04		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG92C4-M105-20-00		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG92C4-M105-20-02		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG92C4-M105-20-04		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG92C4-M149-20-00		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG92C4-M149-20-02		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG92C4-M149-20-04		Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG92C1-M074-24-00		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG92C1-M074-24-02		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG92C1-M074-24-04		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG92C1-M105-24-00		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG92C1-M105-24-02		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG92C1-M105-24-04		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG92C1-M149-24-00		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG92C1-M149-24-02		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG92C1-M149-24-04		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG92C2-M074-24-00		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG92C2-M074-24-02		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG92C2-M074-24-04		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG92C2-M105-24-00		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG92C2-M105-24-02		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG92C2-M105-24-04		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG92C2-M149-24-00		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG92C2-M149-24-02		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG92C2-M149-24-04		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG92C3-M074-24-00		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG92C3-M074-24-02		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG92C3-M074-24-04		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG92C3-M105-24-00		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG92C3-M105-24-02		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG92C3-M105-24-04		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG92C3-M149-24-00		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG92C3-M149-24-02		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG92C3-M149-24-04		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
FHG92C4-M074-24-00		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
FHG92C4-M074-24-02		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
FHG92C4-M074-24-04		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
FHG92C4-M105-24-00		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
FHG92C4-M105-24-02		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
FHG92C4-M105-24-04		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
FHG92C4-M149-24-00		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
FHG92C4-M149-24-02		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
FHG92C4-M149-24-04		Fluid: Phosphate ester \| Port: 3B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange

Industrial FiltersSMC

864 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC FHG Suction Guard (Made to Order, 1 1/4B to 3B)

Brand SMC·Industrial Filters

Available part numbers (864)

FHG90B1-M074-10-00, FHG90B1-M074-10-01, FHG90B1-M074-10-02, FHG90B1-M074-10-03, FHG90B1-M074-10-04, FHG90B1-M074-10-05, FHG90B1-M105-10-00, FHG90B1-M105-10-01, FHG90B1-M105-10-02, FHG90B1-M105-10-03 + 854 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	FHG90B1-M074-10-00	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG90B1-M074-10-01	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG90B1-M074-10-02	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG90B1-M074-10-03	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG90B1-M074-10-04	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG90B1-M074-10-05	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG90B1-M105-10-00	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG90B1-M105-10-01	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG90B1-M105-10-02	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG90B1-M105-10-03	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG90B1-M105-10-04	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG90B1-M105-10-05	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG90B1-M149-10-00	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG90B1-M149-10-01	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG90B1-M149-10-02	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG90B1-M149-10-03	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG90B1-M149-10-04	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG90B1-M149-10-05	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG90B2-M074-10-00	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG90B2-M074-10-01	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG90B2-M074-10-02	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG90B2-M074-10-03	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG90B2-M074-10-04	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG90B2-M074-10-05	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG90B2-M105-10-00	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG90B2-M105-10-01	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG90B2-M105-10-02	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG90B2-M105-10-03	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG90B2-M105-10-04	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG90B2-M105-10-05	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG90B2-M149-10-00	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG90B2-M149-10-01	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG90B2-M149-10-02	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG90B2-M149-10-03	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG90B2-M149-10-04	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG90B2-M149-10-05	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG90B3-M074-10-00	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG90B3-M074-10-01	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG90B3-M074-10-02	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG90B3-M074-10-03	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG90B3-M074-10-04	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG90B3-M074-10-05	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG90B3-M105-10-00	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG90B3-M105-10-01	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG90B3-M105-10-02	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG90B3-M105-10-03	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG90B3-M105-10-04	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG90B3-M105-10-05	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG90B3-M149-10-00	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG90B3-M149-10-01	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG90B3-M149-10-02	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG90B3-M149-10-03	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG90B3-M149-10-04	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG90B3-M149-10-05	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG90B4-M074-10-00	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG90B4-M074-10-01	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG90B4-M074-10-02	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG90B4-M074-10-03	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG90B4-M074-10-04	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG90B4-M074-10-05	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG90B4-M105-10-00	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG90B4-M105-10-01	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG90B4-M105-10-02	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG90B4-M105-10-03	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG90B4-M105-10-04	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG90B4-M105-10-05	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG90B4-M149-10-00	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG90B4-M149-10-01	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG90B4-M149-10-02	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG90B4-M149-10-03	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG90B4-M149-10-04	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG90B4-M149-10-05	Fluid: Petroleum-based \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG90B1-M074-12-00	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG90B1-M074-12-01	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG90B1-M074-12-02	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG90B1-M074-12-03	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG90B1-M074-12-04	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG90B1-M074-12-05	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG90B1-M105-12-00	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG90B1-M105-12-01	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG90B1-M105-12-02	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG90B1-M105-12-03	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG90B1-M105-12-04	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG90B1-M105-12-05	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG90B1-M149-12-00	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG90B1-M149-12-01	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG90B1-M149-12-02	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG90B1-M149-12-03	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG90B1-M149-12-04	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG90B1-M149-12-05	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG90B2-M074-12-00	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG90B2-M074-12-01	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG90B2-M074-12-02	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG90B2-M074-12-03	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG90B2-M074-12-04	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG90B2-M074-12-05	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG90B2-M105-12-00	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG90B2-M105-12-01	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG90B2-M105-12-02	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG90B2-M105-12-03	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG90B2-M105-12-04	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG90B2-M105-12-05	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG90B2-M149-12-00	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG90B2-M149-12-01	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG90B2-M149-12-02	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG90B2-M149-12-03	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG90B2-M149-12-04	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG90B2-M149-12-05	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG90B3-M074-12-00	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG90B3-M074-12-01	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG90B3-M074-12-02	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG90B3-M074-12-03	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG90B3-M074-12-04	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG90B3-M074-12-05	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG90B3-M105-12-00	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG90B3-M105-12-01	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG90B3-M105-12-02	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG90B3-M105-12-03	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG90B3-M105-12-04	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG90B3-M105-12-05	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG90B3-M149-12-00	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG90B3-M149-12-01	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG90B3-M149-12-02	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG90B3-M149-12-03	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG90B3-M149-12-04	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG90B3-M149-12-05	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG90B4-M074-12-00	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG90B4-M074-12-01	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG90B4-M074-12-02	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG90B4-M074-12-03	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG90B4-M074-12-04	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG90B4-M074-12-05	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG90B4-M105-12-00	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG90B4-M105-12-01	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG90B4-M105-12-02	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG90B4-M105-12-03	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG90B4-M105-12-04	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG90B4-M105-12-05	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG90B4-M149-12-00	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG90B4-M149-12-01	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG90B4-M149-12-02	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG90B4-M149-12-03	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG90B4-M149-12-04	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG90B4-M149-12-05	Fluid: Petroleum-based \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG90B1-M074-16-00	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG90B1-M074-16-01	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG90B1-M074-16-02	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG90B1-M074-16-03	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG90B1-M074-16-04	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG90B1-M074-16-05	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG90B1-M105-16-00	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG90B1-M105-16-01	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG90B1-M105-16-02	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG90B1-M105-16-03	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG90B1-M105-16-04	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG90B1-M105-16-05	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG90B1-M149-16-00	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG90B1-M149-16-01	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG90B1-M149-16-02	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG90B1-M149-16-03	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG90B1-M149-16-04	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG90B1-M149-16-05	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG90B2-M074-16-00	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG90B2-M074-16-01	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG90B2-M074-16-02	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG90B2-M074-16-03	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG90B2-M074-16-04	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG90B2-M074-16-05	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG90B2-M105-16-00	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG90B2-M105-16-01	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG90B2-M105-16-02	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG90B2-M105-16-03	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG90B2-M105-16-04	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG90B2-M105-16-05	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG90B2-M149-16-00	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG90B2-M149-16-01	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG90B2-M149-16-02	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG90B2-M149-16-03	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG90B2-M149-16-04	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG90B2-M149-16-05	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG90B3-M074-16-00	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG90B3-M074-16-01	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG90B3-M074-16-02	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG90B3-M074-16-03	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG90B3-M074-16-04	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG90B3-M074-16-05	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG90B3-M105-16-00	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG90B3-M105-16-01	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG90B3-M105-16-02	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG90B3-M105-16-03	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG90B3-M105-16-04	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG90B3-M105-16-05	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG90B3-M149-16-00	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG90B3-M149-16-01	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG90B3-M149-16-02	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG90B3-M149-16-03	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG90B3-M149-16-04	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG90B3-M149-16-05	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG90B4-M074-16-00	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG90B4-M074-16-01	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG90B4-M074-16-02	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG90B4-M074-16-03	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG90B4-M074-16-04	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG90B4-M074-16-05	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG90B4-M105-16-00	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG90B4-M105-16-01	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG90B4-M105-16-02	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG90B4-M105-16-03	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG90B4-M105-16-04	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG90B4-M105-16-05	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG90B4-M149-16-00	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG90B4-M149-16-01	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG90B4-M149-16-02	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG90B4-M149-16-03	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG90B4-M149-16-04	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG90B4-M149-16-05	Fluid: Petroleum-based \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG90C1-M074-20-00	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG90C1-M074-20-02	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG90C1-M074-20-04	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG90C1-M105-20-00	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG90C1-M105-20-02	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG90C1-M105-20-04	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG90C1-M149-20-00	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG90C1-M149-20-02	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG90C1-M149-20-04	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG90C2-M074-20-00	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG90C2-M074-20-02	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG90C2-M074-20-04	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG90C2-M105-20-00	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG90C2-M105-20-02	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG90C2-M105-20-04	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG90C2-M149-20-00	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG90C2-M149-20-02	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG90C2-M149-20-04	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG90C3-M074-20-00	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG90C3-M074-20-02	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG90C3-M074-20-04	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG90C3-M105-20-00	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG90C3-M105-20-02	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG90C3-M105-20-04	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG90C3-M149-20-00	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG90C3-M149-20-02	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG90C3-M149-20-04	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG90C4-M074-20-00	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG90C4-M074-20-02	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG90C4-M074-20-04	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG90C4-M105-20-00	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG90C4-M105-20-02	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG90C4-M105-20-04	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG90C4-M149-20-00	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG90C4-M149-20-02	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG90C4-M149-20-04	Fluid: Petroleum-based \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG90C1-M074-24-00	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG90C1-M074-24-02	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG90C1-M074-24-04	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG90C1-M105-24-00	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG90C1-M105-24-02	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG90C1-M105-24-04	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG90C1-M149-24-00	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG90C1-M149-24-02	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG90C1-M149-24-04	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG90C2-M074-24-00	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG90C2-M074-24-02	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG90C2-M074-24-04	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG90C2-M105-24-00	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG90C2-M105-24-02	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG90C2-M105-24-04	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG90C2-M149-24-00	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG90C2-M149-24-02	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG90C2-M149-24-04	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG90C3-M074-24-00	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG90C3-M074-24-02	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG90C3-M074-24-04	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG90C3-M105-24-00	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG90C3-M105-24-02	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG90C3-M105-24-04	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG90C3-M149-24-00	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG90C3-M149-24-02	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG90C3-M149-24-04	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG90C4-M074-24-00	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG90C4-M074-24-02	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG90C4-M074-24-04	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG90C4-M105-24-00	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG90C4-M105-24-02	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG90C4-M105-24-04	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG90C4-M149-24-00	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG90C4-M149-24-02	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG90C4-M149-24-04	Fluid: Petroleum-based \| Port: 3B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG91B1-M074-10-00	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG91B1-M074-10-01	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG91B1-M074-10-02	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG91B1-M074-10-03	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG91B1-M074-10-04	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG91B1-M074-10-05	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG91B1-M105-10-00	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG91B1-M105-10-01	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG91B1-M105-10-02	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG91B1-M105-10-03	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG91B1-M105-10-04	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG91B1-M105-10-05	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG91B1-M149-10-00	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG91B1-M149-10-01	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG91B1-M149-10-02	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG91B1-M149-10-03	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG91B1-M149-10-04	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG91B1-M149-10-05	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG91B2-M074-10-00	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG91B2-M074-10-01	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG91B2-M074-10-02	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG91B2-M074-10-03	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG91B2-M074-10-04	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG91B2-M074-10-05	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG91B2-M105-10-00	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG91B2-M105-10-01	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG91B2-M105-10-02	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG91B2-M105-10-03	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG91B2-M105-10-04	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG91B2-M105-10-05	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG91B2-M149-10-00	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG91B2-M149-10-01	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG91B2-M149-10-02	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG91B2-M149-10-03	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG91B2-M149-10-04	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG91B2-M149-10-05	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG91B3-M074-10-00	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG91B3-M074-10-01	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG91B3-M074-10-02	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG91B3-M074-10-03	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG91B3-M074-10-04	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG91B3-M074-10-05	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG91B3-M105-10-00	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG91B3-M105-10-01	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG91B3-M105-10-02	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG91B3-M105-10-03	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG91B3-M105-10-04	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG91B3-M105-10-05	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG91B3-M149-10-00	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG91B3-M149-10-01	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG91B3-M149-10-02	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG91B3-M149-10-03	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG91B3-M149-10-04	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG91B3-M149-10-05	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG91B4-M074-10-00	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG91B4-M074-10-01	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG91B4-M074-10-02	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG91B4-M074-10-03	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG91B4-M074-10-04	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG91B4-M074-10-05	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG91B4-M105-10-00	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG91B4-M105-10-01	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG91B4-M105-10-02	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG91B4-M105-10-03	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG91B4-M105-10-04	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG91B4-M105-10-05	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG91B4-M149-10-00	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG91B4-M149-10-01	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG91B4-M149-10-02	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG91B4-M149-10-03	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG91B4-M149-10-04	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG91B4-M149-10-05	Fluid: Water-glycol / emulsion \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG91B1-M074-12-00	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG91B1-M074-12-01	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG91B1-M074-12-02	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG91B1-M074-12-03	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG91B1-M074-12-04	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG91B1-M074-12-05	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG91B1-M105-12-00	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG91B1-M105-12-01	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG91B1-M105-12-02	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG91B1-M105-12-03	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG91B1-M105-12-04	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG91B1-M105-12-05	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG91B1-M149-12-00	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG91B1-M149-12-01	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG91B1-M149-12-02	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG91B1-M149-12-03	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG91B1-M149-12-04	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG91B1-M149-12-05	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG91B2-M074-12-00	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG91B2-M074-12-01	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG91B2-M074-12-02	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG91B2-M074-12-03	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG91B2-M074-12-04	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG91B2-M074-12-05	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG91B2-M105-12-00	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG91B2-M105-12-01	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG91B2-M105-12-02	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG91B2-M105-12-03	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG91B2-M105-12-04	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG91B2-M105-12-05	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG91B2-M149-12-00	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG91B2-M149-12-01	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG91B2-M149-12-02	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG91B2-M149-12-03	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG91B2-M149-12-04	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG91B2-M149-12-05	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG91B3-M074-12-00	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG91B3-M074-12-01	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG91B3-M074-12-02	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG91B3-M074-12-03	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG91B3-M074-12-04	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG91B3-M074-12-05	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG91B3-M105-12-00	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG91B3-M105-12-01	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG91B3-M105-12-02	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG91B3-M105-12-03	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG91B3-M105-12-04	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG91B3-M105-12-05	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG91B3-M149-12-00	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG91B3-M149-12-01	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG91B3-M149-12-02	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG91B3-M149-12-03	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG91B3-M149-12-04	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG91B3-M149-12-05	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG91B4-M074-12-00	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG91B4-M074-12-01	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG91B4-M074-12-02	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG91B4-M074-12-03	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG91B4-M074-12-04	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG91B4-M074-12-05	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG91B4-M105-12-00	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG91B4-M105-12-01	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG91B4-M105-12-02	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG91B4-M105-12-03	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG91B4-M105-12-04	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG91B4-M105-12-05	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG91B4-M149-12-00	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG91B4-M149-12-01	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG91B4-M149-12-02	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG91B4-M149-12-03	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG91B4-M149-12-04	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG91B4-M149-12-05	Fluid: Water-glycol / emulsion \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG91B1-M074-16-00	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG91B1-M074-16-01	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG91B1-M074-16-02	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG91B1-M074-16-03	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG91B1-M074-16-04	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG91B1-M074-16-05	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG91B1-M105-16-00	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG91B1-M105-16-01	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG91B1-M105-16-02	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG91B1-M105-16-03	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG91B1-M105-16-04	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG91B1-M105-16-05	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG91B1-M149-16-00	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG91B1-M149-16-01	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG91B1-M149-16-02	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG91B1-M149-16-03	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG91B1-M149-16-04	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG91B1-M149-16-05	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG91B2-M074-16-00	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG91B2-M074-16-01	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG91B2-M074-16-02	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG91B2-M074-16-03	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG91B2-M074-16-04	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG91B2-M074-16-05	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG91B2-M105-16-00	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG91B2-M105-16-01	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG91B2-M105-16-02	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG91B2-M105-16-03	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG91B2-M105-16-04	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG91B2-M105-16-05	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG91B2-M149-16-00	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG91B2-M149-16-01	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG91B2-M149-16-02	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG91B2-M149-16-03	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG91B2-M149-16-04	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG91B2-M149-16-05	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG91B3-M074-16-00	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG91B3-M074-16-01	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG91B3-M074-16-02	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG91B3-M074-16-03	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG91B3-M074-16-04	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG91B3-M074-16-05	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG91B3-M105-16-00	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG91B3-M105-16-01	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG91B3-M105-16-02	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG91B3-M105-16-03	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG91B3-M105-16-04	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG91B3-M105-16-05	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG91B3-M149-16-00	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG91B3-M149-16-01	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG91B3-M149-16-02	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG91B3-M149-16-03	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG91B3-M149-16-04	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG91B3-M149-16-05	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG91B4-M074-16-00	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG91B4-M074-16-01	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG91B4-M074-16-02	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG91B4-M074-16-03	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG91B4-M074-16-04	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG91B4-M074-16-05	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG91B4-M105-16-00	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG91B4-M105-16-01	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG91B4-M105-16-02	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG91B4-M105-16-03	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG91B4-M105-16-04	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG91B4-M105-16-05	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG91B4-M149-16-00	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG91B4-M149-16-01	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG91B4-M149-16-02	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG91B4-M149-16-03	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG91B4-M149-16-04	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG91B4-M149-16-05	Fluid: Water-glycol / emulsion \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG91C1-M074-20-00	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG91C1-M074-20-02	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG91C1-M074-20-04	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG91C1-M105-20-00	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG91C1-M105-20-02	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG91C1-M105-20-04	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG91C1-M149-20-00	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG91C1-M149-20-02	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG91C1-M149-20-04	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG91C2-M074-20-00	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG91C2-M074-20-02	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG91C2-M074-20-04	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG91C2-M105-20-00	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG91C2-M105-20-02	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG91C2-M105-20-04	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG91C2-M149-20-00	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG91C2-M149-20-02	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG91C2-M149-20-04	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG91C3-M074-20-00	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG91C3-M074-20-02	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG91C3-M074-20-04	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG91C3-M105-20-00	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG91C3-M105-20-02	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG91C3-M105-20-04	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG91C3-M149-20-00	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG91C3-M149-20-02	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG91C3-M149-20-04	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG91C4-M074-20-00	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG91C4-M074-20-02	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG91C4-M074-20-04	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG91C4-M105-20-00	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG91C4-M105-20-02	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG91C4-M105-20-04	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG91C4-M149-20-00	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG91C4-M149-20-02	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG91C4-M149-20-04	Fluid: Water-glycol / emulsion \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG91C1-M074-24-00	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG91C1-M074-24-02	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG91C1-M074-24-04	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG91C1-M105-24-00	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG91C1-M105-24-02	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG91C1-M105-24-04	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG91C1-M149-24-00	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG91C1-M149-24-02	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG91C1-M149-24-04	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG91C2-M074-24-00	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG91C2-M074-24-02	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG91C2-M074-24-04	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG91C2-M105-24-00	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG91C2-M105-24-02	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG91C2-M105-24-04	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG91C2-M149-24-00	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG91C2-M149-24-02	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG91C2-M149-24-04	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG91C3-M074-24-00	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG91C3-M074-24-02	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG91C3-M074-24-04	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG91C3-M105-24-00	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG91C3-M105-24-02	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG91C3-M105-24-04	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG91C3-M149-24-00	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG91C3-M149-24-02	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG91C3-M149-24-04	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG91C4-M074-24-00	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG91C4-M074-24-02	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG91C4-M074-24-04	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG91C4-M105-24-00	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG91C4-M105-24-02	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG91C4-M105-24-04	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG91C4-M149-24-00	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG91C4-M149-24-02	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG91C4-M149-24-04	Fluid: Water-glycol / emulsion \| Port: 3B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG92B1-M074-10-00	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG92B1-M074-10-01	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG92B1-M074-10-02	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG92B1-M074-10-03	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG92B1-M074-10-04	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG92B1-M074-10-05	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG92B1-M105-10-00	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG92B1-M105-10-01	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG92B1-M105-10-02	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG92B1-M105-10-03	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG92B1-M105-10-04	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG92B1-M105-10-05	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG92B1-M149-10-00	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG92B1-M149-10-01	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG92B1-M149-10-02	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG92B1-M149-10-03	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG92B1-M149-10-04	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG92B1-M149-10-05	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG92B2-M074-10-00	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG92B2-M074-10-01	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG92B2-M074-10-02	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG92B2-M074-10-03	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG92B2-M074-10-04	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG92B2-M074-10-05	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG92B2-M105-10-00	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG92B2-M105-10-01	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG92B2-M105-10-02	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG92B2-M105-10-03	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG92B2-M105-10-04	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG92B2-M105-10-05	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG92B2-M149-10-00	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG92B2-M149-10-01	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG92B2-M149-10-02	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG92B2-M149-10-03	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG92B2-M149-10-04	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG92B2-M149-10-05	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG92B3-M074-10-00	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG92B3-M074-10-01	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG92B3-M074-10-02	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG92B3-M074-10-03	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG92B3-M074-10-04	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG92B3-M074-10-05	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG92B3-M105-10-00	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG92B3-M105-10-01	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG92B3-M105-10-02	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG92B3-M105-10-03	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG92B3-M105-10-04	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG92B3-M105-10-05	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG92B3-M149-10-00	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG92B3-M149-10-01	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG92B3-M149-10-02	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG92B3-M149-10-03	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG92B3-M149-10-04	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG92B3-M149-10-05	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG92B4-M074-10-00	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG92B4-M074-10-01	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG92B4-M074-10-02	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG92B4-M074-10-03	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG92B4-M074-10-04	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG92B4-M074-10-05	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG92B4-M105-10-00	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG92B4-M105-10-01	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG92B4-M105-10-02	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG92B4-M105-10-03	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG92B4-M105-10-04	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG92B4-M105-10-05	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG92B4-M149-10-00	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG92B4-M149-10-01	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG92B4-M149-10-02	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG92B4-M149-10-03	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG92B4-M149-10-04	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG92B4-M149-10-05	Fluid: Phosphate ester \| Port: 1 1/4B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG92B1-M074-12-00	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG92B1-M074-12-01	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG92B1-M074-12-02	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG92B1-M074-12-03	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG92B1-M074-12-04	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG92B1-M074-12-05	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG92B1-M105-12-00	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG92B1-M105-12-01	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG92B1-M105-12-02	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG92B1-M105-12-03	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG92B1-M105-12-04	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG92B1-M105-12-05	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG92B1-M149-12-00	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG92B1-M149-12-01	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG92B1-M149-12-02	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG92B1-M149-12-03	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG92B1-M149-12-04	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG92B1-M149-12-05	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG92B2-M074-12-00	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG92B2-M074-12-01	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG92B2-M074-12-02	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG92B2-M074-12-03	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG92B2-M074-12-04	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG92B2-M074-12-05	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG92B2-M105-12-00	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG92B2-M105-12-01	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG92B2-M105-12-02	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG92B2-M105-12-03	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG92B2-M105-12-04	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG92B2-M105-12-05	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG92B2-M149-12-00	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG92B2-M149-12-01	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG92B2-M149-12-02	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG92B2-M149-12-03	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG92B2-M149-12-04	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG92B2-M149-12-05	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG92B3-M074-12-00	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG92B3-M074-12-01	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG92B3-M074-12-02	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG92B3-M074-12-03	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG92B3-M074-12-04	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG92B3-M074-12-05	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG92B3-M105-12-00	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG92B3-M105-12-01	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG92B3-M105-12-02	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG92B3-M105-12-03	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG92B3-M105-12-04	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG92B3-M105-12-05	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG92B3-M149-12-00	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG92B3-M149-12-01	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG92B3-M149-12-02	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG92B3-M149-12-03	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG92B3-M149-12-04	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG92B3-M149-12-05	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG92B4-M074-12-00	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG92B4-M074-12-01	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG92B4-M074-12-02	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG92B4-M074-12-03	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG92B4-M074-12-04	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG92B4-M074-12-05	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG92B4-M105-12-00	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG92B4-M105-12-01	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG92B4-M105-12-02	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG92B4-M105-12-03	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG92B4-M105-12-04	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG92B4-M105-12-05	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG92B4-M149-12-00	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG92B4-M149-12-01	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG92B4-M149-12-02	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG92B4-M149-12-03	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG92B4-M149-12-04	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG92B4-M149-12-05	Fluid: Phosphate ester \| Port: 1 1/2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG92B1-M074-16-00	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG92B1-M074-16-01	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG92B1-M074-16-02	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG92B1-M074-16-03	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG92B1-M074-16-04	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG92B1-M074-16-05	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG92B1-M105-16-00	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG92B1-M105-16-01	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG92B1-M105-16-02	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG92B1-M105-16-03	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG92B1-M105-16-04	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG92B1-M105-16-05	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG92B1-M149-16-00	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG92B1-M149-16-01	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG92B1-M149-16-02	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG92B1-M149-16-03	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG92B1-M149-16-04	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG92B1-M149-16-05	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 385 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG92B2-M074-16-00	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG92B2-M074-16-01	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG92B2-M074-16-02	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG92B2-M074-16-03	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG92B2-M074-16-04	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG92B2-M074-16-05	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG92B2-M105-16-00	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG92B2-M105-16-01	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG92B2-M105-16-02	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG92B2-M105-16-03	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG92B2-M105-16-04	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG92B2-M105-16-05	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG92B2-M149-16-00	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG92B2-M149-16-01	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG92B2-M149-16-02	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG92B2-M149-16-03	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG92B2-M149-16-04	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG92B2-M149-16-05	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 485 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG92B3-M074-16-00	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG92B3-M074-16-01	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG92B3-M074-16-02	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG92B3-M074-16-03	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG92B3-M074-16-04	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG92B3-M074-16-05	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG92B3-M105-16-00	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG92B3-M105-16-01	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG92B3-M105-16-02	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG92B3-M105-16-03	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG92B3-M105-16-04	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG92B3-M105-16-05	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG92B3-M149-16-00	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG92B3-M149-16-01	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG92B3-M149-16-02	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG92B3-M149-16-03	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG92B3-M149-16-04	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG92B3-M149-16-05	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 585 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG92B4-M074-16-00	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG92B4-M074-16-01	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: Female thread mating flange
	FHG92B4-M074-16-02	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG92B4-M074-16-03	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block female thread flange
	FHG92B4-M074-16-04	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG92B4-M074-16-05	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block female thread flange
	FHG92B4-M105-16-00	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG92B4-M105-16-01	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: Female thread mating flange
	FHG92B4-M105-16-02	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG92B4-M105-16-03	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block female thread flange
	FHG92B4-M105-16-04	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG92B4-M105-16-05	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block female thread flange
	FHG92B4-M149-16-00	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG92B4-M149-16-01	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: Female thread mating flange
	FHG92B4-M149-16-02	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG92B4-M149-16-03	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block female thread flange
	FHG92B4-M149-16-04	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG92B4-M149-16-05	Fluid: Phosphate ester \| Port: 2B \| Flange length T: 685 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block female thread flange
	FHG92C1-M074-20-00	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG92C1-M074-20-02	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG92C1-M074-20-04	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG92C1-M105-20-00	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG92C1-M105-20-02	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG92C1-M105-20-04	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG92C1-M149-20-00	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG92C1-M149-20-02	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG92C1-M149-20-04	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG92C2-M074-20-00	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG92C2-M074-20-02	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG92C2-M074-20-04	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG92C2-M105-20-00	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG92C2-M105-20-02	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG92C2-M105-20-04	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG92C2-M149-20-00	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG92C2-M149-20-02	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG92C2-M149-20-04	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG92C3-M074-20-00	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG92C3-M074-20-02	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG92C3-M074-20-04	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG92C3-M105-20-00	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG92C3-M105-20-02	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG92C3-M105-20-04	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG92C3-M149-20-00	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG92C3-M149-20-02	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG92C3-M149-20-04	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG92C4-M074-20-00	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG92C4-M074-20-02	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG92C4-M074-20-04	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG92C4-M105-20-00	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG92C4-M105-20-02	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG92C4-M105-20-04	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG92C4-M149-20-00	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG92C4-M149-20-02	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG92C4-M149-20-04	Fluid: Phosphate ester \| Port: 2 1/2B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG92C1-M074-24-00	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG92C1-M074-24-02	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG92C1-M074-24-04	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 560 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG92C1-M105-24-00	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG92C1-M105-24-02	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG92C1-M105-24-04	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 560 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG92C1-M149-24-00	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG92C1-M149-24-02	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG92C1-M149-24-04	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 560 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG92C2-M074-24-00	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG92C2-M074-24-02	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG92C2-M074-24-04	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 650 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG92C2-M105-24-00	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG92C2-M105-24-02	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG92C2-M105-24-04	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 650 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG92C2-M149-24-00	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG92C2-M149-24-02	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG92C2-M149-24-04	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 650 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG92C3-M074-24-00	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG92C3-M074-24-02	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG92C3-M074-24-04	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 750 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG92C3-M105-24-00	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG92C3-M105-24-02	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG92C3-M105-24-04	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 750 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG92C3-M149-24-00	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG92C3-M149-24-02	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG92C3-M149-24-04	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 750 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange
	FHG92C4-M074-24-00	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: Mating flange
	FHG92C4-M074-24-02	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: L-block mating flange
	FHG92C4-M074-24-04	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 850 mm \| Filtration: 74 um (200 mesh) \| Connection: S-block mating flange
	FHG92C4-M105-24-00	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: Mating flange
	FHG92C4-M105-24-02	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: L-block mating flange
	FHG92C4-M105-24-04	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 850 mm \| Filtration: 105 um (150 mesh) \| Connection: S-block mating flange
	FHG92C4-M149-24-00	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: Mating flange
	FHG92C4-M149-24-02	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: L-block mating flange
	FHG92C4-M149-24-04	Fluid: Phosphate ester \| Port: 3B \| Flange length T: 850 mm \| Filtration: 149 um (100 mesh) \| Connection: S-block mating flange

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Hydraulics →

Item added to your cart

SMC FHG Suction Guard (Made to Order, 1 1/4B to 3B)
