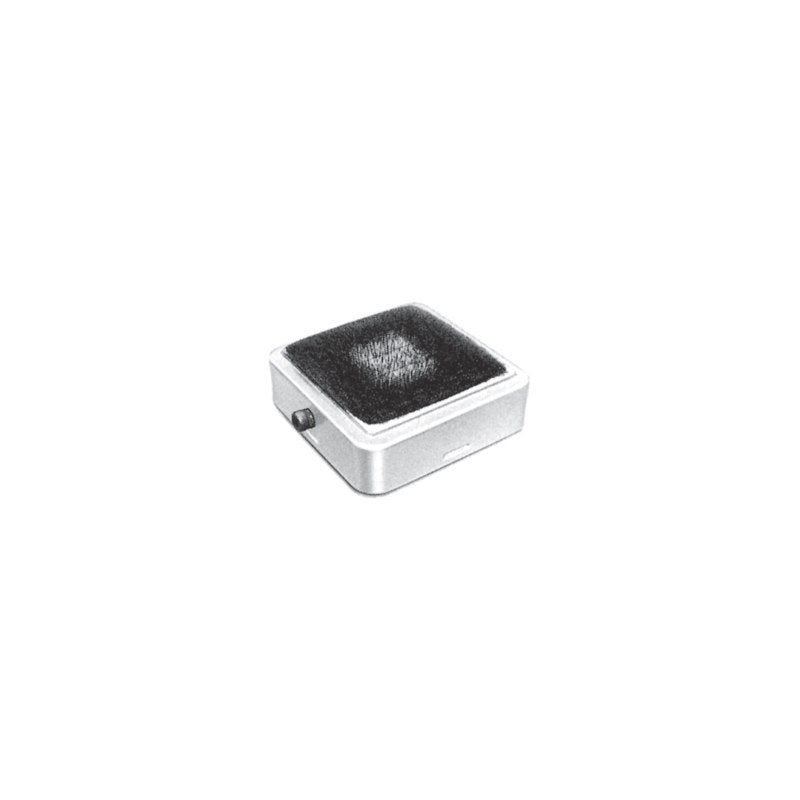

SMC FHM Magnet Separator (Hydraulic Tank)

SMC FHM Magnet Separator (Hydraulic Tank)

SMC FHM series magnet separator that removes ferrous contaminants from hydraulic oil by magnetic attraction inside the tank.

Key features

  • Magnetically captures wear particles and other contaminants in the oil
  • No consumable parts: semi-permanent use with no running cost
  • Slows oil deterioration and extends oil change intervals
  • Reduces machine trouble and maintenance cost caused by wear debris
  • Installed in U-turn, under-flow or over-flow arrangements in the tank

Specifications

Fluid Petroleum, water-glycol, cutting oil / emulsion
Max. temperature 80°C
Flow velocity 3 m/min or less
Mounting Placed in the oil tank
Source SMC Korea catalog FHM (SMCKR_FHM.pdf), p. 1545-1546
FHMN-055 Size: 55 x 55 x t20 mm | Tank volume per unit: 20 L | Mass: 0.2 kg
FHM-100 Size: 100 x 100 x t30 mm | Tank volume per unit: 100 L | Mass: 0.9 kg
FHM-200 Size: 200 x 140 x t40 mm | Tank volume per unit: 200 L | Mass: 2.5 kg
Industrial FiltersSMC
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC FHM Magnet Separator (Hydraulic Tank)

Brand SMC·Industrial Filters

Available part numbers (3)

FHMN-055, FHM-100, FHM-200

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
FHMN-055Size: 55 x 55 x t20 mm | Tank volume per unit: 20 L | Mass: 0.2 kg
FHM-100Size: 100 x 100 x t30 mm | Tank volume per unit: 100 L | Mass: 0.9 kg
FHM-200Size: 200 x 140 x t40 mm | Tank volume per unit: 200 L | Mass: 2.5 kg
