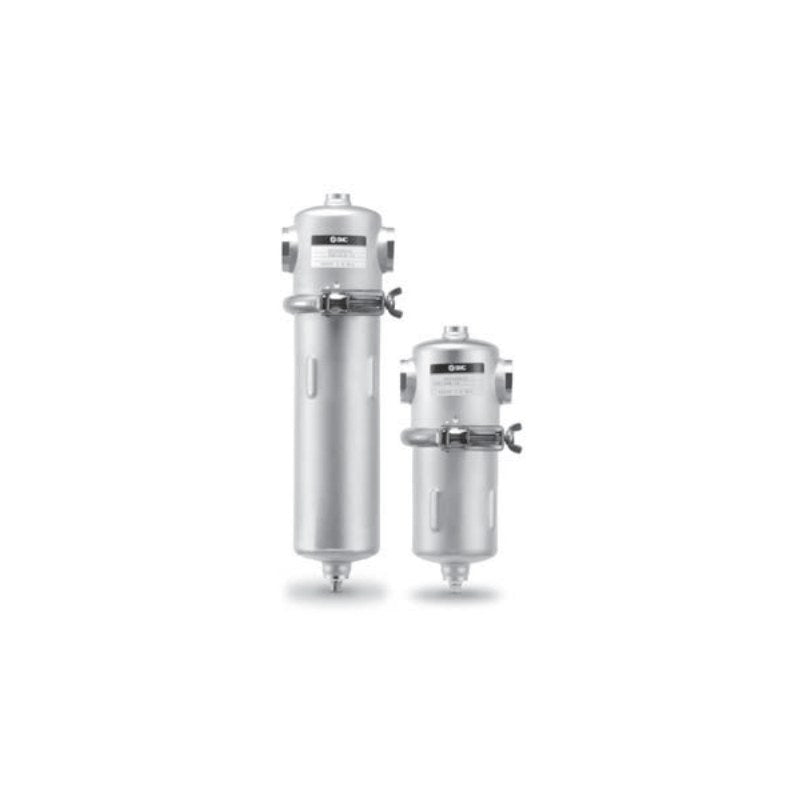

SMC FN1/FN4 Regenerating Backwash Filter (Coolant, Rc1 / Rc2)

SMC FN1/FN4 series regenerating filter whose stacked-plate SUS304 element is backwashed by expanding it with a locking cylinder, eliminating element replacement.

Key features

No element replacement: element of stacked filter plates and wave washers is regenerated by backwashing
Cylinder compresses the element for filtering and expands it for backwash with stored liquid pushed by air
Cylindrical (5 / 20 um) or stepped two-stage (5 um, FN1) element for wide dust distributions
FN1 approx. 40 / 80 L/min (Rc1); FN4 approx. 250 L/min (Rc2) with built-in backwash chamber
Accessories: FNR storage tank for FN1, FND dust recovery filter (made to order), elements and packing sets

Specifications

Fluid	Coolant (oil / water soluble), weak alkaline cleaner, cutting oil, industrial water
Max. operating pressure	1.0 MPa
Max. fluid temperature	80°C
Housing	SUS304 case and cover
Element	SUS304
Element collapse pressure	0.6 MPa
Cylinder	CDLQB63 (FN1), CDLQA100-50-F (FN4), lock type, 0.2 to 1.0 MPa air
Options (not listed)	Suffix G: pressure gauge
Source	SMC Korea catalog FN1/FN4 (SMCKR_FN1_FN4.pdf), p. 1207-1222

FN1101N-10-S005		Part: FN1 filter, 1 element, Rc1 \| Element: Cylindrical L250 \| Seal: NBR \| Filtration: 5 um
FN1101N-10-S020		Part: FN1 filter, 1 element, Rc1 \| Element: Cylindrical L250 \| Seal: NBR \| Filtration: 20 um
FN1101V-10-S005		Part: FN1 filter, 1 element, Rc1 \| Element: Cylindrical L250 \| Seal: FKM \| Filtration: 5 um
FN1101V-10-S020		Part: FN1 filter, 1 element, Rc1 \| Element: Cylindrical L250 \| Seal: FKM \| Filtration: 20 um
FN1102N-10-S005		Part: FN1 filter, 1 element, Rc1 \| Element: Cylindrical L500 \| Seal: NBR \| Filtration: 5 um
FN1102N-10-S020		Part: FN1 filter, 1 element, Rc1 \| Element: Cylindrical L500 \| Seal: NBR \| Filtration: 20 um
FN1102V-10-S005		Part: FN1 filter, 1 element, Rc1 \| Element: Cylindrical L500 \| Seal: FKM \| Filtration: 5 um
FN1102V-10-S020		Part: FN1 filter, 1 element, Rc1 \| Element: Cylindrical L500 \| Seal: FKM \| Filtration: 20 um
FN1111N-10-S005		Part: FN1 filter, 1 element, Rc1 \| Element: Stepped L250 \| Seal: NBR \| Filtration: 5 um
FN1111V-10-S005		Part: FN1 filter, 1 element, Rc1 \| Element: Stepped L250 \| Seal: FKM \| Filtration: 5 um
FN1112N-10-S005		Part: FN1 filter, 1 element, Rc1 \| Element: Stepped L500 \| Seal: NBR \| Filtration: 5 um
FN1112V-10-S005		Part: FN1 filter, 1 element, Rc1 \| Element: Stepped L500 \| Seal: FKM \| Filtration: 5 um
FN4102N-20-S005		Part: FN4 filter, 4 elements, Rc2 \| Element: Cylindrical L500 \| Seal: NBR \| Filtration: 5 um
FN4102N-20-S020		Part: FN4 filter, 4 elements, Rc2 \| Element: Cylindrical L500 \| Seal: NBR \| Filtration: 20 um
FN4102V-20-S005		Part: FN4 filter, 4 elements, Rc2 \| Element: Cylindrical L500 \| Seal: FKM \| Filtration: 5 um
FN4102V-20-S020		Part: FN4 filter, 4 elements, Rc2 \| Element: Cylindrical L500 \| Seal: FKM \| Filtration: 20 um
FNR100N-10		Part: FNR storage tank 1.1 L, Rc1 \| Element: For FN11 L250 \| Seal: NBR \| Filtration: n/a
FNR100V-10		Part: FNR storage tank 1.1 L, Rc1 \| Element: For FN11 L250 \| Seal: FKM \| Filtration: n/a
FNR101N-10		Part: FNR storage tank 1.8 L, Rc1 \| Element: For FN11 L500 \| Seal: NBR \| Filtration: n/a
FNR101V-10		Part: FNR storage tank 1.8 L, Rc1 \| Element: For FN11 L500 \| Seal: FKM \| Filtration: n/a
FND100N-10-M149X0		Part: FND dust recovery filter, R1 \| Element: Wire mesh \| Seal: NBR \| Filtration: 149 um
FND100V-10-M149X0		Part: FND dust recovery filter, R1 \| Element: Wire mesh \| Seal: FKM \| Filtration: 149 um
END100-005		Part: Replacement element \| Element: Cylindrical L250 \| Seal: n/a \| Filtration: 5 um
END100-020		Part: Replacement element \| Element: Cylindrical L250 \| Seal: n/a \| Filtration: 20 um
END110-005		Part: Replacement element \| Element: Stepped L250 \| Seal: n/a \| Filtration: 5 um
END200-005		Part: Replacement element \| Element: Cylindrical L500 \| Seal: n/a \| Filtration: 5 um
END200-020		Part: Replacement element \| Element: Cylindrical L500 \| Seal: n/a \| Filtration: 20 um
END210-005		Part: Replacement element \| Element: Stepped L500 \| Seal: n/a \| Filtration: 5 um
END400-005		Part: Replacement element \| Element: FN4 element L500 \| Seal: n/a \| Filtration: 5 um
END400-020		Part: Replacement element \| Element: FN4 element L500 \| Seal: n/a \| Filtration: 20 um
KT-FN11N		Part: Packing set for FN1 \| Element: n/a \| Seal: NBR \| Filtration: n/a
KT-FN11V		Part: Packing set for FN1 \| Element: n/a \| Seal: FKM \| Filtration: n/a
KT-FN41N		Part: Packing set for FN4 \| Element: n/a \| Seal: NBR \| Filtration: n/a
KT-FN41V		Part: Packing set for FN4 \| Element: n/a \| Seal: FKM \| Filtration: n/a

Industrial FiltersSMC

34 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC FN1/FN4 Regenerating Backwash Filter (Coolant, Rc1 / Rc2)

Brand SMC·Industrial Filters

Available part numbers (34)

FN1101N-10-S005, FN1101N-10-S020, FN1101V-10-S005, FN1101V-10-S020, FN1102N-10-S005, FN1102N-10-S020, FN1102V-10-S005, FN1102V-10-S020, FN1111N-10-S005, FN1111V-10-S005 + 24 more — see full table ↓
