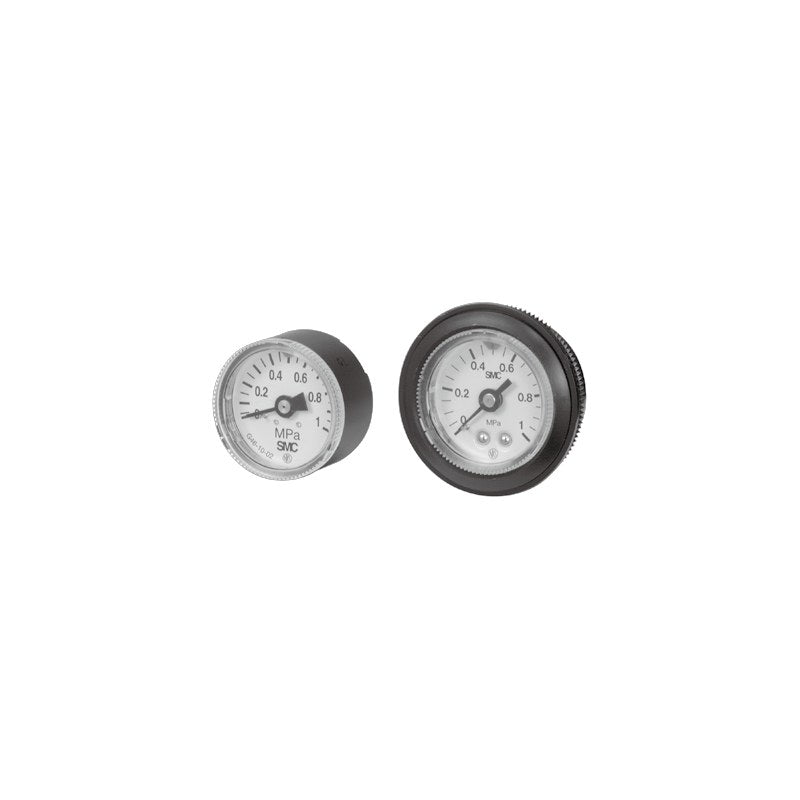

SMC G15/G27 Miniature Pressure Gauge (0 to 1.0 MPa)

SMC G15/G27 Miniature Pressure Gauge (0 to 1.0 MPa)

SMC G15 and G27 miniature general purpose pressure gauges, 0 to 1.0 MPa, for compact pneumatic equipment.

Key features

  • Very small dial: G15 ø15 mm and G27 ø26 mm, rear thread mounting
  • G15: R1/8 male with M5 female thread; G27: R1/16, R1/8 or M5 female
  • Accuracy ±5% F.S., zinc die-cast case with polycarbonate cover
  • MPa/psi dual scale (P10 + X30) available outside Japan

Specifications

Pressure range 0 to 1.0 MPa
Mounting Rear thread
Fluid Air
Accuracy ±5% F.S.
Case / cover Zinc die-cast (black) / polycarbonate
Bourdon tube Brass
Accuracy temperature 23 ±5°C
Special G27-P10-R1-X30 (MPa/psi dual scale, outside Japan)
Source SMC Korea catalog Pressure Gauges (SMCKR_G__.pdf), p. 1272-1273 (PDF p. 1-2)
G15-10-01 Size: G15 (ø15) | Connection: R1/8, M5 female | Mass: 0.01 kg | Availability: Stock item
G27-10-01 Size: G27 (ø26) | Connection: R1/8 | Mass: 0.015 kg | Availability: Made to order
G27-10-R1 Size: G27 (ø26) | Connection: R1/16 | Mass: 0.015 kg | Availability: Stock item
G27-10-M5 Size: G27 (ø26) | Connection: M5 female | Mass: 0.015 kg | Availability: Made to order
Pressure GaugesSMC
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC G15/G27 Miniature Pressure Gauge (0 to 1.0 MPa)

Brand SMC·Pressure Gauges

Available part numbers (4)

G15-10-01, G27-10-01, G27-10-R1, G27-10-M5

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
G15-10-01Size: G15 (ø15) | Connection: R1/8, M5 female | Mass: 0.01 kg | Availability: Stock item
G27-10-01Size: G27 (ø26) | Connection: R1/8 | Mass: 0.015 kg | Availability: Made to order
G27-10-R1Size: G27 (ø26) | Connection: R1/16 | Mass: 0.015 kg | Availability: Stock item
G27-10-M5Size: G27 (ø26) | Connection: M5 female | Mass: 0.015 kg | Availability: Made to order
