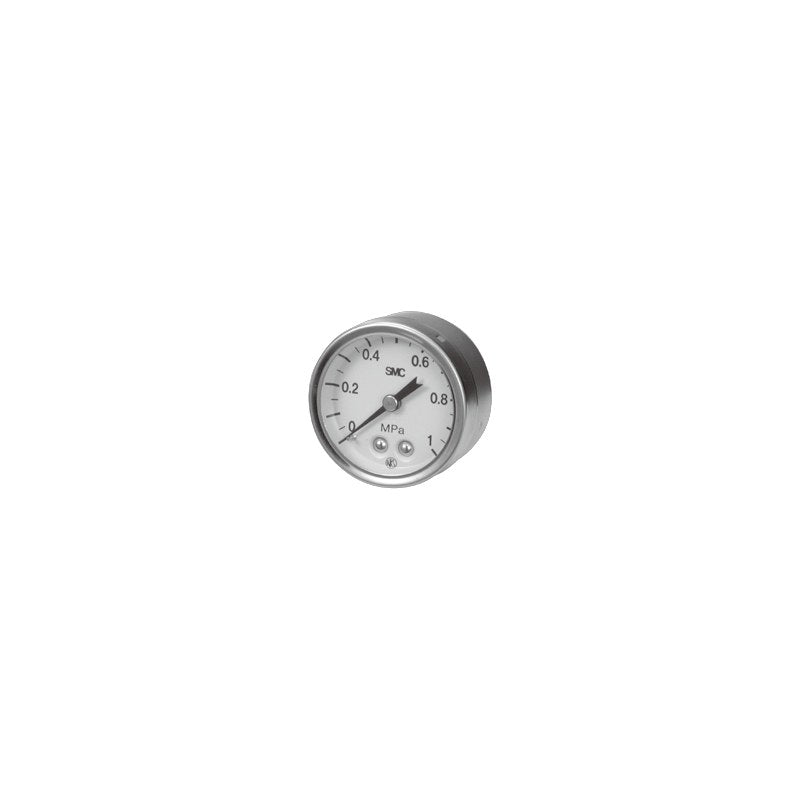

SMC G33/GA33 Pressure Gauge (ø30, Stainless Case, R1/8)

SMC G33/GA33 Pressure Gauge (ø30, Stainless Case, R1/8)

SMC G33 (rear thread) and GA33 (side thread, stand type) compact pressure gauges with stainless case and glass cover.

Key features

  • ø30 dial, R1/8 connection
  • G33 ranges 0.2 to 1.0 MPa (incl. 0.3 and 0.6 MPa); GA33 0.2, 0.4, 0.7, 1.0 MPa
  • Accuracy ±3% F.S.; stainless steel case with glass cover
  • Used on IP5000, IR1000, IT1000 and ARM2500/3000
  • Special: X2 nickel-plated stud, X4 oil-free, X30 MPa/psi

Specifications

Connection R1/8
Dial ø30
Fluid Air
Accuracy ±3% F.S.
Case Stainless steel
Cover Glass
Stud / Bourdon tube Brass / brass
Main applications IP5000, IR1000, IT1000, ARM2500/3000
Special X2 stud nickel plated, X4 oil-free, X30 MPa/psi
Source SMC Korea catalog Pressure Gauges (SMCKR_G__.pdf), p. 1279-1280 (PDF p. 8-9)
G33-2-01 Type: G33 rear thread | Max. pressure: 0.2 MPa | Mass: 0.033 kg | Availability: Stock item
G33-3-01 Type: G33 rear thread | Max. pressure: 0.3 MPa | Mass: 0.033 kg | Availability: Stock item
G33-4-01 Type: G33 rear thread | Max. pressure: 0.4 MPa | Mass: 0.033 kg | Availability: Stock item
G33-6-01 Type: G33 rear thread | Max. pressure: 0.6 MPa | Mass: 0.033 kg | Availability: Stock item
G33-7-01 Type: G33 rear thread | Max. pressure: 0.7 MPa | Mass: 0.033 kg | Availability: Made to order
G33-10-01 Type: G33 rear thread | Max. pressure: 1.0 MPa | Mass: 0.033 kg | Availability: Stock item
GA33-2-01 Type: GA33 side thread (stand) | Max. pressure: 0.2 MPa | Mass: 0.03 kg | Availability: Stock item
GA33-4-01 Type: GA33 side thread (stand) | Max. pressure: 0.4 MPa | Mass: 0.03 kg | Availability: Stock item
GA33-7-01 Type: GA33 side thread (stand) | Max. pressure: 0.7 MPa | Mass: 0.03 kg | Availability: Stock item
GA33-10-01 Type: GA33 side thread (stand) | Max. pressure: 1.0 MPa | Mass: 0.03 kg | Availability: Stock item
Pressure GaugesSMC
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC G33/GA33 Pressure Gauge (ø30, Stainless Case, R1/8)

Brand SMC·Pressure Gauges

Available part numbers (10)

G33-2-01, G33-3-01, G33-4-01, G33-6-01, G33-7-01, G33-10-01, GA33-2-01, GA33-4-01, GA33-7-01, GA33-10-01

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
G33-2-01Type: G33 rear thread | Max. pressure: 0.2 MPa | Mass: 0.033 kg | Availability: Stock item
G33-3-01Type: G33 rear thread | Max. pressure: 0.3 MPa | Mass: 0.033 kg | Availability: Stock item
G33-4-01Type: G33 rear thread | Max. pressure: 0.4 MPa | Mass: 0.033 kg | Availability: Stock item
G33-6-01Type: G33 rear thread | Max. pressure: 0.6 MPa | Mass: 0.033 kg | Availability: Stock item
G33-7-01Type: G33 rear thread | Max. pressure: 0.7 MPa | Mass: 0.033 kg | Availability: Made to order
G33-10-01Type: G33 rear thread | Max. pressure: 1.0 MPa | Mass: 0.033 kg | Availability: Stock item
GA33-2-01Type: GA33 side thread (stand) | Max. pressure: 0.2 MPa | Mass: 0.03 kg | Availability: Stock item
GA33-4-01Type: GA33 side thread (stand) | Max. pressure: 0.4 MPa | Mass: 0.03 kg | Availability: Stock item
GA33-7-01Type: GA33 side thread (stand) | Max. pressure: 0.7 MPa | Mass: 0.03 kg | Availability: Stock item
GA33-10-01Type: GA33 side thread (stand) | Max. pressure: 1.0 MPa | Mass: 0.03 kg | Availability: Stock item
