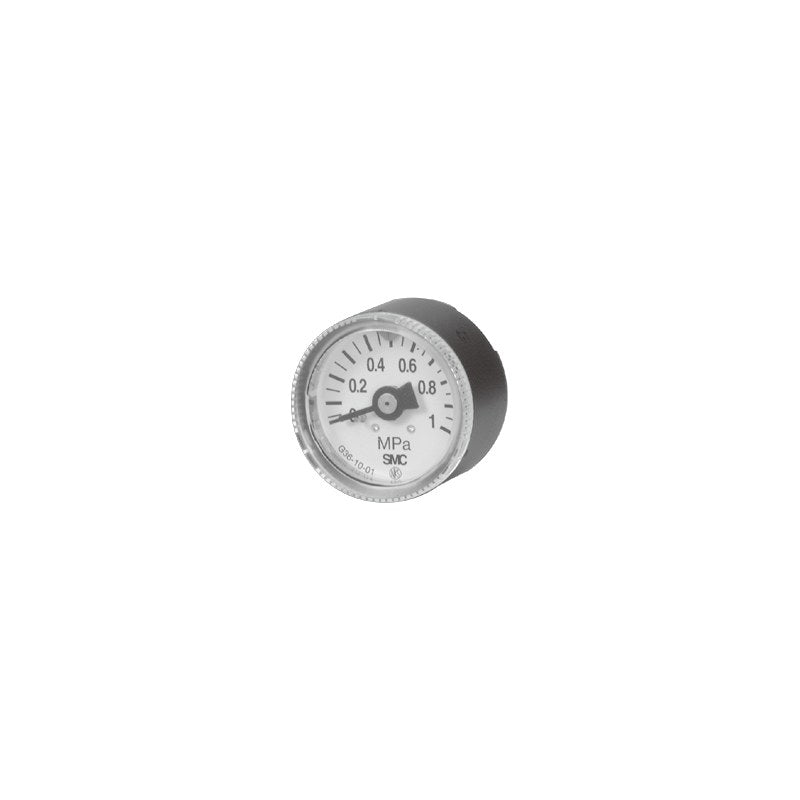

SMC G36/GA36 Pressure Gauge with Limit Indicator (ø37.5, R1/8)

SMC G36/GA36 Pressure Gauge with Limit Indicator (ø37.5, R1/8)

SMC G36 (rear thread) and GA36 (side thread, stand type) general purpose pressure gauges with limit indicator, R1/8 connection.

Key features

  • Ranges 0.2, 0.4, 0.7, 1.0 and 1.5 MPa full scale
  • Accuracy ±3% F.S.; limit indicator for setting checks
  • G36 with optional M5 female thread (M) for tube piping
  • GA36 stainless case, side thread stand type
  • Special: X2 nickel-plated stud, X4 oil-free, X30 MPa/psi dual scale (outside Japan)

Specifications

Connection R1/8 (G36 option M: with M5 female)
Dial ø37.5
Fluid Air
Accuracy ±3% F.S.
Case G36 rolled steel (black); GA36 stainless steel (black)
Cover Polycarbonate (G36-00-00-4 / G36-00-00-3)
Stud G36 aluminum die-cast; GA36 brass
Limit indicator Yes
Special X2 stud nickel plated (GA36), X4 oil-free, X30 MPa/psi
Source SMC Korea catalog Pressure Gauges (SMCKR_G__.pdf), p. 1274-1275 (PDF p. 3-4)
G36-2-01 Type: G36 rear thread | Max. pressure: 0.2 MPa | Option: None | Availability: Stock item
G36-2-01M Type: G36 rear thread | Max. pressure: 0.2 MPa | Option: With M5 female | Availability: Made to order
G36-4-01 Type: G36 rear thread | Max. pressure: 0.4 MPa | Option: None | Availability: Stock item
G36-4-01M Type: G36 rear thread | Max. pressure: 0.4 MPa | Option: With M5 female | Availability: Made to order
G36-7-01 Type: G36 rear thread | Max. pressure: 0.7 MPa | Option: None | Availability: Stock item
G36-7-01M Type: G36 rear thread | Max. pressure: 0.7 MPa | Option: With M5 female | Availability: Made to order
G36-10-01 Type: G36 rear thread | Max. pressure: 1.0 MPa | Option: None | Availability: Stock item
G36-10-01M Type: G36 rear thread | Max. pressure: 1.0 MPa | Option: With M5 female | Availability: Made to order
G36-15-01 Type: G36 rear thread | Max. pressure: 1.5 MPa | Option: None | Availability: Made to order
G36-15-01M Type: G36 rear thread | Max. pressure: 1.5 MPa | Option: With M5 female | Availability: Made to order
GA36-2-01 Type: GA36 side thread (stand) | Max. pressure: 0.2 MPa | Option: None | Availability: Made to order
GA36-4-01 Type: GA36 side thread (stand) | Max. pressure: 0.4 MPa | Option: None | Availability: Made to order
GA36-7-01 Type: GA36 side thread (stand) | Max. pressure: 0.7 MPa | Option: None | Availability: Made to order
GA36-10-01 Type: GA36 side thread (stand) | Max. pressure: 1.0 MPa | Option: None | Availability: Stock item
GA36-15-01 Type: GA36 side thread (stand) | Max. pressure: 1.5 MPa | Option: None | Availability: Made to order
