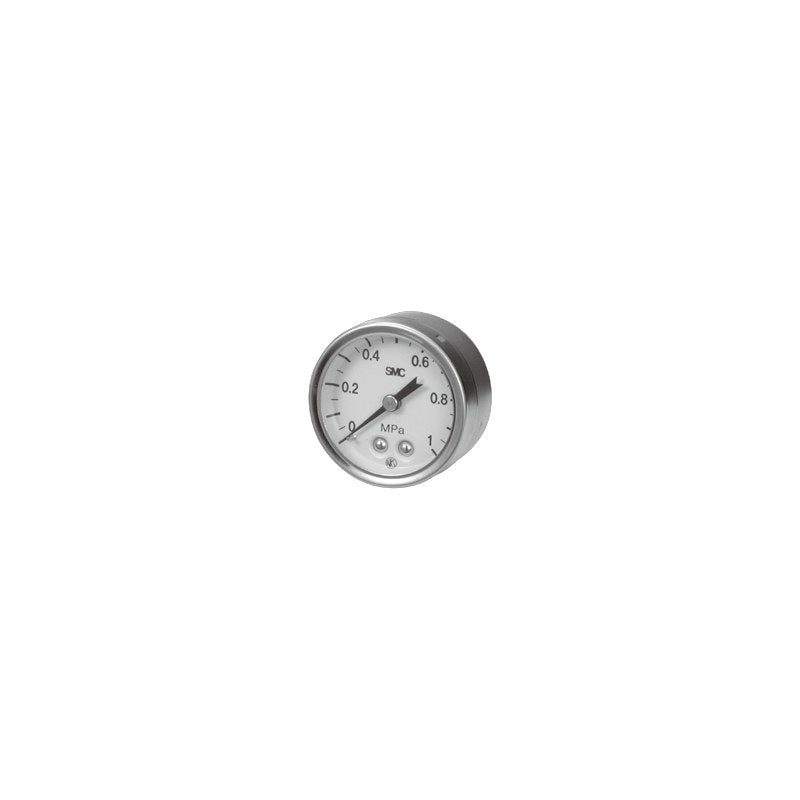

SMC G36-L/G46-L Pressure Gauge with Color Zone (R1/8, R1/4)

SMC G36-L/G46-L Pressure Gauge with Color Zone (R1/8, R1/4)

SMC G36-L and G46-L pressure gauges with adjustable green and red color zones for easy visual pressure management.

Key features

  • Red/green zone indicator shows the allowed pressure band at a glance; zone freely adjustable
  • G36-L ø37.5 (R1/8) and G46-L ø42.5 (R1/8 or R1/4); ranges 0.2, 0.4 and 1.0 MPa
  • Polycarbonate or nylon (N) transparent cover
  • G46-L panel mounting with covering ring C (polycarbonate cover only) or C2

Specifications

Mounting Rear thread
Fluid Air
Accuracy ±3% F.S.
Case Stainless steel (black melamine)
Indicators Green and red color zone, freely adjustable
Covering ring assy C: 1305104-1A, C2: 1305104-9A (G46 only)
Special X2 nickel-plated stud (G36), X30 MPa/psi
Source SMC Korea catalog Pressure Gauges (SMCKR_G__.pdf), p. 1283-1285 (PDF p. 12-14)
G36-2-01-L Size: G36 (ø37.5) | Max. pressure: 0.2 MPa | Connection: R1/8 | Cover material: Polycarbonate | Covering ring: None | Green zone width: 0.01 to 0.1 MPa
G36-2-01-LN Size: G36 (ø37.5) | Max. pressure: 0.2 MPa | Connection: R1/8 | Cover material: Nylon | Covering ring: None | Green zone width: 0.01 to 0.1 MPa
G36-4-01-L Size: G36 (ø37.5) | Max. pressure: 0.4 MPa | Connection: R1/8 | Cover material: Polycarbonate | Covering ring: None | Green zone width: 0.02 to 0.2 MPa
G36-4-01-LN Size: G36 (ø37.5) | Max. pressure: 0.4 MPa | Connection: R1/8 | Cover material: Nylon | Covering ring: None | Green zone width: 0.02 to 0.2 MPa
G36-10-01-L Size: G36 (ø37.5) | Max. pressure: 1.0 MPa | Connection: R1/8 | Cover material: Polycarbonate | Covering ring: None | Green zone width: 0.05 to 0.5 MPa
G36-10-01-LN Size: G36 (ø37.5) | Max. pressure: 1.0 MPa | Connection: R1/8 | Cover material: Nylon | Covering ring: None | Green zone width: 0.05 to 0.5 MPa
G46-2-01-L Size: G46 (ø42.5) | Max. pressure: 0.2 MPa | Connection: R1/8 | Cover material: Polycarbonate | Covering ring: None | Green zone width: 0.01 to 0.1 MPa
G46-2-01-L-C Size: G46 (ø42.5) | Max. pressure: 0.2 MPa | Connection: R1/8 | Cover material: Polycarbonate | Covering ring: Covering ring, cover fixed (C) | Green zone width: 0.01 to 0.1 MPa
G46-2-01-L-C2 Size: G46 (ø42.5) | Max. pressure: 0.2 MPa | Connection: R1/8 | Cover material: Polycarbonate | Covering ring: Covering ring, cover removable (C2) | Green zone width: 0.01 to 0.1 MPa
G46-2-01-LN Size: G46 (ø42.5) | Max. pressure: 0.2 MPa | Connection: R1/8 | Cover material: Nylon | Covering ring: None | Green zone width: 0.01 to 0.1 MPa
G46-2-01-LN-C2 Size: G46 (ø42.5) | Max. pressure: 0.2 MPa | Connection: R1/8 | Cover material: Nylon | Covering ring: Covering ring, cover removable (C2) | Green zone width: 0.01 to 0.1 MPa
G46-2-02-L Size: G46 (ø42.5) | Max. pressure: 0.2 MPa | Connection: R1/4 | Cover material: Polycarbonate | Covering ring: None | Green zone width: 0.01 to 0.1 MPa
G46-2-02-L-C Size: G46 (ø42.5) | Max. pressure: 0.2 MPa | Connection: R1/4 | Cover material: Polycarbonate | Covering ring: Covering ring, cover fixed (C) | Green zone width: 0.01 to 0.1 MPa
G46-2-02-L-C2 Size: G46 (ø42.5) | Max. pressure: 0.2 MPa | Connection: R1/4 | Cover material: Polycarbonate | Covering ring: Covering ring, cover removable (C2) | Green zone width: 0.01 to 0.1 MPa
G46-2-02-LN Size: G46 (ø42.5) | Max. pressure: 0.2 MPa | Connection: R1/4 | Cover material: Nylon | Covering ring: None | Green zone width: 0.01 to 0.1 MPa
G46-2-02-LN-C2 Size: G46 (ø42.5) | Max. pressure: 0.2 MPa | Connection: R1/4 | Cover material: Nylon | Covering ring: Covering ring, cover removable (C2) | Green zone width: 0.01 to 0.1 MPa
G46-4-01-L Size: G46 (ø42.5) | Max. pressure: 0.4 MPa | Connection: R1/8 | Cover material: Polycarbonate | Covering ring: None | Green zone width: 0.02 to 0.2 MPa
G46-4-01-L-C Size: G46 (ø42.5) | Max. pressure: 0.4 MPa | Connection: R1/8 | Cover material: Polycarbonate | Covering ring: Covering ring, cover fixed (C) | Green zone width: 0.02 to 0.2 MPa
G46-4-01-L-C2 Size: G46 (ø42.5) | Max. pressure: 0.4 MPa | Connection: R1/8 | Cover material: Polycarbonate | Covering ring: Covering ring, cover removable (C2) | Green zone width: 0.02 to 0.2 MPa
G46-4-01-LN Size: G46 (ø42.5) | Max. pressure: 0.4 MPa | Connection: R1/8 | Cover material: Nylon | Covering ring: None | Green zone width: 0.02 to 0.2 MPa
G46-4-01-LN-C2 Size: G46 (ø42.5) | Max. pressure: 0.4 MPa | Connection: R1/8 | Cover material: Nylon | Covering ring: Covering ring, cover removable (C2) | Green zone width: 0.02 to 0.2 MPa
G46-4-02-L Size: G46 (ø42.5) | Max. pressure: 0.4 MPa | Connection: R1/4 | Cover material: Polycarbonate | Covering ring: None | Green zone width: 0.02 to 0.2 MPa
G46-4-02-L-C Size: G46 (ø42.5) | Max. pressure: 0.4 MPa | Connection: R1/4 | Cover material: Polycarbonate | Covering ring: Covering ring, cover fixed (C) | Green zone width: 0.02 to 0.2 MPa
G46-4-02-L-C2 Size: G46 (ø42.5) | Max. pressure: 0.4 MPa | Connection: R1/4 | Cover material: Polycarbonate | Covering ring: Covering ring, cover removable (C2) | Green zone width: 0.02 to 0.2 MPa
G46-4-02-LN Size: G46 (ø42.5) | Max. pressure: 0.4 MPa | Connection: R1/4 | Cover material: Nylon | Covering ring: None | Green zone width: 0.02 to 0.2 MPa
G46-4-02-LN-C2 Size: G46 (ø42.5) | Max. pressure: 0.4 MPa | Connection: R1/4 | Cover material: Nylon | Covering ring: Covering ring, cover removable (C2) | Green zone width: 0.02 to 0.2 MPa
G46-10-01-L Size: G46 (ø42.5) | Max. pressure: 1.0 MPa | Connection: R1/8 | Cover material: Polycarbonate | Covering ring: None | Green zone width: 0.05 to 0.5 MPa
G46-10-01-L-C Size: G46 (ø42.5) | Max. pressure: 1.0 MPa | Connection: R1/8 | Cover material: Polycarbonate | Covering ring: Covering ring, cover fixed (C) | Green zone width: 0.05 to 0.5 MPa
G46-10-01-L-C2 Size: G46 (ø42.5) | Max. pressure: 1.0 MPa | Connection: R1/8 | Cover material: Polycarbonate | Covering ring: Covering ring, cover removable (C2) | Green zone width: 0.05 to 0.5 MPa
G46-10-01-LN Size: G46 (ø42.5) | Max. pressure: 1.0 MPa | Connection: R1/8 | Cover material: Nylon | Covering ring: None | Green zone width: 0.05 to 0.5 MPa
G46-10-01-LN-C2 Size: G46 (ø42.5) | Max. pressure: 1.0 MPa | Connection: R1/8 | Cover material: Nylon | Covering ring: Covering ring, cover removable (C2) | Green zone width: 0.05 to 0.5 MPa
G46-10-02-L Size: G46 (ø42.5) | Max. pressure: 1.0 MPa | Connection: R1/4 | Cover material: Polycarbonate | Covering ring: None | Green zone width: 0.05 to 0.5 MPa
G46-10-02-L-C Size: G46 (ø42.5) | Max. pressure: 1.0 MPa | Connection: R1/4 | Cover material: Polycarbonate | Covering ring: Covering ring, cover fixed (C) | Green zone width: 0.05 to 0.5 MPa
G46-10-02-L-C2 Size: G46 (ø42.5) | Max. pressure: 1.0 MPa | Connection: R1/4 | Cover material: Polycarbonate | Covering ring: Covering ring, cover removable (C2) | Green zone width: 0.05 to 0.5 MPa
G46-10-02-LN Size: G46 (ø42.5) | Max. pressure: 1.0 MPa | Connection: R1/4 | Cover material: Nylon | Covering ring: None | Green zone width: 0.05 to 0.5 MPa
G46-10-02-LN-C2 Size: G46 (ø42.5) | Max. pressure: 1.0 MPa | Connection: R1/4 | Cover material: Nylon | Covering ring: Covering ring, cover removable (C2) | Green zone width: 0.05 to 0.5 MPa
Pressure GaugesSMC
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC G36-L/G46-L Pressure Gauge with Color Zone (R1/8, R1/4)

Brand SMC·Pressure Gauges

Available part numbers (36)

G36-2-01-L, G36-2-01-LN, G36-4-01-L, G36-4-01-LN, G36-10-01-L, G36-10-01-LN, G46-2-01-L, G46-2-01-L-C, G46-2-01-L-C2, G46-2-01-LN + 26 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
G36-2-01-LSize: G36 (ø37.5) | Max. pressure: 0.2 MPa | Connection: R1/8 | Cover material: Polycarbonate | Covering ring: None | Green zone width: 0.01 to 0.1 MPa
G36-2-01-LNSize: G36 (ø37.5) | Max. pressure: 0.2 MPa | Connection: R1/8 | Cover material: Nylon | Covering ring: None | Green zone width: 0.01 to 0.1 MPa
G36-4-01-LSize: G36 (ø37.5) | Max. pressure: 0.4 MPa | Connection: R1/8 | Cover material: Polycarbonate | Covering ring: None | Green zone width: 0.02 to 0.2 MPa
G36-4-01-LNSize: G36 (ø37.5) | Max. pressure: 0.4 MPa | Connection: R1/8 | Cover material: Nylon | Covering ring: None | Green zone width: 0.02 to 0.2 MPa
G36-10-01-LSize: G36 (ø37.5) | Max. pressure: 1.0 MPa | Connection: R1/8 | Cover material: Polycarbonate | Covering ring: None | Green zone width: 0.05 to 0.5 MPa
G36-10-01-LNSize: G36 (ø37.5) | Max. pressure: 1.0 MPa | Connection: R1/8 | Cover material: Nylon | Covering ring: None | Green zone width: 0.05 to 0.5 MPa
G46-2-01-LSize: G46 (ø42.5) | Max. pressure: 0.2 MPa | Connection: R1/8 | Cover material: Polycarbonate | Covering ring: None | Green zone width: 0.01 to 0.1 MPa
G46-2-01-L-CSize: G46 (ø42.5) | Max. pressure: 0.2 MPa | Connection: R1/8 | Cover material: Polycarbonate | Covering ring: Covering ring, cover fixed (C) | Green zone width: 0.01 to 0.1 MPa
G46-2-01-L-C2Size: G46 (ø42.5) | Max. pressure: 0.2 MPa | Connection: R1/8 | Cover material: Polycarbonate | Covering ring: Covering ring, cover removable (C2) | Green zone width: 0.01 to 0.1 MPa
G46-2-01-LNSize: G46 (ø42.5) | Max. pressure: 0.2 MPa | Connection: R1/8 | Cover material: Nylon | Covering ring: None | Green zone width: 0.01 to 0.1 MPa
G46-2-01-LN-C2Size: G46 (ø42.5) | Max. pressure: 0.2 MPa | Connection: R1/8 | Cover material: Nylon | Covering ring: Covering ring, cover removable (C2) | Green zone width: 0.01 to 0.1 MPa
G46-2-02-LSize: G46 (ø42.5) | Max. pressure: 0.2 MPa | Connection: R1/4 | Cover material: Polycarbonate | Covering ring: None | Green zone width: 0.01 to 0.1 MPa
G46-2-02-L-CSize: G46 (ø42.5) | Max. pressure: 0.2 MPa | Connection: R1/4 | Cover material: Polycarbonate | Covering ring: Covering ring, cover fixed (C) | Green zone width: 0.01 to 0.1 MPa
G46-2-02-L-C2Size: G46 (ø42.5) | Max. pressure: 0.2 MPa | Connection: R1/4 | Cover material: Polycarbonate | Covering ring: Covering ring, cover removable (C2) | Green zone width: 0.01 to 0.1 MPa
G46-2-02-LNSize: G46 (ø42.5) | Max. pressure: 0.2 MPa | Connection: R1/4 | Cover material: Nylon | Covering ring: None | Green zone width: 0.01 to 0.1 MPa
G46-2-02-LN-C2Size: G46 (ø42.5) | Max. pressure: 0.2 MPa | Connection: R1/4 | Cover material: Nylon | Covering ring: Covering ring, cover removable (C2) | Green zone width: 0.01 to 0.1 MPa
G46-4-01-LSize: G46 (ø42.5) | Max. pressure: 0.4 MPa | Connection: R1/8 | Cover material: Polycarbonate | Covering ring: None | Green zone width: 0.02 to 0.2 MPa
G46-4-01-L-CSize: G46 (ø42.5) | Max. pressure: 0.4 MPa | Connection: R1/8 | Cover material: Polycarbonate | Covering ring: Covering ring, cover fixed (C) | Green zone width: 0.02 to 0.2 MPa
G46-4-01-L-C2Size: G46 (ø42.5) | Max. pressure: 0.4 MPa | Connection: R1/8 | Cover material: Polycarbonate | Covering ring: Covering ring, cover removable (C2) | Green zone width: 0.02 to 0.2 MPa
G46-4-01-LNSize: G46 (ø42.5) | Max. pressure: 0.4 MPa | Connection: R1/8 | Cover material: Nylon | Covering ring: None | Green zone width: 0.02 to 0.2 MPa
G46-4-01-LN-C2Size: G46 (ø42.5) | Max. pressure: 0.4 MPa | Connection: R1/8 | Cover material: Nylon | Covering ring: Covering ring, cover removable (C2) | Green zone width: 0.02 to 0.2 MPa
G46-4-02-LSize: G46 (ø42.5) | Max. pressure: 0.4 MPa | Connection: R1/4 | Cover material: Polycarbonate | Covering ring: None | Green zone width: 0.02 to 0.2 MPa
G46-4-02-L-CSize: G46 (ø42.5) | Max. pressure: 0.4 MPa | Connection: R1/4 | Cover material: Polycarbonate | Covering ring: Covering ring, cover fixed (C) | Green zone width: 0.02 to 0.2 MPa
G46-4-02-L-C2Size: G46 (ø42.5) | Max. pressure: 0.4 MPa | Connection: R1/4 | Cover material: Polycarbonate | Covering ring: Covering ring, cover removable (C2) | Green zone width: 0.02 to 0.2 MPa
G46-4-02-LNSize: G46 (ø42.5) | Max. pressure: 0.4 MPa | Connection: R1/4 | Cover material: Nylon | Covering ring: None | Green zone width: 0.02 to 0.2 MPa
G46-4-02-LN-C2Size: G46 (ø42.5) | Max. pressure: 0.4 MPa | Connection: R1/4 | Cover material: Nylon | Covering ring: Covering ring, cover removable (C2) | Green zone width: 0.02 to 0.2 MPa
G46-10-01-LSize: G46 (ø42.5) | Max. pressure: 1.0 MPa | Connection: R1/8 | Cover material: Polycarbonate | Covering ring: None | Green zone width: 0.05 to 0.5 MPa
G46-10-01-L-CSize: G46 (ø42.5) | Max. pressure: 1.0 MPa | Connection: R1/8 | Cover material: Polycarbonate | Covering ring: Covering ring, cover fixed (C) | Green zone width: 0.05 to 0.5 MPa
G46-10-01-L-C2Size: G46 (ø42.5) | Max. pressure: 1.0 MPa | Connection: R1/8 | Cover material: Polycarbonate | Covering ring: Covering ring, cover removable (C2) | Green zone width: 0.05 to 0.5 MPa
G46-10-01-LNSize: G46 (ø42.5) | Max. pressure: 1.0 MPa | Connection: R1/8 | Cover material: Nylon | Covering ring: None | Green zone width: 0.05 to 0.5 MPa
G46-10-01-LN-C2Size: G46 (ø42.5) | Max. pressure: 1.0 MPa | Connection: R1/8 | Cover material: Nylon | Covering ring: Covering ring, cover removable (C2) | Green zone width: 0.05 to 0.5 MPa
G46-10-02-LSize: G46 (ø42.5) | Max. pressure: 1.0 MPa | Connection: R1/4 | Cover material: Polycarbonate | Covering ring: None | Green zone width: 0.05 to 0.5 MPa
G46-10-02-L-CSize: G46 (ø42.5) | Max. pressure: 1.0 MPa | Connection: R1/4 | Cover material: Polycarbonate | Covering ring: Covering ring, cover fixed (C) | Green zone width: 0.05 to 0.5 MPa
G46-10-02-L-C2Size: G46 (ø42.5) | Max. pressure: 1.0 MPa | Connection: R1/4 | Cover material: Polycarbonate | Covering ring: Covering ring, cover removable (C2) | Green zone width: 0.05 to 0.5 MPa
G46-10-02-LNSize: G46 (ø42.5) | Max. pressure: 1.0 MPa | Connection: R1/4 | Cover material: Nylon | Covering ring: None | Green zone width: 0.05 to 0.5 MPa
G46-10-02-LN-C2Size: G46 (ø42.5) | Max. pressure: 1.0 MPa | Connection: R1/4 | Cover material: Nylon | Covering ring: Covering ring, cover removable (C2) | Green zone width: 0.05 to 0.5 MPa
