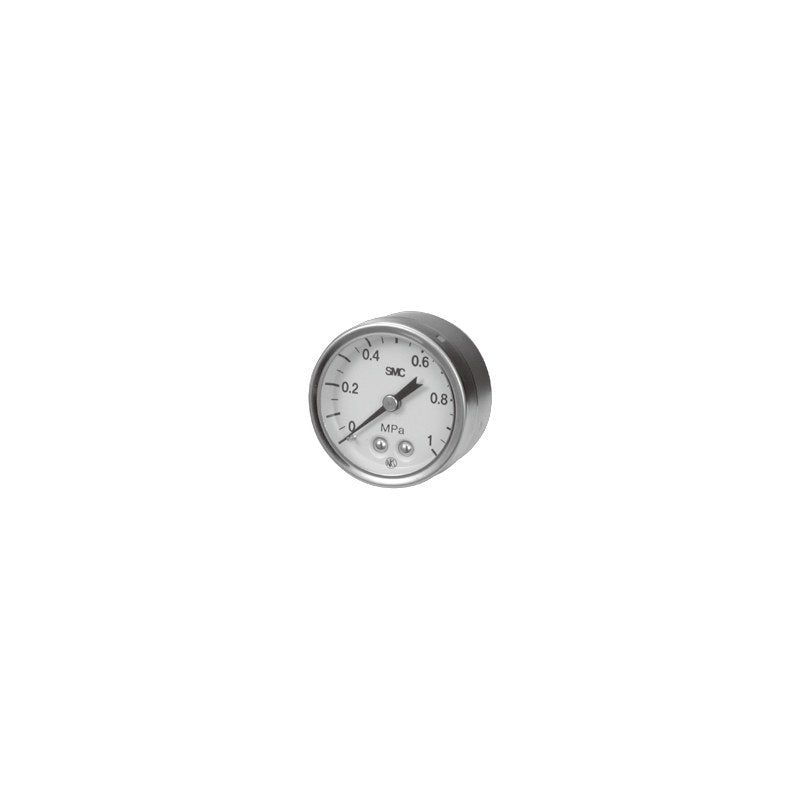

SMC G46/GA46 Pressure Gauge with Limit Indicator (ø42.5)

SMC G46/GA46 Pressure Gauge with Limit Indicator (ø42.5)

SMC G46 (rear thread) and GA46 (side thread, stand type) general purpose pressure gauges with limit indicator, R1/8 or R1/4.

Key features

  • Ranges 0.2, 0.4, 0.7, 1.0 and 1.5 MPa full scale; accuracy ±3% F.S.
  • R1/8 or R1/4 connection; G46 option M adds an M5 female port for tube piping
  • G46 panel mounting with covering ring assembly: C (cover fixed) or C2 (cover removable, spanner flats)
  • GA46 stainless steel case, side thread stand type
  • Special: X2 nickel-plated stud, X30 MPa/psi dual scale (outside Japan)

Specifications

Dial ø42.5
Fluid Air
Accuracy ±3% F.S.
Case G46 rolled steel (black); GA46 stainless steel (black)
Cover Polycarbonate (G46-00-00-4 / G46-00-00-3)
Covering ring assy C: 1305104-1A, C2: 1305104-9A (panel mounting, M48x2)
Limit indicator Yes
Special X2 stud nickel plated (GA46), X30 MPa/psi; SUS wetted parts: G46-SRB
Source SMC Korea catalog Pressure Gauges (SMCKR_G__.pdf), p. 1276-1278 (PDF p. 5-7)
G46-2-01 Type: G46 rear thread | Max. pressure: 0.2 MPa | Connection: R1/8 | Covering ring: None | Availability: Stock item
G46-2-01-C Type: G46 rear thread | Max. pressure: 0.2 MPa | Connection: R1/8 | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-2-01-C2 Type: G46 rear thread | Max. pressure: 0.2 MPa | Connection: R1/8 | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-2-01M Type: G46 rear thread | Max. pressure: 0.2 MPa | Connection: R1/8 + M5 female | Covering ring: None | Availability: Stock item
G46-2-01M-C Type: G46 rear thread | Max. pressure: 0.2 MPa | Connection: R1/8 + M5 female | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-2-01M-C2 Type: G46 rear thread | Max. pressure: 0.2 MPa | Connection: R1/8 + M5 female | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-2-02 Type: G46 rear thread | Max. pressure: 0.2 MPa | Connection: R1/4 | Covering ring: None | Availability: Stock item
G46-2-02-C Type: G46 rear thread | Max. pressure: 0.2 MPa | Connection: R1/4 | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-2-02-C2 Type: G46 rear thread | Max. pressure: 0.2 MPa | Connection: R1/4 | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-2-02M Type: G46 rear thread | Max. pressure: 0.2 MPa | Connection: R1/4 + M5 female | Covering ring: None | Availability: Stock item
G46-2-02M-C Type: G46 rear thread | Max. pressure: 0.2 MPa | Connection: R1/4 + M5 female | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-2-02M-C2 Type: G46 rear thread | Max. pressure: 0.2 MPa | Connection: R1/4 + M5 female | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-4-01 Type: G46 rear thread | Max. pressure: 0.4 MPa | Connection: R1/8 | Covering ring: None | Availability: Stock item
G46-4-01-C Type: G46 rear thread | Max. pressure: 0.4 MPa | Connection: R1/8 | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-4-01-C2 Type: G46 rear thread | Max. pressure: 0.4 MPa | Connection: R1/8 | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-4-01M Type: G46 rear thread | Max. pressure: 0.4 MPa | Connection: R1/8 + M5 female | Covering ring: None | Availability: Stock item
G46-4-01M-C Type: G46 rear thread | Max. pressure: 0.4 MPa | Connection: R1/8 + M5 female | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-4-01M-C2 Type: G46 rear thread | Max. pressure: 0.4 MPa | Connection: R1/8 + M5 female | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-4-02 Type: G46 rear thread | Max. pressure: 0.4 MPa | Connection: R1/4 | Covering ring: None | Availability: Stock item
G46-4-02-C Type: G46 rear thread | Max. pressure: 0.4 MPa | Connection: R1/4 | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-4-02-C2 Type: G46 rear thread | Max. pressure: 0.4 MPa | Connection: R1/4 | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-4-02M Type: G46 rear thread | Max. pressure: 0.4 MPa | Connection: R1/4 + M5 female | Covering ring: None | Availability: Stock item
G46-4-02M-C Type: G46 rear thread | Max. pressure: 0.4 MPa | Connection: R1/4 + M5 female | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-4-02M-C2 Type: G46 rear thread | Max. pressure: 0.4 MPa | Connection: R1/4 + M5 female | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-7-01 Type: G46 rear thread | Max. pressure: 0.7 MPa | Connection: R1/8 | Covering ring: None | Availability: Stock item
G46-7-01-C Type: G46 rear thread | Max. pressure: 0.7 MPa | Connection: R1/8 | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-7-01-C2 Type: G46 rear thread | Max. pressure: 0.7 MPa | Connection: R1/8 | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-7-01M Type: G46 rear thread | Max. pressure: 0.7 MPa | Connection: R1/8 + M5 female | Covering ring: None | Availability: Stock item
G46-7-01M-C Type: G46 rear thread | Max. pressure: 0.7 MPa | Connection: R1/8 + M5 female | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-7-01M-C2 Type: G46 rear thread | Max. pressure: 0.7 MPa | Connection: R1/8 + M5 female | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-7-02 Type: G46 rear thread | Max. pressure: 0.7 MPa | Connection: R1/4 | Covering ring: None | Availability: Stock item
G46-7-02-C Type: G46 rear thread | Max. pressure: 0.7 MPa | Connection: R1/4 | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-7-02-C2 Type: G46 rear thread | Max. pressure: 0.7 MPa | Connection: R1/4 | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-7-02M Type: G46 rear thread | Max. pressure: 0.7 MPa | Connection: R1/4 + M5 female | Covering ring: None | Availability: Stock item
G46-7-02M-C Type: G46 rear thread | Max. pressure: 0.7 MPa | Connection: R1/4 + M5 female | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-7-02M-C2 Type: G46 rear thread | Max. pressure: 0.7 MPa | Connection: R1/4 + M5 female | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-10-01 Type: G46 rear thread | Max. pressure: 1.0 MPa | Connection: R1/8 | Covering ring: None | Availability: Stock item
G46-10-01-C Type: G46 rear thread | Max. pressure: 1.0 MPa | Connection: R1/8 | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-10-01-C2 Type: G46 rear thread | Max. pressure: 1.0 MPa | Connection: R1/8 | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-10-01M Type: G46 rear thread | Max. pressure: 1.0 MPa | Connection: R1/8 + M5 female | Covering ring: None | Availability: Stock item
G46-10-01M-C Type: G46 rear thread | Max. pressure: 1.0 MPa | Connection: R1/8 + M5 female | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-10-01M-C2 Type: G46 rear thread | Max. pressure: 1.0 MPa | Connection: R1/8 + M5 female | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-10-02 Type: G46 rear thread | Max. pressure: 1.0 MPa | Connection: R1/4 | Covering ring: None | Availability: Stock item
G46-10-02-C Type: G46 rear thread | Max. pressure: 1.0 MPa | Connection: R1/4 | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-10-02-C2 Type: G46 rear thread | Max. pressure: 1.0 MPa | Connection: R1/4 | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-10-02M Type: G46 rear thread | Max. pressure: 1.0 MPa | Connection: R1/4 + M5 female | Covering ring: None | Availability: Stock item
G46-10-02M-C Type: G46 rear thread | Max. pressure: 1.0 MPa | Connection: R1/4 + M5 female | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-10-02M-C2 Type: G46 rear thread | Max. pressure: 1.0 MPa | Connection: R1/4 + M5 female | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-15-01 Type: G46 rear thread | Max. pressure: 1.5 MPa | Connection: R1/8 | Covering ring: None | Availability: Made to order
G46-15-01-C Type: G46 rear thread | Max. pressure: 1.5 MPa | Connection: R1/8 | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-15-01-C2 Type: G46 rear thread | Max. pressure: 1.5 MPa | Connection: R1/8 | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-15-01M Type: G46 rear thread | Max. pressure: 1.5 MPa | Connection: R1/8 + M5 female | Covering ring: None | Availability: Made to order
G46-15-01M-C Type: G46 rear thread | Max. pressure: 1.5 MPa | Connection: R1/8 + M5 female | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-15-01M-C2 Type: G46 rear thread | Max. pressure: 1.5 MPa | Connection: R1/8 + M5 female | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-15-02 Type: G46 rear thread | Max. pressure: 1.5 MPa | Connection: R1/4 | Covering ring: None | Availability: Made to order
G46-15-02-C Type: G46 rear thread | Max. pressure: 1.5 MPa | Connection: R1/4 | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-15-02-C2 Type: G46 rear thread | Max. pressure: 1.5 MPa | Connection: R1/4 | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46-15-02M Type: G46 rear thread | Max. pressure: 1.5 MPa | Connection: R1/4 + M5 female | Covering ring: None | Availability: Made to order
G46-15-02M-C Type: G46 rear thread | Max. pressure: 1.5 MPa | Connection: R1/4 + M5 female | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46-15-02M-C2 Type: G46 rear thread | Max. pressure: 1.5 MPa | Connection: R1/4 + M5 female | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
GA46-2-01 Type: GA46 side thread (stand) | Max. pressure: 0.2 MPa | Connection: R1/8 | Covering ring: None | Availability: Made to order
GA46-2-02 Type: GA46 side thread (stand) | Max. pressure: 0.2 MPa | Connection: R1/4 | Covering ring: None | Availability: Made to order
GA46-4-01 Type: GA46 side thread (stand) | Max. pressure: 0.4 MPa | Connection: R1/8 | Covering ring: None | Availability: Made to order
GA46-4-02 Type: GA46 side thread (stand) | Max. pressure: 0.4 MPa | Connection: R1/4 | Covering ring: None | Availability: Made to order
GA46-7-01 Type: GA46 side thread (stand) | Max. pressure: 0.7 MPa | Connection: R1/8 | Covering ring: None | Availability: Made to order
GA46-7-02 Type: GA46 side thread (stand) | Max. pressure: 0.7 MPa | Connection: R1/4 | Covering ring: None | Availability: Made to order
GA46-10-01 Type: GA46 side thread (stand) | Max. pressure: 1.0 MPa | Connection: R1/8 | Covering ring: None | Availability: Stock item
GA46-10-02 Type: GA46 side thread (stand) | Max. pressure: 1.0 MPa | Connection: R1/4 | Covering ring: None | Availability: Stock item
GA46-15-01 Type: GA46 side thread (stand) | Max. pressure: 1.5 MPa | Connection: R1/8 | Covering ring: None | Availability: Made to order
GA46-15-02 Type: GA46 side thread (stand) | Max. pressure: 1.5 MPa | Connection: R1/4 | Covering ring: None | Availability: Made to order
Pressure GaugesSMC
70 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC G46/GA46 Pressure Gauge with Limit Indicator (ø42.5)

Brand SMC·Pressure Gauges

Available part numbers (70)

G46-2-01, G46-2-01-C, G46-2-01-C2, G46-2-01M, G46-2-01M-C, G46-2-01M-C2, G46-2-02, G46-2-02-C, G46-2-02-C2, G46-2-02M + 60 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
