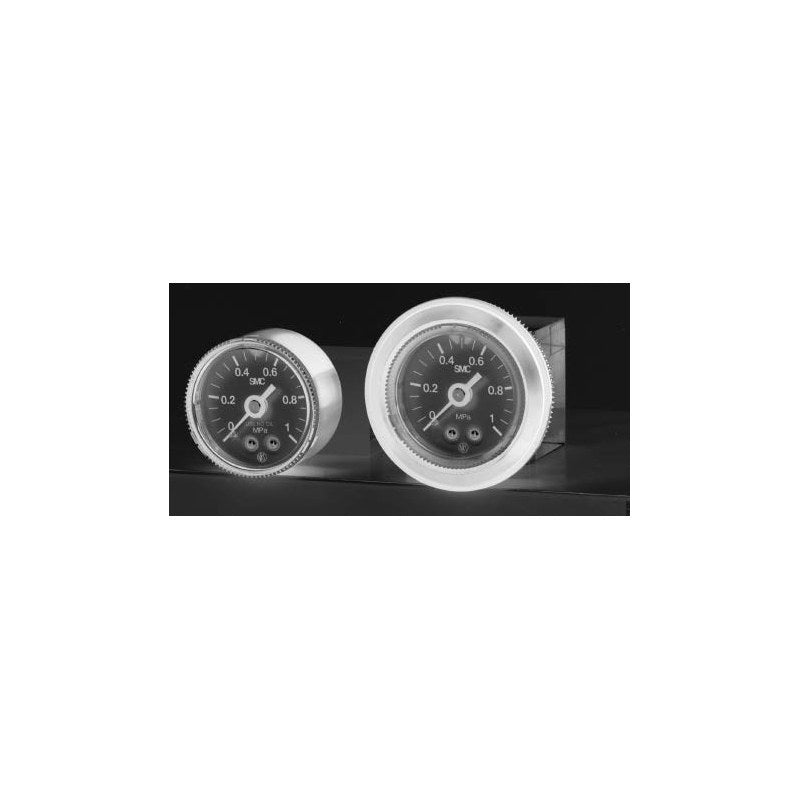

SMC G46E Oil-free Pressure Gauge with Limit Indicator

SMC G46E Oil-free Pressure Gauge with Limit Indicator

SMC G46E pressure gauge with limit indicator, oil-free (degreased wetted parts) and with external anti-corrosion finish.

Key features

  • Wetted parts degreased for oil-free lines; nickel-plated stud and stainless case for external corrosion resistance
  • Ranges 0.2, 0.4, 0.7, 1.0 and 1.5 MPa; R1/8 or R1/4, option M adds M5 female port
  • Panel mounting with covering ring C or C2
  • Hard-coated polycarbonate cover; accuracy ±3% F.S.
  • MPa/psi dual scale (P + X30) outside Japan

Specifications

Mounting Rear thread
Fluid Air
Accuracy ±3% F.S.
Parts cleaning Wetted parts degreased (oil-free)
Case Stainless steel (black melamine)
Cover Polycarbonate, hard coated (G46-00-00-2)
Stud Brass, electroless nickel plated
Bourdon tube Brass (internal parts not nickel plated)
Mass 0.08 kg
Covering ring assy C: 1305104-1A, C2: 1305104-9A
Source SMC Korea catalog G46E (SMCKR_G46E.pdf), p. 882-883-1 (PDF p. 1-4)
G46E-2-01 Max. pressure: 0.2 MPa | Connection: R1/8 | Covering ring: None | Availability: Made to order
G46E-2-01-C Max. pressure: 0.2 MPa | Connection: R1/8 | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-2-01-C2 Max. pressure: 0.2 MPa | Connection: R1/8 | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-2-01M Max. pressure: 0.2 MPa | Connection: R1/8 + M5 female | Covering ring: None | Availability: Stock item
G46E-2-01M-C Max. pressure: 0.2 MPa | Connection: R1/8 + M5 female | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-2-01M-C2 Max. pressure: 0.2 MPa | Connection: R1/8 + M5 female | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-2-02 Max. pressure: 0.2 MPa | Connection: R1/4 | Covering ring: None | Availability: Made to order
G46E-2-02-C Max. pressure: 0.2 MPa | Connection: R1/4 | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-2-02-C2 Max. pressure: 0.2 MPa | Connection: R1/4 | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-2-02M Max. pressure: 0.2 MPa | Connection: R1/4 + M5 female | Covering ring: None | Availability: Stock item
G46E-2-02M-C Max. pressure: 0.2 MPa | Connection: R1/4 + M5 female | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-2-02M-C2 Max. pressure: 0.2 MPa | Connection: R1/4 + M5 female | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-4-01 Max. pressure: 0.4 MPa | Connection: R1/8 | Covering ring: None | Availability: Made to order
G46E-4-01-C Max. pressure: 0.4 MPa | Connection: R1/8 | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-4-01-C2 Max. pressure: 0.4 MPa | Connection: R1/8 | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-4-01M Max. pressure: 0.4 MPa | Connection: R1/8 + M5 female | Covering ring: None | Availability: Stock item
G46E-4-01M-C Max. pressure: 0.4 MPa | Connection: R1/8 + M5 female | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-4-01M-C2 Max. pressure: 0.4 MPa | Connection: R1/8 + M5 female | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-4-02 Max. pressure: 0.4 MPa | Connection: R1/4 | Covering ring: None | Availability: Made to order
G46E-4-02-C Max. pressure: 0.4 MPa | Connection: R1/4 | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-4-02-C2 Max. pressure: 0.4 MPa | Connection: R1/4 | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-4-02M Max. pressure: 0.4 MPa | Connection: R1/4 + M5 female | Covering ring: None | Availability: Stock item
G46E-4-02M-C Max. pressure: 0.4 MPa | Connection: R1/4 + M5 female | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-4-02M-C2 Max. pressure: 0.4 MPa | Connection: R1/4 + M5 female | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-7-01 Max. pressure: 0.7 MPa | Connection: R1/8 | Covering ring: None | Availability: Made to order
G46E-7-01-C Max. pressure: 0.7 MPa | Connection: R1/8 | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-7-01-C2 Max. pressure: 0.7 MPa | Connection: R1/8 | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-7-01M Max. pressure: 0.7 MPa | Connection: R1/8 + M5 female | Covering ring: None | Availability: Stock item
G46E-7-01M-C Max. pressure: 0.7 MPa | Connection: R1/8 + M5 female | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-7-01M-C2 Max. pressure: 0.7 MPa | Connection: R1/8 + M5 female | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-7-02 Max. pressure: 0.7 MPa | Connection: R1/4 | Covering ring: None | Availability: Made to order
G46E-7-02-C Max. pressure: 0.7 MPa | Connection: R1/4 | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-7-02-C2 Max. pressure: 0.7 MPa | Connection: R1/4 | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-7-02M Max. pressure: 0.7 MPa | Connection: R1/4 + M5 female | Covering ring: None | Availability: Stock item
G46E-7-02M-C Max. pressure: 0.7 MPa | Connection: R1/4 + M5 female | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-7-02M-C2 Max. pressure: 0.7 MPa | Connection: R1/4 + M5 female | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-10-01 Max. pressure: 1.0 MPa | Connection: R1/8 | Covering ring: None | Availability: Made to order
G46E-10-01-C Max. pressure: 1.0 MPa | Connection: R1/8 | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-10-01-C2 Max. pressure: 1.0 MPa | Connection: R1/8 | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-10-01M Max. pressure: 1.0 MPa | Connection: R1/8 + M5 female | Covering ring: None | Availability: Stock item
G46E-10-01M-C Max. pressure: 1.0 MPa | Connection: R1/8 + M5 female | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-10-01M-C2 Max. pressure: 1.0 MPa | Connection: R1/8 + M5 female | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-10-02 Max. pressure: 1.0 MPa | Connection: R1/4 | Covering ring: None | Availability: Made to order
G46E-10-02-C Max. pressure: 1.0 MPa | Connection: R1/4 | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-10-02-C2 Max. pressure: 1.0 MPa | Connection: R1/4 | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-10-02M Max. pressure: 1.0 MPa | Connection: R1/4 + M5 female | Covering ring: None | Availability: Stock item
G46E-10-02M-C Max. pressure: 1.0 MPa | Connection: R1/4 + M5 female | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-10-02M-C2 Max. pressure: 1.0 MPa | Connection: R1/4 + M5 female | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-15-01 Max. pressure: 1.5 MPa | Connection: R1/8 | Covering ring: None | Availability: Made to order
G46E-15-01-C Max. pressure: 1.5 MPa | Connection: R1/8 | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-15-01-C2 Max. pressure: 1.5 MPa | Connection: R1/8 | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-15-01M Max. pressure: 1.5 MPa | Connection: R1/8 + M5 female | Covering ring: None | Availability: Made to order
G46E-15-01M-C Max. pressure: 1.5 MPa | Connection: R1/8 + M5 female | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-15-01M-C2 Max. pressure: 1.5 MPa | Connection: R1/8 + M5 female | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-15-02 Max. pressure: 1.5 MPa | Connection: R1/4 | Covering ring: None | Availability: Made to order
G46E-15-02-C Max. pressure: 1.5 MPa | Connection: R1/4 | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-15-02-C2 Max. pressure: 1.5 MPa | Connection: R1/4 | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-15-02M Max. pressure: 1.5 MPa | Connection: R1/4 + M5 female | Covering ring: None | Availability: Made to order
G46E-15-02M-C Max. pressure: 1.5 MPa | Connection: R1/4 + M5 female | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-15-02M-C2 Max. pressure: 1.5 MPa | Connection: R1/4 + M5 female | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
Pressure GaugesSMC
60 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC G46E Oil-free Pressure Gauge with Limit Indicator

Brand SMC·Pressure Gauges

Available part numbers (60)

G46E-2-01, G46E-2-01-C, G46E-2-01-C2, G46E-2-01M, G46E-2-01M-C, G46E-2-01M-C2, G46E-2-02, G46E-2-02-C, G46E-2-02-C2, G46E-2-02M + 50 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
G46E-2-01Max. pressure: 0.2 MPa | Connection: R1/8 | Covering ring: None | Availability: Made to order
G46E-2-01-CMax. pressure: 0.2 MPa | Connection: R1/8 | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-2-01-C2Max. pressure: 0.2 MPa | Connection: R1/8 | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-2-01MMax. pressure: 0.2 MPa | Connection: R1/8 + M5 female | Covering ring: None | Availability: Stock item
G46E-2-01M-CMax. pressure: 0.2 MPa | Connection: R1/8 + M5 female | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-2-01M-C2Max. pressure: 0.2 MPa | Connection: R1/8 + M5 female | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-2-02Max. pressure: 0.2 MPa | Connection: R1/4 | Covering ring: None | Availability: Made to order
G46E-2-02-CMax. pressure: 0.2 MPa | Connection: R1/4 | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-2-02-C2Max. pressure: 0.2 MPa | Connection: R1/4 | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-2-02MMax. pressure: 0.2 MPa | Connection: R1/4 + M5 female | Covering ring: None | Availability: Stock item
G46E-2-02M-CMax. pressure: 0.2 MPa | Connection: R1/4 + M5 female | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-2-02M-C2Max. pressure: 0.2 MPa | Connection: R1/4 + M5 female | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-4-01Max. pressure: 0.4 MPa | Connection: R1/8 | Covering ring: None | Availability: Made to order
G46E-4-01-CMax. pressure: 0.4 MPa | Connection: R1/8 | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-4-01-C2Max. pressure: 0.4 MPa | Connection: R1/8 | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-4-01MMax. pressure: 0.4 MPa | Connection: R1/8 + M5 female | Covering ring: None | Availability: Stock item
G46E-4-01M-CMax. pressure: 0.4 MPa | Connection: R1/8 + M5 female | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-4-01M-C2Max. pressure: 0.4 MPa | Connection: R1/8 + M5 female | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-4-02Max. pressure: 0.4 MPa | Connection: R1/4 | Covering ring: None | Availability: Made to order
G46E-4-02-CMax. pressure: 0.4 MPa | Connection: R1/4 | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-4-02-C2Max. pressure: 0.4 MPa | Connection: R1/4 | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-4-02MMax. pressure: 0.4 MPa | Connection: R1/4 + M5 female | Covering ring: None | Availability: Stock item
G46E-4-02M-CMax. pressure: 0.4 MPa | Connection: R1/4 + M5 female | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-4-02M-C2Max. pressure: 0.4 MPa | Connection: R1/4 + M5 female | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-7-01Max. pressure: 0.7 MPa | Connection: R1/8 | Covering ring: None | Availability: Made to order
G46E-7-01-CMax. pressure: 0.7 MPa | Connection: R1/8 | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-7-01-C2Max. pressure: 0.7 MPa | Connection: R1/8 | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-7-01MMax. pressure: 0.7 MPa | Connection: R1/8 + M5 female | Covering ring: None | Availability: Stock item
G46E-7-01M-CMax. pressure: 0.7 MPa | Connection: R1/8 + M5 female | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-7-01M-C2Max. pressure: 0.7 MPa | Connection: R1/8 + M5 female | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-7-02Max. pressure: 0.7 MPa | Connection: R1/4 | Covering ring: None | Availability: Made to order
G46E-7-02-CMax. pressure: 0.7 MPa | Connection: R1/4 | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-7-02-C2Max. pressure: 0.7 MPa | Connection: R1/4 | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-7-02MMax. pressure: 0.7 MPa | Connection: R1/4 + M5 female | Covering ring: None | Availability: Stock item
G46E-7-02M-CMax. pressure: 0.7 MPa | Connection: R1/4 + M5 female | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-7-02M-C2Max. pressure: 0.7 MPa | Connection: R1/4 + M5 female | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-10-01Max. pressure: 1.0 MPa | Connection: R1/8 | Covering ring: None | Availability: Made to order
G46E-10-01-CMax. pressure: 1.0 MPa | Connection: R1/8 | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-10-01-C2Max. pressure: 1.0 MPa | Connection: R1/8 | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-10-01MMax. pressure: 1.0 MPa | Connection: R1/8 + M5 female | Covering ring: None | Availability: Stock item
G46E-10-01M-CMax. pressure: 1.0 MPa | Connection: R1/8 + M5 female | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-10-01M-C2Max. pressure: 1.0 MPa | Connection: R1/8 + M5 female | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-10-02Max. pressure: 1.0 MPa | Connection: R1/4 | Covering ring: None | Availability: Made to order
G46E-10-02-CMax. pressure: 1.0 MPa | Connection: R1/4 | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-10-02-C2Max. pressure: 1.0 MPa | Connection: R1/4 | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-10-02MMax. pressure: 1.0 MPa | Connection: R1/4 + M5 female | Covering ring: None | Availability: Stock item
G46E-10-02M-CMax. pressure: 1.0 MPa | Connection: R1/4 + M5 female | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-10-02M-C2Max. pressure: 1.0 MPa | Connection: R1/4 + M5 female | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-15-01Max. pressure: 1.5 MPa | Connection: R1/8 | Covering ring: None | Availability: Made to order
G46E-15-01-CMax. pressure: 1.5 MPa | Connection: R1/8 | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-15-01-C2Max. pressure: 1.5 MPa | Connection: R1/8 | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-15-01MMax. pressure: 1.5 MPa | Connection: R1/8 + M5 female | Covering ring: None | Availability: Made to order
G46E-15-01M-CMax. pressure: 1.5 MPa | Connection: R1/8 + M5 female | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-15-01M-C2Max. pressure: 1.5 MPa | Connection: R1/8 + M5 female | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-15-02Max. pressure: 1.5 MPa | Connection: R1/4 | Covering ring: None | Availability: Made to order
G46E-15-02-CMax. pressure: 1.5 MPa | Connection: R1/4 | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-15-02-C2Max. pressure: 1.5 MPa | Connection: R1/4 | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order
G46E-15-02MMax. pressure: 1.5 MPa | Connection: R1/4 + M5 female | Covering ring: None | Availability: Made to order
G46E-15-02M-CMax. pressure: 1.5 MPa | Connection: R1/4 + M5 female | Covering ring: Covering ring, cover fixed (C) | Availability: Made to order
G46E-15-02M-C2Max. pressure: 1.5 MPa | Connection: R1/4 + M5 female | Covering ring: Covering ring, cover removable (C2) | Availability: Made to order

Need a different model, or a part not listed here? Send us your parts list →
