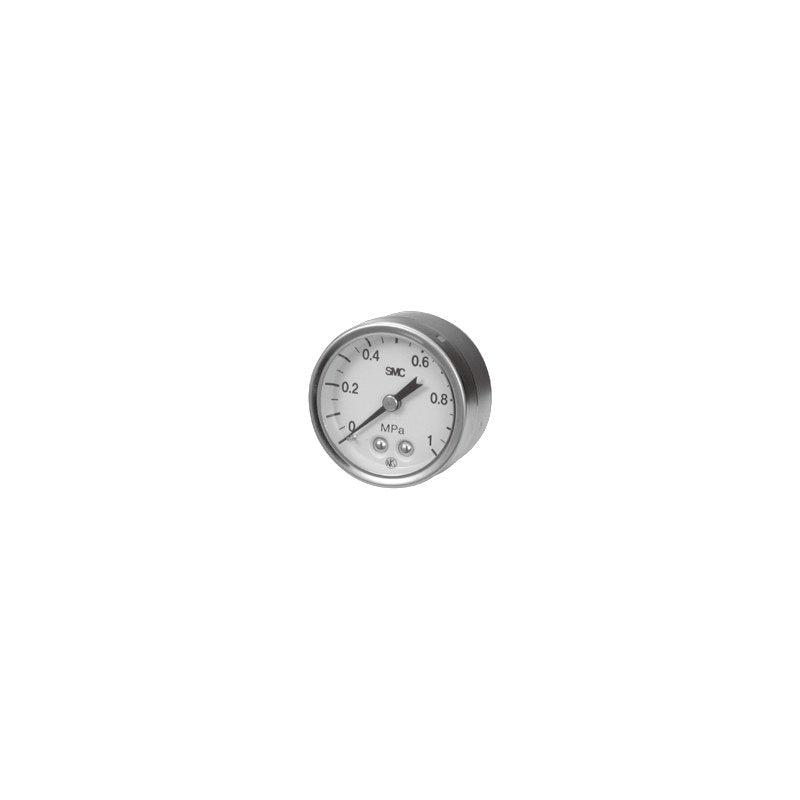

SMC G53-L/G63-L Pressure Gauge with Color Zone (ø51/ø63)

SMC G53-L/G63-L Pressure Gauge with Color Zone (ø51/ø63)

SMC G53-L and G63-L larger-dial pressure gauges with adjustable red and green color zones for at-a-glance pressure checks.

Key features

  • Larger dials: G53 ø51.4 mm and G63 ø63.4 mm, rear thread R1/8 or R1/4
  • G53 ranges 0.2, 0.4, 0.7 and 1.0 MPa; G63 1.0 MPa
  • Red/green zone indicator, freely adjustable
  • Stainless steel case, polycarbonate cover, accuracy ±3% F.S.

Specifications

Mounting Rear thread
Fluid Air
Accuracy ±3% F.S.
Case Stainless steel
Cover Polycarbonate (G53-00-00-3 / G63-00-00-3)
Stud / Bourdon tube Brass / brass
Mass G53 0.093 kg, G63 0.107 kg
Availability Stock items
Source SMC Korea catalog Pressure Gauges (SMCKR_G__.pdf), p. 1286-1287 (PDF p. 15-16)
G53-2-01-L Size: G53 (ø51.4) | Max. pressure: 0.2 MPa | Connection: R1/8 | Green zone width: 0.01 to 0.1 MPa
G53-2-02-L Size: G53 (ø51.4) | Max. pressure: 0.2 MPa | Connection: R1/4 | Green zone width: 0.01 to 0.1 MPa
G53-4-01-L Size: G53 (ø51.4) | Max. pressure: 0.4 MPa | Connection: R1/8 | Green zone width: 0.02 to 0.2 MPa
G53-4-02-L Size: G53 (ø51.4) | Max. pressure: 0.4 MPa | Connection: R1/4 | Green zone width: 0.02 to 0.2 MPa
G53-7-01-L Size: G53 (ø51.4) | Max. pressure: 0.7 MPa | Connection: R1/8 | Green zone width: 0.05 to 0.35 MPa
G53-7-02-L Size: G53 (ø51.4) | Max. pressure: 0.7 MPa | Connection: R1/4 | Green zone width: 0.05 to 0.35 MPa
G53-10-01-L Size: G53 (ø51.4) | Max. pressure: 1.0 MPa | Connection: R1/8 | Green zone width: 0.05 to 0.5 MPa
G53-10-02-L Size: G53 (ø51.4) | Max. pressure: 1.0 MPa | Connection: R1/4 | Green zone width: 0.05 to 0.5 MPa
G63-10-01-L Size: G63 (ø63.4) | Max. pressure: 1.0 MPa | Connection: R1/8 | Green zone width: 0.05 to 0.5 MPa
G63-10-02-L Size: G63 (ø63.4) | Max. pressure: 1.0 MPa | Connection: R1/4 | Green zone width: 0.05 to 0.5 MPa
Pressure GaugesSMC
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC G53-L/G63-L Pressure Gauge with Color Zone (ø51/ø63)

Brand SMC·Pressure Gauges

Available part numbers (10)

G53-2-01-L, G53-2-02-L, G53-4-01-L, G53-4-02-L, G53-7-01-L, G53-7-02-L, G53-10-01-L, G53-10-02-L, G63-10-01-L, G63-10-02-L

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
G53-2-01-LSize: G53 (ø51.4) | Max. pressure: 0.2 MPa | Connection: R1/8 | Green zone width: 0.01 to 0.1 MPa
G53-2-02-LSize: G53 (ø51.4) | Max. pressure: 0.2 MPa | Connection: R1/4 | Green zone width: 0.01 to 0.1 MPa
G53-4-01-LSize: G53 (ø51.4) | Max. pressure: 0.4 MPa | Connection: R1/8 | Green zone width: 0.02 to 0.2 MPa
G53-4-02-LSize: G53 (ø51.4) | Max. pressure: 0.4 MPa | Connection: R1/4 | Green zone width: 0.02 to 0.2 MPa
G53-7-01-LSize: G53 (ø51.4) | Max. pressure: 0.7 MPa | Connection: R1/8 | Green zone width: 0.05 to 0.35 MPa
G53-7-02-LSize: G53 (ø51.4) | Max. pressure: 0.7 MPa | Connection: R1/4 | Green zone width: 0.05 to 0.35 MPa
G53-10-01-LSize: G53 (ø51.4) | Max. pressure: 1.0 MPa | Connection: R1/8 | Green zone width: 0.05 to 0.5 MPa
G53-10-02-LSize: G53 (ø51.4) | Max. pressure: 1.0 MPa | Connection: R1/4 | Green zone width: 0.05 to 0.5 MPa
G63-10-01-LSize: G63 (ø63.4) | Max. pressure: 1.0 MPa | Connection: R1/8 | Green zone width: 0.05 to 0.5 MPa
G63-10-02-LSize: G63 (ø63.4) | Max. pressure: 1.0 MPa | Connection: R1/4 | Green zone width: 0.05 to 0.5 MPa
