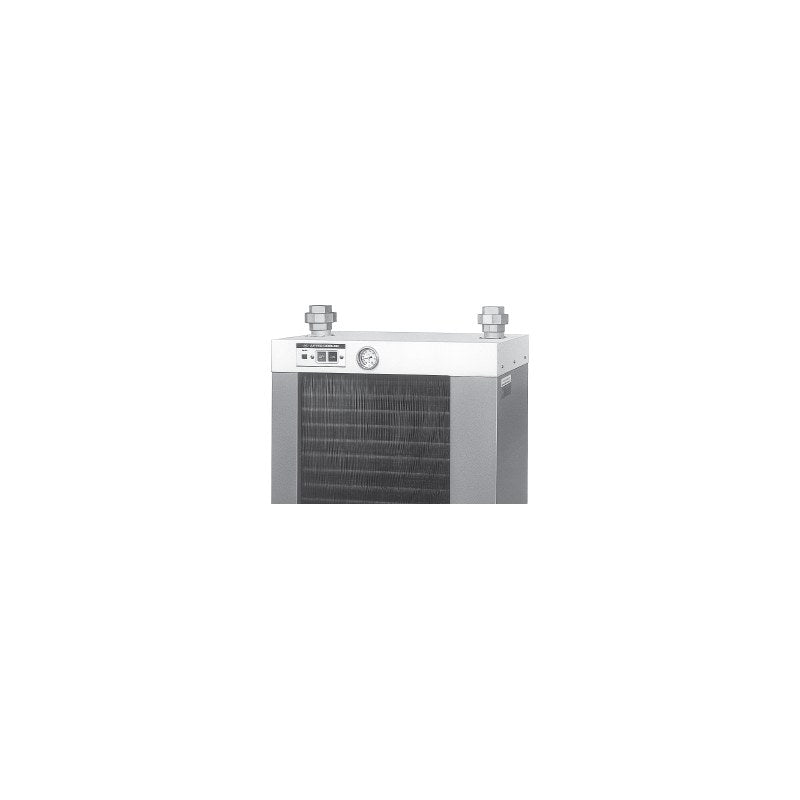

SMC HAA Air-Cooled Aftercooler (7.5 to 37 kW Compressors)

SMC HAA Air-Cooled Aftercooler (7.5 to 37 kW Compressors)

SMC HAA series air-cooled aftercooler that cools hot compressor discharge air to 40°C or less and separates the condensed moisture, for 7.5 to 37 kW air compressors.

Key features

  • Air cooled: no cooling water, so no risk of water stoppage or freezing and low running cost
  • Compact, lightweight body with small footprint and built-in drain separator
  • Aluminum plate-fin tube cooler with fan motor, push-button switch, pilot lamp and outlet thermometer
  • Accessory symbols in the code: D auto drain (AD402), F dustproof filter, S mounting stand; listed for each size and voltage
  • Terminal box option (suffix -T) for HAA7/15/22 (standard on HAA37)

Specifications

Fluid Compressed air
Rated conditions Inlet air 70°C, 0.7 MPa, ambient 32°C, outlet air 40°C
Inlet air temperature range 5 to 100°C
Inlet air pressure range 0.05 to 1.0 MPa (HAA37 0.97 MPa); with auto drain from 0.15 MPa
Ambient temperature 2 to 50°C, indoor installation
Proof pressure 1.5 MPa
Cooler Aluminum plate-fin tube
Drain outlet Rc3/8 (HAA7/15), Rc1/2 (HAA22/37)
Mass HAA7 18 kg, HAA15 24 kg, HAA22 36 kg, HAA37 55 kg
Source SMC Korea catalog HAA Series (SMCKR_HAA.pdf), p. 26-27 (PDF p. 1-2)
HAA7-061 Size: HAA7 (7.5 kW compressor) | Air port: Rp3/4 socket | Power supply: 1-phase AC100V | Rated air flow: 1000 L/min (ANR) | Accessory: None
HAA7-061D Size: HAA7 (7.5 kW compressor) | Air port: Rp3/4 socket | Power supply: 1-phase AC100V | Rated air flow: 1000 L/min (ANR) | Accessory: Auto drain
HAA7-061F Size: HAA7 (7.5 kW compressor) | Air port: Rp3/4 socket | Power supply: 1-phase AC100V | Rated air flow: 1000 L/min (ANR) | Accessory: Dustproof filter
HAA7-061S Size: HAA7 (7.5 kW compressor) | Air port: Rp3/4 socket | Power supply: 1-phase AC100V | Rated air flow: 1000 L/min (ANR) | Accessory: Mounting stand
HAA7-062 Size: HAA7 (7.5 kW compressor) | Air port: Rp3/4 socket | Power supply: 1-phase AC200V | Rated air flow: 1000 L/min (ANR) | Accessory: None
HAA7-062D Size: HAA7 (7.5 kW compressor) | Air port: Rp3/4 socket | Power supply: 1-phase AC200V | Rated air flow: 1000 L/min (ANR) | Accessory: Auto drain
HAA7-062F Size: HAA7 (7.5 kW compressor) | Air port: Rp3/4 socket | Power supply: 1-phase AC200V | Rated air flow: 1000 L/min (ANR) | Accessory: Dustproof filter
HAA7-062S Size: HAA7 (7.5 kW compressor) | Air port: Rp3/4 socket | Power supply: 1-phase AC200V | Rated air flow: 1000 L/min (ANR) | Accessory: Mounting stand
HAA15-101 Size: HAA15 (15 kW compressor) | Air port: 1B union | Power supply: 1-phase AC100V | Rated air flow: 2200 L/min (ANR) | Accessory: None
HAA15-101D Size: HAA15 (15 kW compressor) | Air port: 1B union | Power supply: 1-phase AC100V | Rated air flow: 2200 L/min (ANR) | Accessory: Auto drain
HAA15-101F Size: HAA15 (15 kW compressor) | Air port: 1B union | Power supply: 1-phase AC100V | Rated air flow: 2200 L/min (ANR) | Accessory: Dustproof filter
HAA15-101S Size: HAA15 (15 kW compressor) | Air port: 1B union | Power supply: 1-phase AC100V | Rated air flow: 2200 L/min (ANR) | Accessory: Mounting stand
HAA15-103 Size: HAA15 (15 kW compressor) | Air port: 1B union | Power supply: 3-phase AC200V | Rated air flow: 2200 L/min (ANR) | Accessory: None
HAA15-103D Size: HAA15 (15 kW compressor) | Air port: 1B union | Power supply: 3-phase AC200V | Rated air flow: 2200 L/min (ANR) | Accessory: Auto drain
HAA15-103F Size: HAA15 (15 kW compressor) | Air port: 1B union | Power supply: 3-phase AC200V | Rated air flow: 2200 L/min (ANR) | Accessory: Dustproof filter
HAA15-103S Size: HAA15 (15 kW compressor) | Air port: 1B union | Power supply: 3-phase AC200V | Rated air flow: 2200 L/min (ANR) | Accessory: Mounting stand
HAA22-143 Size: HAA22 (22 kW compressor) | Air port: 1 1/2B union | Power supply: 3-phase AC200V | Rated air flow: 3300 L/min (ANR) | Accessory: None
HAA22-143D Size: HAA22 (22 kW compressor) | Air port: 1 1/2B union | Power supply: 3-phase AC200V | Rated air flow: 3300 L/min (ANR) | Accessory: Auto drain
HAA22-143F Size: HAA22 (22 kW compressor) | Air port: 1 1/2B union | Power supply: 3-phase AC200V | Rated air flow: 3300 L/min (ANR) | Accessory: Dustproof filter
HAA22-143S Size: HAA22 (22 kW compressor) | Air port: 1 1/2B union | Power supply: 3-phase AC200V | Rated air flow: 3300 L/min (ANR) | Accessory: Mounting stand
HAA37-143 Size: HAA37 (37 kW compressor) | Air port: 1 1/2B union | Power supply: 3-phase AC200V | Rated air flow: 5700 L/min (ANR) | Accessory: None
HAA37-143D Size: HAA37 (37 kW compressor) | Air port: 1 1/2B union | Power supply: 3-phase AC200V | Rated air flow: 5700 L/min (ANR) | Accessory: Auto drain
HAA37-143F Size: HAA37 (37 kW compressor) | Air port: 1 1/2B union | Power supply: 3-phase AC200V | Rated air flow: 5700 L/min (ANR) | Accessory: Dustproof filter
HAA37-143S Size: HAA37 (37 kW compressor) | Air port: 1 1/2B union | Power supply: 3-phase AC200V | Rated air flow: 5700 L/min (ANR) | Accessory: Mounting stand
AftercoolersSMC
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC HAA Air-Cooled Aftercooler (7.5 to 37 kW Compressors)

Brand SMC·Aftercoolers

Available part numbers (24)

HAA7-061, HAA7-061D, HAA7-061F, HAA7-061S, HAA7-062, HAA7-062D, HAA7-062F, HAA7-062S, HAA15-101, HAA15-101D + 14 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HAA7-061Size: HAA7 (7.5 kW compressor) | Air port: Rp3/4 socket | Power supply: 1-phase AC100V | Rated air flow: 1000 L/min (ANR) | Accessory: None
HAA7-061DSize: HAA7 (7.5 kW compressor) | Air port: Rp3/4 socket | Power supply: 1-phase AC100V | Rated air flow: 1000 L/min (ANR) | Accessory: Auto drain
HAA7-061FSize: HAA7 (7.5 kW compressor) | Air port: Rp3/4 socket | Power supply: 1-phase AC100V | Rated air flow: 1000 L/min (ANR) | Accessory: Dustproof filter
HAA7-061SSize: HAA7 (7.5 kW compressor) | Air port: Rp3/4 socket | Power supply: 1-phase AC100V | Rated air flow: 1000 L/min (ANR) | Accessory: Mounting stand
HAA7-062Size: HAA7 (7.5 kW compressor) | Air port: Rp3/4 socket | Power supply: 1-phase AC200V | Rated air flow: 1000 L/min (ANR) | Accessory: None
HAA7-062DSize: HAA7 (7.5 kW compressor) | Air port: Rp3/4 socket | Power supply: 1-phase AC200V | Rated air flow: 1000 L/min (ANR) | Accessory: Auto drain
HAA7-062FSize: HAA7 (7.5 kW compressor) | Air port: Rp3/4 socket | Power supply: 1-phase AC200V | Rated air flow: 1000 L/min (ANR) | Accessory: Dustproof filter
HAA7-062SSize: HAA7 (7.5 kW compressor) | Air port: Rp3/4 socket | Power supply: 1-phase AC200V | Rated air flow: 1000 L/min (ANR) | Accessory: Mounting stand
HAA15-101Size: HAA15 (15 kW compressor) | Air port: 1B union | Power supply: 1-phase AC100V | Rated air flow: 2200 L/min (ANR) | Accessory: None
HAA15-101DSize: HAA15 (15 kW compressor) | Air port: 1B union | Power supply: 1-phase AC100V | Rated air flow: 2200 L/min (ANR) | Accessory: Auto drain
HAA15-101FSize: HAA15 (15 kW compressor) | Air port: 1B union | Power supply: 1-phase AC100V | Rated air flow: 2200 L/min (ANR) | Accessory: Dustproof filter
HAA15-101SSize: HAA15 (15 kW compressor) | Air port: 1B union | Power supply: 1-phase AC100V | Rated air flow: 2200 L/min (ANR) | Accessory: Mounting stand
HAA15-103Size: HAA15 (15 kW compressor) | Air port: 1B union | Power supply: 3-phase AC200V | Rated air flow: 2200 L/min (ANR) | Accessory: None
HAA15-103DSize: HAA15 (15 kW compressor) | Air port: 1B union | Power supply: 3-phase AC200V | Rated air flow: 2200 L/min (ANR) | Accessory: Auto drain
HAA15-103FSize: HAA15 (15 kW compressor) | Air port: 1B union | Power supply: 3-phase AC200V | Rated air flow: 2200 L/min (ANR) | Accessory: Dustproof filter
HAA15-103SSize: HAA15 (15 kW compressor) | Air port: 1B union | Power supply: 3-phase AC200V | Rated air flow: 2200 L/min (ANR) | Accessory: Mounting stand
HAA22-143Size: HAA22 (22 kW compressor) | Air port: 1 1/2B union | Power supply: 3-phase AC200V | Rated air flow: 3300 L/min (ANR) | Accessory: None
HAA22-143DSize: HAA22 (22 kW compressor) | Air port: 1 1/2B union | Power supply: 3-phase AC200V | Rated air flow: 3300 L/min (ANR) | Accessory: Auto drain
HAA22-143FSize: HAA22 (22 kW compressor) | Air port: 1 1/2B union | Power supply: 3-phase AC200V | Rated air flow: 3300 L/min (ANR) | Accessory: Dustproof filter
HAA22-143SSize: HAA22 (22 kW compressor) | Air port: 1 1/2B union | Power supply: 3-phase AC200V | Rated air flow: 3300 L/min (ANR) | Accessory: Mounting stand
HAA37-143Size: HAA37 (37 kW compressor) | Air port: 1 1/2B union | Power supply: 3-phase AC200V | Rated air flow: 5700 L/min (ANR) | Accessory: None
HAA37-143DSize: HAA37 (37 kW compressor) | Air port: 1 1/2B union | Power supply: 3-phase AC200V | Rated air flow: 5700 L/min (ANR) | Accessory: Auto drain
HAA37-143FSize: HAA37 (37 kW compressor) | Air port: 1 1/2B union | Power supply: 3-phase AC200V | Rated air flow: 5700 L/min (ANR) | Accessory: Dustproof filter
HAA37-143SSize: HAA37 (37 kW compressor) | Air port: 1 1/2B union | Power supply: 3-phase AC200V | Rated air flow: 5700 L/min (ANR) | Accessory: Mounting stand
