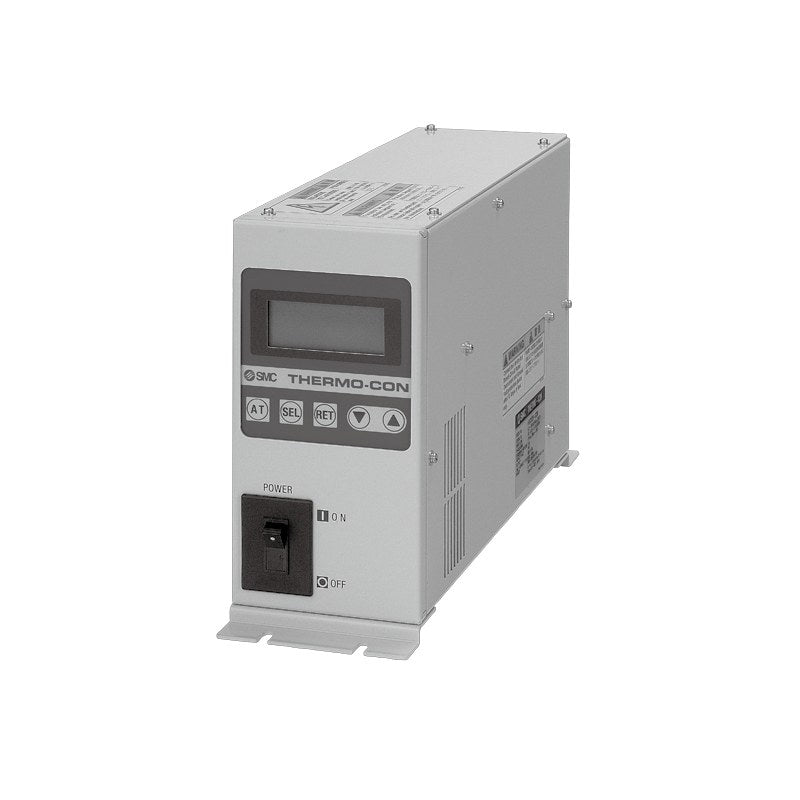

SMC HED Chemical Thermo-con (Peltier, Water-Cooled, 300-900 W)

SMC HED Chemical Thermo-con (Peltier, Water-Cooled, 300-900 W)

SMC HED series chemical thermo-con, a Peltier-type temperature controller with PFA heat exchanger for DI water and chemicals such as hydrofluoric acid and ammonia hydrogen peroxide.

Key features

  • PFA wetted parts (HED009: PFA, SiC) for DI water, hydrofluoric acid, ammonia-hydrogen peroxide and similar chemicals
  • Cooling capacity 300, 500, 750 or 900 W; set temperature range 10.0 to 60.0 C, stability +/-0.1 C
  • Ordered as a set (controller + heat exchanger) or as individual heat exchanger and temperature controller
  • Communication A RS-485 or B RS-232C; Pt100 class A RTD with internal/external sensor control
  • Option Y high-concentration chemical type (HED009 only) as suffix
  • CE/UKCA; SEMI compliant except HED009

Specifications

Cooling element Thermo-module (Peltier)
Heat radiation Water-cooled
Control method Cooling/heating auto switching PID
Set temperature range 10.0 to 60.0 C
Temperature stability +/-0.1 C or less
Wetted material (fluid) PFA (HED009: PFA, SiC)
Fluid pressure 0 to 0.35 MPa
Facility water 10 to 35 C, max. 0.5 MPa, 5 to 10 L/min
Power supply 1-phase AC180-242V, 50/60Hz
Source SMC Korea thermo-chiller catalog, HED section (SMCKR_HED.pdf), p. 583-584 (PDF p. 6-7)
HED003-W2A13 Unit: Set (controller + heat exchanger) | Cooling capacity: 300 W | Heating capacity: 600 W | PFA tube size: 1/2 in x 3/8 in | Communication: RS-485
HED003-W2A19 Unit: Set (controller + heat exchanger) | Cooling capacity: 300 W | Heating capacity: 600 W | PFA tube size: 3/4 in x 5/8 in | Communication: RS-485
HED003-W2B13 Unit: Set (controller + heat exchanger) | Cooling capacity: 300 W | Heating capacity: 600 W | PFA tube size: 1/2 in x 3/8 in | Communication: RS-232C
HED003-W2B19 Unit: Set (controller + heat exchanger) | Cooling capacity: 300 W | Heating capacity: 600 W | PFA tube size: 3/4 in x 5/8 in | Communication: RS-232C
HED005-W2A13 Unit: Set (controller + heat exchanger) | Cooling capacity: 500 W | Heating capacity: 1000 W | PFA tube size: 1/2 in x 3/8 in | Communication: RS-485
HED005-W2A19 Unit: Set (controller + heat exchanger) | Cooling capacity: 500 W | Heating capacity: 1000 W | PFA tube size: 3/4 in x 5/8 in | Communication: RS-485
HED005-W2B13 Unit: Set (controller + heat exchanger) | Cooling capacity: 500 W | Heating capacity: 1000 W | PFA tube size: 1/2 in x 3/8 in | Communication: RS-232C
HED005-W2B19 Unit: Set (controller + heat exchanger) | Cooling capacity: 500 W | Heating capacity: 1000 W | PFA tube size: 3/4 in x 5/8 in | Communication: RS-232C
HED007-W2A13 Unit: Set (controller + heat exchanger) | Cooling capacity: 750 W | Heating capacity: 1800 W | PFA tube size: 1/2 in x 3/8 in | Communication: RS-485
HED007-W2A19 Unit: Set (controller + heat exchanger) | Cooling capacity: 750 W | Heating capacity: 1800 W | PFA tube size: 3/4 in x 5/8 in | Communication: RS-485
HED007-W2B13 Unit: Set (controller + heat exchanger) | Cooling capacity: 750 W | Heating capacity: 1800 W | PFA tube size: 1/2 in x 3/8 in | Communication: RS-232C
HED007-W2B19 Unit: Set (controller + heat exchanger) | Cooling capacity: 750 W | Heating capacity: 1800 W | PFA tube size: 3/4 in x 5/8 in | Communication: RS-232C
HED009-W2A25 Unit: Set (controller + heat exchanger) | Cooling capacity: 900 W | Heating capacity: 2300 W | PFA tube size: 1 in x 7/8 in | Communication: RS-485
HED009-W2B25 Unit: Set (controller + heat exchanger) | Cooling capacity: 900 W | Heating capacity: 2300 W | PFA tube size: 1 in x 7/8 in | Communication: RS-232C
HED003-HW13 Unit: Heat exchanger | Cooling capacity: 300 W | Heating capacity: 600 W | PFA tube size: 1/2 in x 3/8 in | Communication: Via controller
HED003-HW19 Unit: Heat exchanger | Cooling capacity: 300 W | Heating capacity: 600 W | PFA tube size: 3/4 in x 5/8 in | Communication: Via controller
HED005-HW13 Unit: Heat exchanger | Cooling capacity: 500 W | Heating capacity: 1000 W | PFA tube size: 1/2 in x 3/8 in | Communication: Via controller
HED005-HW19 Unit: Heat exchanger | Cooling capacity: 500 W | Heating capacity: 1000 W | PFA tube size: 3/4 in x 5/8 in | Communication: Via controller
HED007-HW13 Unit: Heat exchanger | Cooling capacity: 750 W | Heating capacity: 1800 W | PFA tube size: 1/2 in x 3/8 in | Communication: Via controller
HED007-HW19 Unit: Heat exchanger | Cooling capacity: 750 W | Heating capacity: 1800 W | PFA tube size: 3/4 in x 5/8 in | Communication: Via controller
HED009-HW25 Unit: Heat exchanger | Cooling capacity: 900 W | Heating capacity: 2300 W | PFA tube size: 1 in x 7/8 in | Communication: Via controller
HED003-C2A Unit: Temperature controller | Cooling capacity: 300 W | Heating capacity: 600 W | PFA tube size: n/a | Communication: RS-485
HED003-C2B Unit: Temperature controller | Cooling capacity: 300 W | Heating capacity: 600 W | PFA tube size: n/a | Communication: RS-232C
HED005-C2A Unit: Temperature controller | Cooling capacity: 500 W | Heating capacity: 1000 W | PFA tube size: n/a | Communication: RS-485
HED005-C2B Unit: Temperature controller | Cooling capacity: 500 W | Heating capacity: 1000 W | PFA tube size: n/a | Communication: RS-232C
HED007-C2A Unit: Temperature controller | Cooling capacity: 750 W | Heating capacity: 1800 W | PFA tube size: n/a | Communication: RS-485
HED007-C2B Unit: Temperature controller | Cooling capacity: 750 W | Heating capacity: 1800 W | PFA tube size: n/a | Communication: RS-232C
HED009-C2A Unit: Temperature controller | Cooling capacity: 900 W | Heating capacity: 2300 W | PFA tube size: n/a | Communication: RS-485
HED009-C2B Unit: Temperature controller | Cooling capacity: 900 W | Heating capacity: 2300 W | PFA tube size: n/a | Communication: RS-232C
