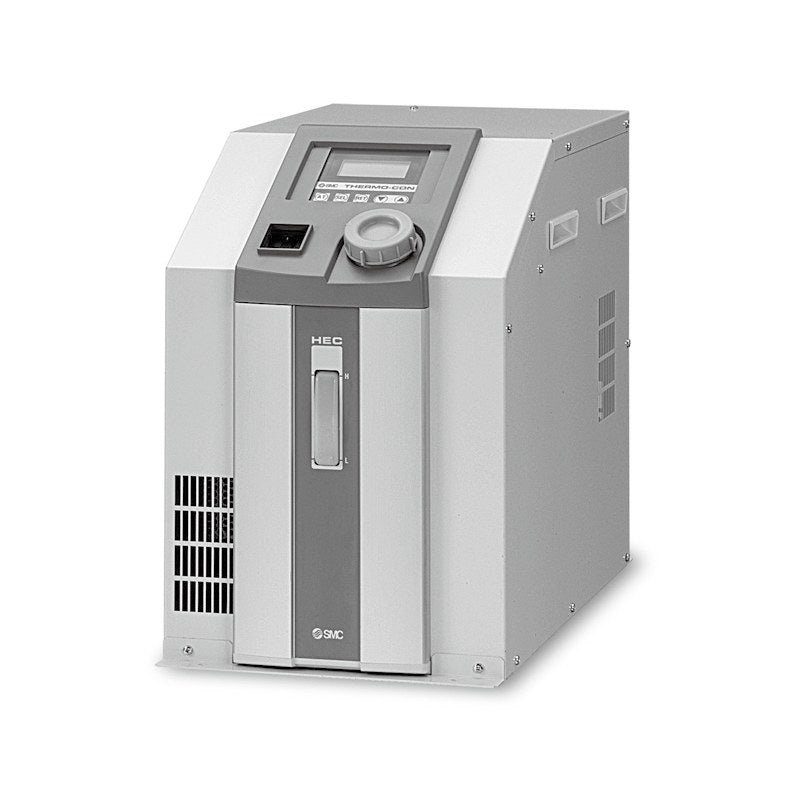

SMC HEC Thermo-con (Peltier Type, Air/Water-Cooled, 140-1200 W)

SMC HEC Thermo-con (Peltier Type, Air/Water-Cooled, 140-1200 W)

SMC HEC series thermo-con, a Peltier-type circulating fluid temperature controller with high-precision PID cooling and heating, air-cooled or water-cooled.

Key features

  • Peltier (thermo-module) cooling and heating with automatic PID switching - refrigerant-free, low vibration and noise
  • Temperature stability +/-0.01 to 0.03 C, set temperature range 10.0 to 60.0 C
  • Air-cooled HEC-A 230/600 W; water-cooled HEC-W 140/320 W (AC100-240V) and 600/1200 W (AC200-220V)
  • Communication selectable in the part number: A RS-485 or B RS-232C
  • Options as suffix: F flow switch, N NPT thread, L level switch (001/003)
  • HEC006/012-W2 also handle fluorinated fluid (Fluorinert FC-3283, GALDEN HT135)

Specifications

Cooling element Thermo-module (Peltier)
Control method Cooling/heating auto switching PID
Set temperature range 10.0 to 60.0 C (no condensation)
Temperature stability +/-0.01 to 0.03 C
Circulating fluid Clear water, 20% ethylene glycol
Tank capacity Approx. 1.2 L (HEC006-W2: 3 L, HEC012-W2: 5 L)
Ambient conditions 10 to 35 C, 35 to 80% RH
Facility water (W type) 10 to 35 C, max. 1 MPa
Standards CE/UKCA; UL (NRTL) except HEC006/012-W
Source SMC Korea thermo-chiller catalog, HEC section (SMCKR_HEC.pdf), p. 525, 537-538 (PDF p. 8, 20-21)
HEC002-A5A Cooling method: Air-cooled | Cooling capacity: 230 W | Heating capacity: 600 W | Power supply: 1-phase AC100-240V | Communication: RS-485 | Fluid port IN/OUT: Rc1/4
HEC002-A5B Cooling method: Air-cooled | Cooling capacity: 230 W | Heating capacity: 600 W | Power supply: 1-phase AC100-240V | Communication: RS-232C | Fluid port IN/OUT: Rc1/4
HEC006-A5A Cooling method: Air-cooled | Cooling capacity: 600 W | Heating capacity: 900 W | Power supply: 1-phase AC100-240V | Communication: RS-485 | Fluid port IN/OUT: Rc3/8
HEC006-A5B Cooling method: Air-cooled | Cooling capacity: 600 W | Heating capacity: 900 W | Power supply: 1-phase AC100-240V | Communication: RS-232C | Fluid port IN/OUT: Rc3/8
HEC001-W5A Cooling method: Water-cooled | Cooling capacity: 140 W | Heating capacity: 400 W | Power supply: 1-phase AC100-240V | Communication: RS-485 | Fluid port IN/OUT: Rc3/8
HEC001-W5B Cooling method: Water-cooled | Cooling capacity: 140 W | Heating capacity: 400 W | Power supply: 1-phase AC100-240V | Communication: RS-232C | Fluid port IN/OUT: Rc3/8
HEC003-W5A Cooling method: Water-cooled | Cooling capacity: 320 W | Heating capacity: 770 W | Power supply: 1-phase AC100-240V | Communication: RS-485 | Fluid port IN/OUT: Rc3/8
HEC003-W5B Cooling method: Water-cooled | Cooling capacity: 320 W | Heating capacity: 770 W | Power supply: 1-phase AC100-240V | Communication: RS-232C | Fluid port IN/OUT: Rc3/8
HEC006-W2A Cooling method: Water-cooled | Cooling capacity: 600 W | Heating capacity: 900 W | Power supply: 1-phase AC200-220V | Communication: RS-485 | Fluid port IN/OUT: Rc3/8
HEC006-W2B Cooling method: Water-cooled | Cooling capacity: 600 W | Heating capacity: 900 W | Power supply: 1-phase AC200-220V | Communication: RS-232C | Fluid port IN/OUT: Rc3/8
HEC012-W2A Cooling method: Water-cooled | Cooling capacity: 1200 W | Heating capacity: 2200 W | Power supply: 1-phase AC200-220V | Communication: RS-485 | Fluid port IN/OUT: Rc3/4
HEC012-W2B Cooling method: Water-cooled | Cooling capacity: 1200 W | Heating capacity: 2200 W | Power supply: 1-phase AC200-220V | Communication: RS-232C | Fluid port IN/OUT: Rc3/4
ChillersSMC
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC HEC Thermo-con (Peltier Type, Air/Water-Cooled, 140-1200 W)

Brand SMC·Chillers

Available part numbers (12)

HEC002-A5A, HEC002-A5B, HEC006-A5A, HEC006-A5B, HEC001-W5A, HEC001-W5B, HEC003-W5A, HEC003-W5B, HEC006-W2A, HEC006-W2B + 2 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HEC002-A5ACooling method: Air-cooled | Cooling capacity: 230 W | Heating capacity: 600 W | Power supply: 1-phase AC100-240V | Communication: RS-485 | Fluid port IN/OUT: Rc1/4
HEC002-A5BCooling method: Air-cooled | Cooling capacity: 230 W | Heating capacity: 600 W | Power supply: 1-phase AC100-240V | Communication: RS-232C | Fluid port IN/OUT: Rc1/4
HEC006-A5ACooling method: Air-cooled | Cooling capacity: 600 W | Heating capacity: 900 W | Power supply: 1-phase AC100-240V | Communication: RS-485 | Fluid port IN/OUT: Rc3/8
HEC006-A5BCooling method: Air-cooled | Cooling capacity: 600 W | Heating capacity: 900 W | Power supply: 1-phase AC100-240V | Communication: RS-232C | Fluid port IN/OUT: Rc3/8
HEC001-W5ACooling method: Water-cooled | Cooling capacity: 140 W | Heating capacity: 400 W | Power supply: 1-phase AC100-240V | Communication: RS-485 | Fluid port IN/OUT: Rc3/8
HEC001-W5BCooling method: Water-cooled | Cooling capacity: 140 W | Heating capacity: 400 W | Power supply: 1-phase AC100-240V | Communication: RS-232C | Fluid port IN/OUT: Rc3/8
HEC003-W5ACooling method: Water-cooled | Cooling capacity: 320 W | Heating capacity: 770 W | Power supply: 1-phase AC100-240V | Communication: RS-485 | Fluid port IN/OUT: Rc3/8
HEC003-W5BCooling method: Water-cooled | Cooling capacity: 320 W | Heating capacity: 770 W | Power supply: 1-phase AC100-240V | Communication: RS-232C | Fluid port IN/OUT: Rc3/8
HEC006-W2ACooling method: Water-cooled | Cooling capacity: 600 W | Heating capacity: 900 W | Power supply: 1-phase AC200-220V | Communication: RS-485 | Fluid port IN/OUT: Rc3/8
HEC006-W2BCooling method: Water-cooled | Cooling capacity: 600 W | Heating capacity: 900 W | Power supply: 1-phase AC200-220V | Communication: RS-232C | Fluid port IN/OUT: Rc3/8
HEC012-W2ACooling method: Water-cooled | Cooling capacity: 1200 W | Heating capacity: 2200 W | Power supply: 1-phase AC200-220V | Communication: RS-485 | Fluid port IN/OUT: Rc3/4
HEC012-W2BCooling method: Water-cooled | Cooling capacity: 1200 W | Heating capacity: 2200 W | Power supply: 1-phase AC200-220V | Communication: RS-232C | Fluid port IN/OUT: Rc3/4
