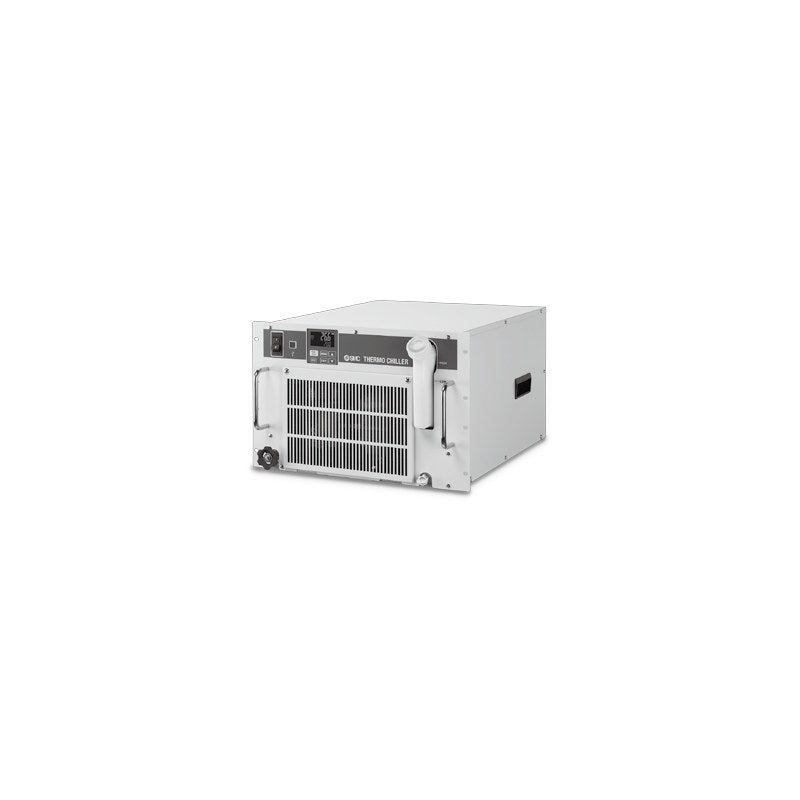

SMC HRRF Thermo-Chiller (Rack Mount, Low-GWP R454C)

SMC HRRF Thermo-Chiller (Rack Mount, Low-GWP R454C)

SMC HRRF series rack mount thermo-chiller using low-GWP refrigerant R454C (GWP 146), air-cooled or water-cooled, 1.0 to 1.8 kW cooling capacity.

Key features

  • Low-GWP refrigerant R454C (GWP 146) meeting EU and US refrigerant regulations
  • Fits a 19-inch rack with front-side access for fluid fill and maintenance
  • Air-cooled (A) and water-cooled (W) refrigeration, temperature stability +/-0.1 C
  • Options: DM (conductivity control, DI water piping), M (DI water piping), T (high-pressure pump), T1 (inverter pump), Y (legs, no rack brackets), Z/Z1 (without built-in accessories)
  • Piping thread Rc standard; F (Rc-G) or N (Rc-NPT) conversion fitting set on order

Specifications

Power supply 1-ph AC200-230V (50/60Hz)
Refrigerant R454C (HFO/HFC, GWP 146)
Fluid Clear water, 15% ethylene glycol aqueous solution
Set temperature range 5 to 35 C
Temperature stability +/-0.1 C
Pump capacity (50/60Hz) 0.13/0.18 MPa at 7 L/min
Tank capacity Approx. 4 L
Circulating fluid ports Rc1/2 (drain Rc1/4)
Mass 45 kg
Port thread Rc (G/NPT conversion fitting sets: F/N)
Source SMC Korea catalog CAT.KS40-76A (SMCKR_HRRF.pdf), p. 2-5
HRRF012-A-20 Model: HRRF012 | Cooling method: Air-cooled refrigeration | Cooling capacity (50/60Hz): 1000/1200 W
HRRF012-W-20 Model: HRRF012 | Cooling method: Water-cooled refrigeration | Cooling capacity (50/60Hz): 1000/1200 W
HRRF018-A-20 Model: HRRF018 | Cooling method: Air-cooled refrigeration | Cooling capacity (50/60Hz): 1600/1800 W
HRRF018-W-20 Model: HRRF018 | Cooling method: Water-cooled refrigeration | Cooling capacity (50/60Hz): 1600/1800 W
ChillersSMC
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC HRRF Thermo-Chiller (Rack Mount, Low-GWP R454C)

Brand SMC·Chillers

Available part numbers (4)

HRRF012-A-20, HRRF012-W-20, HRRF018-A-20, HRRF018-W-20

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
