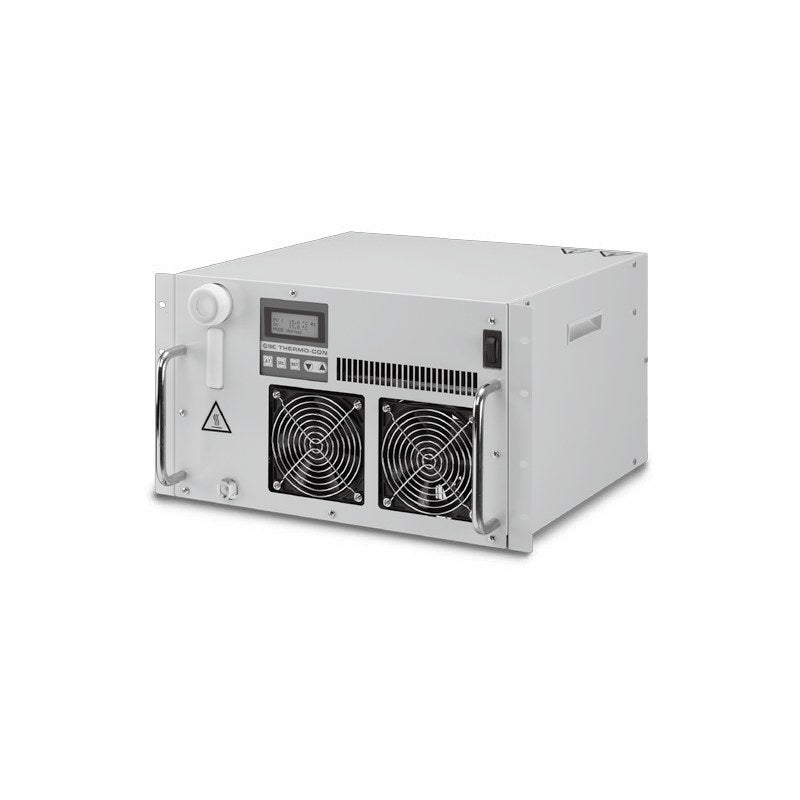

SMC HECR Thermo-con (Rack Mount Type, Peltier, 200 W-1.2 kW)

SMC HECR Thermo-con (Rack Mount Type, Peltier, 200 W-1.2 kW)

SMC HECR series rack-mount thermo-con, a Peltier-type circulating fluid temperature controller for 19-inch rack installation, air-cooled or water-cooled.

Key features

  • Peltier (thermo-module) cooling and heating with automatic PID switching - refrigerant-free, low vibration
  • Temperature stability +/-0.01 to 0.03 C, set temperature range 10.0 to 60.0 C
  • Air-cooled 200 W to 1 kW incl. thin type 006L; water-cooled 800 W and 1.2 kW
  • RS-232C / RS-485 communication and alarm functions as standard
  • Options as suffix: E without legs/rack brackets, F flow switch, J tank top fill port, P high-pressure pump; N NPT thread
  • CE/UKCA marked, UL (NRTL) listed; power cable sold separately

Specifications

Cooling element Thermo-module (Peltier)
Control method Cooling/heating auto switching PID
Set temperature range 10.0 to 60.0 C (no condensation)
Temperature stability +/-0.01 to 0.03 C
Circulating fluid Clear water, 20% ethylene glycol
Ambient conditions 10 to 35 C, 35 to 80% RH
Communication RS-232C / RS-485
Pipe thread Rc (N: NPT optional)
Standards CE/UKCA, UL (NRTL)
Source SMC Korea thermo-chiller catalog, HECR section (SMCKR_HECR.pdf), p. 499, 508 (PDF p. 8, 18)
HECR002-A5 Cooling method: Air-cooled | Cooling capacity: 200 W | Heating capacity: 600 W | Power supply: 1-phase AC100-240V | Fluid port: Rc1/4 | Mass: Approx. 14 kg
HECR004-A5 Cooling method: Air-cooled | Cooling capacity: 400 W | Heating capacity: 1.0 kW | Power supply: 1-phase AC100-240V | Fluid port: Rc3/8 | Mass: Approx. 18 kg
HECR006-A5 Cooling method: Air-cooled | Cooling capacity: 510 W | Heating capacity: 1.2 kW | Power supply: 1-phase AC100-240V | Fluid port: Rc3/8 | Mass: Approx. 21 kg
HECR006L-A5 Cooling method: Air-cooled, thin type | Cooling capacity: 510 W | Heating capacity: 1.2 kW | Power supply: 1-phase AC100-240V | Fluid port: Rc3/8 | Mass: Approx. 20 kg
HECR008-A5 Cooling method: Air-cooled | Cooling capacity: 800 W | Heating capacity: 1.4 kW | Power supply: 1-phase AC100-240V | Fluid port: Rc3/8 | Mass: Approx. 31 kg
HECR010-A2 Cooling method: Air-cooled | Cooling capacity: 1 kW | Heating capacity: 2 kW | Power supply: 1-phase AC200-240V | Fluid port: Rc3/8 | Mass: Approx. 33 kg
HECR008-W5 Cooling method: Water-cooled | Cooling capacity: 800 W | Heating capacity: 1.4 kW | Power supply: 1-phase AC100-240V | Fluid port: Rc3/8 | Mass: Approx. 20 kg
HECR012-W2 Cooling method: Water-cooled | Cooling capacity: 1.2 kW | Heating capacity: 2 kW | Power supply: 1-phase AC200-240V | Fluid port: Rc3/8 | Mass: Approx. 21 kg
