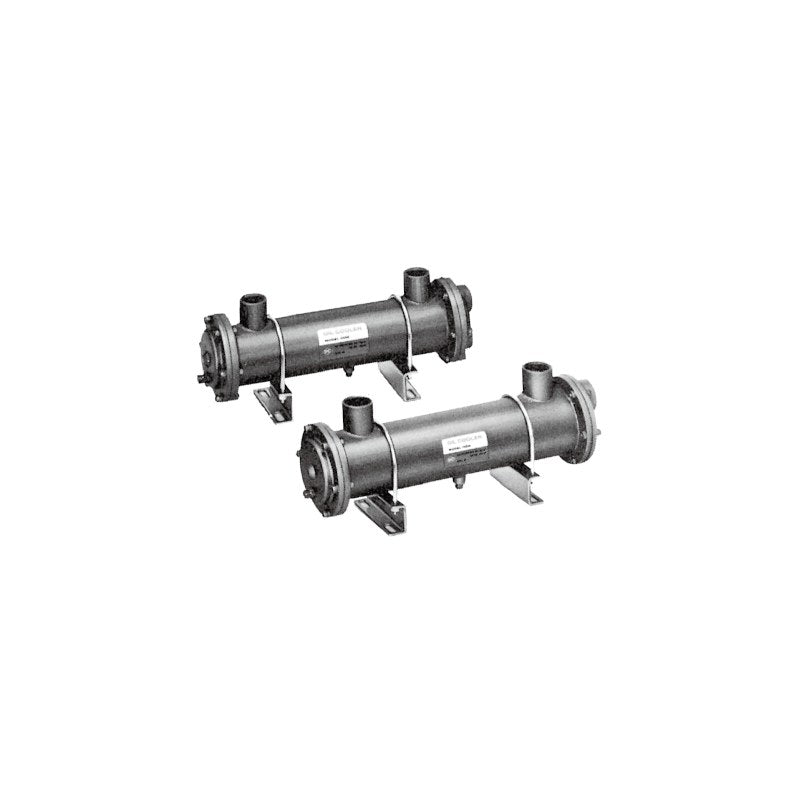

SMC HOWF Water-Cooled Oil Cooler (Fixed Tube Sheet, Metal Particle)

SMC HOWF Water-Cooled Oil Cooler (Fixed Tube Sheet, Metal Particle)

SMC HOWF series fixed-tube-sheet water-cooled oil cooler with metal particles bonded to the tubes for high heat transfer in hydraulic systems.

Key features

  • Metal particles stir the oil to create turbulence for uniform, efficient cooling
  • Half to one fifth the size of conventional oil coolers
  • Particles fused to the tube outside give several times the area of finned tubes
  • Mounted with U-bolts in any orientation
  • Single baffle fused to the particle layer: no tube/baffle contact trouble, low oil pressure drop

Specifications

Max. operating pressure 1.0 MPa (oil and water side)
Proof pressure 1.5 MPa
Fluid temperature Oil max. 100°C / water max. 50°C
Cooling water Industrial or tap water
Cooled fluid Petroleum hydraulic oil, lube oil, water-glycol
Heat transfer element Copper tube with copper-alloy coated iron particles
Connection Oil: parallel thread or JIS 10K FF flange; water: taper thread
Source SMC Korea catalog HOWF (SMCKR_HOWF.pdf), p. 533-536
HOWF7-06 Motor size: 7 kW class | Oil port: Rc3/4 | Heat exchange: 5.2 kW | Oil flow: 20 to 100 L/min | Water flow: 40 L/min
HOWF11-06 Motor size: 11 kW class | Oil port: Rc3/4 | Heat exchange: 8.4 kW | Oil flow: 30 to 150 L/min | Water flow: 40 L/min
HOWF22-08 Motor size: 22 kW class | Oil port: Rc1 | Heat exchange: 14 kW | Oil flow: 40 to 250 L/min | Water flow: 55 L/min
HOWF37-08 Motor size: 37 kW class | Oil port: Rc1 | Heat exchange: 21 kW | Oil flow: 60 to 300 L/min | Water flow: 55 L/min
HOWF55-10 Motor size: 55 kW class | Oil port: 1 1/4B flange | Heat exchange: 32 kW | Oil flow: 70 to 300 L/min | Water flow: 75 L/min
HOWF75-10 Motor size: 75 kW class | Oil port: 1 1/4B flange | Heat exchange: 43 kW | Oil flow: 80 to 400 L/min | Water flow: 75 L/min
HOWF110-16 Motor size: 110 kW class | Oil port: 2B flange | Heat exchange: 73 kW | Oil flow: 200 to 800 L/min | Water flow: 125 L/min
Hydraulic EquipmentSMC
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC HOWF Water-Cooled Oil Cooler (Fixed Tube Sheet, Metal Particle)

Brand SMC·Hydraulic Equipment

Available part numbers (7)

HOWF7-06, HOWF11-06, HOWF22-08, HOWF37-08, HOWF55-10, HOWF75-10, HOWF110-16

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HOWF7-06Motor size: 7 kW class | Oil port: Rc3/4 | Heat exchange: 5.2 kW | Oil flow: 20 to 100 L/min | Water flow: 40 L/min
HOWF11-06Motor size: 11 kW class | Oil port: Rc3/4 | Heat exchange: 8.4 kW | Oil flow: 30 to 150 L/min | Water flow: 40 L/min
HOWF22-08Motor size: 22 kW class | Oil port: Rc1 | Heat exchange: 14 kW | Oil flow: 40 to 250 L/min | Water flow: 55 L/min
HOWF37-08Motor size: 37 kW class | Oil port: Rc1 | Heat exchange: 21 kW | Oil flow: 60 to 300 L/min | Water flow: 55 L/min
HOWF55-10Motor size: 55 kW class | Oil port: 1 1/4B flange | Heat exchange: 32 kW | Oil flow: 70 to 300 L/min | Water flow: 75 L/min
HOWF75-10Motor size: 75 kW class | Oil port: 1 1/4B flange | Heat exchange: 43 kW | Oil flow: 80 to 400 L/min | Water flow: 75 L/min
HOWF110-16Motor size: 110 kW class | Oil port: 2B flange | Heat exchange: 73 kW | Oil flow: 200 to 800 L/min | Water flow: 125 L/min
