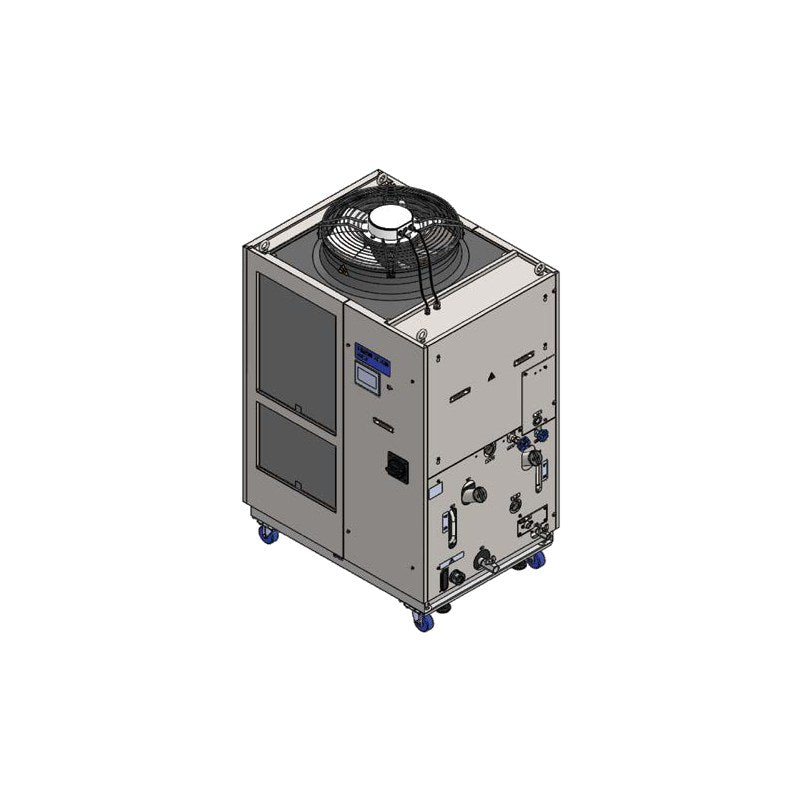

SMC HRL Thermo-Chiller (Dual Channel for Lasers, 9-37 kW)

SMC HRL Thermo-Chiller (Dual Channel for Lasers, 9-37 kW)

SMC HRL series dual-channel thermo-chiller for lasers, cooling the laser source (CH1) and the optics (CH2) independently from one unit, air-cooled or water-cooled.

Key features

  • Two independent circulating circuits: CH1 9 to 37 kW for the laser source, CH2 1 kW for the optics
  • CH1 set range 5 to 35°C (±0.1°C), CH2 10 to 40°C (±0.5°C); PID control with R410A refrigerant
  • Inverter pumps with pressure control, built-in bypass circuit and 5 µm particle filters; CH2 has electric conductivity control as standard
  • Rc threads standard (CH1 Rc1, CH2 Rc1/2); F (G thread) and N (NPT) conversion-fitting versions available
  • Options as suffix: D1 CH1/CH2 conductivity control, T2/T3 CH2 high-pressure pump (400V); 300/400 sizes air-cooled only
  • CE/UKCA marked; MET (UL) listed water-cooled and 400V models

Specifications

Refrigerant R410A (HFC)
Control method PID control
Set temperature range CH1 5 to 35°C / CH2 10 to 40°C
Temperature stability CH1 ±0.1°C / CH2 ±0.5°C
Circulating fluid Clear water, DI water
Circulating fluid port CH1 Rc1 / CH2 Rc1/2
CH2 rated flow 10 L/min (0.45 MPa), 7 L tank
Ambient temperature 2 to 45°C
Pipe thread Rc (F: G, N: NPT conversion fittings optional)
Source SMC Korea catalog CAT.KS40-68B (SMCKR_HRL.pdf), p. 7-8, 17-18 (PDF p. 8-9, 18-19)
HRL100-A-20 Cooling method: Air-cooled refrigeration | Power supply: 3-phase AC200V/200-230V | Cooling capacity CH1/CH2: 9 kW / 1 kW | Rated power: 5.4 (5.9) kW (kVA) | Mass: approx. 222 kg
HRL200-A-20 Cooling method: Air-cooled refrigeration | Power supply: 3-phase AC200V/200-230V | Cooling capacity CH1/CH2: 19 kW / 1 kW | Rated power: 10.5 (11.0) kW (kVA) | Mass: approx. 251 kg
HRL300-A-20 Cooling method: Air-cooled refrigeration | Power supply: 3-phase AC200V/200-230V | Cooling capacity CH1/CH2: 26 kW / 1 kW | Rated power: 13.1 (14.2) kW (kVA) | Mass: approx. 315 kg
HRL100-W-20 Cooling method: Water-cooled refrigeration | Power supply: 3-phase AC200V/200-230V | Cooling capacity CH1/CH2: 11 kW / 1 kW | Rated power: 4.8 (5.4) kW (kVA) | Mass: approx. 235 kg
HRL200-W-20 Cooling method: Water-cooled refrigeration | Power supply: 3-phase AC200V/200-230V | Cooling capacity CH1/CH2: 20.5 kW / 1 kW | Rated power: 7.9 (8.5) kW (kVA) | Mass: approx. 235 kg
HRL100-A-40 Cooling method: Air-cooled refrigeration | Power supply: 3-phase AC380-415V/460-480V | Cooling capacity CH1/CH2: 9 kW / 1 kW | Rated power: 5.6 (5.9) kW (kVA) | Mass: approx. 240 kg
HRL200-A-40 Cooling method: Air-cooled refrigeration | Power supply: 3-phase AC380-415V/460-480V | Cooling capacity CH1/CH2: 19 kW / 1 kW | Rated power: 9.4 (10.2) kW (kVA) | Mass: approx. 260 kg
HRL300-A-40 Cooling method: Air-cooled refrigeration | Power supply: 3-phase AC380-415V/460-480V | Cooling capacity CH1/CH2: 26 kW / 1 kW | Rated power: 12.3 (13.0) kW (kVA) | Mass: approx. 330 kg
HRL400-A-40 Cooling method: Air-cooled refrigeration | Power supply: 3-phase AC380-415V/460-480V | Cooling capacity CH1/CH2: 37 kW / 1 kW | Rated power: 15.1 (16.0) kW (kVA) | Mass: approx. 380 kg
HRL100-W-40 Cooling method: Water-cooled refrigeration | Power supply: 3-phase AC380-415V/460-480V | Cooling capacity CH1/CH2: 10 kW / 1 kW | Rated power: 7.9 (8.8) kW (kVA) | Mass: approx. 250 kg
HRL200-W-40 Cooling method: Water-cooled refrigeration | Power supply: 3-phase AC380-415V/460-480V | Cooling capacity CH1/CH2: 21.5 kW / 1 kW | Rated power: 8.6 (9.2) kW (kVA) | Mass: approx. 250 kg
ChillersSMC
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC HRL Thermo-Chiller (Dual Channel for Lasers, 9-37 kW)

Brand SMC·Chillers

Available part numbers (11)

HRL100-A-20, HRL200-A-20, HRL300-A-20, HRL100-W-20, HRL200-W-20, HRL100-A-40, HRL200-A-40, HRL300-A-40, HRL400-A-40, HRL100-W-40 + 1 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HRL100-A-20Cooling method: Air-cooled refrigeration | Power supply: 3-phase AC200V/200-230V | Cooling capacity CH1/CH2: 9 kW / 1 kW | Rated power: 5.4 (5.9) kW (kVA) | Mass: approx. 222 kg
HRL200-A-20Cooling method: Air-cooled refrigeration | Power supply: 3-phase AC200V/200-230V | Cooling capacity CH1/CH2: 19 kW / 1 kW | Rated power: 10.5 (11.0) kW (kVA) | Mass: approx. 251 kg
HRL300-A-20Cooling method: Air-cooled refrigeration | Power supply: 3-phase AC200V/200-230V | Cooling capacity CH1/CH2: 26 kW / 1 kW | Rated power: 13.1 (14.2) kW (kVA) | Mass: approx. 315 kg
HRL100-W-20Cooling method: Water-cooled refrigeration | Power supply: 3-phase AC200V/200-230V | Cooling capacity CH1/CH2: 11 kW / 1 kW | Rated power: 4.8 (5.4) kW (kVA) | Mass: approx. 235 kg
HRL200-W-20Cooling method: Water-cooled refrigeration | Power supply: 3-phase AC200V/200-230V | Cooling capacity CH1/CH2: 20.5 kW / 1 kW | Rated power: 7.9 (8.5) kW (kVA) | Mass: approx. 235 kg
HRL100-A-40Cooling method: Air-cooled refrigeration | Power supply: 3-phase AC380-415V/460-480V | Cooling capacity CH1/CH2: 9 kW / 1 kW | Rated power: 5.6 (5.9) kW (kVA) | Mass: approx. 240 kg
HRL200-A-40Cooling method: Air-cooled refrigeration | Power supply: 3-phase AC380-415V/460-480V | Cooling capacity CH1/CH2: 19 kW / 1 kW | Rated power: 9.4 (10.2) kW (kVA) | Mass: approx. 260 kg
HRL300-A-40Cooling method: Air-cooled refrigeration | Power supply: 3-phase AC380-415V/460-480V | Cooling capacity CH1/CH2: 26 kW / 1 kW | Rated power: 12.3 (13.0) kW (kVA) | Mass: approx. 330 kg
HRL400-A-40Cooling method: Air-cooled refrigeration | Power supply: 3-phase AC380-415V/460-480V | Cooling capacity CH1/CH2: 37 kW / 1 kW | Rated power: 15.1 (16.0) kW (kVA) | Mass: approx. 380 kg
HRL100-W-40Cooling method: Water-cooled refrigeration | Power supply: 3-phase AC380-415V/460-480V | Cooling capacity CH1/CH2: 10 kW / 1 kW | Rated power: 7.9 (8.8) kW (kVA) | Mass: approx. 250 kg
HRL200-W-40Cooling method: Water-cooled refrigeration | Power supply: 3-phase AC380-415V/460-480V | Cooling capacity CH1/CH2: 21.5 kW / 1 kW | Rated power: 8.6 (9.2) kW (kVA) | Mass: approx. 250 kg
