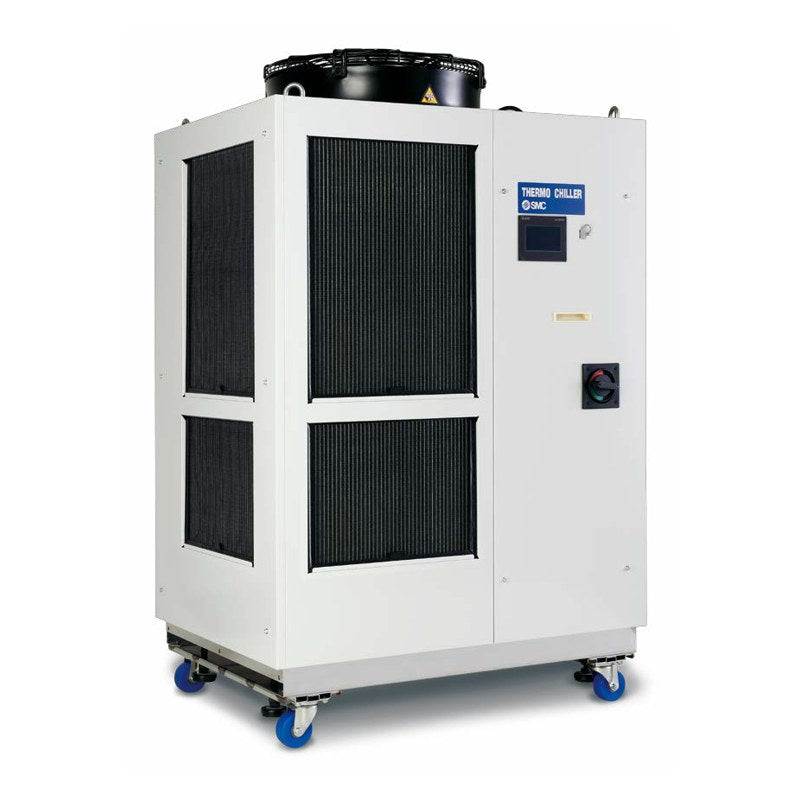

SMC HRLF Thermo-Chiller (Low GWP, Dual Channel for Lasers, 400V)

SMC HRLF Thermo-Chiller (Low GWP, Dual Channel for Lasers, 400V)

SMC HRLF series low-GWP dual-channel thermo-chiller for lasers, cooling the laser source (CH1) and the optics (CH2) independently from one unit on a 3-phase 400V supply.

Key features

  • Two independent circulating circuits: CH1 19 to 37 kW for the laser source, CH2 1 kW (max. 1.5 kW) for the optics
  • Low-GWP refrigerants: R454C (GWP 146) on HRLF200, R32 (GWP 675) on HRLF300/400
  • CH1 ±0.1°C and CH2 ±0.5°C temperature stability with PID control; inverter pumps with pressure control and built-in bypass
  • Rc threads standard (CH1 Rc1, CH2 Rc1/2); F (G thread) and N (NPT) conversion-fitting versions available
  • Options as suffix: D1 CH1/CH2 conductivity control, T2 CH2 high-pressure pump (CH2 max. 3 kW), D1T2 both
  • Touch panel; IO-Link on HRLF300/400; CE (except HRLF400) and Intertek (UL) listed

Specifications

Control method PID control
Power supply 3-phase AC380-415V 50Hz / 380-480V 60Hz
Set temperature range CH1 5-35°C (200) / 15-35°C (300/400); CH2 10/20-40°C
Temperature stability CH1 ±0.1°C / CH2 ±0.5°C
Circulating fluid Clear water, DI water
Circulating fluid port CH1 Rc1 / CH2 Rc1/2
CH2 rated flow 10 L/min (0.45 MPa)
Ambient temperature 2 to 45°C
Pipe thread Rc (F: G, N: NPT conversion fittings optional)
Source SMC Korea catalog CAT.KS40-80B (SMCKR_HRLF.pdf), p. 2-3 (PDF p. 3-4)
HRLF200-A-40 Cooling method: Air-cooled refrigeration | Cooling capacity CH1/CH2: 19 kW / 1 kW | Refrigerant: R454C (GWP 146) | Rated power: 11.1 (12.0) kW (kVA) | Mass: approx. 265 kg
HRLF300-A-40 Cooling method: Air-cooled refrigeration | Cooling capacity CH1/CH2: 26 kW / 1 kW | Refrigerant: R32 (GWP 675) | Rated power: 10.6 (11.5) kW (kVA) | Mass: approx. 340 kg
HRLF400-A-40 Cooling method: Air-cooled refrigeration | Cooling capacity CH1/CH2: 37 kW / 1 kW | Refrigerant: R32 (GWP 675) | Rated power: 13.5 (14.1) kW (kVA) | Mass: approx. 380 kg
HRLF200-W-40 Cooling method: Water-cooled refrigeration | Cooling capacity CH1/CH2: 21.5 kW / 1 kW | Refrigerant: R454C (GWP 146) | Rated power: 10.7 (11.5) kW (kVA) | Mass: approx. 255 kg
ChillersSMC
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC HRLF Thermo-Chiller (Low GWP, Dual Channel for Lasers, 400V)

Brand SMC·Chillers

Available part numbers (4)

HRLF200-A-40, HRLF300-A-40, HRLF400-A-40, HRLF200-W-40

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HRLF200-A-40Cooling method: Air-cooled refrigeration | Cooling capacity CH1/CH2: 19 kW / 1 kW | Refrigerant: R454C (GWP 146) | Rated power: 11.1 (12.0) kW (kVA) | Mass: approx. 265 kg
HRLF300-A-40Cooling method: Air-cooled refrigeration | Cooling capacity CH1/CH2: 26 kW / 1 kW | Refrigerant: R32 (GWP 675) | Rated power: 10.6 (11.5) kW (kVA) | Mass: approx. 340 kg
HRLF400-A-40Cooling method: Air-cooled refrigeration | Cooling capacity CH1/CH2: 37 kW / 1 kW | Refrigerant: R32 (GWP 675) | Rated power: 13.5 (14.1) kW (kVA) | Mass: approx. 380 kg
HRLF200-W-40Cooling method: Water-cooled refrigeration | Cooling capacity CH1/CH2: 21.5 kW / 1 kW | Refrigerant: R454C (GWP 146) | Rated power: 10.7 (11.5) kW (kVA) | Mass: approx. 255 kg
