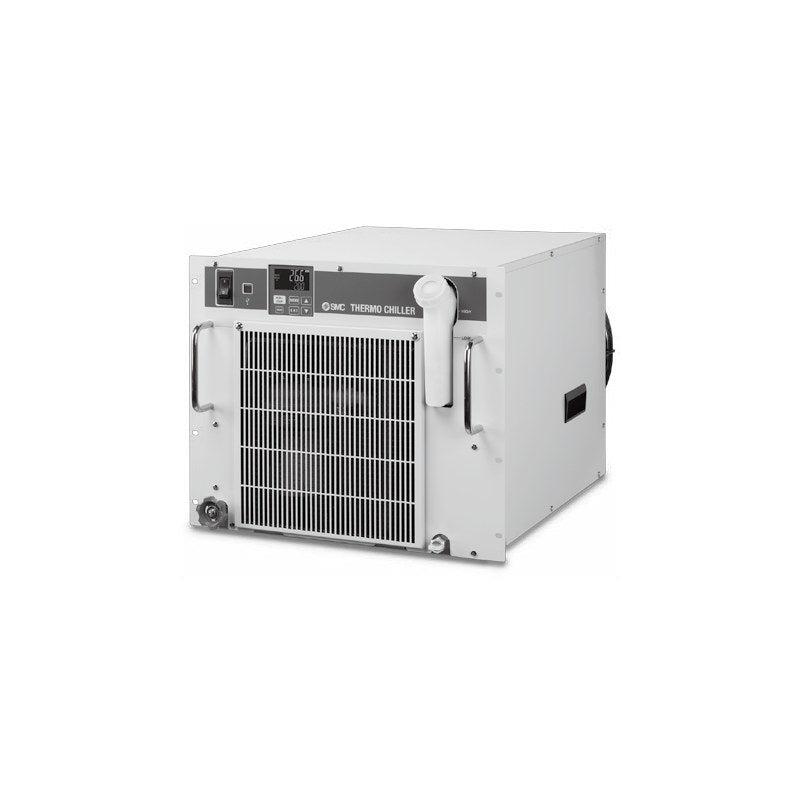

SMC HRR Thermo-Chiller (Rack Mount Type, 0.7 to 5.9 kW)

SMC HRR Thermo-Chiller (Rack Mount Type, 0.7 to 5.9 kW)

SMC HRR series circulating fluid temperature controller (thermo-chiller) in a 19-inch rack mount chassis, air-cooled or water-cooled, with cooling capacities from 770 W up to 5.9 kW.

Key features

  • Fits a 19-inch (EIA) rack; front-side access for fluid fill, filter and maintenance
  • Air-cooled (A) and water-cooled (W) refrigeration versions, PID control with temperature stability of +/-0.1 C
  • Single-phase AC100/115V, AC200-230V and three-phase AC380-415V/AC460-480V (HRR050) power supplies
  • Built-in flow meter, leak sensor, particle filter and bypass valve; contact I/O and RS-485/RS-232C serial communication
  • Options: DM (conductivity control, DI water piping), M (DI water piping), T/T1/T2 (high-pressure or inverter pump), U (UL), Y (legs, no rack brackets), Z/Z1 (without built-in accessories)
  • Piping thread Rc standard; F (Rc-G) or N (Rc-NPT) conversion fitting set on order

Specifications

Fluid Clear water, 15% ethylene glycol aqueous solution
Temperature control PID control
Temperature stability +/-0.1 C
Refrigerant R410A (HFC); HRR010-10 uses R134a
Circulating fluid ports Rc1/2 (drain Rc1/4)
Tank capacity Approx. 3 to 5 L
Ambient 5 to 40 C, 30 to 70% RH
Communication Contact I/O, serial RS-485/RS-232C
Port thread Rc (G/NPT conversion fitting sets: F/N)
Source SMC Korea catalog HRR (SMCKR_HRR.pdf), p. 9-25
HRR010-A-10-U Model: HRR010 | Cooling method: Air-cooled refrigeration | Power supply: 1-ph AC100V (50/60Hz) / AC115V (60Hz) | Cooling capacity (50/60Hz): 770/950 W | Set temp range: 15 to 35 C | Pump: Standard pump
HRR010-W-10-U Model: HRR010 | Cooling method: Water-cooled refrigeration | Power supply: 1-ph AC100V (50/60Hz) / AC115V (60Hz) | Cooling capacity (50/60Hz): 720/860 W | Set temp range: 15 to 35 C | Pump: Standard pump
HRR010-A-20-U Model: HRR010 | Cooling method: Air-cooled refrigeration | Power supply: 1-ph AC200-230V (50/60Hz) | Cooling capacity (50/60Hz): 950/1100 W | Set temp range: 15 to 35 C | Pump: Standard pump
HRR010-W-20-U Model: HRR010 | Cooling method: Water-cooled refrigeration | Power supply: 1-ph AC200-230V (50/60Hz) | Cooling capacity (50/60Hz): 1000/1100 W | Set temp range: 15 to 35 C | Pump: Standard pump
HRR012-A-10-U Model: HRR012 | Cooling method: Air-cooled refrigeration | Power supply: 1-ph AC100V (50/60Hz) / AC115V (60Hz) | Cooling capacity (50/60Hz): 1000/1200 W | Set temp range: 5 to 35 C | Pump: Standard pump
HRR012-W-10-U Model: HRR012 | Cooling method: Water-cooled refrigeration | Power supply: 1-ph AC100V (50/60Hz) / AC115V (60Hz) | Cooling capacity (50/60Hz): 1000/1200 W | Set temp range: 5 to 35 C | Pump: Standard pump
HRR018-A-10-U Model: HRR018 | Cooling method: Air-cooled refrigeration | Power supply: 1-ph AC100V (50/60Hz) / AC115V (60Hz) | Cooling capacity (50/60Hz): 1600/1800 W | Set temp range: 5 to 35 C | Pump: Standard pump
HRR018-W-10-U Model: HRR018 | Cooling method: Water-cooled refrigeration | Power supply: 1-ph AC100V (50/60Hz) / AC115V (60Hz) | Cooling capacity (50/60Hz): 1600/1800 W | Set temp range: 5 to 35 C | Pump: Standard pump
HRR012-A-20 Model: HRR012 | Cooling method: Air-cooled refrigeration | Power supply: 1-ph AC200-230V (50/60Hz) | Cooling capacity (50/60Hz): 1000/1200 W | Set temp range: 5 to 35 C | Pump: Standard pump
HRR012-W-20-U Model: HRR012 | Cooling method: Water-cooled refrigeration | Power supply: 1-ph AC200-230V (50/60Hz) | Cooling capacity (50/60Hz): 1000/1200 W | Set temp range: 5 to 35 C | Pump: Standard pump
HRR018-A-20 Model: HRR018 | Cooling method: Air-cooled refrigeration | Power supply: 1-ph AC200-230V (50/60Hz) | Cooling capacity (50/60Hz): 1600/1800 W | Set temp range: 5 to 35 C | Pump: Standard pump
HRR018-W-20-U Model: HRR018 | Cooling method: Water-cooled refrigeration | Power supply: 1-ph AC200-230V (50/60Hz) | Cooling capacity (50/60Hz): 1600/1800 W | Set temp range: 5 to 35 C | Pump: Standard pump
HRR024-A-20 Model: HRR024 | Cooling method: Air-cooled refrigeration | Power supply: 1-ph AC200-230V (50/60Hz) | Cooling capacity (50/60Hz): 2000/2400 W | Set temp range: 5 to 35 C | Pump: Standard pump
HRR024-W-20-U Model: HRR024 | Cooling method: Water-cooled refrigeration | Power supply: 1-ph AC200-230V (50/60Hz) | Cooling capacity (50/60Hz): 2000/2400 W | Set temp range: 5 to 35 C | Pump: Standard pump
HRR030-A-20 Model: HRR030 | Cooling method: Air-cooled refrigeration | Power supply: 1-ph AC200-230V (50/60Hz) | Cooling capacity (50/60Hz): 2500/3000 W | Set temp range: 5 to 35 C | Pump: Standard pump
HRR030-W-20-U Model: HRR030 | Cooling method: Water-cooled refrigeration | Power supply: 1-ph AC200-230V (50/60Hz) | Cooling capacity (50/60Hz): 2500/3000 W | Set temp range: 5 to 35 C | Pump: Standard pump
HRR050-A-20-U Model: HRR050 | Cooling method: Air-cooled refrigeration | Power supply: 1-ph AC200-230V (50/60Hz) | Cooling capacity (50/60Hz): 4600/5100 W | Set temp range: 5 to 35 C | Pump: Standard pump
HRR050-W-20-U Model: HRR050 | Cooling method: Water-cooled refrigeration | Power supply: 1-ph AC200-230V (50/60Hz) | Cooling capacity (50/60Hz): 5000/5900 W | Set temp range: 5 to 35 C | Pump: Standard pump
HRR050-A-40-T1U Model: HRR050 | Cooling method: Air-cooled refrigeration | Power supply: 3-ph AC380-415V / AC460-480V | Cooling capacity (50/60Hz): 4800/5800 W | Set temp range: 5 to 35 C | Pump: Inverter pump (T1)
HRR050-A-40-T2U Model: HRR050 | Cooling method: Air-cooled refrigeration | Power supply: 3-ph AC380-415V / AC460-480V | Cooling capacity (50/60Hz): 4800/5800 W | Set temp range: 5 to 35 C | Pump: High-pressure inverter pump (T2)
HRR050-W-40-T1U Model: HRR050 | Cooling method: Water-cooled refrigeration | Power supply: 3-ph AC380-415V / AC460-480V | Cooling capacity (50/60Hz): 5500/5900 W | Set temp range: 5 to 35 C | Pump: Inverter pump (T1)
HRR050-W-40-T2U Model: HRR050 | Cooling method: Water-cooled refrigeration | Power supply: 3-ph AC380-415V / AC460-480V | Cooling capacity (50/60Hz): 5500/5900 W | Set temp range: 5 to 35 C | Pump: High-pressure inverter pump (T2)
