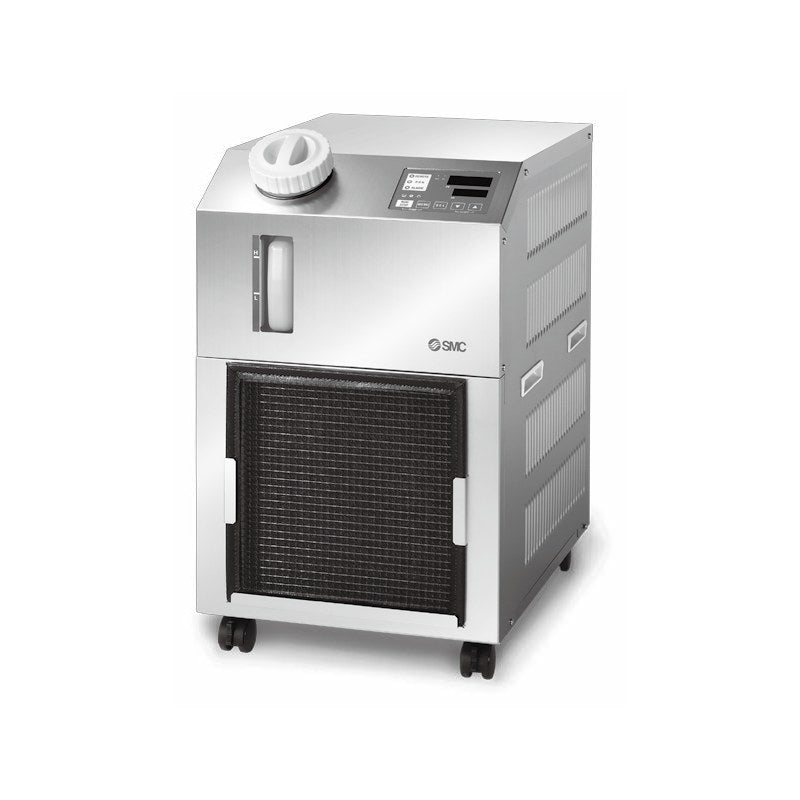

SMC HRS-R Thermo-chiller (Environment-Resistant, 1.7 to 5.0 kW)

SMC HRS-R Thermo-chiller (Environment-Resistant, 1.7 to 5.0 kW)

SMC HRS-R series environment-resistant air-cooled thermo-chiller for harsh installation conditions, in three cooling capacities from 1.7 to 5.0 kW on single-phase AC200-230V.

Key features

  • Environment-resistant construction with IP54 electrical box (cable entry IP67)
  • Air-cooled refrigeration with R410A refrigerant; ambient temperature up to 45°C
  • Temperature stability ±0.1°C with PID control; set temperature range 5 to 40°C
  • Options by suffix: B earth leakage breaker, J auto water fill, L large-capacity tank, T high-pressure pump (HRS018/030), V stainless steel panel, W SI units only
  • Piping thread: Rc standard (no symbol); F = G thread and N = NPT thread with conversion fittings supplied, on order

Specifications

Cooling method Air-cooled refrigeration
Refrigerant R410A (HFC)
Power supply 1-ph AC200-230V (50/60Hz), ±10%
Set temperature range 5 to 40°C
Temperature stability ±0.1°C
Circulating fluid Clear water, 15% ethylene glycol aqueous solution
Tank capacity Approx. 5 L
Circulating fluid port Rc1/2
Ambient temperature / humidity 5 to 45°C, 30 to 70% RH
Electrical box enclosure IP54 (cable entry IP67)
Source SMC Korea catalog HRS-R Series (SMCKR_HRS-R.pdf), p. 185-186 (PDF p. 6-7)
HRS018-A-20-R Model: HRS018-R | Cooling capacity (50/60Hz): 1700/1900 W | Pump rated flow: 7 L/min (0.13/0.18 MPa) | Mass: 45 kg
HRS030-A-20-R Model: HRS030-R | Cooling capacity (50/60Hz): 2500/2900 W | Pump rated flow: 7 L/min (0.13/0.18 MPa) | Mass: 45 kg
HRS050-A-20-R Model: HRS050-R | Cooling capacity (50/60Hz): 4500/5000 W | Pump rated flow: 23/28 L/min (0.21/0.28 MPa) | Mass: 69 kg
ChillersSMC
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC HRS-R Thermo-chiller (Environment-Resistant, 1.7 to 5.0 kW)

Brand SMC·Chillers

Available part numbers (3)

HRS018-A-20-R, HRS030-A-20-R, HRS050-A-20-R

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HRS018-A-20-RModel: HRS018-R | Cooling capacity (50/60Hz): 1700/1900 W | Pump rated flow: 7 L/min (0.13/0.18 MPa) | Mass: 45 kg
HRS030-A-20-RModel: HRS030-R | Cooling capacity (50/60Hz): 2500/2900 W | Pump rated flow: 7 L/min (0.13/0.18 MPa) | Mass: 45 kg
HRS050-A-20-RModel: HRS050-R | Cooling capacity (50/60Hz): 4500/5000 W | Pump rated flow: 23/28 L/min (0.21/0.28 MPa) | Mass: 69 kg
