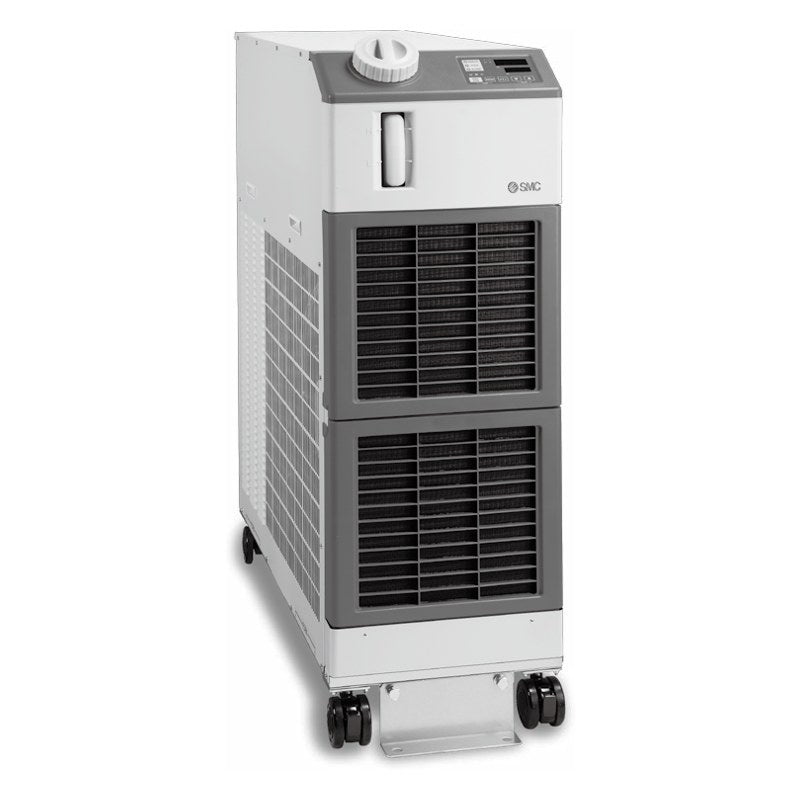

SMC HRS090 Thermo-chiller (9 kW, Air/Water-Cooled, 3-Phase)

SMC HRS090 Thermo-chiller (9 kW, Air/Water-Cooled, 3-Phase)

SMC HRS090 series 9 kW class thermo-chiller for indoor use, with air-cooled or water-cooled refrigeration and three-phase 200V, 400V or 460V power supply.

Key features

  • Cooling capacity 8.0/9.0 kW (air-cooled) or 9.0/10.5 kW (water-cooled) at 50/60Hz
  • Temperature stability ±0.5°C, or ±0.1°C on the 460V (power 46) version; set range 5 to 35°C
  • Built-in heating using refrigerant exhaust heat, no heater required; R410A refrigerant
  • Serial communication (RS-232C, RS-485) and contact I/O standard; 41 individual alarm codes
  • Options by suffix: B earth leakage breaker (200V only; standard on 400V/460V), J auto water fill, M DI water piping, W SI units only
  • Piping thread: Rc standard (no symbol); F = G thread and N = NPT thread with conversion fittings supplied, on order

Specifications

Set temperature range 5 to 35°C
Refrigerant R410A (HFC)
Circulating fluid Clear water, 15% ethylene glycol, deionized water
Tank capacity 18 L
Circulating fluid port Rc1
Drain port Rc1/4
Facility water port (water-cooled) Rc1/2
Pump rated flow (50/60Hz) 29/45 L/min
Ambient temperature / humidity 5 to 45°C, 30 to 70% RH
Mass Approx. 136 kg (air-cooled), 124 kg (water-cooled)
Source SMC Korea catalog HRS090 Series (SMCKR_HRS090.pdf), p. 88-90 (PDF p. 7-9)
HRS090-A-20 Cooling method: Air-cooled refrigeration | Cooling capacity (50/60Hz): 8.0/9.0 kW | Power supply: 3-ph AC200V(50Hz)/200-230V(60Hz) | Temperature stability: ±0.5°C
HRS090-A-40 Cooling method: Air-cooled refrigeration | Cooling capacity (50/60Hz): 8.0/9.0 kW | Power supply: 3-ph AC380-415V (50/60Hz) | Temperature stability: ±0.5°C
HRS090-A-46 Cooling method: Air-cooled refrigeration | Cooling capacity (50/60Hz): 8.0/9.0 kW | Power supply: 3-ph AC380-415V/460-480V(60Hz) | Temperature stability: ±0.1°C
HRS090-W-20 Cooling method: Water-cooled refrigeration | Cooling capacity (50/60Hz): 9.0/10.5 kW | Power supply: 3-ph AC200V(50Hz)/200-230V(60Hz) | Temperature stability: ±0.5°C
HRS090-W-40 Cooling method: Water-cooled refrigeration | Cooling capacity (50/60Hz): 9.0/10.5 kW | Power supply: 3-ph AC380-415V (50/60Hz) | Temperature stability: ±0.5°C
HRS090-W-46 Cooling method: Water-cooled refrigeration | Cooling capacity (50/60Hz): 9.0/10.5 kW | Power supply: 3-ph AC380-415V/460-480V(60Hz) | Temperature stability: ±0.1°C
ChillersSMC
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC HRS090 Thermo-chiller (9 kW, Air/Water-Cooled, 3-Phase)

Brand SMC·Chillers

Available part numbers (6)

HRS090-A-20, HRS090-A-40, HRS090-A-46, HRS090-W-20, HRS090-W-40, HRS090-W-46

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HRS090-A-20Cooling method: Air-cooled refrigeration | Cooling capacity (50/60Hz): 8.0/9.0 kW | Power supply: 3-ph AC200V(50Hz)/200-230V(60Hz) | Temperature stability: ±0.5°C
HRS090-A-40Cooling method: Air-cooled refrigeration | Cooling capacity (50/60Hz): 8.0/9.0 kW | Power supply: 3-ph AC380-415V (50/60Hz) | Temperature stability: ±0.5°C
HRS090-A-46Cooling method: Air-cooled refrigeration | Cooling capacity (50/60Hz): 8.0/9.0 kW | Power supply: 3-ph AC380-415V/460-480V(60Hz) | Temperature stability: ±0.1°C
HRS090-W-20Cooling method: Water-cooled refrigeration | Cooling capacity (50/60Hz): 9.0/10.5 kW | Power supply: 3-ph AC200V(50Hz)/200-230V(60Hz) | Temperature stability: ±0.5°C
HRS090-W-40Cooling method: Water-cooled refrigeration | Cooling capacity (50/60Hz): 9.0/10.5 kW | Power supply: 3-ph AC380-415V (50/60Hz) | Temperature stability: ±0.5°C
HRS090-W-46Cooling method: Water-cooled refrigeration | Cooling capacity (50/60Hz): 9.0/10.5 kW | Power supply: 3-ph AC380-415V/460-480V(60Hz) | Temperature stability: ±0.1°C
