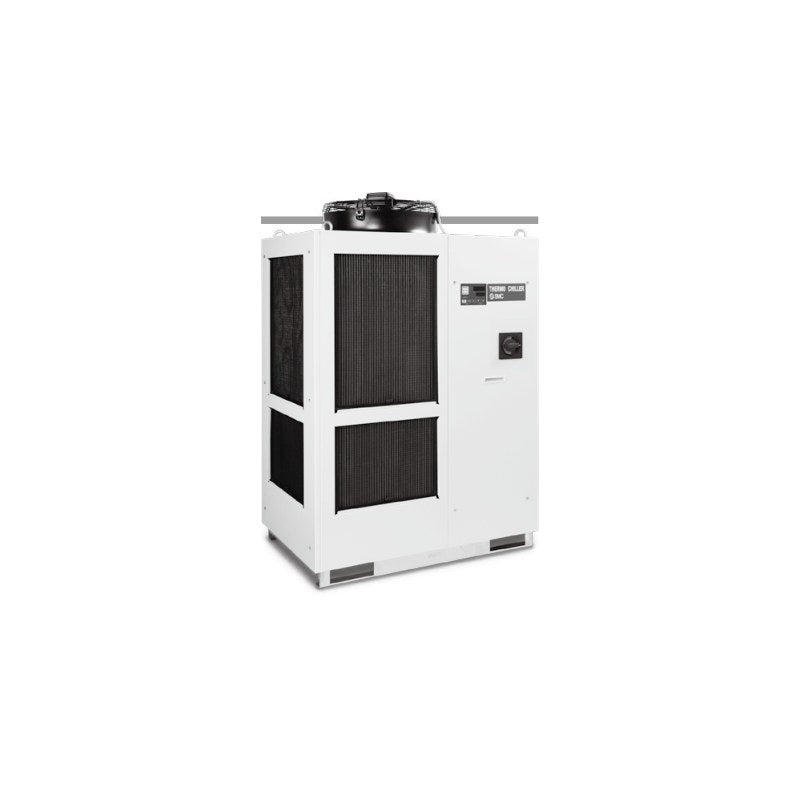

SMC HRS100/150 Thermo-chiller (10/15 kW, Air/Water-Cooled)

SMC HRS100/150 Thermo-chiller (10/15 kW, Air/Water-Cooled)

SMC HRS100/150 series 10 kW and 15 kW class thermo-chiller with air-cooled or water-cooled refrigeration and three-phase 200V, 400V or 460V power supply.

Key features

  • Cooling capacity 9.0/9.5 to 14.5/16.5 kW at 50/60Hz depending on model and cooling method
  • Temperature stability ±1.0°C, or ±0.1°C on the 460V (power 46) version; set range 5 to 35°C
  • Automatic water fill standard; IPX4 enclosure; R410A refrigerant
  • Earth leakage breaker with handle standard on 400V/460V versions
  • Options by suffix: A casters and adjuster feet, B earth leakage breaker, B1 breaker with handle (200V), K water fill port, W SI units only
  • Piping thread: Rc standard (no symbol); F = G thread and N = NPT thread with conversion fittings supplied, on order

Specifications

Set temperature range 5 to 35°C
Refrigerant R410A (HFC)
Circulating fluid Clear water, 15% ethylene glycol, deionized water
Tank capacity 18 L
Circulating fluid port Rc3/4
Drain port Rc1/4
Auto water fill / overflow port Rc1/2 / Rc1
Facility water port (water-cooled) Rc3/4
Pump rated flow (50/60Hz) 42/56 L/min
Enclosure IPX4
Mass 151 to 177 kg (dry)
Source SMC Korea catalog HRS100/150 Series (SMCKR_HRS100_150.pdf), p. 112-116 (PDF p. 5-9)
HRS100-A-20 Model: HRS100 | Cooling method: Air-cooled refrigeration | Cooling capacity (50/60Hz): 9.0/9.5 kW | Power supply: 3-ph AC200V(50Hz)/200-230V(60Hz) | Temperature stability: ±1.0°C
HRS100-A-40 Model: HRS100 | Cooling method: Air-cooled refrigeration | Cooling capacity (50/60Hz): 9.0/9.5 kW | Power supply: 3-ph AC380-415V (50/60Hz) | Temperature stability: ±1.0°C
HRS100-A-46 Model: HRS100 | Cooling method: Air-cooled refrigeration | Cooling capacity (50/60Hz): 9.0/9.5 kW | Power supply: 3-ph AC380-415V/460-480V(60Hz) | Temperature stability: ±0.1°C
HRS100-W-20 Model: HRS100 | Cooling method: Water-cooled refrigeration | Cooling capacity (50/60Hz): 10.0/11.0 kW | Power supply: 3-ph AC200V(50Hz)/200-230V(60Hz) | Temperature stability: ±1.0°C
HRS100-W-40 Model: HRS100 | Cooling method: Water-cooled refrigeration | Cooling capacity (50/60Hz): 10.0/11.0 kW | Power supply: 3-ph AC380-415V (50/60Hz) | Temperature stability: ±1.0°C
HRS100-W-46 Model: HRS100 | Cooling method: Water-cooled refrigeration | Cooling capacity (50/60Hz): 10.0/11.0 kW | Power supply: 3-ph AC380-415V/460-480V(60Hz) | Temperature stability: ±0.1°C
HRS150-A-20 Model: HRS150 | Cooling method: Air-cooled refrigeration | Cooling capacity (50/60Hz): 13.0/14.5 kW | Power supply: 3-ph AC200V(50Hz)/200-230V(60Hz) | Temperature stability: ±1.0°C
HRS150-A-40 Model: HRS150 | Cooling method: Air-cooled refrigeration | Cooling capacity (50/60Hz): 13.0/14.5 kW | Power supply: 3-ph AC380-415V (50/60Hz) | Temperature stability: ±1.0°C
HRS150-A-46 Model: HRS150 | Cooling method: Air-cooled refrigeration | Cooling capacity (50/60Hz): 13.0/14.5 kW | Power supply: 3-ph AC380-415V/460-480V(60Hz) | Temperature stability: ±0.1°C
HRS150-W-20 Model: HRS150 | Cooling method: Water-cooled refrigeration | Cooling capacity (50/60Hz): 14.5/16.5 kW | Power supply: 3-ph AC200V(50Hz)/200-230V(60Hz) | Temperature stability: ±1.0°C
HRS150-W-40 Model: HRS150 | Cooling method: Water-cooled refrigeration | Cooling capacity (50/60Hz): 14.5/16.5 kW | Power supply: 3-ph AC380-415V (50/60Hz) | Temperature stability: ±1.0°C
HRS150-W-46 Model: HRS150 | Cooling method: Water-cooled refrigeration | Cooling capacity (50/60Hz): 14.5/16.5 kW | Power supply: 3-ph AC380-415V/460-480V(60Hz) | Temperature stability: ±0.1°C
ChillersSMC
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC HRS100/150 Thermo-chiller (10/15 kW, Air/Water-Cooled)

Brand SMC·Chillers

Available part numbers (12)

HRS100-A-20, HRS100-A-40, HRS100-A-46, HRS100-W-20, HRS100-W-40, HRS100-W-46, HRS150-A-20, HRS150-A-40, HRS150-A-46, HRS150-W-20 + 2 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HRS100-A-20Model: HRS100 | Cooling method: Air-cooled refrigeration | Cooling capacity (50/60Hz): 9.0/9.5 kW | Power supply: 3-ph AC200V(50Hz)/200-230V(60Hz) | Temperature stability: ±1.0°C
HRS100-A-40Model: HRS100 | Cooling method: Air-cooled refrigeration | Cooling capacity (50/60Hz): 9.0/9.5 kW | Power supply: 3-ph AC380-415V (50/60Hz) | Temperature stability: ±1.0°C
HRS100-A-46Model: HRS100 | Cooling method: Air-cooled refrigeration | Cooling capacity (50/60Hz): 9.0/9.5 kW | Power supply: 3-ph AC380-415V/460-480V(60Hz) | Temperature stability: ±0.1°C
HRS100-W-20Model: HRS100 | Cooling method: Water-cooled refrigeration | Cooling capacity (50/60Hz): 10.0/11.0 kW | Power supply: 3-ph AC200V(50Hz)/200-230V(60Hz) | Temperature stability: ±1.0°C
HRS100-W-40Model: HRS100 | Cooling method: Water-cooled refrigeration | Cooling capacity (50/60Hz): 10.0/11.0 kW | Power supply: 3-ph AC380-415V (50/60Hz) | Temperature stability: ±1.0°C
HRS100-W-46Model: HRS100 | Cooling method: Water-cooled refrigeration | Cooling capacity (50/60Hz): 10.0/11.0 kW | Power supply: 3-ph AC380-415V/460-480V(60Hz) | Temperature stability: ±0.1°C
HRS150-A-20Model: HRS150 | Cooling method: Air-cooled refrigeration | Cooling capacity (50/60Hz): 13.0/14.5 kW | Power supply: 3-ph AC200V(50Hz)/200-230V(60Hz) | Temperature stability: ±1.0°C
HRS150-A-40Model: HRS150 | Cooling method: Air-cooled refrigeration | Cooling capacity (50/60Hz): 13.0/14.5 kW | Power supply: 3-ph AC380-415V (50/60Hz) | Temperature stability: ±1.0°C
HRS150-A-46Model: HRS150 | Cooling method: Air-cooled refrigeration | Cooling capacity (50/60Hz): 13.0/14.5 kW | Power supply: 3-ph AC380-415V/460-480V(60Hz) | Temperature stability: ±0.1°C
HRS150-W-20Model: HRS150 | Cooling method: Water-cooled refrigeration | Cooling capacity (50/60Hz): 14.5/16.5 kW | Power supply: 3-ph AC200V(50Hz)/200-230V(60Hz) | Temperature stability: ±1.0°C
HRS150-W-40Model: HRS150 | Cooling method: Water-cooled refrigeration | Cooling capacity (50/60Hz): 14.5/16.5 kW | Power supply: 3-ph AC380-415V (50/60Hz) | Temperature stability: ±1.0°C
HRS150-W-46Model: HRS150 | Cooling method: Water-cooled refrigeration | Cooling capacity (50/60Hz): 14.5/16.5 kW | Power supply: 3-ph AC380-415V/460-480V(60Hz) | Temperature stability: ±0.1°C
