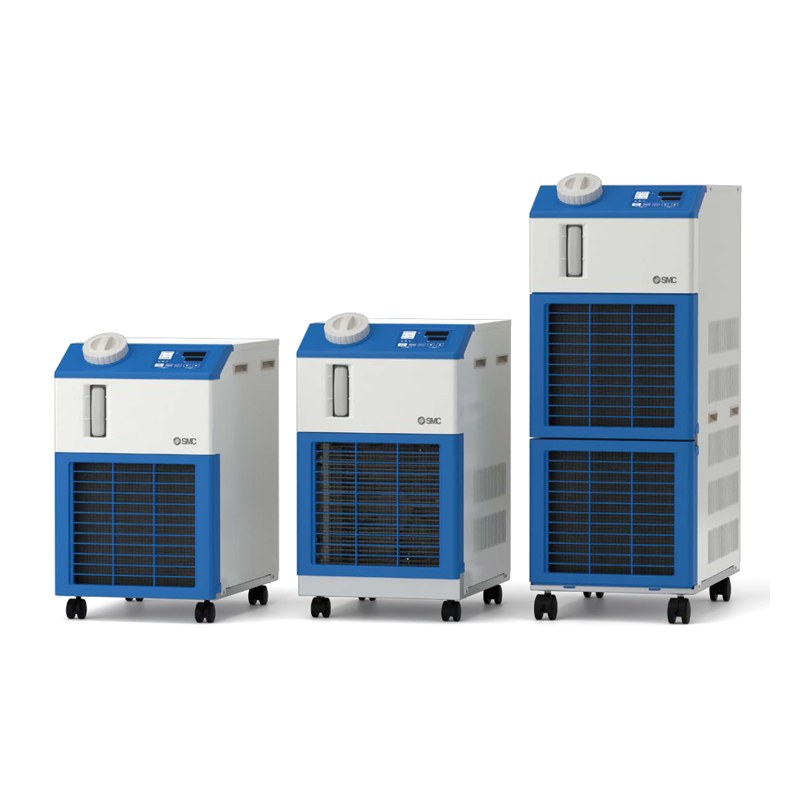

SMC HRSC Thermo-Chiller (CO2 Refrigerant, 1-Phase 200V, 1.3-5.9 kW)

SMC HRSC Thermo-Chiller (CO2 Refrigerant, 1-Phase 200V, 1.3-5.9 kW)

SMC HRSC series thermo-chiller using natural CO2 (R744, GWP 1) refrigerant, air-cooled or water-cooled, for single-phase AC200 to 230V supply.

Key features

  • Natural CO2 refrigerant R744 (GWP 1, ASHRAE A1 non-toxic, non-flammable) - no fluorocarbon recovery or disposal cost, air-shippable
  • Cooling capacity 1300 W (012) to 5900 W (060), PID control with +/-0.1 C temperature stability
  • Set temperature range 5 to 40 C, approx. 5 L tank, Rc1/2 circulating fluid ports
  • Rc threads standard; F (G thread) and N (NPT) conversion fitting sets available
  • Options as suffix: G high-temperature environment (air-cooled 012-024), J auto water fill, M DI water piping, T high-pressure pump (012-040)
  • CE/UKCA marked, Intertek (UL) listed, RoHS

Specifications

Refrigerant R744 (CO2, GWP 1)
Control method PID control
Set temperature range 5 to 40 C
Temperature stability +/-0.1 C
Circulating fluid Clear water, 15% ethylene glycol, DI water
Power supply 1-phase AC200 to 230V (50/60Hz), +/-10%
Tank capacity Approx. 5 L
Circulating fluid port Rc1/2
Facility water port (W type) Rc3/8 (050/060: Rc1/2)
Ambient conditions 5 to 40 C, 30 to 70% RH, altitude below 3000 m, indoor
Source SMC Korea catalog CAT.KS40-83A (SMCKR_HRSC.pdf), p. 9-11 (PDF p. 10-12)
HRSC012-A-20 Cooling method: Air-cooled refrigeration | Cooling capacity: 1300 W | Heating capacity: 650 W | Rated pump flow (50/60Hz): 7/7 L/min | Mass: 51 kg
HRSC018-A-20 Cooling method: Air-cooled refrigeration | Cooling capacity: 1900 W | Heating capacity: 650 W | Rated pump flow (50/60Hz): 7/7 L/min | Mass: 51 kg
HRSC024-A-20 Cooling method: Air-cooled refrigeration | Cooling capacity: 2400 W | Heating capacity: 650 W | Rated pump flow (50/60Hz): 7/7 L/min | Mass: 51 kg
HRSC030-A-20 Cooling method: Air-cooled refrigeration | Cooling capacity: 3200 W | Heating capacity: 640 W | Rated pump flow (50/60Hz): 7/7 L/min | Mass: 53 kg
HRSC040-A-20 Cooling method: Air-cooled refrigeration | Cooling capacity: 4200 W | Heating capacity: 1100 W | Rated pump flow (50/60Hz): 7/7 L/min | Mass: 53 kg
HRSC050-A-20 Cooling method: Air-cooled refrigeration | Cooling capacity: 5100 W | Heating capacity: 1400 W | Rated pump flow (50/60Hz): 23/28 L/min | Mass: 73 kg
HRSC060-A-20 Cooling method: Air-cooled refrigeration | Cooling capacity: 5900 W | Heating capacity: 1300 W | Rated pump flow (50/60Hz): 23/28 L/min | Mass: 73 kg
HRSC012-W-20 Cooling method: Water-cooled refrigeration | Cooling capacity: 1300 W | Heating capacity: 650 W | Rated pump flow (50/60Hz): 7/7 L/min | Mass: 50 kg
HRSC018-W-20 Cooling method: Water-cooled refrigeration | Cooling capacity: 1900 W | Heating capacity: 650 W | Rated pump flow (50/60Hz): 7/7 L/min | Mass: 50 kg
HRSC024-W-20 Cooling method: Water-cooled refrigeration | Cooling capacity: 2400 W | Heating capacity: 650 W | Rated pump flow (50/60Hz): 7/7 L/min | Mass: 50 kg
HRSC030-W-20 Cooling method: Water-cooled refrigeration | Cooling capacity: 3200 W | Heating capacity: 600 W | Rated pump flow (50/60Hz): 7/7 L/min | Mass: 53 kg
HRSC040-W-20 Cooling method: Water-cooled refrigeration | Cooling capacity: 4200 W | Heating capacity: 1000 W | Rated pump flow (50/60Hz): 7/7 L/min | Mass: 53 kg
HRSC050-W-20 Cooling method: Water-cooled refrigeration | Cooling capacity: 5100 W | Heating capacity: 1300 W | Rated pump flow (50/60Hz): 23/28 L/min | Mass: 70 kg
HRSC060-W-20 Cooling method: Water-cooled refrigeration | Cooling capacity: 5900 W | Heating capacity: 1300 W | Rated pump flow (50/60Hz): 23/28 L/min | Mass: 70 kg
