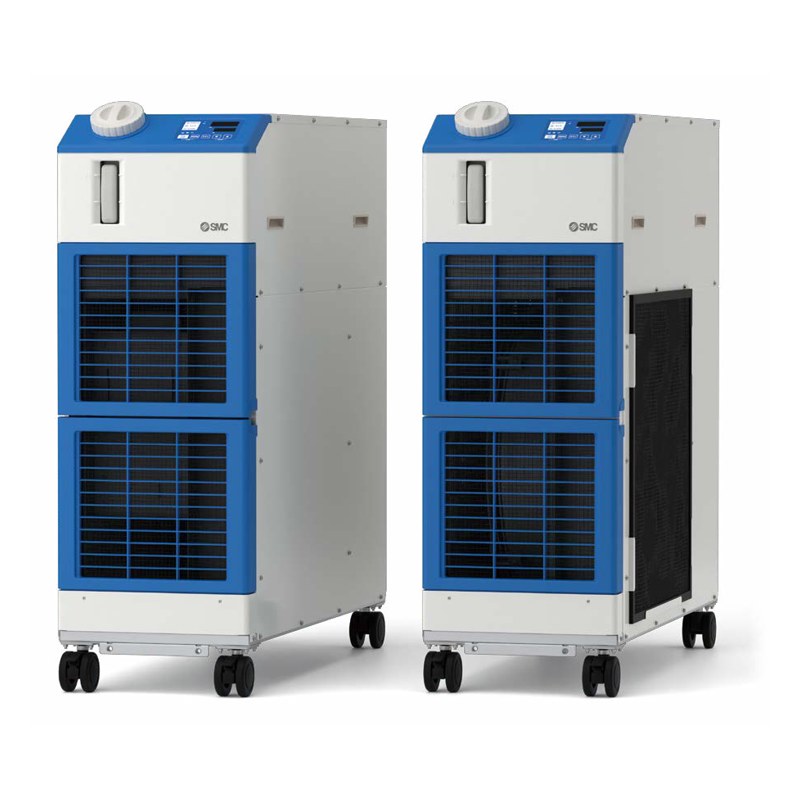

SMC HRSC090 Thermo-Chiller (CO2 Refrigerant, 3-Phase 400V, 9.5-11 kW)

SMC HRSC090 Thermo-Chiller (CO2 Refrigerant, 3-Phase 400V, 9.5-11 kW)

SMC HRSC090 thermo-chiller with natural CO2 (R744, GWP 1) refrigerant for 3-phase 400V supply, available air-cooled or water-cooled.

Key features

  • Natural CO2 refrigerant R744 (GWP 1) - no fluorocarbon management or recovery cost
  • Cooling capacity 9.5 kW (air-cooled) or 11.0 kW (water-cooled), heating capacity 2.5 kW
  • Inverter pump with pressure control; rated flow 45 L/min at 0.5 MPa, max. head 50 m
  • Set temperature range 5 to 40 C with +/-0.1 C stability, approx. 18 L tank
  • Rc threads standard (F: G thread, N: NPT conversion fittings); option J auto water fill as suffix

Specifications

Refrigerant R744 (CO2, GWP 1)
Control method PID control
Set temperature range 5 to 40 C
Temperature stability +/-0.1 C
Heating capacity 2.5 kW
Rated flow 45 L/min (0.5 MPa)
Tank capacity Approx. 18 L
Circulating fluid port Rc1 (drain Rc1/4)
Power supply 3-phase AC380Y/220V-415Y/240V 50Hz, AC380Y/220V-480Y/277V 60Hz
Standards CE/UKCA, Intertek (UL), RoHS
Source SMC Korea catalog CAT.KS40-83A (SMCKR_HRSC.pdf), p. 31-32 (PDF p. 34-35)
HRSC090-A-40 Cooling method: Air-cooled refrigeration | Cooling capacity: 9.5 kW | Rated power: 6.4 kW (6.8 kVA) | Mass: Approx. 137 kg
HRSC090-W-40 Cooling method: Water-cooled refrigeration | Cooling capacity: 11.0 kW | Rated power: 6.2 kW (6.6 kVA) | Mass: Approx. 135 kg
ChillersSMC
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC HRSC090 Thermo-Chiller (CO2 Refrigerant, 3-Phase 400V, 9.5-11 kW)

Brand SMC·Chillers

Available part numbers (2)

HRSC090-A-40, HRSC090-W-40

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
