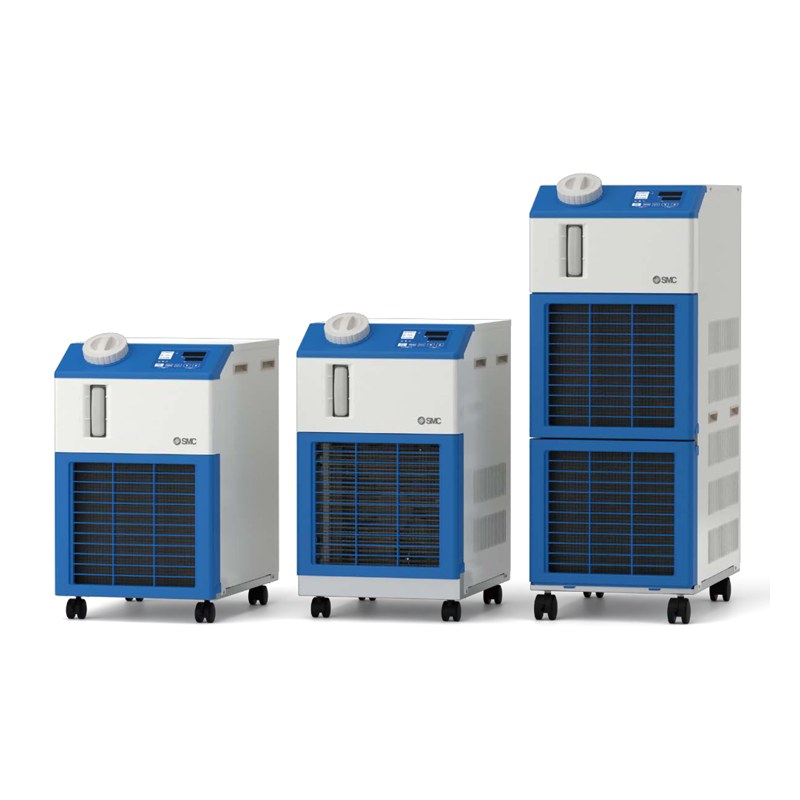

SMC HRSC100 Thermo-Chiller (CO2 Refrigerant, 3-Phase 400V, 10.5-11.5 kW)

SMC HRSC100 Thermo-Chiller (CO2 Refrigerant, 3-Phase 400V, 10.5-11.5 kW)

SMC HRSC100 thermo-chiller with natural CO2 (R744, GWP 1) refrigerant for 3-phase 400V supply, IPX4 enclosure for indoor or outdoor installation.

Key features

  • Natural CO2 refrigerant R744 (GWP 1) - no fluorocarbon management or recovery cost
  • Cooling capacity 10.5 kW (air-cooled) or 11.5 kW (water-cooled), heating capacity 2.5 kW
  • IPX4 enclosure, indoor/outdoor installation; auto water fill standard
  • Rated flow 45 L/min at 0.43 MPa, max. flow 120 L/min, approx. 25 L tank
  • Rc threads standard (F: G, N: NPT conversion fittings); options A caster/adjuster foot and K water fill port as suffix

Specifications

Refrigerant R744 (CO2, GWP 1)
Control method PID control
Set temperature range 5 to 35 C
Temperature stability +/-0.1 C
Heating capacity 2.5 kW
Rated flow 45 L/min (0.43 MPa)
Tank capacity Approx. 25 L
Circulating fluid port Rc1 (drain Rc3/4)
Power supply 3-phase AC380Y/220V-415Y/240V 50Hz, AC380Y/220V-480Y/277V 60Hz
Enclosure IPX4
Source SMC Korea catalog CAT.KS40-83A (SMCKR_HRSC.pdf), p. 41-42 (PDF p. 44-45)
HRSC100-A-40 Cooling method: Air-cooled refrigeration | Cooling capacity: 10.5 kW | Rated power: 5.6 kW (5.9 kVA) | Ambient temperature: 5 to 45 C | Mass: Approx. 191 kg
HRSC100-W-40 Cooling method: Water-cooled refrigeration | Cooling capacity: 11.5 kW | Rated power: 5.0 kW (5.4 kVA) | Ambient temperature: 2 to 45 C | Mass: Approx. 174 kg
ChillersSMC
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC HRSC100 Thermo-Chiller (CO2 Refrigerant, 3-Phase 400V, 10.5-11.5 kW)

Brand SMC·Chillers

Available part numbers (2)

HRSC100-A-40, HRSC100-W-40

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HRSC100-A-40Cooling method: Air-cooled refrigeration | Cooling capacity: 10.5 kW | Rated power: 5.6 kW (5.9 kVA) | Ambient temperature: 5 to 45 C | Mass: Approx. 191 kg
HRSC100-W-40Cooling method: Water-cooled refrigeration | Cooling capacity: 11.5 kW | Rated power: 5.0 kW (5.4 kVA) | Ambient temperature: 2 to 45 C | Mass: Approx. 174 kg
